Different types of end milling bits are designed for specific machining applications. Square end milling bits are ideal for grooving and right-angle edge machining; ball nose end milling bits are widely used for finishing molds and complex curved surfaces; corner radius milling bits help reduce chipping and extend tool life; and tapered end milling bits provide additional strength and stability for deep cavities and three-dimensional engraving. Micro end milling bits are indispensable for manufacturing small, precise components in electronics, medical devices, and micro-molds.
With the manufacturing industry demanding faster, more precise machining, engineers must consider not only tool geometry but also multiple factors when selecting end milling bits, including workpiece material (aluminum alloys, steel, carbide, graphite, composites), cutting parameters, coating technology, and tool life. Proper tool selection can significantly improve CNC machining efficiency and consistency, while minimizing tool wear and production costs.
This article provides a comprehensive guide to end milling bits, covering tool geometry, machining advantages, typical applications, and how to choose the right tool for practical production. It aims to help manufacturing engineers, mold designers, and CNC programmers understand the value and future development trends of these essential cutting tools.
What Are End Milling Bits?
End milling bits are one of the most common and essential tools in CNC machining. They remove material through rotary cutting, enabling a wide range of operations such as slotting, side milling, flat surface machining, cavity creation, 3D engraving, and finishing. Compared to other cutting tools, such as turning tools or drills, end mills offer unmatched versatility, flexibility, and machining accuracy.
In practical applications, engineers select the appropriate end milling bits based on workpiece material (aluminum, steel, carbide, composites) and machining requirements (high-precision mold manufacturing, mass production, fine engraving). Choosing the right tool not only improves tool life but also enhances surface finish and reduces overall production costs. Understanding the fundamentals of end milling bits and their role in CNC machining is critical for effective tool selection and process optimization.
Definition and Basic Functions of End Milling Bits
End milling bits are rotating tools with multiple cutting edges, typically mounted on CNC milling machines or machining centers. They are usually made of carbide, high-speed steel (HSS), or diamond-coated materials. Depending on design, their cutting edges can machine both the end and side surfaces of a workpiece.
Basic functions include:
-
Slotting: Creating straight grooves, keyways, and slots.
-
Side and face milling: Machining part sidewalls and flat surfaces.
-
Cavity and surface milling: Forming molds and complex 3D surfaces.
-
Finishing and roughing: Performing both large stock removal and high-precision surface machining.
The Role of End Milling Bits in CNC Machining
In CNC machining, end milling bits are central to achieving high-precision cutting and efficient production. Their role includes:
-
Improving machining efficiency: The right tool increases cutting speeds and feed rates.
-
Ensuring surface quality: Tool types such as square, ball nose, and corner radius help achieve desired surface roughness and part accuracy.
-
Extending tool life: Correct tool selection and parameter optimization reduce chipping and wear.
-
Meeting diverse needs: From large metal parts to tiny precision components, micro end milling bits provide solutions for high-precision applications.
Why Choosing the Right End Milling Bit is Critical
Tool selection directly affects production efficiency, workpiece quality, and machining costs. Poor choices can lead to:
-
Inefficient machining: Cutting speeds too slow, affecting production cycle times.
-
Poor surface quality: Burrs, chatter marks, and uneven finishes affect assembly accuracy.
-
Shortened tool life: Improper tool type or coating increases chipping and wear.
-
Higher costs: Frequent tool changes and scrapped workpieces increase overall expenses.
Engineers must consider material type, part geometry, tool geometry, and coating properties when selecting a tool. For example:
-
Square end milling bits: Ideal for sharp edges and flat surfaces.
-
Ball nose end milling bits: Best for molds and 3D surfaces.
-
Micro end milling bits: Designed for small-scale, high-precision cutting.
Common End Milling Bit Types
End milling bits are categorized based on geometry and application. Each type has specific advantages regarding cutting performance, material compatibility, and surface quality. Selecting the right tool depends on part structure, surface finish requirements, and workpiece material. The five most common types are:
Square End Milling Bits
Square end milling bits are widely used for slotting, face milling, and sharp edge machining.
Applications: Slotting, side milling, stepping in mechanical parts and mold blanks.
Advantages: Simple geometry, sharp cutting edges, high machining efficiency.
Limitations: Square corners are prone to stress concentration and chipping; not ideal for curved surfaces.

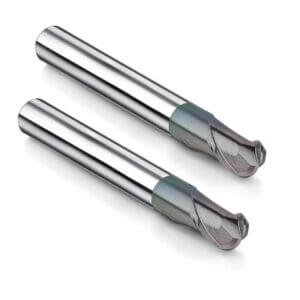

Ball Nose End Milling Bits
Ball nose end milling bits feature a hemispherical nose, ideal for 3D surface machining and free-form shapes.
Applications: Mold cavities, curved part finishing, complex engraving.
Advantages: High surface finish, reduced need for polishing or grinding.
Examples: Automotive molds, aircraft blades, engraved components.
Corner Radius End Mills
Corner radius milling bits have a small radius at the tool tip, balancing square and ball end features.
Applications: Mold machining, edge transitions on precision parts.
Advantages: Reduced chipping, longer tool life, smoother edge transitions.
Materials: Steel, carbide, wear-resistant alloys.
Tapered End Milling Bits
Tapered end milling bits have a tapered cutter body, providing strength and stability for deep cavities.
Applications: Engraving, mold cavities, aerospace components.
Advantages: Better resistance to lateral forces, reduced vibration, lower breakage risk.
Typical uses: Deep cavity molds, aerospace structural parts, artistic engraving.
Micro End Milling Bits
Micro end milling bits have extremely small diameters, designed for precision micromachining.
Applications: Electronics, medical devices, micro-molds.
Challenges: Small diameters increase breakage risk; require precise cutting parameters, machine rigidity, and cooling.
Solutions: High-performance carbide with specialized coatings; optimized cutting speeds and feeds.
How to Select the Appropriate End Milling Bits for Different Materials
Selecting the right end milling bits ensures machining efficiency, surface quality, and tool life across different materials, which vary in hardness, toughness, thermal conductivity, and chip evacuation difficulty. Proper selection reduces tool wear, improves surface finish, and lowers production costs.
Tool Selection for Aluminum Alloy Machining
-
Tool Material: Carbide or coated aluminum-specific tools to prevent chip sticking.
-
Tool Geometry: Square or micro end mills with sharp edges and large helix angles for efficient chip evacuation.
-
Coatings: TiAlN or DLC for wear resistance and adhesion reduction.
-
Applications: High-speed cutting, groove milling, flat surface finishing for smooth finishes.
Recommended Tools for Steel and Carbide Machining
-
Tool Material: High-performance carbide or diamond-coated tools for durability under heat and pressure.
-
Tool Types: Square, corner radius, or ball nose end mills depending on workpiece geometry.
-
Geometry: Large helix angles or offset edges for chip evacuation and reduced chipping.
-
Applications: Mold machining, rough and fine machining, high-hardness component forming.
Machining Techniques for Graphite, Composites, and Special Materials
-
Tool Materials: Coated carbide or diamond for high wear resistance.
-
Tool Types: Micro and ball-end milling bits for deep cavities and complex shapes.
-
Techniques: Low cutting speeds, high feed rates, layered milling to prevent burning or cracking.
-
Applications: Precision molds, electronic components, aerospace composites, engraving.
Coating and Material Selection for End Milling Bits
The performance of end milling bits depends on both tool geometry and material/coating selection. Choosing the right tool substrate and coating is crucial for machining efficiency, tool life, and surface finish. A well-matched material and coating combination can reduce edge chipping, enhance wear resistance, support high-speed cutting, and enable machining of high-hardness materials.
Carbide vs HSS
Carbide:
-
Applications: Steel, carbide, mold machining, and precision parts.
-
Advantages: High hardness, excellent wear resistance, minimal thermal deformation, long tool life, stable cutting performance, and suitable for high-speed machining.
HSS:
-
Applications: Aluminum alloys, low-hardness steel, prototype machining, small-batch production.
-
Advantages: Excellent toughness and impact resistance, suitable for low-speed cutting.
-
Limitations: Lower wear resistance and thermal stability, prone to wear during high-speed cutting.
Common Coatings (TiAlN, DLC, Diamond Coating, etc.)
Coatings enhance end milling bit performance by improving wear resistance, reducing friction, and increasing tool life:
-
TiAlN Coating: High-temperature and wear-resistant; ideal for steel and mold machining.
-
DLC Coating: Low friction, reduces chip adhesion; suitable for aluminum alloys and high-viscosity materials.
-
Diamond Coating: Extremely hard and wear-resistant; ideal for graphite, composites, non-ferrous metals, and high-hardness materials.
Choosing a Coating Based on Material and Machining Speed
-
High-speed machining: TiAlN or diamond-coated carbide tools for high-temperature durability.
-
Low-speed or brittle materials: DLC-coated or HSS tools to minimize chipping and sticking.
-
High wear resistance: Diamond coatings for graphite, ceramics, and composites.
Tip: Match coating and tool type to the material and machining speed for optimal CNC performance, tool life, and surface finish.
Common Problems and Solutions When Using End Milling Bits
Despite their versatility, end milling bits may encounter issues such as chipping, poor chip evacuation, poor surface finish, and shortened tool life. Understanding causes and remedies helps engineers optimize machining and reduce scrap.
Tool Chipping
Causes:
-
Excessive depth of cut or feed rate
-
High material hardness or inclusions
-
Poor tool mounting or insufficient machine rigidity
-
Inappropriate tool geometry for the task
Solutions:
-
Adjust cutting depth and feed rate
-
Use carbide or diamond-coated tools
-
Ensure stable tool clamping and machine rigidity
-
Choose proper tool type for workpiece geometry
Poor Chip Evacuation
Causes:
-
Incorrect helix angle or flute geometry
-
Excessive cutting depth or chip length
-
Insufficient coolant or lubrication
Solutions:
-
Use a tool with a proper helix angle and flute design for the material
-
Employ cutting fluid, air cooling, or MQL
-
Reduce depth of cut and mill in layers for smooth chip flow
Poor Surface Finish
Causes:
-
Tool wear or chipping
-
Improper cutting parameters
-
Tool vibration or low machine rigidity
-
Mismatch between tool geometry and workpiece shape
Solutions:
-
Replace worn tools or use coated tools
-
Adjust speeds, feeds, and depths
-
Select suitable tool type (e.g., ball nose for surface finishing)
-
Ensure rigid clamping
Short Tool Life
Causes:
-
High hardness or demanding materials
-
Improper tool selection
-
Poor cutting parameters
-
Inefficient chip evacuation
Solutions:
-
Match tool type and coating to material (TiAlN, diamond)
-
Optimize feed, speed, and depth of cut
-
Ensure proper lubrication and chip evacuation
-
Monitor tool wear and replace timely
Future Development Trends of End Milling Bits
End milling bits are evolving towards intelligent, high-performance, and environmentally friendly tools. Future trends focus on efficiency, tool life, machining stability, and green manufacturing.
Intelligent Tools and Real-Time Monitoring
-
Built-in sensors monitor cutting forces, vibration, temperature, and wear.
-
Benefits: Real-time feedback, prevent chipping, optimize cutting parameters.
-
Applications: Aerospace, precision molds, high-speed CNC machining.
Advanced Coatings and Nanomaterials
-
Nano coatings: Enhance wear resistance and heat tolerance.
-
Nanomaterial tools: Improve toughness, reduce chipping.
-
Applications: Mold machining, steel and carbide parts, composites.
Efficient and Green Machining
-
Energy-saving design: Optimized geometry reduces cutting resistance.
-
High-speed cutting with precise feeds maximizes efficiency.
-
MQL or dry cutting reduces environmental impact.
-
Benefits: Lower scrap rates, reduced tool consumption, greener production.
Conclusion and Tool Selection Recommendations
Selecting the right end milling bits directly impacts machining efficiency, surface finish, tool life, and production costs. By understanding tool types, material compatibility, coatings, common issues, and future trends, engineers can make informed tool selections.
Comparison of End Milling Bit Types
-
Square end mills: Grooving and flat surfaces; sharp edges prone to chipping.
-
Ball nose end mills: 3D curved surfaces and molds; excellent surface finish.
-
Corner radius end mills: Balance cutting efficiency and durability; smooth edge transitions.
-
Tapered end mills: Deep cavities and 3D structures; high stability and strength.
-
Micro end mills: High-precision small components; require careful parameter control.
Tool Selection Guide
-
Aluminum: Carbide or coated micro end mills; high helix angle for chip evacuation.
-
Steel/Carbide: Square, corner radius, or ball nose; TiAlN/diamond coatings; high-speed cutting.
-
Graphite/Composites/Specialty materials: Diamond-coated or micro/ball nose cutters; layered milling; low-speed, high-feed.
-
Deep cavities or 3D structures: Tapered or ball nose with high-performance coatings.
-
High surface finish: Ball nose or corner radius with optimal lubrication and cooling.
