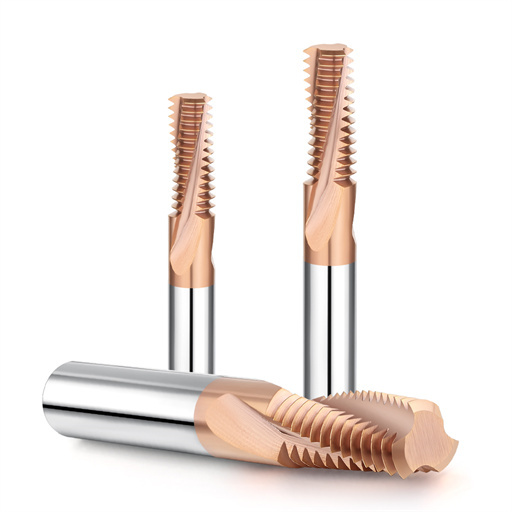

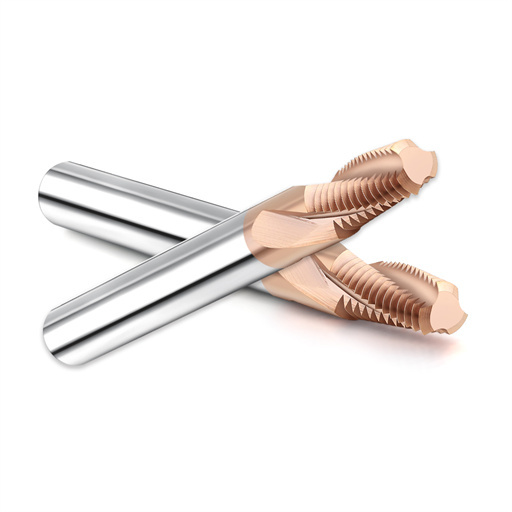

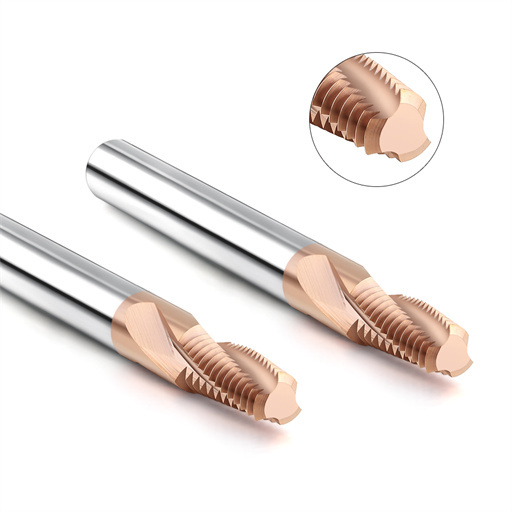

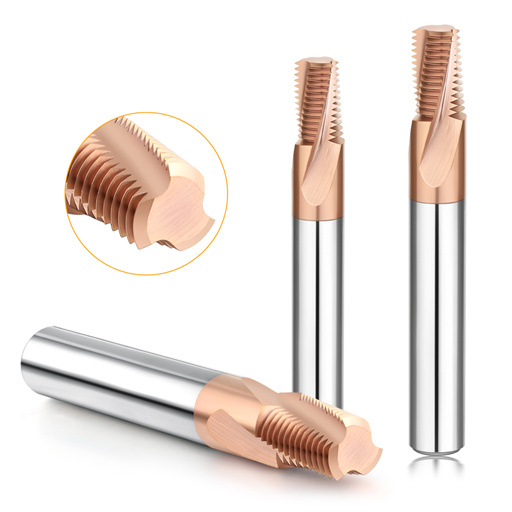

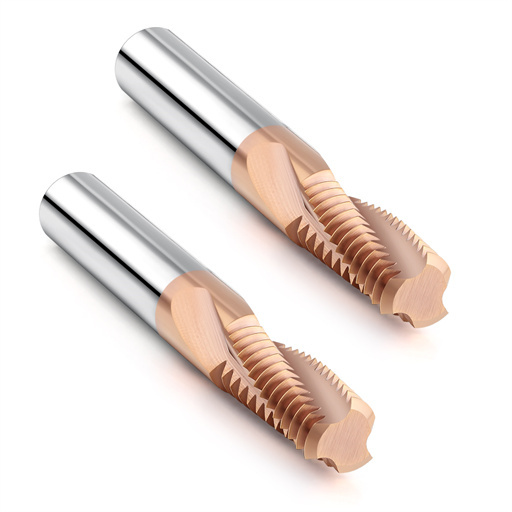

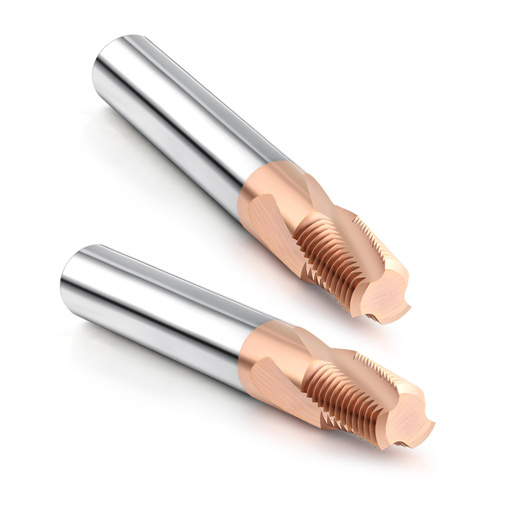

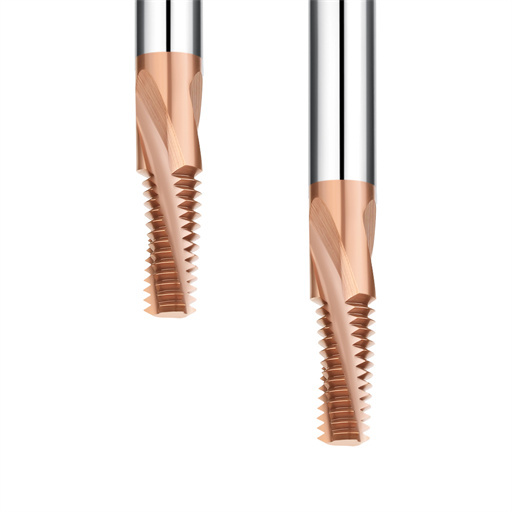

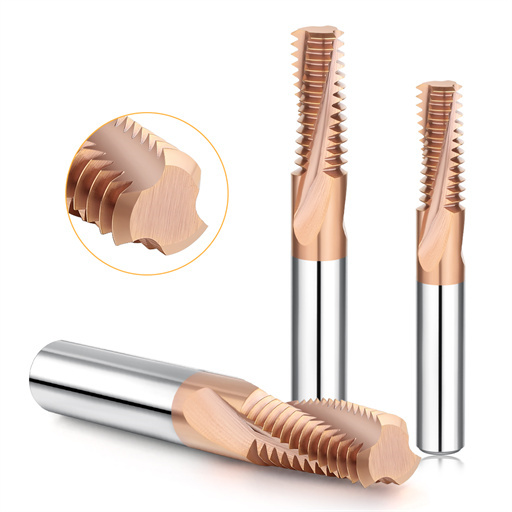

Thread End Mill

What is a Thread End Mill?

Definition and Functionality of Thread End Mill

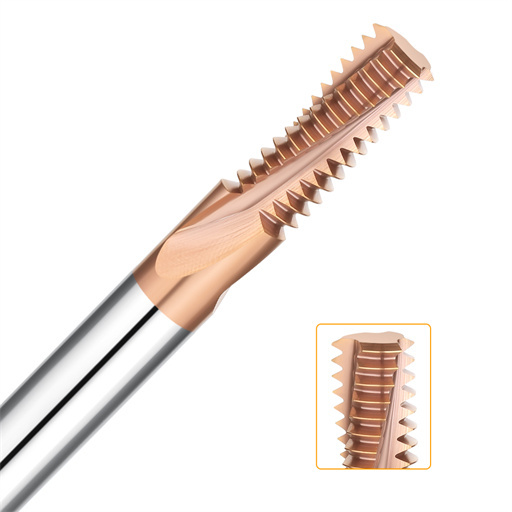

A Thread End Mill, also commonly referred to as a “thread mill,” is a cutting tool used in modern machining practices to create screw threads. These tools are characterized by their unique helical flute design, which facilitates precise and efficient cutting operations. Here are some critical functionalities of a Thread End Mill:

1. Versatility: Thread End Mills are capable of creating both right-hand and left-hand threads, internal and external threads, making them highly versatile tools in any machinist’s arsenal.

2. Precision: The use of Thread End Mills allows for precise control of thread depth and pitch, resulting in highly accurate threads that adhere to strict manufacturing tolerances.

3. Efficiency: Combining the operations of drilling and threading into a single process, Thread End Mills streamlines production and enhances efficiency.

4. Durability: Crafted from premium-grade carbide, Thread End Mills exhibit high wear resistance, enabling them to execute numerous threading operations without significant performance degradation.

Investing in Thread End Mills can, therefore, significantly elevate the quality and efficiency of your threading operations, offering a high return on investment.

Benefits of Using a Carbide Thread End Mill

The advantages of using a Carbide Thread End Mill include:

1. Superior Cutting Performance: Carbide Thread End Mills offer unsurpassed cutting performance due to their high hardness and heat resistance. They maintain sharpness for extended periods, ensuring consistent, high-quality threading.
2. Long Service Life: These tools’ high wear resistance extends their service life, reducing the frequency of tool replacement and the associated costs.
3. Versatility in Material Compatibility: Carbide Thread End Mills can effectively cut a wide range of materials, including those considered difficult to machine, such as high-carbon steel, stainless steel, and even some non-ferrous metals.
4. Efficiency in High-Speed Machining: Given their excellent heat and wear resistance, Carbide Thread End Mills are perfect for high-speed machining applications, allowing for faster production times and increased throughput.
5. Cost-Effectiveness: While the upfront cost may be higher, the long-term savings from reduced tool replacements and increased productivity make Carbide Thread End Mills a cost-effective solution for threading applications.

By incorporating Carbide Thread End Mills into your machining practices, you can enhance operational efficiency, reduce costs, and improve the quality of your final product.

Applications and Materials Suitable for Thread End Milling

Thread End Milling is not limited to any particular industry and finds extensive utility across various sectors due to its ability to create precise and clean threads. This technology is employed in:

1. Automotive Industry: For the creation of fine threads in engine parts, gearboxes, and other components that require robust and precise threading.

2. Aerospace: In the production of aircraft components, the high accuracy and superior finish of Carbide Thread End Mills are vital for maintaining safety and performance standards.
3. Medical Equipment Manufacturing: These tools are used for threading on surgical instruments, orthopedic implants, and other critical medical devices where precision is paramount.
4. Oil & Gas Industry: For threading pipelines, drill bits, and other equipment that withstand high pressure and harsh environments.

As for material compatibility, Carbide Thread End Mills can handle a wide variety of workpiece materials. These include but are not limited to:

1. Alloys: High-carbon steel, stainless steel, and non-ferrous metals that are typically challenging to machine.
2. Plastics: Advanced engineering plastics, where the tool’s superior finish is advantageous.
3. Composite Materials: Such as carbon fiber-reinforced polymers, popular in aerospace applications.

By utilizing Carbide Thread End Mills, industries and manufacturers can ensure optimal threading performance across a wide array of applications and materials.

How to Choose the Right Thread End Mill for Your Application

Choosing the correct Thread End Mill for your application can significantly impact the efficiency and quality of your threading operations. Consider the following factors:

1. Material: The type of workpiece material plays a critical role in tool selection. For instance, if you’re working with high-carbon steel or stainless steel, you should opt for a Carbide Thread End Mill designed for hard materials.
2. Thread Size and Pitch: Ensure that the tool matches the thread size and pitch requirements of your application. Choosing an incorrect size or pitch can lead to inaccurate threads or tool breakage.
3. Flute Count: Tools with a higher number of flutes will produce a smoother finish but may require slower feed rates. Conversely, tools with fewer flutes can handle higher feed rates but may not deliver as smooth a finish.
4. Thread Form: Whether your application requires straight or tapered threads, internal or external threads, the difference in thread forms necessitates specific Thread End Mills.
5. Machine Specifications: Consider the specifications of your CNC machine, including its speed, torque, power, and compatibility with different tool types.
6. Budget: High-quality end mills often come with higher price tags. However, investing in a premium tool can save you money in the long run through improved efficiency and tool longevity.

By carefully considering these factors, you can select the most effective and efficient Thread End Mill for your specific application.

Utilization of Thread End Mill in Different Industries

Thread End Mills find utilization across a variety of industries due to their versatile capabilities. The Automotive Industry is one such field, where these tools are essential in creating threads in vehicle parts, ensuring precision and durability. In the Aerospace Industry, the demand for Thread End Mills is significant due to the need for highly accurate threading in aircraft components, resisting high pressure and temperature conditions.

Within the Medical Equipment Manufacturing Industry, these tools are indispensable for producing intricate threads in surgical instruments and equipment, meeting strict hygiene and performance standards. Furthermore, the Energy Sector employs Thread End Mills for threading applications in components of power generation equipment.

Lastly, in the evolving Tech Industry, Thread End Mills are utilized in the manufacturing of computer hardware, where precise threads are integral for equipment efficiency and reliability. By choosing the correct Thread End Mill for specific industry applications, businesses can optimize their production process, enhancing both product quality and operational efficiency.

How to Select the Right Thread End Mill?

Considerations for Selecting the Right Thread End Mill

Material Selection

The material of the Thread End Mill significantly influences its performance and longevity. More complex materials like carbide provide higher wear resistance, ideal for cutting more complex workpiece materials, but they may also be more brittle. High-speed steels, although less complicated, can offer more flexibility.

Thread Type

Thread Mills are designed to create specific types of threads, such as straight or tapered. The choice between these depends on the thread type required in the workpiece.

Coating

Coatings can enhance the performance of Thread End Mills by increasing their heat resistance and reducing friction. Standard layers include Titanium Nitride (TiN) and Titanium Carbon Nitride (TiCN), each with their specific advantages.

Cutting Diameter

The cutting diameter needs to match the diameter of the thread to be cut. Thread Mills come in a variety of diameters, allowing for precise matching with the workpiece requirements.

Flute Count

The flute count can impact the speed and quality of the threading operation. More flutes allow for faster operations, but fewer flutes can provide better chip evacuation.

In conclusion, considering these factors will assist in selecting the suitable Thread End Mill, resulting in better performance and efficiency, potentially saving costs in the long run.

Factors Affecting the Performance of Thread End Mills

1. Cutting Speed: The speed at which the Thread End Mill cuts the workpiece is instrumental in determining the quality of the threading. Higher rates may increase efficiency but can also result in overheating and premature wear.
2. Chip Load: The amount of material removed by each cutting edge during a cut, known as the chip load, affects the smoothness of the thread. Incorrect chip load can lead to poor surface finish or tool breakage.
3. Coolant Use: The application of suitable coolants during the cutting operation reduces heat and helps in efficient chip evacuation. It is a crucial factor for prolonging tool life and achieving a high-quality thread.
4. Workpiece Material: The hardness and toughness of the workpiece material can impact the performance of the Thread End Mill. More complex materials may require slower cutting speeds and specific tool materials to prevent tool damage.
5. Machine Rigidity: The stability and rigidity of the machine performing the threading operation can also influence the quality of the threads. Inadequate machine rigidity may lead to tool deflection, resulting in inaccurate thread profiles.

Thread End Mill Designs and Geometries

Threadmill designs and geometries significantly impact the performance, efficiency, and quality of the threading operation. The primary variables include Flute Geometry, Number of Flutes, and End Shapes.

Flute Geometry plays a vital role in chip evacuation and heat dissipation. A spiral flute design, for instance, assists in efficient chip removal and reduces heat buildup, improving tool life and finish quality.

The Number of Flutes on a Thread End Mill is associated directly with the tool’s productivity and finish. A higher number of flutes increases the tool’s cutting speed, but it can compromise chip evacuation. Conversely, fewer flutes offer better chip evacuation but at a slower cutting speed.

End Shapes or the tip geometry of a Thread End Mill can also impact its performance. For example, a square end mill is ideal for applications requiring a 90-degree corner, while a ball nose end mill is optimal for milling keyways and slots.

In conclusion, understanding these aspects of Thread End Mill designs and geometries is critical in selecting the appropriate tool for your threading application, ensuring not only the quality of the threads but also the longevity and efficiency of the device.

High-Performance Carbide Thread End Mills Capable of Internal and External Threading

High-Performance Carbide Thread End Mills offer superior capabilities for both internal and external threading applications. Crafted from solid carbide, these tools provide robust strength and durability, enabling them to withstand challenging machining conditions while ensuring high-precision performance. The fine-grained structure of carbide offers excellent hardness and thermal stability, reducing wear and tear and extending tool life. Additionally, carbide’s high-speed cutting ability significantly enhances operation efficiency. Whether you’re machining internal threads within bore diameters or producing external lines on workpiece surfaces, these high-performance tools are designed to deliver accurate, high-quality results. The unique geometry of these Thread End Mills allows for precise cutting, minimizing the risk of tool breakage and ensuring a superior finish. In conclusion, for threading tasks that require high precision, speed, and efficiency, High-Performance Carbide Thread End Mills is an outstanding choice.

Choosing the Right Thread End Mill for Specific Material and Application

Choosing the suitable Thread End Mill for a specific material and application requires careful consideration of several factors. Firstly, understanding the material’s hardness and machinability is crucial. For example, more rigid materials like stainless steel or titanium may require Thread End Mills made from ultra-hard carbide or coated with heat-resistant substances to ensure durability and precision. Secondly, consider the type and depth of thread needed. Coarse threads are quicker to produce and are ideal for most general applications, while fine lines are better suited for applications requiring high precision and strength. For deeper thread depths, choose a Thread End Mill with a longer length of cut. Lastly, remember the application-specific requirements. If you’re creating threads in blind holes, opt for Thread End Mills with chip-breaking geometry to prevent chip clogging. It is also worth considering whether the application requires the creation of internal or external threads. By taking these factors into account, you can choose a Thread End Mill that will deliver optimal performance for your specific material and application.

What are the Advantages of Using a Thread End Mill?

Enhanced Performance and Finish with Carbide Thread End Mills

Carbide Thread End Mills delivers enhanced performance and superior finish, primarily due to their robust nature and design advantages. Made from high-quality tungsten carbide, they offer exceptional hardness and heat resistance, making them suitable for machining a broad range of materials, including those that are hard and abrasive. Their sharp cutting edges promote smooth operation and a high-quality surface finish, reducing the need for subsequent finishing processes. Furthermore, the rigidity of carbide allows for higher cutting speeds without sacrificing precision, leading to increased productivity. Designed for both internal and external threading, Carbide Thread End Mills offer versatility that is unmatched by conventional tapping tools. These advantages make Carbide Thread End Mills a preferred choice among machinists aiming for precision, efficiency, and a superior finish in their threading operations.

Improved Efficiency and Faster Cycle Times with High-Performance Tools

High-performance Thread End Mills are meticulously designed to streamline your threading operations. Their superior construction effectively eliminates the typical bottlenecks associated with conventional threading tools, resulting in faster cycle times and improved operational efficiency. By leveraging the power of these high-performance tools, you can significantly enhance your productivity and bottom line.

Precision and Consistency in Thread Milling

Thread End Mills are renowned for their unsurpassed precision and consistency. These tools are engineered to deliver exact thread profiles, ensuring the creation of perfect threads each time. This precision leads to consistent thread quality across multiple applications, providing users with the assurance that every line produced will meet or exceed industry standards.

Customer-Specific Solutions and Ready-to-Ship Thread End Mills

We understand that every machining need is unique, and, therefore, offer customer-specific solutions. Our vast library of Thread End Mills is available for immediate dispatch, helping you minimize downtime and meet your production schedules. In addition, our team is ready to provide customized solutions tailored to your specific threading needs, further enhancing your machining capabilities.

Thread End Mills for a Wide Range of Metric and Inch Threads

Our product line is comprehensive, catering to both metric and inch thread requirements. Whether you’re working with micro threads or large-diameter threads, our Thread End Mills can meet and exceed your expectations. Our tools are designed to deliver precise, consistent, and reliable performance across a broad spectrum of thread sizes and pitches. This versatility makes them an indispensable tool in any machinist’s arsenal.

How to Optimize the Performance of Thread End Mills?

Coolant and Lubrication Techniques for Carbide Thread End Mills

Proper coolant and lubrication practices are paramount in prolonging the life of Carbide Thread End Mills and ensuring their optimal performance. When machining, a consistent and adequate supply of coolant should be maintained to carry away the heat generated and to prevent the carbide from overheating. This not only prevents premature tool wear but also yields a better surface finish.

Lubrication, on the other hand, reduces the friction between the tool and the workpiece. It is advisable to use high-quality lubricants designed for metalworking applications. These lubricants form a thin layer between the cutting tool and workpiece, minimizing the heat and reducing friction that can result in tool chipping or breaking.

Remember, the type of material you are working with may also influence your coolant and lubricant choice. Always refer to the tool manufacturer’s guidelines for proper coolant and lubrication techniques to ensure you’re maximizing the longevity and performance of your Carbide Thread End Mills.

Thread End Mill Maintenance and Longevity

Maintenance plays a crucial role in ensuring the longevity of your Thread End Mills. Regular inspection for wear and tear and cleaning of the tool’s flutes are essential steps. It’s advisable to use appropriate cleaning solutions and soft brushes to prevent damage to the carbide material.

Process Optimization for Thread Milling with Premium Carbide Tools

Process optimization for thread milling involves mastering the spindle speed, feed rate, and depth of cut according to the tool’s specifications and the workpiece material. Adjustments may be necessary depending on the hardness and machinability of the material. Utilizing premium carbide tools can enhance the efficiency and precision of the thread milling process further.

Thread End Mill Selection for Hardened Materials

Selecting the appropriate Thread End Mill for hardened materials can be challenging. Typically, tools with a higher percentage of cobalt in the carbide composition tend to perform better with more rigid fabrics. Additionally, selecting a device with a multi-flute design can improve the performance and tool life when working with hardened materials.

Utilizing Helical Flute Geometry for Effective Thread End Milling

Helical flute geometry in Thread End Mills offers several advantages for thread milling. It promotes efficient chip evacuation, reducing heat buildup and tool wear. This design also allows for increased cutting speeds, resulting in shorter cycle times. Therefore, choosing a Thread End Mill with a helical flute design can significantly enhance your milling performance.

Why Choose a Carbide Thread End Mill over Traditional Tapping Methods?

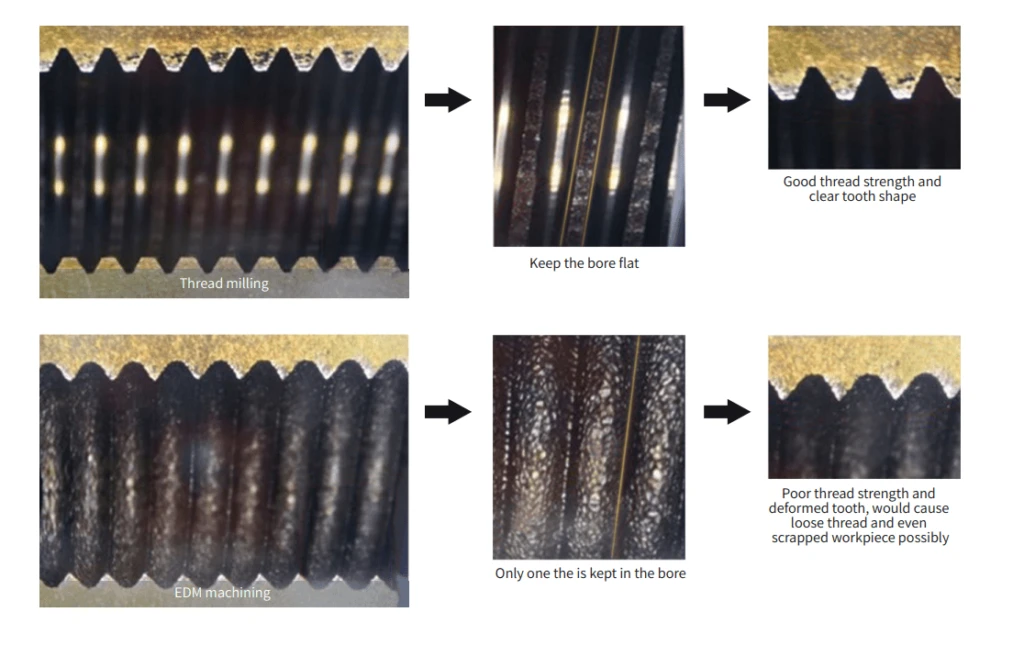

Comparison of Thread End Milling and Tapping Processes

Thread End Milling and traditional tapping are two prevalent methods used in the machining industry, each with its unique attributes and potential benefits:

• Efficiency: Thread End Milling generally offers greater efficiency than tapping, especially when dealing with more rigid materials. The optimizable spindle speed, feed rate, and depth of cut in thread-end milling result in shorter cycle times, making it the preferential choice for high-volume production.
• Flexibility: Unlike tapping, Thread End Milling is not limited to just one pitch size. This flexibility allows the same tool to produce different thread sizes, reducing tooling costs and setup time.
• Versatility: Thread End Mills can be used in a broader range of materials compared to traditional taps, including difficult-to-machine materials like hardened steel or high-temperature alloys.
• Surface Finish and Accuracy: Thread End Milling often results in superior surface finish and thread accuracy, especially when using premium carbide tools.
• Tool Longevity: The heat dissipation and chip removal efficiency offered by Thread End Mills, particularly those with helical flute geometry, lead to reduced tool wear and longer tool life.

In contrast, tapping can be more cost-effective for more straightforward, less demanding applications, and it can be faster for creating threads in softer materials. However, taps are more prone to breaking, especially in more complex materials, and they typically require more frequent replacement than Thread End Mills.

Cost and Time Savings with Thread End Mill in Various Applications

Thread End Milling not only offers tangible benefits in terms of efficiency, flexibility, versatility, and tool longevity, but it also provides substantial cost and time savings in various applications. In the automotive industry, for instance, thread-end milling can be employed in the manufacturing of engine blocks and cylinder heads, reducing production time and costs associated with tool replacement and machine downtime. In aerospace applications, the ability of Thread End Mills to work on high-temperature alloys allows for efficient production of critical components, leading to lower costs and faster time-to-market. Similarly, in the oil and gas sector, Thread End Milling’s versatility in dealing with more rigid materials results in significant savings by reducing the need for multiple tooling and the time taken for tool changes. Therefore, for industries seeking to optimize their threading process, Thread End Milling presents an effective and economical solution.

Advantages of High-Performance Thread End Mills in Difficult-to-Machine Materials

1. Superior Performance: High-performance Thread End Mills are designed to handle even the most challenging materials. These tools can maintain their edge longer, ensuring consistent, precise threading results.
2. Increased Efficiency: These Thread End Mills are engineered for high-speed machining, which can significantly reduce the time spent threading difficult-to-machine materials.
3. Enhanced Durability: High-performance Thread End Mills are crafted using robust materials and coatings, increasing their resistance to wear and tear and prolonging their service life.
4. Cost-Effective: Despite the upfront costs, the longevity and performance of these tools can lead to substantial cost savings in the long run, reducing the frequency of tool replacements.
5. Improved Versatility: These Thread End Mills can be used in a variety of applications, making them a versatile addition to any machining setup.
6. Reduced Tool Breakage: High-performance Thread End Mills are designed to withstand the rigors of machining hard materials, thereby reducing the incidences of tool breakage and associated costs.

Thread End Milling Capability and Design Flexibility for Different Thread Pitches

High-performance thread End Mills offer remarkable capability and design flexibility, catering to various thread pitches. Their dynamic design allows for creating a wide range of thread pitches, from very fine to coarse, with precision and ease. This is achieved through advanced grinding techniques and high-end machinery, enabling the creation of various thread forms such as NPT, UN, ISO metric, and more. As a result, these tools provide the ability to meet specific threading requirements of different industries, increasing adaptability and offering a comprehensive threading solution. These Thread End Mills are not only flexible in handling different thread pitches but also excel at maintaining the accuracy and integrity of the thread profile, even in challenging materials. Thus, they offer an optimal balance between design flexibility and performance, making them an invaluable asset in any machining setup.

Limitations and Considerations When Choosing Carbide Thread End Mills

While Carbide Thread End Mills offers multiple advantages in machining, it’s crucial to be aware of a few limitations and considerations before incorporating them into your setup.

1. Cost: Carbide Thread End Mills tend to be more expensive than their high-speed steel counterparts. This initial investment may deter some, but it’s essential to consider the tool’s longevity and performance, which could lead to cost savings in the long run.
2. Brittleness: Despite their excellent hardness and heat resistance, carbide tools can be somewhat brittle. This means they may be more susceptible to chipping or breaking if mishandled or used in inappropriate applications.
3. Coating Compatibility: Not all coatings are compatible with carbide end mills. The choice of coating can significantly impact the tool’s performance and lifespan, making it an essential factor to consider in your selection process.
4. Material Suitability: While carbide tools are excellent for hard materials, they may not be the best choice for softer materials as they can cause excessive wear and tear.
5. Machine Compatibility: Ensure that your machine setup can accommodate the speed and feed rates required for carbide end mills. Inappropriate machine settings can lead to subpar performance and potentially damage the end mill.

Before making a decision, weigh these considerations against your specific needs and operations. Despite these limitations, the benefits of carbide thread end mills, such as superior wear resistance and versatility, often outweigh the disadvantages, making them a valuable addition to your machining toolkit.
