End mills are specialized cutting tools used in milling machines or machining centers to perform milling operations and occasionally in other machine tools. They remove material by their movement within the machine or directly from the cutter’s shape. As we move into 2024, advancements in technology and innovation have led to significant improvements in end mill design and function. This guide will delve into these developments, offering a comprehensive understanding of end mill types, their usage, the materials they cut, and how to select the suitable end mill for your specific application.

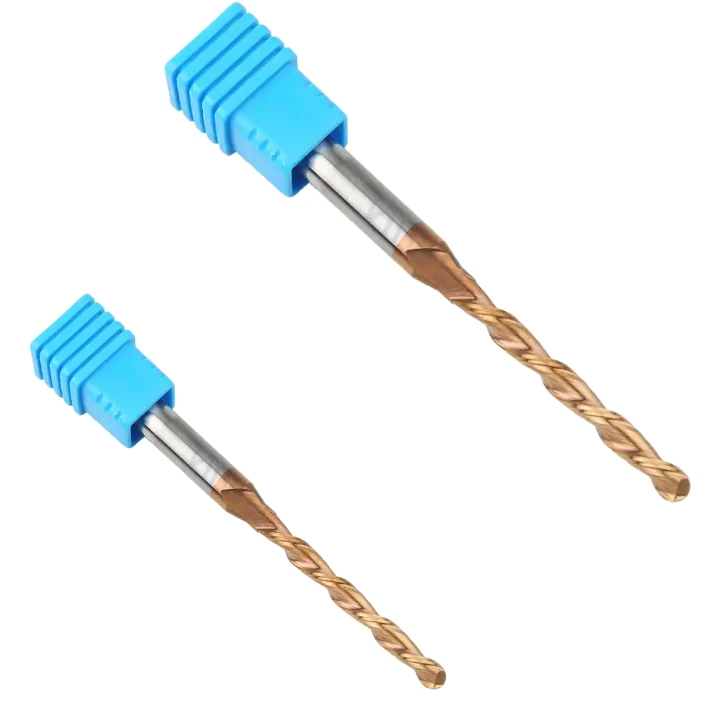

What are End Mills and Their Importance in Machining?

What are End Mills and Their Importance in Machining?

Definition and Function of End Mill

An end mill is a type of industrial cutting tool utilized predominantly in milling applications. It is designed with multiple cutting edges on both its tip and periphery, enabling it to drill straight down (end milling) or laterally (side milling).

Functionally, the primary role of an end mill is material removal. It achieves this through its movement within the machine or from the direct form of the cutter. This makes end mills highly versatile as they can perform a broad range of milling operations such as slotting, contouring, and profiling.

In the context of machining, end mills are invaluable. They carry out precise, intricate cuts that other tools may struggle with, ensuring a high level of accuracy and consistency. With the progression of technology, end mills have evolved in design and materials, becoming more efficient and durable, providing a more comprehensive range of cutting solutions and adapting to complex machining requirements.

Advantages of End Mills in Machining

End mills feature several advantages that make them indispensable in the machining industry:

  1. Versatility: End mills can perform a variety of operations, including slotting, profiling, and contouring. Moreover, they can make these cuts in a range of directions—laterally, vertically, or diagonally—based on the design and the machine setup.
  2. Precision: Owing to their design and function, end mills can execute highly intricate and precise cuts, which other cutting tools may find challenging. This precision ensures uniformity and consistency across a batch of components, enhancing product quality.
  3. Material Adaptability: End mills can work with a broad spectrum of materials. Whether it’s metals like steel and aluminum or more rigid materials such as titanium and Inconel, end mills can efficiently handle them, thanks to their robust material construction.
  4. Higher Efficiency: Technological advancements have resulted in end mills that offer higher cutting speeds and feeds, leading to increased productivity. Moreover, modern end mills generate fewer chips and require less time for machine setup, further boosting efficiency.
  5. Durability: End mills are usually made of high-speed steel (HSS) or carbide, making them highly durable and capable of withstanding rigorous machining conditions. This durability results in a longer tool life, reducing the frequency of tool changeovers and, thereby, minimizing downtime.

Types of End Mills and Their Applications

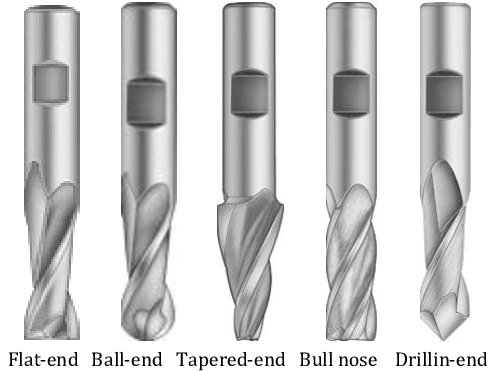

Types of End Mills
Types of End Mills
images source:
  1. Square End Mill: These are general-purpose mills used for slotting and contouring. The square end produces a sharp, 90-degree corner at the base of the slot or pocket, making them ideal for creating flat-bottomed cavities in material removal processes.
  2. Ball Nose End Mill: Distinguished by a round tip, these end mills are used for milling contoured surfaces, slotting, and pocketing. A ball end mill is constructed of a rounded cutting edge and used in the machining of dies and molds.
  3. Roughing End Mill: Also known as ‘rippa’ cutters, these end mills are used to remove large amounts of material quickly. They leave a rough finish but are very durable and can handle rigid machining materials like stainless steel and titanium.
  4. Corner Radius End Mill: These end mills have rounded corners at the bottom edge, combining the advantages of flat and ball end mills. They are used for milling large corner radii and reducing tool marking.
  5. Drill Mill: As the name suggests, these versatile tools can perform both drilling and milling operations, reducing tool changes and increasing productivity.
  6. Tapered End Mill: These tools have a conical cutting head with a taper that offers increased strength, allowing for more aggressive machining strategies.

Each type is designed for a specific purpose—whether it be particular material applications or operations. Understanding how each type works can help you choose the appropriate end mill for your machining task.

Choosing the Right End Mill for Specific Machining Operations

When choosing the suitable end mill for a specific machining operation, there are several important considerations to bear in mind.

  1. Material Compatibility: Certain end mills are better suited for specific materials. For instance, a roughing end mill is ideal for rigid materials like stainless steel and titanium, whereas a ball nose end mill is used for softer materials to create contoured surfaces.
  1. Operation Type: The type of machining operation significantly influences the choice of end mill. For example, a square-end mill is perfect for slotting and contouring, while a drill mill is versatile, performing both drilling and milling operations.
  2. Workpiece Geometry: The shape and size of the workpiece can also determine the appropriate end mill. Tapered end mills are advantageous when aggressive machining strategies are required, and corner radius end mills are used for milling large corner radii, reducing tool marking.
  3. Tool Life: The expected lifespan of the tool is another vital aspect. Roughing end mills are highly durable and can endure heavy-duty machining processes.
  4. Cost Efficiency: Balancing cost and performance is crucial. While some end mills may have a higher initial cost, their durability could result in lower replacement frequency, leading to cost benefits in the long run.

Understanding these factors and how they interact can significantly influence the successful completion of a machining task. It is always recommended to consult with a machining specialist or tool manufacturer to ensure the proper end mill selection for the specific operation.

Understanding the Components of End Mills

End mills consist of multiple components, each playing a vital role in the tool’s overall performance and functionality. Below are some key elements:

  • Flutes: These are the deep helical grooves running up the cutter, while sharp blades form the cutting edge. The number of flutes can range from two to eight, with fewer flutes offering more chip space in more rigid materials and more flutes providing a smoother finish in softer materials.
  • Cutter Diameter: This is the dimension that impacts tool strength and cutting speed. A larger diameter allows for more strength and rigidity, reducing chances of tool deflection and breakage, while smaller diameters can offer higher speeds and precision.
  • Shank Diameter: The shank is the part of the end mill that is held in the tool holder. It needs to be as rigid as possible to minimize deflection, and its diameter is usually identical to that of the cutter for this reason.
  • Core: This is the section of an end mill between the flutes, providing strength. A thicker core diameter strengthens the end mill by increasing rigidity and reducing the likelihood of deflection.
  • Cutting Length: This refers to the length over which the tool is able to make cuts. The depth of the flutes determines it and can vary depending on the specific machining operation.

Understanding these components and their roles enables better selection and application of end mills, contributing to efficient and successful machining operations.

How to Select the Right End Mill for Your Machining Needs

Considerations for Material and Machining Needs

When selecting an end mill for a specific machining operation, the material to be machined and the particular machining needs are two critical considerations.

  • Material Type: The hardness, brittleness, and thermal resistance of the material to be machined play a significant role in end mill selection. More complex materials typically require end mills with fewer flutes and a larger core diameter for strength and chip evacuation. Conversely, softer materials can be machined with end mills that have more flutes for a smooth finish.
  • Machining Operation: The type of machining operation – such as slotting, profiling, or roughing – also dictates the choice of end mill. For instance, operations that require aggressive stock removal may benefit from a roughing end mill, whereas those needing a high-quality finish may require a finishing end mill.
  • Machining Speeds and Feeds: The speed at which the end mill rotates and the rate at which it is fed into the material (speeds and feeds) also factor into the selection. A general rule is that more rigid materials require slower speeds and feeds, while softer materials can withstand faster speeds and feeds.
  • Tool Life Expectancy: Depending on the frequency and duration of machining operations, an end mill’s expected lifespan can influence its selection. End mills coated with materials like titanium nitride or titanium aluminum nitride tend to have longer tool life, mainly when used with hard materials.
  • Coolant Use: If a machining operation requires a coolant, end mills with special coatings that can withstand coolant exposure are necessary. For dry machining, end mills with a heat-resistant coating are preferable.

These considerations serve as a fundamental guide to selecting the most appropriate end mill for a particular machining operation.

Different Types of Flute and Their Effects on Machining

End mills are typically made with two, three, four, or six flutes.

  • Two-Flute End Mills: These are a popular choice for slotting operations. The wide flutes provide a rapid chip evacuation, making them ideal for deep slotting applications. However, they may not offer as smooth of a finish as end mills with more flutes.
  • Three-Flute End Mills: Offering a balance between chip evacuation and finish quality, these end mills are particularly effective in slotting applications where a better finish is desired. They’re also often used in aluminum and other nonferrous metals.
  • Four-Flute End Mills: These provide a finer finish than two- or three-flute end mills, making them a good choice for finishing operations. However, the narrower flutes can hamper chip evacuation in deep slotting applications.
  • Six-Flute End Mills: Offering the smoothest finish, six-flute end mills are typically used in finishing operations. Their numerous flutes provide a high-quality surface finish but limit chip evacuation, making them less suitable for deep slotting operations.

The choice of flute count should be determined by the specific requirements of the machining operation, including the material being machined, the depth and type of cut, and the desired finish quality.

Understanding Carbide End Mills and Their Applications

Carbide end mills are distinguished for their hardness and durability. They’re made from a composite of carbide and another material, typically cobalt, that provides the toughness needed to withstand high-speed machining operations. These end mills are available in a variety of styles, including ball end, corner radius, and square end, offering flexibility depending on the machining needs.

  • Ball End Mills: These are used for milling contoured surfaces, slotting, and pocketing. The spherical tip produces a rounded detail at the end of the cut.
  • Corner Radius End Mills: These have a rounded cutting edge and are used for milling rounded slots, pockets, and edges. They have sufficient strength to perform heavy, deep cuts.
  • Square End Mills: These have a square end for perpendicular cutting and are used for milling a wide variety of materials, including both ferrous and nonferrous metals.

Choosing the correct carbide end mill for your application relies on effectively assessing your operational needs, considering factors such as material hardness, machining speed, and the precision required in the finished piece.

Enhancing Performance with High-Performance End Mills

High-performance end mills, engineered with specific geometries and cutting-edge designs, are instrumental in enhancing machining performance. They are manufactured with high-quality materials like solid carbide or high-speed steel (HSS) to ensure durability and longevity. These end mills can operate at high speeds, effectively reducing the time taken for machining processes and increasing productivity.

Variable helix end mills, a type of high-performance mills, offer the benefit of reducing chatter and prolonging tool life by varying the cutting force along the edges. On the other hand, roughing end mills, with their serrated cutting-edge design, enable improved material removal rate while generating less heat and minimizing tool wear.

In addition, coated end mills offer another level of performance enhancement. Coatings like Titanium Nitride (TiN), Titanium Carbonitride (TiCN), and Aluminum Titanium Nitride (AlTiN) augment the hardness and heat resistance of the end mill, thereby increasing its lifespan.

In conclusion, selecting the suitable high-performance end mill can significantly impact the machining operation’s efficiency and precision. Therefore, factors such as the type of work material, desired finish, tool life, and machining speed should be thoroughly considered before making a choice.

Optimizing Machining Speeds and Feeds for End Mill Performance

Machining speeds and feeds play a crucial role in optimizing the performance of end mills. An accurate understanding of these parameters can lead to enhanced efficiency, reduced wear, and increased tool lifespan. The cutting speed, or surface speed, refers to the speed at which the tool engages with the workpiece. This parameter is typically measured in surface feet per minute (SFM) and is dependent on the workpiece material and the end mill’s material. On the other hand, the feed rate denotes the speed at which the workpiece is fed into the tool, typically measured in inches per minute (IPM). The feed rate is determined by factors such as the type of operation (drilling, milling, turning), the tool’s diameter, and the number of cutting edges. Balancing these two factors is vital. For instance, a high cutting speed coupled with a low feed rate might lead to tool wear and breakage, while a low cutting speed with a high feed rate can result in poor surface finish and decreased accuracy. Therefore, establishing optimal machining speeds and feeds is an exercise in careful calibration, taking into account the specific conditions of each machining operation.

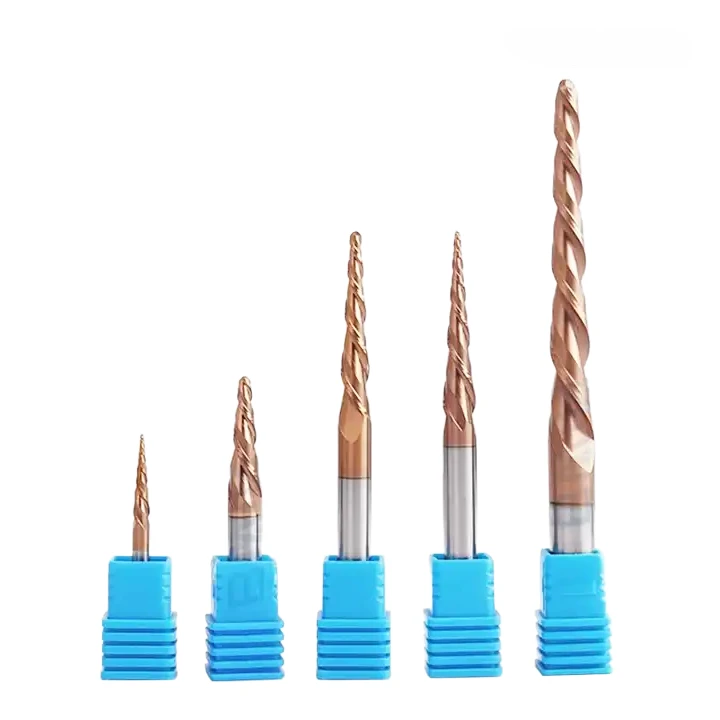

Proper Maintenance and Handling of End Mills for Longevity

Proper Maintenance and Handling of End Mills for Longevity

Tips for Proper Storage and Maintenance of End Mills

  1. End Mill Cleaning: Regular cleaning of end mills is crucial to remove any residual materials that may have adhered to the cutting edges. Avoid using harsh or abrasive materials that can cause damage. Instead, opt for a soft cleaning cloth and specialized cleaning solutions if necessary.
  2. Proper Storage: Always store end mills in a dry, cool place to prevent rust. Individual tool holders or protective sleeves can be used to avoid accidental damage and to keep the cutting edges sharp.
  3. Regular Inspection: Schedule regular inspections of your end mills. Look for signs of wear and tear, such as a dull cutting edge or cracks, which could lead to performance issues or tool breakage.
  4. Avoid Overheating: Overheating can significantly reduce the lifespan of your end mills. Ensure adequate cooling during machining operations using coolants or by controlling the machining speed.
  5. Timely Replacements: Despite the best maintenance practices, all end mills will eventually wear out. Regularly monitoring tool performance and replacing worn-out tools in a timely manner can prevent poor-quality finishes and potential damage to the workpiece.

Improving End Mill Lifespan with Effective Handling Techniques

Effective handling techniques play a pivotal role in maximizing the lifespan of end mills.

  1. Careful Handling: End mills are precision tools and, thus, should be handled with utmost care. Avoid dropping them as it can lead to chipping or cracking of the cutting edges.
  2. Correct Installation: Ensure that end mills are correctly installed in the machine. Improper seating can lead to vibration, which accelerates wear and impacts the quality of the machining operation.
  3. Suitable Operation Parameters: Always operate the end mill within its recommended speed, feed, and depth of cut parameters. Exceeding these parameters can cause excessive wear and potentially lead to tool breakage.
  4. Use of Quality Cutting Fluids: Cutting fluids helps in reducing friction and heat, thus increasing tool life. Always use a suitable and high-quality cutting fluid for your specific machining operation.
  5. Appropriate Tool Paths: Implementing optimal tool paths can reduce unnecessary tool engagement, decrease wear, and improve tool life. Utilize software that can generate efficient and effective tool paths.

By adhering to these handling techniques, the lifespan of end mills can be significantly improved, resulting in increased efficiency, lower costs, and superior finish quality in machining operations.

Common Issues and Troubleshooting Methods for End Mills

Chipping and Breakage

These issues generally arise from excessive cutting forces and impact loads. This could be due to incorrect operation parameters, improper tool paths, or mishandling of the tool. To troubleshoot, verify the operation parameters against the tool manufacturer’s recommendations. Check if the tool path is efficient and reduces unnecessary tool engagement. Always handle the tools with care to avoid any physical damage.

Premature Wear

Premature wear is often a result of high heat and excessive friction. This could be caused by insufficient or improper use of cutting fluids or operating the tool beyond its recommended parameters. To fix this, ensure the use of suitable cutting fluids and work within the recommended parameters.

Poor Surface Finish

This issue can result from vibration during operation, dull cutting edges, or unsuitable operation parameters. To address this, ensure the tool is correctly installed and seated in the machine to minimize vibration. Regularly inspect the cutting edges and replace the tool if necessary. Also, check and adjust the operation parameters as required.

Inefficient Cutting

Inefficient cutting is usually due to dull cutting edges, inappropriate operation parameters, or unsuitable tool paths. To troubleshoot, inspect the tool edges regularly and replace the tool if the edges are soft. Adjust operation parameters based on the tool’s specifications and consider using software to generate optimal tool paths.

By understanding these common issues and their troubleshooting methods, users can ensure the effective operation of end mills, leading to improved tool lifespan, increased machining efficiency, and superior workpiece quality.

Extending Tool Life with Proper End Mill Care and Maintenance

Maintaining the longevity of your end mills starts from the moment they are purchased. Start by storing them correctly; a clean, dry, and temperature-controlled environment can prevent premature degradation. When in use, ensure that the end mill is correctly installed and seated in the machine. This reduces unnecessary vibration, which can accelerate wear and tear. Inspect cutting edges regularly for signs of dullness and replace the tool as necessary. Continuously operate within the stipulated parameters to avoid overheating and excessive friction, which can lead to premature wear. The use of suitable cutting fluids can also help in reducing heat and friction. In addition, software can be used to generate the most optimal tool paths to increase machining efficiency. Lastly, ensure regular cleaning of the tools after use to remove any residue or debris, as these can affect the performance of the end mill. By carrying out these maintenance practices, the lifespan of end mills can be significantly extended, which directly contributes to the efficiency and quality of machining operations.

Using Coatings to Enhance End Mill Performance

Coatings play a critical role in enhancing the performance of end mills. They provide a protective layer that can increase hardness and thermal stability, thereby reducing wear and extending tool life. The choice of coating depends on the material being cut and the specific machining operation. For instance, Titanium Nitride (TiN) coating, with its high hardness and low coefficient of friction, is suitable for a variety of applications and is known to increase tool life by up to three times. Titanium Carbonitride (TiCN) coating, on the other hand, is effective for higher-speed machining of cast iron and nonferrous metals. Advanced coatings like Titanium Aluminum Nitride (TiAlN) offer superior heat resistance, making them ideal for high-speed machining of alloy steel and hardened steel. Understanding the properties and benefits of different coatings can help you make an informed decision, tailoring your tool selection to the requirements of your specific application. It’s worth noting that while coatings can significantly enhance performance, they should be used in conjunction with the other care and maintenance practices mentioned earlier to reap the maximum benefits.

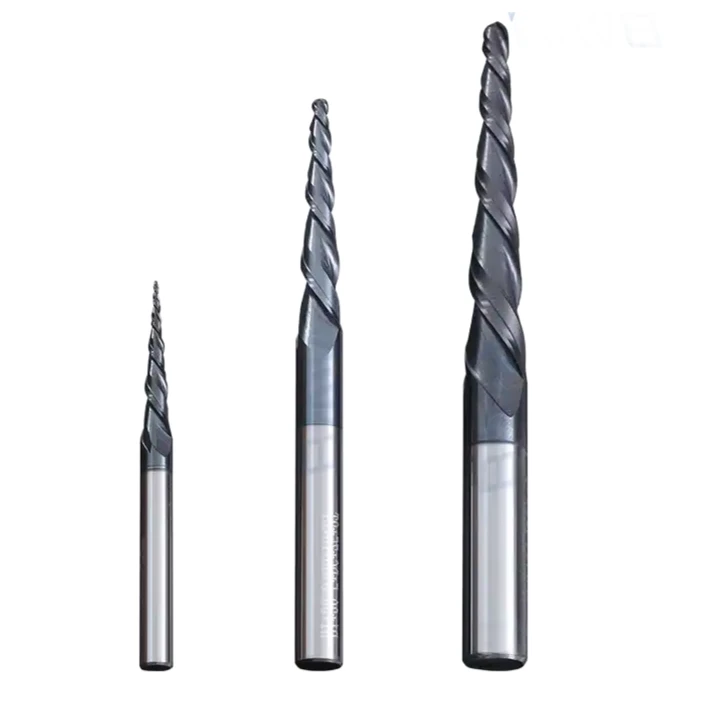

Advanced End Milling Techniques and Applications

Advanced End Milling Techniques and Applications

Exploring Advanced End Milling Operations such as Profile and Face Milling

Profile milling and face milling are two advanced end milling operations, each with specific applications and benefits.

Profile Milling

Profile milling involves the machining of the external periphery of a workpiece. It is commonly used to produce slots, contours, and other geometric shapes, with the cutting path along or around the surface of the workpiece. This operation requires precise control of depth and direction to achieve the desired profile, making it a technically demanding process. Nonetheless, with the proper selection of tools and parameters, profile milling offers high precision and excellent surface finish.

Face Milling

Face milling, on the other hand, targets the surface finish of the workpiece. This operation utilizes a cutter with a large diameter, which spans the entire workpiece’s width, to remove material from the top surface. Its primary goal is to create a flat, smooth surface, often to prepare for subsequent operations or as a final finishing step. Although it requires fewer technical considerations than profile milling, the selection of appropriate cutting speeds and feeds is crucial to prevent surface imperfections and tool wear.

The choice between profile milling and face milling depends on the requirements of the workpiece and the specific production context. By understanding these different techniques’ operational features, machinists can select the most appropriate strategy for their application, resulting in optimized productivity and quality.

Specialized End Mills for Specific Materials

Understanding the unique milling requirements of various materials is critical to achieving optimal machining performance. For instance, plastic end mills often feature sharp cutting edges and high rake angles to reduce the risk of part melting. In contrast, aluminum-specific end mills possess large chip pockets to accommodate the material’s high chip volume. For hard alloys, end mills with reinforced cores and generous flute spacing are preferred to withstand the rigors of heavy milling and to prevent chip clogging.

Optimizing End Mill Performance for High-Speed Machining Applications

In high-speed machining environments, manipulating cutting parameters and tool geometry is critical to optimizing end-mill performance. The use of variable flute end mills, for example, can help reduce chatter and enhance speed, while employing highly heat-resistant coatings can prevent premature tool wear. A well-considered balance of spindle speed, feed rate, depth of cut, and coolant use is also integral to high-speed machining success.

Understanding the Impact of Helix Angle and Number of Flutes on Machining

The helix angle and the number of flutes on an end mill significantly impact its cutting characteristics. A higher helix angle results in a shearing action that reduces cutting forces, heat generation, and tool deflection—ideal for materials like aluminum. On the contrary, a low helix angle is beneficial for materials with low machinability, like stainless steel. Similarly, a more significant number of flutes allows for higher feed rates but limits chip evacuation, making it suitable for finishing operations.

Customizing End Mills for Unique Machining Applications

In some cases, off-the-shelf end mills may not meet specific machining needs, necessitating custom tooling solutions. Customized end mills can feature unique dimensions, special flute counts, modified helix angles, or proprietary coatings—tailored to the particular demands of the machining application. These custom solutions can lead to increased productivity, improved surface finish, and longer tool life, providing a significant advantage in competitive manufacturing environments.

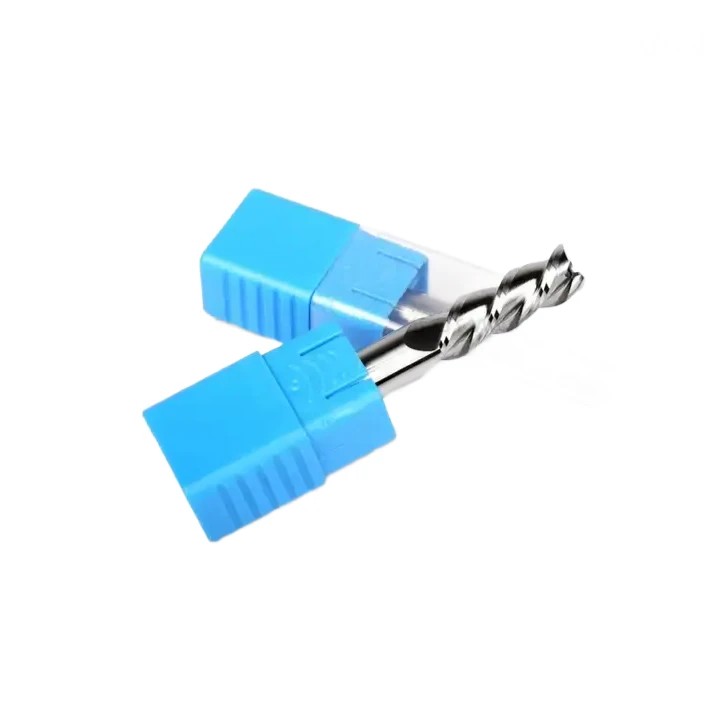

Future Developments and Trends in End Mill Technology

Future Developments and Trends in End Mill Technology

Advancements in Coating Technologies for End Mills

In recent years, significant advancements in coating technologies have transformed end mill performance, specifically in terms of tool life and machining speed. The development of new-generation coatings, such as Titanium Aluminum Nitride (TiAlN) and Titanium Carbonitride (TiCN), has led to more heat-resistant and wear-resistant end mills. These coatings enable the tool to withstand high-temperature machining environments, reducing heat-related degradation and wear. For instance, TiAlN-coated end mills can operate under temperatures of up to 800°C, significantly higher than uncoated tools. Moreover, the advent of nanocomposite coatings has further added to the durability and performance of end mills. These nanocomposite coatings, featuring a mix of complex nanoparticles within a rigid matrix, provide exceptional hardness and toughness, reducing-edge chipping and extending tool life. Hence, coating technologies continue to shape the future of end mill performance, offering new avenues for productivity and efficiency in machining operations.

Innovations in End Mill Design for Improved Wear Resistance and Tool Life

In the quest for improved wear resistance and extended tool life, end-mill design innovations have played a crucial role. Subtle alterations in geometry, such as the introduction of variable helix angles, have significantly reduced chatter and vibration, leading to smoother cuts and less tool wear. For instance, developments in flute design, including high helix angles and unequal flute spacing, have minimized the heat and stress exerted on the tool, thereby extending its lifespan. Cutting-edge design has also seen enhancements, with sharp positive rake angles reducing cutting forces and, hence, tool wear. This evolution is also reflected in the rise of corner radius end mills, which, due to their reinforced corner design, demonstrate more excellent durability in aggressive machining conditions, thus prolonging tool life. Furthermore, the advent of micro-grain and ultra-fine carbide materials has resulted in end mills with higher hardness and toughness properties, further enhancing wear resistance. These developments underscore the continual innovation within end mill design, driving not just productivity but also sustainability by prolonging tool life and reducing waste.

Integration of Smart Technologies for Enhanced End Mill Performance

The integration of intelligent technologies into end-mill design is an emerging trend that promises to enhance performance and productivity further. One such innovation is the integration of sensor technology, which enables real-time monitoring of tool wear and operational stresses. These sensors can provide immediate feedback on tool conditions, allowing for timely intervention and preventive maintenance, thus extending tool life. Another innovative application of intelligent technology is the use of machine learning algorithms. These algorithms analyze data from the machining process, learn from it, and optimize the end mill’s operation accordingly. For example, they can optimize feed rates and cutting speeds, reducing tool wear and increasing efficiency. Additionally, innovative technologies like IoT (Internet of Things) enable better coordination and data sharing among different components of the manufacturing process, leading to improved end-mill performance. These advancements in innovative technologies, while still in the nascent stages, propose a future where end-mill performance is not only improved but also predictively optimized.

Emerging Materials and Cutting-edge Solutions in End Mill Manufacturing

In the realm of end-mill manufacturing, the emergence of new materials and cutting-edge solutions is fundamentally reshaping the industry. Advanced materials, such as Cubic Boron Nitride (CBN) and Polycrystalline Diamond (PCD), are becoming increasingly popular due to their superior hardness, heat resistance, and durability compared to conventional materials. The integration of these materials into end-mill design results in tools that can withstand higher cutting speeds and deliver exceptional wear resistance, thereby increasing productivity and tool lifespan.

Simultaneously, the advent of additive manufacturing (or 3D printing) is revolutionizing the production process. This technique allows for the creation of complex, custom-designed end mills that would be challenging or impossible to produce using traditional methods. It additionally facilitates rapid prototyping, enhancing the capacity for design experimentation and innovation.

Another cutting-edge solution lies in nanotechnology, which enables the development of end mills with nanocomposite coatings. These coatings, comprised of nanoscale particles, significantly enhance the tool’s hardness and heat resistance, thereby providing an additional layer of protection against wear and tear.

In conclusion, the combination of emerging materials and these innovative manufacturing solutions promises to drive the next wave of advancements in end-mill performance and productivity.

The Role of End Mills in Sustainable and Efficient Machining Practices

In the realm of sustainable machining, end mills play a pivotal role in driving efficiency and reducing environmental impact. Industry data suggests that the application of advanced materials in end mills can lead to up to a 25% increase in tool lifespan, minimizing the frequency of tool replacement and thereby reducing waste. Furthermore, the utilization of 3D printing techniques in end mill production contributes to significant energy savings, as it eliminates the need for energy-intensive processes such as forging or casting. The additive manufacturing process also reduces material waste, as it only uses the exact amount of material required for the tool, leading to an estimated 50% reduction in material usage compared to traditional methods. Lastly, the integration of nanocomposite coatings in end mill design not only enhances tool performance but also contributes to sustainability. These coatings reduce friction during machining operations, which translates to lower energy consumption and decreased generation of heat and metal chips. Therefore, the strategic use of end mills in machining practices aligns with the principles of sustainability and efficiency.


  1. Beginner’s Guide to End Mills – Kennametal Source
    This source is a blog post that provides an introduction to end mills. It is a good starting point for anyone new to the topic.
  2. What Size Are End Mills? A Comprehensive Guide to Sizing & Selection – Medium Source
    This comprehensive guide on Medium discusses the various sizes of end mills and their significance. It’s helpful in understanding the variety of end mills available.
  3. What is a Corner Rounding End Mill? Your Ultimate Guide to Precision Milling – Medium Source
    This guide offers detailed information about corner rounding end mills, a specific type of end mill.
  4. What are End Mills, and Which Ones Do I Choose? – YouTube Source
    This video provides visual demonstrations and explanations about different types of end mills, which can be particularly helpful for visual learners.
  5. Feeds and Speeds: The Definitive Guide (Updated for 2024) – CNCCookbook Source
    This article provides an in-depth guide on feeds and speeds, crucial factors to consider when using end mills.
  6. Attacking Aluminum: a Machining Guide – In The Loupe Source
    This guide discusses the specifics of machining aluminum, including the use of end mills. It’s beneficial for those working with this material.
  7. End Mill Selection Guide by +mekanika – Wikifactory Source
    This source provides a guide on how to select the suitable end mill for specific situations and materials, which can be highly beneficial for practical applications.
  8. CNC End Mill Comparison Guide – MatterHackers Source
    This comparison guide helps users understand how different end mills can be used in CNC machining, offering practical insights for users.
  9. Different Types of End Mills: How many you are familiar with? – LinkedIn Source
    This LinkedIn post discusses various types of end mills, providing a broad overview of the topic.
  10. Around Roughing End Mill: A Complete Guide – Huanatools Source
    This guide provides an understanding of roughing end mills, a specific type of end mill used in certain applications.

recommend reading : Cutting Tools For Die & Mold Industry & Graphite Materials

Frequently Asked Questions (FAQs)

Frequently Asked Questions (FAQs)

Q: What is the difference between a two flute and a three flute end mill?

A: A 2 flute end mill is a cutting tool that has two cutting edges or flutes. This type of tool is typically used in milling applications that require a smoother finish or when working with aluminum or other nonferrous metals. On the other hand, a three flute end mill has three cutting edges and is used in applications that require a higher feed rate and enhanced chip evacuation. It’s typically used in cutting more complex materials like steel or hardened alloys.

### ###

Q: What is the purpose of a solid carbide end mill?

A: A solid carbide end mill is a type of milling cutter made primarily from solid carbide materials. Its high performance and durability make it one of the most popular cutting tools used in CNC milling applications. To be specific, solid carbide end mills are highly resistant to wear and are capable of operating at higher speeds compared to tools made with other materials, such as high-speed steel or cobalt.

### ###

Q: What is the use of a four flute solid carbide end mill?

A: A 4-flute solid carbide end mill is a type of cutting tool that is specifically designed for aggressive material removal in harsh and rigid materials like stainless steel and titanium. It is a high-performance tool that offers a high metal removal rate due to its four cutting edges. This type of end mill is also known for its capability to produce a smooth surface finish on the parts being milled.

### ###

Q: How does high performance relate to end mills?

A: High performance in relation to end mills refers to the capability of the tool to handle demanding applications, such as milling hard materials or performing complex cutting tasks. High-performance end mills are often solid carbide or have carbide inserts and are designed to operate at higher speeds and feeds. They also tend to have unique geometry and specialized coatings, which help them withstand heat and wear better than their general-purpose counterparts.

### ###

Q: When should I use a carbide square end mill?

A: A carbide square end mill is a type of milling cutter designed to create flat-bottomed slots or grooves, sharp corners, and precise square edges in a workpiece. This type of cutting tool is typically used when precision and finish are paramount considerations, such as in mold and die making, or when milling materials like metal or plastic.

### ###

Q: What is the functionality of a ball end mill?

A: A ball end mill is a type of milling cutter specialized in creating three-dimensional profiles and complex shapes in a workpiece. The cutting end, or ‘ball nose,’ of this type of mill has a semi-spherical shape, which allows it to create curved or contoured forms in a variety of materials. Ball end mills are often used in applications such as 3D carving, engraving or when a smooth surface finish is required.

### ###

Q: Can you explain what a roughing end mill is used for?

A: A roughing end mill, also commonly referred to as a hog mill or corn cob mill, is a cutting tool designed for initial roughing operations – where significant amounts of material need to be removed. It is used to take aggressive cuts in rigid materials like steel and can also withstand high cutting temperatures. The unique design of its cutting end also allows the tool to break up the chips produced during the milling process, which enhances chip evacuation and reduces tool wear.

### ###

Q: How is the cutting diameter of an end mill determined?

A: The cutting diameter of an end mill refers to the length of the cutting edges on the tool. This is typically measured in inches or millimeters and can vary depending on the specific needs of the milling application. The selection of end mills with the correct cutting diameter is crucial as it affects the depth of cut, surface finish, and overall quality of the workpiece being milled.

### ###

Q: When should I use a CNC milling cutter in my operations?

A: CNC milling cutters like end mills are used when precision and repeatability are essential in your manufacturing operations. CNC milling machines can function with various types of cutters, but end mills are among the most commonly used due to their versatility. They can perform many different types of operations, from the primary slot and keyway cutting to more complex contouring, profiling, or hole-drilling tasks.

### ###

Q: Is a carbide milling cutter the same as a tungsten carbide end mill?

A: Essentially, yes. A carbide milling cutter is a general term for any milling cutter made from carbide material. Tungsten carbide end mills are a type of carbide cutter as they’re constructed from a compound of carbon and tungsten. Tungsten carbide end mills are incredibly hard and durable, making them ideal for cutting more complex workpiece materials and for prolonged cutting operations.
