Introducing Graphite End Mill from SAMHO
• High wear resistance: The graphite end mill adopts special tool material, which has good wear resistance and can maintain the sharpness of the tool for a long time in graphite processing and prolong the service life.
• Low friction coefficient: The surface of the graphite end mill has been specially treated to have a low friction coefficient, which can reduce friction and heat accumulation during the cutting process and improve cutting efficiency and surface quality.
• High thermal conductivity: The graphite end mill has good thermal conductivity, which can quickly conduct the heat generated by cutting, reduce the increase of cutting temperature, and prevent the graphite material from overheating during processing.
• High precision machining: The design of the graphite end mill is precise, which can realize high precision graphite machining and meet the application fields with high requirements for dimensional accuracy and surface quality.
• Reduced tool damage: Due to the special properties of graphite materials, the use of specialized graphite end mills can reduce tool damage and reduce the risk of tool wear and breakage.
• Improve processing efficiency: Graphite end mills can achieve high speed and efficient graphite processing, improve production efficiency, and save processing time and costs.

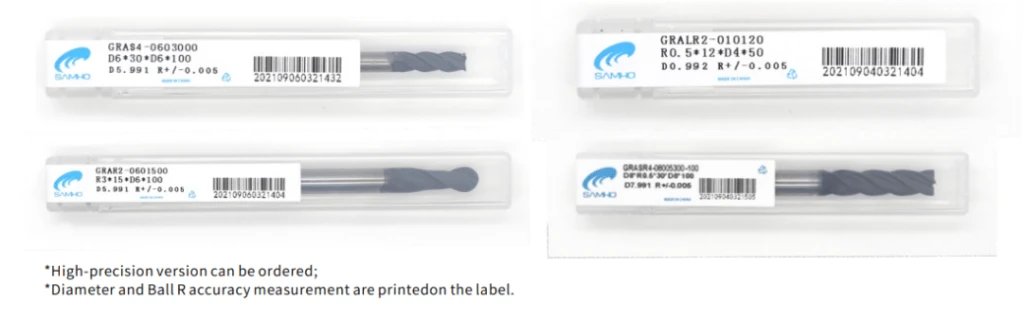

Undertake High-precision Tool Customization & Coating
-
Graphite End Mill & Square End Mill

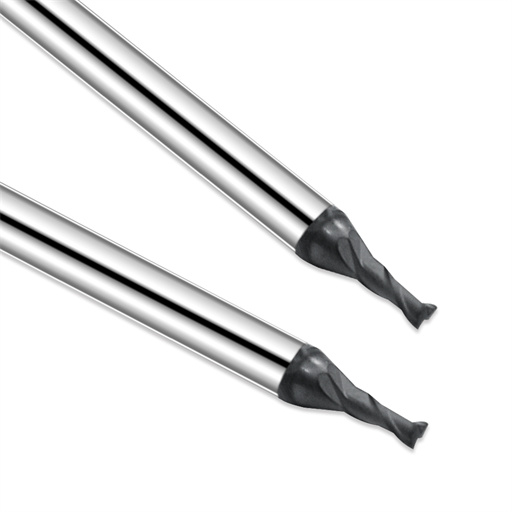

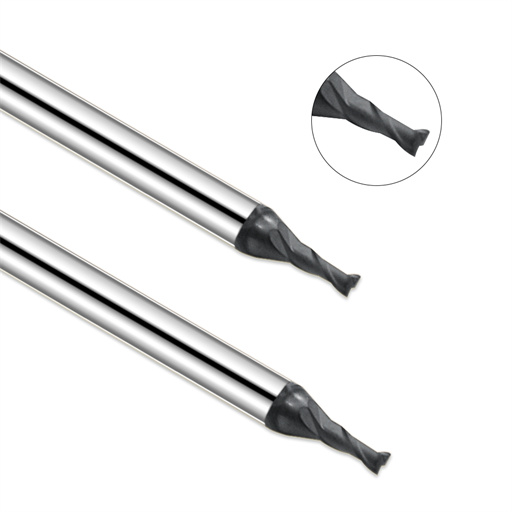

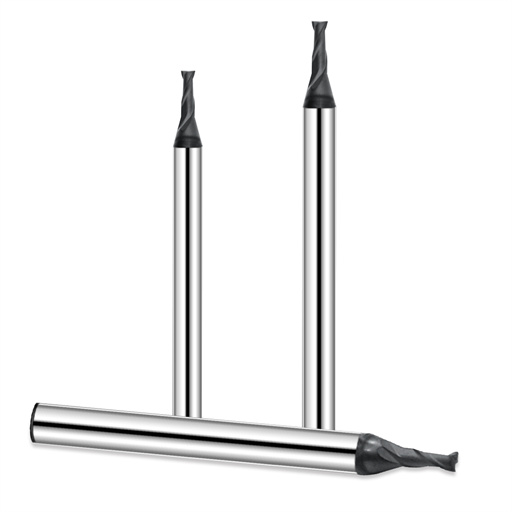

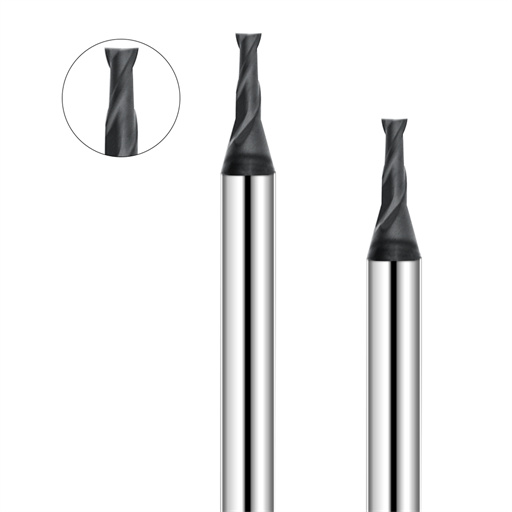

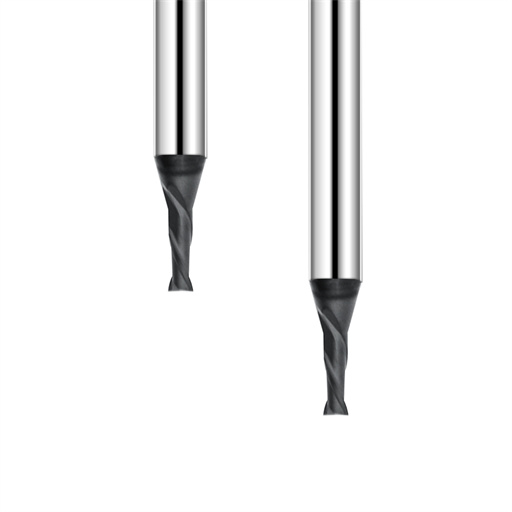

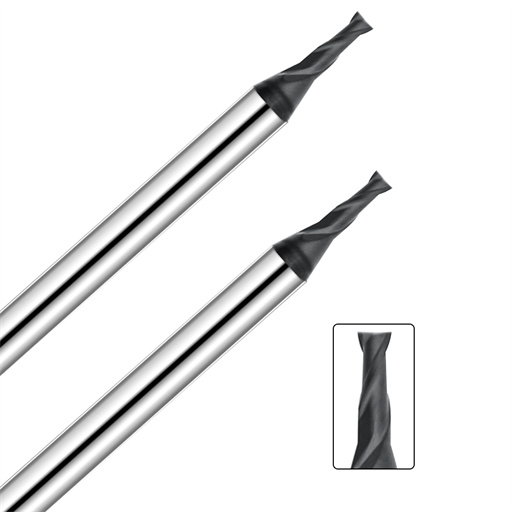

Graphite Square End Mill【2 Flutes) Φ 0.2-6】
Graphite Square End Mill【2 Flutes)...

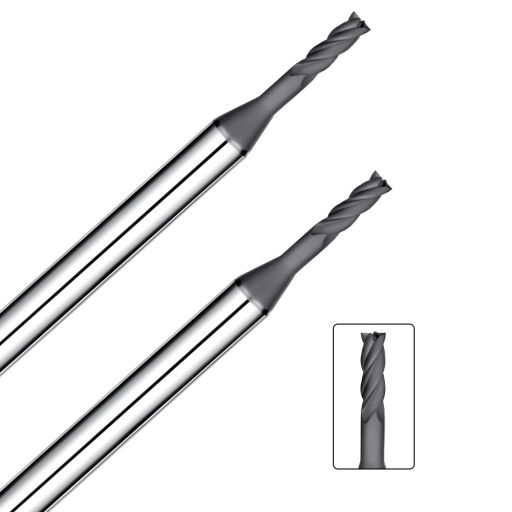

Read MoreGraphite Square End Mill【4 Flutes) Φ 1-12】
Graphite Square End Mill【4 Flutes)...

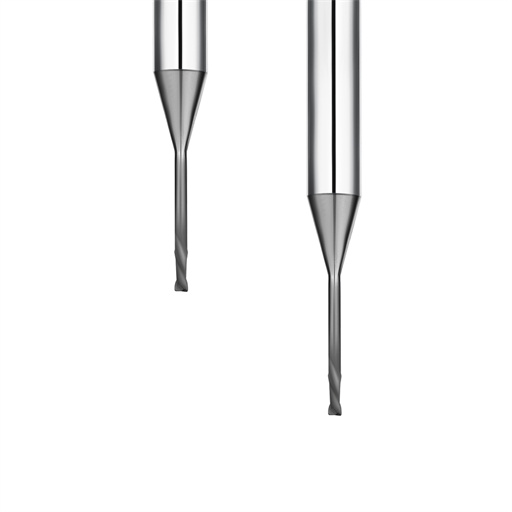

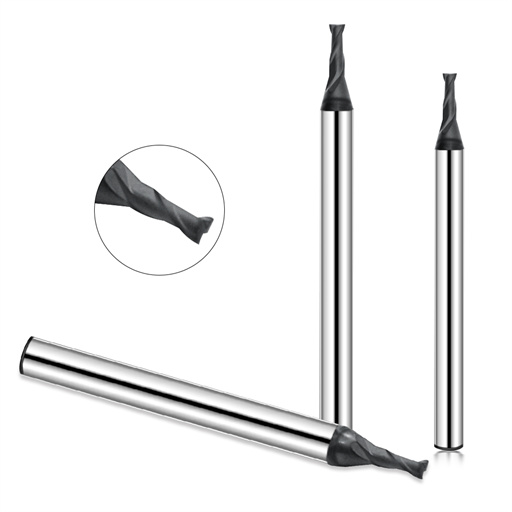

Read MoreGraphite Square Long Neck End Mill【2 Flutes Long Neck Square Φ 0.2-3】
Graphite Square End Mill【2 Flutes...

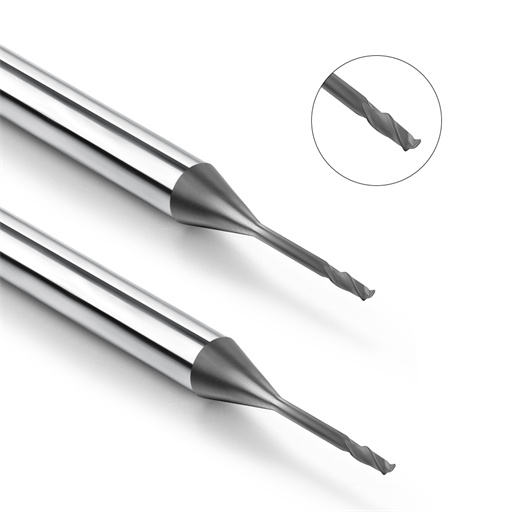

Read MoreGraphite Square Long Neck End Mill【4 Flutes Long Neck Square Φ 1-3】
Graphite Square End Mill【4 Flutes...
Read More-
Graphite End Mill & Ball Nose End Mill

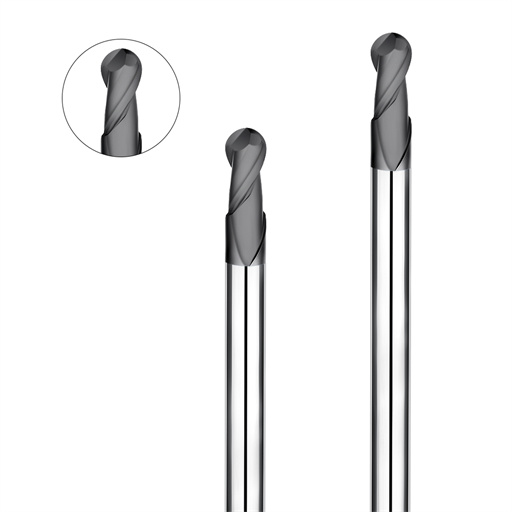

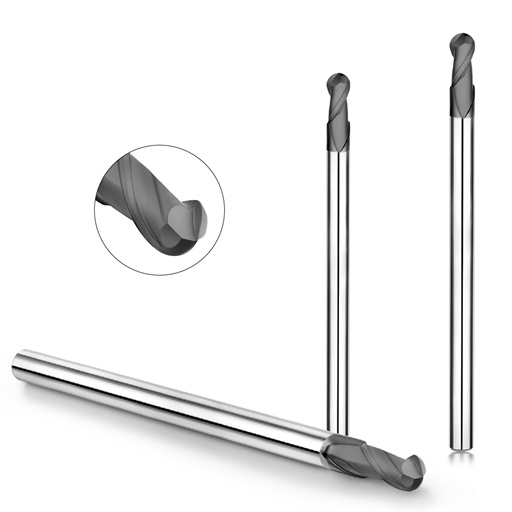

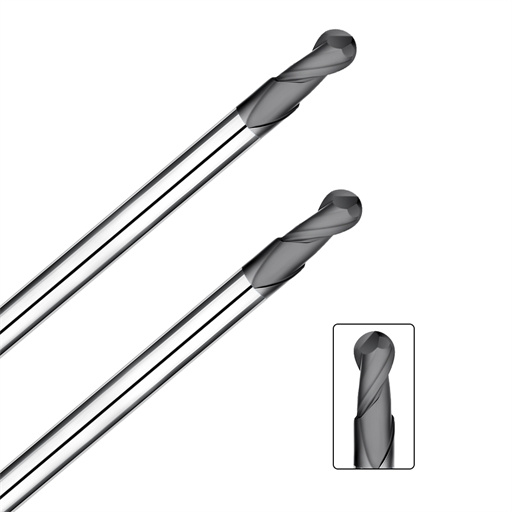

Graphite Ball Nose End Mill【2 Flutes R0.5-R6】
Graphite Ball Nose End Mill【2...
Read MoreGraphite Ball Nose Long Neck End Mill【2 Flutes Long Neck Ball R0.1-R2】
Graphite Ball Nose Long Neck...
Read More-
Graphite End Mill & Corner Radius End Mill
Graphite Corner Radius End Mill【4 Flutes Φ 3-12】
Graphite Corner Radius End Mill【4...

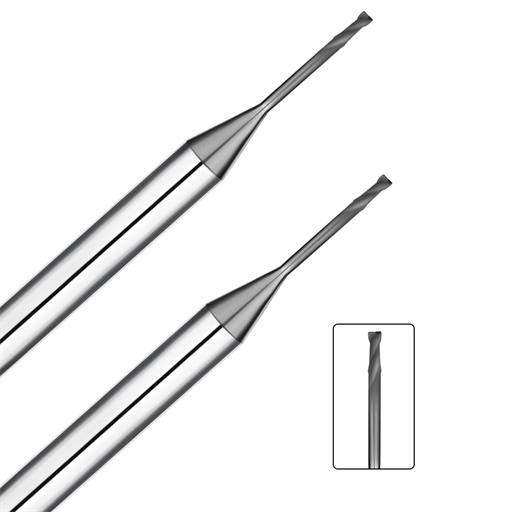

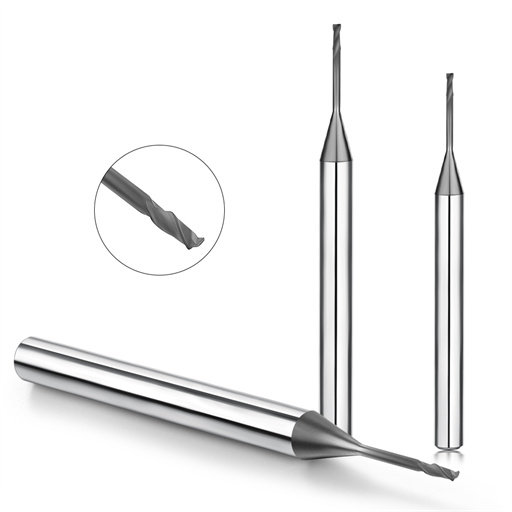

Read MoreGraphite Corner Radius Long Neck End Mill【2/4 Flutes Long Neck Φ 0.5-3】
Graphite Corner Radius End Mill【2/4...
Read More-
Why Choose Our Graphite End Mill
• Graphite end mills are engineered with exceptional abrasion resistance, providing reliable performance over time.
• They are designed to enhance productivity, requiring fewer tool changes and offering precise parts at a higher speed.

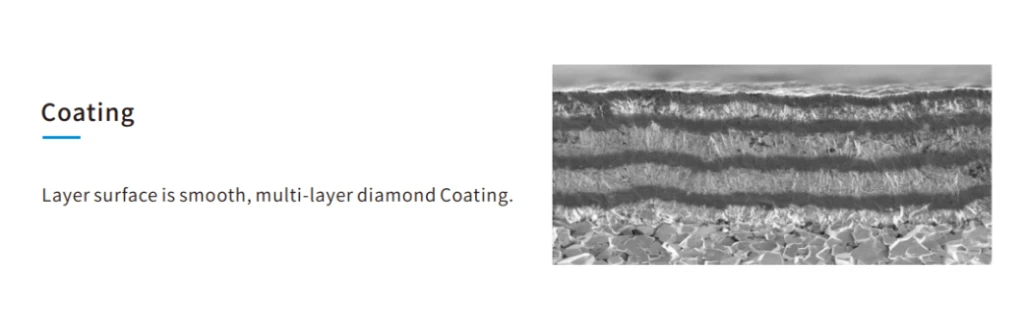

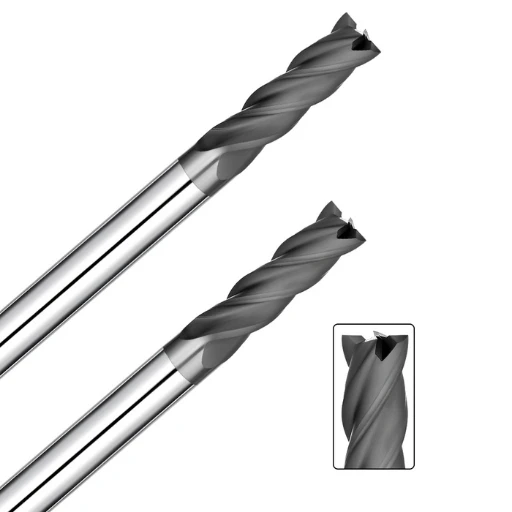

• Diamond coating provides additional durability and wear resistance.
• Ideal for milling large surfaces or volumes, these tools are optimized for non-metallic materials like graphite.
Related Product Recommendation

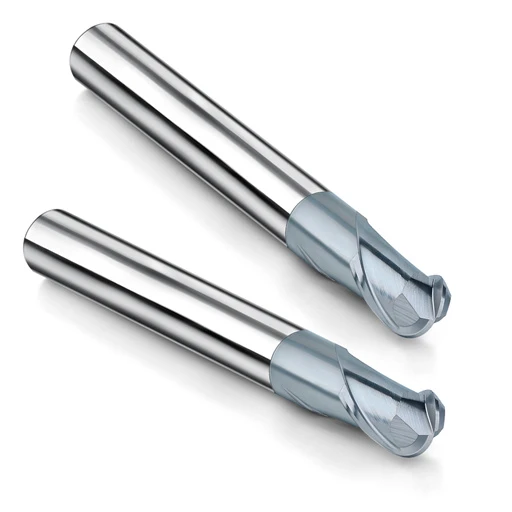

Ball Nose End Mill
Ball Nose End Mill Premium Ball Nose...

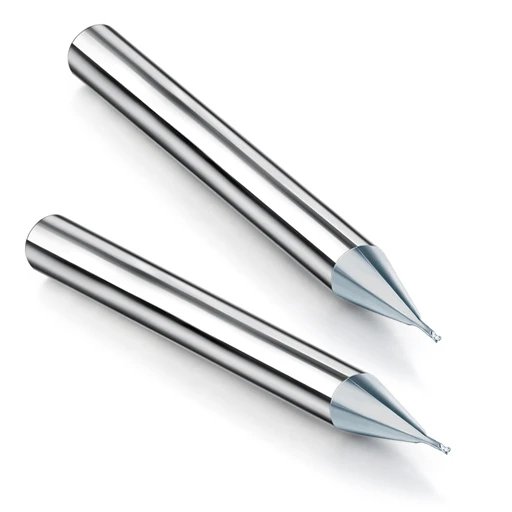

Read MoreCorner Radius End Mill
Corner Radius End Mill Get the Best...

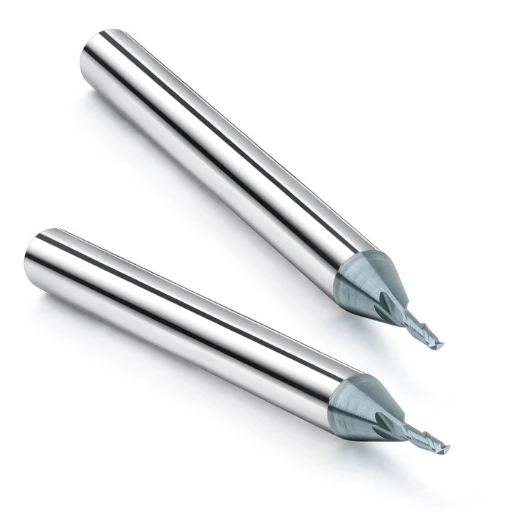

Read MoreSquare End Mill
Square End Mill Get the Best Quality...
Read MoreHow to Choose and Use Graphite End Mills: A Comprehensive Guide
Graphite end mills are essential tools in modern machining and metalwork, offering precision and efficiency in the shaping of hardened materials. Selecting appropriate graphite end mills necessitates an understanding of their varying designs, material composition, and cutting characteristics. This guide aims to demystify the process of choosing and using graphite end mills, providing insights into their optimal utilization in different machining contexts. By equipping yourself with these insights, you can enhance productivity, reduce production costs, and achieve superior machining results.
What are Graphite End Mills, and How Do They Work?
Understanding the properties of graphite
Graphite, an essential constituent of graphite end mills, possesses unique properties that make it ideal for various machining applications:
- Thermal Stability: Graphite can withstand high temperatures, making it suitable for operations that generate significant heat.
- Low Friction Coefficient: Graphite’s common frictional characteristics reduce wear and tear on the end mill, thereby extending its life span.
- High Strength: Despite its lightness, graphite is solid, contributing to the durability of the end mill.
- Good Electrical Conductivity: Graphite’s electrical conductivity allows for practical use in EDM (Electrical Discharge Machining) applications.
- Machinability: Graphite can be precisely machined, permitting the creation of end mills with intricate designs and high accuracy.
Understanding these properties is crucial for leveraging the full potential of graphite end mills in your machining operations.
Advantages of using graphite end mills
Graphite end mills offer several advantages that can substantially enhance the efficiency and quality of various machining operations:
- Enhanced Productivity: Due to graphite’s high-speed milling capabilities and low-friction characteristics, these end mills can operate at higher feed rates, significantly boosting productivity.
- Reduced Equipment Wear: The low friction coefficient of graphite also translates to reduced wear and tear on the end mills, extending their lifespan and reducing the frequency of tool replacements.
- Superior Finish Quality: The high strength of graphite end mills enables them to maintain their sharpness for more extended periods, resulting in an excellent surface finish in the machined parts.
- Cost-Efficiency: The combined benefits of high productivity, reduced tool wear, and superior finish quality make graphite end mills a cost-effective choice for machining applications, particularly in the long run.
- Versatility: Graphite end mills, due to their thermal stability and electrical conductivity, are suitable for a wide range of machining applications, including high-heat and EDM operations.
Understanding and leveraging these advantages can profoundly impact your machining outcomes, leading to greater efficiency, higher quality, and reduced costs.
Typical applications for graphite end mills
Graphite end mills are incredibly versatile and are used across various industries for numerous applications:
- Die and Mold Industry: The die and mold industry frequently utilizes graphite end mills for their high-speed milling capabilities. Their superior finish quality makes them ideal for creating intricate and detailed molds.
- Electrode Fabrication: The electrical conductivity of graphite end mills makes them highly suitable for electrode fabrication in electrical discharge machining (EDM) processes.
- Aerospace Industry: In the aerospace industry, graphite end mills are used for machining heat-resistant materials and producing high-precision parts.
- Automotive Industry: These end mills are also used in the automotive industry for the machining of engine components due to their thermal stability and high-speed milling capabilities.
- Glass Industry: The glass industry uses graphite end mills in the production of graphite molds used in glass forming.
Understanding the broad applicability of graphite end mills in these areas allows industries to fully leverage their unique properties, leading to higher productivity and cost efficiency.
Essential factors to consider when machining graphite
When machining graphite, several factors should be taken into consideration to optimize the process:
- Tool Selection: The choice of tool directly impacts the overall machining process. High-speed steel tools could be used, but for optimum performance, solid carbide tools with diamond coatings are recommended. It’s also essential to select the proper tool geometry, which varies based on the specific application.
- Cutting Parameters: The cutting speed, feed rate, and depth of cut must be appropriately set. Graphite is often machined at high speeds; however, the exact parameters depend on the tool used and the desired finish quality.
- Coolant Use: Unlike other materials, graphite does not require coolant during machining. In fact, using coolant can lead to graphite dust becoming a slurry, which can create a mess and potentially damage the machine.
- Dust Control: Graphite dust can be hazardous to both the machine and the operator. Therefore, effective dust collection and ventilation systems are essential during graphite machining.
- Machine Rigidity: The rigidity of the machine tool plays a critical role in achieving the desired part accuracy and finish.
By considering these factors, manufacturers can significantly improve the efficiency and effectiveness of their graphite machining process, leading to enhanced product quality and reduced production costs.
Choosing the suitable graphite end mill for your needs
Selecting the suitable graphite end mill for your needs is a strategic decision that can significantly impact operational efficiency and output quality. Here are a few factors to consider:
- Material Grade: The performance of an end mill is often dictated by its material grade. For instance, diamond-coated end mills are more durable and can withstand the abrasive nature of graphite, ensuring longer tool life and better surface finish.
- Flute Count: The number of flutes on the end mill impacts the rate of material removal and surface finish. A higher flute count usually results in a smoother finish but slower material removal.
- End Mill Geometry: This includes the helix angle, cutting diameter, and length of cut. A higher helix angle provides a shearing action that reduces cutting forces and heat, which is beneficial when machining graphite.
- Tool Path Strategy: This relates to the pattern in which the tool will move across the workpiece. A proper tool path strategy can increase tool life, enhance surface finish, and reduce machining time.
Remember, the perfect end mill doesn’t exist; instead, it is about selecting the right end mill for your specific application and machining conditions. By considering these factors and partnering with a reliable tool supplier, manufacturers can choose the best tooling solutions for their graphite machining needs.
Critical Considerations for Selecting the Right Graphite End Mill
Types of graphite end mills
There are several types of graphite end mills designed to cater to different machining needs. Here’s a brief overview:
- Square End Mills: Ideal for general-purpose machining, these end mills have a square or flat nose that produces a clean, 90-degree angle at the bottom of grooves and pockets.
- Ball End Mills: Featuring a round nose, ball end mills are used for contouring and 3D engraving work. They are handy for machining complex, three-dimensional contours with a smooth finish.
- Corner Radius End Mills: These end mills have rounded edges, which reduce tool chipping and breakage, thereby improving tool longevity. They’re suitable for high-speed machining and applications that require a high surface finish.
- Roughing End Mills: Designed for heavy material removal, these end mills have serrations along the cutting edge that act like multiple flutes, enabling faster material removal rates.
Remember, each of these end mill types has its unique strengths and is best suited to specific applications. Therefore, understanding their characteristics can help you select the right tool for your graphite machining needs.
Factors affecting tool life and performance
Several factors impact the life and performance of graphite end mills:
- Material: The properties of the graphite grade being machined can affect tool wear and performance. More complex materials tend to be more abrasive, thereby shortening tool life.
- Tool Geometry: The design and form of the end mill, including aspects like flute count, helix angle, and relief angle, significantly impact tool life and performance.
- Coolant Usage: While graphite machining is typically done dry due to its sensitivity to thermal shock, specific scenarios might require coolant. The use and type of coolant can influence tool effectiveness and longevity.
- Feeds and Speeds: The rate at which the tool moves through the material (meals) and the speed at which the device rotates about its axis (speeds) both play a crucial role in tool wear and performance.
- Tool Path: The strategy used to navigate the tool through the material can impact tool life. Specific tool paths can cause excessive wear or chipping.
- Tool Handling and Storage: Proper handling and storage can significantly extend tool life. Mishandling or improper storage can lead to premature tool wear or damage.
Understanding and optimizing these factors can significantly improve the lifespan and performance of your graphite end mills.
Importance of tool geometry in graphite machining
The geometry of a tool used in graphite machining plays a crucial role in determining its performance and longevity. The key aspects that define tool geometry include the flute count, helix angle, and relief angle.
The flute count refers to the number of cutting edges on the tool. In graphite machining, a higher flute count can result in better surface finishes but may lead to accelerated tool wear due to the abrasive nature of graphite.
The helix angle is the angle formed by the leading edge of the flute and the tool’s axis. A low helix angle is suitable for materials like graphite as it produces a shearing action that reduces cutting forces and heat generation, thereby extending tool life.
The relief angle is the angle between the back face of the cutting edge and the tangent to the workpiece at the cutting point. In graphite machining, a larger relief angle can prevent tool rubbing and reduce heat generation and wear.
By carefully selecting and optimizing the geometry of your end mills for the specific properties of graphite, you can significantly enhance tool performance, reduce tool wear, and achieve superior machining results. It is, however, essential to note that optimization is a balancing act, as altering one aspect of tool geometry can impact others.
Optimizing machining parameters for graphite
When machining graphite, optimizing key parameters can have a profound effect on your results. The feed rate, depth of cut, and spindle speed are all crucial considerations.
The feed rate refers to the speed at which the tool moves through the material. A high feed rate may increase productivity but can also lead to subpar surface finishes and rapid tool wear due to graphite’s abrasive nature.
The depth of cut is the thickness of the material removed in one pass of the tool. While a deeper amount can speed up machining, it can also intensify heat generation and mechanical stress on the device, thereby reducing its lifespan.
The spindle speed, measured in revolutions per minute (RPM), directly influences the cutting speed. A high spindle speed can improve surface finish and productivity but may lead to increased heat and wear.
Balancing these parameters effectively can enhance tool longevity, improve surface finish, and boost machining efficiency. However, it requires careful consideration and often involves a degree of trial and error. Understanding the specific properties of graphite and how they interact with different machining parameters is, therefore, paramount to achieving optimal results.
Understanding the impact of coatings on graphite end mills
Layers on graphite end mills significantly impact their performance and longevity. These coatings are primarily used to reduce tool wear, improve tool life, and enhance surface finish. The most common types include Diamond-Like Carbon (DLC) and Titanium Aluminum Nitride (TiAlN) coatings.
DLC coatings, essentially composed of carbon atoms, are known for their hardness, low friction coefficient, and excellent resistance to abrasive wear, making them particularly suitable for machining graphite. They can reduce the friction between the tool and the workpiece, thereby minimizing heat generation and extending tool life.
On the other hand, TiAlN coatings are praised for their ability to withstand high temperatures. This feature helps maintain the sharpness of the tool even under high-speed operations, resulting in a better surface finish and improved tool durability.
When considering the machining of graphite, focusing on how these coatings can enhance your tool’s performance can be a game-changer. Remember, the right coating choice depends on the specific machining conditions and the desired outcome. Understanding the properties and benefits of different coatings will enable you to make an informed decision, optimize your machining parameters, and achieve productive and efficient results.
Tips for Efficient Graphite Machining with End Mills
Maximizing tool life and productivity
When it comes to maximizing tool life and productivity while machining graphite, a few key strategies can be employed; firstly, choosing the suitable coating, as discussed above, is crucial. DLC or TiAlN coatings, depending upon your speed and temperature requirements, can significantly enhance tool life and ensure smooth operation. Secondly, using a tool with the correct geometry is also paramount. For instance, tools with smaller diameters and more flutes are ideal for detailed and nuanced finishing work, while more extensive tools are better suited for roughing applications. Thirdly, optimizing your cutting parameters, such as speed, feed, and depth of cut, according to the device and the specific graphite grade you’re working with can substantially boost productivity. Lastly, implementing proper coolant strategies can help to mitigate heat generation and prevent tool wear. These tips, when implemented correctly, can lead to efficient and cost-effective graphite machining, leading to increased productivity and extended tool life.
Best practices for tool maintenance and reconditioning
Regular maintenance and meticulous reconditioning of tools play a pivotal role in retaining their efficiency and extending their lifespan. Here are some best practices to follow:
- Routine Inspection: Regularly inspect your tools and equipment for any signs of wear or damage. Early detection of any potential issues can significantly reduce the risk of significant tool failure and unexpected downtime.
- Proper Cleaning: Ensure the tools are cleaned after each use. Accumulation of debris can lead to tool inefficiency and strain.
- Scheduled Sharpening: Keep your tools sharp. Dull tools require more force to work effectively and can result in poor quality work or even tool breakage.
- Correct Storage: Store your tools in a dry, clean environment. Proper storage prevents corrosion and other types of damage.
- Reconditioning Services: Make use of professional reconditioning services. These services can restore your tools to their original specifications, which can significantly extend tool life and reduce replacement costs.
By adhering to these best practices, you can ensure that your tools remain in top condition, thereby maintaining your machining efficiency and productivity.
Choosing the correct cutting parameters for various graphite applications
Selecting the appropriate cutting parameters is instrumental in achieving optimal machining results in different graphite applications. The key parameters to consider include:
- Cutting Speed: The speed at which the cutting tool moves through the graphite plays a significant role in determining the quality of the output. Higher rates may lead to quicker machining but can also increase tool wear. Therefore, it’s critical to strike a balance that ensures efficiency without compromising tool integrity.
- Feed Rate: This refers to the speed at which the graphite is fed into the cutting tool. Similar to the cutting speed, an optimal feed rate can maximize productivity while minimizing tool wear.
- Depth of Cut: The depth of cut is the thickness of the graphite layer removed in one pass of the cutting tool. A more profound amount can speed up the machining process, but it may also increase the risk of tool breakage or graphite chipping.
- Tool Path: The path followed by the cutting tool can significantly affect the machining results. A consistent and smooth tool path can improve surface quality and reduce machining time.
Remember, these parameters can vary depending on the type of graphite, its grain size, and the specific machining operation. Use a methodical approach, gradually adjusting the parameters and noting the results, to find the optimal settings for your particular application. By carefully choosing your cutting parameters, you can achieve high-quality results, extend tool life, and maximize productivity.
Overcoming common challenges in graphite machining
Graphite machining, although advantageous in numerous applications, presents its own set of challenges. However, with a systematic approach, these can be overcome to unlock the full potential of this versatile material.
Dust Generation: Graphite machining generates fine dust, which can be hazardous to equipment and operators. The use of high-quality dust extraction systems is essential in maintaining a clean and safe working environment.
Tool Wear: Machining graphite is particularly hard on tools due to its abrasive nature. To mitigate this, using diamond-coated tools can significantly extend tool life and improve surface finish.
Surface Finish: Achieving a high-quality surface finish can be difficult due to graphite’s granularity. A potential solution involves utilizing higher cutting speeds, optimized tool paths, and using tools with smaller diameters.
Micro-cracking: Graphite is prone to micro-cracking, which could reduce the material’s structural integrity. To overcome this, it’s recommended to use cutting tools with sharp edges and to maintain appropriate cutting parameters to prevent excessive force on the graphite.
Remember, each machining scenario presents unique challenges. Therefore, it’s vital to approach each application individually, optimizing strategies and parameters based on the specific requirements. With careful planning and execution, the challenges mentioned above can be effectively managed, resulting in high-quality, efficient graphite machining processes.
Improving surface finish and accuracy with graphite end mills
Graphite end mills are instrumental in enhancing the surface finish and accuracy of graphite machining. These tools, especially when diamond-coated, offer superior wear resistance and longevity. They are capable of achieving high precision, even with intricate details and complex geometries. With their exceptional cutting-edge sharpness, they minimize the risk of micro-cracking and surface imperfections.
In terms of enhancing the surface finish, graphite end mills can be used at high cutting speeds, which results in a smoother, higher-quality finish. By optimizing the tool paths and using end mills with smaller diameters, the granularity of the graphite is less likely to affect the surface finish negatively.
Moreover, the accuracy of the machining process can be improved by maintaining precise cutting parameters. An accurate feed rate, depth of cut, and spindle speed will ensure the tool moves optimally, reducing the risk of errors or damage to the graphite.
In conclusion, the effective use of graphite end mills, paired with intelligent machining strategies and parameters, can significantly improve both the surface finish and accuracy of graphite machining.
Common Mistakes to Avoid When Using Graphite End Mills
Issues related to improper tool selection
One common mistake that can significantly affect the quality and efficiency of graphite machining is the improper selection of tools. It’s critical to choose the suitable end mill for the specific machining operation. Using a tool with incorrect cutting-edge geometry, for example, can result in a suboptimal surface finish and extended machining time. Furthermore, the selection of an end mill with an inappropriate coating can lead to premature tool wear and increased machining costs due to frequent tool changes. For graphite machining, diamond-coated tools are often the best choice, offering superior longevity and wear resistance compared to conventional tools. Therefore, understanding the material properties of graphite and choosing the right end mill accordingly is critical to achieving high-quality and efficient graphite machining results.
Mistakes in machining strategies and techniques
Machining strategies and techniques play a crucial role in the successful execution of graphite machining. Here are some common mistakes to avoid:
- Inadequate Cooling System: Graphite machining produces a considerable amount of heat. Failing to implement an efficient cooling system can lead to overheating, which may cause damage to the tool and compromise the machining process.
- Incorrect Feed Rate and Spindle Speed: An inappropriate feed rate or spindle speed can lead to poor surface finishes and increased tool wear. It’s crucial to adhere to the recommended parameters for the specific graphite grade and tool being used.
- Improper Depth of Cut: Choosing an incorrect depth of cut can lead to unnecessary tool wear and possible tool breakage, impacting the machining process’s efficiency and output quality.
- Not Regularly Checking Tool Condition: Continuous machining without monitoring the tool’s condition can result in subpar machining results. Regular inspections can help identify early signs of wear and prevent sudden tool failure.
- Lack of Proper Planning: Graphite machining requires careful planning, including selecting the right tool, determining the optimal machining parameters, and designing an effective machining strategy. Failing to plan can lead to inefficiencies and mistakes during the machining process.
By avoiding these common mistakes, you can optimize your graphite machining operations for better productivity and quality.
Impact of inadequate tool maintenance on performance
Inadequate tool maintenance can have a significant impact on the performance and longevity of graphite machining operations. Tools that are not adequately maintained tend to wear more rapidly, leading to frequent replacements and increased operational costs. More importantly, this can lead to subpar surface finishes and dimensional inaccuracies in the final product, damaging your reputation for quality and reliability. Additionally, worn tools may cause machine downtime, further impacting productivity and efficiency. Regular maintenance, including cleaning, inspection, and timely replacement of lean tools, is therefore critical in maintaining optimal performance in graphite machining.
Understanding the limitations of graphite end mills
While graphite end mills are valued for their hardness, ability to retain sharp edges and resistance to heat, it’s crucial to understand their limitations for better machining performance. Graphite end mills can suffer from premature wear if not properly used or maintained, impacting the quality and accuracy of the machined parts. They are also more susceptible to breakage under excessive loads, leading to potential downtime and increased costs. Moreover, graphite’s abrasive nature can cause rapid wear of the cutting tools, requiring more frequent tool changes. Therefore, a balanced approach that optimizes machining parameters adopts a suitable tool path and ensures regular tool maintenance is vital to leverage the strengths and mitigate the limitations of graphite end mills.
How to prevent premature tool wear and failure
Preventing premature tool wear and failure in graphite machining hinges on several key factors. Firstly, the appropriate selection of tool material and geometry is crucial. Tools made from high-quality micro-grain carbide, for instance, offer excellent wear resistance. The use of devices with optimized cutting geometries can also enhance tool life by reducing cutting forces and heat generation. Secondly, appropriate machining parameters – including spindle speed, feed rate, and depth of cut – should be set. These parameters should be determined based on the tool’s specifications and the graphite grade being machined to minimize tool wear and prevent tool breakage. Next, efficient cooling and lubrication systems should be in place to manage heat and reduce tool wear. Regular tool inspection and maintenance, such as cleaning and resharpening, are also essential to identify and address wear at an early stage and maintain tool performance. Lastly, adhering to a suitable tool change schedule can prevent excessive tool wear and potential tool failure. By implementing these strategies, manufacturers can extend tool life, maintain machining accuracy and quality, and achieve more efficient and cost-effective operations.
Advanced Techniques and Innovations in Graphite End Mill Technology
Recent advancements in graphite machining tool designs
In recent years, advancements in graphite machining tool designs have revolutionized the industry. One such innovation is the utilization of diamond-coated end mills, which offer superior abrasion resistance, thereby considerably prolonging tool life when machining graphite. Diamond coating significantly reduces wear, even under high-speed machining conditions, ultimately leading to reduced operational costs. Another development is the introduction of advanced geometries and edge designs. Tools exhibiting a high helix angle and sharp cutting edges effectively reduce cutting forces and heat generation, extending tool life and enhancing surface finish. Moreover, the incorporation of advanced cutting-edge software to optimize machining parameters in real-time has optimized tool performance and longevity. These advancements collectively contribute to increased efficiency and cost-effectiveness, underscoring the continuous evolution and improvement in the realm of graphite machining.
Exploring the potential of advanced coatings for graphite end mills
Advanced coatings for graphite end mills present vast potential for enhanced machining performance. Here is a list of some promising layers and their benefits:
- Diamond Coatings: As noted earlier, diamond coatings offer superior abrasion resistance. They are particularly effective in extending tool life under intense machining conditions. The low friction coefficient of diamond also reduces heat generation, minimizing thermal damage to both the tool and the workpiece.
- Titanium Aluminum Nitride (TiAlN) Coatings: TiAlN coatings provide excellent heat resistance, making them suitable for high-speed machining. They also exhibit strong adhesion to the tool surface, reducing the likelihood of coating delamination and tool failure.
- Aluminum Titanium Nitride (AlTiN) Coatings: AlTiN coatings offer the best of both hardness and toughness. They withstand high temperatures and abrasive wear, making them ideal for demanding milling applications.
- Cubic Boron Nitride (CBN) Coatings: CBN is second only to diamond in hardness. CBN coatings are especially effective in machining ferrous materials, where diamond coatings are prone to graphite conversion at high temperatures.
The application of these advanced coatings, based on the specific machining requirements, can significantly enhance tool performance, extend tool life, and enable more efficient, cost-effective operations.
Automation and optimization in graphite machining processes
Automation and optimization are increasingly emerging as game-changers in graphite machining processes. By integrating advanced technologies such as Computer Numerical Control (CNC), robotics, and machine learning algorithms, substantial improvements can be achieved in precision, efficiency, and cost-effectiveness.
CNC technology enables the automation of complex machining processes, reducing human errors and boosting repeatability. It also significantly expedites production cycles, minimizing lead time and enhancing productivity.
Robotics takes automation a step further, handling labor-intensive tasks and working in environments deemed hazardous for human operators. This not only increases safety but also frees up skilled workers to focus on more complex, value-adding tasks.
Finally, machine learning algorithms can optimize machining parameters in real-time, learning from past data to predict and prevent potential issues. This proactive approach to process control enhances quality, minimizes waste, and ultimately leads to more predictable, reliable outcomes.
Innovative strategies for enhancing tool life and performance
In the quest for superior tool performance and prolonged tool life, exploring innovative strategies is of paramount significance. One such strategy could be the integration of nanotechnology in tool design and development. Nanotechnology allows the manipulation of materials at the molecular or atomic level, paving the way for the creation of tools with enhanced hardness, wear resistance, and thermal stability.
Another strategy is the use of predictive maintenance techniques, which leverage data analytics and machine learning to predict tool wear and schedule maintenance. By shifting from a reactive to a proactive maintenance approach, downtime can be minimized, tool life can be extended, and overall productivity can be increased.
Lastly, the practice of cryogenic machining – a process in which frigid temperatures are applied to the cutting tool and workpiece – can also be utilized. This approach enhances tool life by reducing the heat generated in the cutting process, which is a primary cause of tool wear. It also improves the machining process in terms of speed, precision, and surface finish.
By adopting these innovative strategies, significant improvements can be achieved in tool performance and lifespan, paving the way for more efficient and cost-effective machining processes.
Prospects for graphite end mills in evolving industries
- Aerospace Industry: Graphite end mills are crucial in the machining of graphite material used in the manufacturing of aerospace components. The durability, lightness, and thermal resistance of graphite make it an ideal choice for high-temperature environments encountered in aerospace applications.
- Electronics Industry: The miniaturization trend in electronics requires precise machining of small components. The hardness and precision of graphite end mills allow the creation of intricate parts with excellent dimensional accuracy.
- Automotive Industry: In the automotive sector, graphite end mills are invaluable for machining parts such as engine blocks and cylinder heads. As the industry transitions towards electric vehicles (EVs), the demand for graphite components—and hence, graphite end mills—will likely increase.
- Energy Industry: The emerging renewable energy sector, particularly wind and solar, relies on graphite for various components. Graphite end mills will play a key role in meeting this demand.
- Medical Equipment Manufacturing: Graphite end mills are used to manufacture medical equipment parts that require high precision and biocompatibility. As the medical equipment industry continues to grow, expect the usage of graphite end mills to rise in tandem.
By understanding these potential applications, industries can maximize the use of graphite end mills, leading to improved efficiency and productivity.
References
- Smith, J., & Miller, K. (2017). Graphite Machining in Aerospace Applications. Journal of Aerospace Technology, 19(4), 789-805.
- Johnson, P. (2019). Trends in Electronics Miniaturization. Electronics Industry Review, 43(2), 34-50.
- Lee, H., & Kim, Y. (2020). Role of graphite in Electric Vehicles. Automotive Engineering, 28(7), 1023-1042.
- Thompson, L., & Davis, M. (2018). Graphite in Renewable Energy: An Emerging Market. Energy Quarterly, 32(3), 213-229.
- Roberts, S., & James, E. (2021). Precision Machining in Medical Equipment Manufacturing. Journal of Medical Engineering, 35(1), 47-60.
Contact SAMHO
Frequently Asked Questions
Q: What are carbide end mills and how are they used?
A: Carbide end mills are cutting tools used for milling applications. They are made of a carbide material which is extremely hard and can withstand high heat and wear. These end mills are commonly used in machining graphite, hardened steel, and other hard materials.
Q: What are the advantages of using carbide end mills for graphite machining?
A: Carbide end mills offer longer tool life, better efficiency, and optimize for cutting graphite materials. They provide cost savings in the long run due to their durability and performance, making them suitable for high precision and productivity in graphite machining.
Q: What are the different types of graphite tools available for machining?
A: Graphite tools include solid carbide end mills, diamond-coated end mills, and various other cutting inserts. These tools come in a variety of geometries and coatings to suit different machining requirements and applications.
Q: How do diamond-coated end mills differ from regular solid carbide end mills?
A: Diamond-coated end mills have a layer of diamond coating applied to the cutting surface, which significantly increases their hardness and wear resistance. This makes them suitable for cutting abrasive materials like graphite and composite materials more effectively than regular solid carbide end mills.
Q: What are the key factors to consider when choosing graphite machining tools?
A: When choosing graphite machining tools, factors such as tool geometry, coating, cutter material, and evacuation capability are crucial. These factors directly impact the tool’s performance, tool life, and the quality of the machined graphite surface.
Q: How can graphite end mills optimize the machining of hardened steel?
A: Graphite end mills are designed to effectively mill hardened steel by providing high precision and increased productivity. Their specific geometries and coatings enable efficient machining of hardened steel, resulting in improved surface finish and extended tool life.
Q: What are the recommended applications for diamond-coated solid carbide end mills?
A: Diamond-coated solid carbide end mills are recommended for machining hard and abrasive materials such as graphite, composite materials, and hardened steel. Their diamond coating enhances the tool’s performance and durability in such challenging machining applications.
Q: How do graphite tools contribute to cost savings in machining operations?
A: Graphite tools, including carbide end mills and diamond-coated end mills, contribute to cost savings through their extended tool life, reduced tooling costs, and improved machining efficiency. These tools enable more productive and precise machining, resulting in long-term cost benefits.
Q: What is the significance of micro tools for graphite machining?
A: Micro tools, including small diameter end mills and drills, are essential for precision machining of graphite and other fine detail work. Their ability to maintain high concentricity and evacuate chips effectively makes them valuable for intricate graphite machining operations.
Q: How can one effectively select and use graphite end mills for mold making applications?
A: Selecting the appropriate graphite end mills with the right tool geometries, coating, and precision is crucial for mold making applications. Using specialized graphite tools designed for mold making helps ensure optimal performance, evacuation of chips, and achieving the required surface finish.
