Graphite Square End Mill【4 Flutes Φ 1-12】
Upgrade Your Milling Experience with SAMHO Graphite Square End Mill【4 Flutes Φ 1-12】 !
Looking for high-quality 4 flute wholesaler from China? Look no further! SAMHO is your trusted source for the best in precision tools. Our Graphite Square End Mill【4 Flutes Φ 1-12】is the perfect choice for all your machining needs. With its durable construction and superior performance, this tool guarantees smooth and efficient cutting. Don’t miss out on this opportunity to enhance your productivity. Contact us today to place your order and experience the SAMHO difference!
4-Flute Flat Diamond Coated End Mill – Precision Tool for Graphite and Ceramic Machining
Specifically designed for machining high-hardness, highly abrasive non-metallic materials such as graphite and electrical ceramics, this 4-flute flat end mill features a high-performance diamond coating for superior wear resistance, cutting stability, and surface finish. Ideal for high-efficiency, high-precision dry cutting applications.
Ultra-Hard Diamond Coating for Extended Tool Life
The tool is coated with premium diamond, offering a surface hardness of HV9000 or higher. This significantly increases wear resistance and allows for long tool life, even in the continuous dry machining of abrasive materials like graphite and ceramics.
4-Flute Design for Improved Rigidity and High-Speed Performance
The multi-flute configuration enhances overall rigidity and vibration resistance. It enables stable, high-efficiency operations during side milling, face finishing, and surface cleanup—particularly in graphite electrode machining—while maintaining dimensional accuracy.
Flat End Geometry for Clean Edges and Precise Finishes
The flat head design ensures accurate end face control and crisp edge definition, making it ideal for contour milling of molds, outer profiles of electrodes, and flat surfaces of ceramic structural components.
Ultra-Fine Grain Carbide Substrate for Crack Resistance
Built from ultra-fine grain carbide, the tool resists thermal cracking and fracture, providing excellent performance under the high-stress conditions often encountered in brittle material machining.
CNC Precision Ground, ±0.01mm Tolerance
Each tool is ground with tight tolerance control to ensure consistent dimensional accuracy. Perfect for high-precision applications such as graphite electrodes, ceramic inserts, and micro-structural parts with strict geometric tolerances.
-

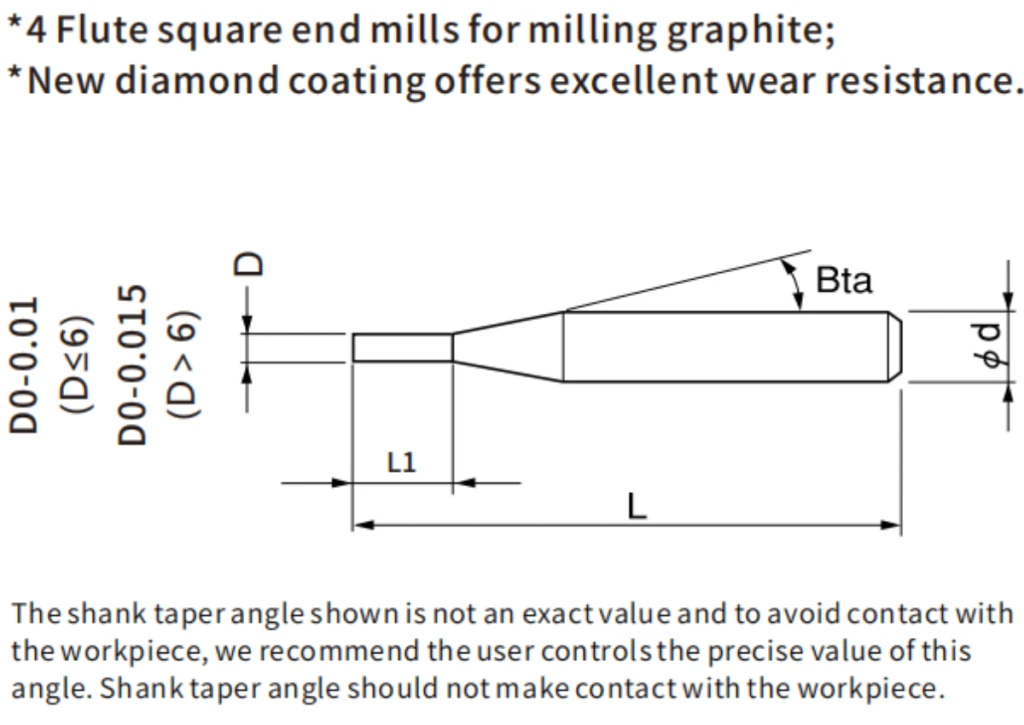

Specialty

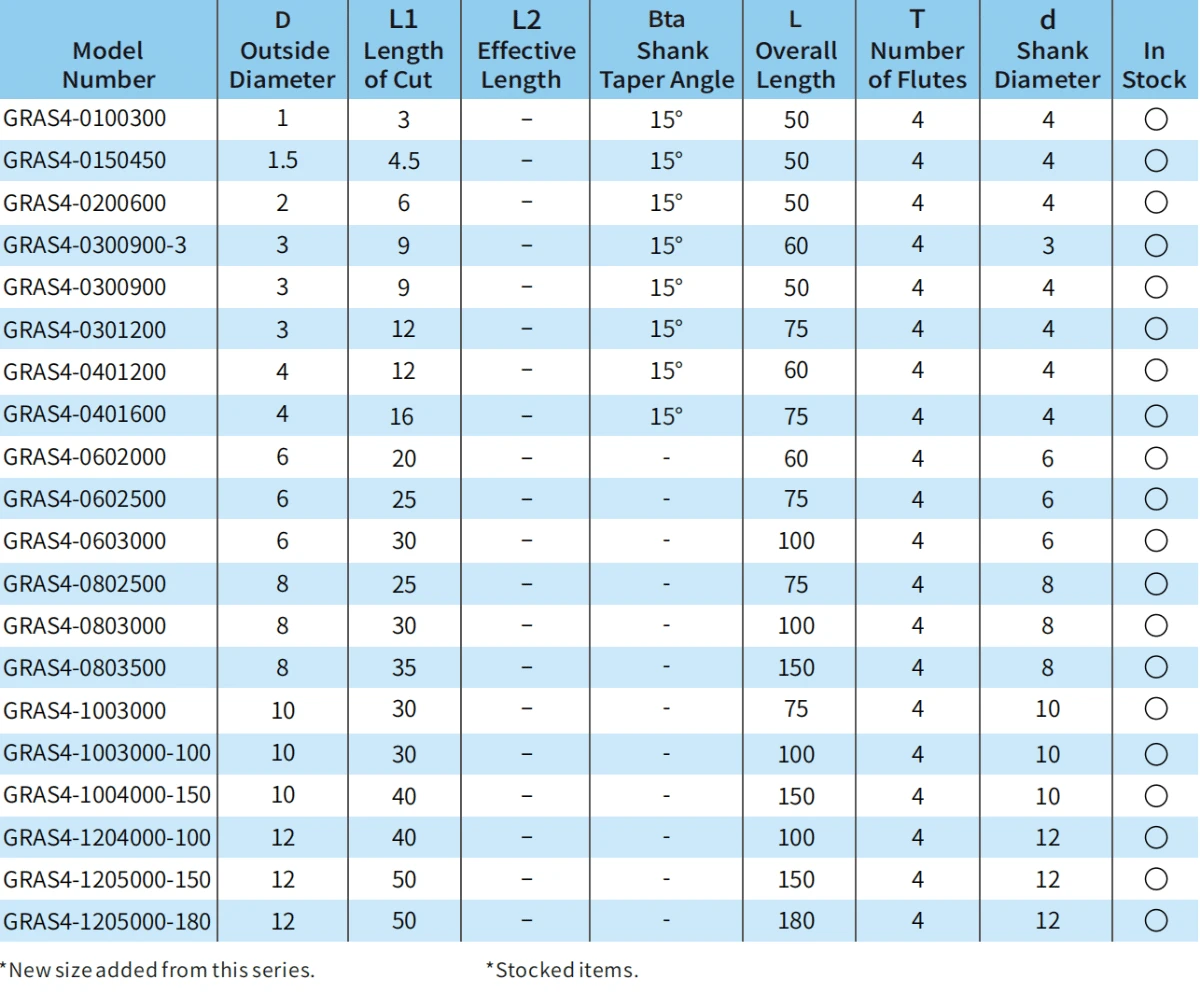

4 Flutes Corner Radius End Mill Catalog
Total 20 Models-Unit(Mm)
-

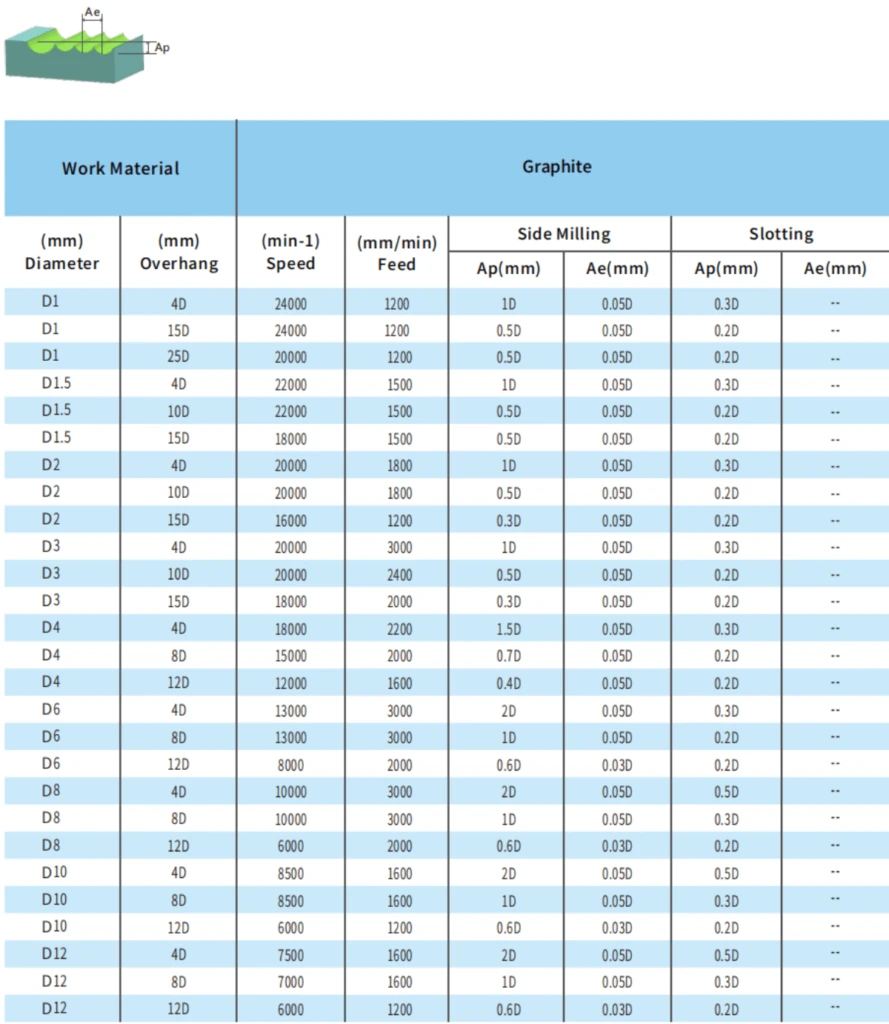

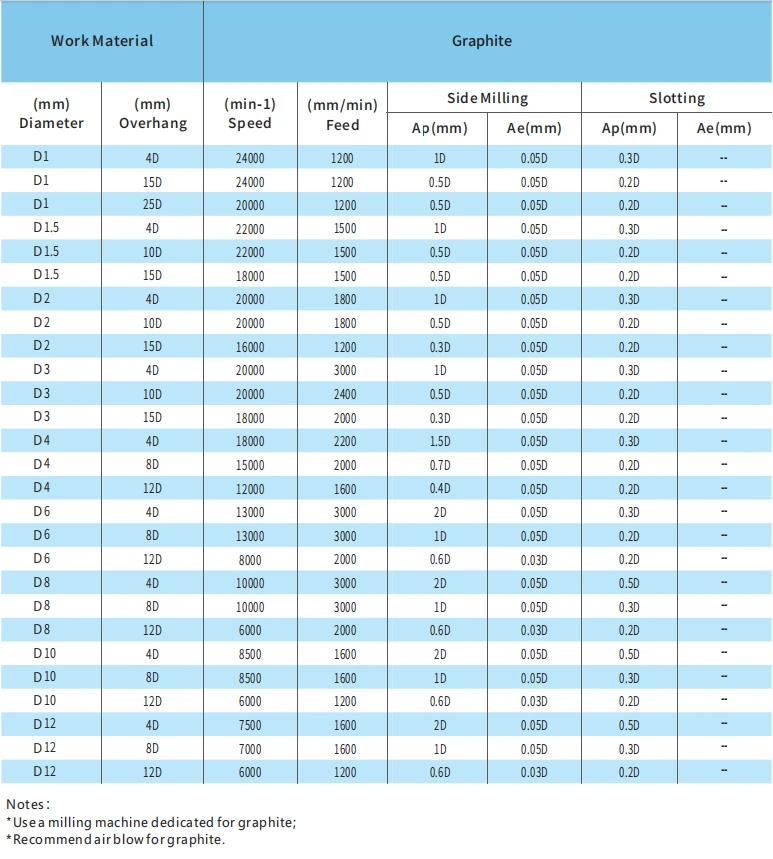

GRAS4-000 Milling Conditions
Notes：
*Use a milling machine dedicated for graphite;
*Recommend air blow for graphite.
Related Product Recommendation
Graphite Ball Nose Long Neck End Mill【2 Flutes Long Neck Ball R0.1-R2】
Graphite Ball Nose Long Neck End Mill【2...
Read More
Graphite Corner Radius End Mill【4 Flutes Φ 3-12】
Graphite Corner Radius End Mill【4 Flutes Φ...
Read More
Graphite Square End Mill【2 Flutes Φ 0.2-6】
Graphite Square End Mill【2 Flutes Φ 0.2-6】...
Read MoreFrequently Asked Questions
Q 1: What are the advantages of a 4-flute graphite end mill compared with a 2-flute graphite end mill?
A: A 4-flute graphite end mill offers higher rigidity, better surface finish, and greater machining stability than a 2-flute design. It is particularly suitable for semi-finishing and finishing operations on graphite electrodes and precision graphite molds.
While 2-flute graphite cutters provide larger chip evacuation space and are often preferred for roughing, 4-flute graphite end mills can achieve:
- Higher machining accuracy
- Better dimensional consistency
- Improved surface quality
- Reduced tool vibration
- Longer tool life in finishing applications
For high-precision graphite electrode manufacturing, 4-flute tools are often the preferred choice.
Q 2: Can a 4-flute graphite end mill be used for rough machining?
A: Yes, but it depends on the machining strategy.
A 4-flute graphite end mill can perform light roughing and semi-finishing efficiently, especially when using high-speed milling strategies. However, for heavy material removal and deep cavity roughing, many manufacturers still prefer 2-flute or specialized roughing graphite end mills because they provide larger chip evacuation space.
For best results:
- Use 2-flute tools for aggressive roughing.
- Use 4-flute tools for semi-finishing and finishing.
- Apply high-speed machining (HSM) toolpaths whenever possible.
This combination typically delivers the best balance between productivity and tool life.
Q 3: Why are diamond-coated 4-flute graphite end mills recommended for graphite machining?
A：Graphite is highly abrasive and causes rapid wear on uncoated carbide tools.
Diamond-coated 4-flute graphite end mills significantly improve wear resistance by creating an ultra-hard protective layer on the cutting edge. Compared with uncoated tools, they can provide:
- 5–20 times longer tool life
- Better edge retention
- Reduced dimensional deviation
- Improved surface finish
- Lower tooling costs per electrode
For large-scale graphite electrode production, diamond-coated cutters are considered the industry standard.
Q 4: How can I maximize the service life of a 4-flute graphite end mill?
A：To achieve the longest possible tool life when machining graphite, follow these best practices:
- Use diamond-coated graphite end mills.
- Maintain effective dust extraction systems.
- Avoid excessive radial cutting engagement.
- Minimize tool overhang whenever possible.
- Use high-speed machining toolpaths.
- Ensure proper tool balancing for high RPM operation.
- Replace worn tools before severe edge degradation occurs.
In our experience machining EDM graphite electrodes, tool life is influenced more by cutting strategy and dust control than by spindle speed alone. Proper machining conditions can dramatically extend cutter life while maintaining electrode accuracy.
