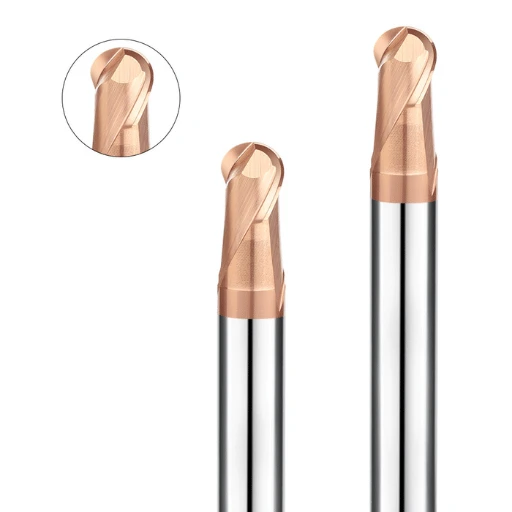

Ball Nose End Mill

What are the key features of a ball nose end mill?

Understanding the flute design

The flute design is a critical aspect in the selection of a ball nose end mill. Flutes are the deep helical grooves running up the cutter, which dictate the tool’s cutting speed, chip evacuation, and cooling capabilities. More flutes translate into a slower feed rate but a smoother cut, making them preferable for finishing operations. In contrast, fewer flutes can process a higher feed rate, an ideal feature for roughing or heavy material removal. Moreover, the flute’s helix angle, which ranges from low to high, impacts the cutting force direction, with high tips reducing side loads during aggressive machining. Understanding these aspects will help optimize machining performance, enhance tool longevity, and ultimately increase overall efficiency.

Choosing the right shank type

Selecting the correct shank type is crucial for ensuring stability, accuracy, and quality of the machining process. Here are a few shank types to consider:

1. Straight Shank: A straight shank is the most common type used in ball nose end mills. It offers a straightforward setup and compatibility with most tool holders. However, it may lack rigidity for aggressive operations.
2. Tapered Shank: Tapered shanks provide increased stability during heavy cutting loads, making them ideal for high-speed operations. They are typically used in milling machines with a compatible tapered spindle.
3. Threaded Shank: Threaded shanks offer a secure hold, preventing the tool from slipping during operations. However, they require specific tool holders with matching threads.
4. Weldon Shank: Weldon shanks feature a flat on the side that a set screw tightens against, ensuring a solid grip. They are a popular choice for heavy-duty applications but may lack concentricity.

Remember, the right shank type is dependent on your machine setup, application requirements, and the material you are working with. The aim is to strike a balance between rigidity, alignment, and tool holder compatibility to optimize machining performance.

Considerations for radius and diameter

The radius and diameter of a ball nose end mill play critical roles in determining the outcome of the machining process. The tool’s radius impacts the size of the scallop left on the workpiece, with smaller radii going smaller, finer scallops, thereby creating a smoother surface finish. On the other hand, larger radii, while leaving a rougher finish, remove more material, making them more suitable for roughing operations. Similarly, the tool’s diameter influences the cutting speed and depth of the cut. Larger diameters allow for faster cutting speeds and deeper cuts but may increase the risk of tool deflection in slender tool designs. Conversely, smaller diameters can be used at lower rates with shallower cuts, offering more excellent tool stability and accuracy. Therefore, careful consideration of radius and diameter based on the specific requirements of the machining operation can significantly enhance the tool’s performance and the quality of the finished product.

Material and coating options for optimal performance

Choosing the suitable material and coating for a ball nose end mill is critical for achieving optimal performance and extending tool life. Carbide is a popular material choice due to its high hardness and heat resistance, making it suitable for machining a wide range of materials. High-speed steel (HSS), although not as rigid or heat resistant as carbide, is a cost-effective option for less demanding applications.

Coatings, on the other hand, provide additional benefits such as reducing friction, increasing hardness, and resisting heat and wear. Titanium nitride (TiN) is a standard coating that offers increased tool life and improved surface finishes. Titanium aluminum nitride (TiAlN) provides higher heat resistance, making it an excellent choice for high-speed or dry machining applications. Choosing the right combination of material and coating based on the machining requirements can significantly improve tool performance and longevity.

How the geometry of the end mill influences its application

The geometry of an end mill plays a critical role in its application capabilities. Two crucial aspects are the helix angle and the number of cutting edges or flutes. The helix angle, which is the angle between the cutter’s axis and the cutting edge, impacts the cutting force, chip evacuation, and surface finish. A higher helix angle reduces cutting forces and improves surface finish but may compromise tool rigidity. Conversely, a lower helix angle provides more rigidity but with greater cutting forces.

The number of flutes influences the tool’s speed capabilities and chip evacuation. Instruments with more flutes can operate at faster speeds and provide better surface finishes. Still, they have less chip space, which can be a limitation in applications involving materials that produce large chips. On the other hand, tools with fewer flutes have more chip space, making them suitable for applications involving materials that produce larger chunks. Still, they might not offer the same level of surface finish or operate as quickly.

Thus, understanding and choosing the correct end mill geometry based on your specific machining requirements can optimize your machining process, leading to improved efficiency, higher quality finished products, and extended tool life.

How do you select the best ball nose end mill for a specific machining task?

Application-specific considerations for end mill selection

When selecting an end mill for a specific machining task, several application-specific factors need to be considered to ensure optimal performance.

1. Material Type: Different materials exert different types of cutting forces and require specific tool characteristics. For example, more rigid materials may require an end mill with a higher helix angle for smoother cutting.
2. Machining Operation: Whether you’re slotting, profiling, or roughing, it will influence your end mill choice. For example, a roughing operation may benefit from an end mill with fewer flutes for better chip evacuation.
3. Depth and Width of Cut: These determine the amount of cutting-edge engagement and can influence the selection of helix angle and flute count.
4. Machine Tool Capabilities: The power and speed capabilities of your machine tool can impact the choice of end mill, as some devices are designed to operate at higher speeds.
5. Workpiece Setup: The stability of the workpiece and its position can affect the choice of tool geometry. Unstable or awkward setups may require tools with specific geometries to minimize vibration and ensure precision.

By considering these factors alongside the geometric characteristics of the end mill, you can make an informed selection that will improve productivity and quality in your machining operations.

The impact of flute count on cutting precision

The number of flutes on an end mill significantly influences the precision of a machining task. Here’s how:

1. Surface Finish: More flutes on an end mill can lead to a finer finish due to reduced chip load per tooth. This is particularly beneficial when machining softer materials or when a high-quality surface finish is essential.
2. Feed Rate: Lower flute counts can accommodate higher feed rates because there is more space available for chip evacuation. Conversely, end mills with a higher flute count can achieve faster speeds but may require slower feed rates to avoid chip packing.
3. Tool Strength: End mills with fewer flutes are generally more robust and less prone to breakage, making them more suitable for heavy cuts and hard materials. However, they may not deliver the same level of precision as a high-flute-count end mill, particularly in finishing operations.
4. Heat Dissipation: With a lower flute count, each flute can remove more material, which can lead to increased heat generation. Higher flute counts distribute the cutting forces over more flutes, possibly leading to less heat per flute.
5. Material Removal Rate (MRR): End mills with more flutes can remove material more quickly for a given feed rate due to the increased contact area. However, this must be balanced against the need for chip evacuation to prevent chip re-cutting and tool breakage.

By understanding the impact of flute count on cutting precision, you can better tailor your end mill selection to your specific machining requirements.

Understanding the advantages of 2-flute vs. 4-flute ball nose end mills

When it comes to ball nose end mills, choosing between a 2-flute and a 4-flute can make a significant difference in the outcome of your machining.

1. Speed and Feed: A 2-flute ball nose end mill is capable of faster speeds and can handle higher feed rates due to more space for chip evacuation. In contrast, a 4-flute end mill may require a slower feed rate, but it compensates with its potential for faster spindle speeds.
2. Finish Quality: A 4-flute ball nose end mill can deliver a higher-quality surface finish due to its increased flute count, reducing chip load per tooth. This is particularly advantageous when working with softer materials or when the desired result is a superior surface finish.
3. Strength and Durability: The 2-flute end mill typically exhibits greater strength and durability, being less prone to breakage. This characteristic makes it an excellent choice for heavy cuts and more rigid materials.
4. Heat Management: The 4-flute ball nose end mill tends to generate less heat per flute as the cutting forces are distributed over more flutes. This can be critical when working with materials sensitive to high temperatures.
5. Material Removal Rate (MRR): The 4-flute end mill generally offers a higher MRR given the same feed rate, thanks to its larger contact area. Yet, this comes with the caveat of needing careful management of chip evacuation to prevent chip re-cutting and tool damage.

By weighing these factors, you can choose the suitable end mill that meets your machining objectives effectively and efficiently.

The significance of neck and shank design in achieving milling accuracy

The neck and shank design of a milling tool plays a crucial role in achieving accuracy in milling operations. The shank is the section of the device that is held in the tool holder, and it should be designed to withstand the high rotational forces during milling. An inadequately designed shank can lead to tool slippage, run-out issues, and overall decreased accuracy. Furthermore, the rigidity of the leg significantly impacts the stability of the milling process, directly affecting the precision of the cuts.

The neck of the tool, on the other hand, is the slender part that connects the cutting head to the shank. It is designed to reach into narrow, deep cavities in the workpiece. The length and diameter of the neck need to be carefully balanced; a longer neck can go deeper but may compromise the rigidity, leading to deflection and vibration problems, which can diminish the milling accuracy. Conversely, a shorter, thicker neck provides better stability but might limit the reach.

Thus, selecting the right neck and shank design that aligns with your milling application can significantly enhance the milling accuracy, efficiency, and the resultant quality of the workpiece.

Empowering accuracy through CNC ground ball nose end mills

CNC ground ball nose end mills offer a valuable solution for attaining high precision in complex milling applications. These end mills, characterized by their hemispherical “ball nose,” are particularly effective in milling contoured surfaces, creating intricate shapes, and achieving excellent surface finishes. One of the critical advantages of CNC ground ball nose end mills is their ability to maintain dimensional accuracy even in the face of challenging machining tasks.

The unique geometry of the ball nose end mill allows for precise control over the cutting path, minimizing the risk of tool deflection, which can impact the accuracy of the final workpiece. Further, with CNC grinding, these tools can be manufactured with high precision, ensuring uniformity and consistency of dimensions that significantly enhance the milling accuracy. The result is a boost in operational efficiency, reduced reworking, and improved quality of the finished product. Therefore, by wisely incorporating CNC ground ball nose end mills in your machining operations, you can empower accuracy and elevate the overall milling performance.

What are the common challenges when using ball nose end mills?

Addressing Tool Wear and Cutter Longevity

Tool wear and cutter longevity are critical factors that impact the effectiveness of ball nose end mills in machining operations. By using high-quality, wear-resistant materials and optimizing cutting parameters, it’s possible to mitigate tool wear and extend the life of the cutter. Regular maintenance and inspection also help identify wear issues early on. These strategies result in more efficient operations and superior quality of the finished product.

Optimizing cutting speed and feed for superior performance

Achieving superior performance with ball nose end mills largely depends on optimizing cutting speed and feed rates. Cutting speed, or the speed at which the cutter moves relative to the workpiece significantly affects the heat generated and the rate of tool wear. On the other hand, feed rate, which refers to how quickly the cutter advances into the workpiece, impacts the size of the chip and tool life. A well-optimized cutting speed and feed rate can enhance the efficiency of machining operations, reduce tool wear, and improve the surface finish of the workpiece. Sophisticated software solutions can provide real-time feedback and controls for adjusting these parameters, enabling machinists to maximize tool performance and achieve superior finished products.

Exploring the impact of material selection on end mill efficiency

The efficiency of a ball nose end mill is also significantly influenced by the material from which it’s made. Different materials possess varying degrees of hardness, toughness, and wear resistance, all of which impact tool performance and longevity.

1. High-Speed Steel (HSS): Traditionally used for end mills, HSS offers good toughness and cutting-edge integrity. However, its lower hardness and heat resistance make it less suitable for high-temperature applications.
2. Cobalt (HSCO): These end mills are an upgraded version of HSS, with additional cobalt for more excellent heat resistance at higher speeds but slightly less toughness.
3. Carbide: Known for its excellent hardness and heat resistance, carbide end mills can operate at higher cutting speeds compared to HSS and HSCO. It is also resistant to wear, although its toughness is lower.
4. Ceramic and Cermet: These materials possess extreme hardness and heat resistance, allowing them to operate at very high cutting speeds. However, they lack the toughness of HSS and carbide and are more prone to chipping.

Each of these materials has its strengths and limitations, and the specific requirements of the machining operation should guide the choice of material. Implementing a strategic material selection can result in improved tool efficiency, reduced wear, and higher-quality finished products.

Enhancing finish quality and surface profile with ball nose end mills

The quality of the finish and surface profile achieved in machining operations is significantly impacted by the type of end mill used. Mainly, ball nose end mills offer distinct advantages for creating complex three-dimensional shapes and producing high-quality finishes. The unique spherical design of a ball nose end mill provides a cutting action that is less aggressive than flat end mills, resulting in smoother, more fluid cuts and fewer tool marks on the final product.

Furthermore, the curvature of the ball nose allows for surface contouring and profiling, which would be challenging with other types of end mills. This makes them ideal for applications in mold, die, and aerospace industries where precision and aesthetic finish are critical.

However, achieving these optimal results requires careful selection of the proper tool parameters, such as tool path, stepover, and cutting speed. For instance, a smaller stepover can result in a finer finish as the overlapping cuts minimize the scallop height, thereby reducing surface roughness.

Hence, for operations seeking high-quality finish and complex surface profiling, the integration of ball nose end mills into the machining strategy becomes a crucial consideration.

Maximizing tool performance through proper tool maintenance

Tool maintenance plays a pivotal role in prolonging the life of your milling tools and ensuring their optimal performance. A well-maintained tool not only reduces the potential for tool failure but can also result in a higher quality of finished products by maintaining its cutting precision.

Firstly, regular inspection of the tools is vital. Check for signs of wear, tear, or damage, such as chipping, blunting, or deformation. These could significantly impact the tool’s performance and the quality of the finish. Early detection of such issues allows for timely replacement or repair, preventing more severe complications down the line.

Additionally, proper storage of tools is essential. Store them in a dry, clean, and dust-free environment to avoid corrosion and contamination. Keeping them organized and safely stored can also prevent accidental damage.

Lastly, adequate lubrication of the tools can improve the tool’s performance by reducing friction, heat buildup, and material adhesion. Different materials may require specific lubricants. Hence, it is crucial to choose the right one.

In conclusion, a comprehensive tool maintenance strategy is not just an afterthought but a key component in maximizing tool performance and achieving superior finished products.

How do we maintain and prolong the lifespan of ball nose end mills?

Effective maintenance of ball nose end mills involves more than just regular inspection. It requires a thorough understanding of the optimal operational parameters and a commitment to preventive care measures.

Implementing Effective Lubrication and Cooling Strategies

It’s critical to select the proper lubricant for the specific material being machined. This not only minimizes friction and heat buildup during machining but also prevents material from adhering to the cutting tool. Additionally, adequate cooling strategies such as coolant or compressed air can keep the device at optimal temperature, ensuring its longevity.

Proper Handling and Storage to Prevent End Mill Damage

Mishandling during storage or transportation can lead to unnecessary tool damage. Ensuring that ball nose end mills are stored in a dust-free, clean, and dry environment can prevent corrosion and accidental damage. Using protective sleeves or foam inserts can also provide additional protection.

Regular Inspection and Reconditioning of Ball Nose End Mills

Regular inspection is critical to identify early signs of wear or damage. If wear is detected, reconditioning, such as resharpening the tool, can help to restore its original performance and significantly extend its life.

Utilizing Suitable Cutting Parameters to Minimize Tool Stress

The proper cutting parameters – such as spindle speed, feed rate, and depth of cut – can significantly reduce tool stress and prevent premature tool wear. Therefore, it’s essential to select the appropriate parameters based on the material being machined and the specific machining operation.

Optimizing CNC Programming to Prolong Tool Longevity

A well-optimized CNC program can enhance tool life by reducing unnecessary tool movement and ensuring efficient machining. Techniques such as ‘High-Speed Machining’ and ‘Trochoidal Milling’ can be utilized to achieve a consistent load on the tool and prolong its lifespan.

By adhering to these strategies, you can significantly enhance the lifespan and performance of your ball nose end mills, thereby increasing productivity and reducing operational costs.

Latest Advancements and Trends in Ball Nose End Mill Technology

The Ball Nose, End Mill technology, is continuously evolving, with manufacturers and researchers alike constantly pushing the boundaries to enhance performance and efficiency. Next-generation solid carbide and carbide ball nose end mills are one such advancement, offering superior rigidity and heat resistance. These tools effectively withstand higher temperatures and stresses, thereby providing longer tool life and improved machining quality.

End Mill Coatings Revolutionizing Machining Capabilities

Another groundbreaking development in this field is advanced end mill coatings. These innovative coatings, such as titanium nitride or aluminum titanium nitride, significantly enhance tool hardness and heat resistance, minimizing tool wear and increasing cutting speed.

The Role of Ball Nose End Mills in High-Speed and Precision Machining

Ball nose end mills are playing an increasingly critical role in high-speed and precision machining. Their unique design allows for efficient machining of complex contours and surfaces, providing high accuracy and a superior surface finish.

Enhancing Performance with Specialized Ball End Milling Solutions

Specialized ball end milling solutions, including variable helix end mills and multi-flute end mills, are also transforming the field. These tools optimize chip removal rates and reduce cutting forces, enabling faster feed rates and enhanced performance.

Customized End Mill Solutions for Industrial Applications

Finally, the trend towards customized end-mill solutions tailored to specific industrial applications is increasingly evident. By developing tools designed to meet the unique needs of industries such as aerospace, automotive, or mold and die production, manufacturers can significantly improve performance and productivity. These advancements in ball nose end mill technology promise a future of increasingly efficient and precise machining operations.
