HRC65 Ball Nose End Mill 【2 Flutes Long Neck R0.1-R2】

Get 2 Flutes Long Neck Milling Cutters with R0.1-R2 Radius from China!

We are proud to offer the Ball Nose【2 Flutes Long Neck R0.1-R2】tool, perfect for precise and efficient cutting. With our direct procurement from China, you can trust that you are getting the best value for your money.

Home » Ball Nose End Mill » HRC65 Ball Nose Long Neck End Mill【2 Flutes Long Neck R0.1-R2】

Specialized for Deep Cavity and Fine Feature Machining in Hardened Steel (≤65HRC)
Designed to machine hardened tool steels up to 65HRC, this tool combines a high-strength micro-grain carbide substrate with a precision long neck structure—ideal for deep mold cavities, narrow ribs, and detailed 3D surfaces where tool reach and stability are critical.
2-Flute Design Enhances Chip Flow and Cutting Control in Hard Materials
The open flute design ensures efficient chip evacuation, reduces cutting forces, and minimizes vibration during deep or intricate contouring. Especially suited for semi-finishing and finishing in hard-to-reach areas.
Precision Ball Nose Geometry for Complex 3D Surface Profiling
The spherical tip delivers excellent contouring performance and smooth surface finishes. Perfect for high-precision applications such as electrode machining, medical component milling, and 3D mold surface finishing where surface integrity is paramount.
Long Neck, Short Flute Ratio Ensures Rigidity and Reach in One Tool
Engineered with a carefully calculated neck-to-flute length ratio, the tool minimizes deflection while allowing deep access into complex geometries. This reduces the need for multiple tool changes and boosts machining accuracy in tight spaces.
Advanced Thermal-Resistant Coating for High-Speed, Low-Lubrication Operations
Featuring a high red hardness nano-coating (e.g., HG), the tool maintains sharpness and wear resistance at elevated temperatures, supporting dry and MQL machining strategies—meeting modern demands for high-efficiency and eco-friendly production.
Cutting Parameters Provided – Faster Setup, Stable Performance
Every tool comes with verified cutting data tailored for hardened steels, helping users maximize tool life, reduce trial-and-error during setup, and achieve consistent results even in complex 3D finishing applications.

Highly Recommend for Machining

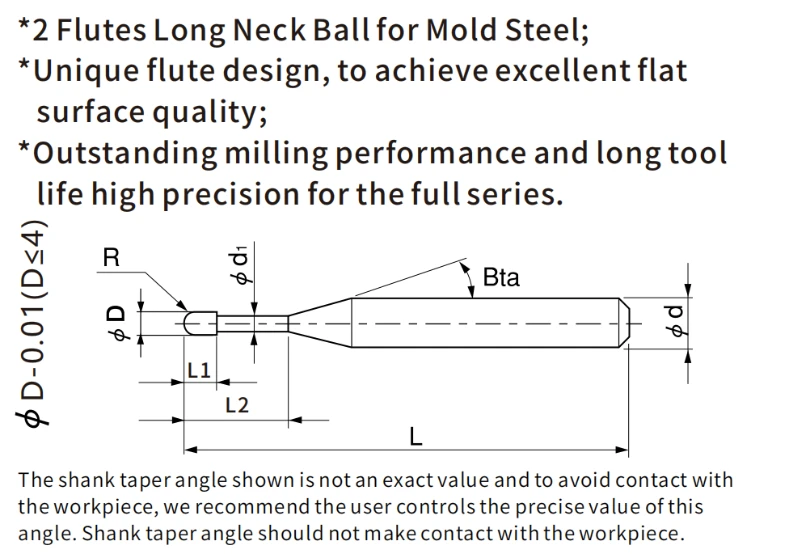

Specialty

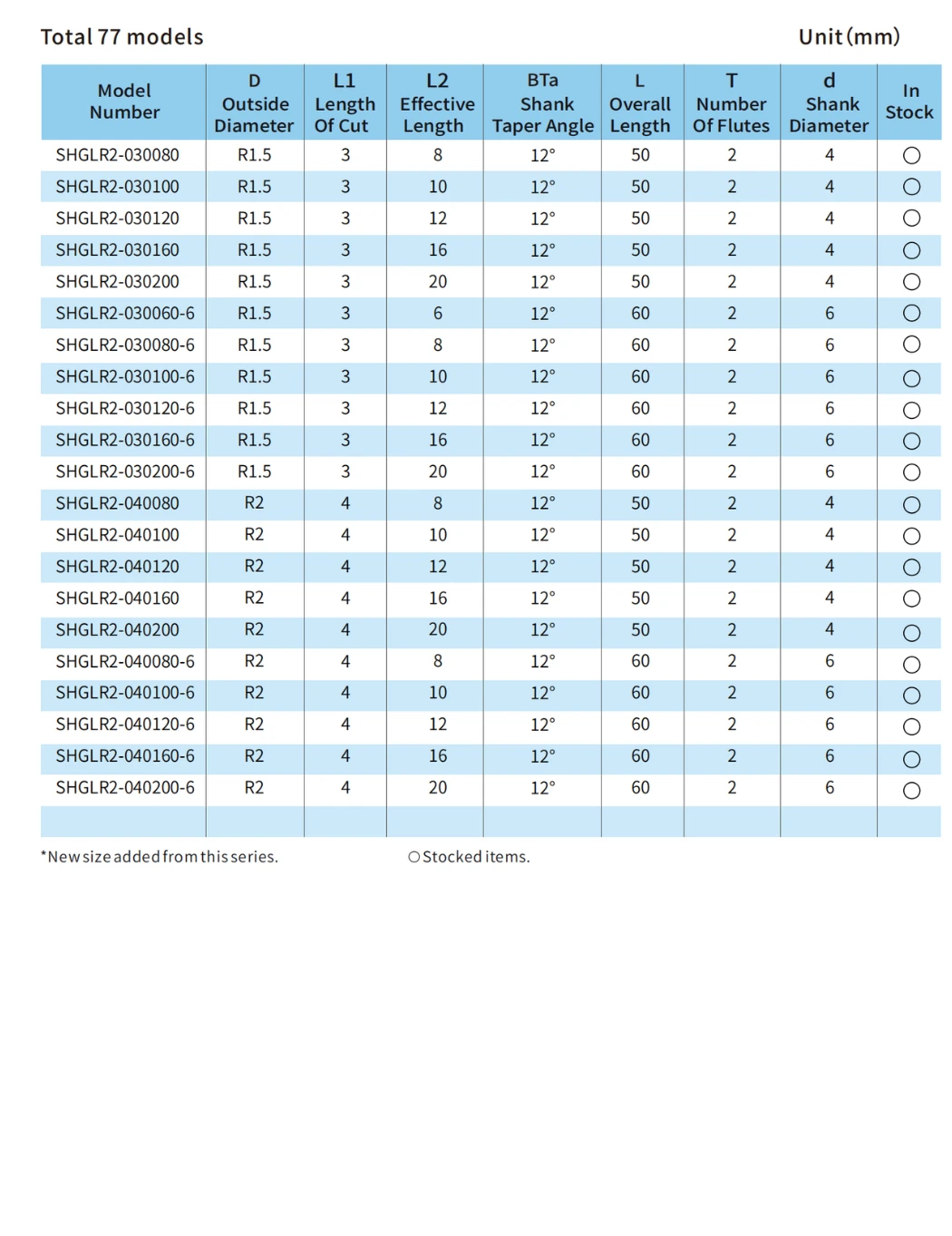

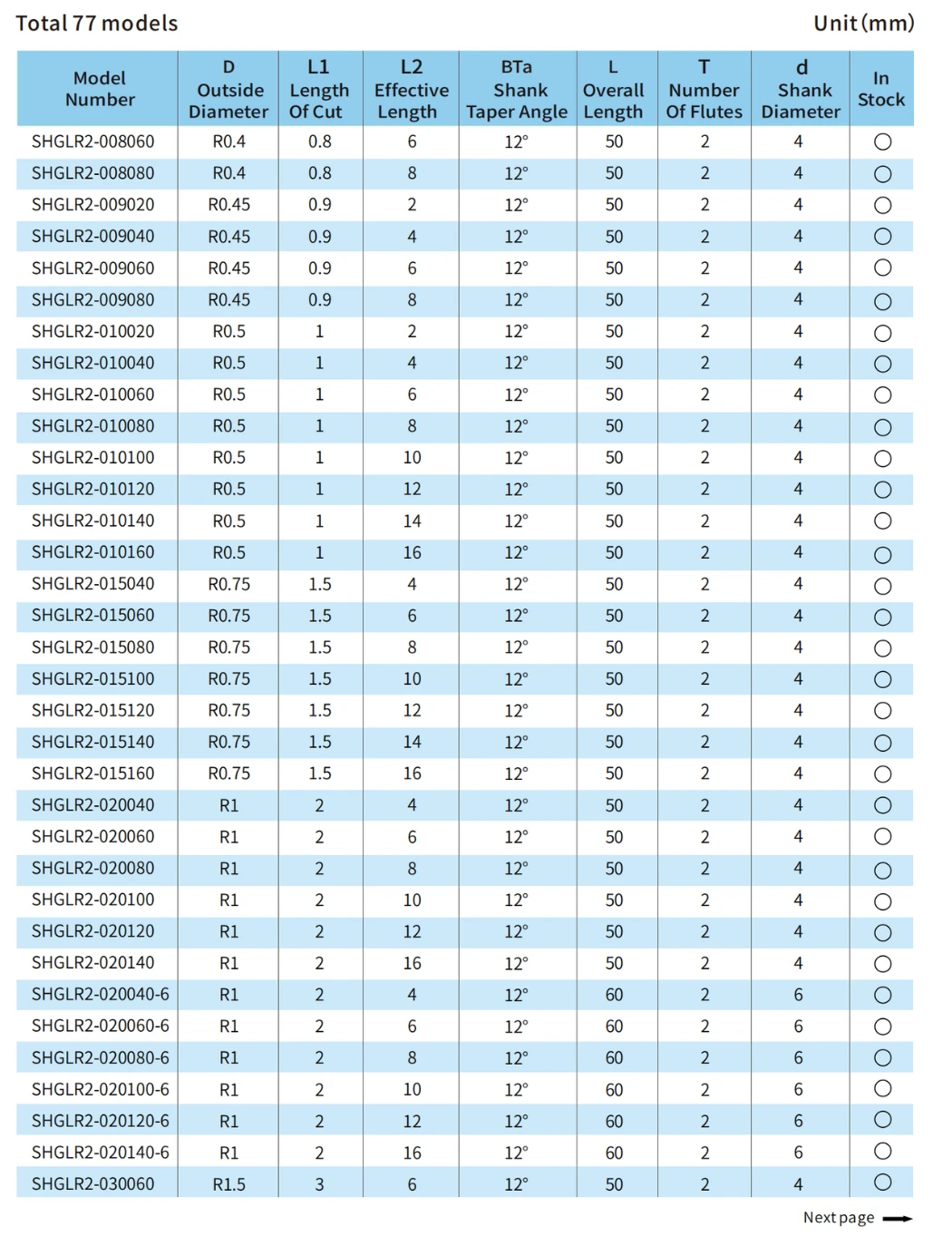

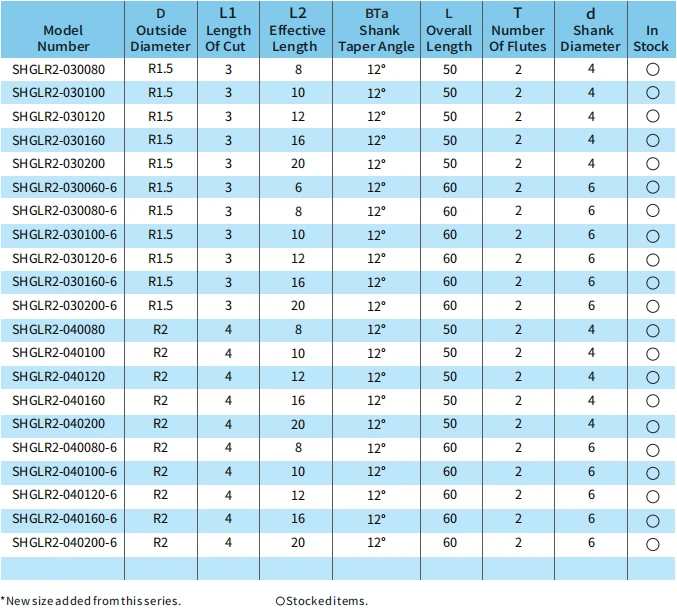

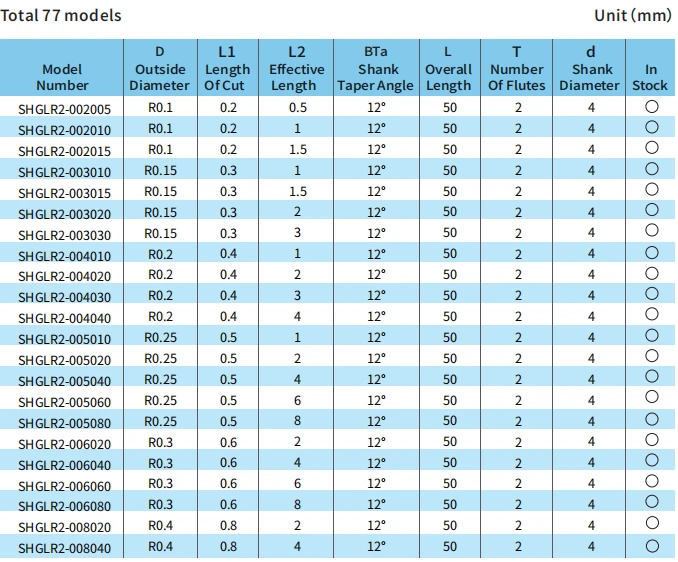

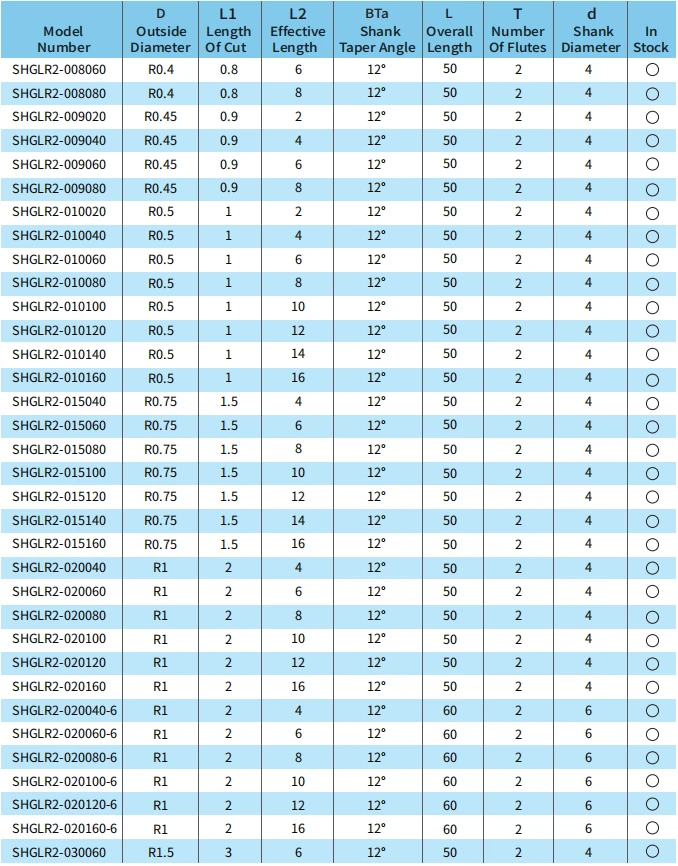

Total 77 Models-Unit(Mm)

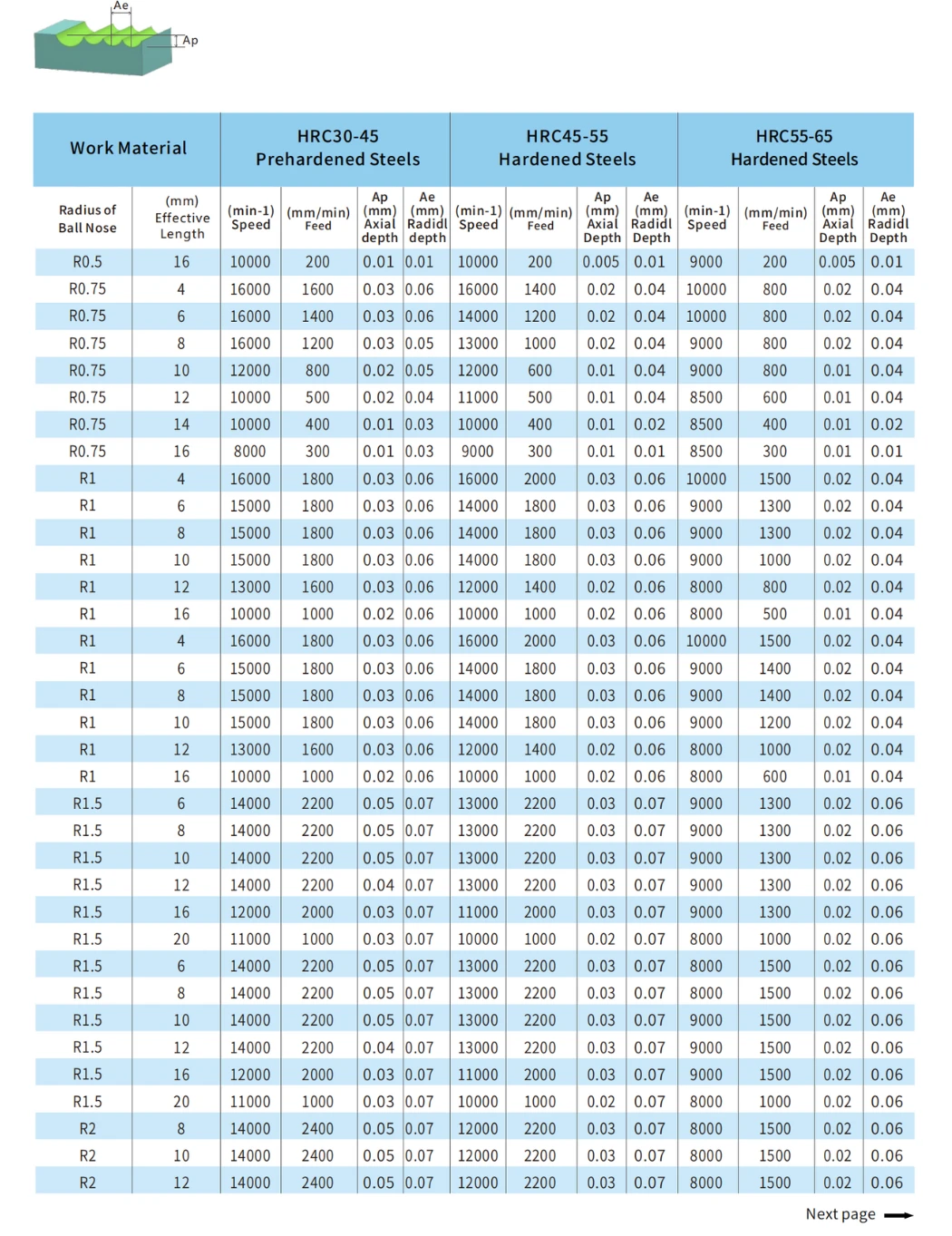

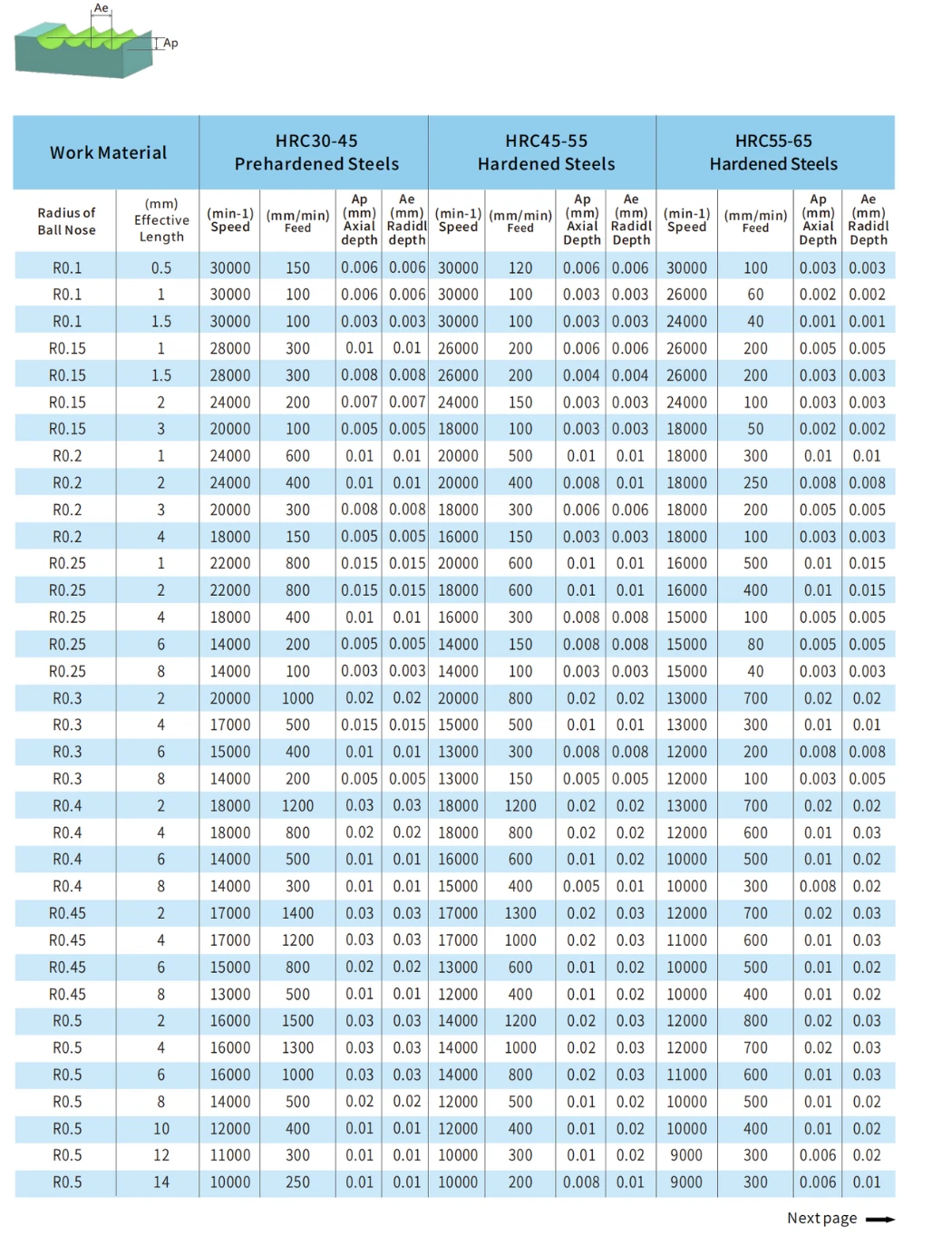

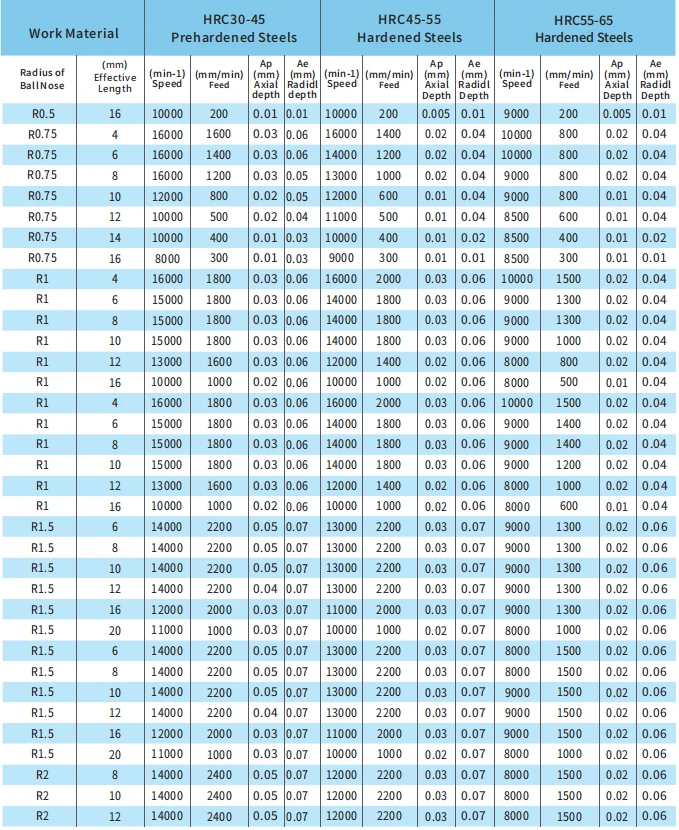

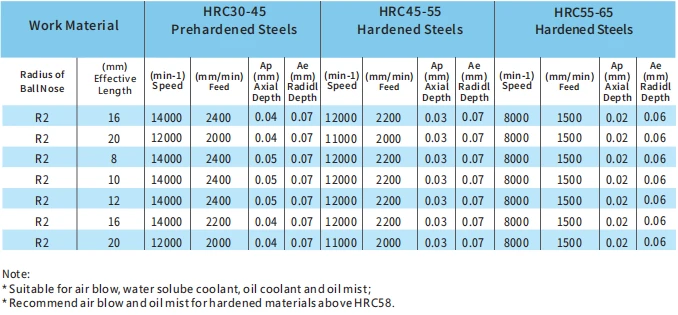

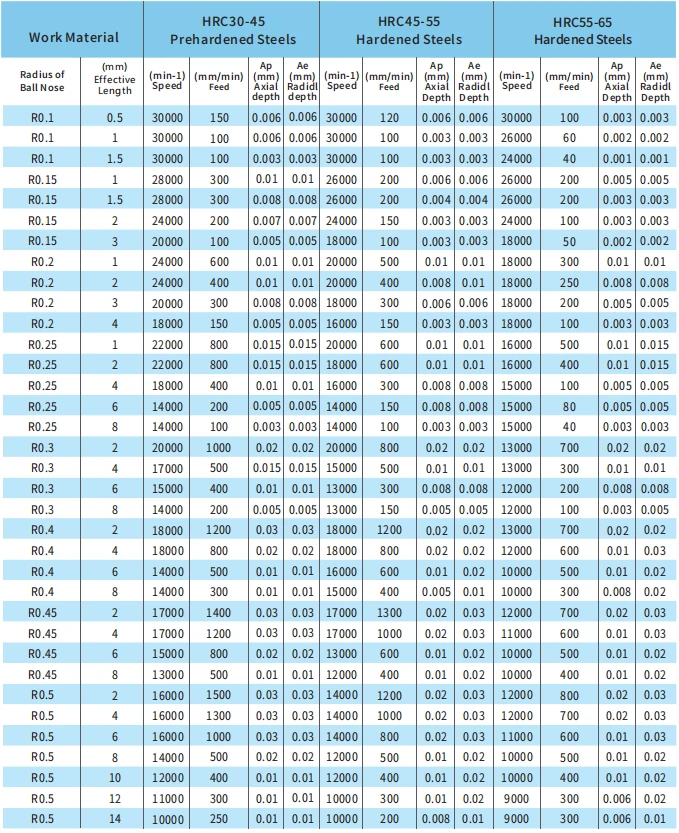

SHGLR2 Milling Parameters

FAQ: HRC65 2 Flute Long Neck Ball Nose End Mill for Hard Steel Machining

Q1: What are the primary machining applications for the HRC65 2 flute long neck ballnose end mill?

A: The HRC65 2-flute long-neck ball nose end mill is designed for finish machining of high-hardness steels (HRC50–65). In real mold machining, it performs best on materials such as SKD11, H13, D2, and ASP23.

Typical applications include:

Deep cavity finishing in hardened mold steel
Corner cleanup and residual stock removal in complex molds
3D surface finishing of electrodes, cores, and cavity structures
Machining narrow slots and deep groove features with long reach requirements

In practice, this type of 2 flute long neck ball nose end mill for hard metal is widely used when tool holder interference must be avoided in deep cavity machining. The long-neck design improves Z-axis accessibility while maintaining stable cutting reach.

Q2: What advantages does the SAMHO HRC65 2-flute long-neck ball nose end mill provide for surface finish quality?

A: This tool is optimized for stable finishing on hardened 3D surfaces. Its main advantages include:

Ball nose geometry ensures smooth and continuous tool contact on complex surfaces
Micro-grain carbide improves edge stability and reduces micro-chipping
Optimized cutting edge preparation reduces vibration marks (chatter)
Long-neck structure minimizes interference-related vibration during deep cavity machining

In actual mold finishing work, especially pre-mirror surface machining, this HRC65 ball nose end mill helps achieve more uniform tool marks. In many cases, it reduces or eliminates secondary polishing time.

Q3: How does the long-neck design affect rigidity and machining precision?

A: The long-neck structure is a key balance between reach and rigidity. In deep cavity machining, tool accessibility often conflicts with stability.

The SAMHO design improves this balance through optimized neck geometry and controlled overhang ratio.

Key benefits include:

Reduced tool holder collision risk in deep cavities
Lower vibration amplification during long overhang machining
Improved stability in deep Z-axis cutting operations
Reduced surface waviness caused by tool deflection

In real machining conditions, especially when L/D ratio exceeds 4–6, this deep cavity mold finishing end mill significantly improves surface consistency.

Q4: What are the advantages of the SAMHO HRC65 2 flute long neck ball nose end mill compared to standard ball nose end mills?

A: Compared with standard ball nose tools, this series offers clear advantages for hardened steel machining:

Better performance in high-hardness materials up to HRC65
Improved accessibility for deep cavity and narrow mold structures
Lower cutting heat due to efficient chip evacuation from the 2-flute design
More stable performance in long overhang machining conditions

In real mold shops, especially in electrode and precision cavity finishing, stability and surface quality are more important than material removal rate. This 2 flute long neck ball nose end mill for hard steel is specifically engineered for that requirement.

Q5: How can tool breakage or edge chipping be prevented when using HRC65 long-neck ball nose end mills?

A: In hardened steel machining, tool failure is mainly caused by vibration, thermal stress, and unstable cutting load. Based on real machining experience, the following controls are essential:

Keep radial depth of cut (ae) between 0.1–0.3D
Use step-down machining for layered material removal
Avoid full-width side cutting or heavy engagement
Maintain stable feed rates and avoid sudden load impact
Use high-precision tool holders with runout ≤ 0.005 mm
Prefer air cooling or oil mist to reduce thermal accumulation

In actual production environments, the most important principle is simple:
stability always matters more than cutting speed when machining hardened steel.
