HRC55 Mold Steel End Mill [2 Flutes ϕ0.2-6]

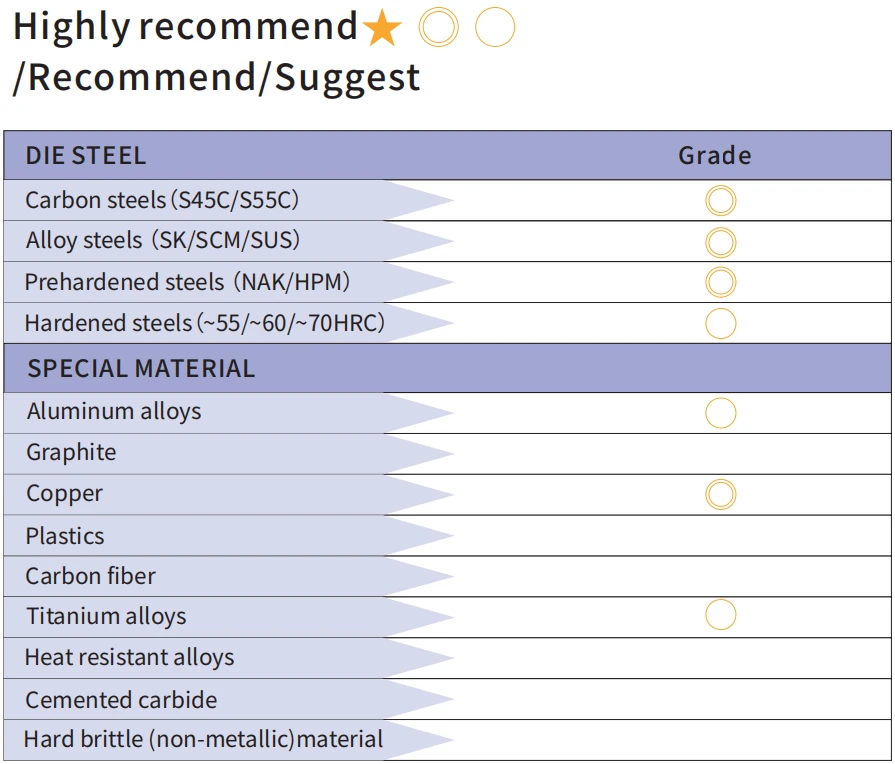

Q1: What materials are HRC55 2 flute square end mills primarily suitable for machining?

HRC55 2 flute flat end mills are designed for machining medium to high hardness steels. They are commonly used as an end mill for steel in mold manufacturing and precision CNC applications.

Typical materials include pre-hardened steels such as P20 and NAK80, as well as hardened steels in the HRC45–55 range. These tools are widely used in mold core machining, especially for deep cavity structures where efficient chip evacuation is required.

Q2: What are the common failure modes for HRC55 2-flute flat end mills?

In mold steel machining, the most common failure is cutting edge chipping. This usually occurs due to excessive feed rates, unstable cutting loads, or poor rigidity during machining.

Other typical issues include flank wear from dry cutting, built-up edge (BUE), and chatter marks caused by vibration. These problems directly affect surface finish and dimensional accuracy in steel milling applications.

Q3: Are HRC55 2-flute flat end mills better suited for roughing or finishing?

HRC55 2-flute flat endmills are mainly used for semi-finishing and light finishing operations in steel milling. They can also be used for light roughing when material removal is limited.

In mold production, they are often applied to the final stock removal stage, typically leaving 0.2–2.0 mm before final finishing. This makes them a reliable choice for HRC55 end mill finishing operations.

Q4: What cutting strategies are recommended for machining HRC55 materials?

For stable end mill for steel machining, a low radial depth of cut combined with a higher axial depth of cut is recommended. This improves stability while reducing cutting load.

High spindle speed with controlled feed rates helps reduce friction and heat buildup. Climb milling is preferred to minimize impact forces and improve tool life during steel cutting operations.

Q5: How can the service life of HRC55 2-flute flat end mills be extended?

Tool life depends heavily on heat control and cutting stability in HRC55 steel machining. Using heat-resistant coatings such as TiAlN significantly improves wear resistance.

Stable feed rates, short tool overhang, and effective chip evacuation are also critical. Under proper conditions, these end mills can be reground and reused multiple times, improving overall machining cost efficiency.
