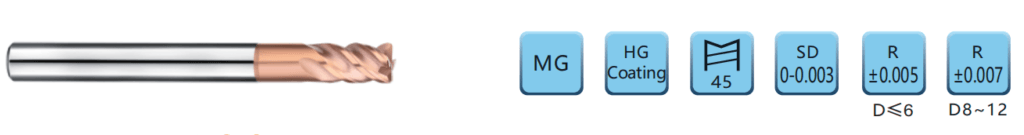

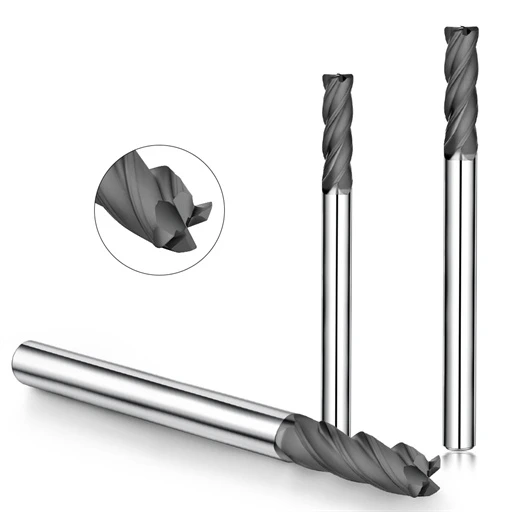

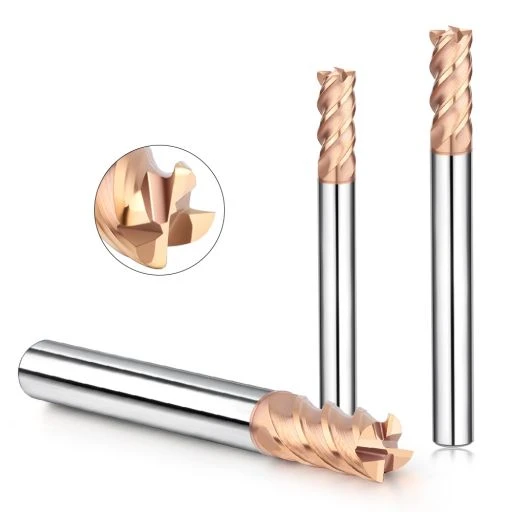

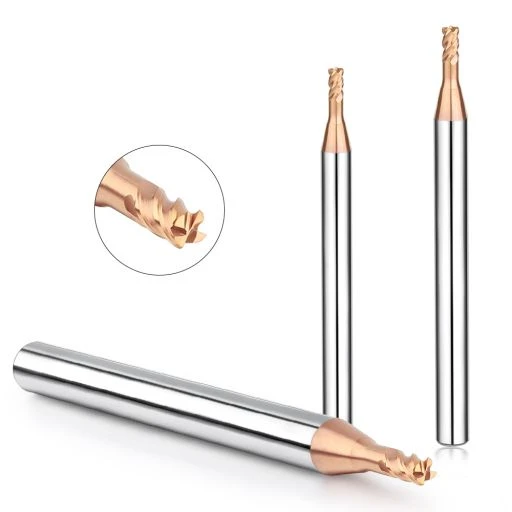

Corner Radius End Mill

What is a Corner Radius End Mill?

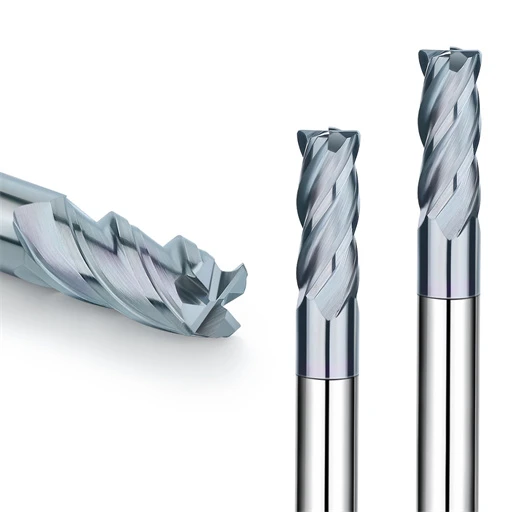

Understanding the Corner Radius Design

The corner radius design in end mills refers to the rounded edges at the corners of the cutting tool. This design feature enhances tool durability and longevity by evenly distributing the cutting force across a larger surface area, thus reducing stress concentration at the tool’s corners. Consequently, corner radius end mills are less likely to chip or break, even under high-load operations. Furthermore, this design can improve surface finish and allow for higher feed rates, contributing to overall machining efficiency. It’s crucial to select an appropriate corner radius that aligns with your machining requirements and material properties to reap the benefits of this tool design.

Materials Suitable for Corner Radius End Mills

1. Aluminum: Due to its good machinability and less wear on the tool, aluminum is a suitable material for corner radius end mills. The lower cutting forces also ensure the longevity of the device.
2. Stainless Steel: While it is a bit harder to machine, with the correct tool parameters and coolant, corner radius end mills can effectively work with this material.
3. Titanium: Known for its toughness, machining Titanium requires tools with high durability, which corner radius end mills provide due to their robust design.
4. Inconel: Although Inconel is a challenging material due to its high heat and abrasion resistance, corner radius end mills can handle it, owing to their superior edge strength.
5. Plastics: Most plastics are soft and easy to machine, making them suitable for corner radius end mills, especially when a good surface finish is desired.
6. Hardened Steels: Hardened steels present a unique challenge due to their hardness, but with corner radius end mills, the machining becomes feasible, albeit at lower feed rates and depths of cut.

Remember, the tool life and machining efficiency greatly depend on the right tool selection and machining parameters, including spindle speeds, feed rates, and depth of cut.

Advantages of Using Corner Radius End Mills

Corner radius end mills offer several advantages over their sharp-cornered counterparts, making them a valuable addition to any machinist’s toolkit.

1. Increased tool life: The rounded corners reduce the risk of chipping, which often leads to tool failure. This increases the longevity of the tool, reducing replacement costs over time.
2. Improved surface finish: The smooth cutting action of a corner radius end mill can provide a superior surface finish, reducing the need for additional finishing operations.
3. Enhanced rigidity: The added material at the corner provides greater tool rigidity, allowing for more aggressive machining parameters and improved productivity.
4. Reduced chatter: The rounded corners can help to mitigate chatter, improving the overall stability of the machining operation and resulting in more precise results.

When matched with the appropriate materials and machining parameters, corner radius end mills can maximize productivity while minimizing costs, making them a worthy investment for any machining operation.

Corner Radius End Mills vs. Other End Mills

The comparison between corner radius end mills and other types of end mills, such as flat end mills and ball nose end mills, reveals distinct differences and advantages.

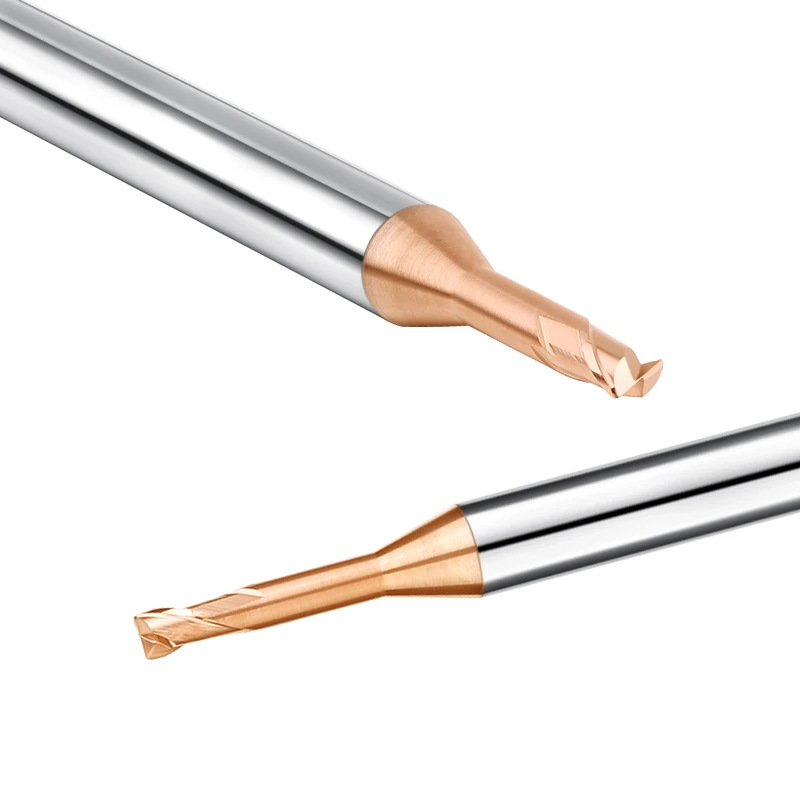

1. Corner Radius vs. Flat End Mills: Flat-end mills, while excellent for machining flat surfaces, lack the enhanced durability and superior finish provided by corner radius end mills. The latter’s rounded edges minimize the risk of chipping, enhancing tool life and ensuring consistently smooth surfaces.
2. Corner Radius vs. Ball Nose End Mills: Although ball nose end mills excel in profiling and contouring applications, they tend to wear faster due to the constantly changing contact point, unlike corner radius end mills. The latter also provides better surface finishes in many cases, making them a more versatile choice.

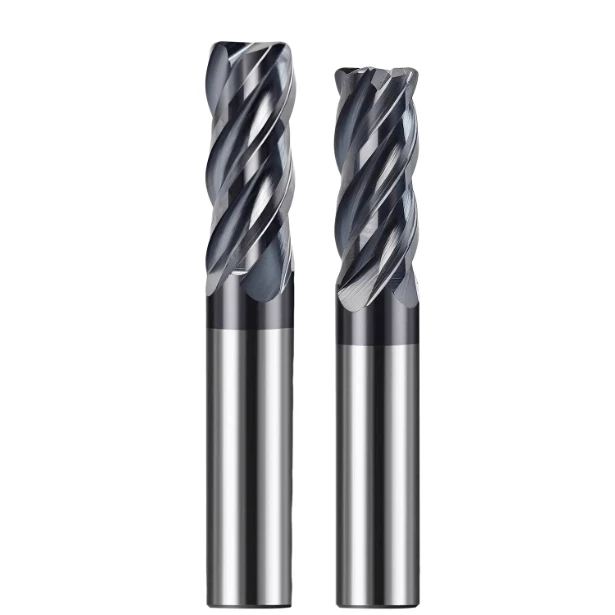

3. Corner Radius vs. Roughing End Mills: Roughing end mills are perfect for hogging out large amounts of material quickly but often leave a rough surface finish. In contrast, corner radius end mills, with their rounded edges, can handle heavy cuts while still producing a better surface finish.

Thus, when considering strength, versatility, longevity, and surface finish, corner radius end mills prove to be an efficient and cost-effective choice for diverse machining operations.

Best Practices for Using Corner Radius End Mills

To extract the maximum benefits from corner radius end mills, the following are a few best practices:

1. Correct Tool Setup: Ensure the end mill is mounted correctly in the tool holder. An incorrect setup can result in premature tool wear, poor surface finish, and potentially damage the tool or workpiece.
2. Proper Speed and Feed Rates: Determine the correct speed and feed rates based on the material being machined, tool size, and depth of cut. This will ensure efficient material removal and prolong tool life.
3. Consistent Tool Path: Implement consistent tool paths to maintain steady tool engagement, reducing the chance of sudden shock-loading of the cutter, which can lead to tool breakage.
4. Coolant Use: If your machine setup allows, use coolant to dissipate heat and reduce tool wear, especially when machining more rigid materials.
5. Periodic Tool Inspection: Regularly inspect the tool for signs of wear. Early detection of wear can help prevent tool failure and maintain consistent part quality.

By adhering to these best practices, you can increase the lifespan of your corner radius end mills, enhance the quality of your cuts, and boost your overall machining productivity.

How to Choose the Right Corner Radius End Mill?

Factors to Consider When Selecting Corner Radius End Mills

When choosing a corner radius end mill, consider the following factors to make an informed decision:

1. Material to be Machined: The material you’re working with dictates the type of end mill you should use. More complex materials require an end mill with a larger corner radius for increased strength and durability.
2. Machining Operation: The type of operation (roughing, finishing, etc.) impacts the choice of end mill. Corner radius end mills are particularly effective for operations that require high precision and excellent surface finish.
3. Tool Material: End mills are made from various materials like high-speed steel, cobalt, and carbide. Carbide end mills, for example, are highly resistant to wear and are suitable for machining a wide range of materials.
4. Coatings: Certain coatings can increase tool life and performance. For example, a Titanium Nitride (TiN) coating can provide high-temperature resistance and hardness, enhancing the tool’s performance.
5. Machine Tool Rigidity: The rigidity of your machine tool also impacts end mill selection. Less rigid machines may require the use of end mills with smaller corner radii to minimize vibration.

By considering these factors, you can select a corner radius end mill that best suits your machining needs, optimizing productivity and quality of work.

Optimal Flute Number for Different Materials

The number of flutes on an end mill has a direct impact on its performance and suitability for different materials. Here’s a brief guide:

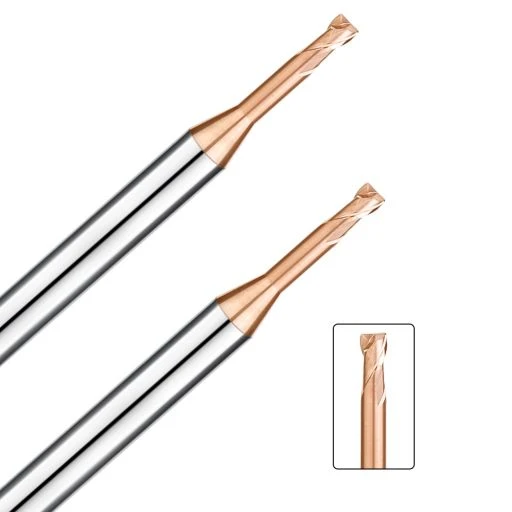

1. Two Flute End Mills: Ideal for machining softer materials like aluminum. The larger flute space allows for better chip evacuation, reducing the risk of chip packing and consequential tool breakage.

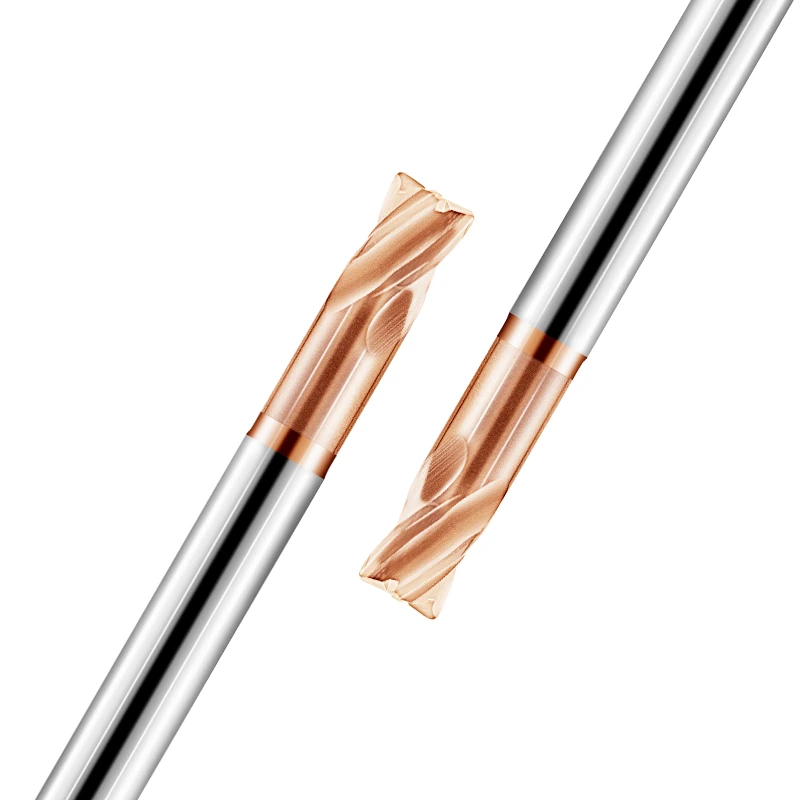

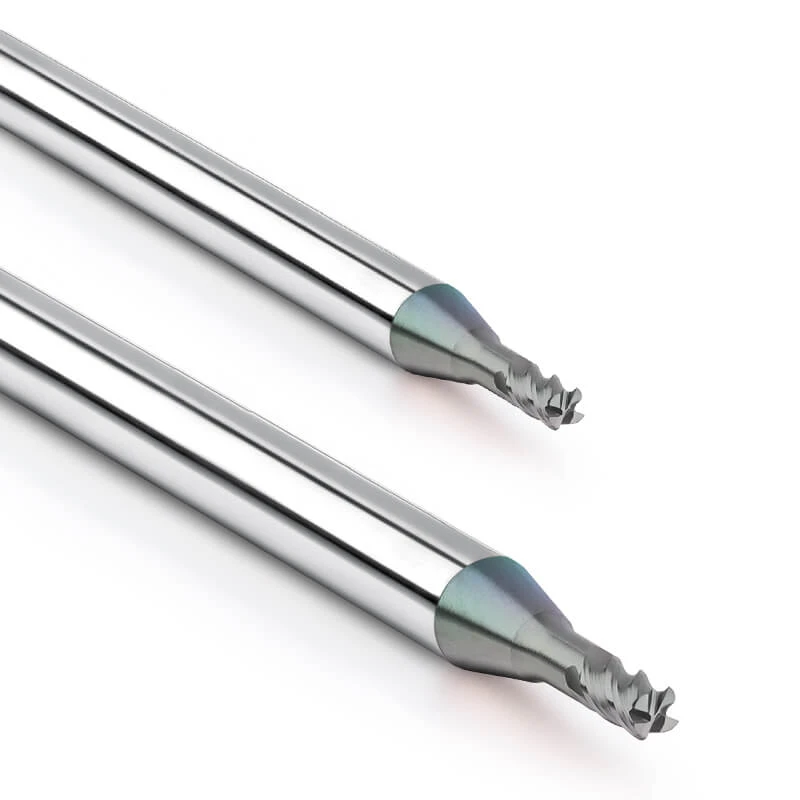

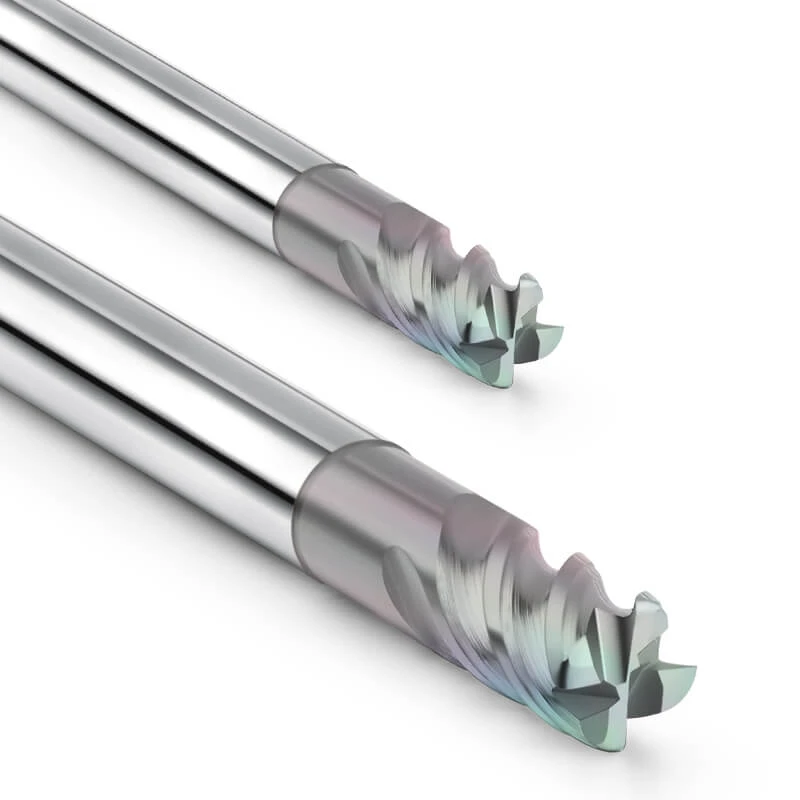

2. Three and Four Flute End Mills: These are suitable for a broader range of materials. Their balanced design makes them a good choice for finishing operations, and they can also handle both peripheral and plunge cuts well.
3. Five and Six Flute End Mills: Best for steel and more rigid materials. They have a higher cutting speed and are capable of aggressive material removal, making them perfect for roughing applications. However, they require a machine with higher rigidity to avoid tool deflection.

Always remember to match the flute count to your application and material for optimum results, balancing productivity with tool life.

Understanding the Corner Radius End Mill Coating Options

The coating on a corner radius end mill plays a crucial role in determining its heat resistance, lubricity, hardness, and longevity. Let’s delve into the common types of coatings:

1. Titanium Nitride (TiN): This is a versatile coating that increases the hardness of the tool. It also provides heat resistance, reducing wear during high-speed operations. The coating’s gold color makes it easy to spot wear.
2. Titanium Carbonitride (TiCN): Ideal for more complex materials, TiCN offers superior surface hardness and can withstand higher temperatures than TiN. It also provides a low coefficient of friction, making it suitable for high-speed applications.
3. Titanium Aluminum Nitride (TiAlN): This coating excels in high-temperature conditions, making it ideal for dry machining and high-speed metal removal. It also offers excellent oxidation resistance.
4. Diamond Coating: Ideal for non-ferrous materials, the diamond coating offers the highest hardness and is highly resistant to wear. It also reduces friction, resulting in less heat generation during machining.

Each coating option offers unique benefits and is suited to particular machining conditions and materials. Therefore, selecting a suitable coating is crucial in optimizing the performance and longevity of your corner radius end mill.

Corner Radius End Mill Diameter and Its Impact on Performance

The diameter of a corner radius end mill significantly impacts the tool’s performance and the outcome of the machining process. A larger diameter end mill will remove material faster, facilitating faster job completion. However, the larger the diameter, the slower the rotation speed needs to be to maintain stability, which may adversely affect the surface finish.

On the other hand, a smaller diameter end mill allows for higher rotation speeds and precise cuts, leading to a superior surface finish. Yet, it removes material more slowly and may require more passes, thus increasing machining time.

Moreover, the diameter of the tool also determines the radius of the bottom corner. A larger radius strengthens the device, reducing the possibility of chipping or breakage. In comparison, a smaller radius facilitates more detailed and intricate machining but with an increased risk of tool failure if not adequately managed.

Maximizing Tool Life with the Right Corner Radius End Mill Selection

In order to maximize tool life, selecting the right corner radius end mill is essential. Consideration of various factors is crucial in this selection process, such as the material to be machined, the required surface finish, and the machining conditions. For instance, a diamond-coated end mill might be the best choice when working with non-ferrous materials due to its exceptional hardness and wear resistance. In terms of diameter, while a larger one facilitates rapid material removal, a smaller diameter end mill offers precision and a superior surface finish. Furthermore, the bottom corner radius impacts the tool’s durability and the detail level of the machining. By comprehensively considering all these factors, you can select the most suitable corner radius end mill that not only optimizes performance but also extends tool life, ultimately contributing to cost-effective and efficient machining operations.

What Are the Applications of Corner Radius End Mills?

Corner radius end mills have widespread applications across various industries owing to their versatility, durability, and precision. They are employed for operations ranging from slotting and profiling to roughing and finishing due to their robust design and capability to withstand harsh machining conditions.

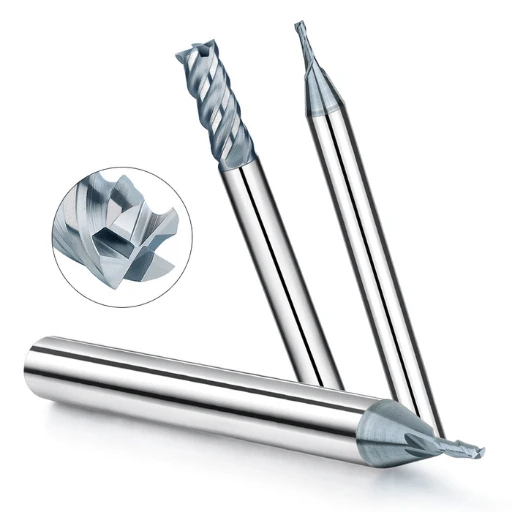

Using Corner Radius End Mills for Machining Steel

When machining steel, corner radius end mills offer several advantages. They provide high feed rates, optimized surface finish, and extended tool life. The larger corner radius imparts strength to the tool, enabling it to resist wear and tear even under high-speed machining of steel.

Benefits of Corner Radius End Mills in Aluminum Machining

In aluminum machining, corner radius end mills present numerous benefits:

1. Superior Surface Finish: The rounded edges deliver a smoother cutting action, reducing chatter and thus ensuring an excellent surface finish.
2. Increased Tool Life: The enhanced edge strength of corner radius end mills reduces wear, leading to a longer tool life despite the soft, sticky nature of aluminum.
3. Enhanced Stability: Their robust design ensures better stability during machining, reducing the likelihood of tool breakage.
4. Lower Production Costs: By minimizing tool replacement and downtime, corner radius end mills contribute to lower production costs in the long run.
5. Versatility: The corner radius end mill’s versatility makes it a suitable choice for various aluminum machining operations, including slotting, profiling, roughing, and finishing.

Optimizing Surface Finish with Corner Radius End Mills

Corner radius end mills are instrumental in achieving an exceptional surface finish. Their capability to operate at higher rotation speeds without chipping facilitates precise cuts, leading to a superior surface finish.

Enhanced Performance in Stainless Steel Machining

In stainless steel machining, the performance of corner radius end mills is enhanced due to their added strength and durability. The larger corner radius absorbs the stresses of machining, decreasing the risk of breakage and improving tool life.

Utilizing Corner Radius End Mills for CNC Machining

In the realm of CNC machining, corner radius end mills are essential. Their capability to perform intricate detailing, coupled with their durability, make them an optimal choice for CNC operations. They offer the flexibility to handle a plethora of tasks with precision and reliability, driving efficiency and productivity in CNC machining.

How to Properly Use a Corner Radius End Mill?

To properly utilize a corner radius end mill, it’s crucial to understand its inherent capabilities and limitations. This tool is designed for durability and precision, and its effectiveness can be enhanced by adopting correct handling and operational practices.

Optimizing Feed Rates and Cutting Speeds

Achieving optimal machining performance requires a careful balance of feed rates and cutting speeds. To optimize these parameters, it’s suggested to start with lower feed rates and gradually increase them while monitoring tool behavior. Similarly, cutting speeds should be adjusted in harmony with the tool’s ability to cool and prevent overheating dissipively.

Maximizing Tool Life through Proper Tool Handling

Maximizing the lifespan of your corner radius end mill heavily depends on proper tool handling. This entails ensuring the tool is securely fixed in the tool holder, using appropriate cutting fluids to minimize heat build-up, and engaging in regular maintenance checks to ensure optimal performance.

Overcoming Challenges in Corner Radius End Mill Applications

Corner radius end mills may present particular challenges, such as deflection and heat generation. Overcoming these issues primarily involves understanding the material being worked on and adjusting machining parameters accordingly. Regular tool inspections and replacements should also be a part of your routine to prevent tool breakage.

Enhancing Surface Finish with Correct Tool Path Strategies

An excellent surface finish can be achieved by implementing correct tool path strategies. Avoiding sudden directional changes and enforcing consistent chip loads can significantly enhance the surface finish. Additionally, using climb milling strategies instead of conventional milling can also contribute to a superior surface finish.

Best Practices for Achieving Precise and Accurate Cuts

To achieve precise and accurate cuts, it’s essential to use quality tool holders to minimize vibrations. Moreover, the stability of the workpiece should be ensured, and the end mill should be appropriately aligned with the workpiece’s surface. The use of a solid corner radius end mill with a more considerable radial edge will also contribute to achieving precise and accurate cuts.

What are the Maintenance and Care Tips for Corner Radius End Mills?

Proper maintenance and care are vital to extending the life of corner radius end mills.

• Proper Cleaning and Storage of Corner Radius End Mills: After each use, it’s essential to clean the end mill thoroughly to remove any debris or build-up. Subsequently, the tool should be stored in a clean, dry, and secure location to prevent damage.
• Implementing Periodic Inspections and Maintenance Checks: Regular inspections can help identify wear or damage early, allowing for timely replacement or repair of the tool. This includes checking for signs of chipping, dullness, or excessive wear on the cutting edges.
• Handling and Transporting Corner Radius End Mills Safely: To prevent accidental damages, always take the end mills with care, ensuring they aren’t dropped or mishandled. When transporting, use protective cases or containers to secure the tools.
• Choosing the Right Tool Holders for Corner Radius End Mills: The right tool holder can significantly influence tool performance and longevity. Choose a holder that fits the tool perfectly, minimizing vibrations and ensuring stability during operations.
• Extending Tool Life through Effective Tool Maintenance: Regular maintenance, including sharpening and coating, can significantly extend tool life. Always ensure the maintenance regimen is in line with the manufacturer’s recommendations to preserve tool integrity.
