HRC55 Corner Radius End Mill【2 Flutes Long NeckΦ0.2-2】

Structural Design Optimized for Deep-Cavity Finishing of HRC45–55 Mold Steels

When machining pre-hardened steels such as P20, 718H, NAK80, and S136, the main difficulty is not material hardness. The real challenge comes from unstable cutting conditions in deep cavities.

Based on real machining experience, the key issues include:

• High tool overhang ratios (L/D) required for deep-cavity access
• Rapid changes in tool engagement during 3D contour milling
• Chatter and micro-chipping caused by fluctuating cutting forces

To solve these issues, the SAMHO HRC55 2 flute long neck corner radius end mill for steel is designed with a clear engineering focus:

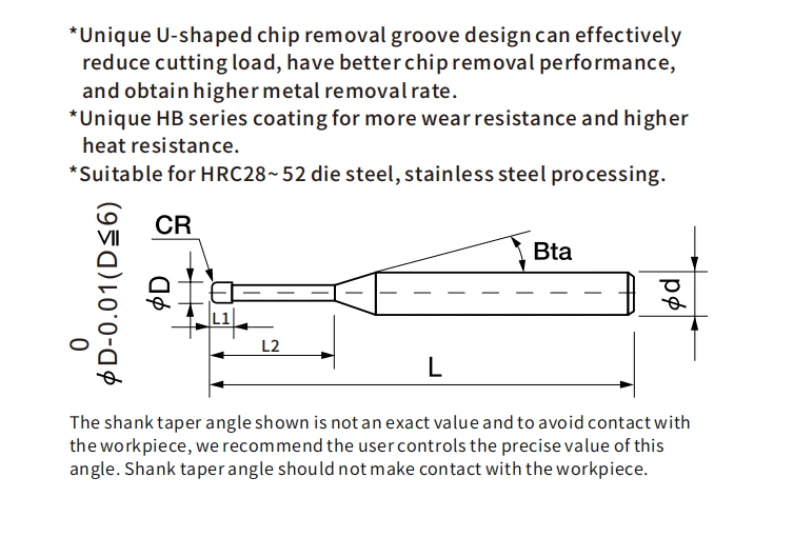

• Long neck geometry prevents tool holder interference in deep cavities
• Improved structural rigidity reduces vibration amplification along the extended flute section
• Optimized specifically for semi-finishing and finishing operations in mold cavities

In real production environments, the key advantage is not higher cutting speed.
It is process stability and predictable tool behavior in deep-cavity machining.

Micro-Grain Carbide System for HRC55 Hardened Steel Applications

The SAMHO HRC55 series uses a carbide system engineered for HRC45–55 mold steels.

Key material features include:

• Ultra-fine grain carbide substrate for improved edge stability
• Higher cobalt content to increase toughness and anti-chipping performance
• Reinforced cutting edge treatment to resist micro-edge failure

From real CNC machining experience, this material system is critical because:

• It does not rely only on hardness, but on impact resistance under load
• It performs better in interrupted cutting and complex toolpaths
• It maintains stability during long-cycle mold finishing operations

This is especially important for long neck bull nose end mills for steel, where tool stress is significantly higher than standard end mills.

High Dimensional Consistency for Small-Diameter Mold Machining

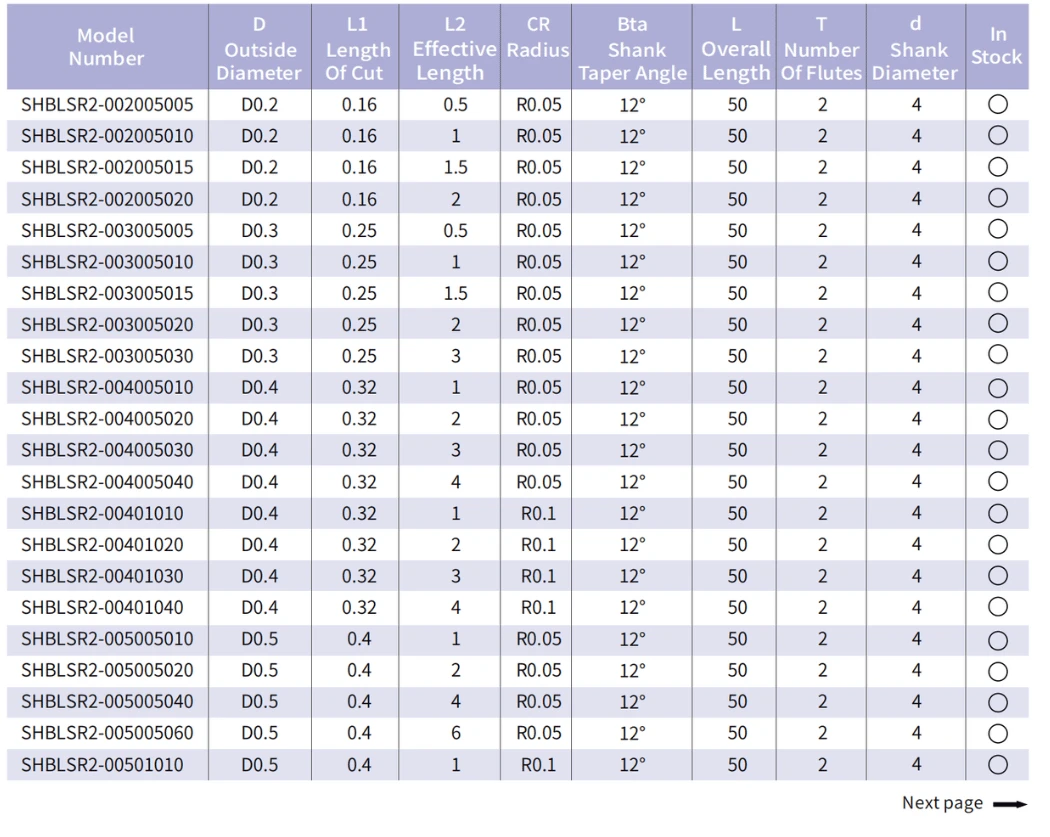

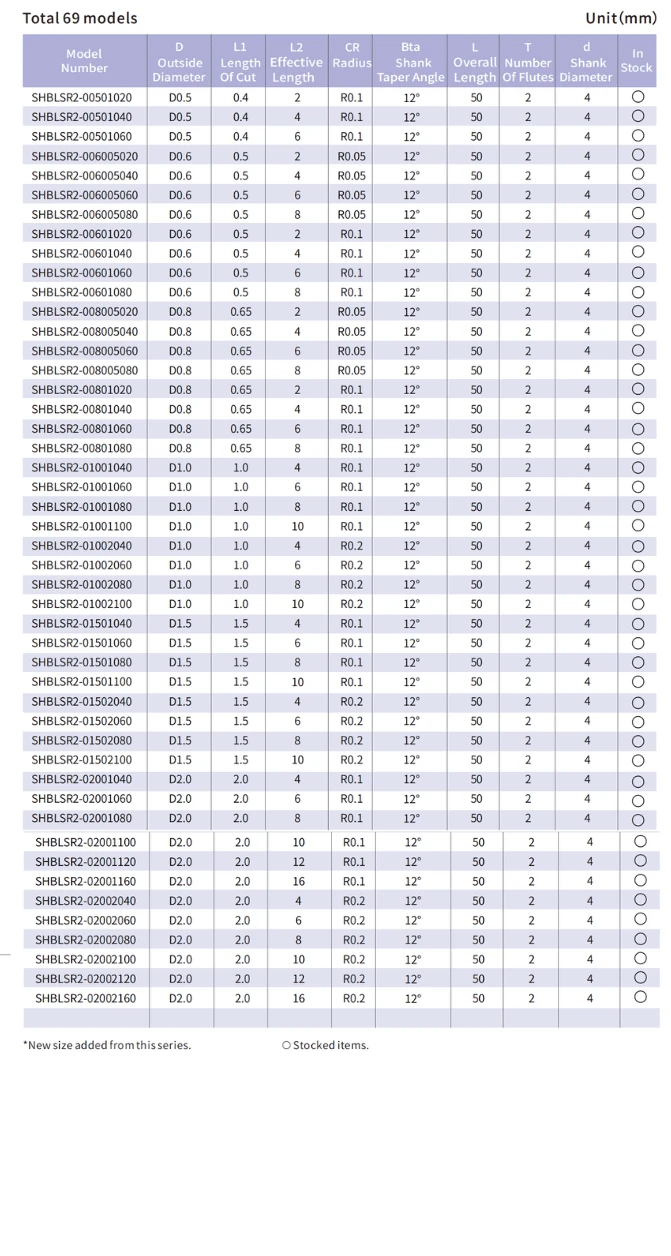

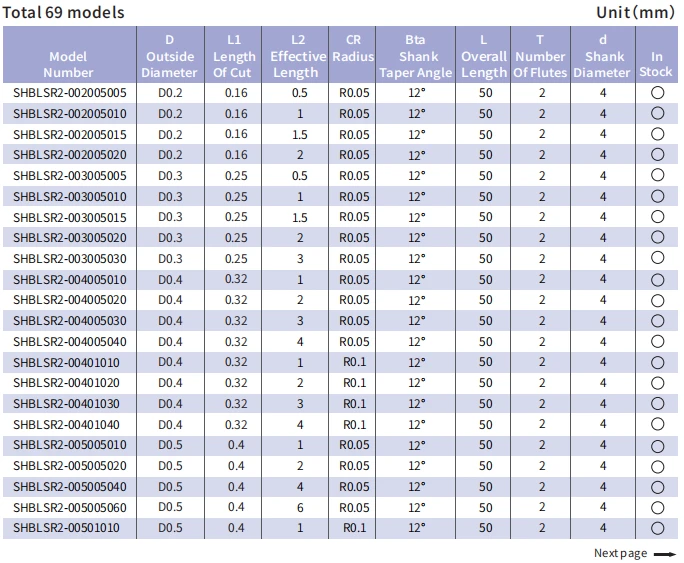

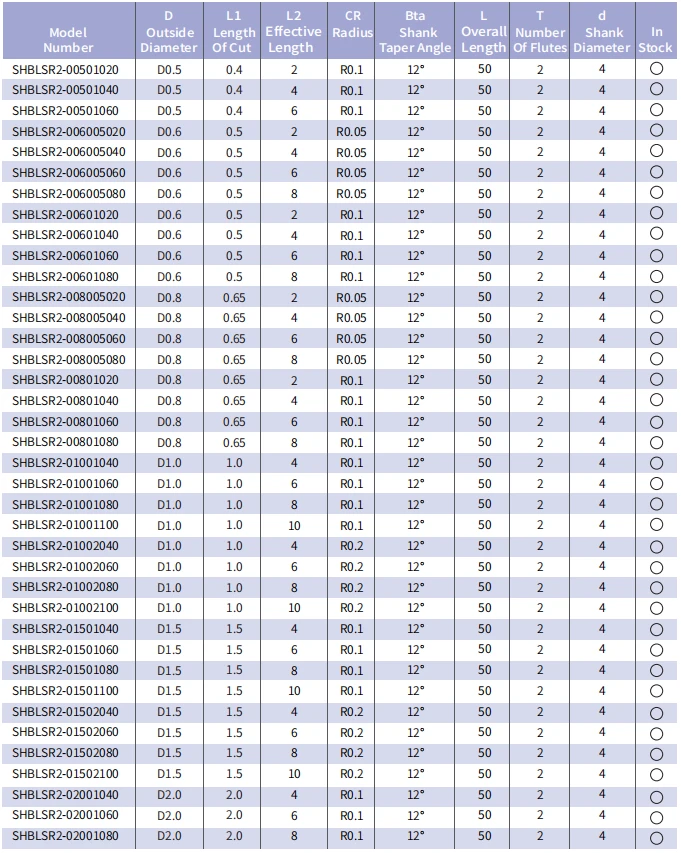

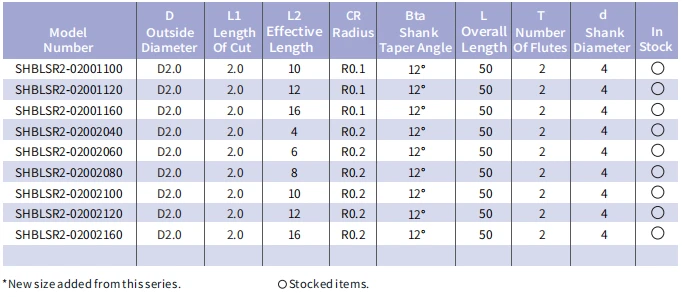

For small-diameter tools (D0.2–D2 mm), performance depends more on consistency than cutting power.

In precision mold machining, key control factors include:

• Concentricity accuracy
• Tool holder runout control
• Cutting edge geometry consistency

SAMHO focuses on maintaining stable performance under high-speed conditions, including:

• Compatibility with CNC spindles above 24,000 RPM
• Reduced micro-vibration to minimize surface waviness
• Strict batch-to-batch dimensional consistency

This is especially critical for long neck rounded corner end mill for steel applications, where even small runout variations can directly affect mold surface quality.

Typical Application Scenarios in Real Mold Manufacturing

Based on global customer feedback and machining cases, these tools are commonly used for:

• Injection mold cavity finishing
• Stamping die surface finishing
• Deep-cavity steel contour machining
• Pre-EDM stock removal control
• Precision mold core finishing

In these applications, the tool is mainly used in semi-finishing and finishing stages, where surface quality and dimensional accuracy are critical.

Manufacturing Consistency Advantage for Global Buyers

For international buyers, tool consistency is often more important than single-tool performance.

SAMHO focuses on production stability across batches, including:

• Tight radial runout control for stable cutting performance
• Consistent cutting edge geometry across production batches
• Strict dimensional tolerance control for high-precision toolholders
• OEM-level batch repeatability for industrial users

The practical benefits include:

• Stable machining results across multiple mold batches
• Minimal need for re-adjusting cutting parameters after tool change
• Reduced trial-and-error cost during production setup

This consistency is especially important for long neck corner radius end mills for steel, where tool variability directly affects surface finish and tool life.
