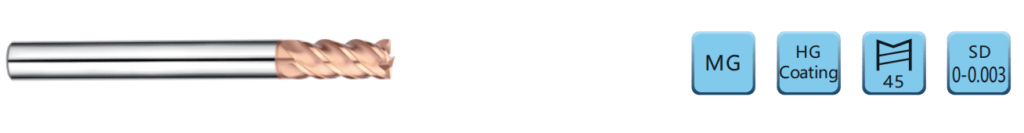

Square End Mill

What is a Square End Mill?

Definition and Function of Square End Mill

A Square End Mill is a type of milling cutter, a cutting tool used extensively in the machining industry. Below are its definition and functions:

Definition

The Square End Mill, often referred to as a ‘flat end mill’, is characterized by a square or straight end. Its cutting edges are on the end and peripheries of the tool, providing a cutting action across the width of the tool.

Functions

1. Material Removal: The Square End Mill’s primary function is to remove material from the workpiece to achieve desired shapes and finishes. Its robust design allows it to handle a variety of materials, including steel, aluminum, and plastics.
2. Slotting: With its straight cutting edges, the Square End Mill is ideal for slotting operations, creating slots of various depths and widths in the workpiece.
3. Profiling: It is also used for profiling or contouring the workpiece, following a programmed tool path to create complex shapes and intricate details.
4. Finishing: Finally, the Square End Mill is used for finishing operations, providing a smooth surface finish on the workpiece.

Material and Coating Considerations

The choice of material and coating for your Square End Mill can significantly influence the tool’s performance, longevity, and the quality of finish on your workpiece.

Material Choice

The two most common materials for Square End Mills are High-Speed Steel (HSS) and Carbide. HSS tools are economical, flexible, and perfect for less demanding jobs. But if you require a tool for long-duration projects or for more complex materials, Carbide tools, although more costly, offer superior hardness and heat resistance.

Coating Considerations

Various types of coatings are applied to Square End Mills to enhance their durability, reduce friction, and increase their speed capabilities. TiN (Titanium Nitride) coating offers excellent heat resistance and durability, making it suitable for general-purpose machining. TiCN (Titanium Carbonitride) has higher hardness and is ideal when increased wear resistance is required. For high-temp alloys and rigid materials, AlTiN (Aluminum Titanium Nitride) and TiAlN (Titanium Aluminum Nitride) coatings are recommended for their high-temperature stability and extreme hardness.

Understanding the material and coating options available can help you select the suitable Square End Mill for your specific job, ensuring optimal performance and results.

How to Use a Square End Mill for Different Applications

A Square End Mill is significantly versatile, accommodating various applications based on material type and design specifics. Here are several applications for your consideration:

1. Slot Milling: Due to their design, Square End Mills are ideal for producing slots of various dimensions. They cut on their sides and the tip, allowing precise slot creation in workpieces.
2. Edge Milling: You can use a Square End Mill to create clean, sharp edges on your workpiece, assuring a smooth and uniform finish.
3. Face Milling: Square End Mills are also suitable for face milling operations, providing a flat, smooth surface on the face of the workpiece.
4. Contour Milling: These tools are capable of performing contour milling tasks, creating curves and shapes on materials with sharp and robust edges.
5. Pocket Milling: With a square-end mill, you can produce pockets and cavities in your workpiece, offering detailed work on intricate designs.

Choosing the correct application for your Square End Mill can significantly improve your project’s efficiency and outcome. Please note that the choice of material and coating, as well as the proper handling and use of the tool, can significantly impact the quality and longevity of the square-end mill.

Advantages of Using Carbide Square End Mills

Carbide Square End Mills offer several distinct advantages that can enhance your milling operations significantly:

1. Durability: Carbide is a highly durable material known for its resistance to wear and tear. This means that your Square End Mill will last longer and maintain its sharpness over a considerable period, reducing the need for frequent replacements.
2. Heat Resistance: Unlike other materials, carbide can withstand high-temperature conditions. This property makes Carbide Square End Mills ideal for extended milling operations without degrading performance.
3. Efficiency: Carbide Square End Mills can cut through various materials with greater efficiency. The hardness of the carbide allows for faster cutting speeds and more accurate results, enhancing overall productivity.
4. Versatility: Carbide end mills can handle a wide range of materials, from soft plastics to hard metals. This versatility makes them a valuable tool in various industrial applications.
5. Cost-Effective: Although the initial investment might be higher, the long-term benefits of using Carbide Square End Mills, such as reduced replacement costs and improved performance, make them a cost-effective choice.

Making the switch to Carbide Square End Mills can significantly improve your milling operations, saving you time and resources in the long run.

Best Practices for Extending the Life of Square End Mills

Here are some best practices for extending the life of your Square End Mills:

1. Proper Handling: Always handle your end mills with care to avoid chipping or breaking the edges.
2. Appropriate Speed and Feed Rates: Ensure that you are using the correct speed and feed rates for the material you are cutting. Too slow, and you risk excessive wear; too fast, and you may experience chipping or breakage.
3. Correct Coolant Use: Use sufficient coolant to help dissipate heat and flush away debris, which can otherwise lead to premature wear.
4. Regular Inspection: Frequently inspect your end mills for signs of wear or damage. Early detection can prevent further deterioration and potential failure.
5. Correct Storage: Store your end mills correctly when not in use. They should be kept in a dry, clean place and protected from bumps or drops.

By following these tips, you can significantly extend the lifespan of your Carbide Square End Mills, leading to better performance and cost savings.

Choosing the Right Square End Mill

Factors to Consider When Selecting a Square End Mill

When selecting a Square End Mill, consider the following key elements to ensure optimal performance:

1. Material Type: The type of material you plan to cut plays a significant role in determining the suitable end mill. More complex materials require an end mill with a higher degree of hardness, often made of carbide.
2. Coating: The suitable coating can extend the end mill’s lifespan significantly. Some coatings are designed to withstand high temperatures, while others are intended to reduce friction.
3. Flute Count: The number of flutes on the end mill affects the speed of chip removal and finish quality. Fewer flutes allow faster chip removal but a rougher finish, while more flutes create a smoother finish but slower chip removal.
4. Helix Angle: The helix angle affects the cutting force direction. Higher helix angles are suitable for softer materials, while lower grades are used for more rigid materials.
5. Length and Diameter: The length and diameter of the end mill affect its rigidity and cutting capacity. Choose these dimensions based on the depth and width of the material you plan to cut.

By considering these factors, you can select the most suitable Square End Mill for your milling operations, ensuring high-efficiency performance and reducing waste.

Different Flute Options for Square End Mills

Square End Mills are available with a variety of flute options, each designed for specific cutting and milling needs:

1. Two-Flute End Mills: Ideal for slotting operations in a wide range of materials, two-flute end mills provide efficient chip removal with a fine finish. This type is especially suited for cutting in aluminum and other non-ferrous materials.
2. Three-Flute End Mills: Offering a balance between chip removal and finish quality, three-flute end mills are a versatile option suitable for many applications. They provide a smoother finish than two-flute versions and are particularly useful for trimming operations in aluminum and plastic materials.
3. Four-Flute End Mills: Excellent for producing a clean finish, four-flute end mills have slower chip removal but offer superior surface finishes. These are most effective in steel and other metals, as they can handle the materials’ hardness while still delivering a smooth finish.
4. Six-Flute End Mills: For the most challenging materials, consider six-flute end mills. They provide a superb finish with slower chip removal. They are particularly effective in high-hardness materials like hardened steel or high-temperature alloys.

Each of these flute options offers unique advantages. By understanding the specific needs of your application, you can choose the suitable Square End Mill, leading to cost savings and improved efficiency in your milling operations.

Understanding the Relationship Between Helix Angle and Finish Quality

The helix angle, or the angle formed between the edge of the flute and the center axis of the end mill, plays a critical role in the finish of the material being milled. Generally, a higher helix angle, often in the range of 45° to 60°, results in a smoother finish and efficient chip evacuation, making it especially suitable for aluminum and other non-ferrous materials. On the other hand, a lower helix angle, typically around 30°, is ideal for materials requiring a robust cutting action, such as cast iron and other ferrous materials. However, it’s crucial to bear in mind that the helix angle must be chosen in conjunction with the type and number of flutes to achieve the desired finish and efficiency in any given application. Thus, a comprehensive understanding of the relationship between the helix angle and finish quality can significantly enhance the performance, productivity, and cost-effectiveness of your milling operations.

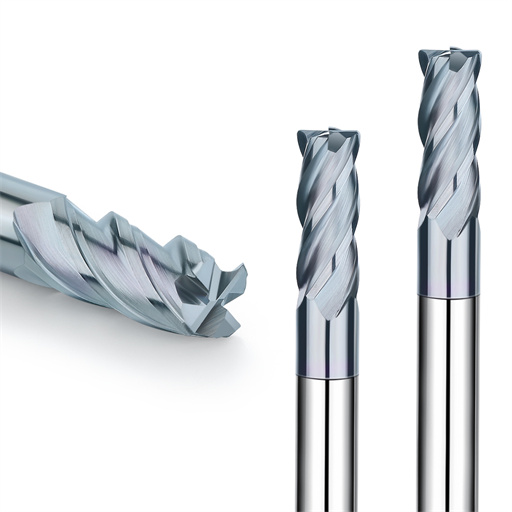

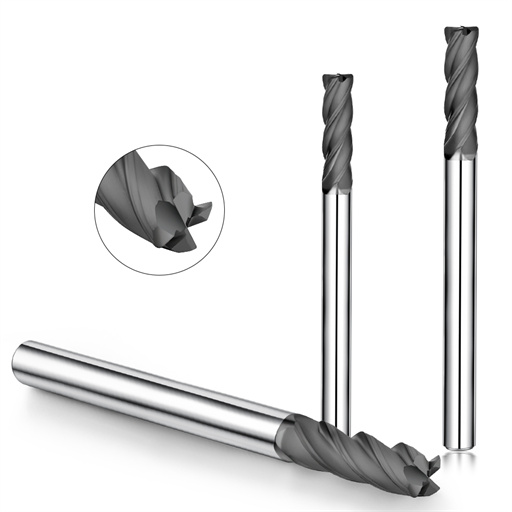

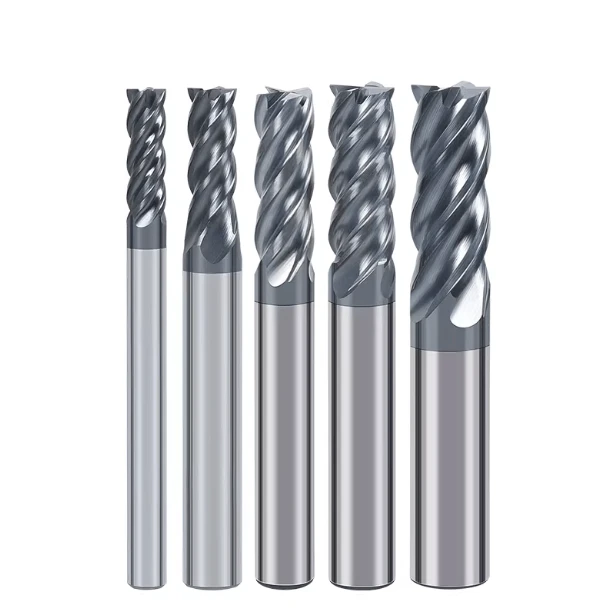

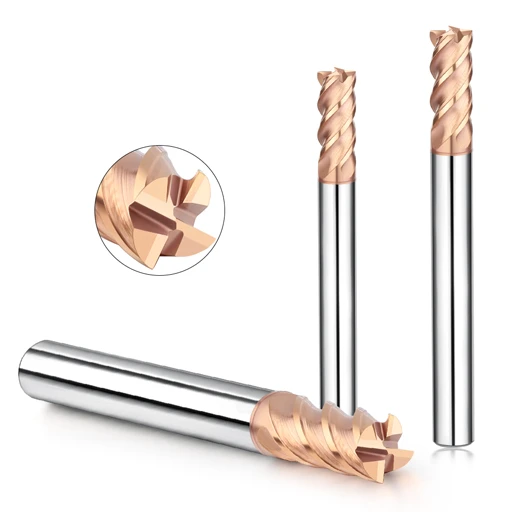

Benefits of 4-Flute Square End Mills

1. Enhanced Strength: With four cutting edges, 4-flute end mills offer increased strength, making them ideal for more rigid materials.
2. Better Finish: These tools deliver a smooth surface finish, which is often essential in final pass applications.
3. Increased Feed Rates: 4-flute end mills allow for higher feed rates without compromising on finish quality.
4. Superior Wear Resistance: The additional flutes distribute the cutting forces evenly, improving the tool’s lifespan by reducing wear on individual flutes.
5. Versatility: They are suitable for a variety of materials – from steel to non-ferrous metals, thereby providing flexibility in machining operations.
6. Improved Stability: Due to their design, 4-flute end mills offer better stability during the cutting process, reducing vibrations and resulting in more accurate cuts.

To realize these benefits and optimize your machining processes, consider the 4-flute square-end mills. They offer a balance between strength, finish quality, and tool longevity, which makes them a valuable addition to any machinist’s tooling arsenal.

How Material and Coating Affect Square End Mill Performance

The material and coating of square-end mills significantly influence their performance, longevity, and overall efficiency. Firstly, the mill material determines its strength and heat resistance. For instance, High-Speed Steel (HSS) is an affordable choice with good toughness, whereas Carbide end mills are highly durable and heat resistant, suitable for high-speed operations.

Secondly, coatings play a pivotal role. They enhance the end mill’s wear resistance, reduce friction, and increase tool life by protecting the surface from heat and wear. Titanium Nitride (TiN), a standard coating, offers increased hardness and a low coefficient of friction. Titanium Carbonitride (TiCN) provides superior wear resistance and is ideal for cutting hard materials. Aluminum Titanium Nitride (AlTiN) stands out in high-heat applications due to its excellent thermal stability.

In conclusion, striking the right balance between the material and coating of the end mill is crucial to optimizing machining operations. By carefully considering these aspects, you can significantly enhance productivity, reduce tool replacement costs, and achieve superior finish quality.

Using a Square End Mill

Proper Techniques for Face Milling with a Square End Mill

Face milling with a square-end mill requires the consideration of several essential techniques to ensure optimal performance, longevity, and quality of the finished product.

1. Correct Speed and Feed Rates: The velocity of the spindle and the rate at which the material is fed into the mill significantly affect the quality of the face milling operation. It’s essential to adjust these rates according to the hardness of the material and the type of end mill used.
2. Appropriate Depth of Cut: The depth of the cut determines the quality of the finish and the amount of stress put on the end mill. A shallow cut can lead to a better finish but may require multiple passes, while a deeper cut can remove more material but may lead to tool breakage if not adequately monitored.
3. Proper Coolant Use: Appropriate use of coolant can prevent overheating of the end mill and the workpiece, ensuring the longevity of your tool and a better finish on your workpiece.
4. Using Quality Tool Holding Devices: Tool-holding devices that provide high clamping force and balance can reduce vibration during the milling process, leading to a better finish and extended tool life.
5. Consistent Tool Path: A consistent and smooth tool path can prevent tool chipping and ensure an even finish.

By adhering to these techniques, machinists can increase efficiency, reduce tool wear, and produce high-quality face milling finishes with square-end mills.

Guidelines for Side Milling with a Square End Mill

Side milling with a square-end mill also requires particular attention to specific techniques for achieving superior results and enhancing tool life:

1. Optimized Feed Direction: It’s crucial to feed the material into the mill in the correct direction. Conventional milling, where the feed direction opposes the cutter’s rotation, can offer a better surface finish and longer tool life.
2. Choosing the Right Depth and Width of Cut: The depth and width of the cut must be carefully selected based on the material type and the specifications of the end mill. A smaller width of indent can reduce chip load and heat generation, consequently enhancing the tool life.
3. Proper Speed and Feed Rates: Similar to face milling, the spindle speed and material feed rate are significant contributors to the quality of the side milling operation. These rates should be adjusted according to the hardness of the material and the type of end mill used.
4. Adequate Coolant Utilization: The appropriate use of coolant is as crucial in side milling as in face milling. It helps prevent overheating of the end mill and the workpiece, ensuring longer tool life and superior workpiece finish.
5. Use of Quality Holding Devices: Quality holding devices ensure minimal vibration during the milling process, resulting in a better finish and extended tool life.

By incorporating these techniques, machinists can enhance efficiency, reduce tool wear, and ensure high-quality finishes when side milling with square-end mills.

Optimizing Speed and Feed for Different Materials

Optimizing speed and feed rates for different materials is a delicate balance between increasing productivity and maintaining tool life. Here are some guidelines:

1. Aluminum: With its excellent machinability, aluminum allows for high speeds and feed rates. However, due to its stickiness, using a coated end mill and ample coolant can prevent material buildup on the tool.
2. Steel: For low-carbon steels, moderate speed and feed rates are recommended. High-speed steels can handle higher speeds, while coated carbide tools can further raise the speed and feed rates.
3. Titanium: Titanium requires slower speeds and high feed rates to prevent tool overheating. A heavy, consistent feed helps to keep the tool in the cut and avoid work hardening.
4. Stainless Steel: Stainless steel is strict and has a tendency to work hard, so it requires moderate to slow speeds and high feed rates. Applying coolant can help reduce heat buildup.
5. Cast Iron: Cast iron, being brittle, can handle higher speeds. However, feed rates should be kept moderate to prevent tool chipping.
6. Superalloys: Superalloys like Inconel and Hastelloy require prolonged speeds and moderate feed rates due to their toughness and high work hardening characteristics.

Remember, these are just guidelines, and the ideal speed and feeds can vary depending on the specific alloy, tool geometry, and setup rigidity. Each machining scenario may necessitate adjustments to these parameters for optimal results.

Strategies for Pocketing and Grooving with a Square End Mill

When it comes to pocketing and grooving with a square-end mill, a few strategic considerations can yield significant improvements in performance and tool life.

Tool Path Selection: Opt for a tool path that minimizes the engagement of the cutter, like a high-speed machining (HSM) tool path. This reduces tool pressure, heat, and wear, thereby extending tool life.

Tool Engagement: Avoid full slotting, as it can lead to high tool engagement, increased tool pressure, and accelerated tool wear. Instead, strategies that engage a fraction of the tool diameter, such as adaptive, dynamic, or high-efficiency tool paths, are advised.

Climb Milling vs Conventional Milling: Climb milling is generally recommended due to the reduced heat generated at the tool-workpiece interface and improved surface finish. However, in situations where machine backlash is a concern, conventional milling may be warranted.

Trochoidal Milling: This strategy involves a combination of circular and linear movements, preventing tool engagement from exceeding a set value and ensuring consistent chip thickness. This reduces heat and tool wear, allowing for increased speed and feed rates.

Use of Coolant: For materials that do not have a high thermal conductivity, such as stainless steel or titanium, coolant can be particularly beneficial as it helps in heat dissipation and reduces the likelihood of work hardening.

Remember, these strategies are starting points. The precise machining conditions, tool geometry, and material characteristics will likely necessitate adjustments for optimal performance and tool life.

Common Mistakes to Avoid When Using Square End Mills

Ignoring Tool Deflection: A common oversight is ignoring tool deflection, which can lead to dimensional inaccuracies, poor surface finish, or even breakage. It’s essential to consider tool length/diameter ratios and adjust feeds and speeds accordingly.

Inadequate Chip Evacuation: Failing to ensure proper chip evacuation can result in the recutting of chips, causing excessive heat and premature tool wear. Using an appropriate strategy of coolant or air blast can help mitigate this issue.

Using Worn-Out Tools: Persisting with worn or damaged tools can lead to poor finish quality and, in the worst case, tool failure. Regular inspection and timely replacement of devices can prevent many such problems.

Incorrect Speeds and Feeds: Overly aggressive or conservative machining parameters can lead to inefficient cutting, excessive tool wear, or tool breakage. It’s critical to refer to manufacturer recommendations and adjust based on the specific machining conditions.

Improper Setup: Inaccurate workpiece alignment, unstable fixturing, or lack of rigidity in the machine setup can lead to dimensional errors and subpar surface finishes. Ensure a proper format for optimal milling results.

By avoiding these common mistakes and adhering to the strategies recommended earlier, you can maximize the performance and lifespan of your square-end mills.

Caring for Your Square End Mill

Tips for Maintaining Sharpness and Generating a 90° Edge

Using Cleaning Solutions: Regularly clean your square-end mill using suitable cleaning solutions. This helps to eliminate any accumulated grime or residue that may dull the cutting edge over time.

Proper Storage: Store your tools in a dry, clean, and safe location. Excessive moisture and improper storage can lead to rusting or physical damage, impairing the sharpness of the device.

Frequent Inspection and Honing: Regularly inspect the cutting edges of your mill for any signs of wear or dulling. If minor, honing with a diamond file can restore sharpness and ensure a consistent 90° edge.

Avoid Overheating: Overheating during use can dull the cutting edge. To mitigate this, use appropriate coolant methods and ensure the tool isn’t running too fast or being fed too aggressively.

Professional Resharpening: If extensive wear or damage is noticed, consider professional resharpening services. They have the expertise and equipment to restore the tool to its original performance standards.

By following these tips, you can maintain the sharpness of your square end mill and consistently generate a precise 90° edge, enabling a smoother, more efficient milling operation.

Proper Cleaning and Storage of Carbide Square End Mills

Proper Cleaning of Carbide Square End Mills: Carbide Square End Mills require meticulous cleaning to maintain their effectiveness. After use, remove any metal chips or debris from the tool using a soft brush or compressed air. Avoid using hard or abrasive materials for cleaning as they can damage the cutting edge. Applying a mild, non-corrosive cleaning solution can help to dissolve any stubborn residue. After cleaning, thoroughly dry the tool to prevent any moisture-induced corrosion.

Proper Storage of Carbide Square End Mills: Proper storage is paramount in maintaining the longevity and sharpness of carbide square end mills. The tools should be stored individually in protective sleeves or tubes to prevent any physical damage resulting from contact with other devices. These sleeves also avoid any accidental damage while handling. The storage area should be dry and temperature-regulated. Excessive humidity and temperature fluctuations can lead to rust and degrade the tool over time.

Adherence to these cleaning and storage practices can significantly enhance the performance and lifespan of your carbide square-end mills, giving you an edge over your competitors in the precision machining industry.

Using Coolants and Lubricants for Extended Tool Life

Using Coolants and Lubricants for Extended Tool Life: The application of appropriate coolants and lubricants during machining operations is crucial in extending the lifespan of carbide square-end mills. Coolants aid in temperature regulation, preventing overheating that could degrade the tool or lead to premature wear. Lubricants, on the other hand, reduce friction, allowing for smoother cuts and minimizing wear on the cutting edges. It’s essential, however, to select the proper coolant and lubricant for your specific operations, as using incorrect or low-quality products can lead to ineffective cooling, lubrication, and, potentially, tool damage. Regular application and monitoring of coolants and lubricants can result in optimal tool performance, longer tool life, and, ultimately, cost savings in tool replacement. This adds to your competitive advantage in the precision machining industry.

Inspecting and Measuring Wear on Square End Mills

Inspecting and Measuring Wear on Square-End Mills: The ability to accurately gauge wear on your carbide square-end mills is a vital skill in maintaining top-tier performance. Wear typically presents as dull cutting edges or irregular surfaces on the tool. A visual inspection is the first line of defense, looking out for chips or deformations that may impact the tool’s performance. In addition, more advanced measuring techniques, such as surface roughness testing and microscope inspections, can reveal microscopic wear and tear that is not visible to the naked eye. A systematic and regular inspection routine will not only prolong the life of your tools but also ensure a high-quality output, boosting your standing in the precision machining industry. Remember, early detection of wear can save you considerable amounts of time and money in the long run.

Choosing the Right Tool Holder for Square End Mills

Choosing the Right Tool Holder for Square-End Mills: The tool holder plays a crucial role in maintaining the stability, precision, and overall performance of square end mills. Each holder type – including collet chucks, hydraulic chucks, shrink fit holders, and milling chucks – offers unique benefits and is suited to specific machining conditions. Collet chucks are typically used for general machining due to their versatility, while hydraulic chucks provide excellent precision for high-speed machining. Shrink fit holders, on the other hand, are perfect for high-precision applications due to their superior clamping force and balance. Lastly, milling chucks are known for their high gripping power, making them ideal for heavy-duty machining. It’s essential to consider factors such as machinery, materials being cut, and the specific machining operation to choose the most appropriate tool holder for your square-end mills. Remember, a well-selected tool holder enhances tool life, reduces tool wear, and ultimately boosts the output quality.

Getting Support for Your Square End Mill Needs

How to Reach Out to Customer Support for Square End Mills

Reaching out to customer support for your square-end mill needs is relatively straightforward. Most cutting tool manufacturers have dedicated support teams to address any concerns or issues you might encounter. To get in touch with customer support, you can typically use one of the following methods:

1. Email – Most companies provide an email address for customer support inquiries. Ensure to include specific details about your square-end mill needs for a more efficient resolution.
2. Phone – You can also reach out to customer support over the phone. This method often provides the quickest response, but make sure to call during the support team’s working hours.
3. Online Chat – Some manufacturers offer live chat support on their websites. This is a good option if you have a quick question or need immediate assistance.

Remember, when reaching out to customer support, be clear and specific about your needs or issues. This will help the support team to provide the most effective assistance and solutions.

Exploring Additional Resources for End Mill Selection and Use

In addition to reaching out to customer support, it’s also beneficial to tap into other resources available for end-mill selection and use. Here are some additional channels where you can find helpful information:

1. Product Catalogs – Most cutting tool manufacturers provide comprehensive catalogs with detailed specifications and guidelines about their end mills. These catalogs can be a valuable resource when choosing the right tool for your needs.
2. Online Forums – There are numerous online forums where machinists share their experiences, tips, and advice about using square-end mills. These platforms can offer insightful real-life examples and practical solutions.
3. Trade Publications – Industry-specific magazines and online publications often feature articles and guides on end mill selection, use, and maintenance. They also provide updates on the latest trends and advancements in the field.
4. Training Programs – Some manufacturers and industry organizations offer training programs on using cutting tools effectively. These programs can range from online webinars to in-person workshops.

By leveraging these resources, you can enhance your understanding, make more informed decisions about your square-end mill needs, and, ultimately, improve your machining operations.

Understanding the Benefits of Micrograin Carbide Square End Mills

Micrograin carbide square-end mills offer significant advantages that make them a choice worth considering for various machining operations. Firstly, the fine grain size in micrograin carbide increases the hardness and toughness of the tool, resulting in superior wear resistance. This means that the device retains its sharpness longer, enhancing productivity and reducing replacement costs. Secondly, micrograin carbide is heat-resistant, allowing for faster cutting speeds without compromising tool life or performance. This heat resistance is particularly beneficial for high-speed machining applications. Lastly, micrograin carbide tools enable high-precision machining due to their dimensional stability and rigidity. They can maintain tight tolerances even in challenging machining conditions, ensuring the accuracy and quality of the finished parts. This combination of wear resistance, heat resistance, and precision makes micrograin carbide square-end mills an excellent investment for efficiency and quality in machining operations.

Where to Find a Wide Variety of Square End Mills

You can find a wide variety of square-end mills at reputable tool suppliers both online and in physical stores. Online marketplaces like Amazon, eBay, and Alibaba often have extensive listings from various manufacturers worldwide. For specialized needs, direct manufacturers such as Harvey Tool, CGS Tool, and Kennametal have comprehensive catalogs on their websites. Additionally, trade shows and expos often showcase the latest tool innovations, making them excellent venues for finding cutting-edge square-end mills. Local hardware stores may also carry a selection of these tools, particularly for general-purpose applications. By exploring these various outlets, you can find the square-end mills that best suit your specific machining requirements.

Why Choose Carbide Square End Mills over HSS Options

Carbide square end mills are an exceptional choice over High-Speed Steel (HSS) options for several compelling reasons. Firstly, carbide end mills exhibit greater hardness, which allows them to withstand intense machining operations and maintain sharpness over extended periods, increasing tool life. Secondly, their superior heat resistance ensures they perform optimally, even at high cutting speeds, reducing the risk of tool failure and boosting productivity. Unlike HSS tools, carbide end mills can resist thermal deformation, maintaining precision and ensuring the accuracy of finished parts. Lastly, the rigidity and toughness of carbide tools prevent them from chipping or breaking during heavy-duty machining, reducing downtime and offering a better return on investment. Overall, the strength, heat resistance, and durability of carbide square end mills make them a more efficient and cost-effective solution than their HSS counterparts.
