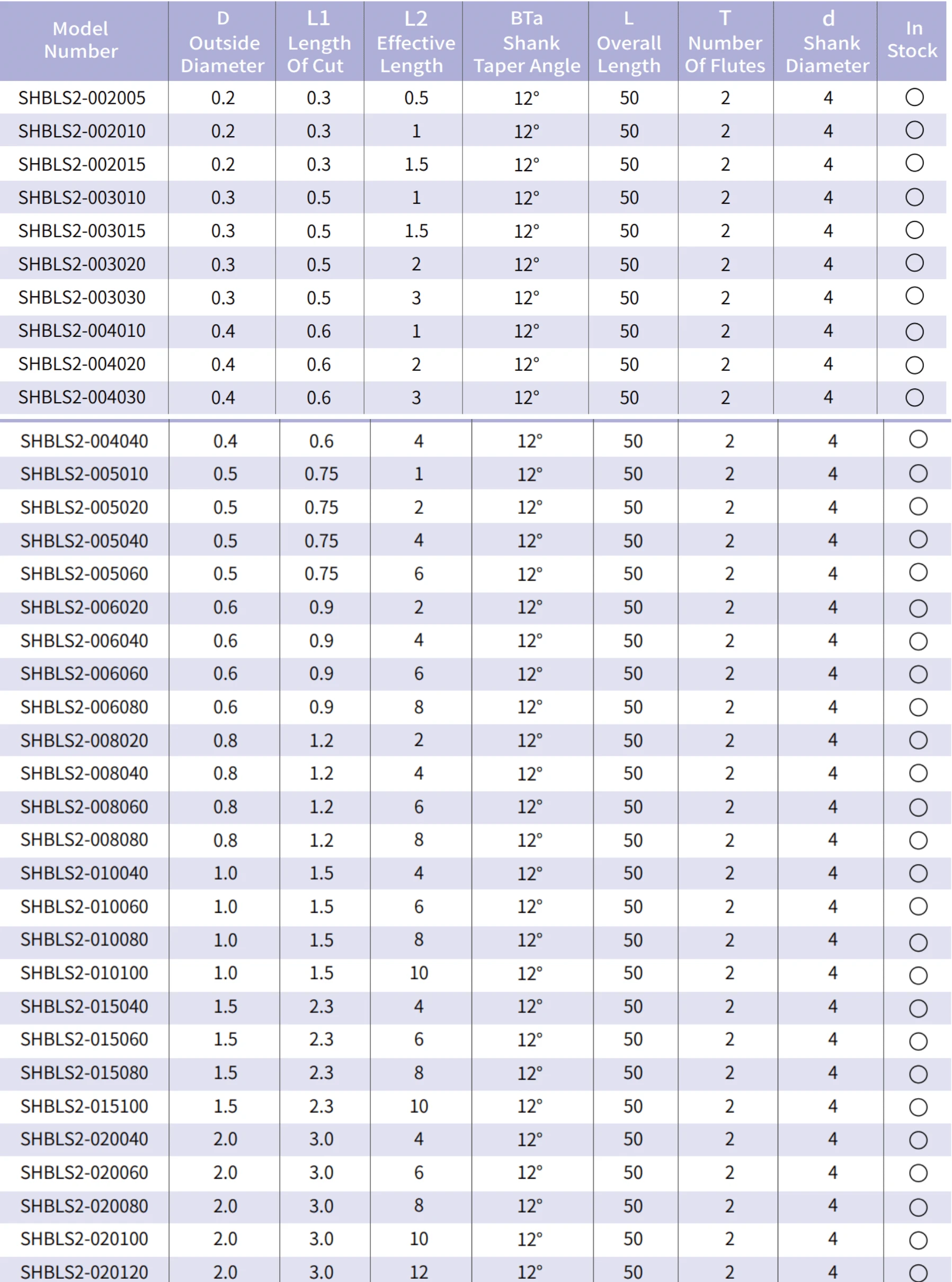

HRC55 Mold Steel End Mill【2 Flutes Long Neck Φ 0.2-2】

HRC55 Ultrafine-Grain Carbide: Built for Mold Steel Cutting Stability

The SAMHO HRC55 series uses an ultrafine-grain carbide substrate designed specifically for mold steel machining applications.
This is not only about hardness. The real engineering focus is tool stability under load.

Key performance advantages include:

• Strong resistance to edge chipping during interrupted cutting
• Improved fracture toughness under impact loads
• Stable cutting edge retention during long machining cycles
• Reduced risk of premature tool failure in hardened zones

In real-world machining, this HRC55 carbide end mill performs reliably in:

• SKD11 (pre-hardened condition)
• P20 / 1.2738 mold steel
• NAK80 precision mold steel
• HRC 45–55 mold steels

This makes it a stable solution for long neck flat end mill for mold steel applications, especially in mold cavity finishing.

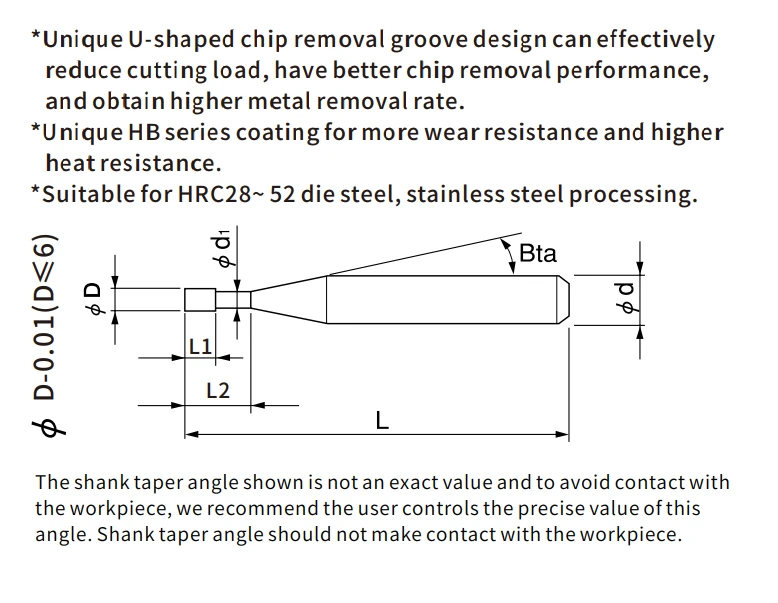

2 Flute Design: Optimized for Deep Cavity Milling and Chip Evacuation

For deep cavity machining, chip evacuation is often more critical than surface finish.

The 2-flute geometry is engineered for this purpose:

• Larger chip space prevents chip re-cutting
• Improved chip flow reduces cutting heat buildup
• Lower cutting resistance in deep slots and narrow ribs
• Reduced built-up edge (BUE), especially in P20 and 718H steels

In practical mold machining, the 2-flute design is preferred for:

• Deep slot milling
• Narrow cavity structures
• Rib and wall machining
• Deep pocket finishing in mold cores

This is why many engineers select a 2 flute long neck square end mill for mold steel when stability is more important than maximum feed rate.

Structural Rigidity Design: Stable Cutting in Long Overhang Conditions

Long-neck end mills naturally face reduced rigidity due to extended tool reach.
SAMHO improves stability through structural engineering optimization.

Key design improvements include:

• Reinforced core diameter for higher bending resistance
• Smooth shank-to-flute transition to reduce vibration points
• Optimized geometry for low-chatter machining strategies

In actual CNC machining, this design helps reduce:

• Tool chatter during deep cavity milling
• Sidewall vibration marks (waviness)
• Sudden tool deflection under load

This makes the tool suitable for high-precision long reach mold machining with consistent dimensional control.

Precision and Consistency: Designed for CNC Production Environments

For industrial mold production, consistency is more important than single-tool performance.

SAMHO ensures stable production quality through:

• Shank diameter tolerance controlled within 0 to +0.003 mm
• Stable cutting diameter across production batches
• High compatibility with hydraulic and shrink-fit tool holders

This level of precision helps reduce:

• Tool change dimensional drift
• Assembly mismatch in automated machining systems
• Variations in finishing quality between batches

For U.S. and European mold manufacturers, this consistency is critical in high-volume CNC machining operations.

Manufacturing Stability: Designed for Global Industrial Supply Chains

Beyond tool performance, global buyers focus on supply reliability and repeatability.

SAMHO HRC55 long neck series is designed for:

• Stable batch-to-batch manufacturing consistency
• Controlled coating thickness and adhesion stability
• Standardized geometry for mold steel applications
• OEM and ODM customization (diameter, flute length, coating options)

This makes it suitable for long-term industrial partnerships in:

• Mold and die manufacturing
• Precision machining workshops
• CNC contract manufacturing environments

For buyers sourcing a long neck flat end mill for mold steel, consistency across supply cycles is a key advantage.
