Upgrade Your End Mill with SAMHO's Tungsten Copper Option!

Experience SAMHO’s Tungsten Copper End Mill for precise cutting. We have tough and high-performance tools that you can rely on Upgrade today for exceptional results. Call us to order.

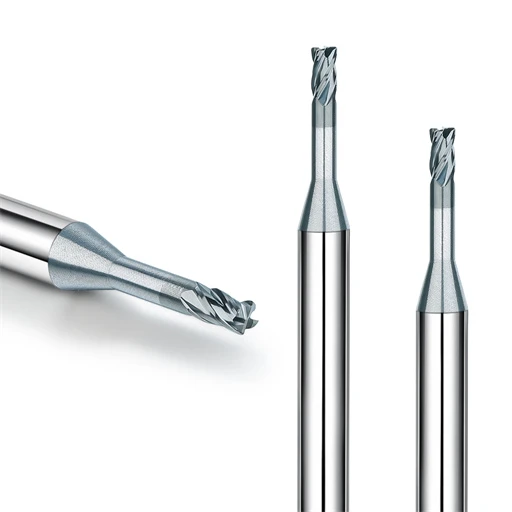

  • Introducing tungsten end mill from SAMHO

High hardness and wear resistance: The special end mill for tungsten copper adopts high hardness tool materials, cemented carbide, and special coating materials, which can effectively resist wear during the cutting process and prolong tool life.

Good thermal conductivity: The special end mill for tungsten copper has good thermal conductivity, which can quickly conduct the heat generated by cutting, reduce the increase in cutting temperature, and prevent the tungsten copper material from overheating during processing.

High precision machining: The special end mill for tungsten copper is designed with precision, which can realize high precision tungsten copper machining and meet the application fields with high requirements for dimensional accuracy and surface quality.

Reduce tool damage: Due to the special properties of tungsten copper materials, the use of special tungsten copper end mills can reduce tool damage and reduce the risk of tool wear and breakage.

Improve processing efficiency: The special end mill for tungsten copper can realize high speed and efficient tungsten copper processing, improve production efficiency, and save processing time and cost.

Suitable for special materials: Tungsten copper special end mill is suitable for the processing of special materials such as tungsten copper, and can meet the needs of special material processing.

tungsten end mill Coating Characteristics

Coating NameIngredientColourCharacteristicsHardnessCoefficient of FrictionOxidation Onset TemperatureCoating Thickness
HGALTiSi+NBronzeUltra high hardness, super oxidation resistance, high density3700(HV)0.413002μm
HTALTisi+NBronzeUltra high hardness, super oxidation resistance, high density3700(HV)0.3612002-4μm
HBALTiCR+NDark greyUltra low oxidation, low friction3500(HV)0.311002μm
HDNano DiamondDark greyUltra high wear resistance10000(HV)<0.16006-10μm

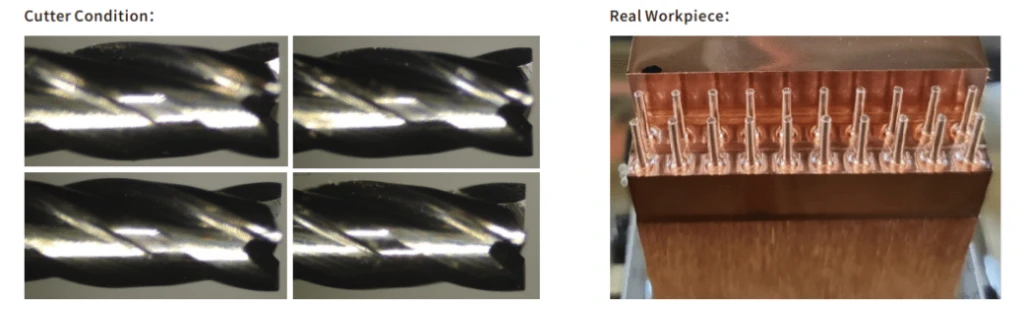

Analysis Report:Material Tungsten copper(W75)

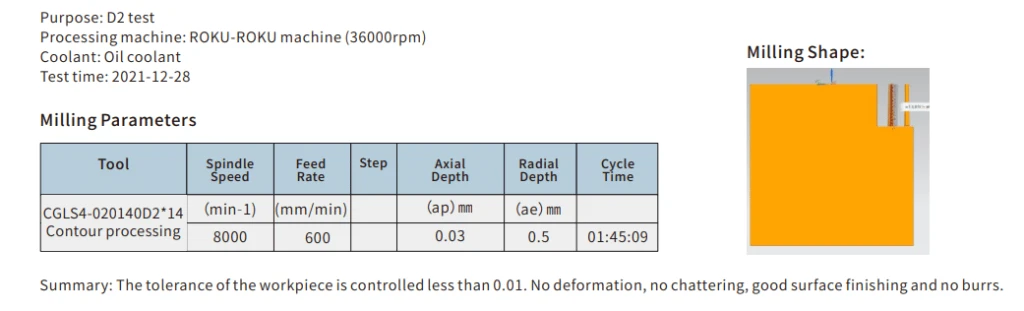

Analysis Report:Material Tungstencopper(W75) -1

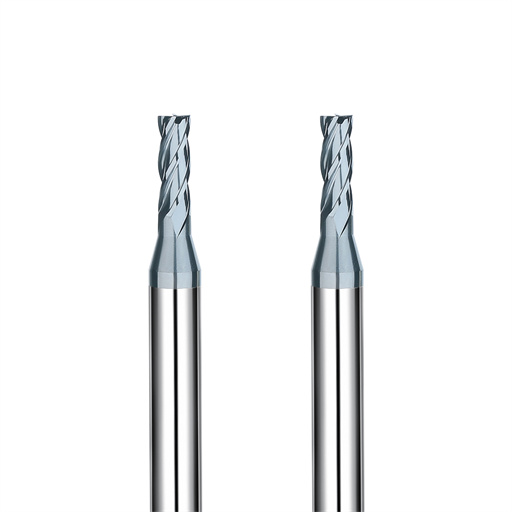

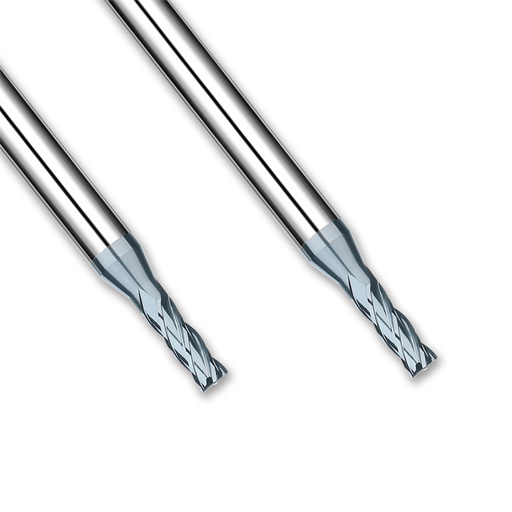

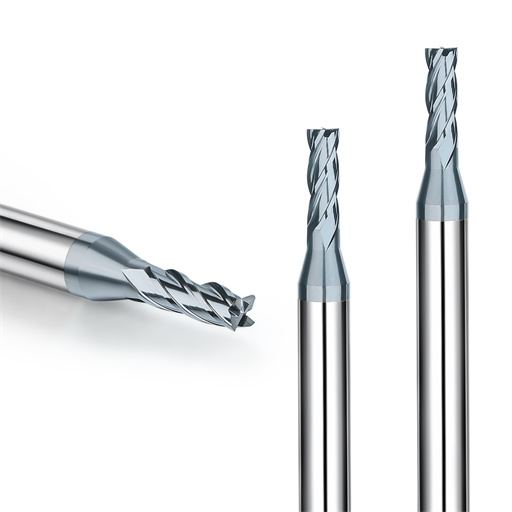

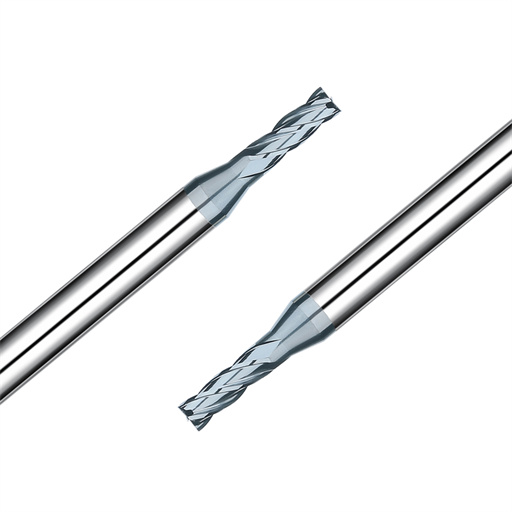

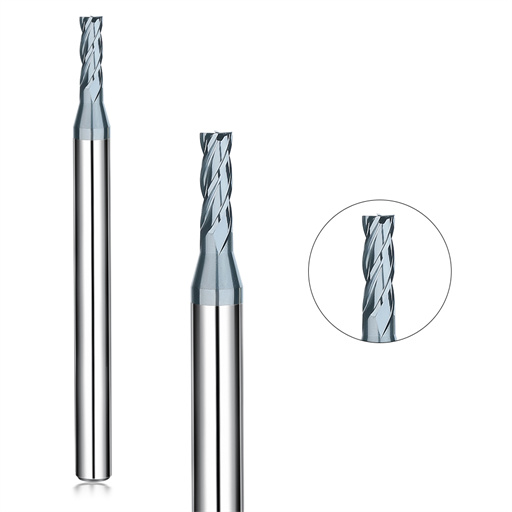

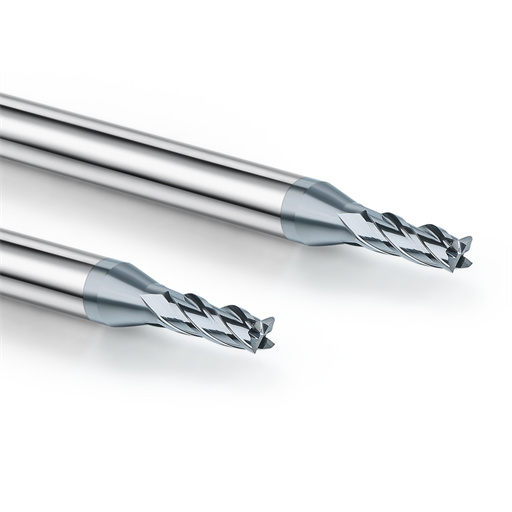

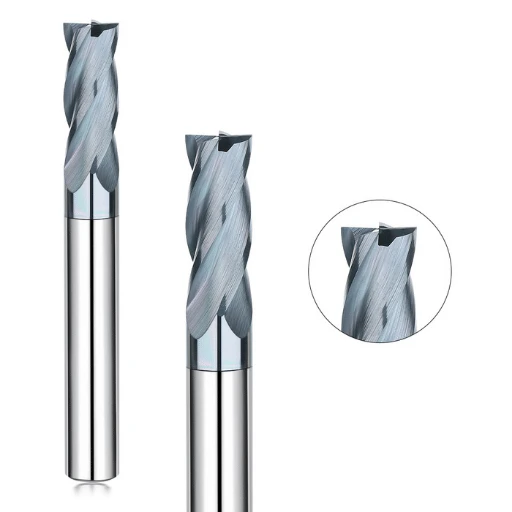

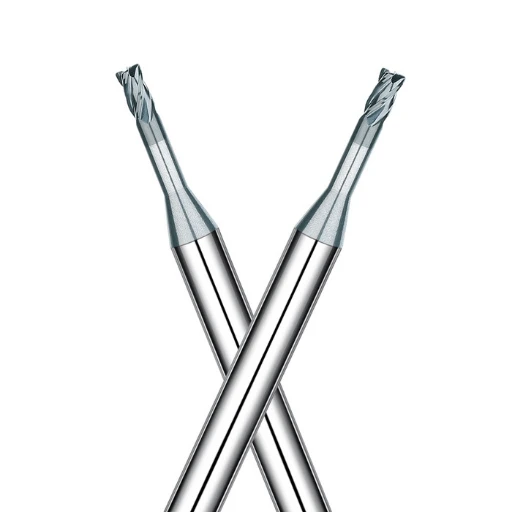

  • tungsten end mill Square End Mill

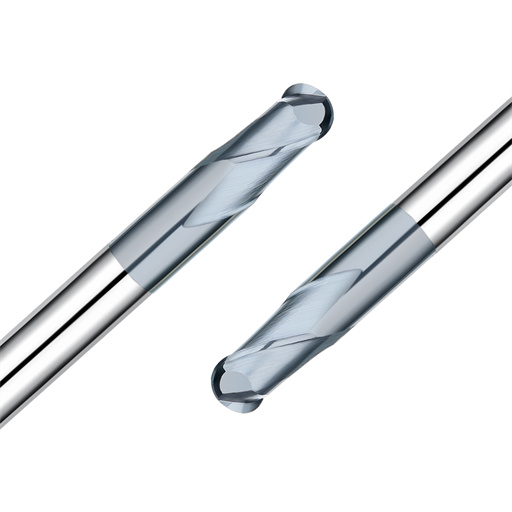

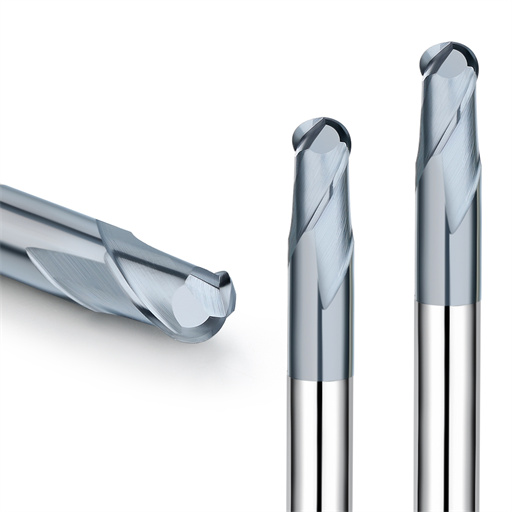

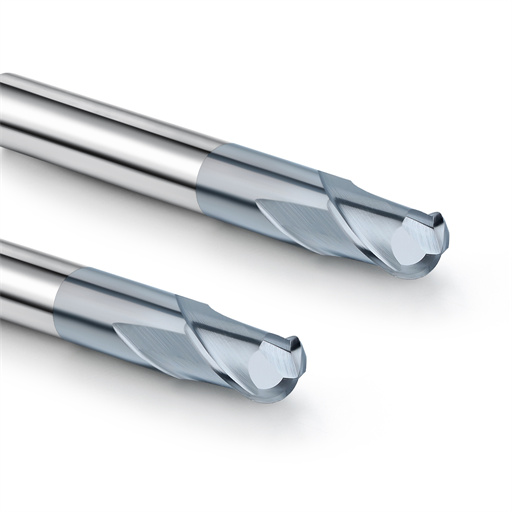

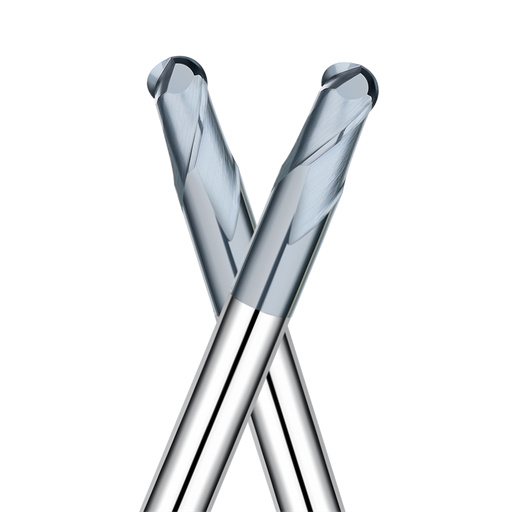

  • tungsten end mill Ball Nose End Mill

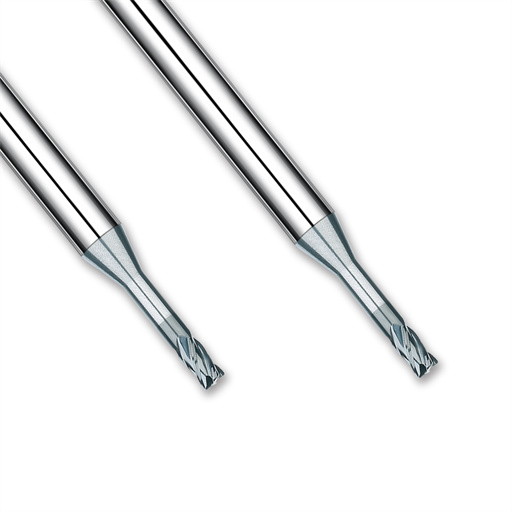

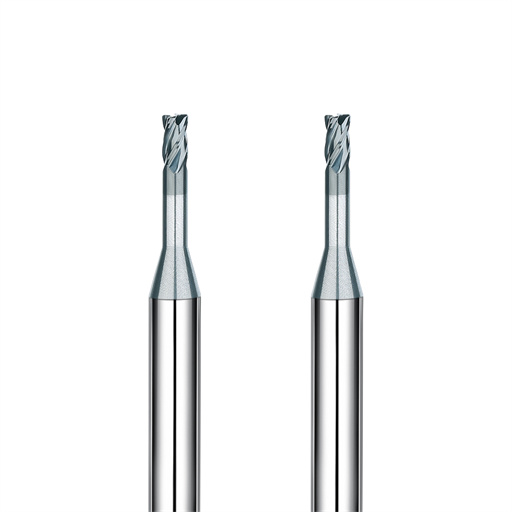

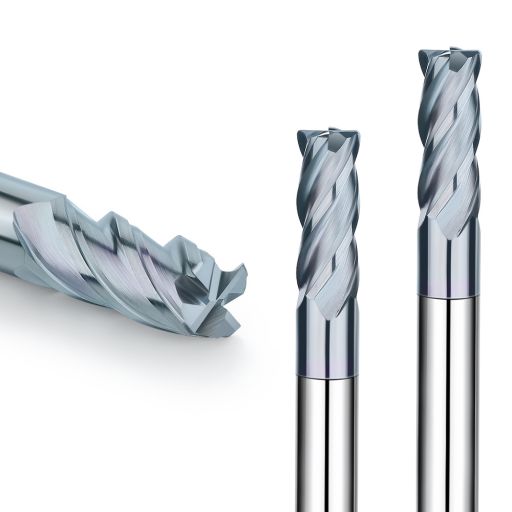

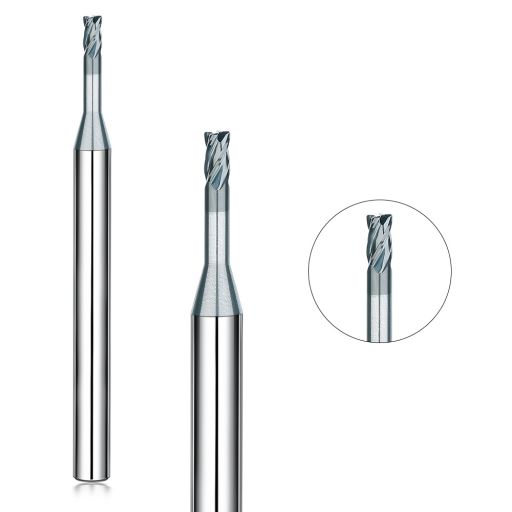

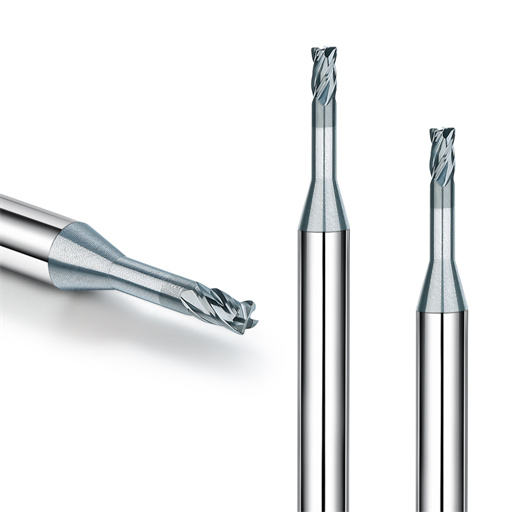

  • tungsten end mill Corner Radius End Mill

  • Undertakehigh-precisiontoolcustomization

• High-precision version of the product available.

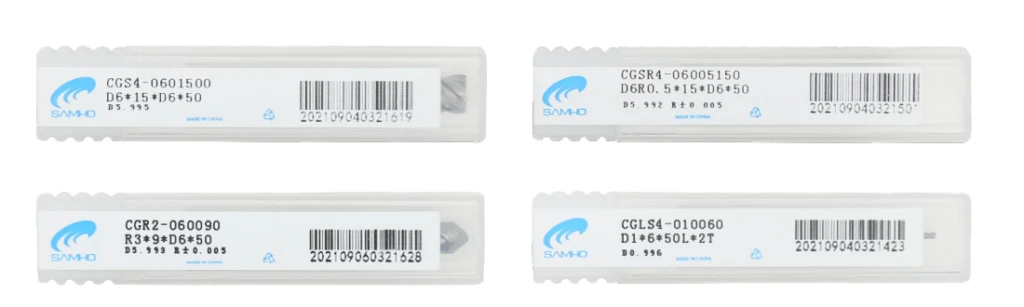

• Outer diameter and accuracy R measurements provided on the label.

Undertakehigh-precisiontoolcustomization
Why Choose Our tungsten end mill
  • Why Choose Our tungsten end mill

Tungsten end mills from our company provide unmatched durability, with high resistance to wear and tear for consistent performance.
• Meticulously precision-engineered to reduce errors and enhance productivity.
• Versatile tools suitable for milling a variety of materials, from steel to exotic alloys.
• Advanced coating technology applied to increase the tool’s hardness, reduce friction, and improve resistance to heat or extreme conditions.
• Expert support and advice available for selecting the right tool and getting the most out of your purchase.

Related Product Recommendation

Everything You Need to Know About Tungsten End Mills

Tungsten end mills are robust cutting tools designed for high-speed machining and used extensively in the metalworking industry. Composed of tungsten carbide, these mills are highly resistant to wear and can withstand high temperatures, making them ideal for challenging applications. The unique combination of strength, durability, and heat resistance of tungsten end mills contributes to increased productivity and efficiency in machining processes. Opting for these end mills can lead to superior surface finishes and longer tool life, driving cost savings and operational excellence in the long run.

What is a Tungsten End Mill, and How Does It Work?

What is a Tungsten End Mill, and How Does It Work?

Understanding the Composition of Tungsten End Mills

Tungsten end mills are primarily composed of two materials, tungsten, and carbide, in a compound known as tungsten carbide. Here’s a breakdown of the composition:

  1. Tungsten (W): This is a complex, dense, and rare metal with a high melting point. It contributes to the hardness and wear resistance of the end mill, allowing it to withstand high-speed machining processes.
  2. Carbide (C): Carbide is a compound made from carbon and another element, in this case, tungsten. It provides the toughness needed for the tool to endure the stress associated with cutting hard materials.
  3. Cobalt Binder (Co): This is the glue that holds the tungsten and carbide particles together. The binder adds to the mill’s toughness and wear resistance.
  4. Coating (Optional): Some tungsten end mills are coated with materials like titanium nitride (TiN), titanium carbonitride (TiCN), or aluminum titanium nitride (AlTiN) to further enhance tool life and performance. The coating reduces friction, prevents sticking, and increases the tool’s hardness.

Understanding the composition of tungsten end mills is critical to leveraging their benefits in any machining process. By making the most of their unique properties and proper use, you can drive efficiency and precision in your machining tasks.

The Cutting Mechanism of Tungsten End Mills

Tungsten end mills operate on a primary yet effective cutting mechanism. As the mill rotates, the sharp edges of the flutes cut into the material, removing chips in the process. This is facilitated by the hardness and wear resistance attributes of the tungsten carbide composition. The number of these flutes can vary, impacting the speed and finish of the cut. Fewer flutes mean faster feed rates but a rougher finish, while more flutes result in a slower, smoother cut.

Furthermore, the spiral-shaped design of the flutes helps in effective chip evacuation, ensuring a clean cut and preventing damage to the workpiece. The coating, if present, lowers the friction between the workpiece and the tool, reducing heat generation and enhancing tool life. Therefore, understanding the cutting mechanism of tungsten end mills is critical for optimizing their use in various machining applications.

Applications and Industries Where Tungsten End Mills are Used

Applications and Industries Where Tungsten End Mills are Used

Tungsten end mills are extensively used across a multitude of industries, owing to their exceptional precision, durability, and versatility.

  1. Aerospace Industry: The aerospace industry relies on tungsten end mills for machining high-strength, temperature-resistant materials used in aircraft and spacecraft components.
  2. Automotive Industry: Tungsten end mills are utilized in the automotive industry for the production and maintenance of various car parts, including engine components and body parts.
  3. Electronics Industry: These tools are crucial in the micro-machining processes required for creating intricate circuits in electronic devices.
  4. Medical Industry: The medical industry employs tungsten end mills for the manufacture of medical devices and surgical tools, where precision and reliability are of paramount importance.
  5. Manufacturing Industry: In the broader manufacturing sector, tungsten end mills are used for a wide range of applications, from mold and die-making to general metal fabrication tasks.

The specific applications can vary, but understanding the cutting mechanism and material properties of tungsten end mills allows them to be utilized effectively across these industries.

Choosing the Right Tungsten End Mill for Your Cutting Needs

Choosing the Right Tungsten End Mill for Your Cutting Needs

When it comes to selecting the suitable tungsten end mill for your cutting requirements, several factors come into play.

Material Type: The type of material you’re planning to cut is a significant determinant in your choice of tungsten end mill. Different materials have diverse hardness levels and thermal properties that can influence the cutting efficiency of an end mill.

Cutting Conditions: The cutting conditions, including the feed rate, cutting speed, and depth of the cut, also influence the choice of end mill. Specific end mills are better suited for higher speeds, while others perform best under slower, more controlled conditions.

Tool Geometry: The end mill’s geometry, comprising the helix angle, flute count, and cutting edge length, should match your specific cutting needs. For instance, a higher helix angle is recommended for softer materials, while a lower helix angle works well with more rigid fabrics.

Coating Type: Coatings can enhance the durability and performance of tungsten end mills. Depending on the material you’re working with and the cutting conditions, you might require a specific coating type to maximize tool life and productivity.

In conclusion, understanding these factors will enable you to make an informed decision when choosing a tungsten end mill, optimizing your machining process, and achieving high-quality results.

Advantages and Limitations of Tungsten End Mills

Advantages and Limitations of Tungsten End Mills

Benefits of Tungsten End Mills:

  • Durability and Longevity: Tungsten end mills are renowned for their durability. They exhibit exceptional resistance to wear and tear, resulting in a longer tool life.
  • High Cutting Speeds: Due to their hardness, tungsten end mills can withstand higher cutting speeds. This capability translates to increased productivity and faster machining times.
  • Versatility: Tungsten end mills can be used to cut a wide range of materials, from soft plastics to hard metals, making them a versatile choice for diverse machining needs.

Limitations of Tungsten End Mills:

  • Cost: Tungsten end mills tend to be more expensive than their counterparts made from other materials. The initial investment might be higher, but the extended tool life can offset this cost over time.
  • Brittleness: Despite their hardness, tungsten end mills can be brittle. They might not be the best choice for machining applications that involve a lot of lateral stress.
  • Tool Wear Monitoring: Due to their hardness and durability, monitoring tool wear can be challenging. Regular inspection is recommended to prevent sudden tool failure.

Types and Features of Tungsten End Mills

Types and Features of Tungsten End Mills

Exploring Different Types of Tungsten End Mills

Tungsten end mills come in a variety of types, each with unique features designed to fulfill specific machining needs:

  1. Square End Mills: These are the most common type of end mill. They are designed with a square tip and can be used for a wide range of milling tasks, such as profiling, slotting, and plunging.
  2. Ball Nose End Mills: Featuring a spherical tip, ball nose end mills are used for 3D contouring, complex surface machining, and die & mold work.
  3. Roughing End Mills: Also known as ripper cutters, these are used for heavy cutting applications. They have serrations in the flutes to quickly remove large amounts of material while creating a rough surface finish.
  4. Corner Radius End Mills: These end mills have rounded corners at the bottom edge and are used when a specific radius is needed at the intersection of a slot.
  5. Drill Mills: These versatile tools are a combination of an end mill and a drill bit, used for drilling, milling, spotting, and chamfering applications.

Remember that choosing the right type of tungsten end mill requires a clear understanding of the machining task at hand, the material to be milled, and the capabilities of your milling machine.

Key Features to Look for in Tungsten End Mills

When choosing a Tungsten end mill, several key features should be taken into account:

Coating: The presence of a protective layer can significantly enhance the end mill’s performance and lifespan. Coatings such as TiN (Titanium Nitride), TiAlN (Titanium Aluminum Nitride), or AlTiN (Aluminum Titanium Nitride) can provide additional heat resistance and decrease friction, leading to more efficient cutting and longer tool life.

Flute Count: The number of flutes on the end mill impacts the speed and quality of the cut. Fewer flutes allow for faster feed rates and better chip evacuation, making them more suitable for softer materials. More flutes provide a smoother finish and are, therefore, better for more rigid materials.

Helix Angle: The helix angle refers to the spiral configuration of the cutting edge. A higher helix angle (around 45 degrees) results in a smoother cut and is generally better for softer materials. In comparison, a lower helix angle (about 30 degrees) is more robust and suitable for more rigid materials.

Material: While we’re focusing on Tungsten end mills, it’s worth noting that Tungsten Carbide, a composite of Tungsten and carbon, is often used for its superior hardness and resistance to wear. However, some tasks may benefit from the use of High-Speed Steel (HSS) end mills, which offer more excellent toughness and flexibility.

Remember, it’s not about finding the ‘best’ end mill but the one most suited to your specific application. A thorough understanding of these features will enable you to make informed decisions and optimize your milling operations.

Understanding Flute Configurations in Tungsten End Mills

Flute configurations in Tungsten end mills play a significant role in dictating the operation’s efficiency and the workpiece’s final finish. Essentially, the flute refers to the grooves or valleys that are cut into the body of the mill. The primary types of flute configurations include single flute, double flute, and triple flute.

Single Flute: A single flute end mill is recognized for its larger flute design, which enables maximum chip evacuation. This configuration is ideal for plastics and other non-ferrous materials due to its ability to avoid gumming up or melting of the workpiece.

Double Flute: The double flute design offers a balance between chip removal and cutting speed. It is commonly used for cutting both soft and hard materials, providing a smooth finish while maintaining decent material removal rates.

Triple Flute: Triple flute end mills are designed for superior finish quality. The additional flute allows for a higher feed rate but with less chip evacuation. This configuration is most suitable for more complex materials where a smooth finish is required.

Understanding these flute configurations is crucial to selecting the suitable end mill for your specific task. Remember, the aim is to pick the tool that will maximize your milling outcome based on the material and desired finish quality.

Considerations for Material-Specific Tungsten End Mills

Considerations for Material-Specific Tungsten End Mills

When selecting Tungsten end mills for specific materials, several factors should be considered:

Softer Materials: For more delicate materials, such as plastics or aluminum, single or double-flute end mills work best due to their optimal chip evacuation and balance between cutting speed and material removal.

More complex Materials: For more complex materials, such as steel, a triple flute end mill would be more appropriate. The extra flute allows for a higher feed rate, which is advantageous for these types of materials.

Fibrous Materials: For fibrous materials, like composite materials or wood, it’s crucial to use end mills with sharp edges and high rake angles. This design reduces the risk of delamination and fraying.

Temperature-Sensitive Materials: For temperature-sensitive materials, such as certain types of plastics, it’s vital to choose end mills with fewer flutes to avoid excessive heat build-up, which could deform the workpiece.

By taking these considerations into account, you can make an informed decision about which Tungsten end mill is most suitable for your task.

Advanced Coatings and Surface Treatments for Tungsten End Mills

Advanced coatings and surface treatments further enhance the performance and longevity of Tungsten end mills, particularly when machining more rigid materials. Here are some of the most common:

Titanium Nitride (TiN): Known for its hardness and excellent adhesion properties, TiN coating improves tool life and allows for higher-speed machining.

Titanium Carbonitride (TiCN): This coating provides an even more complex surface than TiN, making it ideal for high-speed applications and when working with abrasive materials.

Titanium Aluminum Nitride (TiAlN): Offering superior heat resistance, TiAlN is a popular choice for high-temperature cutting operations.

Diamond Coating: Tough and wear-resistant, diamond coatings are ideal for machining non-ferrous materials and composites.

Alcrona Pro: With excellent hardness and heat resistance, Alcrona Pro is ideal for high-performance machining and long machining periods.

By choosing the suitable coating for your Tungsten end mill, you can significantly boost your tool’s performance and lifespan, resulting in more efficient operations and improved final products.

Tungsten End Mill Maintenance and Tooling Best Practices

Tungsten End Mill Maintenance and Tooling Best Practices

Essential Maintenance Tips for Tungsten End Mills

  1. Regular Inspection: Regularly inspect your end mills for signs of wear or damage. Early detection can prevent more severe issues down the line and improve the tool’s longevity.
  2. Proper Cleaning: After each use, clean your end mill thoroughly to remove any residual material that could interfere with performance.
  3. Monitor Temperature: Pay attention to the operating temperature of your end mill. Overheating can lead to premature wear and tear. Using appropriate cutting fluids can help maintain optimal temperature.
  4. Proper Storage: Store your end mills in a dry, clean, and organized manner to protect them from environmental damage and accidental impacts.
  5. Correct Usage: Make sure to use the end mill within its specified operating parameters, including speed, feed, and depth of cut. Overloading the tool can cause unnecessary wear.
  6. Routine Sharpening: Regularly sharpen your end mill to maintain its cutting edge. However, ensure a trained professional does this to prevent any unintended alterations to the tool geometry.
  7. Coating Inspection: Inspect the coating of your end mill regularly. If any signs of peeling or wear are noticed, consider getting the tool recoated to maintain its performance.

By following these essential maintenance tips, you can extend the lifespan of your Tungsten end mills and ensure optimal performance in your machining tasks.

Optimizing Performance through Proper Tooling Techniques

Beyond regular maintenance, optimizing the performance of your Tungsten end mills also requires effective tooling techniques.

Material Considerations:

Choose the right tool for the material you’re cutting. Tungsten end mills are versatile, but certain coatings might be more suitable for specific materials.

Cutting Parameters Adjustment:

Strategically adjust your cutting parameters based on the material and the desired result. This includes the speed, feed, and depth of cut.

Cutting Path Strategy:

Implement a suitable cutting path strategy. Whether it’s slotting, profiling, or roughing, each requires a different approach to maximize efficiency and minimize wear.

Tool Engagement:

Ensure the tool engagement is consistent throughout the operation. Inconsistent attention can lead to tool deflection, reducing accuracy and causing premature wear.

In conclusion, by incorporating these tooling techniques into your machining practices, you can further boost the longevity and efficiency of your Tungsten end mills. Proper tooling techniques, combined with regular maintenance, can significantly enhance operational efficiency, saving time and resources in the long run.

Tooling Strategies for Prolonging the Life of Tungsten End Mills

Tooling Strategies for Prolonging the Life of Tungsten End Mills

Use Appropriate Cutting Fluids:

Cutting fluids plays a crucial role in prolonging the tool life of Tungsten end mills. They provide cooling, lubrication, and chip removal, which prevent overheating, reduce friction, and eliminate the risk of re-cutting chips, respectively. However, it’s essential to choose the correct cutting fluid based on the material being cut and the machining parameters.

Optimize Speeds and Feeds:

Operating at inappropriate speeds and feeds can lead to premature tool wear, tool failure, or poor surface finish. Therefore, it’s essential to optimize these parameters based on the tool diameter, depth of cut, and the material being machined.

Proper Handling and Storage:

Even when not in use, Tungsten end mills should be handled and stored correctly to prevent any physical damage. They should be stored in an organized and clean environment, away from any sources of corrosion or physical impacts.

Regular Inspection:

Routine inspections can help detect early signs of wear or damage and avoid unexpected tool failure. This involves visually inspecting the tool for any signs of chipping, cracking, or excessive wear.

By adopting these tooling strategies, you can markedly prolong the life of your Tungsten end mills, reduce downtime, and enhance machining efficiency. Ultimately, it’s about understanding the nuances of your machining processes and making conscious, informed decisions to maximize tool life.

Common Issues and Troubleshooting Solutions for Tungsten End Mills

Common Issues and Troubleshooting Solutions for Tungsten End Mills

1. Premature Wear:

This usually occurs when the Tungsten end mill is subjected to high cutting forces due to excessive speeds, feeds, or depths of cut. To troubleshoot this, consider optimizing machining parameters and ensure that proper cutting fluid is used for cooling and lubrication.

2. Breakage:

Breakage can occur due to sudden or excessive loads or due to incorrect machining parameters. If breakage is frequent, it’s recommended to reduce the cutting speed or feed rate. Also, ensure the cutting path and strategy are suitable for the tool and material.

3. Poor Surface Finish:

Inadequate surface finish on the workpiece can be a result of excessive tool wear, vibration, or incorrect cutting parameters. Regularly inspect the tool for signs of wear and replace it if necessary. Also, verify the machining parameters to ensure they are optimal for the job.

4. Build-Up Edge:

This happens when the material being cut adheres to the cutting edge of the end mill. To prevent this, choose the appropriate cutting fluid and regularly clean the tool.

5. Overheating:

Overheating can lead to premature tool wear and even tool failure. It’s often caused by insufficient cutting fluid or excessive cutting speeds. To solve this problem, improve the fluid delivery or reduce the cutting speed.

Remember that these are common issues and their solutions. However, the exact resolution may vary depending on the specific machining conditions and tooling setup. Constantly monitor your process closely and adjust as required to ensure optimal tool performance.

Resharpening and Reconditioning Tungsten End Mills

When it comes to using tungsten end mills, the reality is that, over time, even the highest quality tools will experience wear and tear. However, this doesn’t mean that they will need to be replaced immediately. A more cost-effective alternative is often to recondition and resharpen these tools.

The resharpening process involves removing small amounts of material from the end mill’s cutting edge to restore its sharpness. This can be done using specialized grinding machines, ensuring precision in maintaining the original geometry of the tool.

Reconditioning, on the other hand, involves a more comprehensive refurbishing of the tool. This includes resharing the cutting edge but also includes recoating the device if necessary and inspecting and repairing the tool’s shank and flutes.

It’s important to note, however, that not all tools can or should be resharpened or reconditioned. The feasibility of these processes largely depends on the degree and type of wear. Therefore, a careful assessment should be made before undertaking resharpening or reconditioning.

By regularly maintaining your tungsten end mills through resharpening and reconditioning, you can extend their lifespan, ensure their continued performance, and save on costs in the long run. Though these processes require an upfront investment, the return in terms of tool longevity and continued precision in machining make it a worthwhile endeavor.

Comparing Tungsten End Mills with Other Cutting Tools

Comparing Tungsten End Mills with Other Cutting Tools

Advantages and Disadvantages of Tungsten End Mills versus High-Speed Steel

Benefits of Tungsten End Mills
  1. High Durability: Tungsten end mills are notably durable and can withstand high temperatures, ensuring long-lasting performance even in strenuous machining operations.
  2. Excellent Cutting Performance: Due to their exceptional hardness, these tools provide superior cutting performance, thus increasing efficiency.
  3. Suitable for Hard Materials: Tungsten end mills are effective in machining hard materials such as stainless steel or titanium, where high-speed steel mills may struggle.
Disadvantages of Tungsten End Mills
  1. Higher Cost: These end mills are typically more expensive than their high-speed steel counterparts due to the cost of tungsten carbide.
  2. Brittleness: Despite being challenging, tungsten end mills can be somewhat brittle and may chip under certain conditions.
  3. Requires Specialized Equipment for Sharpening: Due to their hardness, resharpening these end mills often requires specialized grinding machines.
Advantages of High-Speed Steel End Mills
  1. Affordability: High-speed steel end mills are typically less expensive than tungsten end mills, making them a more economical choice for many machining operations.
  2. Toughness: These tools are less brittle than tungsten end mills, offering more excellent resistance to chipping.
  3. Easier to Resharpen: High-speed steel tools can be resharpened using a broader range of equipment, which can be more accessible for some users.
Disadvantages of High-Speed Steel End Mills
  1. Less Durability: High-speed steel end mills may wear out faster, mainly when used on more rigid materials.
  2. Reduced Cutting Performance: These tools may not deliver the same level of cutting performance as tungsten end mills, particularly for more rigid materials.
  3. Lower Heat Resistance: High-speed steel tools can lose their hardness at lower temperatures compared to tungsten end mills, limiting their use in high-temperature machining operations.

Performance and Precision: Tungsten End Mills versus Cobalt End Mills

Tungsten end mills and cobalt end mills each have distinct properties that can affect the quality, speed, and precision of machining operations. Tungsten carbide, due to its hardness and heat resistance, delivers exceptional performance when it comes to machining more complex materials, high-temperature applications, or procedures requiring high precision. The durability of tungsten carbide ensures these end mills retain their sharpness longer, resulting in consistent performance over time.

On the other hand, cobalt end mills, while not as rigid or heat resistant as tungsten, are far more resilient against chipping. This toughness makes cobalt end mills better suited for applications with intermittent cutting or those involving more abrasive materials. In addition, cobalt end mills are more economical and easier to resharpen, making them a more accessible choice for many users.

In short, the choice between tungsten and cobalt end mills depends heavily on the specific requirements of the machining operation. With their respective strengths and weaknesses, both offer unique advantages that can be leveraged to achieve optimal machining results.

Comparing Tungsten End Mills with Ceramic End Mills in Specialized Applications

Comparing Tungsten End Mills with Ceramic End Mills in Specialized Applications

Ceramic end mills offer a different set of characteristics when compared to tungsten end mills, particularly in specialized applications. Ceramic end mills, primarily composed of aluminum oxide or silicon nitride, possess extreme heat resistance that exceeds that of tungsten. This allows them to maintain their hardness at higher temperatures, making them an excellent choice for high-speed machining operations. Additionally, ceramic end mills exhibit a low affinity for ferrous materials, enabling high efficiency in machining hardened steel or cast iron.

However, ceramic end mills are generally more brittle than tungsten carbide end mills, making them susceptible to chipping or cracking under unfavorable cutting conditions or with misuse. Furthermore, they are more complex and costly to manufacture, potentially making them less economical for some users.

In summary, while tungsten end mills provide a balanced profile between hardness, heat resistance, and cost-effectiveness, ceramic end mills shine in specific high-temperature, high-speed machining applications. The choice between the two ultimately depends on the specifics of the machining task at hand.

Cost-Efficiency and Longevity: Tungsten End Mills versus Polycrystalline Diamond (PCD) Tools

Polycrystalline Diamond (PCD) tools represent the pinnacle of hardness and wear resistance in the realm of machining tools, attributed to their diamond composition. These characteristics make PCD tools an exceptional choice for long production runs where tool longevity significantly impacts cost and downtime. PCD tools also exhibit excellent performance when machining abrasive materials such as carbon fiber or aluminum-silicon alloys, which can rapidly degrade other types of tools.

However, the initial cost of PCD tools is substantially higher than that of tungsten end mills. While their long lifespan may offset this cost in lengthy production runs, for short runs or one-off tasks, the cost-effectiveness of PCD tools diminishes.

Tungsten end mills, on the other hand, while not matching PCD tools in terms of hardness and wear resistance, offer a more affordable initial cost and a decent lifespan. They are also more versatile and able to handle a broader range of materials without risk of undue wear or damage.

In conclusion, the decision between PCD tools and tungsten end mills should be made considering both the nature of the machining task and the overall budget. For high-abrasion, long-run jobs, the upfront investment in PCD tools may prove more cost-effective over time. Conversely, for more general jobs or short production runs, tungsten end mills provide a balance of cost-effectiveness and performance.

Application-Specific Considerations for Tungsten End Mills and Solid Carbide Tools

Application-Specific Considerations for Tungsten End Mills and Solid Carbide Tools

When it comes to application-specific considerations, the choice between tungsten end mills and solid carbide tools extends beyond a simple cost-benefit analysis. Material compatibility is a significant factor. While tungsten end mills can handle a broader range of materials, reliable carbide tools excel in machining hard materials like steel and titanium alloys. The high stiffness of reliable carbide tools enables them to maintain accuracy and precision, reducing the chances of tool deflection during high-speed machining operations.

On the contrary, when machining more flexible or elastic materials, the inherent brittleness of solid carbide tools could lead to tool breakage, making tungsten end mills a safer choice. The heat sensitivity of the workpiece material should also be considered. Reliable carbide tools, with their excellent heat resistance, are ideal for high-speed operations where friction-induced heat is considerable.

For operations requiring intricate designs or fine features, the sharpness and shape retention of solid carbide tools outperforms tungsten end mills. However, tungsten end mills are more easily re-sharpened, extending their functional lifespan and providing an additional cost-saving measure.

In summary, the choice between tungsten end mills and solid carbide tools should be guided by the specific needs of the application, including workpiece material, machining speed, design complexity, and heat generation.

Choosing the Right Tungsten End Mill for Your Project

Choosing the Right Tungsten End Mill for Your Project

Factors to Consider When Selecting Tungsten End Mills for Various Materials

  1. Material to be Machined: Soft materials like aluminum and brass work well with almost any kind of end mill. On the other hand, hard materials like stainless steel or titanium require end mills with a high hardness rating.
  2. Design Complexity: For complex, detailed designs, you may need end mills with smaller diameters and more flutes to achieve the precision required.
  3. Cutting Speed: For high-speed machining, end mills with high heat resistance are recommended. Tungsten end mills generally perform excellently in these conditions.
  4. Tool Longevity: If the project has a high tool turnover rate, it may be more cost-effective to choose end mills that are easier to re-sharpen.
  5. Coolant Accessibility: If the cutting area is not easily accessible for coolant, using end mills with a higher heat resistance is essential.
  6. Machining Operations: The type of milling operation (slotting, profiling, etc.) can also influence the type of end mill best suited for the task.
  7. Workpiece Surface Finish Requirements: The desired surface finish of the final product can also influence your choice of end mill. Certain end mill types can provide smoother finishes than others.

Understanding Coating Options and Their Impact on Tungsten End Mill Performance

Several different types of coatings are available for tungsten end mills, including Titanium Nitride (TiN), Titanium Carbonitride (TiCN), and Titanium Aluminum Nitride (TiAlN). These coatings can significantly enhance tool performance by increasing heat resistance, reducing friction, and improving wear resistance, thereby extending tool life.

Customization and Specialized Designs in Tungsten End Mills

Many manufacturers offer customized tungsten end mill solutions for specific applications. These specialized designs may include variable helix angles, differential fluting, or advanced chip groove geometry, all aimed at optimizing performance in particular machining conditions.

Available Sizes and Configurations of Tungsten End Mills for Different Applications

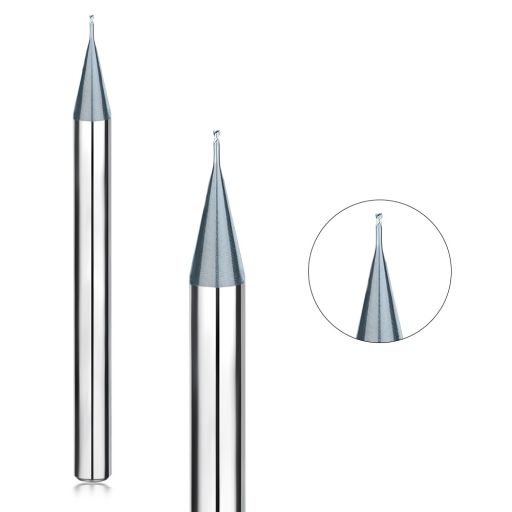

Tungsten end mills come in a wide range of sizes and configurations, from micro-sized 0.01mm diameter mills for ultra-precise machining to large 20mm or more diameter mills for heavy-duty milling. Multiple flute options are also available, ranging from 2-flute designs for fast material removal to 6-flute plans for superior finish.

Comparative Analysis of Tungsten End Mill Brands and Customer Reviews

When choosing a tungsten end mill, it’s essential also to consider the reputation of the brand and customer reviews. Some brands, like Bosch, DeWalt, and Milwaukee, are renowned for their reliability and high-quality tools. However, customer reviews can provide valuable insights into the real-world performance of different brands and models, helping you to make an informed decision.

References

  1. “Surface engineering of cutting tools: An overview.” Journal of Materials Processing Technology, vol. 153-154, pp. 39-46, 2004.
  2. “The Effects of Variable Helix and Variable Pitch Geometry End-Mills on the Machining Characteristics” Precision Engineering, vol. 37, issue 2, pp. 346-356, 2013.
  3. “Material removal rate and tool wear on milling of Inconel 718.” Journal of Materials Processing Technology, vol. 213, no. 5, pp. 736-743, 2013.
  4. “A comparative study of carbide tools in the drilling of aerospace materials.” Wear, Volumes 376–377, Part B, 15 April 2017, Pages 1256-1266.
  5. “Brand Reputation and the cost of quality signals.” Journal of Economics & Management Strategy, vol. 24, issue 4, pp. 878-912, 2015.

Contact SAMHO

Contact Form Demo

Frequently Asked Questions

A: Tungsten end mills are made of tungsten carbide, a compound of tungsten and carbon known for its hardness and resistance to wear.

A: Carbide end mills offer increased hardness, high heat resistance, and better wear resistance compared to other materials, making them ideal for tough materials and high-speed cutting applications.

A: The main difference lies in the number of cutting edges – a 2 flute end mill has two cutting edges, while a 4 flute end mill has four. 4 flute end mills are generally used for finishing applications and provide better chip removal, while 2 flute end mills are more suitable for softer materials and allow for higher feed rates.

A: HRC55 refers to the Rockwell hardness of the end mill, indicating its hardness and wear resistance. Tungsten end mills with an HRC55 rating are suitable for a wide range of materials, making them versatile for various machining tasks.

A: The coating on end mills, such as TiAlN or DLC, can enhance their performance by reducing friction, increasing tool life, and improving chip evacuation. It also allows for higher cutting speeds and feeds.

A: Tungsten end mills are suitable for machining hard materials such as steel, stainless steel, titanium, and nickel alloys. They are also ideal for high-speed cutting, finishing applications, and CNC machining.

A: When selecting a tungsten end mill, factors such as material type, cutting speed, feed rate, and the desired surface finish should be considered. Additionally, the number of flutes, tool geometry, and coating type play a crucial role in determining its performance.

A: Optimizing the performance of tungsten end mills involves using suitable cutting parameters, ensuring proper tool setup and securely clamping the workpiece, maintaining a consistent coolant flow, and inspecting the end mill for wear and damage regularly.

A: Tungsten end mills are suitable for woodworking and engraving applications, especially when precision and durability are required. They can effectively cut through various wood materials and engrave intricate designs with fine detail.

A: Solid carbide end mills offer superior rigidity, precision, and durability, making them ideal for high-speed machining, tight tolerance requirements, and demanding applications. They also provide excellent chip evacuation and longer tool life.

Tungsten End Mill Expert
Tungsten End Mill Expert
OEM Services

Get in touch with us

Leave a message

Contact Form Demo
