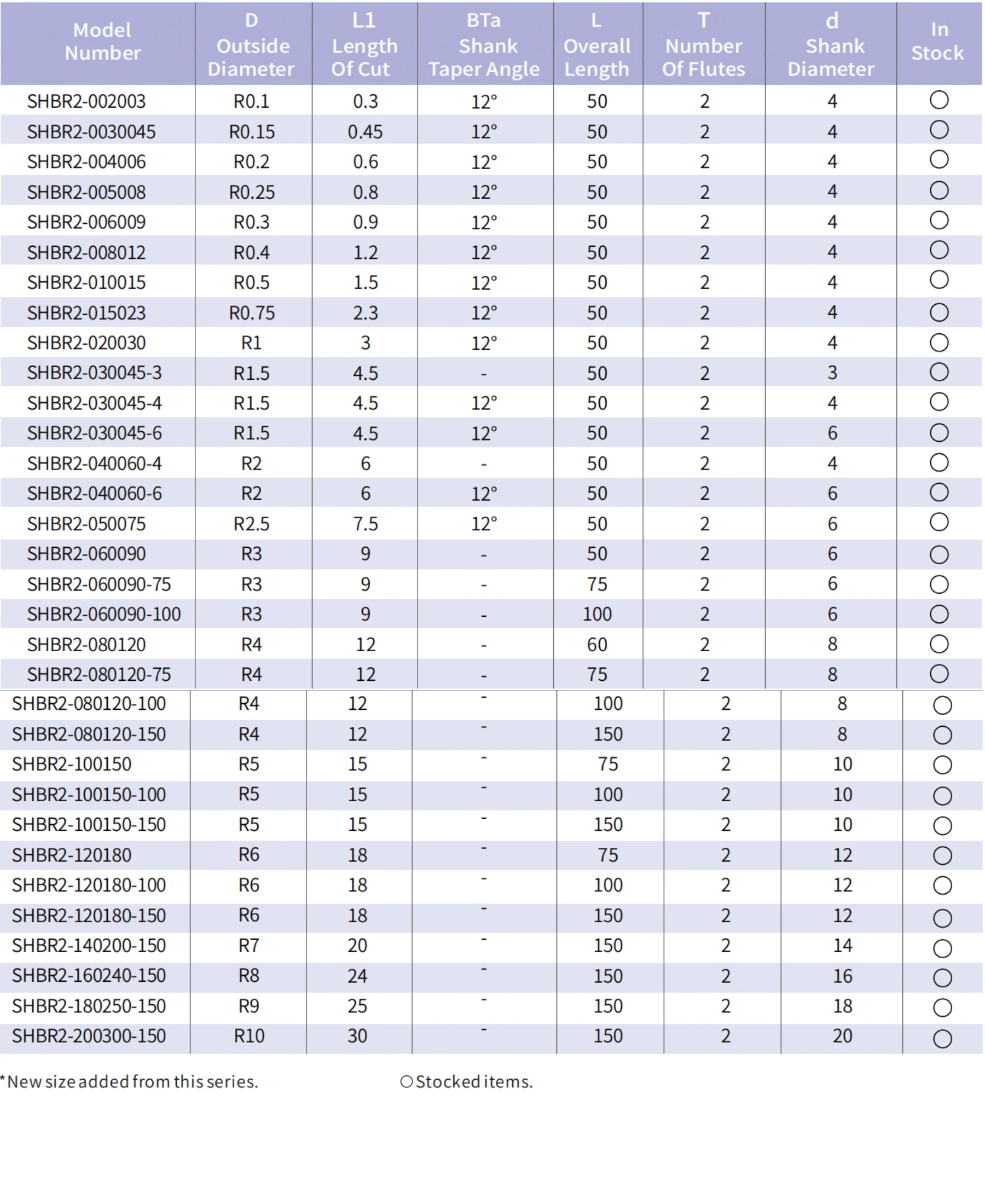

HRC55 Ball Nose End Mill【2 Flutes R0.1-R10】

Stable Machining Window for Semi-Finishing and Finishing HRC45–55 Steel

In real mold machining environments, especially with steels such as P20, 718H, NAK80, and S136, operators often face unstable cutting conditions during finishing.

Common challenges include:

• High cutting resistance in hardened steel
• Changing contact conditions on 3D curved surfaces
• Chatter marks during high-speed finishing
• Surface waviness caused by tool deflection

Based on our machining experience in mold production, the SAMHO HRC55 2-flute ball nose end mill is designed to maintain a stable cutting window under these conditions.

Key advantages include:

• Stable cutting load during steel finishing operations
• Reliable performance in 3D surface finishing and cavity machining
• Reduced risk of localized overcutting on mold surfaces
• Improved surface consistency in semi-finishing and finishing stages

This is especially important for any ball nose end mill for steel, where the effective cutting diameter continuously changes along the tool path.

HRC55 Carbide Substrate for Steel Mold Machining Stability

The SAMHO HRC55 series uses a fine-grain or ultra-fine-grain carbide substrate. It is engineered specifically for steel mold machining, not general-purpose milling.

In production environments, this material system provides:

• Higher resistance to edge chipping under interrupted cutting
• Stable performance during sidewall impact in steel machining
• Consistent cutting edge integrity in HRC45–55 steel range
• Reduced micro-chipping that affects surface finish quality

Compared with standard carbide tools, this structure significantly improves tool life in carbide ball nose end mill for hardened steel applications, especially in continuous mold finishing cycles.

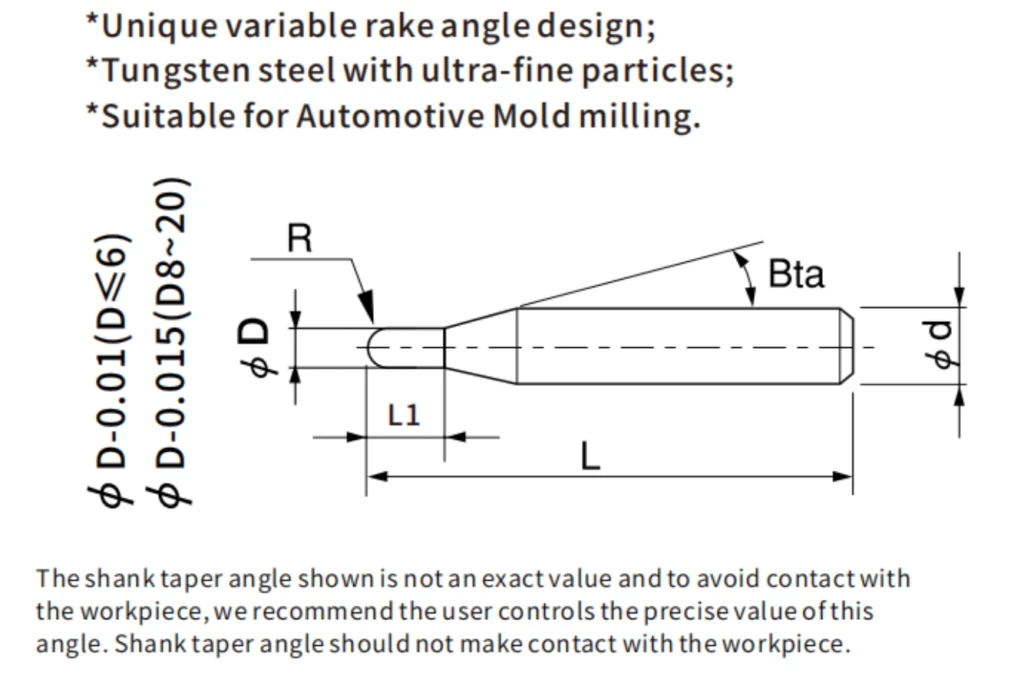

Ball Nose Geometry and Surface Finish Stability

The ball nose structure plays a critical role in 3D mold finishing.

It is widely used for:

• 3D surface finishing of mold cavities
• Free-form surface machining such as fillets and transitions
• Residual material finishing in deep cavities

In SAMHO HRC55 ball nose end mills, we focus on:

• High consistency of ball tip radius
• Improved dynamic balance during high-speed rotation
• Stable performance with small step-over finishing strategies

These factors directly influence surface quality in ball nose end mill for steel finishing applications.

Benefits observed in real machining:

• More uniform tool path marks
• Reduced fluctuation in surface roughness (Ra value)
• Better control of scallop height in finishing passes
• Lower risk of overcutting on curved surfaces

Designed for 3D Mold Finishing, Not General Milling

This tool is not designed for general-purpose roughing or high material removal rate machining.

It is optimized for mold finishing processes such as:

• Steel mold cavity finishing
• 3D contour and scallop finishing
• Automotive mold surface finishing
• Precision mechanical component surface machining

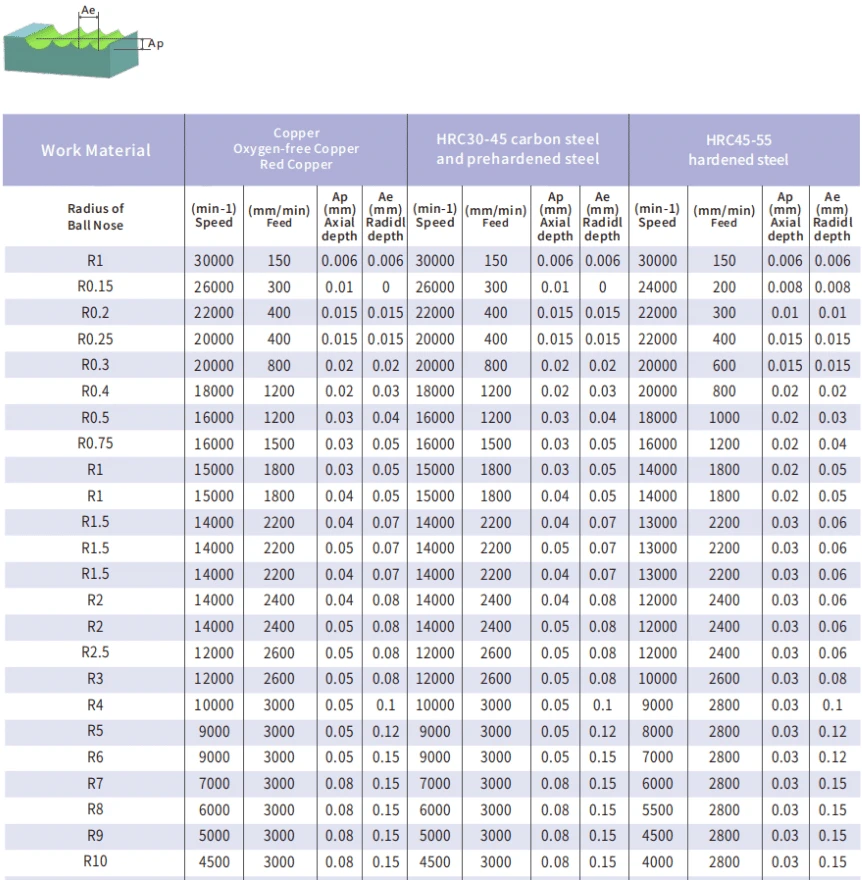

In real production, these operations typically require:

• Small step-over strategies
• Shallow depth of cut
• High spindle speed with stable feed control
• Long continuous machining cycles

The SAMHO HRC55 2-flute ball nose end mill is optimized to maintain stability under these conditions.

Engineering Consistency and Supply Advantages for Global Buyers

From a supply chain and engineering perspective, SAMHO focuses on consistency rather than isolated performance claims.

Batch-to-batch consistency control

• Stable tool diameter tolerance for CNC tool changers
• Reduced dimensional variation during long production runs
• Reliable repeatability in programmed tool paths

This is critical in automated machining environments using ball nose end mill for steel finishing production lines.

OEM / ODM engineering support

• Geometry optimization for different steel grades (P20, H13, S136)
• Custom flute length and cutting edge design available
• Coating systems adjusted for application requirements

Application-focused design philosophy

The HRC55 series is not a general catalog tool. It is developed specifically for steel mold machining applications where stability is more important than extreme cutting parameters.

Key priorities include:

• Chipping resistance over aggressive cutting speed
• Surface finish stability over material removal rate
• Long-term consistency in production environments
