In modern CNC machining, NPT threads are widely used for pipe connections in hydraulic systems, pneumatic devices, fluid control, and petrochemical equipment. Due to the unique tapered design and sealing requirements of NPT threads, the machining method directly affects joint tightness and product reliability. Currently, the two most common NPT thread machining approaches are traditional tapping and thread milling.

As the demand for complex materials and high-precision components increases, more fabricators are recognizing the benefits of NPT thread mill tools and thread milling cutters. Compared to conventional thread cutting tools, thread milling offers greater processing flexibility, lower risk of tool breakage, and enhanced thread precision control. Especially when machining difficult-to-machine materials—such as stainless steel and titanium alloys—or producing high-quality internal threads in deep or blind holes, selecting the right thread milling tools is key for improving efficiency and reducing scrap.

What Is NPT Thread? Standards and Application Overview

In industrial pipe connections, NPT threads are an American standard with a 60° thread angle and a tapered design. Thanks to their excellent self-locking and sealing performance, they are widely used in fluid transport, gas sealing, oil and gas equipment, and pressure systems. Unlike straight threads, NPT threads rely on an interference fit between thread flanks to form a metal-to-metal seal during tightening, placing high demands on machining accuracy and thread integrity.

Definition and Taper Characteristics of NPT Threads

NPT threads feature a 1:16 taper, meaning the diameter decreases by 1/16 inch for every inch of length. This taper ensures gradual interference during tightening, creating a reliable mechanical lock and seal—ideal for systems that do not require additional gaskets.

In the actual NPT thread machining process—whether using an NPT thread mill or a traditional tapping tool—thread angle, pitch, depth, and taper must be precisely and consistently maintained. Otherwise, fit and sealing performance can suffer dramatically.

Common Applications of NPT Threads in Pipe Connections

NPT threads are used extensively in hydraulic fittings, pneumatic components, oil & gas equipment, chemical pipelines, and high-pressure systems. They serve as a standard thread form in North America and many other regions worldwide. NPT threads can be either external threads (e.g., pipe fittings) or internal threads (e.g., valve bodies, housings), generally machined using thread cutting tools or thread milling cutters.

When custom non-standard dimensions or internal threads in difficult-to-machine materials like stainless steel or titanium alloys are required, manufacturers increasingly adopt thread milling tools. This technology improves process consistency and adaptability, especially on CNC machining centers and five-axis machines.

Why Are NPT Thread Machining Processes So Demanding?

Unlike conventional straight threads, NPT threads rely on interference fit between thread crests and roots for sealing. Thus, machining errors directly impact sealing effectiveness. Deviations in taper, profile deformation, or poor meshing can easily cause leaks, thread seizure, or part failure.

Especially in high-volume or automated production, selecting suitable thread milling tools for NPT thread production, combined with precise CNC programming, is critical for consistent pipe thread accuracy and seal reliability.

Thus, NPT thread machining requires not only control of pitch and depth, but holistic attention to geometric shape, taper consistency, and surface quality. This makes thread milling technology a vital solution in modern precision manufacturing.

Introduction to Common NPT Thread Machining Methods

In CNC machining, NPT threads are typically produced using two methods: traditional tapping and thread milling. Each method differs in formation mechanism, tool design, application scope, and precision control. Selection should consider workpiece structure, thread size, material, and machine configuration.

Traditional Tapping Method

Tapping Mechanism Tapping uses a thread cutting tool to cut the internal surface of a pre-drilled hole, forming the thread profile in one pass. This method remains common in small to medium-sized parts due to its simplicity and high throughput.

Tapered pipe taps designed for NPT threads follow the standard 60° profile and 1:16 taper. Tapping can be manual, done on a tapping machine, or performed through a CNC tapping cycle.

Common Thread Cutting Tools

Straight-flute taps: Suitable for soft materials like aluminum and carbon steel.
Spiral-flute taps: Ideal for blind holes with better chip evacuation.
Taper pipe taps: Comply with ASME B1.20.1 NPT specifications.
PM-HSS or coated carbide taps: Best for stainless steel and other tough materials.

Despite these options, tapping poses risks such as tool breakage, inconsistent thread depth, and sealing issues—especially in deep or blind holes, hard materials, or thin-walled components.

Thread Milling

Basic Principle Thread milling involves CNC-controlled helical interpolation, where the cutter gradually forms the thread along a spiral toolpath. It supports internal, external, blind, and deep-hole threads.

Advantages Over Tapping

Lower breakage risk; ideal for high-strength alloys.
One tool can cut various thread sizes and pitches.
Clean thread bases in deep holes.
Improved control of thread geometry and surface finish.

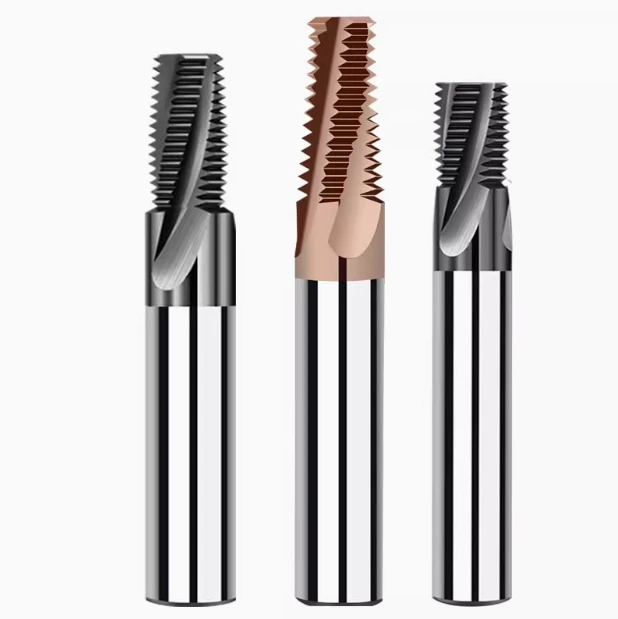

Tool Types

NPT-specific thread mills: Follow standard NPT profiles.
Single-tooth cutters: Good for variable pitch or multi-size threads.
Multi-tooth cutters: Improve speed in high-volume runs.
Solid carbide with TiAlN/TiCN coating: Extend life when cutting tough materials.

Precise toolpath programming ensures concentricity, correct taper, and consistent quality. This makes thread milling ideal for high-end parts such as valve housings and pressure fittings.

Comparative Analysis of NPT Thread Tapping and Milling

Comparison of Applicable Materials and Processing Conditions

High-Hardness Materials vs. Mild Steels Tapping is effective in mild materials and standard applications. However, with hard materials like stainless steel or titanium, tapping tools wear quickly and are prone to failure. Thread milling distributes the cutting load evenly, reducing heat and tool wear, making it the better option for tough materials.

Closed Hole vs. Through Hole Tapping struggles with chip evacuation in blind holes. Thread milling, with precise depth control and minimal chip load, excels in deep or closed-hole applications.

Machining Accuracy and Thread Quality Comparison

Thread Surface Finish Tapping may leave burrs or rough finishes, especially in harder materials or with worn tools. Thread milling produces smoother finishes due to incremental cutting and better control.

Taper Control and Concentricity Tapping depends on machine rigidity and tool alignment. Thread milling, driven by CNC paths, ensures consistent taper and concentricity, enhancing sealing integrity.

Tool Cost and Life Comparison

Disposable Taps vs. Reusable Thread Mills Tapping tools are inexpensive but wear fast, especially in hard materials. Each size requires a dedicated tool. Thread mills, especially coated carbide types, last longer and offer multi-size compatibility, reducing inventory and tool change time.

Processing Flexibility and Program Control Comparison

CNC Programming Flexibility Taps are fixed-pitch and profile tools, limiting flexibility. Thread mills allow for adjustable pitch, depth, and taper via program changes—perfect for prototyping or low-volume jobs.

Multi-Size Threading Capability One thread mill can cut multiple NPT sizes using different G-code parameters. This reduces tooling costs and increases setup efficiency, especially in shops handling varied part specifications.

Thread milling is a future-ready solution for modern NPT thread production across materials, sizes, and production volumes.

When is Thread Milling Preferred?

In NPT thread machining, thread milling offers greater flexibility and process advantages over traditional tapping in specific conditions. The adaptability and stability of thread milling tools—particularly when working with high-hardness materials, requiring high-precision connections, or handling small-batch customization—open up new production possibilities. Below are typical application scenarios where thread milling is the recommended solution.

Advantages in Machining High-Strength or Hardened Materials

When machining high-strength or high-hardness metals such as hardened steel, titanium alloys, or stainless steel, traditional tapping tools often face issues like breakage, accelerated wear, and chip clogging. Thread milling, in contrast, uses carbide thread milling cutters for light, controlled cutting, which reduces cutting forces and improves operational safety.

Thread milling tools use a “feeding” rather than “pressing” approach, significantly lowering tool breakage risk and extending tool life. These tools are especially suitable for NPT thread milling in high-strength materials. By properly adjusting machining parameters, thread milling also improves overall machining efficiency without compromising precision.

Pipe Fitting Machining Requiring High Precision and Zero Thread Interference

Industries such as hydraulics, gas-tight connections, and instrumentation require NPT threads with extremely high sealing performance and dimensional accuracy. Thread milling allows precise control over pitch, start and stop points, and thread depth through CNC paths, enabling high-precision NPT threads with minimal interference.

For precision NPT internal threads or deep-hole applications, thread milling reduces dependency on pre-hole diameter accuracy and minimizes the risk of sealing failure caused by tapping misalignment or debris at the hole bottom. Additionally, one thread mill tool can accommodate multiple hole sizes, offering far greater flexibility than fixed-size taps.

Multi-Size, Small-Batch Custom NPT Thread Machining

In low-volume, multi-size, or non-standard thread orders—including mixed metric/inch formats—traditional tapping requires frequent tool changes, which increases cost and reduces efficiency. Multi-size-compatible thread milling tools allow a single cutter to machine various thread sizes, making them ideal for custom or small-batch NPT thread solutions.

Thread milling also enables flexible adjustments in a single CNC program, allowing quick transitions between different thread sizes and significantly reducing setup times. This makes it an optimal approach for job shops or production environments that handle varied or non-standard parts.

Real-World Case Study: Using NPT Thread Mills to Process Stainless Steel Pipe Threads

With high-performance materials becoming common—especially in industries like oil & gas, chemical processing, and hydraulics—machining NPT threads on stainless steel pipe fittings demands advanced tooling and precision processes. This case study demonstrates how to use thread milling cutters efficiently and reliably for NPT threads in stainless steel, covering tool selection, CNC programming, and process stability.

Key Parameters for Selecting Appropriate Thread Milling Cutters

Tool selection is critical for successful stainless steel NPT thread machining. Key considerations include:

Tool Material and Coating: Choose carbide tools with high-performance coatings like TiAlN or AlTiN to enhance wear resistance, heat tolerance, and tool longevity.
Tool Geometry: Ensure the cutter conforms to the NPT standard 60° profile to deliver accurate thread form and tight crest/root matching.
Tool Diameter and Number of Teeth: Match tool diameter to thread size (e.g., 1/4″, 1/2″). Decide between single- or multi-tooth cutters based on desired balance between surface quality and machining efficiency.
Pitch and Helix Angle Matching: Tool specs must precisely align with the programmed thread pitch and taper to avoid machining errors.

Proper tool selection not only enhances efficiency but also ensures thread sealing integrity and mechanical strength.

Program Setup and Tool Path Optimization Recommendations

Effective CNC programming is essential for high-quality NPT thread milling. Key practices include:

Helical Interpolation Path Planning: Use G02/G03 commands for spiral paths that follow the NPT’s 1:16 taper accurately.
Cutting Parameter Optimization: Adjust speed, feed, and depth of cut based on stainless steel hardness to prevent overload and vibration.
Multi-Step Layered Milling: Break down deep threads into multiple passes to reduce cutting stress and improve surface finish.
Tool Compensation and In-Process Calibration: Use tool probes or in-machine measurements to maintain dimensional consistency.
Coolant and Chip Evacuation: Apply cutting fluid to reduce heat, clear chips, and prevent stainless steel softening or tool jamming.

A rational program and path design fully leverage the advantages of thread milling tools and enhance consistency.

Tool Wear and Machining Stability Assessment

Tool wear directly impacts NPT thread quality in stainless steel machining. Key findings include:

Coating Wear: Deterioration of tool coatings is a primary wear factor—monitor coating integrity regularly.
Cutting Force Instability: Fluctuating forces may cause vibration and dimensional deviation. Adjust parameters to stabilize cutting.
Online Monitoring: Real-time tracking of tool condition prevents unexpected tool failure and workpiece scrap.

By optimizing tool paths and machining conditions, tool life can increase by over 30% while maintaining sealing performance and dimensional integrity.

Which Method Is Right for Your NPT Thread Machining Needs?

A comprehensive comparison between traditional tapping and thread milling reveals how to choose the right method based on factors like material type, production volume, required precision, and process flexibility.

For low-to-medium hardness materials and high-volume production, tapping remains cost-effective due to lower tool expenses and quicker cycle times.
For high-hardness materials, deep holes, blind holes, or high-precision sealing threads, tapping often leads to tool breakage and poor-quality threads.

Thread milling provides uniform tool loads, precision control, and flexibility across thread sizes—making it ideal for modern, high-precision NPT thread applications. With the right cutters and CNC strategy, thread milling boosts surface finish, enhances taper control, reduces tool breakage risk, and extends tool life.

Recommendation:

Use tapping for simple, large-batch production with conventional materials.
Choose thread milling for complex, high-precision, or small-batch production involving difficult materials.

Proper tooling and process planning improve both the mechanical performance and sealing reliability of NPT threads—while optimizing production costs and lead times.

FAQ

Is NPT Thread Milling Suitable for High-Volume Production?

Yes, NPT thread milling is suitable for high-volume production in certain conditions. Its advantages include high precision, lower risk of tool breakage, and better process repeatability. With carbide tools and optimized CNC programs, thread milling achieves consistent thread quality.

However, milling is generally slower and involves higher tool investment than tapping. In single-size, high-volume jobs, tapping may be more cost-effective. Still, for high-hardness materials or geometrically complex parts, thread milling remains superior in stability and precision.

How to Select Thread Mill Tools?

To select the right thread mill tool:

Material and Coating: Use carbide cutters with TiAlN or AlTiN coatings for wear resistance.
Thread Spec Matching: Ensure 60° thread profile and 1:16 taper alignment with NPT standards.
Tool Diameter/Tooth Count: Match diameter to thread size and machine capability; select between single- or multi-tooth.
Machine Compatibility: Verify tool compatibility with CNC controls for helical interpolation.

Proper selection ensures higher efficiency, reduced wear, and improved thread form.
