Side vs Face Milling Cutter: What’s the Difference and When to Use Each?

In CNC machining, choosing the right type of milling cutter not only determines machining efficiency but also directly impacts the surface quality of the workpiece and tool life. Among the most commonly used cutting tools are side milling cutters and face milling cutters. While both serve vital roles in metalworking, they differ significantly in design, cutting direction, and application.

This article analyzes the differences between side milling cutters and face milling cutters from a professional CNC perspective. It outlines specific scenarios where each tool excels—for instance, using a side milling cutter for slotting or deep groove machining, or choosing a face milling cutter for efficient large-area surface milling.

We also explore the benefits of carbide side milling cutters in high-hardness material processing and discuss how custom side milling cutters can fulfill unique non-standard machining needs. For CNC engineers or factories with purchasing requirements, we provide tips for evaluating side face milling cutter factories to help identify high-performance, cost-effective suppliers.

What Is a Side Milling Cutter?

A side milling cutter is a rotary cutting tool designed specifically for machining the sidewalls or bottom grooves of a workpiece. Widely used in CNC machining centers, vertical mills, and horizontal milling machines, it typically features a disc-shaped body with teeth arranged on its periphery and/or on both sides to allow multi-directional cutting.

Compared with face milling cutters, side milling cutters are more suitable for side cutting operations like grooving, slotting, or shoulder milling. They are indispensable in industries like mold making, precision components, and structural part fabrication.

Structural Features and Cutting Direction

The structure of a side milling cutter defines its cutting path and performance. Common configurations include:

Single-Side Milling Cutter
Features cutting teeth on one side only, suitable for tight-space or one-sided groove milling.

Double-Side Milling Cutter
Has cutting edges on both sides, allowing simultaneous two-side cutting in one pass, improving efficiency and reducing cycle time. Ideal for CNC synchronized machining.

Blade Arrangement and Cutting Angle
Depending on the material and application, teeth may be straight or helical. Helical teeth offer smoother cutting and better chip evacuation—especially for high-speed operations. The cutting angle (e.g., 45° or 75°) affects tool engagement, cutting force, and surface finish.

Common Types and Materials

To meet diverse machining demands, side milling cutters vary by material and construction:

Carbide Side Milling Cutter
Made from micro-grain tungsten carbide, these cutters deliver excellent wear resistance and hot hardness. Ideal for machining stainless steel, titanium alloys, and hardened steels.

Modern carbide side milling cutters often include TiAlN or AlCrN coatings for enhanced performance under dry or high-speed cutting conditions.

Key advantages include:

• High rigidity for aggressive feed rates

• Support for higher spindle speeds and cutting loads

• Extended tool life and dimensional stability

Custom Side Milling Cutter
When standard tools fall short for complex or multi-feature parts, custom side milling cutters are ideal. Industries like mold-making often require custom carbide cutters for intricate cavities or stepped profiles.

Common customizable parameters:

• Non-standard OD/ID

• Tooth count and pitch spacing

• Multi-functional edge design (e.g., chamfered or form tools)

Typical Application Scenarios

Side milling cutters are essential in scenarios where vertical side surfaces or narrow grooves must be machined with high accuracy:

Slotting and Cutting
Perfect for cutting grooves of various widths and depths. Suitable for operations like through-slots and parting cuts in steel structures.

Deep Groove and Tall Sidewall Machining
Side cutters can machine deep or high-walled features in molds, die plates, and support brackets, especially using multi-axis CNC systems.

Multi-Axis Synchronous Side Milling
In 5-axis machines, synchronized double-sided cutters allow both sides to be machined simultaneously, drastically improving throughput for symmetrical parts.

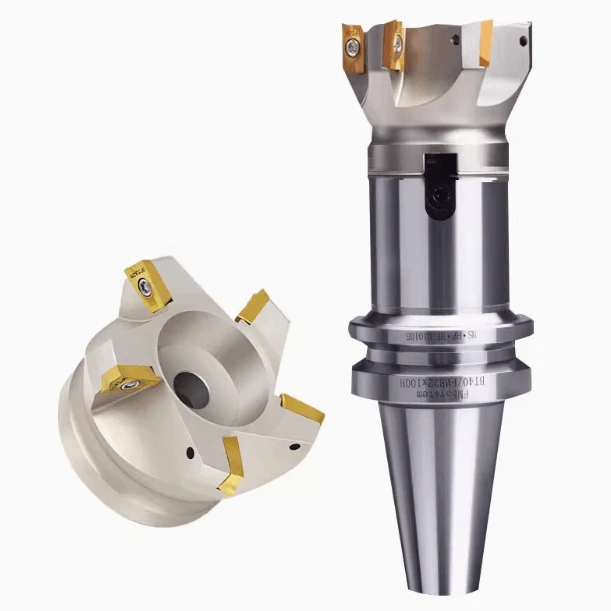

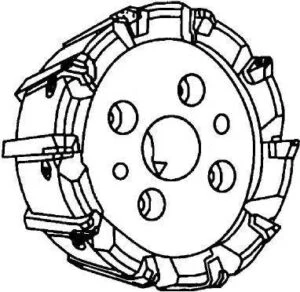

What Is a Face Milling Cutter?

A face milling cutter is a large-diameter tool primarily used for machining the upper surface of a workpiece. It plays a key role in roughing and semi-finishing operations on horizontal planes.

Face milling cutters rapidly remove material using a wide cutting path and intermittent contact from their periphery or indexable inserts.

While both face and side milling cutters are rotary tools, they differ in cutting geometry, feed direction, and application range. Face milling focuses on horizontal surface leveling, whereas side milling targets vertical contours.

Structure and Machining Characteristics

Tool Body and Blade Layout
Face mills are disc-shaped with teeth or inserts arranged radially. Rake angles (commonly 45° or 75°) help minimize vibration and improve surface finish. Blade types vary by use:

• Straight edge: For heavy-duty roughing

• Arc or negative rake: For surface finishing

Non-Center Cutting Design
Most face mills cannot cut at the tool center. If aligned with the part center, this may cause uncut material or tool marks. Eccentric tool paths or center-cutting variants are recommended.

Wide Cutting Path and Feed Optimization
Due to their width, face mills are used for high-volume material removal in fewer passes. However, this demands high spindle rigidity, proper feed control, and reliable coolant delivery.

Common Types and Applicable Equipment

Solid Carbide Face Mills
Used in high-precision or smaller CNC equipment for soft metal finishing. Though expensive, they provide excellent rigidity and speed.

Indexable Insert Face Mills
Widely used in general industry for steel, cast iron, and aluminum. Inserts can be replaced for cost-efficiency. Ideal for roughing with CNC vertical, horizontal, or gantry centers.

Machining Center Applications

• VMCs: Surface leveling and roughing

• Gantry machines: Large face milling on steel plates or weldments

• Some tools offer adjustable eccentricity for dynamic surface finishing

The Main Difference Between Side Milling Cutter and Face Milling Cutter

In CNC production, understanding the functional differences between side and face milling cutters ensures optimized tool selection. Although both are rotary cutters, they serve distinctly different purposes.

Cutting Direction and Machining Area

Side milling cutters cut along their peripheral and side edges, making them ideal for vertical sidewall and groove machining.

Face milling cutters engage with the top surface using the tool’s bottom face or inserts, ideal for top-down plane machining.

Summary:

• Use side milling cutters for contours, grooves, and vertical walls

• Use face milling cutters for large-area flat surface finishing

Processing Efficiency and Accuracy Comparison

Face milling excels in speed and material removal due to multi-tooth setups and wide cutting paths—ideal for mold base leveling or structural roughing.

Side milling offers superior dimensional control and surface finish for detailed edge or side profile machining in precision molds.

Summary of Typical Use Cases

Case 1: Mold Edge Finishing
Side face milling cutters deliver excellent results in precision mold edge finishing, deep cavities, and sidewall detail work.

Case 2: Structural Flat Surface Roughing
Face milling cutters efficiently remove large stock from aluminum structures or steel plates during pre-machining.

How to Choose a Suitable Side Milling Cutter

Choosing a suitable side milling cutter is not only essential for improving machining efficiency but also directly affects tool life, part quality, and overall cost control. In CNC precision machining, different work conditions impose specific demands on tool materials, geometry, coatings, and cutting performance. Below, we provide a systematic analysis of how to scientifically select the right side milling cutter, considering material compatibility, machining requirements, and common misconceptions.

Selecting Tool Material Based on Workpiece Material

Different workpiece materials require different side milling cutter materials and coatings. Here are recommendations based on common materials:

Steel/Stainless Steel Machining

• For medium to high hardness carbon steel, alloy steel, and stainless steel, use fine-grain carbide side milling cutters.
• Combine with high-temperature-resistant coatings like TiAlN or AlCrN to enhance tool life during continuous or high-speed cutting.
• Recommended: Carbide side milling cutter for stainless steel deep wall slotting.

Aluminum and Non-Ferrous Metals

• Choose cutters with large rake angles and anti-adhesive coatings (e.g., DLC or TiB2) to reduce chip adhesion and improve surface finish.
• Ideal for high-gloss finishing of aluminum alloy cavities or casings.
• Recommended: Side face milling cutter for aluminum profile finishing.

Selection Based on Machining Requirements

Standard Machining Conditions

• Deep groove cutting: Use thinner cutter body, moderate tooth count, and large flute spacing.
• High side wall finishing: Choose cutters with minimal radial runout for precise wall geometry.
• High surface finish: Opt for ground-edge carbide cutters with lubricative coatings.

Non-Standard or Customized Requirements

• When standard tools can’t meet the task, consider a custom side milling cutter.

Customization Tips:

• Define material, size, tolerance of workpiece
• Provide CAD files or machining diagrams
• Clarify machine model and fixturing method
• Specify cooling/coating preferences (e.g., dry vs. wet cutting)

Customized tools can integrate multiple processes, reduce tool changes, and increase throughput.

Common Misconceptions and Optimization Tips

Misconception 1: Ignoring Material Compatibility

• Using unsuitable tool materials leads to edge chipping or part burning.
• Tip: Always match tool substrate and coating with workpiece material.

Misconception 2: Overemphasizing Speed and Feed

• Excessive feed or speed causes chip congestion and tool breakage.
• Tip: Set parameters based on cutting force; layer cutting when needed.

Misconception 3: Ignoring Tool Runout and Clamping Rigidity

• Poor runout increases surface defects and dimensional errors.
• Tip: Use high-precision chuck systems and control runout < 0.01mm.

Tool Life Extension Tips

• Use high-pressure coolant or MQL to control temperature
• Optimize toolpaths to avoid localized overload
• Prefer honed-edge tools for chipping resistance
• Regrind tools periodically to reduce new tool cost

Choosing a Reliable Side Face Milling Cutter Manufacturer

In today’s competitive manufacturing landscape, selecting a side face milling cutter factory with high-quality production, fast response, and customization capabilities is critical. Whether you’re in mold-making, aerospace parts, or automotive structures, partnering with the right factory directly impacts product quality, delivery, and cost.

Evaluation Criteria: Material, Precision, Customization

Material & Cutting Performance

• Use certified carbide (K40, YG10X, GU25UF) with high-end coatings (TiAlN, AlCrN, DLC).
• Ensure good thermal stability, wear resistance, and edge sharpness.

Precision Control

• TIR control < 0.01mm
• Comprehensive inspections: 3D scanning, tool path testing, dynamic balance

Customization Capability

• Support for custom side milling cutter in small batch sizes
• Responsive lead times and flexibility for special profiles

Strict Factory Testing

• Tool life simulation
• Edge defect inspection (microscopic + CNC)
• Sample cutting verification in cutting lab

Example: Samho Tool

• Offers sample-to-batch quality tracking
• Supports custom development, fast delivery, OEM/ODM

Recommended Chinese Manufacturers

Samho Tool

• Specializes in high-precision side milling cutters
• Offers carbide, custom profile, and aluminum-special cutters
• Delivers in 3–7 days for small batches
• Provides technical drawings, sample testing, and OEM branding

Other Chinese Brands

• Sanying, Zhuzhou Diamond, Shanggong Tools
• Mass production focus; slower response to custom orders
• Limited technical communication in English or with CAD integration

Compared to larger factories, SamhoTool is better suited for small/medium-sized CNC shops and B2B buyers seeking agility and customization.

How to Engage in B2B Procurement

Step 1: Sample & Technical Exchange

• Share part drawings or parameters (material, hardness, machine info)
• Supply old samples or photos if available
• Confirm blade count, sizes, coatings
• SamhoTool provides 3D drawings + quotes + cutting parameter suggestions

Step 2: Sample Verification & Evaluation

• Agree on MOQ and delivery time
• SamhoTool accepts 5-pc MOQ, 7-day samples, 15-day batches
• Optimize batch specs based on sample feedback

Step 3: Establish Cooperation (OEM/ODM)

• Customize packaging, tool markings
• Develop new product series jointly
• Sign framework agreements for long-term support (logistics, inventory, tech)
