Tapered Drill Bits vs Straight Drill Bits: Which Is Better for Precision Work?

In modern CNC machining, selecting the right drill bit is crucial for achieving machining accuracy and efficiency. When it comes to precision hole-making and drilling complex structures, tapered drill bits and straight shank drill bits each offer distinct advantages. So, under high-precision and high-stability conditions, which drill bit deserves your choice?

This article provides a systematic comparison between solid carbide tapered drill bits and traditional straight shank drill bits, delving into their differences in metal drilling accuracy, guiding ability, and suitability for deep hole machining. We will also explore how the drilling needs vary across different materials—such as aluminum alloy, stainless steel, and titanium alloy—to help you determine when to prioritize using tapered drill bits for metal.

Whether you’re engaged in mold manufacturing, aerospace component production, or everyday high-precision part machining, understanding the strengths and limitations of these two drill bit types will empower you to select the right tool scientifically, optimize machining strategies, and ultimately improve product quality and efficiency.

What Are Tapered Drill Bits and Straight Shank Drill Bits? Comparison of Structure and Working Principle

In modern CNC machining and mold manufacturing, drill bits with different structures deliver unique performance advantages depending on the working conditions. As two common types of drilling tools, tapered drill bits and straight shank drill bits differ notably in structural design, application scenarios, and drilling accuracy.

A clear understanding of their structural principles and working characteristics helps engineers select the most appropriate drill bit based on actual machining requirements—especially in high-precision metal drilling or complex structural parts processing, where the right choice becomes critical.

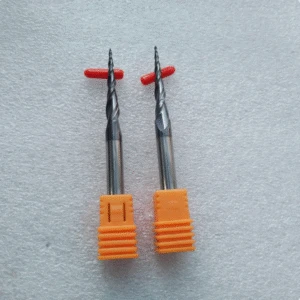

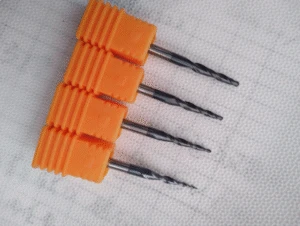

Introduction to Tapered Drill Bits

Tapered drill bits feature a gradually increasing diameter from the tip to the shank, forming a taper angle typically between 1° and 7°. This design provides automatic self-guidance during drilling, improving center stability and minimizing deviation risks—especially when starting on curved or inclined surfaces.

They come in various taper angles and flute lengths to suit different applications; shorter flutes for higher rigidity, and longer ones for deep-hole drilling. Today, solid carbide tapered drill bits are prevalent due to their superior wear and fracture resistance, ideal for high-hardness materials such as alloy steel, stainless steel, and titanium alloys. Common applications include mold inclined holes, medical device channels, and aerospace structural components.

Their guiding capability significantly reduces bit runout and positional deviation during drilling—especially on unprepared or sloped surfaces—making them a top choice for precision tapered drill bits for metal machining and special-shaped holes.

Introduction to Straight Shank Drill Bits

Straight shank drill bits are among the most common drilling tools. Their uniform diameter cylindrical design is simple, cost-effective, and widely applicable across mechanical machining, assembly drilling, and maintenance tasks.

They excel in drilling standard, shallow, or medium-depth holes efficiently. Straight shank bits perform well on flat, stable surfaces for screw holes, through holes, and vent holes. However, they are prone to center offset and runout issues when drilling complex contours or multi-angled surfaces, which can affect hole position accuracy and coaxiality.

On modern CNC machines and automated drilling lines, straight shank drill bits are favored for rapid batch processing of standard holes due to their versatility and ease of replacement. However, for higher-precision tasks involving inclined holes, tapered holes, or guide holes, tapered drill bits or directional drilling tools are preferred to ensure consistency and dimensional stability.

In High-Precision Processing, What Are the Advantages of Tapered Drill Bits?

In CNC precision machining, drilling positioning accuracy, guiding stability, and hole consistency are key performance indicators. For complex curved surfaces, inclined drilling, or deep holes, traditional straight shank drill bits often suffer from excessive runout, hole position offset, and uneven hole wall wear.

Tapered drill bits, especially solid carbide tapered drill bits made from high-performance materials, offer significant advantages thanks to their unique geometry.

Improve Drilling Positioning Accuracy and Reduce Deviation Risk

The tapered drill bit’s geometry—with a thinner tip that gradually thickens—provides natural self-guidance. During initial penetration, the smaller diameter cutting edge quickly establishes the drilling center, reducing axial deviation caused by surface irregularities, tilt, or vibration. This feature is critical for parts requiring tight tolerance control, such as medical devices and mold cooling holes.

Compared to standard straight shank bits, the tapered design enhances initial drilling stability, especially when manual positioning is inaccurate or CNC machines operate at high feed rates—resulting in better consistency and repeatability. This makes tapered drill bits a preferred choice for precision hole-making applications.

Suitable for Deep Hole or Special-Shaped Hole Guided Drilling

Deep hole and special-shaped hole machining often suffer from tool deflection, hole wall wear, and poor cooling. The progressively thicker design of tapered bits offers multi-stage guiding support, significantly reducing runout and ensuring hole straightness, especially when the hole depth exceeds 5×D.

When drilling irregular surfaces or special contours—such as inclined cooling holes in molds—traditional bits tend to drift or cut at abnormal angles initially. Solid carbide tapered drill bits for metal maintain stable guidance, ensuring the cutting path follows the intended angle, improving overall hole position accuracy and coaxiality.

Compatible with CNC Five-Axis and Multi-Angle Cutting Paths

With advancements in five-axis CNC and multi-angle machining, many high-end processes require inclined drilling or tapered holes on complex 3D surfaces. The tapered drill bit’s geometry naturally supports oblique feed, fitting CNC five-axis toolpaths effectively and reducing machining errors and rework.

The solid carbide construction also provides superior heat resistance and rigidity, maintaining surface quality and dimensional consistency at high speeds and low feeds. This makes them widely used in high-value applications like aerospace structural parts and titanium alloy components.

Applicable Scenarios and Limitations of Straight Shank Drill Bits

Straight shank drill bits are the backbone of CNC and traditional machining for conventional drilling due to their simplicity, low cost, and versatility. However, they face challenges with complex geometries, deep holes, and high-precision requirements.

Suitable for Rapid Batch Hole Processing with High Cost-Efficiency

Their symmetrical design, stable operation, and easy clamping make straight shank bits ideal for high-volume drilling of standard holes. In batch or automated production lines—such as steel structure through-holes, threaded pre-drilling, and aluminum assembly holes—they boost productivity and reduce tooling costs.

Available in a range of materials from HSS to coated carbide, straight shank drills offer flexibility to match material properties, making them the go-to choice for cost-conscious manufacturers.

Unsuitable for Inclined Surfaces, Tapered Holes, or Complex Structures

Their equal-diameter front end lacks effective guidance or self-centering ability. This leads to slippage, deflection, or tool biting when drilling inclined or complex-shaped holes, causing reduced hole accuracy and possible drill breakage.

In aerospace, mold, and medical part manufacturing—where holes may be inclined or non-vertical—straight shank drills struggle to maintain axial consistency and accuracy. Tapered drill bits with guiding tapers provide a more stable cutting path in such cases.

Accuracy Limited by Tool Rigidity and Drilling Depth

Since the diameter of the blade matches the shank, straight shank drills tend to flex during deep drilling, causing non-straight holes and increased runout—especially in small diameters and depths beyond 3×D.

Their lack of segmented support and lower rigidity are further exposed when machining hardened materials or complex parts, leading to compromised coaxiality and premature wear or breakage.

For deep-hole applications demanding high axial stability or guidance, solid carbide tapered drill bits should be prioritized.

How to Choose in Metal Processing? Is a Tapered Drill Bit Better?

Selecting the right drill bit is a critical factor that influences both machining efficiency and hole quality in metal processing. Thanks to its unique structural characteristics, the tapered drill bit offers higher adaptability than traditional straight shank drill bits when dealing with complex geometries, high-hardness materials, or precision hole requirements. In fact, the advantages of tapered drill bits for metal have been widely recognized in high-end manufacturing sectors such as mold making, aerospace, and medical device production.

Differences in Processing Requirements for Various Metals (e.g., Aluminum Alloy vs. Titanium Alloy)

Different metals have distinct physical and mechanical properties that directly impact tool selection for drilling:

• Aluminum Alloy: Soft, highly ductile, and with excellent thermal conductivity, aluminum tends to form built-up edges during machining. Drills with larger rake angles and efficient chip evacuation are preferred. In this context, straight shank drill bits can satisfy most standard hole drilling tasks. However, for curved surfaces or inclined holes, tapered drill bits provide superior guidance stability and better surface finishes.

• High-Hardness Metals (Titanium Alloy, Stainless Steel): These materials are characterized by high strength, poor thermal conductivity, and significant work hardening. Drilling them often results in rapid tool wear, increased vibration, and hole position drift. Using carbide tapered drill bits for metal enhances rigidity and heat resistance, reduces cutting load via progressive cutting action, and significantly improves hole coaxiality and dimensional accuracy.

Selecting the proper drill bit structure based on the metal’s characteristics is fundamental to ensuring drilling stability and extending tool life.

Three Criteria for Selecting Tapered Drill Bits

To achieve optimal drilling results in metal processing, consider the following three key factors when deciding whether to use a tapered drill bit:

Drilling Depth

When hole depth exceeds 3×D or even 5×D, traditional straight shank drills often suffer from vibration, deflection, or tool breakage due to insufficient rigidity. The tapered drill bit’s gradually thickened design provides multi-level support during cutting, greatly enhancing deep hole stability and guidance, and effectively controlling hole verticality and depth consistency.

For deep-hole applications such as mold cooling channels or structural guide holes, solid carbide tapered drill bits are recommended to ensure machining quality and precision.

Workpiece Structure (Inclined/Concave/Multi-Step Holes)

Complex structures like inclined surfaces, concave features, or stepped holes pose challenges for straight shank drills, often causing hole position offsets or surface damage due to unstable cutting angles. The self-guiding nature of tapered drill bits enables steady advancement along the programmed angle, maintaining high center positioning accuracy even on uneven or inclined surfaces, preventing tool biting or chipping.

Especially in five-axis CNC machining, tapered drill bits precisely follow varied inclined toolpaths, improving overall machining consistency.

Accuracy and Coaxiality Requirements

High-precision holes (e.g., mating holes, positioning holes, guide holes) demand strict cylindricity, coaxiality, and dimensional stability. Slight deviations when using straight shank drills can impair assembly or functionality.

Conversely, tapered drill bits provide strong initial guidance, reducing radial runout and improving hole position accuracy. For metal components requiring high-precision assembly or functional fit, tapered drill bits for precision metal hole machining are preferred, significantly enhancing finished product consistency and downstream process compatibility.

In summary, deciding to use a tapered drill bit should be based on metal type, hole depth and structure, and precision requirements. For high-hardness metals, high aspect ratio holes, or complex structural parts, solid carbide tapered drill bits for metal are undoubtedly the superior choice for achieving high-quality and stable machining outcomes.

In summary, deciding to use a tapered drill bit should be based on metal type, hole depth and structure, and precision requirements. For high-hardness metals, high aspect ratio holes, or complex structural parts, solid carbide tapered drill bits for metal are undoubtedly the superior choice for achieving high-quality and stable machining outcomes.

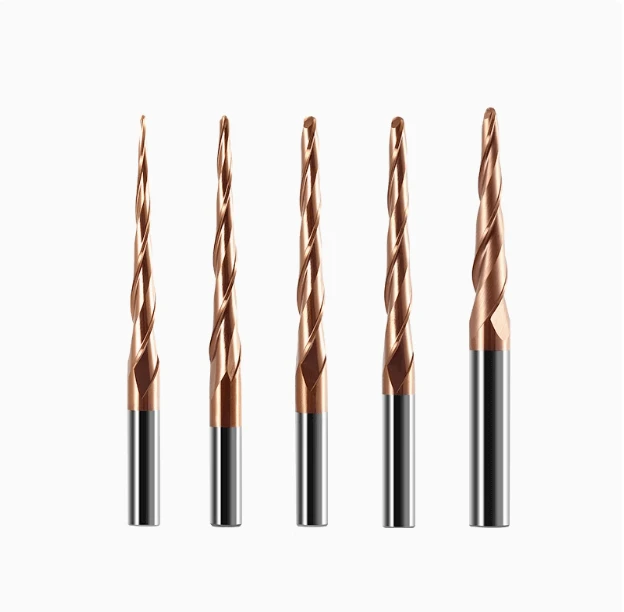

Material Selection and Recommendations for Tapered Drill Bits

Material composition is a key factor determining the performance, lifespan, and application range of tapered drill bits. Common materials include HSS, cobalt steel, and solid carbide.

Among these, solid carbide tapered drill bits excel in high-strength metal drilling and precision deep-hole machining due to their exceptional rigidity and wear resistance.

For high-efficiency drilling in hard metals like stainless steel, titanium alloy, and mold steels, carbide tapered drills significantly improve processing quality, extend tool life, and reduce downtime from frequent tool changes. They are well suited for CNC machines and automated equipment.

Moreover, for precision deep-hole or inclined hole machining, the thermal stability and cutting performance of carbide drills effectively minimize drill deviation and enhance hole consistency and dimensional accuracy—critical for precision mold manufacturing and aerospace components.

Why Choose Solid Carbide Tapered Drill Bits?

Key reasons include:

• Superior Wear Resistance for Hard Materials: Carbide’s extreme hardness maintains sharp cutting edges and reduces wear when machining tough metals like heat-treated steel, stainless steel, and titanium alloy, essential for precision drilling with minimal dimensional errors and surface defects.

• High Rigidity Enhances Deep Hole Stability: Compared to HSS or cobalt alloys, carbide drills have greater bending stiffness, making them ideal for drift-resistant drilling on inclined surfaces and deep holes, effectively reducing vibration and deflection.

• Longer Tool Life Reduces Changeovers and Costs: Carbide drills maintain stable performance at high speeds and feeds, enabling higher throughput and fewer tool changes—ideal for automated and batch precision manufacturing.

Technical Tip: For enhanced stability and precision in complex geometries, inclined holes, or fine hole machining, prioritize coated solid carbide tapered drill bits (e.g., TiAlN or AlCrN coatings) to boost high-temperature and high-pressure performance.

Which Drill Bit Is More Suitable for Your Precision Processing Needs?

Both tapered and straight shank drill bits have strengths and limitations, fitting different machining scenarios.

For high-precision, complex, or guidance-critical scenarios, solid carbide tapered drill bits are the best choice, delivering improved accuracy, stability, and longer tool life.

For versatile, economical batch drilling with simple hole requirements, straight shank drills remain popular for their ease of use and cost efficiency.

Effective drill selection requires assessing workpiece material, hole geometry, depth, and precision needs—followed by appropriate tool configuration and process planning to achieve efficient, stable, and precise results.

FAQ

Is a tapered drill bit suitable for hand drills or vertical drills?
>>>>>Due to their tapered design, these bits require precise feed control and spindle rigidity found mostly in CNC or automated machines. Using them on hand drills or vertical drills may cause excessive runout and hole diameter inaccuracies. For high-precision metal drilling, it’s recommended to use solid carbide tapered bits on CNC equipment.

How to correctly select the taper angle?
Taper angles typically range from 1° to 7°. Smaller angles (1°–3°) enhance guidance on complex bevels or multi-step holes, while medium angles (3°–5°) suit deep holes needing rigidity. Machine rigidity and fixture design also influence taper choice. Proper angle selection affects runout control, coaxiality, and hole wall quality.

Can solid carbide tapered drill bits be repeatedly sharpened?
Yes, but with caveats. Use high-precision grinding to maintain geometry; limit the number of sharpenings to avoid reduced rigidity and accuracy; reapply coatings like TiAlN or AlCrN after grinding to restore wear resistance. Proper sharpening extends tool life and reduces cost.
