In modern CNC machining, selecting the right milling cutter directly impacts machining efficiency, surface quality, and tool life. Types of milling cutters cover a wide range of designs and applications—from face milling cutters, T-slot milling cutters, dovetail milling cutters, to form milling cutters. Each cutter is engineered to meet specific machining requirements and process characteristics.
Correctly identifying and choosing the appropriate milling cutter type is essential for ensuring machining accuracy and productivity in mold manufacturing, precision part machining, and mass production of mechanical components. Differences in tooth profile design, insert material, cutting angle, and coating type among milling cutter types can significantly affect cutting load, chip evacuation, and surface finish. For instance, face milling cutters are ideal for large flat surfaces, T-slot milling cutters excel at machining standard T-slots, dovetail milling cutters are used for precise fixtures and locating structures, and form milling cutters are suited for complex contours and special-shaped surfaces.
This guide provides a systematic overview of the structural characteristics, application scenarios, selection criteria, and machining techniques of various CNC milling cutters. It will help engineers, technicians, and procurement personnel make scientific, economical, and efficient tool selections for different materials such as high-hardness steel, aluminum alloys, stainless steel, and copper alloys, and for different processes including roughing, finishing, and cavity machining. We will also explore the latest trends in milling cutters, including cutting parameter optimization, tool life extension, and coating technology upgrades, enabling you to fully utilize the potential of each tool in CNC machining.
What Are the Types of Milling Cutters?
In CNC machining, milling cutters are the primary tools for cutting and shaping metal. The term “types of milling cutters” refers to a system of categorizing cutters based on design features and machining requirements. These include face mills, T-slot mills, dovetail mills, and form mills, each with distinct structural shapes, cutting methods, and application scenarios.
Proper classification and selection of milling cutters directly affects machining efficiency, surface quality, and tool life. Engineers and technicians need to understand the performance of each type across various materials—high-hardness steel, stainless steel, aluminum alloys—and machining processes such as roughing, finishing, and contouring to ensure stable, economical CNC operations.
The Role and Importance of Milling Cutters in CNC Machining
Milling cutters are essential for material removal, part contouring, and achieving complex geometries. Their performance determines machining time, surface quality, and tool longevity.
Modern CNC milling requires cutters that combine wear resistance, toughness, and adaptability to high-speed cutting and complex surfaces. Choosing the right cutter—such as a face milling cutter for large flat areas or a T-slot milling cutter for precise guideways—can significantly improve machine efficiency, reduce tool changes, and lower production costs.

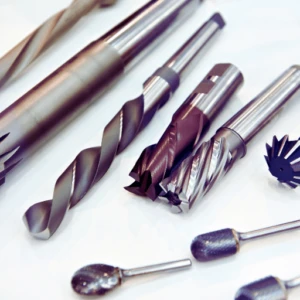

Classification of Milling Cutters
-
Structure: Face milling cutters, end mills, ball-end milling cutters, T-slot milling cutters, dovetail milling cutters, and form milling cutters. Structural design determines cutting characteristics and suitability.
-
Teeth: Number of teeth affects cutting force and chip evacuation. Multi-flute cutters are ideal for fine finishing; fewer-flute cutters suit high-speed roughing.
-
Application: Roughing cutters, finishing cutters, semi-finishing cutters, and specialized forming cutters. Each has different cutting parameters and material requirements.
-
Material: HSS, carbide, ceramic, CBN, and diamond (PCD). Material selection depends on workpiece hardness and machining demands.
Understanding these classifications helps select the most suitable cutter for specific workpiece materials and machining processes, improving both efficiency and tool life.
Face Milling Cutter Detailed Explanation
Face milling cutters are widely used in CNC machining due to their high efficiency and versatility. They excel at large flat surfaces, providing rapid material removal and excellent surface finish. They are suitable for metals such as carbon steel, stainless steel, and aluminum alloys, commonly applied in machinery manufacturing, mold making, and aerospace.
Structural Characteristics (Inserts, Cutter Body, Clamping Method)
Face milling cutters typically consist of a cutter body and replaceable carbide inserts. Inserts may have coatings such as TiAlN or TiCN to enhance wear resistance and heat tolerance. Common insert designs include straight, spiral, and radius edges. The cutter body ensures stability and vibration resistance. Clamping methods are mechanical or welded, allowing quick insert replacement and high productivity.
Applicable Machining Scenarios (Flat Machining, Large Material Removal, High-Finish Machining)
Ideal for machining large flat surfaces, face milling cutters efficiently remove excess material during roughing or semi-finishing. They can also achieve high surface finish, crucial for molds and flat parts. Proper insert selection and cutting parameters enable machining of carbon steel, stainless steel, aluminum alloys, and copper alloys efficiently.
Machining Parameter Optimization
-
Cutting Speed: Adjust based on material—typically 80–150 m/min for carbon steel, lower for stainless steel, higher for aluminum.
-
Feed Rate: Adjust for number of inserts and material hardness to maintain uniform cutting load.
-
Depth of Cut: Roughing: 3–5 mm; finishing: 0.1–0.5 mm.
-
Cutting Fluids: Appropriate selection improves tool life and surface quality.
Common Problems and Solutions
-
Insert Wear: Caused by high temperatures or improper cutting parameters. Solution: coated inserts, optimized speed/feed.
-
Step Marks: Caused by loose clamping or uneven tool clearance. Solution: secure clamping, accurate toolpath.
-
Surface Roughness Issues: Use spiral inserts, adjust feed rate and depth of cut.
T-Slot Milling Cutter Detailed Explanation
T-slot milling cutters are specialized for machining T-slots in machine tool guides, fixtures, and connecting structures. Correct structural understanding, application knowledge, and selection techniques ensure high-quality T-slot machining.
Structure and Insert Types
Composed of a cutter body and carbide inserts, sometimes with TiAlN or TiCN coatings. Blades are trapezoidal or arc-shaped to match T-slot geometry. Cutter body is robust; clamping is mechanical or welded. Blade alignment and cutting angles reduce chipping and deformation.
Application Scenario (Fixtures, Machine Tool Guides, T-Slot Connections)
Used to produce precise T-slots for machine guides, fixtures, and connection structures, ensuring secure assembly and operational stability. Suitable for carbon steel, stainless steel, aluminum alloys, and cast iron.
Selection and Usage Tips (Tool Diameter, Number of Teeth, Material)
-
Tool Diameter: Match slot dimensions for accuracy.
-
Number of Teeth: Medium number balances cutting force and chip evacuation.
-
Material: Carbide preferred for medium to high hardness materials; coatings improve tool life.
Common Problems and Preventative Measures
-
Chipping: Optimize speed/feed, choose coated inserts.
-
Chip Jam: Improve tool geometry, increase fluid flow, adjust path.
-
Groove Bottom Precision: Monitor tool wear, ensure machine rigidity.
Detailed Explanation of Dovetail Milling Cutter
Dovetail milling cutters are specialized tools for machining dovetail grooves and are widely used in mechanical manufacturing, mold making, and precision fixtures. The wedge-shaped dovetail groove provides high strength and stability for connecting and positioning components. The cutter’s shape and angle directly impact groove accuracy and connector fit. Understanding the structural characteristics, applications, selection criteria, and processing considerations of dovetail milling cutters is essential for improving machining quality and production efficiency.
Shape and Angle Design of Dovetail Milling Cutters
Dovetail milling cutters typically feature a V-shaped cutting edge, with angles strictly following the workpiece’s dovetail groove geometry. Standard angles range from 60° to 90°, ensuring smooth, accurate groove walls. Cutters are usually made of high-hardness carbide, and some have wear-resistant coatings to extend tool life. Rounded or chamfered tips reduce cutting stress and prevent chipping.
Tool design must balance chip evacuation and cutting force distribution, ensuring uniform cutting load, reducing vibration, and improving surface quality and dimensional accuracy.
Applications (Mold Positioning, Fixtures, Mechanical Slide Guides)
Dovetail milling cutters are primarily used for producing dovetail groove structures, such as mold locating pin slots, fixture locking slots, and mechanical slide guides. These grooves enable precise positioning and secure connections, which are critical for stable assembly and smooth operation of moving parts.
In mold manufacturing, precise dovetail grooves ensure repeatable positioning and improve product consistency. For mechanical slides and guides, groove dimensions and surface quality affect wear resistance and smooth motion.
Tool Selection and Angle Selection Tips
To choose the correct dovetail milling cutter, first determine the groove angle and dimensions from the workpiece drawing. Select the tool diameter and angle accordingly—common angles are 60°, 75°, and 90°, matching different mechanical connection needs.
Prioritize high-hardness, wear-resistant carbide, and consider advanced coatings for special materials. Match tool length and diameter for stability and minimal vibration. Proper feed rates and cutting speeds also help prevent tip chipping and maintain geometry accuracy.
Machining Precautions
Tip chipping often results from excessive cutting forces or improper parameters. Use step-by-step cutting to avoid deep cuts in a single pass. Choose tough tool materials and coatings. Ensure rigid machine tool setup and secure clamping to reduce vibration. Monitor tool wear and replace inserts timely. Proper cutting fluid and chip evacuation further reduce heat, improve surface quality, and extend tool life.
Form Milling Cutter Detailed Explanation
Form milling cutters are designed for machining complex contours and special-shaped surfaces. Their geometry closely matches the final workpiece contour, making them ideal for high-precision mold manufacturing, gear machining, spline shafts, and curved parts. By replicating complex shapes in a single pass, form milling cutters improve machining efficiency and accuracy.
Function and Structure of Form Milling Cutters
Form milling cutters replicate workpiece contours with a multi-tooth cutter body, customized to ensure consistent cutting. Tools are often carbide with high-performance coatings, such as TiAlN or AlCrN, for wear and heat resistance. Geometry—including cutting angles, blade shape, and tooth count—ensures chip evacuation, uniform cutting force distribution, and extended tool life.
Typical Applications
Form milling cutters are widely used in gear tooth profiling, spline shaft grooves, and high-precision curved surface machining. They can produce contours in one pass, improving efficiency and reducing cycle time. Gear cutters maintain tooth profile accuracy, spline cutters achieve precise keyways, and complex surface cutters enable multi-axis machining of intricate paths.
Parameter Considerations
Selecting form milling cutters requires considering material, tool geometry, and coating. Different materials—high-hardness steel, stainless steel, aluminum alloys—require appropriate tool materials and coatings. Tool angles must match the contour, and tooth count should balance cutting load and chip evacuation. Coatings like TiAlN or CVD diamond enhance wear resistance and tool life.
CNC Programming and Machining Strategies
Efficient form milling requires precise CNC programming. Cutting paths should avoid redundant or air cutting. Feed methods—layered or constant-height cutting—reduce force fluctuations and protect the tool. Tool compensation corrects wear and machining errors, improving part accuracy.
Comparison of Different Milling Cutter Types
Selecting the right milling cutter type is essential for machining quality, efficiency, and cost control. Face milling cutters, T-slot milling cutters, dovetail milling cutters, and form milling cutters differ in accuracy, surface quality, efficiency, tool life, and maintenance due to their design and application areas.
Differences in Machining Accuracy and Surface Quality
Face milling cutters excel at large flat surfaces. Form milling cutters replicate complex contours with high precision. Dovetail and T-slot cutters ensure accurate groove dimensions for stable assembly. Matching tool type with process parameters enhances geometric accuracy and surface quality, reducing finishing steps.
Comparison of Processing Efficiency and Tool Life
Face milling cutters’ multi-flute design supports high-speed, high-volume machining but wears faster on hard materials. Form milling cutters distribute loads evenly and last longer but have longer machining times. Dovetail and T-slot cutters offer excellent durability for specialized slotting but require high machine rigidity. Proper cutting parameters and coatings extend tool life while maintaining efficiency.
Cost and Maintenance Analysis
Face milling cutters are simple, low-cost, and easy to maintain. Form milling cutters are customized, with higher upfront costs and more complex maintenance. Dovetail and T-slot cutters rely on precision fixtures and tooling; improper maintenance increases errors and tool damage. Optimizing procurement, maintenance, and tool management maximizes CNC machining economic benefits.
Techniques for Improving Milling Cutter Effectiveness
Maximizing the performance of each milling cutter type improves efficiency, quality, and tool life. Focus on coating selection, cutting fluid management, and proper tool inventory.
Tool Coating Selection
Coatings enhance wear and heat resistance. TiN for general metals, TiAlN for high-speed and hard-to-cut materials, CVD for carbide reinforcement, and PCD for non-ferrous metals and composites. Correct selection reduces wear and improves cutting efficiency.
Cutting Fluid and Dry Cutting Selection
Cutting fluids cool, lubricate, and evacuate chips. Water-soluble fluids suit steel and cast iron, oil-based fluids aid hard-to-cut materials, and dry cutting suits coated carbide tools, offering environmental and energy advantages. Proper fluid selection reduces temperature, tool wear, and machining instability.
Tool Inventory and Maintenance Management
Scientific inventory management prevents overstock and tool aging. Maintenance includes wear inspection, insert replacement, resharpening, and coating renewal. Proper storage and standardized handling extend tool life and maintain quality.
Future Trends and New Technologies
Milling cutter technology is evolving toward high precision, efficiency, and intelligent manufacturing. Advancements include high-performance materials, advanced coatings, intelligent monitoring, predictive maintenance, high-speed machining, and micro-milling cutters, improving CNC efficiency and quality.
Development of High-Performance Materials and Advanced Coatings
High-performance materials—carbide, ceramics, PCD—and multi-layer coatings enhance wear, heat, and oxidation resistance, extending tool life and improving performance on hard and complex workpieces.
Intelligent Tool Monitoring and Predictive Maintenance
Sensors and data analytics enable real-time tool monitoring, early wear detection, and predictive maintenance. Integration with CNC machines allows automatic compensation, optimized tool usage, reduced downtime, and enhanced machining intelligence.
Expanded Applications of High-Speed Machining and Micro-Milling Cutters
High-speed machining improves cutting efficiency; micro-milling addresses high-precision micromachining for molds, electronics, and medical devices. Combined with advanced materials and intelligent control, these technologies enable complex surface and microstructure machining, supporting diverse manufacturing needs.
This comprehensive guide provides CNC engineers, technicians, and procurement personnel with the knowledge to select, optimize, and maintain types of milling cutters, ensuring high-quality machining, efficiency, and long-term productivity.
