In the field of modern high-precision manufacturing, graphite machining plays a critical role in mold making, aerospace, new energy battery production, and other industries. These applications demand tools with superior performance. Particularly when machining graphite electrodes, the material’s highly abrasive nature makes it challenging for conventional end mills to meet the requirements for both wear resistance and machining efficiency. In this context, diamond-coated graphite milling cutters have emerged as the go-to choice for many CNC machining companies and engineers. Their exceptional wear resistance, low friction, and ultra-long tool life make them ideal for processing graphite.
Diamond coating involves depositing a polycrystalline diamond (PCD) film—known for its hardness and stability—onto the surface of a carbide cutting tool using advanced chemical vapor deposition (CVD) technology. Compared to traditional uncoated or TiAlN-coated tools, diamond-coated end mills significantly delay tool wear and maintain high-performance cutting under high-speed and high-temperature conditions. This enhances the efficiency and reliability of graphite-specific milling operations.
Introduction to Diamond-Coated Graphite Milling Cutters
What Is a Diamond-Coated Milling Cutter?

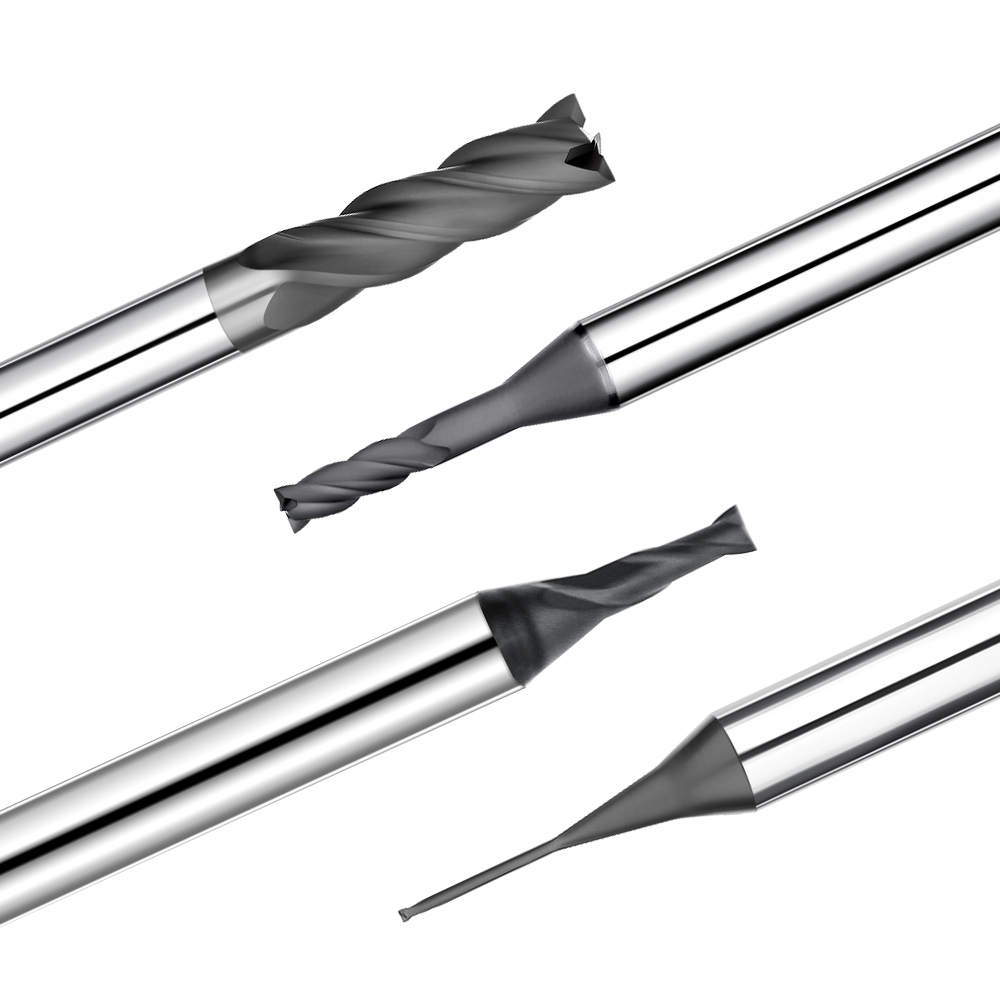

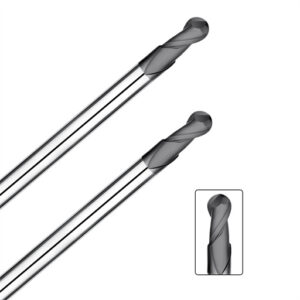

Diamond-coated milling cutters are high-performance tools designed specifically for machining extremely abrasive materials like graphite and composite components. These end mills are produced by applying a CVD polycrystalline diamond layer onto a carbide substrate, improving wear resistance and oxidation resistance. Typically, the coating thickness ranges from 8 to 16 microns, balancing tool sharpness with durability, making these cutters ideal for long-term graphite machining.
Compared to standard carbide end mills, diamond-coated tools dramatically extend tool life and reduce machining surface defects—even during high-speed cutting. Whether used for roughing graphite electrodes or finishing precision parts, diamond-coated graphite end mills deliver outstanding results.
Why Does Graphite Machining Require Special Milling Tools?
Despite its relatively soft texture, graphite is extremely abrasive due to the abundance of fine particles in its structure. This abrasiveness causes rapid tool wear, especially during extended machining cycles. Even ultra-fine grain carbide tools can’t withstand the demands of long-term graphite cutting, leading to short tool life, high production costs, and poor surface finishes.
To overcome these challenges, specially engineered graphite end mills are essential—and diamond-coated options are the most effective. The ultra-hard diamond coating, combined with a low coefficient of friction, minimizes heat buildup and protects cutting edges from graphite dust erosion. The result is efficient cutting, high-quality surfaces, and long-term machining stability.
Key Advantages of Diamond-Coated Graphite End Mills
Exceptional Wear Resistance for Extended Tool Life
Graphite machining causes significant tool wear, especially during continuous, high-load operations. Diamond-coated end mills offer a substantial upgrade in durability thanks to their polycrystalline diamond coatings. The extreme hardness of the diamond layer protects against abrasive wear, allowing tool life to increase by 5–10 times compared to standard carbide end mills. This extended tool life reduces downtime for tool changes and contributes to lower overall machining costs.
Ultra-Low Friction for Increased Machining Efficiency
Diamond coatings naturally exhibit a low coefficient of friction, reducing heat and resistance during cutting. When using high-efficiency diamond-coated graphite end mills, the tool glides through the material with less resistance, supporting faster cutting speeds and feed rates. This enables shorter production cycles—especially beneficial for high-volume graphite electrode or component manufacturing. Additionally, lower friction helps prevent chip buildup and enhances cutting consistency.
Excellent High-Temperature and Oxidation Resistance
During high-speed graphite cutting, temperatures in the cutting zone can rise rapidly. Tools lacking heat resistance degrade quickly. Diamond coatings, however, maintain stability at temperatures above 700°C, allowing the tool to perform reliably during dry, high-speed cutting. This ensures consistent tool sharpness and dimensional accuracy throughout the operation.
Reduced Tool Changes and Lower Operating Costs
Thanks to their exceptional durability, diamond-coated graphite milling cutters minimize the need for frequent tool changes. For production lines, this translates to reduced labor costs, less machine downtime, and improved throughput. In the long term, companies benefit from lower per-unit machining costs and greater production efficiency.
Improved Surface Finish and Product Consistency
High-quality graphite machining demands both dimensional accuracy and excellent surface finish. The low-friction, ultra-hard diamond surface minimizes micro-chipping and vibration, leading to smoother finishes on graphite parts. Diamond-coated end mills can produce finer, more uniform surfaces, reducing or eliminating the need for secondary polishing or rework, and improving consistency across production batches.
Comparing Diamond Coating with Other Graphite Milling Tools
Tool Life Comparison
n graphite processing, tool wear is a key factor affecting production efficiency and cost control. According to the results provided by customers using SAMHO’s diamond coated graphite end mills, the life is 15-20 hours. Compared with uncoated milling cutters, its tool life can be increased by 5 to 10 times. Compared with TiAlN coated graphite milling cutters, the life can also be increased by 2 to 4 times. This is mainly due to the extremely high wear resistance and excellent high temperature resistance of diamond coating, which enables the tool to maintain long-term stable cutting when facing highly abrasive materials such as graphite.
Especially in large-scale graphite electrode processing or high-speed dry cutting application scenarios, high-performance graphite milling cutters are equipped with diamond coating. It can significantly reduce the frequency of tool replacement, improve machine tool utilization, and bring higher overall production benefits.
Surface Roughness Comparison
In graphite parts processing, surface roughness is directly related to electrode discharge performance and part quality. When using ordinary uncoated graphite milling cutters, the tool will wear quickly, which can easily cause scratches, burrs and even chipping on the workpiece surface, and the Ra value is usually high. TiAlN coated graphite tools can slightly improve the initial processing effect, but as the processing time increases, the surface quality will inevitably decline.
Through comparative tests, samho’s diamond coated graphite end mills can maintain sharp edges and low friction cutting characteristics for a long time when cutting graphite. The processed graphite surface is smoother and the Ra value is stable at a low level, which is far better than other coated tools. For customers who manufacture high-precision electrodes or high-end graphite products, excellent surface quality directly means less subsequent finishing and higher finished product qualification rate.
Overall Cost Comparison
From the perspective of the purchase price of a single tool, the price of diamond coated graphite milling cutters is usually higher than that of uncoated or TiAlN coated tools. However, if comprehensively evaluated from the perspective of comprehensive processing costs, diamond coated tools have a higher cost-effectiveness.
Taking Samho’s product series as an example, using diamond coated graphite end mills, although the initial investment is slightly higher, the overall processing cost can be reduced by 30%-50% due to its ultra-long life, stable surface quality and reduced tool replacement time. At the same time, efficient processing capabilities can also release machine tool capacity, shorten delivery cycles, and create greater economic benefits for enterprises.
Therefore, for customer groups with medium and large-volume graphite processing needs or high requirements for product quality. Choosing high-quality diamond-coated graphite end mills is a wise investment with long-term returns.
Ideal Applications for Diamond-Coated Graphite End Mills
As the use of advanced graphite materials grows across industries, the need for high-performance tools becomes more pressing. Diamond-coated graphite end mills meet this demand in several critical sectors:
Mold Manufacturing (Graphite Electrode Production)
In mold manufacturing, graphite electrodes are widely used in the EDM field, and the dimensional accuracy and surface roughness of graphite electrodes are extremely high. Traditional milling cutters are prone to burrs and edge collapse when processing graphite, resulting in an increase in electrode failure rate. Using diamond coated graphite end mills can significantly improve the efficiency of graphite electrode processing, while obtaining better surface quality and reducing the need for subsequent manual finishing.
Especially in the mass production of fine electrodes and complex curved surface electrodes, the ultra-long tool life and stable cutting performance of diamond coated tools have brought huge cost advantages and delivery guarantees to mold manufacturing companies.
Aerospace Component Machining
The aerospace industry uses a large number of high-performance graphite composite materials (such as C/C composite materials) to make engine thermal protection components, heat shields, etc. These parts are usually complex in structure and have extremely high processing requirements. The use of ordinary graphite milling cutters is prone to dimensional drift or surface burns, affecting product performance.
Graphite milling cutters equipped with diamond coatings can achieve stable high-speed dry cutting. Effectively control cutting heat, improve dimensional accuracy and surface consistency, and ensure that the processed aerospace graphite parts meet strict quality standards.
New Energy Industry
In the field of new energy, especially in the manufacturing process of lithium batteries, the demand for high-precision graphite sheets, graphite current collectors and other parts has grown rapidly. Such products usually require large batches and fast processing speeds, while strictly controlling surface roughness and micron-level dimensional accuracy.
Using high-efficiency graphite machining tools, the diamond-coated graphite end mills provided by Samho can achieve long-term stable cutting. Reduce dimensional drift caused by tool wear, improve the consistency and yield rate of lithium battery electrode products, thereby helping new energy companies improve production efficiency and competitiveness.
Mass Production of Precision Graphite Parts
For companies that need to mass-produce high-precision graphite parts (such as micro-mechanical parts, medical equipment components, optical instrument graphite components, etc.), the stability of tool performance is crucial. Ordinary coated milling cutters are prone to dimensional fluctuations and surface quality degradation in mass processing due to their insufficient wear resistance.
The use of precision diamond coated graphite end mills can maintain stable cutting effects throughout the production cycle, significantly improve processing consistency and finished product yield, while reducing the frequency of tool changes and machine tool downtime, ultimately significantly reducing overall production costs.
Are Diamond-Coated Graphite Milling Cutters Worth Buying?
Diamond-coated graphite end mills are increasingly the preferred solution for graphite machining, thanks to their wear resistance, thermal stability, and machining performance. But the decision to invest depends on specific production needs.
Based on Production Scale
If your facility handles medium- to large-scale graphite machining—such as mass production of electrodes, battery components, or aerospace parts—investing in high-performance diamond-coated tools can significantly reduce unit costs and improve capacity utilization. However, for small workshops or occasional graphite jobs, TiAlN-coated tools may be more cost-effective despite the performance trade-offs.
Based on Processing Requirements
For parts requiring high dimensional accuracy and surface quality—like aerospace parts or fine electrodes—diamond-coated end mills ensure cutting stability and reduce defects. They are especially effective in dry, high-speed graphite machining applications, where conventional coatings fall short.
Based on Budget and ROI
Although the initial investment of diamond-coated graphite milling cutters is higher than that of uncoated or TiAlN-coated products, considering factors such as tool life, reduced tool changes, and improved processing yield, the processing cost of each product is lower after long-term use.
High-performance graphite milling tools with high-quality diamond coating can reduce the tool replacement frequency by more than 60% and shorten the processing cycle by 20%-30%. The comprehensive tool investment return rate is significantly better than that of ordinary tools.
Therefore, reasonable budget allocation and priority investment in key processes with large processing tasks and high quality requirements can maximize the cost-effectiveness advantage of diamond-coated tools.
Purchasing Tips and Considerations
- Coating Quality: Choose tools with reliable PCD coatings for durability.
- Substrate Material: Opt for ultra-fine grain carbide to balance toughness and wear resistance.
- Geometry Design: Select optimized edge geometry and helix angles for graphite machining.
- Vendor Support: Work with experienced suppliers who provide technical advice and parameter recommendations.
In summary, diamond-coated graphite milling cutters are a smart long-term investment for high-efficiency, high-precision graphite machining. Whether you’re scaling up production or aiming for superior part quality, these tools deliver performance and cost advantages that justify their use in professional manufacturing environments.
