Best Practices for Using Mini End Mills in Micro Machining

Micromachining requires extremely high precision, rigidity, and durability. As part sizes shrink and the demand for superior surface quality increases, mini end mills have become indispensable tools for engineers and manufacturers. Their small diameter, high precision, and ability to produce excellent surface finishes make them ideal for machining complex structures and detailed parts.

In practical applications, carbide mini end mills are widely used in mold making, medical device manufacturing, jewelry engraving, and dental restorations due to their exceptional wear resistance and thermal stability. For example:

• Mini end mills for mold making achieve high-precision machining of cavities and fine chamfers in molds.

• Mini end mills for precision machining are commonly used for demanding aerospace and medical components.

• Mini end mills for jewelry making can engrave intricate patterns on precious metals such as gold and platinum.

• Mini end mills for dental milling offer exceptional stability and surface finish when cutting materials such as zirconia, cobalt-chromium alloys, and titanium.

To achieve optimal results, engineers must understand the characteristics of mini end mills and master their use. Tool material and coating selection, cutting parameters, cooling methods, and machine rigidity all directly impact machining efficiency and tool life. This article explores best practices for using mini end mills in micro machining, helping readers achieve higher precision, longer tool life, and superior results across diverse applications.

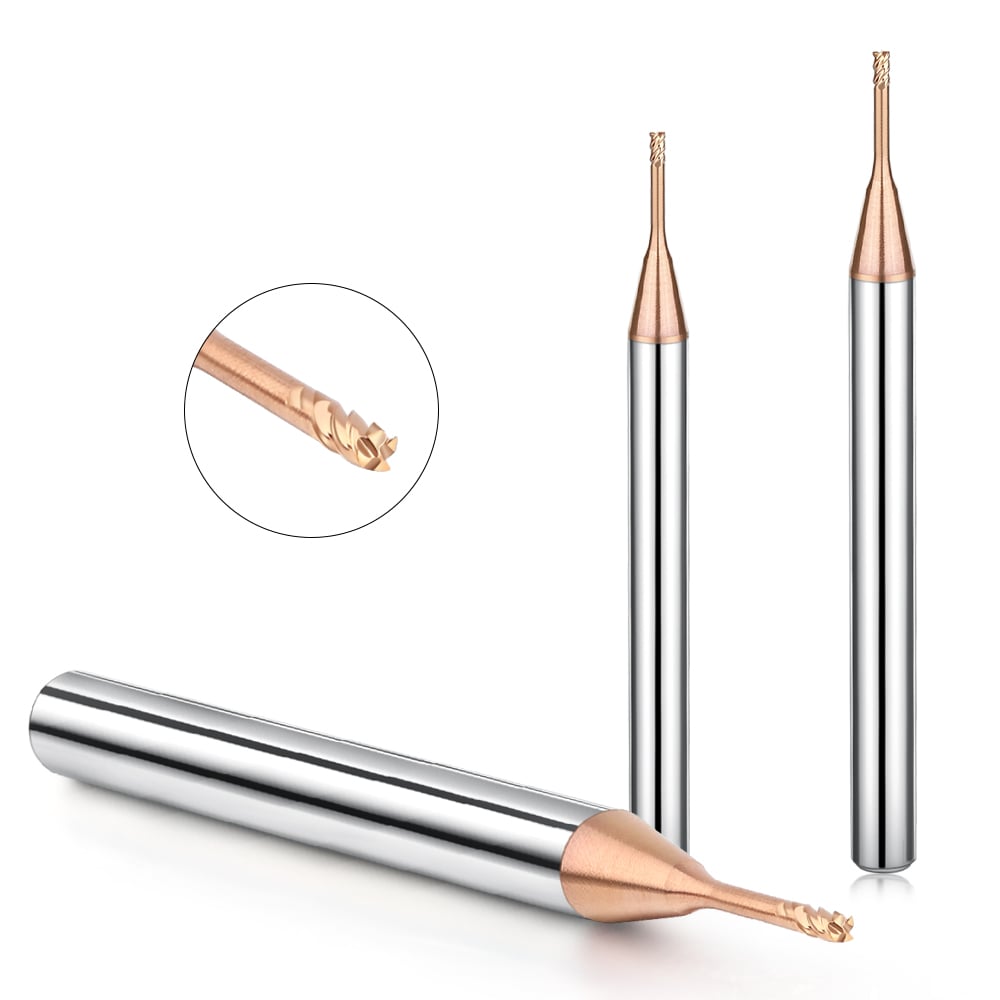

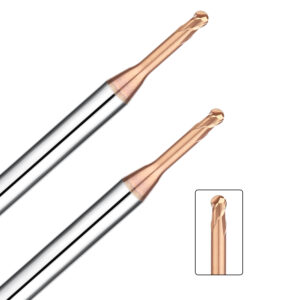

What is a Mini End Mill?

A mini end mill is a small-diameter milling cutter designed for micromachining, typically ranging from 0.1mm to 3mm. It is widely used in electronics, mold making, jewelry engraving, dental restorations, and other high-precision applications. Its small size and sharp cutting edges allow for precise cuts in tight or complex spaces, making it essential for achieving high accuracy and surface finish.

Most mini end mills are made of carbide, which provides high hardness and wear resistance. Carbide mini end mills maintain stability and durability even in high-speed cutting and difficult-to-machine materials such as titanium, stainless steel, and zirconia. Whether for mold making or precision machining, these tools are indispensable.

Definition and Features of Mini End Mills

Mini end mills are cutting tools with diameters significantly smaller than conventional end mills. Key features include:

• Small diameter: Suitable for machining tiny parts and intricate details.

• High precision and sharpness: Ensure dimensional accuracy and surface quality.

• Wide applicability: Used in jewelry engraving, dental milling, and precision components.

These characteristics make mini end mills irreplaceable for machining electronic parts, medical devices, and precision molds.

Differences from Conventional End Mills

Compared to conventional end mills:

• Size and scope: Conventional end mills remove material from larger areas; mini end mills excel at fine details, thin walls, and narrow grooves.

• Cutting parameters: Mini end mills require higher spindle speeds and shallower cuts to prevent tool breakage.

• Rigidity and clamping: Small-diameter tools demand precise toolholder clamping and vibration control.

Mini end mills enable micron-level machining in applications that conventional tools cannot handle.

Why Mini End Mills Are Suitable for Micromachining

Mini end mills are ideal for micro machining because they:

• Reach complex geometries: Access narrow grooves, deep cavities, and small structures.

• Provide high surface quality: Deliver excellent finishes in jewelry and dental applications.

• Handle difficult materials: Carbide and coated tools cut titanium alloys, stainless steel, and zirconia efficiently.

• Offer flexibility: Used across mold making, precision machining, jewelry, and dental industries.

They ensure accuracy, process stability, and extended tool life in precision manufacturing.

Common Mini End Mill Types and Material Selection

Selecting the right mini end mill type and material is essential for achieving efficiency and high-precision results in micromachining. Tool substrate and coating directly influence cutting performance, wear resistance, and the types of materials that can be machined. Carbide mini end mills are the mainstream choice due to their hardness and wear resistance, while coatings such as TiAlN, DLC, and diamond can further extend tool life and improve surface finish.

Industry-specific requirements also vary. Mini end mills for mold making focus on high-precision machining of cavities and small corners. Mini end mills for precision machining prioritize dimensional stability for aerospace and medical components. Mini end mills for jewelry making emphasize detailed engraving of precious metals. Mini end mills for dental milling require excellent cutting stability when processing zirconia and titanium alloys. Understanding these differences helps engineers select the most appropriate tool for each application.

Carbide Mini End Mill Advantages

Carbide mini end mills are the most commonly used type of micro milling cutter. Compared to HSS, carbide offers:

• High hardness and wear resistance: Performs better when cutting steel, titanium alloys, stainless steel, and other hard materials.

• Excellent thermal stability: Retains a sharp edge during high-speed and dry cutting, reducing the risk of chipping.

• Longer tool life: Reduces the frequency of tool changes, especially in precision machining and mold making.

As a result, carbide mini end mills are the preferred choice for engineers in micromachining applications that require both high precision and reliability.

Impact of Coating Selection on Tool Life and Precision

Tool coatings significantly influence mini end mill performance:

• TiAlN coating: Provides excellent heat resistance, ideal for high-speed steel and mold steel cutting, commonly used in mold-making applications.

• DLC coating: Extremely low friction reduces adhesive wear, making it suitable for precious metals in jewelry engraving.

• Diamond coating: Offers very high hardness and wear resistance, suitable for precise cutting of graphite, ceramics, composites, and zirconia in dental milling.

Proper coating selection extends tool life, enhances surface finish, and improves dimensional accuracy.

Differences in Mini End Mill Requirements Across Industries

Different applications have distinct requirements:

• Mini end mills for mold making: Require rigid and wear-resistant tools for fine machining of complex cavities and sharp corners.

• Mini end mills for precision machining: Emphasize dimensional accuracy and stability for aerospace and medical components.

• Mini end mills for jewelry making: Require high sharpness and superior surface finish to ensure intricate patterns and fine details.

• Mini end mills for dental milling: Maintain stable cutting in high-hardness zirconia or titanium alloys to avoid microcracks and ensure precision.

Engineers must consider tool material, coating, and specific industry requirements when selecting the optimal mini end mill.

Main Application Scenarios in Micromachining

Mini end mills are widely used in micromachining for mold making, precision parts, jewelry engraving, and dental milling. Choosing the right tool and cutting strategy improves efficiency, ensures surface finish, maintains dimensional accuracy, and extends tool life.

Mini End Mill for Mold Making – Precision Mold Detail Machining

Machining complex cavities and fine details requires extremely high precision and rigidity. Mini end mills for mold making can access narrow grooves and sharp corners, achieving micron-level accuracy. Carbide tools with TiAlN coatings retain a sharp edge in high-hardness mold steel, reducing chipping and wear. Optimizing cutting parameters and tool paths also minimizes vibration and enhances mold surface finish.

Mini End Mill for Precision Machining – Aerospace and Medical Parts

For aerospace and medical components, dimensional accuracy and repeatability are critical. Mini end mills for precision machining allow precise cutting of titanium alloys, stainless steel, and high-performance composites. Coatings like DLC or diamond, along with appropriate cooling strategies, enhance tool life and process stability, ensuring components meet strict tolerances and surface finish requirements.

Mini End Mill for Jewelry Making – Precious Metal Engraving and Detail Polishing

Jewelry manufacturing demands fine engraving and detailed polishing on metals such as gold, silver, and platinum. Mini end mills for jewelry making produce intricate textures, tiny holes, and curved engravings. Sharp carbide tools with low-friction coatings (like DLC) reduce material sticking and scraping, improving surface finish while preserving design integrity.

Mini End Mill for Dental Milling – Zirconia, Titanium Dentures, and Implant Processing

Dental applications involve zirconia, cobalt-chromium, and titanium alloys, requiring high wear resistance and cutting stability. Mini end mills for dental milling provide precision cutting of crowns, dentures, and implants. Diamond or TiAlN coatings extend tool life and maintain smooth surfaces, ensuring high-precision fit and aesthetically appealing restorations.

Key Practical Tips for Using a Mini End Mill

In micromachining, the effectiveness of a mini end mill depends on standardized operation and meticulous control. Even high-quality carbide mini end mills can break, reduce machining accuracy, or produce poor surface finish if cutting strategies are inappropriate or machine tool rigidity is insufficient. To fully utilize mini end mills in mold making, precision parts, jewelry engraving, and dental processing, engineers should optimize tool clamping, cutting parameters, cooling and lubrication, and machining strategies.

Tool Clamping and Machine Rigidity Control

Due to their small diameter and long flute length, mini end mills have relatively low rigidity. Proper tool clamping and machine rigidity are essential for machining stability:

• Use high-precision, low-runout collets or toolholders for stable fixation.

• Minimize tool extension to reduce cutting vibration.

• Ensure sufficient machine bed, spindle, and worktable rigidity, especially for mold making and precision machining.

High rigidity prevents dimensional errors and surface defects caused by micro-vibrations.

Cutting Parameter Optimization

Optimizing cutting parameters is key to extending tool life and achieving high-quality results:

• Spindle Speed: Higher speeds ensure smooth engagement and reduce excessive forces that can break the tool.

• Feed Rate: Match feed to tool diameter and depth of cut to prevent overload and uneven machining.

• Cutting Depth: Prefer multiple shallow cuts rather than a single deep cut.

Optimized parameters enhance precision machining and surface finish in applications like jewelry engraving and dental milling.

Cooling and Lubrication Selection

Heat generation affects tool life and surface quality. Select cooling based on material and application:

• Oil Mist Cooling: Reduces temperature and chip adhesion, ideal for steel and mold steel.

• Dry Cutting: For low-friction coated tools or environmentally sensitive applications, with careful parameter control.

• MQL: Common in precious metals and high-precision parts, reduces heat and improves surface finish.

Appropriate cooling improves tool stability and prolongs mini end mill life during high-speed machining.

How to Prevent Tool Breakage and Reduced Machining Accuracy

Preventive strategies include:

• Tool Path Optimization: Prioritize climb milling to minimize vibration.

• Multi-stage Light Cuts: Reduce stress on slender tools or deep cavities.

• Regular Tool Wear Inspection: Replace worn or chipped tools promptly.

• Material and Coating Matching: Use diamond-coated mini end mills for zirconia in dental milling to reduce cutting forces and breakage risk.

These measures maintain high precision, stability, and tool life in molds, precision parts, jewelry, and dental machining.

Engineering Experience in Improving Mini End Mill Service Life

The service life of a mini end mill directly impacts machining efficiency, cost, and part quality. Improper tool selection, cutting strategy, material-coating match, or maintenance can lead to premature wear. By selecting the right tool diameter and flute length, optimizing machining paths, matching tool coatings, and establishing inspection routines, engineers can extend tool life, ensuring machining stability and high precision.

Correctly Selecting Tool Diameter and Blade Length

• Diameter: Should match groove width, hole diameter, and part structure. Too small reduces rigidity; too large hinders fine detail machining.

• Blade Length: Minimize extension to reduce vibration and maintain stability.

For example, in mold making or dental milling, the proper combination of diameter and flute length ensures safe and precise machining of deep cavities or fine details.

Optimizing Machining Paths and Cutting Strategies

• Prioritize climb milling to reduce peak cutting forces.

• Use layered shallow cuts for deep cavities or complex geometries.

• Avoid continuous impact cutting to extend tool life.

Optimized paths are essential for mini end mills in precision machining and jewelry engraving to maintain surface finish and accuracy.

Workpiece Material Matching and Tool Coating Coordination

• Carbide tools: Ideal for steel, titanium alloys, and hard mold steel.

• Coatings: TiAlN, DLC, or diamond improve wear resistance and thermal stability.

For dental milling, diamond-coated mini end mills ensure precision and durability when machining zirconia or titanium alloys.

Regularly Check Tool Wear and Implement Replacement Strategy

• Inspect tools for chipping, edge radius changes, and surface quality.

• Replace worn tools promptly to maintain accuracy.

• Adjust replacement cycles based on material hardness and machining speed.

Good maintenance reduces costs and improves process stability in molds, precision parts, jewelry, and dental applications.

Common Problems and Solutions

Common mini end mill issues include breakage, short tool life, and balancing efficiency with quality. By analyzing failure causes and implementing proper techniques, engineers can improve tool performance and machining stability.

Causes and Prevention of Tool Breakage

• Excessive load: Deep cuts or high feeds increase forces.

• Insufficient rigidity: Machine or fixture vibration causes edge chipping.

• Material or coating mismatch: Inappropriate coatings increase breakage risk.

Preventive measures: gentle layered cutting, high-rigidity holders, and material-matched coatings like diamond for zirconia.

Practical Tips for Improving Tool Life

• Select proper diameter and flute length.

• Use optimized tool paths and feed strategies.

• Match coatings to material: TiAlN, DLC, diamond.

• Inspect tools regularly and replace when worn.

These practices ensure high precision and efficiency in molds, precision parts, jewelry, and dental milling.

Balancing Machining Quality and Efficiency

• Shallow, multi-stage cuts reduce tool stress.

• Optimize feed and speed for accuracy and efficiency.

• Use appropriate cooling: oil mist or MQL.

• Adjust cutting parameters and coatings based on material.

This approach balances precision, surface finish, and productivity.

Summary

Mini end mills are essential for micromachining. Their small diameter, high precision, and flexibility enable tasks impossible for conventional end mills. In mold making, precision parts, jewelry, and dental machining, mini end mills deliver superior dimensional accuracy, surface finish, and process stability.

Reaffirming the Importance of Mini End Mills

Sharp, high-rigidity mini end mills access complex geometries and confined spaces, maintaining cutting stability in hard materials like mold steel, titanium alloys, and zirconia. Proper tool and coating selection enhances tool life and machining efficiency.

Best Practices for Different Applications

• Moldmaking: Layered cutting, short blade length, precise clamping.

• Precision machining: Adjust cutting parameters, high-wear-resistant coatings.

• Jewelry engraving: Sharp tools, low-friction coatings.

• Dental milling: Diamond-coated tools for zirconia or titanium.

Combining cutting strategies, materials, and coatings maximizes tool performance and machining quality.

Recommendations for Engineers and Manufacturers

• Select appropriate carbide mini end mill for the material.

• Choose coatings and cooling methods based on workpiece.

• Optimize speed, feed, depth, and tool paths.

• Regularly inspect and replace tools.
