Carbide End Mill Selection Guide: How to Choose for Different Materials

Carbide End Mill Selection Guide: How to Choose for Different Materials

End Mill

Why Workpiece Material Matters in End Mill Selection

In the CNC machining process, one of the prerequisites for correctly selecting carbide end mills is to understand the material properties of the workpiece being machined fully. The differences in hardness, thermal conductivity, adhesion tendency, etc. of different materials directly affect the wear rate, cutting stability and surface quality of the milling cutter. Therefore, the key to improving machining efficiency, extending tool life and reducing production costs is to match the tool for different materials properly.

Workpiece Hardness and Tool Wear

The higher the hardness of the material, the greater the wear on the tool. When machining high-hardness materials such as alloy steel or stainless steel, carbide end mills for hardened steel need to have higher red hardness and anti-wear coatings (such as AlTiN or TiSiN), otherwise it is very easy to cause edge breakage or rapid passivation. In contrast, when machining soft materials such as aluminum alloys, more attention is paid to chip removal and avoiding built-up edge problems rather than tool wear rate. Therefore, the hardness of the material is one of the core factors that determine the durability of the milling cutter.

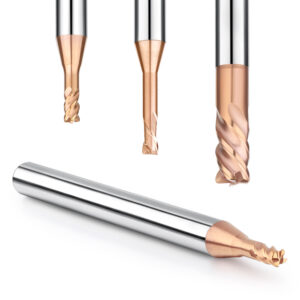

HRC65 Corner Radius End Mill

Thermal Conductivity, Chip Adhesion and Their Impact on End Mills

If the heat generated during machining cannot be dissipated in time, it will cause the tool to overheat, the cutting edge to soften, and then accelerate wear. For example, stainless steel and titanium alloys have poor thermal conductivity, and the heat is concentrated in the cutting area during machining. They need to be matched with high-performance carbide end mills for titanium and strong cooling strategies. Although aluminum alloys have good thermal conductivity, they are very easy to adhere to the tool, forming built-up edge and damaging the tool surface. Therefore, choosing the best end mill for aluminum with smooth surface, no coating or DLC coating can effectively avoid such problems.

Balancing Machining Efficiency and Tool Life

In industrial production, simply pursuing cutting speed or extending tool life is not the best strategy. The truly efficient solution is to find the balance point of carbide end mill performance: it can achieve high material removal rate and maintain relatively stable life performance. Setting reasonable cutting parameters (speed, feed, cutting depth) and tool geometry for different materials is the key to achieving this goal. For example, when machining carbon steel, using a wave-edge roughing milling cutter can cut quickly, while in the finishing stage, high-precision tools are selected to improve surface quality, achieving the synergistic effect of roughing and finishing carbide end mill combination.

HRC65 Flat End Mill

End Mill Selection Guide for Different Materials

In actual CNC machining, different materials have different requirements for tools. Influencing factors include the hardness, toughness, thermal conductivity of the material, and whether it is easy to produce built-up edge. Reasonable selection of the blade type, number of blades, coating and cutting parameters of the carbide end mill can not only significantly improve machining efficiency, but also effectively extend tool life and ensure part quality.

Recommended Carbide End Mill for Carbon Steel

Carbon steel is a common medium-hardness metal, and it is suitable to use a milling cutter with good rigidity and chip removal performance. SAMHO SHB series milling cutters are designed for efficient machining of carbon steel, with a thickened core structure to enhance breakage resistance and stability.

  • Recommended number of blades: 3-blade or 4-blade flat head milling cutter (balance chip removal and rigidity).
  • Tool shape: straight edge or unequal tooth design helps reduce vibration.
  • Recommended coating: TiAlN (titanium aluminum nitrogen) coating has good heat resistance and wear resistance.
  • Recommended parameters: medium speed + medium-high feed, with dry cutting or atomization cooling for better effect.

HRC55 Flat End Mill

High-Strength Carbide End Mills for Tool Steels

Tool steel has a high hardness, especially after heat treatment, the tool is prone to thermal cracking and wear. SAMHO SHG series milling cutters use micro-tungsten carbide matrix and AlTiN coating to cope with high-strength cutting in high temperature environments.

  • Tool type: high rigidity radius milling cutter or high hardness straight edge design.
  • Recommended coating: AlTiN (aluminum titanium nitrogen) coating has excellent hot hardness and oxidation stability.
  • Usage advice: maintain a small cutting depth processing strategy, and moderate cooling can improve processing stability.
  • Note: It is easy to produce vibration and thermal deformation, and it is particularly important to choose a seismic structure.

Best Carbide End Mill for Stainless Steel

Stainless steel has high toughness and poor thermal conductivity, which can easily lead to built-up edge and edge damage. It is recommended to use unequal pitch milling cutters to effectively reduce vibration. SAMHO’s SHG series with TiSiN or AlTiN coatings excels in heat resistance and wear resistance.

  • Recommended blade type: 3-4 blade unequal pitch design to reduce the risk of resonance.
  • Coating selection: TiSiN is better than TiAlN and has stronger high temperature stability.
  • Processing suggestions: Use coolant + low feed to prevent built-up edge, and try to use stable tool paths.

HRC55 Flat End Mill

Optimized Carbide End Mills for Aluminum

Aluminum alloy is a soft material, but it is easy to stick to the tool. Choosing a 2-blade or 3-blade mirror slot milling cutter can effectively improve the chip removal effect. SAMHO has launched a high chip removal series of milling cutters for aluminum, taking into account high-speed processing and tool life.

  • Tool structure: large helix angle + mirror groove type, effectively suppressing the sticking phenomenon.
  • Coating recommendations: DLC coating or no coating design, effectively prevent built-up edge.
  • Cutting recommendations: high speed (20,000+ RPM), low feed, dry cutting or mist cooling as much as possible.

Carbide End Mills for Titanium with Thermal Resistance

Titanium alloy has poor thermal conductivity and is easy to bounce, so it is important to choose a highly shock-resistant tool. It is recommended to use SHG series reinforced ball or flat head milling cutters with TiAlN or nACo coating.

  • Tool structure: coarse core reinforced design to enhance stability and avoid tool deviation.
  • Coating recommendations: TiAlN / nACo, with extremely strong heat resistance and oxidation resistance.
  • Processing recommendations: low feed + strong cooling, avoid high-speed dry cutting.

Specialized End Mills for Copper and Soft Materials

Copper has strong ductility and is prone to melting or edge collapse during processing. SAMHO SHD series uses sharp cutting edges and mirror grooves, with DLC coating, specially designed for high-speed processing of soft metals.

  • Recommended edge type: 2-edge sharp-angle edge type, sharp cutting and smoother.
  • Coating recommendation: DLC coating can significantly reduce the friction coefficient and prevent hot sticking.
  • Processing recommendation: high speed + medium feed, as short a tool as possible, anti-vibration cutting.

4 Flutes Flat End Mill

How to Choose the Right Carbide End Mill Based on Specific Applications

In actual processing, tool selection depends not only on the workpiece material, but also closely related to the application scenario. Different processing tasks (such as roughing or finishing), equipment performance (such as high-speed machines or ordinary machine tools), and processing objects (such as molds or structural parts) have completely different requirements for the design and performance of carbide end mills.

Tool Selection Strategy: Roughing vs Finishing

  • Roughing focuses on high material removal rate, and the selected tool must have high rigidity and good chip removal ability. It is recommended to use a wave edge milling cutter or a carbide end mill for roughing steel with a rough tooth design to effectively reduce the cutting load and improve stability.
    • Tool characteristics (roughing): large core thickness, wave edge, unequal tooth design.
    • Processing parameter recommendations: medium-low speed + high feed, moderate cutting depth.
  • Finishing focuses more on surface finish and dimensional accuracy. It is recommended to use an end mill for finishing stainless steel with super-fine cutting edges and chamfers to achieve mirror cutting effects and reduce burrs.
    • Tool characteristics (finishing): high sharpness, fine grinding of cutting edges, and appropriate rounded corner design.
    • Processing parameter recommendations: high speed + low feed, thin layer cutting to control thermal deformation.

End Mills

Tool Priorities in Mold Making vs General Part Machining

  • Mold processing usually involves complex surfaces and high-hardness materials, requiring the tool to have good contour tracking capabilities and long-term wear resistance. This type of processing recommends the use of a ball-end or taper-shank carbide end mill for hardened mold steel, with a heat-resistant coating such as AlTiN or TiSiN.
  • The machining of structural parts pays more attention to efficiency, versatility and stability. The tools are mainly general-purpose flat-end mills, which are suitable for batch rapid machining. For example, carbide end mills for aluminum parts are suitable for high-speed cutting of lightweight parts.

End Mill Selection for High-Speed vs Standard CNC Machines

  • High-speed machining centers are suitable for high-speed special tools with lightweight design, low cutting resistance, and fine balance to ensure smooth cutting without vibration at high speeds.
  • On ordinary machining centers, focus is on tool durability and processing tolerance. Recommended to use a general carbide end mill for conventional CNC with sturdy structure, moderate cutting edge and high cost performance.

Selecting the Perfect Flute End Mill for Your Project

Common Mistakes in End Mill Selection — CNC Engineers’ Field Insights

Can One End Mill Handle Multiple Materials?

Different materials have different thermal conductivity, cutting resistance, and adhesion characteristics, and the requirements for tool coating types, edge sharpness, and edge number arrangement are also completely different.

Is More Flutes Always Better?

More blades do not mean higher efficiency. Match flute count with chip removal needs and material type.

Coating Isn’t Everything — Consider Your Coolant Strategy

Select the correct combination of coating and cooling strategy. Coating alone cannot offset excessive cutting heat.

 End Mills

Tool Selection Is the Foundation of Long Tool Life and High Productivity

Can One End Mill Handle Multiple Materials?

Different materials have different thermal conductivity, cutting resistance, and adhesion characteristics, and the requirements for tool coating types, edge sharpness, and edge number arrangement are also completely different.

Is More Flutes Always Better?

More blades do not mean higher efficiency. Match flute count with chip removal needs and material type.

Coating Isn’t Everything — Consider Your Coolant Strategy

Select the correct combination of coating and cooling strategy. Coating alone cannot offset excessive cutting heat.

Carbide End Mills

Tool Selection Is the Foundation of Long Tool Life and High Productivity

The core ideas of tool selection can be summarized into three points:

  • Clearly define the application scenario and machining goals
  • Match material properties and tool structure
  • Comprehensive equipment capabilities and cooling strategies

An application-specific carbide end mill selected through professional judgment can often not only extend tool life, but also reduce tool change frequency, optimize surface quality, and ultimately achieve a better cost-performance ratio.

Get professional support to stop trial and error in tool selection

If you are looking for a suitable tool for a specific workpiece or complex material, please click the link below or contact a technical engineer to get free custom carbide end mill selection suggestions.

CTA: [Download Carbide End Mill Catalog PDF]

CTA: [Contact Us for Free Selection Advice]
