In modern CNC machining, end mills are among the most commonly used and versatile cutting tools. Different end mill types are suited for various machining tasks and materials, such as steel machining, aluminum machining, graphite machining, hard materials machining, high-speed machining, and deep cavity milling. Choosing the right type of end mill not only improves machining efficiency and surface finish but also effectively extends tool life and reduces production costs.
Common end mill types include flat end mills, ball nose end mills, corner radius end mills, tapered end mills, and roughing cutters. Each geometry and cutting edge design is optimized for specific machining needs. For example, flat end mills are ideal for slotting and side milling, ball nose end mills excel at 3D surface machining and mold making, while corner radius end mills help reduce stress concentration and extend tool life.
In practical applications, selecting the right tool involves more than just the type of end mill. It requires a comprehensive evaluation of factors such as the hardness and toughness of the workpiece material, cutting speed, feed rate, and coating type. For instance, machining high-hardness steel demands carbide or PCD tools with superior heat and wear resistance. For high-speed aluminum machining, tools with sharp cutting edges and large chip flutes are preferred to prevent built-up edge formation. In graphite machining, diamond-coated tools with excellent wear resistance, combined with dust control measures, are essential.
What is an End Mill? Basic Concepts and Applications
End mills in CNC machining are multifunctional cutting tools capable of performing a wide range of processes, including slotting, side milling, contouring, pocketing, and 3D surface machining. Unlike traditional single-purpose tools, end mills can machine various materials such as metals, plastics, graphite, and composites. Because of this versatility, they are widely used in high-precision manufacturing sectors, including mold making, aerospace, automotive components, and medical devices.
Among the many types of end mills, factors like tool geometry, flute count, material, and coating help determine the optimal tool choice for specific applications—whether machining steel, aluminum, graphite, hard materials, or operating in high-speed environments—to achieve efficient and precise results.
Definition and Working Principle of an End Mill
An end mill is a rotary cutting tool, typically made from carbide or HSS. It removes material through relative motion between the tool and the workpiece. The cutting edges are distributed on both the tool’s face and outer circumference, enabling downward cutting (such as drilling or grooving) and radial cutting (such as side milling).
Different end mill types employ varying geometries. For example, two-flute end mills are better suited for high-speed cutting and large chip volumes when machining aluminum, while four-flute or multi-flute end mills are preferred for finishing steel and enhancing surface quality. Effective machining depends on the optimal combination of cutting speed, feed rate, tool coating, and cooling method to maintain accuracy and prolong tool life.
The Difference Between End Mills and Other Cutting Tools (Drills and Face End Mills)
Compared to drills, which primarily cut vertically downward, end mills offer additional lateral cutting capabilities. Face mills mainly serve for large-area flat surface machining but lack the flexibility needed for complex contours or deep cavity milling.
The versatility of end mills lies in their ability to perform both roughing and finishing cuts to achieve high-quality surfaces. Dedicated end mills for high-speed machining can maintain high spindle speeds while reducing tool vibration and improving cutting efficiency.
The Critical Role of End Mills in CNC Machining
End mills are more than just material removal tools; they are vital to machining efficiency, surface finish, dimensional accuracy, and overall tooling costs. Selecting the right end mill enables engineers to optimize cutting performance across diverse materials, including steel, aluminum, graphite, and carbide.
For example, in steel machining, wear-resistant, heat-tolerant coated carbide tools significantly extend tool life. In high-speed aluminum machining, large chip flutes and sharp cutting edges help prevent built-up edge formation. For deep cavity mold machining, extended shank tools with vibration-damping designs are critical.
Thus, end mills act as “efficiency amplifiers” in CNC manufacturing systems, reducing machining time and improving first-pass yield—key advantages in today’s competitive manufacturing landscape.
Detailed Classification of Common End Mill Types
End mills come in various types, each with geometries and cutting edge designs tailored for different machining needs and material properties. Understanding common end mill types helps engineers select tools suitable for machining steel, aluminum, graphite, hard materials, and specialized tasks like high-speed machining and deep cavity milling.

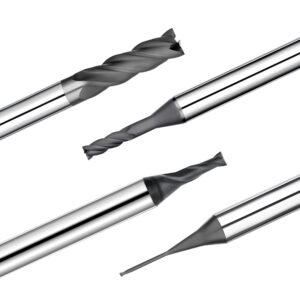

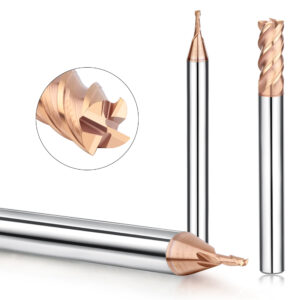

Flat End Mill – Applications, Advantages, and Disadvantages
Flat end mills are among the most widely used in CNC machining. Featuring a flat end face, they excel in slotting, side milling, step machining, and pocketing. Their cutting edges operate on both the end face and the outer circumference, enabling efficient material removal with good accuracy.
Advantages: Versatile applications, stable cutting action, effective for flat surfaces and sharp grooves.
Disadvantages: Inferior surface finish compared to ball nose end mills when machining 3D surfaces or complex contours.
For steel machining, carbide flat end mills with TiAlN coatings improve wear resistance. For aluminum, double-fluted cutters with sharp edges and large chip flutes help prevent built-up edge.
Ball Nose End Mill – The Preferred Choice for 3D Surface and Mold Machining
Ball nose end mills feature a hemispherical tip, ideal for 3D surface machining and mold finishing, particularly for complex free-form surfaces. This geometry minimizes cutting contact points, improving surface finish and reducing tool marks.
In mold manufacturing, aerospace parts, and engraving, ball nose end mills for hard materials often use CVD diamond or TiAlN coatings to handle high hardness and wear resistance. In graphite machining, PCD or CVD diamond-coated tools enhance wear resistance and dimensional stability.
Corner Radius End Mill – Extending Tool Life and Improving Strength
Corner radius end mills have a radiused corner at the intersection of the end and outer cutting edges, reducing stress concentration, which extends tool life and strengthens the cutter. They are especially suitable for hard materials and mold cavity machining.
In high-speed steel machining, these end mills enhance cutting stability and reduce chipping risks. In aluminum machining, a smaller radius balances surface quality and chip evacuation.
Tapered End Mill – Deep Cavity and Complex Contour Machining
Tapered end mills have a tapered blade, offering increased rigidity and strength. They are ideal for deep cavity milling, mold draft angles, and engraving complex 3D contours.
For deep cavity molds, tapered cutters reduce vibration and improve stability. In hard material machining, their design maintains tool life while minimizing deformation.
Roughing End Mill – Efficient Stock Removal
Roughing end mills have wavy or serrated edges to rapidly remove large stock volumes during roughing, reducing cutting forces and heat. While surface finish is less refined, material removal efficiency is greatly improved.
In steel machining, roughing cutters are used at high feed rates. In aluminum machining, roughing cutters with high helix angles and wide chip flutes prevent chip clogging and tool jams.
Specialty End Mills – Designed for Special Processes or Materials
Specialty end mills include step end mills, micro end mills, PCB mills, and composite material tools designed for specific applications like micro machining, electronics PCB milling, or aerospace composites.
In graphite machining, specialty tools may have dust-repellent coatings and optimized cutting edges. High-speed micro end mills require excellent dynamic balancing to prevent breakage.
End Mill Selection Guide for Different Materials and Machining Scenarios
In CNC machining, selecting the appropriate end mill for each material is crucial to ensuring machining efficiency, surface quality, and tool longevity. Different materials vary significantly in physical and chemical properties such as hardness, toughness, thermal conductivity, and chip evacuation difficulty. These factors directly influence cutting performance. Therefore, understanding the suitable tool geometry, coating types, and cutting parameters for each material is essential for engineers when selecting tools. This guide systematically covers end mill selection principles and machining optimization recommendations for various materials including steel, aluminum, graphite, and hard materials, as well as for special machining scenarios like high-speed machining and deep cavity milling.
End Mill for Aluminum
Aluminum’s relatively soft texture and tendency to stick to the cutting edge require end mills with excellent chip evacuation and sharp cutting edges. Typically, two- or three-flute end mills with large flutes and high helix angles are preferred. These features facilitate rapid chip evacuation and reduce the risk of built-up edge formation.
For high-speed aluminum machining, tool sharpness directly impacts cutting forces and surface finish. Combining sharp tools with appropriate cutting parameters and high feed rates achieves both high productivity and superior surface quality, making these tools ideal for precision part manufacturing.
End Mill for Steel
Steel, especially high-hardness mold steel and stainless steel, demands cutting tools with exceptional strength and wear resistance. Carbide end mills coated with TiAlN, AlTiN, or CVD diamond are excellent choices to improve wear resistance and thermal stability, significantly extending tool life.
Optimizing cutting parameters such as speed, feed, and depth of cut is critical to avoid overheating and tool chipping. Effective cooling strategies—like oil-based coolants or high-pressure coolant delivery—help reduce cutting zone temperatures, improve tool longevity, and maintain machining stability.
End Mill for Hard Materials
Machining materials with hardness above HRC60 requires tools that balance thermal resistance and mechanical strength. Carbide and diamond-coated tools offer superior wear resistance and resistance to thermal deformation.
Tool geometry should minimize cutting forces and wear while preventing chipping. Layered cutting strategies with shallow depths of cut and high feed rates, coupled with rigid fixturing, reduce tool stress and improve stability. Proper cutting parameter selection and effective cooling and lubrication are vital to maximize tool performance during intense cutting.
End Mill for Graphite
Graphite is hard, brittle, and highly abrasive, placing stringent demands on tool wear resistance. PCD and CVD diamond-coated tools provide excellent wear resistance and dimensional stability, ideal for long-duration, high-intensity graphite machining.
Additionally, graphite machining produces significant dust, which poses health risks and can damage tools and machines. Employing effective dust extraction systems and using specialized wear-resistant tools optimized for dust control helps maximize tool life and ensure safe operation.
End Mill Selection for Special Machining Scenarios
Certain CNC machining scenarios require specialized end mills engineered for high demands. High-speed machining (HSM) and deep cavity milling are two such scenarios where tool design, geometry, and cutting parameters play a critical role in maintaining accuracy, efficiency, and tool life.
End Mill for High-Speed Machining
HSM demands tools with superior rigidity, heat resistance, and dynamic stability. End mills designed for HSM typically have optimized geometries—such as increased helix angles and controlled cutting edge sharpness—to reduce cutting forces and vibration.
Dynamic balancing of these tools is essential to prevent machine vibration and tool failure at high spindle speeds. Coating technologies like AlTiN, TiAlN, or advanced nano-coatings effectively reduce heat buildup and enhance wear resistance, ensuring stable performance during prolonged high-speed cutting.
End Mill for Deep Cavity Milling
Deep cavity milling requires longer tools, making rigidity and vibration resistance key for precision. Deep cavity end mills feature reinforced shank-to-body connections and vibration-damping designs or materials to enhance stability.
Step-cutting is commonly employed to reduce cutting forces and tool deflection by making multiple shallow passes. Well-designed chip flutes and optimized cutting parameters promote smooth chip evacuation, preventing clogging and improving tool life and machining stability.
How to Select the Optimal End Mill Type Based on Machining Requirements
Choosing the right end mill is vital to achieving efficient, high-quality machining. Optimal tool selection depends on matching material hardness with tool material, adapting tool geometry to machining methods, and balancing cutting parameters for maximum tool life and productivity.
Matching Material Hardness with Tool Material
Material hardness primarily dictates tool material and coating selection. For hard materials such as mold steel, stainless steel, or HRC60+ carbides, high-performance carbide tools coated with heat- and wear-resistant layers like TiAlN, AlTiN, or CVD diamond are preferred for durability under extreme cutting conditions.
For softer materials like aluminum alloys, high-speed steel or sharp carbide tools with optimized chip evacuation features improve machining efficiency and surface finish.
Matching Tool Geometry to Machining Methods
Tool geometry influences cutting forces, chip flow, and surface finish. Roughing tools with fewer flutes and wider blades excel in heavy stock removal at high feeds. Finishing requires more flutes and refined geometries, such as ball nose or corner radius end mills, for precision and smooth finishes.
Deep cavity machining benefits from tapered tools with extended shanks and vibration control features. High-speed machining tools are designed to minimize vibration and heat buildup through optimized geometry and dynamic balance.
Balancing Cutting Parameters and Tool Life
Properly configured cutting speed, feed rate, and depth of cut balance productivity with tool longevity. Excessively high speeds risk premature tool wear or chipping, while low speeds reduce productivity.
Optimizing parameters, paired with effective cooling and lubrication, prolongs tool life and reduces vibrations and workpiece distortion. Parameter adjustments should be flexible, based on material characteristics and tool type, to fully leverage tool capabilities.
Practical Tips for Extending the Life of Different End Mill Types
Tool life directly affects productivity and manufacturing costs. Selecting the right coating, maintaining tools properly, optimizing cutting parameters, and performing regular inspections and regrinding are essential strategies to maximize tool performance and minimize downtime.
Coating Selection and Tool Maintenance
Coatings like TiAlN and AlTiN enhance heat and wear resistance, suitable for hard steel machining, while CVD diamond coatings excel in high-speed cutting of graphite and hard materials.
Regular maintenance—such as cleaning chips post-cutting, avoiding mechanical impacts, and preventing corrosion—preserves coating integrity and tool longevity.
Reasonable Cutting Speed and Feed Rate
Cutting parameters greatly impact tool life. High speeds increase efficiency but can cause overheating and chipping; low feed rates raise wear due to prolonged contact.
By tailoring speeds and feeds to material and tool type, and applying proper cooling, users can extend tool life while maintaining machining quality.
Regular Inspection and Regrinding Strategies
Frequent inspection of tool wear, chipping, and coating condition helps prevent sudden failures. Timely regrinding restores geometry and cutting performance, extending tool lifespan.
This is especially critical in high-precision mold or hard material machining to maintain accuracy and control production costs.
Summary and Recommendations
End mills are fundamental cutting tools in CNC machining, available in diverse types and designs to address various materials and machining processes. This guide explained end mill basics, classifications, and selection strategies for materials such as steel, aluminum, graphite, and hard materials, as well as special scenarios like high-speed and deep cavity machining.
Understanding these factors empowers engineers to optimize machining efficiency, accuracy, and tool life while balancing cost and quality in complex production environments.
Review of Core Characteristics of Different End Mill Types
Flat end mills suit slotting and flat surface machining; ball nose end mills excel in 3D surfaces and mold finishing; corner radius end mills extend tool life and enhance strength; tapered end mills are ideal for deep cavities and complex contours; roughing cutters and specialty tools meet high material removal and specific processing needs.
Practical Tips for Tool Selection Based on Material and Processing Method
Materials impose varying demands on tool material, coatings, and geometry. High-hardness steel benefits from wear- and heat-resistant carbide tools with TiAlN or diamond coatings; aluminum machining prioritizes sharpness and chip flow; graphite requires PCD or CVD coatings; hard materials demand thermal and mechanical durability; high-speed and deep cavity machining need dynamic balancing and vibration resistance.
Balancing Efficient Machining with Tool Economy
Scientific adjustment of cutting parameters, combined with appropriate cooling, lubrication, maintenance, and inspection, extends tool life and reduces downtime. Optimal tool selection and process control improve machining quality and efficiency while lowering costs, achieving a win-win outcome for productivity and economy.
