High-speed machining (HSM) is an essential technology for enhancing efficiency and precision in modern manufacturing, and CNC end mills are the core tools that make this process possible. Compared to conventional machining, HSM significantly reduces cycle time, improves surface finish, and minimizes the need for secondary operations. To fully leverage the benefits of high-speed machining, engineers must select the right type of CNC end mill and optimize tool parameters based on material properties and machining conditions.
Among various options, carbide CNC end mills are the most widely used due to their high hardness, excellent wear resistance, and thermal stability. Different materials impose unique demands on cutting tools:
-
CNC end mills for aluminum require sharp cutting edges and efficient chip evacuation to prevent sticking and surface scratches.
-
CNC end mills for plastic emphasize low cutting heat and avoiding melting or burr formation.
-
CNC end mills for steel and stainless steel require strong tool substrates and wear-resistant coatings to handle material hardening and high cutting forces.
-
CNC end mills for titanium focus on controlling cutting heat and extending tool life under high-speed conditions.
Beyond material and geometry, the choice of CNC end mills manufacturers also plays a critical role. A reputable manufacturer ensures consistent tool quality and enhances machining performance through advanced coatings, optimized cutting edge design, and custom solutions. With the rise of intelligent manufacturing, trends like tool life monitoring, nano-coatings, and environmentally friendly tools are becoming central to high-speed machining.
Understanding the specific requirements for HSM, selecting the right CNC end mills for each material, and partnering with high-quality manufacturers are key strategies for engineers and manufacturers aiming to maintain a competitive edge.
What is High-Speed Machining?
High-speed machining is an advanced technique that removes material at extremely high cutting speeds, spindle speeds, and feed rates. Its core principle is to maximize material removal while maintaining or improving machining accuracy and surface finish. Compared to conventional methods, HSM not only shortens production cycles but also reduces heat transfer between the tool and workpiece, effectively extending tool life.
Tool performance is crucial in this context. For example, carbide CNC end mills are widely used due to their hardness and wear resistance. Targeted tool selection is equally important: CNC end mills for aluminum focus on chip evacuation, CNC end mills for steel emphasize heat and wear resistance, and CNC end mills for titanium address cutting heat and durability concerns.
Definition and Characteristics of High-Speed Machining
High-speed machining emphasizes the balance of high efficiency + high quality. Key features include:
-
High cutting speeds: Cutting speeds are several times higher than conventional machining.
-
Excellent machining accuracy: Reduced cutting forces minimize vibration and workpiece deformation, improving dimensional accuracy and surface finish.
-
Heat concentration in chips: Cutting heat is primarily absorbed by the chip, protecting the workpiece and prolonging tool life.
-
Extended tool life: With appropriate carbide CNC end mills or specialized CNC end mills for stainless steel, tool durability and stability are significantly enhanced.
Applications in Aerospace, Mold, and Automotive Industries
HSM is widely applied in industries requiring high precision and efficiency:
-
Aerospace: CNC end mills for titanium are essential for machining titanium and nickel-based alloys, producing lightweight, high-strength complex components.
-
Mold Manufacturing: Hardened steel and stainless steel molds benefit from carbide CNC end mills, achieving smooth surfaces and accurate curves.
-
Automotive: CNC end mills for aluminum improve chip evacuation and production efficiency when machining aluminum alloy parts.
These examples highlight the importance of selecting the correct type of CNC end mill for each material.
Special Requirements for Tools in HSM
High-speed machining places unique demands on cutting tools:
-
High wear resistance: Critical for steel and stainless steel; tool coatings are essential to reduce wear.
-
Efficient heat dissipation: Key when machining plastics or titanium to prevent thermal damage.
-
Precision cutting edge design: Sharp edges and optimized geometry prevent burrs, melting, and surface defects in aluminum and plastic machining.
-
Manufacturer support: Reliable CNC end mills manufacturers provide custom solutions, ensuring longer tool life and improved machining performance.
Optimizing tool design, material, and process control is as important as machine performance in HSM.
The Role of CNC End Mills in High-Speed Machining
CNC end mills are critical to HSM, directly influencing cutting efficiency, surface finish, and tool life. Selecting the right tool is essential:
-
CNC end mills for aluminum ensure smooth chip evacuation and sharp cutting edges.
-
CNC end mills for steel and stainless steel combine high wear resistance with thermal stability.
-
CNC end mills for titanium optimize heat management and tool longevity.
Why Choosing the Right CNC End Mill is Crucial
Correct tool selection improves machining efficiency, stability, and tool life:
-
Cutting efficiency & accuracy: Geometry and coating affect forces, chip flow, and surface quality.
-
Tool life: Wear-resistant carbide CNC end mills or material-specific tools extend lifespan and reduce costs.
-
Processing stability: Reduces vibration, heat, and chipping, ensuring consistent HSM performance.
-
Material compatibility: Each material requires corresponding tooling for optimal chip evacuation and minimal heat.
Impact of Tool Materials, Geometry, and Coatings
Tool performance depends on:
-
Material: Carbide and coated high-speed steel handle high temperatures and forces.
-
Geometry: Helix, rake, and relief angles affect chip evacuation and surface finish.
-
Coating: TiAlN, AlTiN, and other advanced coatings improve wear resistance, reduce friction, and control cutting heat.
Optimizing these factors improves efficiency, surface finish, and tool stability, especially for hard-to-machine materials like stainless steel and titanium.
Common Types of CNC End Mills and Their Performance
-

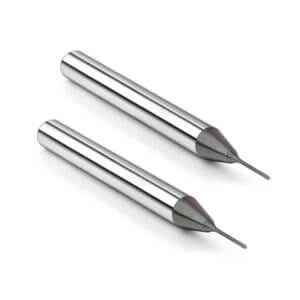

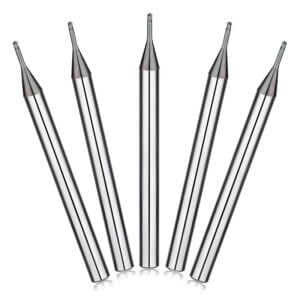

Flat End Mills: Face milling and grooving; commonly carbide for aluminum and steel.
-
Ball Nose End Mills: Curved surfaces; molds and aerospace parts.
-

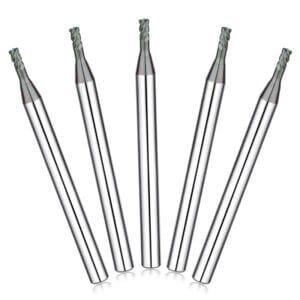

Corner Radius End Mills: Increased strength, reduced chipping; ideal for steel and stainless steel.
-
Tapered End Mills: Inclined surfaces, deep cavities; high cutting force resistance.
-
Single/Multiple Flute End Mills: More flutes improve chip evacuation and surface finish; critical for aluminum and plastic.
Selecting the right type depends on material, depth of cut, and machining strategy.
Advantages of Carbide CNC End Mills in High-Speed Machining
Carbide CNC end mills are widely used in high-speed machining and have become a core tool for improving cutting efficiency and precision. Compared to traditional HSS tools, carbide end mills provide higher hardness, superior wear resistance, and maintain a stable cutting edge under high-speed conditions. This enhances machining efficiency, extends tool life, and ensures consistent surface quality. Whether machining aluminum, steel, stainless steel, or titanium, carbide tools offer excellent cutting performance and thermal stability, making high-speed machining a reliable and efficient solution for modern manufacturing.
High Hardness and Wear Resistance of Carbide Tools
The primary advantage of carbide tools lies in their exceptional hardness and wear resistance. During high-speed machining, cutting edges are exposed to high cutting forces and frictional heat. Carbide CNC end mills minimize tool wear, maintain sharp edges, and improve surface finish and machining accuracy. For difficult-to-machine materials like stainless steel and titanium alloys, carbide’s heat and wear resistance is crucial, preventing excessive cutting heat, premature chipping, and tool failure.
Comparison with HSS Tools
Carbide CNC end mills outperform traditional HSS tools in several key aspects:
-
Higher wear resistance: Carbide maintains sharp edges at high speeds, while HSS is more prone to wear from friction and heat.
-
Suitable for high-speed cutting: Carbide end mills withstand higher spindle speeds and cutting speeds, reducing cycle time.
-
Superior thermal stability: HSS tools may soften or deform at high temperatures, whereas carbide retains consistent performance.
-
Versatile material compatibility: Carbide can machine aluminum, plastics, steel, stainless steel, and titanium alloys, whereas HSS has limited performance in hard materials.
These advantages make carbide end mills the preferred choice for high-speed machining in aerospace, mold and die, and automotive industries.
Practical Examples of Extending Tool Life in High-Speed Machining
In practice, tool life can be significantly extended by selecting the right carbide CNC end mills and optimizing cutting parameters:
-
High-Speed Aluminum Cutting: Using single- or multi-flute carbide end mills with sharp edges and high feed rates can extend tool life by 1.5–2× while improving surface finish.
-
Stainless Steel Machining: Coated carbide tools reduce wear and chipping at high speeds, lowering downtime and maintenance costs.
-
Titanium Alloy Machining: Optimizing helix angles and coating technologies for carbide CNC end mills for titanium extends tool life, enhances cutting stability, and improves efficiency.
These examples demonstrate that combining the right carbide tools with proper cutting strategies maximizes efficiency, reduces costs, and achieves high-quality results in high-speed machining.
Selecting CNC Milling Tools for High-Speed Machining of Different Materials
In high-speed machining, the physical properties of different materials impose varying requirements on tool selection. Engineers must consider tool material, geometry, number of flutes, and coating to achieve optimal machining efficiency, surface finish, and tool life. Proper selection of CNC end mills improves productivity while reducing tool wear and machining costs for aluminum, plastics, steel, stainless steel, and titanium alloys.
CNC End Mills for Aluminum – Optimizing Chip Evacuation and Finish in High-Speed Cutting
Aluminum machining is prone to tool sticking and chip accumulation. For high-speed operations, CNC end mills for aluminum should include:
-
Sharp cutting edges and proper helix angle: Enhance chip evacuation and minimize cutting heat.
-
Multi-flute design: Improve cutting stability and surface finish.
-
Carbide CNC end mills: Provide high hardness and wear resistance suitable for high-speed cutting.
Optimizing chip evacuation and cutting parameters reduces burrs, tool sticking, and scratches, while extending tool life.
CNC End Mills for Plastics – Preventing Melting, Burrs, and Tool Chipping
Plastics are sensitive to heat, which can cause melting or burrs. CNC end mills for plastic should focus on:
-
Low-heat cutting design: Use sharp edges and shallow depths to reduce frictional heat.
-
Single- or double-edge flutes: Ensure smooth chip evacuation and minimize tool load.
-
Optimized speed and feed with cooling: Prevent tool chipping and material adhesion.
These strategies maintain high machining quality, productivity, and tool stability.
CNC End Mills for Steel – Tool Load and Heat Management
Steel machining requires high wear resistance due to its hardness. High-speed cutting of steel demands:
-
Carbide or coated tools: Enhance wear resistance and heat stability.
-
Optimized geometry: Reduce cutting forces, vibration, and tool load.
-
Heat dissipation and cutting parameter control: Prevent heat buildup, tool wear, and surface hardening.
Proper control of speed, feed, and tool selection ensures stable, high-precision machining of steel parts.
CNC End Mills for Stainless Steel – Managing Hardened Layers and Tool Wear
Stainless steel often forms hardening layers during machining. For high-speed cutting:
-
Coated carbide tools: Enhance wear and heat resistance.
-
Optimized helix angle and flute count: Ensure smooth cutting and reduce vibration.
-
Cutting parameter optimization: Control depth and feed to prevent chipping.
Selecting appropriate CNC end mills for stainless steel improves surface finish, efficiency, and tool life.
CNC End Mills for Titanium – Controlling Heat and Extending Tool Life
Titanium alloys generate concentrated heat and accelerate tool wear. Strategies for high-speed machining with CNC end mills for titanium include:
-
Highly wear-resistant carbide tools: Maintain cutting edge stability at high speeds.
-
Optimized helix angle and geometry: Enhance chip evacuation and reduce heat buildup.
-
Advanced coatings and cooling methods: TiAlN or AlTiN coatings combined with proper cooling extend tool life.
These strategies improve tool longevity, surface finish, and productivity.
How to Choose the Right CNC End Mill Manufacturer
In high-speed and high-precision machining, selecting the right CNC end mill manufacturer is critical to ensuring tool performance and machining efficiency. High-quality manufacturers provide not only wear-resistant, high-hardness carbide CNC end mills but also customized tools and optimized geometries designed for specific materials—such as aluminum, steel, stainless steel, plastics, or titanium alloys. Choosing the right manufacturer improves productivity, extends tool life, and ensures a smooth surface finish.
Differences Among Manufacturers in Tool Design, Materials, and Coatings
Manufacturers vary widely in tool design, material selection, and coating technologies:
-
Tool design: Helix angles, cutting edge shapes, and tool tip geometries affect chip evacuation, cutting forces, and machining stability.
-
Material properties: Top manufacturers typically use high-hardness carbide to maintain tool durability under high-speed cutting conditions.
-
Coating technologies: TiAlN, AlTiN, or multi-layer nano coatings enhance wear resistance and thermal stability, which is critical when machining stainless steel and titanium alloys.
Selecting a manufacturer with mature technology and strong R&D capabilities ensures more stable, high-performance CNC end mills suitable for complex workpieces.
How to Evaluate a Tool Manufacturer’s R&D and Service Capabilities
Key factors include:
-
R&D capabilities: Can they provide optimized tool designs for different materials (aluminum, plastics, steel, stainless steel, titanium alloys) and customized geometries and coatings for high-speed machining?
-
Technical support and after-sales service: Do they offer cutting parameter recommendations, tool life optimization solutions, and rapid technical response?
-
Quality control: Stable production processes and rigorous inspections ensure reliability under high-speed, high-load conditions.
These capabilities directly determine tool performance stability and machining efficiency.
Balancing Cost, Performance, and Delivery Time
When choosing a manufacturer, consider:
-
Cost-effectiveness: Focus not only on individual tool price but also on overall production cost reduction through longer tool life and higher efficiency.
-
Performance stability: High-quality tools maintain smooth surfaces, effective chip evacuation, and extended tool life, reducing downtime.
-
Delivery and customization: Timely supply of standard and custom tools ensures smooth production execution.
A comprehensive evaluation helps engineers select the most suitable manufacturer, enabling efficient, stable, and cost-effective high-speed machining.
Techniques for Extending CNC Milling Cutter Life in High-Speed Machining
Tool life directly affects production costs, machining efficiency, and surface quality. The service life of CNC end mills can be significantly extended by optimizing cutting parameters, selecting proper cooling or dry cutting strategies, and implementing a robust tool maintenance and monitoring system. Whether using carbide or material-specific CNC end mills, these strategies improve machining stability, accuracy, and reduce tool change frequency.
Cutting Parameter Optimization
-
Speed: Set spindle speed according to tool and material to prevent overheating and vibration-induced wear.
-
Feed rate: Adjust feed to balance cutting load, distribute force evenly on the tool edge, and reduce chipping.
-
Depth of cut: Control depth based on material hardness and tool geometry to prevent overload and heat concentration.
Optimizing speed, feed, and depth enhances chip evacuation, machining efficiency, and tool longevity.
Coolant vs. Dry Cutting
-
Liquid cooling: Reduces heat and wear for steel, stainless steel, and titanium alloys.
-
Dry cutting: Suitable for aluminum and plastics; sharp carbide end mills ensure smooth chip evacuation.
-
Cooling strategy optimization: Proper spray angle and flow help reduce tool temperature, prevent thermal fatigue, and protect the workpiece surface.
Tool Maintenance and Monitoring
-
Regular inspection: Monitor edge wear, chipping, and coating degradation; replace or resharpen as needed.
-
Tool life recording: Track each tool’s lifecycle based on material and cutting conditions to optimize parameters.
-
Intelligent monitoring: Use sensors or tool life monitoring systems to detect cutting loads and wear trends in real-time, preventing anomalies.
Maintenance and monitoring maximize the performance of carbide CNC end mills and other material-specific end mills in high-speed machining.
Future Trends in CNC End Mills for High-Speed Machining
The demand for faster, more precise, and sustainable manufacturing is driving the evolution of CNC end mills. Future development trends include:
-
Advanced coatings: Nano- and multi-layer composite coatings enhance wear resistance, reduce friction, and improve thermal stability for materials like steel, stainless steel, and titanium.
-
Intelligent tools and monitoring systems: Real-time tracking of tool wear and cutting forces allows dynamic adjustment of cutting parameters for optimized machining.
-
Sustainable and eco-friendly tools: Reduced material usage, low-energy machining, and non-toxic coatings improve performance while minimizing environmental impact.
These innovations extend tool life, reduce machining risks, and enhance productivity while supporting eco-friendly manufacturing practices.
New Coating Technologies
Future CNC end mills will leverage:
-
Nano- and multi-layer coatings: For wear resistance, thermal stability, and oxidation resistance.
-
Low-friction coatings: Reduce heat and friction, improve chip evacuation, and maintain surface finish.
-
Material-adaptive coatings: Tailored for aluminum, plastics, steel, and titanium alloys to extend tool life and machining quality.
Intelligent Tools and Monitoring Systems
-
Tool life monitoring: Sensors track wear, vibration, and cutting forces to predict tool changes.
-
Process optimization: Dynamic adjustments optimize chip evacuation and cutting efficiency.
-
Data-driven decisions: Analysis of high-speed cutting data helps engineers select the most suitable tools and manufacturers.
Intelligent tools increase tool life, reduce downtime, and enable efficient, stable production.
Sustainable Manufacturing Trends
-
Material conservation: Optimized tool design reduces raw material usage.
-
Low-energy machining: Dry cutting reduces coolant and energy consumption.
-
Eco-friendly coatings: Non-toxic, low-pollution coatings improve tool performance and reduce environmental impact.
Sustainable practices enhance efficiency and precision while balancing environmental responsibility.
Conclusion
In high-speed machining, the selection and proper application of CNC end mills directly affects machining efficiency, tool life, and workpiece quality. The key insights from this analysis include:
The Importance of Tool Type and Material
Different materials require different types of CNC end mills, such as single-flute, multi-flute, ball-nose end mills, or coated carbide tools.
By carefully matching tool geometry, flute count, and coating technology to the workpiece material, engineers can optimize chip evacuation, reduce cutting heat, improve surface finish, and extend tool life.
Tool Management in High-Speed Machining
Optimizing cutting parameters—including spindle speed, feed rate, and depth of cut—along with choosing appropriate coolant or dry cutting strategies, and implementing systematic tool maintenance and monitoring, are essential for maximizing tool life and ensuring machining stability.
Selecting the right CNC end mill for each material reduces tool wear, minimizes machining risks, and improves overall productivity.
The Impact of Manufacturer Selection on Machining Results
High-quality CNC end mill manufacturers provide distinct advantages through superior tool design, high-performance materials, advanced coatings, and technical support services.
Evaluating manufacturers based on cost, performance, and lead time ensures a stable and efficient supply of tools, supporting high-speed and high-precision machining operations.
Future Development and Corporate Competitiveness
Emerging technologies—including advanced coatings, intelligent tools, and tool monitoring systems—alongside trends in sustainable and eco-friendly manufacturing, will enhance both performance and economic benefits of CNC end mills in high-speed machining.
Companies that integrate advanced tool technologies, optimize machining strategies, and partner with reliable manufacturers will maintain a competitive edge in the high-speed machining sector while achieving low-cost, high-efficiency, and high-quality production.
Final Thoughts

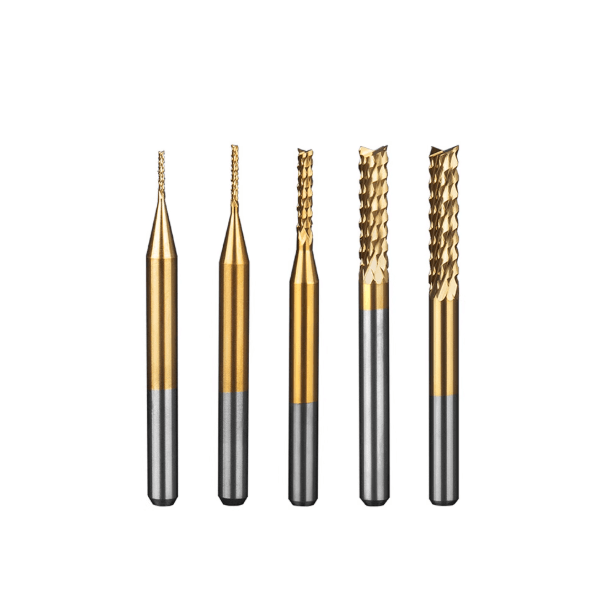

The effective application of CNC end mills in high-speed machining relies not only on selecting the right tool type and material but also on implementing scientific machining parameters, regular tool maintenance, and strong manufacturer support. By considering all these factors, engineers can enhance machining efficiency, improve surface quality, extend tool life, reduce production costs, and secure a competitive advantage in modern manufacturing.
