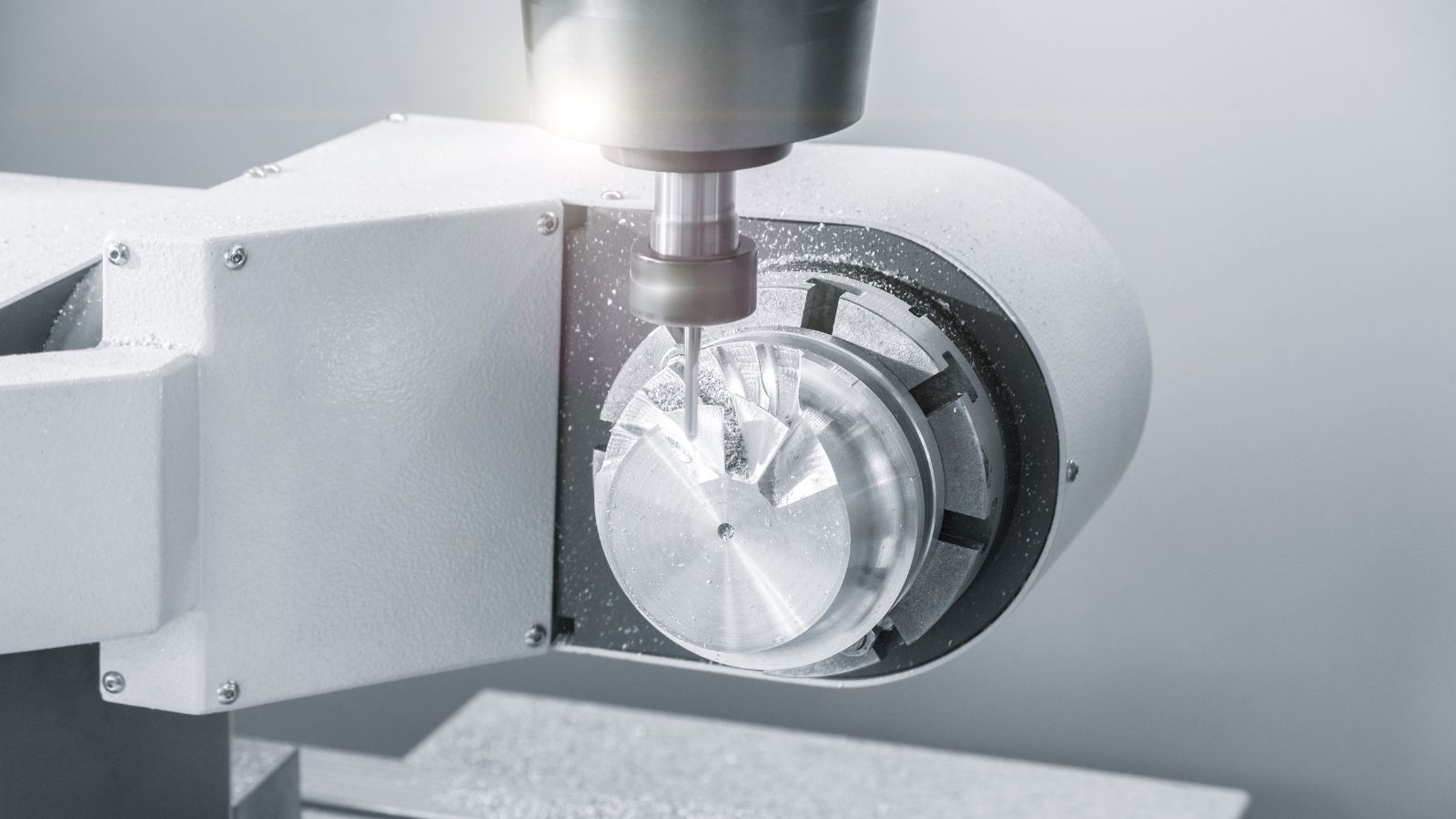

In CNC aluminum alloy processing, deep cavity milling is often regarded as a challenging area due to the high risk of tool breakage. This is caused by large machining depths, extended tool overhang, and difficult chip evacuation. Especially when selecting aluminum milling cutters, many engineers prioritize high-speed and high-feed capabilities but overlook critical factors like tool rigidity, number of flutes, and helix angle design. This often leads to problems such as tool breakage, built-up edges, and poor surface finishes.
This guide focuses on how to select the right milling cutter for deep cavity aluminum alloy processing. By referencing real-world applications—including single-flute aluminum end mills, long-shank cutters, and DLC-coated end mill tools—we analyze the topic from structural design, parameter selection, and practical tips to help machinists improve stability, enhance efficiency, and minimize breakage risks.
Why Is Tool Breakage Common in Deep Cavity Aluminum Machining?
In the CNC machining of aluminum alloys, deep cavity milling is a task that requires extremely high tool performance and processing strategies. Although aluminum is a soft metal and easy to cut, the problem is often more complicated in deep cavity structures, resulting in frequent tool breakage, tool sticking, and even workpiece scrapping of aluminum milling cutters in actual operations. The following points are common causes of tool breakage in deep cavity machining, and engineers must pay attention to them when selecting tools and setting process parameters.
Large Machining Depth and Inadequate Rigidity
As cutting depth increases, so does the tool’s overhang, which reduces rigidity. In this “long reach and short clamping” condition, even high-quality long reach aluminum end mills are susceptible to deflection and vibration, leading to tool breakage. To improve rigidity, maintain an appropriate length-to-diameter (L/D) ratio and consider using reinforced or vibration-damping toolholders.
Chip Accumulation Due to Poor Evacuation
Aluminum produces large, sticky chips. In narrow cavities or blind holes, improper chip evacuation can lead to chip buildup. This impairs cutting efficiency, promotes built-up edges, and can cause blade fracture. Using a high-helix aluminum end mill for deep pockets, along with air blast or high-pressure coolant, improves chip evacuation and minimizes these risks.
Excessive Tool Extension and Vibration
Deep cavities often require extended tool lengths. If the extension exceeds the tool’s design limits, vibration and resonance become major issues, impacting surface finish and tool life. Opt for long-shank aluminum milling cutters with optimized flute geometry and enhanced rigidity for improved performance.
Inadequate Cooling and Tool Sticking
Without proper cooling, aluminum chips may weld to the cutter, causing “built-up edge” and excessive wear. This is especially problematic in deep cavities where coolant access is limited. Choosing aluminum end mills with ZrN or DLC coatings and implementing oil mist, air cooling, or high-pressure coolant helps manage heat and prevents sticking.
Key Parameters for Selecting Aluminum Milling Cutters
To achieve high efficiency and low risk in deep cavity aluminum alloy processing, it is crucial to choose aluminum end mills properly. The tool must not only adapt to the high-speed and high-feed processing environment, but also take into account chip removal, anti-adhesion and structural rigidity. The following five key parameters are the core indicators that engineers must prioritize when selecting milling cutters for aluminum processing:
Number of Flutes: Prefer Single or Three-Flute Cutters
In aluminum processing, the chip volume is large and the toughness is strong. Too many blades will limit the chip space and cause poor chip removal. Therefore, it is recommended to use a single-edge aluminum milling cutter or a three-edge aluminum milling cutter, which can take into account good cutting sharpness and sufficient chip removal space, especially suitable for deep cavity or narrow groove processing.
Tool Material: Opt for Ultrafine Grain Carbide
Aluminum alloy cutting requires extremely high tool sharpness and good wear resistance and crack resistance. The use of ultrafine tungsten carbide can significantly improve the strength and durability of the blade, especially under high-speed spindle and long-term continuous processing conditions.
Coating: ZrN or DLC for Anti-Stick Performance
Aluminum is prone to welding with the tool. ZrN and DLC coatings reduce friction and heat buildup, preventing built-up edges and extending tool life. These are commonly used in coated aluminum end mills for finishing.
Length-to-Diameter Ratio: Keep It Within 10:1
When deep cavity processing, if the ratio of the tool’s overhang length (L) to the tool diameter (D) is too high, it will directly affect the tool rigidity and processing stability. In practical applications, it is recommended that L/D be controlled within 10 times. If a longer extension is required, a special long-shank aluminum milling cutter or a vibration-damping toolholder can be selected to reduce the risk of vibration and the probability of tool breakage.
High Helix Angle: Improve Chip Flow
High-helix (45° or more) end mills efficiently clear chips and reduce tool load. High-helix aluminum end mills are particularly effective in deep cavities and high-speed environments, providing better surface finish and lower resistance.
Tool Selection Tips for Deep Cavity Aluminum Machining
For efficient processing of deep cavity aluminum parts, it is still difficult to completely avoid problems such as tool breakage, vibration, and tool sticking by relying solely on high-quality milling cutters. To truly improve processing stability and surface quality, it is also necessary to start with the overall tool combination and strategic layout. Combined with the actual cavity structure and machine tool rigidity, formulate a suitable tool selection plan. The following four tips can help engineers achieve better cutting performance and longer tool life in complex aluminum cavity processing.
Prioritize Long-Shank Aluminum End Mills
In deep cavity structures, the tool needs to have sufficient effective extension length to reach the bottom processing area. Long-shank milling cutters designed for deep cavity aluminum alloy processing should be preferred in such scenarios. Usually with high helix angles, wide chip grooves and light cutting edge designs, it can take into account both chip removal capacity and vibration resistance. It is especially suitable for continuous cutting tasks of narrow and long cavities or high-depth grooves.
Consider Step Machining and Pre-Corner Relief
To reduce the overall load in deep cavity machining, it is recommended to use step-type cutting, that is, to divide the Z-direction cutting depth into multiple steps for step-by-step machining. This not only helps to maintain cutting stability, but also reduces the risk of tool wear and breakage. At the same time, clearing the corner area first can effectively avoid the tool from breaking at the corner due to the sudden increase in cutting load, which is a common decompression strategy in complex cavity machining.
Use Vibration-Damping Holders or Extension Rods
When the machining depth far exceeds the standard tool extension capacity, the tool extension rod can be used to increase the extension length. However, it should be used with a shock-absorbing toolholder to suppress the vibration amplification effect caused by the long overhang. Especially when using an extra-long aluminum milling cutter for side wall finishing, this type of matching combination can significantly improve machining stability and surface accuracy.
Adjust Z-Step Depth Based on Cavity Depth
In deep cavity machining, reasonable Z-direction cutting depth setting directly affects the tool force and chip removal smoothness. It is generally recommended that the cutting depth should not exceed 0.5~1 times the tool diameter, and should be adjusted dynamically according to the actual depth of the cavity and the processing method. For high-speed processing using a three-edge aluminum milling cutter, multi-level step cutting should be combined with the rigidity of the machine tool and the performance of the tool coating to achieve the purpose of reducing the tool load and extending the service life.
Practical Machining Tips to Avoid Tool Breakage
In deep cavity aluminum machining, “tool breakage” has always been one of the core issues that plague CNC engineers. Even if a high-quality aluminum end mill for deep cavity machining is selected, if the matching process strategy is inappropriate, it may still cause tool overload, chip accumulation and tool sticking, and even workpiece scrapping. The following five practical tips, covering key aspects such as cutting strategy, cooling method, parameter setting and software assistance, can greatly improve the stability of deep cavity machining and effectively reduce the risk of tool breakage.
Gradually Process in Layers to Avoid Cutting too Ddeep at One Time
In deep cavity milling, cutting too deep at one time can easily lead to a sharp increase in tool load, especially when using a long-shank aluminum milling cutter. It is recommended to use a multi-layer progressive step-down strategy for deep aluminum pockets, controlling the Z-direction cutting depth of each layer to about 0.5D (or fine-tune appropriately according to the tool instructions), which can effectively reduce the tool’s cutting resistance and heat accumulation, and improve processing stability.
Enhance Cooling
High temperatures are easily generated during aluminum cutting, and the deep cavity environment limits the effective coverage of the coolant. The use of an oil spray + air cooling combination or a high-pressure cooling system can significantly improve the thermal control of the cutting area and prevent sticking and built-up edge formation. At the same time, cooling can also improve chip removal efficiency, which is particularly suitable for high-speed milling conditions.
Optimize Parameters: Lower Radial Cut, Increase RPM
Deep cavity processing should avoid excessive radial cutting depth (ae), and it is recommended to be below 0.2D. At the same time, the spindle speed should be appropriately increased to maintain the cutting speed (Vc) to achieve light cutting and reduce vibration. This strategy is particularly suitable for three-edge aluminum milling cutters, and the effect is particularly obvious under high speed and high finish requirements.
Simulate Toolpaths to Prevent Interference
Before machining complex cavities, using CAM software for path simulation and interference detection can detect potential problems in advance, such as path overcutting, tool interference, and residual material accumulation. This step is particularly important for multi-axis or multi-level stepped cavities, which helps to avoid the risk of tool breakage caused by tool collision or sudden change in cutting depth.
Recommended Deep Cavity Milling Tools for Aluminum
In deep cavity aluminum processing, the selection of suitable aluminum end mill for deep pockets is not only related to efficiency and surface quality, but also directly affects processing stability and tool life. Especially when facing high specific depth, small space or high-gloss surface requirements, ordinary general-purpose milling cutters are often unable to meet the needs. Therefore, for different deep cavity processing scenarios, the following two deep cavity milling cutters designed for aluminum alloys are recommended. With a reasonable tool selection strategy, engineers can achieve more ideal processing results in practical applications.
Single-Flute Ultra-Long Shank Aluminum End Mill
This series adopts a super long shank design (long shank aluminum end mill), with sharp single-edge geometry and large chip removal grooves, which effectively improves the deep cavity chip removal ability and processing stability. The tool is suitable for high-speed and small tool cutting, and is often used for deep cavity and blind hole processing of lightweight materials such as aviation aluminum and die-cast aluminum. It has good vibration resistance and can effectively avoid tool breakage and chip sticking problems.
Three-Flute DLC Coated Deep Cavity End Mill
This 3 flute DLC coated aluminum end mill for long tool life not only takes into account chip removal and wear resistance, but also strengthens the thermal stability and tool life during continuous processing. The main features are as follows:
- Three-flute structure: takes into account cutting efficiency and tool rigidity, suitable for semi-finishing and finishing.
- DLC coating (diamond-like carbon coating): has extremely low friction coefficient and excellent anti-adhesion performance, significantly reducing the risk of tool sticking and built-up edge.
- High-precision tool substrate: made of ultra-fine tungsten carbide material, with good wear resistance and fracture toughness.
- Applicable scenarios: continuous high-load milling, finishing of thin wall parts, especially suitable for users with high tool life requirements in mass production.
Tool selection suggestion: match the length-to-diameter ratio according to the processing depth and hole diameter
When selecting tools for deep cavity aluminum parts processing, the length-to-diameter ratio (L/D) matching is extremely critical. It is usually recommended:
- Processing depth ≤ 5D: standard long-shank aluminum milling cutter can be selected.
- Processing depth 5D~10D: Extended or extra-long shank milling cutters should be used, and used with shock-absorbing shanks.
- For small apertures or thin-walled areas: single-edge light cutting design should be given priority to reduce lateral forces.
- Continuous large-scale processing: products with coating reinforcement and thermal stability are more cost-effective.
Based on the above factors, engineers should select the model based on the actual working conditions (workpiece material, equipment capacity, clamping method) to ensure a balance between tool rigidity, chip removal capacity and thermal control capacity.
