In modern CNC machining, aluminum alloy is a lightweight material with excellent thermal conductivity and low cutting resistance, widely used in aerospace, automotive, mold making, and electronics industries. However, machining aluminum is not as straightforward as “soft material equals easy machining,” especially in high-speed milling or mirror finish applications. Improper tool selection can easily lead to issues such as built-up edge (BUE), tool sticking, surface roughness, and premature tool wear. Therefore, choosing the right end mill bit specifically designed for aluminum machining can significantly boost efficiency, extend tool life, and reduce overall production costs.
This article systematically explains how to select the proper end mill bits for aluminum under various conditions by considering aluminum’s material characteristics, tool geometry, blade count, tool materials, and coating types. Additionally, we share practical tips for efficient chip evacuation, parameter optimization, and common pitfalls to avoid—based on years of hands-on CNC machining experience.
Why Does Aluminum Machining Require Special Tool Considerations?
Though aluminum alloys are commonly machined, their unique physical properties demand specialized cutting tools. Selecting the right CNC end mill bits tailored for aluminum not only enhances machining efficiency but also ensures stable surface quality and prolongs tool life.
Physical Properties of Aluminum: Low Hardness, High Ductility, and High Thermal Conductivity
Aluminum alloys typically feature low hardness, high ductility, and excellent thermal conductivity, which influence machining in two key ways:
-
Low hardness reduces cutting resistance, making the material relatively easy to machine.
-
High ductility causes chips to adhere easily to the cutting edge, complicating chip evacuation.
-
High thermal conductivity helps dissipate heat but can transfer it quickly to the tool, accelerating wear.
Therefore, endmill bits with well-designed chip flutes and sharp cutting edges are essential to maintain stable performance during high-speed machining of aluminum.
Common Aluminum Machining Issues: Built-Up Edge, Tool Sticking, and Surface Whitening
Aluminum tends to undergo plastic deformation during cutting. Under high temperature and pressure, chips may stick to the cutting edge, forming a built-up edge (BUE). This leads to:
-
Altered tool edge geometry, affecting cutting accuracy.
-
Scratches, whitening, or roughness on the workpiece surface, degrading finish.
-
Increased localized tool wear and reduced tool life.
To combat these problems, aluminum end mill bits with mirror-polished flutes combined with appropriate cooling methods—such as oil mist lubrication or high-speed air cooling—are recommended. Coated tools with strong anti-sticking properties, like TiB₂ or ZrN coatings, effectively minimize BUE formation.

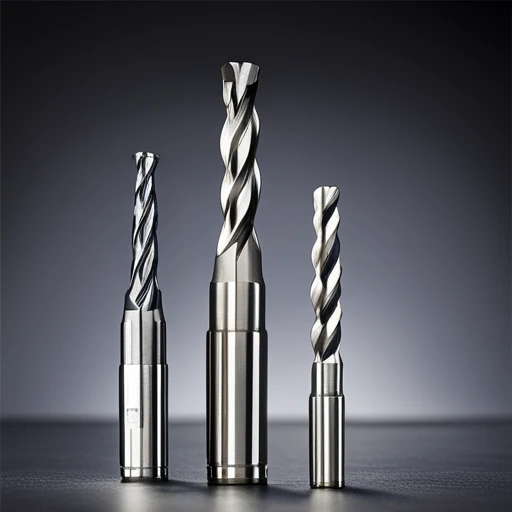

Core Selection Criteria for Aluminum End Mill Bits
Aluminum is relatively easy to machine but requires tools optimized in geometry and structure. When selecting endmill bits for aluminum, it is vital to consider blade count, edge sharpness, and helix angle alongside material and coatings to improve efficiency and surface finish.
Recommended Blade Count: 2-Blade or 3-Blade Designs
For aluminum machining, 2- or 3-flute end mill bits are most effective.
-
2-flute tools provide larger chip clearance, ideal for high-speed roughing with deep cuts and long profiles, reducing chip clogging.
-
3-flute tools balance chip evacuation and tool rigidity, making them suitable for contouring and finishing where surface quality is critical.
Edge Design: Sharp Edge vs. Micro-Chamfered Edge
Aluminum’s ductility makes sharp cutting edges essential for reducing cutting forces and achieving smooth finishes, especially in mirror finishing or thin-walled parts. However, excessively sharp edges can chip under vibration at high speeds. Slightly micro-chamfered edges enhance edge strength and machining stability in such cases.
Helix Angle and Chip Evacuation
Aluminum chips are typically large and soft, requiring efficient evacuation. End mill bits with high helix angles (45° to 55°) promote fast chip removal, minimizing tool sticking and surface roughness. However, higher helix angles can reduce tool rigidity, especially in deep cavity or long overhang machining, so selection should align with specific process needs.
Impact of Tool Materials on Aluminum Machining Performance
Tool material choice directly affects cutting efficiency, surface finish, and tool life. Different mill end bits vary widely in their suitability for aluminum machining depending on application and budget.
Carbide vs. High-Speed Steel (HSS) Tools
Carbide end mill bits are the industry standard for aluminum machining, offering superior wear resistance and thermal stability. They excel in high-speed, high-feed, and precision applications, maintaining longer tool life and stable cutting performance—especially in automated or high-volume production.
In contrast, HSS tools offer better toughness but wear faster and generate more heat at high speeds, limiting their use in modern efficient aluminum machining. Unless cost constraints are severe or machining demands are low, HSS tools are generally not recommended for batch or precision aluminum work.
Are Special Tools Like PCD and DLC Worth Considering?
For ultra-high surface quality or extreme productivity, PCD (polycrystalline diamond) and DLC (diamond-like carbon) coated end mill bits are gaining popularity.
-
PCD tools feature exceptional hardness and wear resistance, ideal for mirror finish on high-precision parts like LED reflectors and automotive molds. Despite high cost and limited applications requiring rigid machines, their low cutting resistance and longevity justify investment in high-end machining.
-
DLC coatings offer outstanding anti-adhesion and low friction, preventing built-up edge and improving finish in high-speed environments requiring tight chip control.
In aerospace, aluminum profile fabrication, and electronics, these advanced tools can provide superior cost-effectiveness over time.
Coating Types and Recommendations for Aluminum Machining
Beyond tool material and geometry, coatings significantly impact adhesion resistance, chip flow, and surface quality in aluminum machining.
Recommended Coatings: ZrN, TiB₂, and Uncoated (Polished Edge) Tools
-
ZrN (Zirconium Nitride) coatings provide excellent lubricity and anti-sticking properties. Their golden color is common in high-speed aluminum cutting tools. ZrN’s low friction and good thermal conductivity reduce tool overheating and inhibit BUE.
-
TiB₂ (Titanium Diboride) coatings deliver superior anti-stick performance, especially for high-silicon aluminum alloys. They enhance heat and wear resistance, improving mirror finish quality.
-
Uncoated Polished Tools with mirror polishing can outperform coated tools in some aluminum machining scenarios by minimizing friction and chip adhesion, especially in ultra-high-speed or soft aluminum finishing.
Why Are Some CNC End Mill Bits Better Uncoated?
Unlike steel machining, aluminum cutting benefits more from friction reduction and optimized chip evacuation than extreme tool hardness. Some ultra-polished end mill bits perform better uncoated, particularly for pure or low-silicon aluminum.
Moreover, common steel coatings like TiAlN or AlCrN may react chemically with aluminum, causing sticking issues. Hence, coating choice must consider aluminum type, cutting parameters, and cooling strategies.
Selecting Tool Shapes Based on Different Machining Needs
Different CNC aluminum machining tasks—roughing, finishing, slotting, chamfering—require specific tool shapes and geometric features. Proper matching of tool design to operation enhances efficiency, surface quality, tool life, and process stability.
Tool Selection Differences: Roughing vs. Finishing
-
Roughing: Focuses on rapid material removal with tools offering high rigidity and large chip spaces. 2- or 3-flute end mills with large flutes or chip breakers (wavy edges) are recommended for heavy cuts and broad widths.
-
Finishing: Prioritizes dimensional accuracy and surface finish using sharp, polished edge tools with small depth and feed. Micro-chamfered or mirror-polished end mills reduce burrs and improve surface consistency.
Slotting, Contouring, Countersinking, and Chamfering: Corresponding Tool Geometries
-
Slotting: Use 2- or 3-flute straight or short-flute end mills for effective chip clearance and flat bottoms.
-
Contouring: Requires side cutting performance and vibration resistance; medium to high helix angles with slight chamfer improve edge finish and stability.
-
Countersinking: Dedicated 90° or 120° countersink tools or combination tools enhance multi-feature machining efficiency.
-
Chamfering: V-shaped or standard 45° chamfer tools with fine grinding ensure consistent chamfers and surface quality.
Matching tool geometry to machining strategy ensures optimal tool durability and machine load control.
Tips and Precautions for Extending Tool Life
Even the best CNC end mill bits for aluminum can wear out quickly—or even break—if paired with incorrect machining parameters or improper cooling methods. To truly maximize machining efficiency and extend tool life, proper tool selection is just the first step. It’s equally important to fine-tune cutting parameters, use effective lubrication methods, and monitor tool conditions in real time. The following tips are critical for improving tool longevity and ensuring consistent performance.
Recommended Speed, Feed Rate, and Cutting Width/Depth
Aluminum alloys are relatively soft, allowing for higher spindle speeds and faster feed rates. The typical parameter recommendations for aluminum machining using CNC end mill bits are:
-
Spindle Speed (RPM): Between 12,000–25,000 rpm, depending on tool diameter and spindle capacity.
-
Feed per Tooth (fz): Typically 0.03–0.2 mm/tooth. Two-flute and three-flute end mill bits offer ideal balance for both chip removal and strength.
-
Radial Depth of Cut (ae): For roughing, 50–80% of tool diameter; for finishing, reduce to minimize vibration.
-
Axial Depth of Cut (ap): Roughing can reach up to 1×D; finishing should be lighter for better surface finish.
Properly matching these parameters with your tool geometry helps enhance cutting efficiency, improve surface finish, and dramatically extend tool life.
Cooling and Lubrication: Water Cooling vs. Atomized Oil Mist
During high-speed aluminum machining, managing heat buildup is essential to avoid built-up edge (BUE) and maintain edge sharpness. Two common cooling methods include:
-
Flood Cooling: Best for low to medium-speed operations. It offers strong cooling and chip flushing, but may cause thermal shock or runout issues in high-speed spindles.
-
Atomized Oil Mist Cooling: Ideal for high-speed CNC aluminum machining. It offers both cooling and lubrication, reduces friction, inhibits chip welding, and improves surface finish. This is the preferred method for modern high-performance CNC aluminum operations.
Tool Wear Identification and Replacement Guidelines
Monitoring tool wear in real time prevents sudden tool failure and scrap. Here are typical wear stages for aluminum end mill bits:
-
Minor Wear: Slight dulling or darkening at the cutting edge—still usable.
-
Moderate Wear: Small chipping or rounding at the edge tip—surface finish begins to degrade.
-
Severe Wear: Obvious edge chipping or size deviation—replace immediately.
Additional red flags include changes in chip color, increased cutting noise, surface whitening, or vibration marks. Setting up a tool life tracking system can help preempt tool failure and minimize production disruptions.
Recommended End Mill Bits for Aluminum Machining
Choosing the right brand and model of CNC end mill bits is a critical step in achieving efficient and stable aluminum machining. With so many aluminum-specific tools available, it’s important to weigh performance, price, and application range. Here’s a breakdown of popular options for different budgets.
Overview of Popular Brands and Product Lines
SAMHO High-Performance Carbide End Mills
SAMHO’s carbide end mills are engineered for durability and precision. Their aluminum-specific series features optimized flute geometries and mirror-polished cutting edges that enhance chip evacuation and surface finish. SAMHO offers various flute counts and coating combinations tailored for different aluminum alloys—from roughing to ultra-fine finishing.
Global Leaders: Kennametal, Mitsubishi, etc.
These international brands offer robust tool technologies for high-speed aluminum applications. Their end milling bits often feature advanced coatings (such as TiB₂ or DLC) and high-helix flute geometries, ideal for aerospace and electronics-grade manufacturing.
Competitive Domestic Brands
In recent years, domestic manufacturers like SAMHO have introduced cost-effective CNC end mill bits for aluminum that rival imported brands in performance. These options provide solid chip removal, wear resistance, and competitive pricing—making them ideal for small to medium-sized businesses managing bulk production.
Cost-Effective Tool Recommendations by Budget
-
Premium Recommendation:
For operations that demand the highest surface finish and longest tool life, choose carbide mill end bits with TiB₂ or ZrN coating and mirror-polished edges. These tools are ideal for high-speed finishing, mirror-grade parts, and automated production environments. -
Mid-Range Recommendation:
For general-purpose aluminum machining, 3-flute or 4-flute carbide end mill bits from SAMHO and similar brands offer a strong balance of durability and chip evacuation. They provide stable performance at a moderate cost and are suitable for small and mid-sized production runs. -
Budget-Friendly Recommendation:
For non-critical parts or prototype production, HSS tools or uncoated carbide bits can still yield acceptable results if cutting parameters are properly managed. These are suitable for manual machines or short-run batches with limited performance requirements.
Tool Selection for Aluminum: There’s No One-Size-Fits-All
Aluminum alloys are widely used across industries—from aerospace and automotive to molds and electronics. However, their distinct material properties mean that tool selection for aluminum machining must be highly targeted. As demonstrated throughout this guide, everything from aluminum’s low hardness and high ductility to its built-up edge tendencies demands a tailored approach in choosing the right end mill bits.
Align Tool Choice with Material, Machine, Precision Goals, and Production Strategy
Effective tool selection isn’t just about the material. It should also consider:
-
Machine Tool Rigidity
-
Dimensional Accuracy Requirements
-
Production Volume and Speed Goals
For roughing, opt for 2- or 3-flute end mill bits with large chip gullets for better evacuation. For finishing, sharp-edged tools with high polish reduce friction and improve surface quality. Similarly, the right cooling strategy—such as mist or air-oil lubrication—can drastically impact tool life.
When it comes to tool materials, carbide remains the mainstream choice for its balance of strength and wear resistance. But for high-precision applications, PCD or DLC-coated bits can outperform standard tools. Balancing brand reputation, tool performance, and budget helps you make the most cost-effective decision.
Choosing the Right End Mill Bit Is the First Step Toward Efficiency and Cost Control
The first step in running a successful CNC aluminum machining project is choosing the right tool. With proper tool geometry, coating, cutting parameters, and cooling method, you can reduce scrap rates, lower tool replacement frequency, and improve both surface finish and process consistency.
In short, tool selection for aluminum machining is a strategic decision—one that requires understanding of materials, machine capabilities, production needs, and cost considerations. We hope this guide helps CNC engineers and manufacturers make informed decisions and achieve more efficient, stable, and cost-effective aluminum machining results.
