Different materials present unique tooling requirements during CNC machining, and the choice of the end milling tool directly impacts machining efficiency, surface quality, and tool life. Whether machining steel, stainless steel, aluminum alloys, or titanium alloys, properly matching different types of tools—carbide end milling tools, roughing end milling cutters, and finishing end milling cutters—is essential for achieving efficient material removal and consistent precision.
In production, roughing typically requires a roughing end milling cutter with high material removal rates (MRR) and excellent chip-breaking capabilities, while finishing relies on a finishing end milling cutter to achieve smooth surfaces and tight dimensional tolerances. Carbide end milling tools, with their high hardness, wear resistance, and thermal stability, have become the mainstream choice for machining mold steel, stainless steel, and other difficult-to-machine alloys.
Selecting the right end mill involves not only tool material and coatings but also considering workpiece properties such as hardness, toughness, and thermal conductivity. By optimizing tool combinations and cutting parameters, engineers can extend tool life, reduce manufacturing costs, and ensure consistent quality and stability in finished parts.
What is End Milling? — Basic Concepts and Processing Characteristics
End milling is a machining method in which a rotating tool removes material from a workpiece to form grooves, faces, or complex contours. Its key feature is the multi-directional cutting capability, allowing it to machine flat surfaces, curved surfaces, inclined features, and complex 3D geometries. Tool design and type directly affect machining accuracy, surface finish, and cutting efficiency. Understanding these fundamentals is crucial for selecting the right tool for a specific application.
End mills are typically made of carbide or HSS. Common carbide end mills offer high hardness, wear resistance, and thermal stability, suitable for machining a variety of materials, including steel, stainless steel, and aluminum alloys. During roughing, roughing end milling cutters rapidly remove bulk material, while finishing end milling cutters ensure smooth surfaces and precise dimensions.
Definition and Applications of End Milling
End milling uses both the peripheral and end cutting edges of a tool to cut workpieces. Applications include:
-
Machining linear grooves and pockets
-
Contouring and complex 3D surfaces
-
Face milling and beveling
-
Mold and die machining
Tool selection depends on material and process requirements: carbide end milling tools are suitable for hard materials, roughing end milling cutters for high-efficiency material removal, and finishing end milling cutters for precision surface finishing.
The Importance of End Milling in CNC Machining
End milling is central to CNC machining because it determines part geometry, surface finish, and overall machining efficiency. Proper tool selection, cutting parameters, and tool material reduce wear, maintain cutting stability, and minimize scrap and rework. For high-hardness materials, carbide end mills enhance machining efficiency while ensuring high-precision, high-quality production.

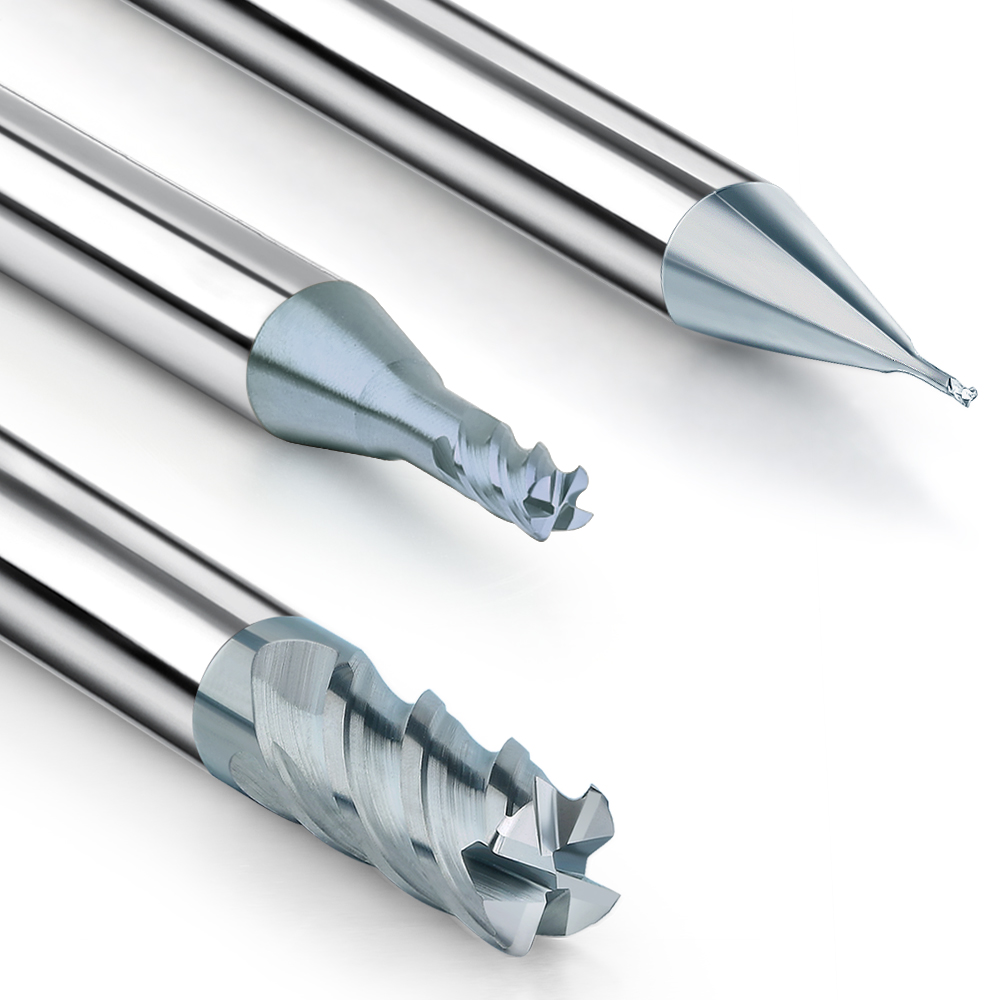

Overview of Common End Mill Types
Common end mill types include:
-
Square end mills: For face milling, grooving, and contouring
-
Ball nose end mills: For 3D curved surfaces and high-quality finishes
-
Corner radius end mills: Reduce tip chipping and extend tool life
-
Roughing end milling cutters: Chipbreaker design, high MRR
-
Finishing end milling cutters: Sharp, precise geometry for surface finishing
Selecting the right combination of roughing and finishing end mills enables efficient and high-precision machining from roughing to final finishing.
The Impact of Material Properties on End Milling Tool Selection
Workpiece properties, such as hardness, toughness, thermal conductivity, and chemical composition, directly influence tool wear, cutting stability, and surface quality. Choosing the correct carbide end milling tool, roughing end milling cutter, or finishing end milling cutter requires careful alignment of tool characteristics with material behavior to achieve efficient, precise, and cost-effective machining.
How Hardness, Toughness, and Thermal Conductivity Influence Tool Selection
-
Hardness: Higher hardness requires tools with high wear resistance. Carbide end mills are ideal for high-hardness steels and mold steels.
-
Toughness: Tough materials can cause edge chipping; controlled cutting parameters are necessary.
-
Thermal conductivity: Low-conductivity materials (e.g., titanium alloys) heat up quickly, accelerating wear. Coated carbide tools and proper cooling strategies are recommended. High-conductivity materials like aluminum dissipate heat quickly but may lead to built-up edge, requiring specialized roughing tools.
Differences in Machining Steel, Stainless Steel, Aluminum Alloys, and Titanium Alloys
-
Steel: Medium-to-high hardness; use carbide end mills. Roughing for bulk removal, finishing for smooth surfaces.
-
Stainless steel: High toughness; prone to built-up edge. Coated carbide tools extend tool life.
-
Aluminum alloys: Low hardness and cutting temperature; high-helix roughing or coated finishing tools reduce sticking and improve surface finish.
-
Titanium alloys: High hardness, low thermal conductivity; control cutting speeds and use high-temperature-coated carbide end mills for optimal results.
Balance between Tool Life and Workpiece Surface Quality
Tool life and surface quality often trade off:
-
High cutting parameters increase MRR but accelerate wear and may degrade surface finish.
-
Low cutting parameters extend tool life but reduce efficiency.
Combining roughing end milling cutters for initial material removal and finishing end milling cutters for surface finishing optimizes both tool life and surface quality. Tool geometry, coatings, cooling, and cutting path optimization further improve machining stability.
Advantages and Applications of Carbide End Milling
Carbide end mills are mainstream in modern CNC machining due to high hardness, wear resistance, and thermal stability. Compared to HSS tools, they enable high-speed machining, longer cutting life, and superior efficiency. Combining roughing and finishing end mills with optimized carbide grades and coatings improves efficiency, extends tool life, reduces rework, and lowers costs.
Why Carbide is the Mainstream Tool in Modern CNC
Carbide maintains a sharp edge, resists chipping, and retains cutting performance at high temperatures. Compared to HSS, carbide tolerates higher speeds and feed rates, improving MRR and productivity.
Carbide End Milling Performance in Steel, Stainless Steel, and Aluminum
-
Steel: Resists wear and chipping; suitable for high-speed roughing and precision finishing.
-
Stainless Steel: Tough and prone to built-up edge; carbide tools with optimized geometry/coatings enhance stability.
-
Aluminum: Enables high-feed machining, reduces sticking, maintains smooth surfaces during finishing.
Selecting the right tools and combining roughing and finishing cutters enables a full-process workflow from high-efficiency roughing to high-precision finishing.
The Role of Coating Technologies (TiAlN, AlTiN, DLC, etc.) in Improving Carbide End Milling
Coatings improve carbide end mill performance:
-
TiAlN/AlTiN: Wear and high-temperature resistance, ideal for steel and heat-resistant alloys
-
DLC: Low friction, reduces sticking and built-up edge, ideal for aluminum and copper alloys
-
Multi-layer coatings: Improve wear resistance, thermal crack resistance, and cutting stability
Coated carbide end mills maintain tool sharpness during finishing and achieve high MRR during roughing, ensuring high surface quality and dimensional stability.
Roughing End Milling – The Choice for Efficient Roughing
The roughing stage focuses on rapidly removing the bulk of material, preparing the workpiece for finishing. Selecting the right roughing end milling cutter increases MRR, reduces cutting load, and minimizes tool wear, improving overall machining efficiency. Carbide end mills, combined with optimized roughing geometry and coating, maintain stable performance at high cutting speeds, making them ideal for modern CNC roughing.
Efficient roughing depends on tool geometry, cutting parameters, and chip evacuation strategies to extend tool life and reduce production costs.
Design Features of Roughing Tools (High Helix Angle, Chipbreaker)
Roughing tools often include:
-
High helix angle: Enhances chip evacuation, reduces cutting forces, minimizes vibration, and improves cutting stability.
-
Chipbreaker design: Breaks long chips to prevent accumulation and workpiece surface damage.
-
Thickened blades and reinforced tip: Increase chipping resistance for high-speed material removal and hard material machining.
These features enable roughing end milling cutters to remove large volumes of material efficiently while reducing wear and enhancing stability.
How to Improve MRR in Roughing
Key methods include:
-
Tool diameter and flute count: Larger diameters and optimized flutes increase cutting area and material removal.
-
Cutting parameters: Adjust depth and width of cut to maximize MRR while controlling feed and speed.
-
Chip evacuation: Chipbreakers and cutting fluid reduce blockage and stabilize cutting.
-
Toolpath optimization: Efficient strategies like constant height, width, or contour compensation ensure uniform tool load.
These practices maximize roughing efficiency and lay the groundwork for high-quality finishing.
Roughing End Milling Strategies for Different Materials
-
Steel and die steel: Use carbide roughing tools with wear-resistant coatings; moderate depth to balance load and MRR.
-
Stainless steel: High helix angle and optimized chipbreaker reduce built-up edge; moderate cutting speed.
-
Aluminum alloys: High-feed roughing tools with anti-sticking coatings reduce chip clogging and improve efficiency.
-
Titanium alloys: High hardness and low thermal conductivity require carbide tools with heat-resistant coatings; control speed and depth to extend tool life.
Optimizing tool choice, cutting parameters, and toolpath ensures efficient and stable roughing.
Finishing End Milling – The Key to Surface Quality and Accuracy
Finishing aims to produce smooth surfaces, high dimensional accuracy, and precise geometry. Selecting the right finishing end milling cutter is essential. Compared to roughing tools, finishing tools feature sharper edges, precise geometry, and stable cutting performance, achieving superior surface quality at low cutting depths and moderate feed rates.
Carbide end mills with advanced coatings reduce wear and enhance stability during finishing, supporting high-precision machining for molds, precision parts, and industrial components.
Geometric Features of Finishing Tools (Tip Radius, Edge Sharpness)
-
Tip radius: Reduces stress concentration, prevents chipping, and improves surface finish.
-
Edge sharpness: Ensures smooth cutting, reduces force fluctuation, and lowers surface roughness.
Precision finishing end mills maintain high accuracy even at micro-cutting depths, suitable for complex cavities and curved surfaces.
The Role of Finishing End Milling in Mold and Precision Part Machining
In mold and precision parts, finishing end mills eliminate roughing tool marks and enable fine machining on complex surfaces. Carbide tools support steel, stainless steel, and aluminum alloys, enhancing surface finish while minimizing chipping and defects.
How to Select Appropriate Cutting Parameters to Achieve Mirror-Level Surface Quality
-
Depth of cut: Micro-depths reduce tool force fluctuations.
-
Feed rate and speed: Optimize for stable cutting and minimal tool marks.
-
Toolpath strategy: Constant height, width, or precise contour paths ensure uniform load.
-
Cooling and lubrication: Proper use of cutting fluids or gas cooling reduces temperature, prevents chip buildup, and extends tool life.
Optimized parameters and precise tool geometry enable mirror-level finishes with consistent dimensional accuracy.
End Milling Tool Selection Guide for Different Materials
Properly matching tool material, geometry, and parameters improves efficiency and surface quality. Combining roughing and finishing end milling cutters ensures both rapid material removal and high-precision surface finishing.
Steel and Tool Steel – Best Practices for Carbide End Milling
-
Tool material: Carbide end mills with high hardness and wear resistance.
-
Tool type: Roughing for bulk removal; finishing for smooth surfaces.
-
Cutting parameters: Moderate depth and feed to prevent chipping and maintain accuracy.
This combination achieves high efficiency, precision, and tool longevity.
Stainless Steel and Heat-Resistant Alloys – Advantages of Coated Tools
-
Tool selection: Coated carbide end mills improve wear resistance and reduce sticking.
-
Tool geometry: High helix angle and optimized chipbreakers improve stability.
-
Machining strategy: Roughing for bulk removal, finishing for precision surfaces.
Coatings extend tool life while maintaining machining stability and surface quality.
Aluminum Alloys – Choosing Roughing vs. Finishing Tools
-
Roughing: High-feed roughing end mills increase removal efficiency and prevent clogging.
-
Finishing: Sharp geometry ensures smooth surfaces.
-
Coating: Low-friction or special coatings reduce sticking and chip buildup.
Combining roughing and finishing tools improves efficiency and surface quality.
Titanium Alloys and Difficult-to-Machine Materials – High-Speed Cutting and Tool Wear Resistance
-
Tool material: Carbide end mills with heat-resistant coatings.
-
Machining strategy: Wear-resistant roughing for controlled material removal; finishing for high-precision surface.
-
Cutting parameter optimization: Moderate feed, reduced speed, and fluid cooling extend tool life and stability.
Balanced tool and cutting strategy maintain efficiency, surface quality, and tool longevity.
Common Problems and Solutions in End Milling
Even with high-performance carbide end mills, issues such as tool chipping, built-up edge, or poor surface finish may occur. Targeted solutions improve efficiency and tool life while maintaining quality.
Tool Chipping, Built-up Edge, and Difficult Chip Evacuation
Causes: Excessive cutting forces, improper depth, or material properties.
Solutions:
-
Use roughing end mills with chipbreakers or coated tools.
-
Adjust cutting parameters to reduce load.
-
Apply cutting fluid or gas cooling for chip evacuation and temperature control.
Causes of Excessive Roughness and Inadequate Precision
Causes: Worn finishing tools, poor cutting parameters, or uneven toolpaths.
Solutions:
-
Use sharp finishing end mills or coated carbide tools.
-
Optimize toolpath strategies (constant height/width, fine stepover).
-
Monitor tool wear and replace as needed.
How to Extend the Life of Carbide End Milling Tools
Key measures:
-
Proper tool selection: Roughing and finishing combination.
-
Cutting parameters: Adjust based on material properties.
-
Coating: TiAlN, AlTiN, DLC for wear and temperature resistance.
-
Cooling: Proper cutting fluid or gas.
-
Toolpath optimization: Even load distribution reduces vibration.
These practices extend tool life while maintaining efficiency and surface quality.
Summary: How to Select the Appropriate End Milling Tool for Different Materials
Selecting the right end milling tool is crucial for achieving efficient and stable CNC machining. Different materials have varying requirements regarding tool material, geometry, coating type, and cutting parameters. Strategically pairing a carbide end milling tool with a roughing end milling cutter and a finishing end milling cutter allows high MRR during roughing while maintaining surface finish and dimensional accuracy during finishing.
In addition, advanced coating technologies and optimized tool geometry enhance tool wear resistance and thermal stability, reducing edge chipping, chip buildup, and improving chip evacuation, thereby extending tool life and lowering machining costs. Developing a targeted tool selection strategy for different materials ensures comprehensive optimization of machining efficiency, surface quality, and tool longevity.
Combining Roughing and Finishing Tools
-
Roughing: Use a roughing end milling cutter with a large helix angle, chipbreaker design, and appropriate carbide grade to efficiently remove material, reduce cutting force fluctuations, and improve stability.
-
Finishing: Use a finishing end milling cutter or precision finishing end mill with sharp cutting edges and corner radius to achieve high surface finish and dimensional accuracy.
-
Combination Strategy: A rational combination of roughing and finishing tools optimizes tool efficiency, extends tool life, and ensures final part quality.
Select the Appropriate Tool Grade and Coating Based on Material
-
Steel and Mold Steel: For high-hardness materials, prefer carbide end milling tools; apply coatings when enhanced wear resistance is required.
-
Stainless Steel and Heat-Resistant Alloys: Use coated carbide end mills to improve chip evacuation and maintain cutting stability.
-
Aluminum Alloys: Choose low-friction coatings or finishing tools with sharp edges to minimize tool sticking and ensure smooth surface finish.
-
Titanium Alloys and Difficult-to-Machine Materials: Use tools with high heat-resistant coatings and carefully control cutting depth and speed to balance tool life and machining efficiency.
Matching tool grades and coatings to the material characteristics ensures stable machining performance under varying operational requirements.
Comprehensive Strategy for Improving Machining Efficiency and Surface Quality
-
Cutting Parameter Optimization: Adjust cutting speed, feed rate, and depth of cut according to material hardness and toughness to maintain uniform tool load and reduce vibration.
-
Tool Path Strategy: Employ efficient toolpaths—such as constant height, constant width of cut, or micro-step finishing—to minimize vibration and improve surface finish.
-
Cooling and Lubrication: Use cutting fluids or gas cooling effectively to enhance chip evacuation, reduce cutting temperatures, and minimize tool wear.
-
Tool Monitoring and Maintenance: Regularly inspect tool wear and promptly replace or resharpen tools to maintain machining stability.
By combining roughing and finishing end milling cutters, selecting the correct tool grades and coatings, and implementing optimized cutting parameters, toolpaths, and cooling strategies, CNC machinists can achieve efficient, stable, and precise end milling, ensuring excellent workpiece quality while reducing production costs and maximizing tool life.
