Taper End Mill vs Straight End Mill: What’s the Difference and When to Use Each?

In CNC machining, tool selection directly impacts machining quality, efficiency, and cost control. Especially in precision applications such as mold manufacturing, complex curved surfaces, and deep cavity milling, tapered end mills and conventional straight end mills serve distinct roles. While they may look similar, these tools differ significantly in cutting performance, application suitability, and tool life.

From a professional perspective, this article compares taper end mill cutters and straight shank end mills in terms of structure, rigidity, material compatibility, and machining strategies. It also explores how carbide tapered end mills perform in hard materials and when custom tapered end mills are necessary for specialized applications.

Whether you’re focused on high-efficiency roughing or high-precision contouring in deep cavities, understanding the differences and optimal uses of these tools will significantly improve your machining strategies and tool configurations.

What Are Taper End Mills and Straight End Mills?

In CNC operations, taper end mills and straight end mills are two commonly used tools with distinct structural designs and cutting characteristics. Understanding these tools’ roles is crucial for effective tool selection—especially in mold contouring, bevel milling, or deep cavity work.

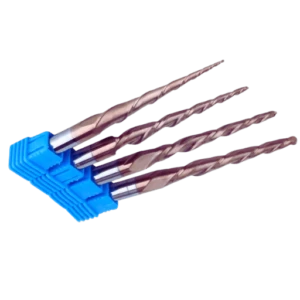

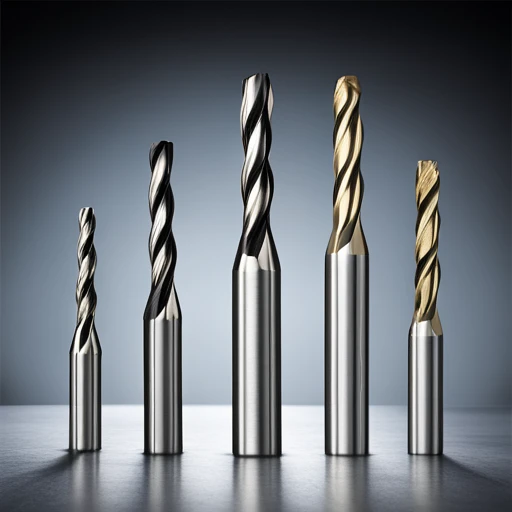

Tapered End Mill Overview

Definition and Structure
A tapered end mill features a gradual reduction in diameter from the shank to the tip, forming a conical profile. This design improves rigidity and reduces vibration, especially in deep cavity walls or angled surface machining.

Common Taper Angles
Taper angles typically range from 1° to 10°, depending on application:

• 1°–2°: Ideal for micro-bevels or fine finishing

• 5°–10°: Used for aggressive material removal or pre-contour shaping

For harder materials, consider carbide tapered end mills or tungsten carbide taper milling cutters, which offer enhanced wear resistance and cutting stability.

Straight End Mill Overview

Definition and Structure
A straight end mill has a consistent diameter from shank to tip. It’s commonly used in general-purpose machining—slotting, profiling, facing, and chamfering—thanks to its versatility and low cost.

Advantages & Disadvantages
✅ Pros:

• Widely available and economical

• Suitable for general machining across multiple materials

• Compatible with most machine types

❌ Cons:

• Prone to chatter in deep cavity or long overhang cuts

• Limited reach in angled or tapered features

Key Differences Between Tapered and Straight End Mills

Though taper and straight end mills differ mainly in geometry, their behavior during machining varies in important ways. Here’s a detailed comparison across several performance dimensions.

Structural Shape and Cutting Path

The tapered geometry of taper milling cutters generates a conical cutting path. This structure:

• Helps avoid wall interference in deep cavities or inclined surfaces

• Supports better chip evacuation in confined geometries

• Minimizes tool deflection and surface errors

Long-tail keywords:
tapered end mill for deep cavity milling, interference-free contouring with taper milling cutter

Rigidity and Vibration Resistance

Tapered end mills provide better stiffness during long-reach cutting due to their conical shape. Compared to equal-diameter straight tools, they are more resistant to bending and chatter, making them ideal for:

• Deep cavity milling in molds

• Long-overhang machining in aerospace components

• Stable high-speed cutting in hardened materials

Paired with carbide or tungsten carbide construction, these tools perform exceptionally in high-load, vibration-prone scenarios.

Machining Surface Quality

Tapered tools excel in surface quality control due to:

• Improved contact point progression

• Smoother transition on curved or beveled features

• Reduced tool mark overlap

In contrast, straight end mills are more efficient in flat surfaces and open contours but can introduce:

• Vibration-induced chatter

• Incomplete surface coverage in angled areas

Tool Selection Based on Workpiece Materials

Tool performance depends heavily on the material being machined. Whether you’re working with steel, aluminum, or exotic alloys, selecting the correct tool structure, material, and coating is essential.

Steel and Hard Materials

For hardened steel, carbon steel, and alloyed materials:

• Use carbide tapered end mills or tungsten carbide taper milling cutters for better rigidity and wear resistance

Recommended coatings:

• TiAlN: High thermal stability; great for dry or high-speed machining

• AlTiN: Even higher hot hardness; suitable for materials above HRC50

• DLC: Diamond-like coating for ultra-low friction and clean finishes

Use Cases:

• Deep cavity mold cutting

• R-corner finishing in tool steel

• Precision contour milling under long overhangs

Aluminum and Non-Ferrous Metals

These materials require sharp tools with excellent chip clearance.

Suggestions:

• Choose uncoated or DLC-coated carbide tapered end mills

• Opt for 2-flute or 3-flute taper end mills for better chip evacuation

• Use high-RPM spindles (≥20,000 rpm) for mirror finishes in 3C product housing, aluminum molds, etc.

Typical Applications:

• High-speed aluminum chamfering

• Deep profile cleaning in copper/brass parts

• Mirror finishing in decorative surfaces

When to Choose Custom Tapered End Mills?

Standard Tools Can’t Meet Requirements

Use custom tapered end mills when:

• Unique taper angle (e.g., 3.75°) is required

• Flute length must exceed standard offerings

• Tight geometries demand specific tool profiles

Applications:

• Deep mold cavities with complex angles

• Aerospace internal components

• Tight tolerance medical devices

Key Design Parameters to Define

When working with suppliers, specify:

• Taper angle and flute length

• Shank and overall tool diameter

• Material and coating

• Required surface finish and machine type

Selection Tips and Usage Best Practices

Selecting the Right Taper Angle and Flute Length

General Tips:

• Add 0.5° to cavity angle for tool clearance

• Use carbide tools for long-reach or rigid setups

Cutting Parameters and Coatings

Cooling Recommendations:

• Use air or mist for non-ferrous materials

• Apply high-pressure coolant for steel and hard metals

Example Parameters (∅6 mm):

Tips:

• Apply step-down strategy for reduced stress

• Use rigid tool holders

• Regularly inspect tools to avoid sudden failure

Summary: Best Use Cases for Tapered vs. Straight End Mills

Recommendations:

• Use tapered end mills for deep cavity finishing, mold features, and tight corners.

• Use straight end mills for open-area cutting, roughing, and general-purpose milling.

• Opt for custom tapered end mills when standard geometries fail to meet precision or depth needs.

FAQ – Common Questions About Tapered End Mills

Can a taper end mill cutter replace a standard end mill?

In certain applications, yes. Tapered end mills can replace straight end mills when machining tapered walls, deep cavities, or when higher rigidity is needed. However, straight end mills are more efficient and cost-effective for flat surface and open-area work.

What should I consider when using a taper milling cutter in mold processing?

• Match taper angle to mold wall profile

• Ensure flute length covers cavity depth

• Avoid interference with clamps or walls

• Use proper coatings (TiAlN, DLC) based on material

When should I use custom tapered end mills?

You should consider custom tapered end mills when:

• A non-standard taper angle (e.g., 3.75°) is required

• Cutting depth exceeds available tool lengths

• Geometry or tool access is restricted

Work closely with tool suppliers to finalize design specs, materials, and performance goals.
