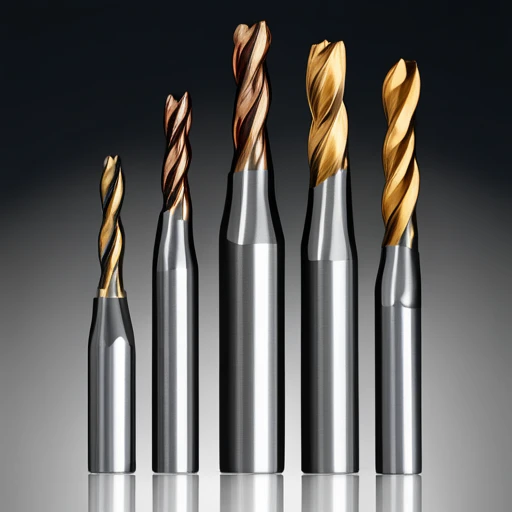

The Best End Mills for Cutting Hardened Steel Above 60HRC

When machining high-hardness steel, especially mold steel, tool steel, or high-speed steel workpieces above 60 HRC, tool selection becomes critically important. General-purpose end mills often fail under such demanding conditions—rapid wear, chipping, or breakage due to high cutting resistance, extreme temperatures, and hardened microstructures. This can significantly impact efficiency, surface quality, and overall cost.

Therefore, finding the best end mill for hardened steel above 60 HRC is essential not just for improving production output but also for ensuring tool life, machining stability, and surface consistency.

In this article, we’ll systematically explore the core performance factors of carbide end mills for hardened steel, including tool materials, geometry, coatings, and parameter optimization. We’ll also highlight proven tool models that perform well in mass production settings, helping you confidently choose the most reliable end mills for cutting hardened steel.

Why Does Machining High-Hardness Steel (>60 HRC) Demand Exceptional Tooling?

As the demand for high-precision and high-durability molds increases, materials with hardness over 60 HRC have become more prevalent. These hardened steels—often heat-treated—exhibit high wear resistance and place extreme stress on tool material, geometry, and coating adhesion.

Using the wrong tool will likely result in premature wear, chipping, or failure. That’s why only end mills engineered for cutting hardened steel above 60 HRC can ensure stable and productive machining.

Common Hardened Steels (e.g., SKD11, H13, M2, S136)

• SKD11 (D2): Cold work die steel, used in blanking dies. After hardening, it reaches HRC 60–62 and poses high cutting resistance.

• H13: Hot work die steel with excellent toughness and red hardness, commonly used in die casting and forging.

• M2: High-speed steel used for wear-resistant tools, prone to work hardening during machining.

• S136: A corrosion-resistant mirror-finish mold steel (modified 420), ideal for optical mold components, with hardness reaching HRC 58–62.

These steels are notoriously tough to machine, requiring tools with superior heat resistance, wear resistance, and edge strength.

Key Machining Challenges: Cutting Force, Heat, and Wear

• High cutting force: The extreme hardness increases tool deflection and the risk of chipping.

• Elevated temperatures: Cutting temps often exceed 800°C, demanding tools with excellent red hardness.

• Work hardening: Certain steels like M2 further harden during machining, making finishing cuts difficult.

• Complex wear mechanisms: Flank wear, micro-chipping, and adhesion wear are common, requiring premium coatings and substrates.

Why Standard Tools Fall Short

Attempting to machine hardened steel with conventional tools often results in:

• Rapid tool failure: Uncoated or basic tungsten carbide tools wear out within minutes.

• Poor surface finish: Blunted edges cause burning and roughness.

• Machine stress: High load leads to spindle overheating, fluctuating current, and alarms.

• Skyrocketing cost: Frequent tool changes and rework drastically reduce productivity.

That’s why applications above 60 HRC demand carbide end mill bits for hardened steel, often featuring micro-grain substrates and reinforced coatings.

Tool Material Selection: Why Carbide Is the Best Choice

In hardened steel machining, the choice of tool material can make or break your process. When facing HRC 60+ materials, the tool must endure high temperatures, shock loads, and maintain sharpness across demanding operations.

Carbide end mills for hardened steel outperform traditional HSS or powdered metals in dry cutting or high-speed milling by offering superior thermal stability and wear resistance.

Why Carbide Wins: Heat Resistance, Strength, Wear Life

• Red hardness: Premium carbide maintains hardness at up to 900°C, ideal for dry or oil-mist cutting.

• Superior wear resistance: Tungsten carbide’s WC particles form a dense, hard matrix that resists abrasion.

• Chipping resistance: Balanced toughness prevents edge breakage during interrupted or heavy cuts.

These traits make carbide end mills the go-to tools for mold shops and hard milling applications.

Recommended Carbide Grades for >60HRC

• Ultra-fine grain carbide (0.2–0.5μm): Excellent wear resistance and precision for mold steel finishing.

• Fine-grain carbide: Offers a balance of toughness and edge stability.

• Nano-composite alloys: Designed for dry cutting and thermal shock resistance.

Many premium tools marketed as carbide end mills for hardened tool steel adopt these substrates to ensure long-term performance in steels up to 65 HRC.

Alternative Materials: PCD? Ceramic? CBN?

While carbide performs excellently in most hardened steel machining applications, some users consider alternative tool materials such as PCD, ceramic, and CBN under extreme conditions. Each comes with its own advantages, limitations, and suitable application scenarios:

Among these, CBN is currently the only material that can rival carbide in machining steels above HRC65. However, due to its high cost and tendency to chip during interrupted cutting, most users still prefer the more mature and cost-effective carbide end mill for hardened steel solution.

Optimal End Mill Geometry for Hardened Steel

Tool geometry plays a major role in chip evacuation, cutting efficiency, and surface quality when machining hardened materials. Blade count, helix angle, rake angle, and tool length must be optimized to ensure tool stability and lifespan.

Blade Count: 2-Flute vs. 4-Flute vs. 3-Flute

• 2-Flute: Larger chip gullets, best for roughing or deep cavities, but lower rigidity.

• 4-Flute: Greater stability and finish quality; ideal for semi-finishing and finishing.

• 3-Flute: Balanced design for both chip clearance and stiffness.

Choosing the right configuration of end mill bits for hardened steel ensures optimal performance at each machining stage.

Geometry Balance: Helix Angle, Rake Angle, and Strength

• 30°–40° helix angle: Offers balanced chip flow and tool rigidity—standard for carbide end mills.

• Low or negative rake angle: Increases edge strength and reduces chipping in hard milling.

• Corner radius/chamfer design: Enhances edge durability and finish consistency.

Many end mills for cutting hardened steel use zero to negative rake angles and corner reinforcements to reduce fracture risk.

Tool Structure: Short Flute, Long Neck, Solid vs. Indexable

• Short flute: Increases rigidity, ideal for finishing hardened cavities.

• Long neck: Used for deep pockets, but requires stable machine setup.

• Solid carbide tools: Better runout control, preferred for precision.

• Indexable end mills: Great for heavy roughing but may sacrifice finish quality.

An optimized structure ensures that the best end mill for hardened steel above 60 HRC maintains accuracy while minimizing tool breakage.

Key to Coating Selection: Which Coating Can Extend Life and Reduce Built-Up Edge?

When machining high-hardness steel above 60HRC, the choice of tool coating is a critical factor in enhancing tool performance and longevity. A high-quality coating not only improves wear and heat resistance but also reduces built-up edge during cutting, ensuring machining stability and surface finish. Selecting the right coating materials and processes based on specific hardened steel machining conditions helps maximize the performance of the best coated end mills for hardened steel.

Coatings with Excellent High-Temperature Performance: AlTiN, TiSiN, nACo

For carbide end mills, especially under high-temperature and high-speed conditions, the thermal stability of the coating is essential:

• AlTiN Coating: Offers excellent red hardness, maintaining hardness and lubricity above 800°C. It reduces friction and thermal stress, ideal for high-speed dry cutting and semi-finishing.
• TiSiN Coating: Combines the hardness of TiN with the thermal stability of Si3N4, forming a dense, oxidation-resistant structure—suitable for continuous operations and heat-treated steels.
• nACo Coating: Engineered with a nano-layered structure, it offers both hardness and toughness. It reduces built-up edge and extends tool life.

These coatings are commonly used in tools like AlTiN coated carbide end mills for hardened steel and are standard in high-performance machining.

The Importance of Coating Adhesion and Substrate Matching

Coating performance depends not only on the coating material but also on how well it adheres to the carbide substrate:

• Surface Pre-treatment: Techniques like roughening or chemical cleaning improve adhesion.
• Multilayer Coatings: Help manage thermal stress and prevent cracking.
• Customized Coating Formulations: Adjusted to different carbide grades for optimal performance.

Good coating-substrate bonding ensures that end mill bits for hardened steel maintain consistent cutting performance under extreme conditions.

Coating Recommendations for Different Steels (H13, D2)

Different tool steels have unique coating requirements based on their composition and heat treatment:

• H13 (Hot Work Tool Steel): High chromium content. Recommended coatings: AlTiN or TiSiN for heat and wear resistance.
• D2 (Cold Work Tool Steel): High carbon content, prone to BUE. Recommended coatings: nACo or multilayer coatings for anti-adhesion and better surface finish.

Adjust coating thickness and structure based on hardness to balance toughness and wear resistance.

Five High-Performance End Mills for Hardened Steel

In hardened steel machining—whether for molds, automotive parts, or precision components—choosing the right carbide end mill is crucial for quality and cost control. Based on practical experience and user feedback, we recommend five of the best end mills for hardened steel, balancing price, durability, and performance.

High-Value Model (Ideal for Small to Medium Batches)

Recommended Model: SAMHOTOOL SHG Series

• Four-flute design with HG coating, suitable for roughing and semi-finishing.
• Made from ultra-fine-grain carbide for excellent chip removal and stability.
• Ideal for SKD11, P20, and 718 processing in mold development and prototyping.

Ultra-Wear-Resistant Model (For Mold Manufacturing)

Recommended Model: SAMHOTOOL SHH Series

• High-red-hard substrate and HG nano-composite coating.
• Handles high-alloy steels like H13, D2, and S136.
• Up to 2.5–3x the life of standard tools. Surface finish can reach Ra 0.4μm.
• Common choice in large mold production.

Premium Tools for >60HRC Steels

For steels like M2, ASP23, or D2 after heat treatment:

• OSG EXOCARB WXS (Japan): WXS nano-coating for extreme heat resistance.
• GUHRING RF100 Diver-H (Germany): High-feed geometry, strong carbide matrix, ideal for fast machining of hardened materials.

Processing Tips and Cutting Parameter Recommendations

Efficient hardened steel machining requires the right cutting parameters and cooling strategy. Below are some key practices to improve tool life and machining quality.

Parameter Reference Table for 60–65HRC Steels

Carbide 4-Flute End Mills:

• RPM: 3000–5000
• Feed Rate: 0.01–0.03 mm/tooth (adjust based on workpiece hardness)
• Cutting Depth: Based on machine rigidity

2-Flute Roughers:

• Lower RPM, higher feed
• Emphasis on chip evacuation and vibration control

Always refer to the manufacturer’s data and adjust in real-time to prevent overload.

How to Reduce Vibration and Breakage Risk

• Use short-flute tools with higher rigidity.
• Ensure secure clamping and workpiece stability.
• Increase RPM while reducing feed to lower cutting impact.
• Use multi-flute designs to spread cutting forces.
• If available, utilize vibration dampening holders or systems.

Dry Cutting vs. Oil Mist: What to Use and When?

• Dry Cutting: Ideal with AlTiN or TiSiN coated tools. Prevents thermal shock. Suited for high-speed, short-run, or environmentally conscious operations.
• Oil Mist Cooling: Improves chip removal and surface finish. Use for deep grooves or adhesive materials.
• Wet Cutting: Traditional coolant use in roughing operations. Requires proper setup.

Choosing the right cooling method ensures longer tool life and better machining results.

How to Choose the Best End Mill for Hardened Steel?

Selecting the right end mill for steel over 60HRC involves understanding four key factors:

1. Tool Material: Micro-grain carbide offers strength and wear resistance.
2. Geometry: Optimize flute count, helix angle, and cutting length for stability.
3. Coating: AlTiN, TiSiN, and nACo coatings provide excellent heat and wear resistance.
4. Machining Strategy: Balance speed, feed, and cooling method for best performance.

When these four areas—material + geometry + coating + strategy—are optimized, you’ll achieve stable, efficient, and cost-effective results.

Need help selecting a tool? Contact SAMHO TOOL for custom tooling advice and optimization support.

FAQ

Why Does the Tool Break Easily in 60HRC Steel?

Common causes:

• Inadequate coating or material for heat resistance
• Overly aggressive speed/feed settings
• Vibration from poor clamping or unstable workpiece
• Poor chip evacuation, causing BUE and breakage

Use carbide end mills with high-heat coatings, proper parameters, and stable setups to reduce breakage.

Which Parameters Affect Tool Life Most?

• Cutting Speed (RPM)
• Feed Rate
• Cutting Depth
• Cooling Method (dry vs. oil mist)
• Tool Geometry (flute count, helix angle)

Optimize these settings to maximize the life of carbide end mills for hardened steel.

Can I Use Standard Tungsten Steel Tools on HRC65 Steel?

Standard tungsten carbide tools are generally not recommended for steels above HRC65:

• They wear rapidly and may chip or fracture.
• Use ultra-fine carbide tools with AlTiN or TiSiN coatings, or consider CBN/ceramic tools.

If used, limit to light-duty, short-duration operations. For serious work, use tools specifically designed for cutting hardened steel.
