In machining complex surfaces and 3D contours, tool selection directly affects surface finish, dimensional accuracy, and overall machining efficiency. End mill cutters, with their diverse geometries and broad applicability, have become core tools in CNC machining. Compared to drills, which cut along a single axis (end mill cutters vs drill bits), end mills can cut simultaneously in both radial and axial directions. This makes them ideal for machining complex workpieces, such as free-form surfaces, mold cavities, and aerospace components.
Different types of end mill cutters serve distinct roles in surface machining: ball-nose end mills are key for 3D finishing, round-nose cutters handle transitional surfaces, and tapered cutters excel in deep cavity machining. Moreover, the choice between roughing and finishing end mill cutters influences both process stability and cost-effectiveness. Roughing tools focus on fast material removal, while finishing tools determine the final surface quality and dimensional precision.
With the growing adoption of high-speed end mill cutters, high-speed milling has become essential for complex surface machining. When combined with advanced coatings, these tools maintain wear resistance on difficult-to-machine materials like steel, stainless steel, and titanium alloys, while significantly extending tool life. For manufacturers, selecting the right end mill cutters suppliers and balancing tool performance with cost is crucial for maintaining competitiveness.
In summary, the role of end mill cutters in 3D surface and complex contour machining extends beyond cutting capability. Optimal machining requires a comprehensive approach involving tool type selection, machining strategy, and supplier choice. Understanding the characteristics and application scenarios of different end mills is essential for engineers aiming to achieve high-efficiency, high-precision results.
What Are End Mill Cutters?
End mill cutters are versatile cutting tools widely used in CNC milling. Unlike drill bits, which cut along a single axis, end mills can cut both radially and axially. This dual-direction cutting makes them suitable not only for flat surfaces but also for demanding processes such as 3D contour machining and complex surface milling.
Engineers select different types of end mill cutters based on workpiece material, required machining accuracy, and cutting efficiency. For example, flat-end mills are ideal for roughing and slotting, ball-end mills excel in molds and free-form surfaces, and tapered mills are used for deep cavities and complex geometries. With the prevalence of high-speed milling technology, high-speed end mills have become indispensable in aerospace and precision mold manufacturing.
Basic Structure and Cutting Principles of End Mill Cutters
An end mill typically consists of a cutter body, cutting edge, and shank. The tool geometry directly affects cutting performance and results. The cutting edge allows both radial and axial cutting, ensuring stability in grooving, side milling, beveling, and finishing complex 3D surfaces.
End mills feature spiral cutting edges that facilitate continuous chip evacuation, reducing heat buildup and improving efficiency. Coupled with advanced coatings like TiAlN or CVD Diamond, end mills can handle high-speed cutting while extending tool life on challenging materials such as steel, stainless steel, and titanium alloys. Understanding these structural and cutting principles is critical for developing optimal tool paths and cutting parameters.
End Mill Cutters vs. Drill Bits: Why Are End Mills Better for Curved Surface Machining?
Drill bits are primarily designed for vertical hole machining, excelling in axial drilling but limited in lateral cutting and contouring. In contrast, end mills offer bidirectional cutting, allowing smooth transitions across 3D curved surfaces. This results in superior surface finish and higher machining accuracy.
When considering finishing vs. roughing end mill cutters, roughing mills remove material quickly, while finishing mills ensure mirror-like surfaces on complex curves—something drills cannot achieve. Industries such as mold making, aerospace, and medical device manufacturing particularly benefit from end mills’ ability to handle free-form surfaces and complex geometric contours.
While drills remain essential for holes, end mills are clearly superior for 3D contour machining, cavity milling, and high-precision surface finishing.
Types of End Mill Cutters and Their Applications in Complex Surface Machining
Different end mill cutter types are optimized for various machining tasks. Complex surfaces and 3D contours demand precise cutting performance, tool geometry, and path planning. Proper tool selection enhances efficiency and directly affects surface finish and dimensional accuracy.
Common types include flat end mill, ball end mill, bullnose end mill, and tapered end mills. Roughing tools prioritize material removal and stability, while finishing tools focus on smooth, fine finishes. Below is a breakdown of these tool types and their applications.
Flat End End Mills and Contouring
Flat-end mills feature straight cutting edges and are ideal for contouring, face milling, and slotting. During roughing, they efficiently remove stock and establish a stable base for subsequent finishing. While not as smooth as ball-end mills on free-form surfaces, flat-end cutters provide efficient material removal and excellent toolpath adaptability, making them essential for the roughing stage in complex surface machining.
The Critical Role of Ball Nose End Mills in 3D Surface Finishing
Ball-nose end mills have a spherical tip that enables smooth transitions, ideal for finishing mold cavities, turbine blades, and medical devices. They reduce tool marks, enhance surface finish, and achieve near-mirror quality on final workpieces. In finishing vs. roughing applications, ball-nose mills are predominantly used in finishing, ensuring consistent, high-precision free-form surfaces.
Bull Nose End Mills and Transition Machining of Mold Surfaces
Bull nose end mills combine flat and ball nose characteristics with rounded corners, reducing stress concentration and enhancing tool strength. They are ideal for transition areas in mold surfaces where sharp corners must be avoided. In complex surface milling, bull nose cutters are often used for semi-finishing, removing stock while maintaining quality in transitional regions.

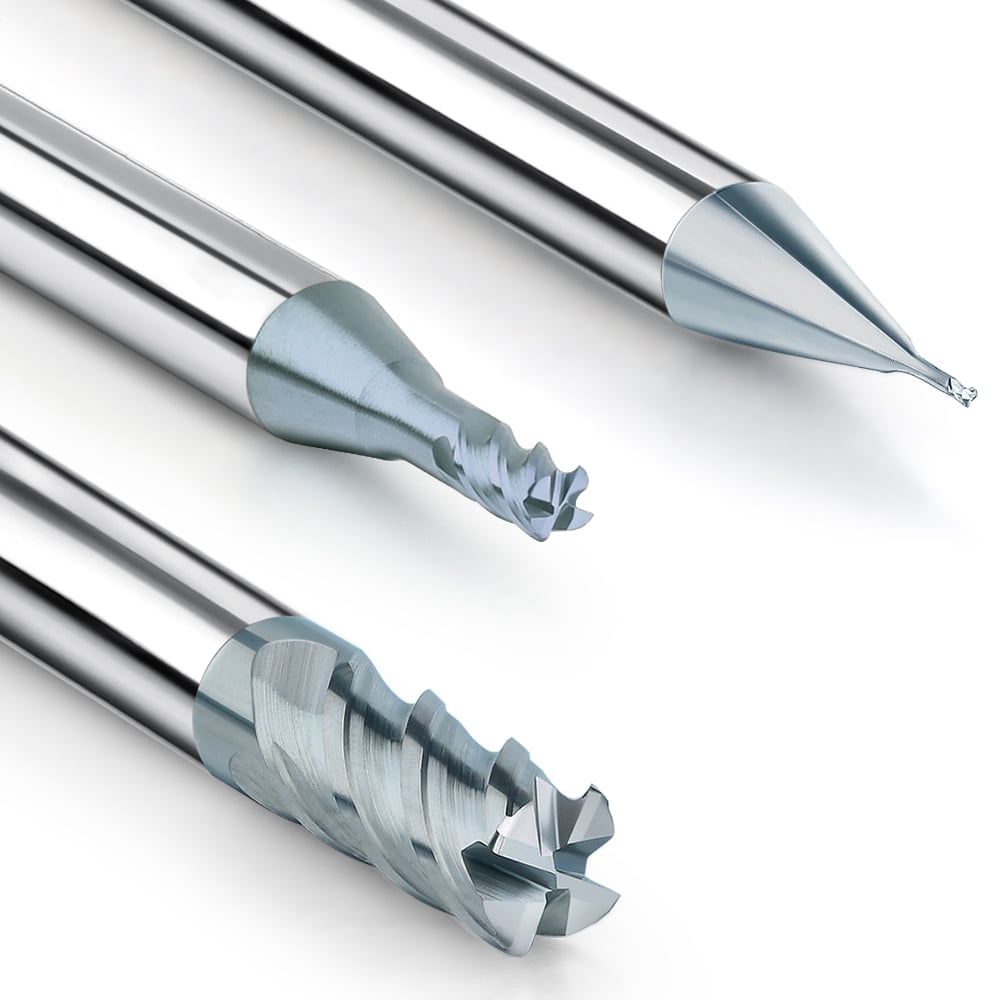

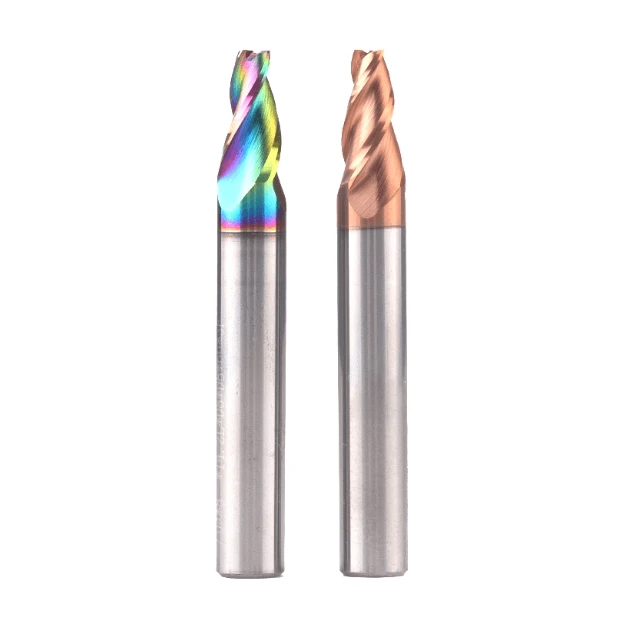

Advantages of Conical End Mills in Deep Pockets and Complex Contours
Conical end mills, with their tapered geometry, excel in deep cavities, narrow areas, and sharp features. They reduce tool interference and maintain cutting stability in deep grooves or tight angles. In 3D contour machining, they are often used alongside ball-end mills: ball-end mills handle large surface finishing, while tapered mills manage fine details and hard-to-reach structures, essential for high-precision and complex geometries.
Finishing vs Roughing End Mill Cutters: Tool Selection
Tool selection impacts both machining efficiency and final part quality. Roughing mills focus on rapid material removal, emphasizing strength and efficiency. Finishing mills prioritize surface quality and dimensional precision, determining the final outcome of complex surfaces.
For CNC engineers, coordinating roughing and finishing tools, combined with suitable cutting parameters and paths, extends tool life and reduces costs. Efficient integration of roughing and finishing is crucial for a stable and high-quality machining process.
Cutting Efficiency and Tool Life of Roughing Milling Cutters
Roughing mills often use large-diameter, high-flute, high-strength tools. They withstand heavy cutting loads and, combined with high feed rates and deep cuts, improve machining efficiency. Tool life is limited by wear and heat buildup, which can be mitigated using high-speed end mill cutters with TiAlN or CVD Diamond coatings, as well as proper cooling and chip evacuation.
Impact of Finishing Milling Cutters on Surface Finish and Dimensional Accuracy
Finishing mills, such as ball-nose and round-nose end mills, achieve smooth transitions and minimal tool marks on complex surfaces. Using smaller stepovers and lower feed rates, finishing mills deliver mirror-like surfaces and tight tolerances. In 3D contour machining, finishing tools directly affect part yield and subsequent polishing requirements.
Integrating Roughing and Finishing Strategies in Complex Surface Machining
A common approach is sequential roughing and finishing: flat-end or large-diameter mills remove rough stock, followed by ball-nose or bullnose mills for finishing and detail refinement. CNC engineers often use Z-level or contour toolpaths to ensure uniform stock removal and smooth finishing transitions.
This integrated strategy enhances overall efficiency, reduces tool wear, and extends tool life. Partnering with reliable end mill cutters suppliers ensures consistent quality and supply, supporting competitive manufacturing performance.
Advantages of High-Speed End Mill Cutters in Complex Surface Machining
In modern CNC high-speed machining (HSM), high-speed end mill cutters play a critical role in machining complex curved surfaces. Compared to traditional milling methods, high-speed end mills significantly improve machining efficiency while maintaining dimensional accuracy and extending tool life. High-speed milling is particularly essential in mold manufacturing, aerospace, and medical device production, where surface finish requirements are extremely high.
By carefully selecting tool materials (such as carbide, PCD, and CVD diamond coatings) and tool geometries, high-speed end mills achieve an optimal balance between low cutting resistance and high material removal rates, demonstrating their advantages in both roughing and finishing complex curved surfaces.
How High-Speed Milling Improves Surface Quality and Productivity
High-speed milling enables multiple passes with shallow cutting depths at higher spindle speeds and feed rates, reducing cutting forces and heat concentration. This minimizes microcracks, burrs, and other surface defects, significantly improving surface finish and consistency.
When machining 3D curved molds and free-form parts, high-speed milling creates continuous, smooth tool paths, enhancing surface quality and uniformity. Additionally, HSM reduces overall machining time, increasing production efficiency and process stability, making it ideal for mass production and precision mold manufacturing.
Application Examples in High-Hardness Material Machining
Machining high-hardness materials such as titanium alloys, hardened steel, and stainless steel presents challenges like rapid tool wear and low efficiency. High-speed end mills, combined with high-performance coatings and optimized cutting parameters, reduce heat and friction, extending tool life.
For example, when machining aircraft engine blades or mold steel cavities, high-speed end mills maintain high material removal rates while avoiding excessive vibration in deep cavities or thin-walled structures, improving machining accuracy and stability. This makes HSM the preferred solution for aerospace parts, automotive precision components, and medical devices.
The Role of Tool Coatings in High-Speed Cutting
Under high-speed cutting conditions, tool surfaces are subject to high friction and temperature, making coatings critical for performance:
-
TiAlN coatings: Excellent high-temperature resistance, suitable for high-speed milling of stainless steel and mold steel, reducing oxidative wear.
-
CVD Diamond coatings: Exceptional hardness and wear resistance, ideal for graphite electrodes and CFRP, enhancing tool life and surface quality.
-
Multilayer coatings (AlTiN, TiCN): Combine oxidation resistance with reduced friction, ensuring tool stability during extended HSM.
Selecting the right coating improves tool durability, surface finish, and reduces machining costs in high-precision milling.
How to Choose the Right End Mill Cutters
Choosing the right end mill cutters is essential for efficient and precise machining. Tool type, material, geometry, and supplier reliability directly affect machining performance, surface quality, and tool life. In complex surface and 3D contour machining, appropriate tool selection ensures accuracy while reducing production costs.
Engineers typically consider:
-
Workpiece material properties – hardness, brittleness, and thermal conductivity.
-
Machining requirements – roughing vs. finishing, flat vs. deep cavities, and complex surfaces.
Combining these factors with a reliable tool supplier ensures stability and control throughout the production process.
Selection by Workpiece Material
-
Aluminum alloy: Soft and prone to sticking. Use high-speed end mills or ball-nose cutters with sharp edges and thin coatings for high feed rates and efficient chip evacuation.
-
Steel and hardened steel: High wear resistance is critical. Choose carbide or coated tools (TiAlN, AlTiN) to ensure accuracy and extend tool life.
-
Stainless steel: Requires a balance between wear resistance and anti-sticking. Multilayer coatings reduce heat and tool marks.
-
Titanium alloys: Low thermal conductivity generates high cutting temperatures. Select high-strength, wear-resistant HSM cutters and optimize parameters to prevent premature wear.
Selection Based on Machining Requirements
-
Roughing: Large-diameter, multi-flute flat-nose or round-nose end mills for high-speed material removal and efficiency.
-
Finishing: Ball-nose or round-nose cutters for fine machining of complex curves, ensuring high surface quality and dimensional accuracy.
-
3D Surface Machining: Combination of ball-nose and tapered cutters for free-form surfaces and intricate contours.
-
Complex Cavity Machining: Tapered or custom cutters avoid interference and efficiently machine deep cavities or narrow sections.
Matching tool type to machining requirements maximizes efficiency, precision, and reduces wear.
End Mill Cutters Suppliers: Choosing a Reliable Tool Supplier
Reliable end mill cutter suppliers are critical for stable production and cost control. Key considerations include:
-
Tool quality and precision: Consistent geometry ensures performance on complex surfaces.
-
Material and coating variety: Ability to provide solutions for different materials and applications.
-
Inventory and delivery: Fast delivery prevents downtime.
-
Technical support: Assistance with tool selection, parameter optimization, and problem-solving.
A trusted supplier ensures stable productivity and quality in high-speed milling, precision molds, and complex surface machining.
Best Practices and Techniques for Complex Surface Machining
In 3D contour and complex surface machining, mastering best practices is as critical as selecting the right tools. Key strategies include cutting parameter optimization, toolpath planning, and tool life/cost management. Applying these techniques improves efficiency while maintaining surface finish, dimensional accuracy, and tool longevity.
Cutting Parameter Optimization
-
Spindle speed: Based on material hardness, tool type, and coating. Lower speeds for hard materials (e.g., titanium, hardened steel).
-
Feed rate: Maximize without compromising stability to increase removal rate.
-
Stepover/Stepdown: Determines contact area. Too large → tool marks; too small → reduced efficiency.
Optimizing these parameters balances roughing and finishing, enhancing efficiency in complex surface machining.
Toolpath Planning
Effective toolpath planning ensures smooth machining:
-
Z-Level Machining: Layered finishing for deep cavities and free-form surfaces, reducing vibration.
-
Contour Parallel Machining: Follows surface contour, ideal for molds and smooth surfaces.
-
Constant Stepover Machining: Ensures uniform tool contact, improving surface consistency.
Combined with appropriate tools (ball-nose, tapered), rational toolpaths reduce wear, errors, and improve efficiency.
Tool Life and Cost Control Strategies
-
Extending tool life: Use high-performance materials/coatings (TiAlN, CVD Diamond), optimize cutting parameters, and toolpaths.
-
Cost control: Reduce tool changes and downtime by combining roughing/finishing, tool reuse, and maintenance.
-
Production management: Leverage supplier technical support for optimal inventory and tool selection.
Properly applied, these strategies balance precision, efficiency, and cost.
Conclusion: Future Trends in End Mill Cutters for Complex Surface Machining
With intelligent manufacturing and high-precision machining, the use of end mill cutters in complex surfaces and 3D contours continues to expand. By optimizing tool types, roughing/finishing strategies, HSM, and coatings, engineers can enhance efficiency, surface quality, and tool life while controlling costs.
Future trends include:
Intelligent Tools and Tool Monitoring
Smart end mills with real-time monitoring of cutting forces, wear, and vibration allow engineers to optimize parameters, extend tool life, and reduce downtime. This improves stability and precision in complex surface machining.
New Coatings and Composite Tool Materials
Advanced coatings and composite materials improve wear resistance, high-temperature tolerance, and anti-sticking properties, particularly in high-speed milling and hard-material applications. Combining different cutter types with roughing/finishing strategies enhances accuracy, efficiency, and tool longevity.
CNC Machining Evolves Towards High Precision and Efficiency
Through proper tool selection, HSM, optimized toolpaths , and cutting parameters, complex surface machining achieves smoother surfaces, tighter tolerances, and higher productivity. Intelligent and digital processing will further complement high-performance tools, ensuring sustained competitiveness in molds, aerospace, and medical device industries.
