When machining hardened steel, choosing the right finishing end mill is critical and can make or break your job. Machining hardened steels such as H13, D2, and Inconel present unique challenges due to their high hardness, high temperatures, and tool wear. This article takes a closer look at real-world considerations and provides expert tips to help you choose the best finishing end mill for hardened steel. Whether you’re looking to achieve a mirror finish in a mold cavity or consistent dimensional accuracy on a high-Ra part. This guide covers material selection, tool coatings, geometry, machining strategies, and practical rapid feed settings—all based on tried-and-true CNC shop experience.
What is Work Hardened Steel?
Definition and Causes of Work Hardening
Work hardening, also known as strain hardening, is a physical process in which the surface crystal structure of a metal material changes when it is mechanically deformed, resulting in an increase in hardness and strength. This phenomenon is widely found in materials such as stainless steel, die steel, and nickel-based alloys, especially under continuous cutting, cold working, or high stress impact.
During the cutting process, the force is concentrated in a local area of the workpiece, the material undergoes plastic deformation, and heat accumulates. This significantly increases the surface hardness of the cutting area, even exceeding the overall hardness of the original material. This “local hardening” not only increases the tool load, but also places higher requirements on subsequent finishing.
Common Work Hardened Steel Material Types
The following are common materials with a tendency to work harden that often require special geometries and coatings of finishing end mills for high-quality finishing in CNC machining:
- H13 mold steel: commonly used in hot work molds, it has high hardness, high thermal fatigue strength, and is easy to harden during cutting.
- D2 cold work steel: high carbon and high chromium steel, strong wear resistance, and the surface is very easy to harden after machining.
- 420SS stainless steel: high carbon content, easy to form a work-hardening layer during machining.
- Inconel series nickel-based alloy: with extremely high strength and heat resistance, it is one of the typical difficult-to-machine materials, and the work hardening is very intense.
Common Machining Challenges for Machining Hardened Steel
High Temperature
Machining hardened materials is usually carried out under high cutting forces and high-speed rotation, which will generate a lot of heat in the contact area. Especially in the finishing stage, the friction between the tool and the material is more intense, and the heat is concentrated at the tip of the tool, resulting in rapid local temperature rise, which places extremely high demands on the tool’s heat resistance.
Fast Tool Wear
Tool wear is one of the main problems in machining hardened steel. Especially when using an improper end mill, it is easy to cause rapid blunting, chipping, and even coating peeling of the cutting edge. Especially in finishing machining of hardened steel, high hardness and continuous contact will significantly accelerate tool failure.
To extend tool life, it is usually recommended to choose tools with:
- High red hardness (such as ultra-fine grain cemented carbide).
- High-performance coatings (such as AlTiN, TiSiN).
- Finishing end mill geometry designed for hardened steel (such as rounded edges, enhanced core thickness structure).
Large Surface Hardness Changes
The surface hardness of the material during machining often changes non-uniformly due to deformation and temperature. This makes the load fluctuation in the cutting process more severe, which will affect the surface finish and dimensional stability in severe cases. At this time, if ordinary finishing end mills are used, tool vibration or secondary processing marks are likely to occur.
Vibration and Rebound Problems
The presence of the hardened layer will increase the “cutting resistance” of the tool. Once the cutting parameters are improperly set (such as excessive feed per tooth or excessive spindle speed), it will cause tool vibration or workpiece micro-displacement, affecting the final surface accuracy.
Especially when using high-precision finishing end mills for hardened materials, it is more necessary to cooperate with high-rigidity clamping systems and stable cutting path strategies.
The Role of Finishing End Mill in Machining Hardened Steel
In machining hardened steel, finishing and rough machining have obvious differences in strategy and tool configuration. Especially in high-hardness materials, high-quality surface and precision control place higher requirements on tools. The choice of finishing end mill cutter directly determines the final surface effect and machining efficiency.
Difference Between Roughing and Finishing
Processing Goal: Roughing vs Finishing
The main purpose of roughing is to efficiently remove material volume, emphasizing processing efficiency and material removal rate. In the roughing stage, the tool needs to have strong impact resistance and chip removal performance, and it is suitable to use a tool with coarse teeth and large edge angle design.
Finishing emphasizes dimensional accuracy and surface quality. Especially in the processing of hardened steel, the surface hardness is high and the tool force is concentrated. It is necessary to use a finishing end mill designed specifically for high-hardness materials. To achieve stable processing, reduce chatter marks, and avoid chipping.
H4: Different Requirements for Tool Materials and Geometry
Roughing tools usually adopt a large rake angle and wide chip groove design, which is conducive to reducing cutting resistance. The finishing end mill pays more attention to the strength and fineness of the edge, and its characteristics include:
- The edge is sharp but slightly blunted to prevent micro-chipping.
- Small rake angle design enhances cutting stability.
- Multi-edge design (such as 4-edge, 6-edge) achieves a more detailed cutting trajectory.
- Optimize core thickness and helix angle to ensure rigidity and heat dissipation in hard materials.
In terms of tool material, ultra-fine grain carbide with high-performance coatings (such as AlTiN, TiSiN, CrN) is the first choice for machining hardened steel, which can cope with the impact of high temperature and hard chips on the cutting edge.
The Impact of Finishing on Surface Quality and Precision
In mold processing, cavity contour or high-precision part manufacturing, surface roughness (Ra value) is usually an important indicator for evaluating machining quality. When finishing hardened steel, the goal is often to achieve a result below Ra 0.6μm or even close to mirror level (Ra < 0.2μm), which places extremely high demands on the tool.
How to Achieve Mirror or Low Ra Value in Hardened Materials
To achieve high-quality surface in machining hardened steel, you need to start from the following aspects:
- Choose a suitable finishing end mill: Use tools with rounded corners, blunt edges, and multi-edge design to effectively reduce surface residue.
- Use high-speed and light cutting processing parameters: usually with high spindle speed (above 20,000rpm) and low feed per tooth, smaller cutting ripples can be achieved.
- Optimize cutting path strategy: use constant tool tip path (such as contour line + equidistant finishing) and avoid repeated cutting of hardened areas.
- Use micro-lubrication or high-pressure cooling: reduce cutting heat concentration and reduce the probability of surface burns and thermal deformation.
- Maintain high tool runout accuracy (TIR): tool runout is controlled within 0.003mm, which helps to obtain a more consistent surface texture.
Which Finishing End Mill is Recommended for Machining Hardened Steel?
In hardened steel finishing, choosing a suitable finishing end mill bit is a key link to ensure tool life, machining quality and efficiency. Because hardened steel is often accompanied by high temperature, surface hardened layer, difficult chip removal and other problems during machining. The material, coating and geometric structure of the tool must have high hardness, high heat resistance and good shock resistance. This section will systematically introduce the finishing tool configuration suitable for machining hardened steel.
Material Selection: Which Substrate is the Most Suitable?
Carbide Material
Cemented carbide is currently the most commonly used tool substrate for machining hardened steel. Its high red hardness, high bending strength and good wear resistance make it perform well in high-speed finishing, especially for finishing steel with HRC 45~65.
For scenes that require high-precision finishing and 3D surface processing, it is recommended to use ultra-fine-grained cemented carbide, which can achieve the best performance with nano-coating.
Coated High-speed Steel Material
Although high-speed steel is better than cemented carbide in strength and toughness, its red hardness is insufficient and it is not suitable for finishing high-speed or high-hardness materials. However, for low-hardness hardened steel (HRC < 40) or small-batch low-speed finishing, coated HSS tools can still be an economical choice.
Coating Recommendation
The quality of the tool coating directly affects its heat resistance, wear resistance and surface finish when machining hardened steel. The following are some common and recommended coatings:
AlTiN / TiAlN: Strong heat resistance
- Good oxidation temperature stability (800~900°C).
- Suitable for dry cutting or small amount of lubrication.
- Performs particularly well in high-speed milling.
AlTiN / TiAlN: Strong heat resistance
- Good oxidation temperature stability (800~900°C).
- Suitable for dry cutting or small amount of lubrication.
- Performs particularly well in high-speed milling.
DLC / CrN: Suitable for stainless steel and polished surfaces
- DLC has a very low friction coefficient and is suitable for stainless steel, 420SS and other easy-to-stick materials.
- CrN coating has good lubricity and resistance to thermal cracking.
Multilayer composite coating (nano coating)
- Such as TiSiN + AlTiN, AlCrN + TiN and other structures.
- Has both high wear resistance and good surface lubrication effect.
- It can extend tool life by 30~50% and improve the consistency of Ra value.
Key Factors of Tool Geometry Design
When machining hardened steel, the geometric design of the tool is crucial, which determines the cutting stability and surface quality of the tool:
Small rake angle design (vibration reduction):
- Reduce cutting force, reduce the probability of chattering and chipping.
- It is conducive to stable feeding and improve the consistency of machining surface.
Enhanced core thickness design (bending resistance):
- Ensure that the tool is not easy to bend or break under high load.
- Support high rigidity requirements of high-speed machining environment.
Multi-edge structure vs. less-edge structure
- Multi-edge design (4-edge/6-edge): suitable for finishing, finer cutting and smoother surface.
- Less-edge design (2-edge/3-edge): conducive to chip removal, suitable for semi-finishing or uneven hardness areas.
Rounded corner transition design improves surface finish
- Micro-rounded or chamfered design of tool tip can avoid sharp corners from breaking.
- Suitable for finishing path before mirror polishing.

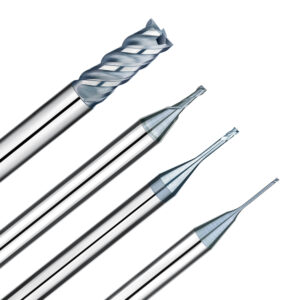

Recommended Tool Style
Depending on the different processing scenarios, the following tool types are suitable for finishing tasks when machining hardened steel:
4 flutes ball end mill:
- Used for complex 3D curved surface processing, such as mold cavities and bevel areas.
- The fine ball head design improves the continuity and finish of micro-curved surfaces.
Micro-rounded square head end mill:
- Suitable for 2.5D finishing and corner transition areas.
- The fillet radius design improves fracture resistance and tool life.
Superhard coated high-speed tool:
- Specially designed for high-speed spindle equipment (such as above 40,000rpm).
- Suitable for aviation parts and mold mirror processing.
In the finishing process of hardened steel, the material, coating and geometry of the tool must be carefully selected. Choosing a high-performance finishing end mill can not only improve the surface finish, but also effectively extend the tool life and reduce the number of rework.
Practical Experience Sharing: Finishing Tips for Hardened Steel
When facing hardened steel above HRC50, high-quality tools alone are far from enough. The reasonable combination of cutting parameters, cooling strategy and processing path is the key to successful finishing. The following will share several core optimization techniques from a practical perspective to help you maximize the performance advantages of finishing end mill for hardened steel.
Feed and Speed Recommendations (Rlassified by HRC Value)
In high-hardness materials, the cutting parameters for finishing cannot copy the processing experience of traditional workpieces. Especially when using high-performance coated ball-end tools or micro-rounded end mills, the feed and speed should be adjusted in combination with the material hardness to achieve a more ideal balance between tool life and surface accuracy.
HRC 45~55: Medium and high-speed cutting, pay attention to chip removal
- Spindle speed recommendation: 12,000~18,000 rpm.
- Feed per tooth: 0.015~0.03 mm/tooth (depending on the tool diameter and number of edges).
- Focus on the chip removal space. It is recommended to use a 4-edge or 3-edge finishing end mill. Smooth chip removal can avoid built-up edge and surface scratches.
HRC 55~65: Low speed and high rigidity, use high-end coated tools
- Spindle speed recommendation: 6,000~12,000 rpm.
- Feed per tooth: 0.01~0.02 mm/tooth.
- It is strongly recommended to use AlTiN and TiSiN nano-coated tools, and ensure that the runout of the tool holder system is controlled below 0.003mm.
Cooling and Lubrication Method
When machining hardened steel, the cooling strategy directly affects the tool life and processing stability. Especially in the finishing stage, the cutting heat is concentrated and the tool edge is prone to overheating, so choosing a suitable cooling method is very important.
Dry Machining:
- Applicable to the use of AlTiN coated tools.
- It can reduce thermal shock and help extend tool life.
- It must be combined with a high-speed, low-feed strategy to avoid heat accumulation and uncontrolled.
Mist Lubrication (MQL):
- Suitable for machining applications with medium hardness (HRC < 55).
- It has a certain lubrication and cooling effect, taking into account both environmental protection and machining efficiency.
High-Pressure Coolant:
- Highly recommended for finishing of hardened steel with HRC 60 or above.
- It helps to quickly remove high-temperature chips and avoid surface burns or micro cracks.
- It is especially effective when finishing deep cavities with micro-rounded corners or ball-end tools.
Machining Path Optimization
No matter how high-performance the tool is, if the cutting path design is unreasonable, problems such as tool chipping, chatter marks and even surface roughening may still occur. The following are suggestions for finishing path optimization for machining hardened steel:
- Cutting method: spiral/progressive cutting to avoid tool impact.
- Progressive methods such as spiral cutting and gradual descent of Z layers can significantly reduce the instantaneous cutting load.
- Especially when using a ball-end finishing end mill for mold cavity processing, vertical cutting should be avoided.
Strategies to maintain constant cutting load (such as HSM path):
- Use HSM strategies such as constant cutting width and constant tool tip path.
- It helps to control cutting heat and stress, improve tool life and surface consistency.
Whether it is parameter setting, cooling method or path design, all links must be formulated around the three principles of “vibration reduction, temperature control, and constant load”. Only through systematic strategy optimization can the performance of the finishing end mill for hardened steel be fully released to achieve high efficiency, low loss, and high finish processing results.
FAQ
Is Ceramic Tooling Suitable for Finishing Hardened Steel?
Ceramic tools have extremely high red hardness and thermal stability. In theory, they can cut hard materials at extremely high surface speeds (Vc > 600 m/min), but they are mainly used for continuous cutting or high-speed external cylindrical/end surface processing. In actual 3-axis or 5-axis hardened steel mold processing, ceramic tools are very easy to break due to complex cutting paths and frequent intermittent cutting.
Unless you are using a high-rigidity and high-speed machine tool (> 20,000 rpm) + stable tooling clamping + fully controlled path automation strategy, it is not recommended to use ceramic end mills for hardened steel finishing.
What Should I Do if Chipping and Rebound Occur During Finishing?
The two most common problems of tool chipping and rebound when machining hardened steel are often caused by the following factors:
- Cutting parameters are too high, especially the feed per tooth (fz) is greater than the tool tolerance range.
- Improper tool geometry selection, such as too large rake angle, insufficient core thickness, and too long blade length.
- Lack of high-rigidity clamping system, or tool extension is too long (> 3xD).
- Use unreasonable cutting method (straight-line cutting vs spiral or progressive cutting).
Can the Same Tool be Used for Both Roughing and Finishing?
This is a concern for many machining workshops, especially when the batch is small, the tool change time is limited or the cost control is strict.
In theory, it is not recommended to use the same tool for roughing and finishing for the following reasons:
- Roughing pursues high metal removal rate (MRR), requiring tools with few edges, large spirals and strong chip removal.
- Fine machining emphasizes tool sharpness and geometric accuracy, and adopts a multi-edge, fine feed strategy.
- A tool is used for roughing first and then finishing, which is very likely to cause microscopic damage to the blade, thus affecting the final surface quality (Ra value is unstable).
However, in some low-hardness or low-requirement scenarios (such as small parts processing of steel parts below HRC45), you can choose:
- 3~4-edge carbide end mill with micro-rounded corners (taking into account rigidity and surface finishing).
- Nano-coated tools ensure that even after rough cutting, they can still maintain good edge integrity.
