2 Flutes Flat End Mill

High-Quality 2 Flutes Flat End Mill from SAMHO

Our 2 Flutes Flat End Mill is of durable construction and designed for high performance. Getting the job done is what we are best at. We guarantee our customers that they will get high-quality products. Do not hesitate to contact us to get more information on how our products can enhance your business.

2 Flutes Flat End Mill-2-1729731845424

DLC Coating Offers Superior Anti-Adhesion and Ultra-Low Friction

DLC coating features exceptional surface hardness, low friction coefficient, and strong anti-adhesion properties. This makes the tool highly effective when machining red copper, aluminum alloys, and resin materials, where built-up edge and material smearing are common.

2-Flute Design Enhances Chip Evacuation in Soft, Ductile Materials

The open flute geometry provides ample chip space and optimized chip flow, preventing clogging and ensuring clean cutting in sticky or gummy materials such as pure copper and soft plastics. Ideal for high-speed and high-feed machining under dry or minimal lubrication conditions.

Square End Geometry Ensures Accurate Shoulders and Flat Bottom Cuts

With a sharp, flat cutting profile, the tool excels in slotting, shoulder milling, and contour cutting, delivering clean, burr-free finishes. It’s particularly effective for precision part manufacturing, electrode machining, and mold base milling in soft non-ferrous materials.

Mirror-Polished Flutes Reduce Material Adhesion and Improve Surface Finish

Polished flute surfaces reduce friction and help evacuate chips smoothly, which is critical for maintaining dimensional accuracy and mirror-like surface finishes in high-purity copper or aluminum parts.

Extended Tool Life and Stable Performance Across Non-Ferrous Materials

Compared to uncoated or conventional coated tools, DLC-coated cutters offer longer lifespan, reduced thermal wear, and better edge retention — even under dry cutting or MQL conditions. Suitable for batch production with consistent results.

Application-Specific Cutting Parameters Provided by Samho

Samho supplies tailored cutting parameters for copper, aluminum, and resin machining, including recommended spindle speeds, feed rates, and depths of cut — helping users quickly achieve optimal results while minimizing setup time and tool failure risk.

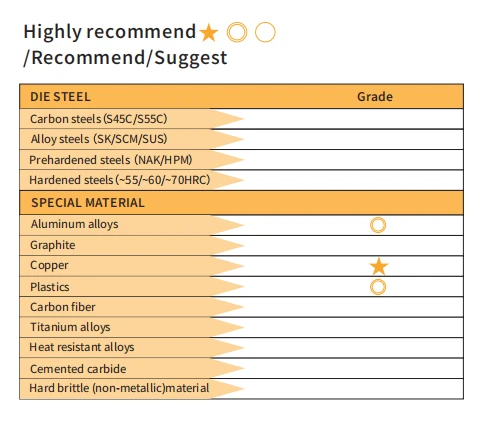

  • Highly Recommend for Machining

2 Flutes Flat End Mill-1729731888692

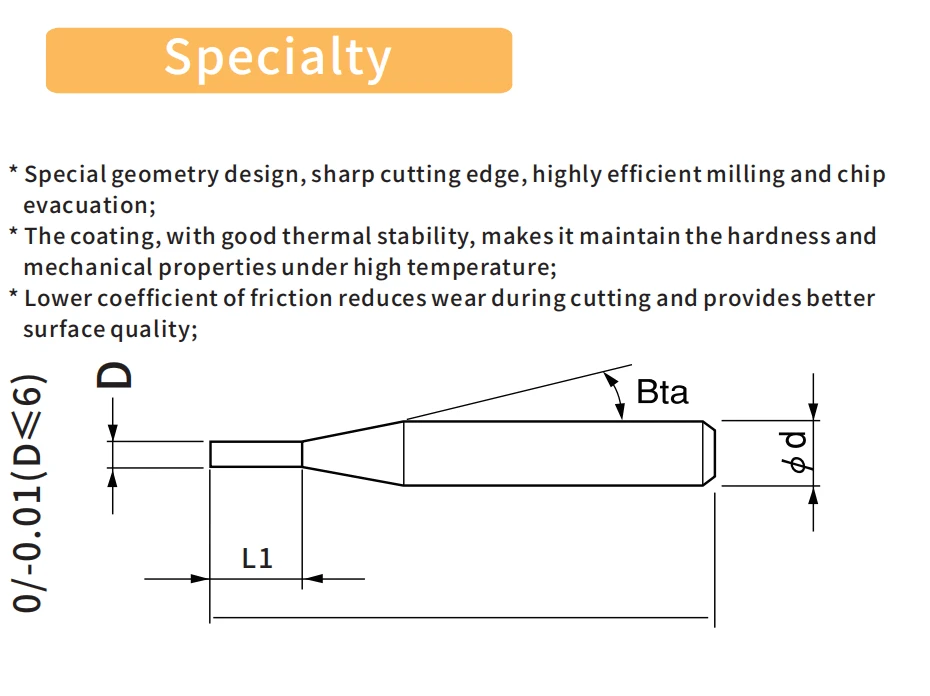

  • Specialty

2 Flutes Flat End Mill-1729731905318
2 Flutes Flat End Mill-1729731905318
End Mills

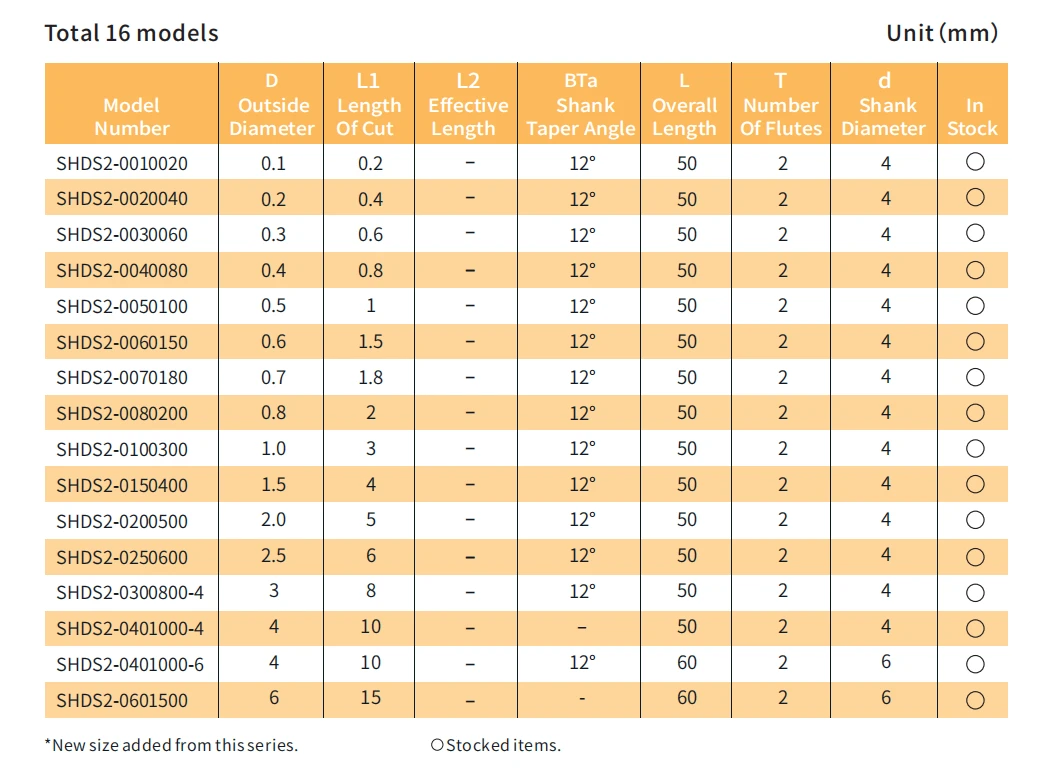

2 Flutes Flat End Mill Catalog

Total 16 Models-Unit(Mm)

2 Flutes Flat End Mill models
  • CGS4-000 Milling Conditions

  • Milling Amountfor Side Milling(mm)

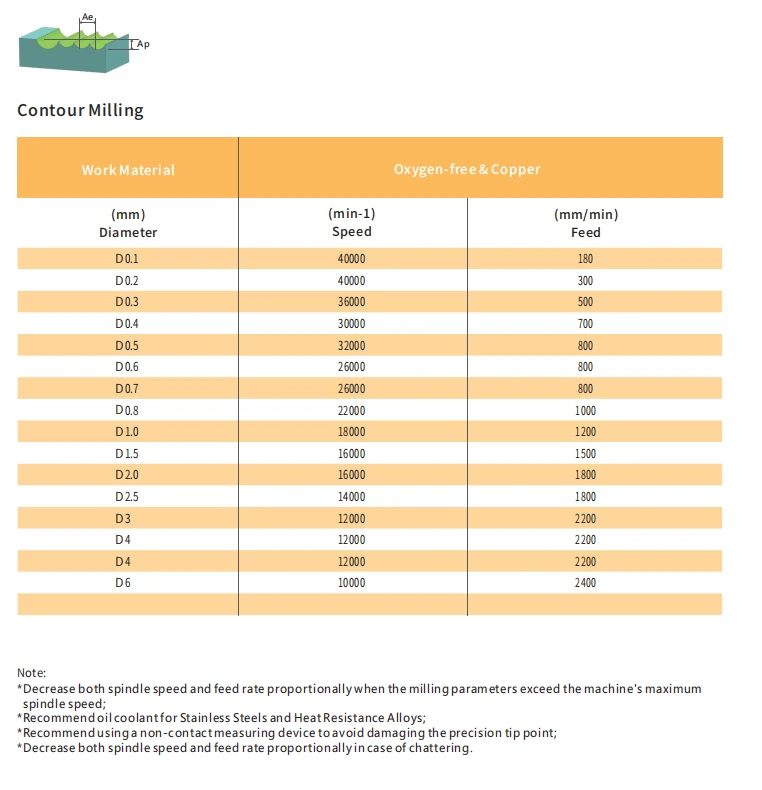

  • Contour Milling
