Avoid Tool Chipping: Why Corner Radius End Mills Perform Better
This end mill has no difficulty in processing HRC60 degree materials!#endmill #millingcutter #cnc

What Is a Corner Radius End Mill?

A corner radius end mill features a rounded transition between the end face and the side edge, replacing the sharp tip found on traditional flat end mills. This arc transition significantly reduces stress concentration at the tool tip, enhancing overall tool durability and reducing the likelihood of chipping—especially in high-load or high-speed applications.

This optimized geometry is especially effective when using solid carbide corner radius end mills, which are commonly used in high-performance milling. When machining hardened steels or tough alloys at elevated speeds, this design contributes to extended tool life and more consistent surface finish.

Difference from Flat End Mills

The main distinction lies in the tool tip geometry. Traditional flat end mills with a sharp 90° corner are more prone to chipping, particularly during edge entry or exit in hard materials like hardened steel or stainless steel.

In contrast, corner radius tools distribute stress more evenly thanks to the filleted tip (e.g., R0.5, R1.0). This not only improves impact resistance but also helps stabilize the cutting path, reducing vibration and localized heat. These features are particularly beneficial when using carbide end mills for mold making or aerospace part machining.

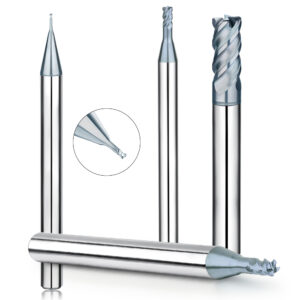

HRC65 Corner Radius End Mill

Common Applications

Rounded corner end mills are widely used in mold manufacturing, aerospace parts processing, and rough and fine processing of precision structural parts. Especially suitable for the following typical processing tasks:

  • Mold cavity processing: When roughing and fine processing in mold steel (such as P20, H13, S136), the use of radius corner milling cutters can effectively avoid stress concentration at the internal corner position and extend the tool life.
  • High-speed cutting (HSM) scenario: Under high speed and high feed conditions, the rounded corner design can significantly improve cutting stability and is one of the indispensable structural forms of high performance carbide end mills.
  • Hard material processing: such as titanium alloy, stainless steel, hardened steel, etc., it is especially recommended to use coated carbide rounded corner tools to achieve longer tool life and better surface quality.

Thanks to its comprehensive performance advantages, rounded corner end mills have become one of the preferred tools for many CNC engineers in batch processing and high-precision operations.
HRC65 Long Neck Corner Radius End Mill

Analysis of Common Causes of Tool Chipping

Tool chipping is a leading cause of tool failure in CNC operations, especially during aggressive or continuous milling cycles. When using high performance carbide end mills, understanding the root causes of chipping is essential for improving cost efficiency and machining reliability.

Tool Stress Concentration

During the cutting process, the tool tip is the area where stress is most concentrated. In particular, the right-angle tip of the square end mill cannot effectively disperse the impact from the cutting force, and it is very easy to produce boundary microcracks or thermal cracks. As the number of processing times increases, these microcracks continue to expand, eventually leading to local blade fracture, that is, “blade chipping”.

In contrast, the use of solid carbide corner radius end mill can achieve stress relief through the arc transition structure, significantly improve the strength of the tool tip, and reduce the probability of crack source formation. It is particularly suitable for processing high-hardness materials or intermittent cutting scenarios.

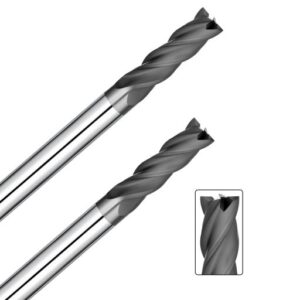

Corner Radius End MIll

Cutting Vibration and Uneven Load Distribution

Processing vibration will cause unstable cutting load, especially when the working condition setting is unreasonable, the clamping rigidity is insufficient, or the tool overhang is too long, the tool side edge is prone to uneven wear or even corner chipping due to load changes.

This is particularly common when using carbide end mill for stainless steel and other high-strength materials. Due to the high viscosity of the material, the side edge is more burdened and lateral cracking is very likely to occur. For this reason, choosing a rounded end mill with a high-rigidity design and a suitable toolholder system (such as a thermal expansion chuck) is an effective means to alleviate cutting vibration.

Improper Machining Parameter Settings (Such as too High Feed or Cutting Depth)

When the user does not set the parameters reasonably according to the tool structure and the characteristics of the processed material. For example, too high feed per tooth (fz) or cutting depth (ap) will cause the tool to instantly bear cutting forces that exceed its load capacity, which can easily cause the tool tip to directly break.

Especially when using high performance carbide end mills for roughing, the roughing stage is already heavily loaded. If it is not combined with good parameter optimization (such as layered processing, reducing the cutting angle), it is easy to cause the tool to break at the cutting/exit point. Using a milling cutter with rounded corners not only enhances the load capacity, but also allows a higher tolerance space, which is conducive to parameter elasticity control.

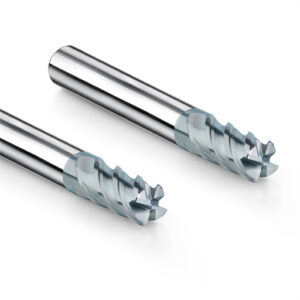

 Corner Radius End Mills

The Workpiece Material is Hard and Brittle or has a Strengthening Layer

When processing materials such as hardened steel, titanium alloy, cast iron, etc., the tool must bear the triple burden of high temperature, high hardness and high impact. Some materials may also have an oxide layer, a carbide layer or a laser quenching strengthening layer on the surface. These areas are hard, brittle and uneven, which can easily cause local cracking of the tool tip.

To adapt to such challenging materials, the use of coated carbide end mill for hard materials (such as TiAlN coated rounded corner milling cutter) can greatly improve the surface hardness and thermal shock resistance of the tool. The rounded corner design can better avoid brittle fracture under such working conditions, improve overall stability and tool life.
Corner Radius End Mills

Why Are Corner Radius End Mills More Resistant to Chipping?

In the actual processing process, the causes of tool chipping are complex, but the core is mostly related to the tool tip structure, stress state and material adaptability. With its special tool tip geometry design, bullnose end mills have shown comprehensive performance advantages far exceeding traditional flat-bottomed tools in terms of chipping resistance. This is especially true when using carbide tools for high-speed, high-load processing.

Smoother Stress Transition, Less Concentration

The arc-shaped tip of a corner radius carbide end mill eliminates sharp stress risers, creating a buffer zone that disperses force more gradually. This reduces the likelihood of tip fractures, especially during high-speed or interrupted cuts.

Enhanced Tool Tip Strength and Impact Resistance

The arc transition structure of the rounded corner cutter is not only a mechanical optimization, but also substantially increases the effective thickness of the cutting edge. The increased volume of material in the cutting edge area improves its overall strength and crack resistance, thus having stronger impact toughness.

In high-speed feed or intermittent cutting tasks (such as rough machining of castings, rotary paths with holes, etc.), the use of a high performance carbide end mill with corner radius can significantly reduce the cutting edge breakage rate. This is especially important for high-value workpiece machining, which can effectively control tool costs and unplanned downtime risks.
Corner Radius End Mill

Greater Cutting Stability and Vibration Control

Tool vibration is the hidden killer of chipping. The rounded corner structure can form a smoother entry and exit path during the cutting-in and cutting-out stages, slow down the sudden change of cutting force, and thus reduce the vibration amplitude of the cutting system. Less vibration means more uniform blade wear and more stable machining surface quality.

Especially when using high-speed milling cutters with rounded corners for high-speed finishing, the anti-vibration performance of the rounded corners is more helpful to improve the dimensional consistency and surface roughness control of the workpiece.

Compatibility with High-Speed and Hard Material Machining

Corner end mills have excellent machining adaptability. Whether used for hard die steel (such as H13, S136) or for difficult-to-machine materials such as titanium alloy and stainless steel, they can maintain stable machining with their strong tool tip and heat resistance.

In high-speed cutting (HSM) environments, the use of coated corner radius carbide end mills with high-temperature resistant coatings can further improve the surface hardness and thermal fatigue performance of the tool. This makes corner milling cutters an ideal match for advanced equipment such as high-speed machining centers and five-axis linkage machine tools, meeting the dual needs of modern manufacturing for tool durability and flexibility.
Graphite Corner Radius End Mill

Real-World Comparison: Performance Improvement with Corner Radius Tools

In typical applications such as hard mold steel and high-speed roughing, the use of different tool structures has a significant impact on the processing effect. Samho Tool has compared and tested the performance of standard flat-bottom milling cutters and corner end mills in actual cutting processes in multiple customer projects. The results show that the latter has obvious advantages in terms of chipping resistance and tool life.

Comparison of Chipping When Machining Mold Steel (Such as H13, S136)

In the customer cases of machining H13 and S136 mold steel, the chipping resistance of the tool has become a key factor affecting the continuous machining efficiency. The following figure shows the comparison of the tool tip state of the two tools when machining the same cavity under the same cutting parameters:

Compare Projects Square End Mill Corner Radius End Mill
Tool tip wear status The tip of the tool is slightly chipped, forming a micro-chip The tip is in good condition and the edges are evenly worn.
Processing surface quality The side wall is partially strained and needs secondary repair Smooth surface, no need for repeated corner cleaning
Service life Average lifespan: 45 minutes Average lifespan: 80 minutes (+77% improvement)
Risk of workpiece scrapping Medium to high (interruption when the tool breaks) Very low (smooth tool withdrawal and replacement possible)

When using tools such as corner radius carbide end mill for mold steel, the tool tip structure can effectively suppress the edge cracks caused by the impact load at the initial stage of cutting hard materials, which is an important means to improve machining stability and yield rate.

Corner Radius End Mill

How to Choose the Right Corner Radius

The advantage of a fillet end mill is not only its ability to resist chipping, but also its flexibility in radius size selection. Different fillet sizes will directly affect multiple key factors such as tool rigidity, cutting trajectory matching, and machining accuracy. Therefore, choosing the right fillet radius is crucial to optimizing machining results and controlling costs.

Common Corner Radiu (R0.2 / R0.5 / R1 / R2)

In industrial applications, according to the machining objectives and workpiece characteristics, common fillet end mill radiusImpact of Radius Size on Rigidity and Accuracy include:

Radius Dimension Typical Uses Commonly Used Tool Types
R0.2 Fine corner cleaning, small mold cavity processing, precision chamfering of electronic parts Corner radius carbide end mill for fine finishing
R0.5 Balanced strength and corner clearing capability, suitable for high-precision groove processing R0.5 end mill for high precision slots
R1 Contour processing of medium and large molds, structural reinforcement cutting Solid carbide radius end mill R1 for mold profiling
R2 High-intensity rough machining scenarios, such as large mold base or reinforcement layer cutting R2 carbide end mill for heavy duty roughing

The basis for correctly selecting the radius is to clarify whether there are sharp-angle contours in the machining area, whether there are R-angle interference restrictions, and whether tool life or geometric accuracy is prioritized.

Tungsten Copper Corner Radius End Mill【4 Flutes Φ3-12】

Impact of Radius Size on Rigidity and Accuracy

The larger the fillet size, the thicker the tool tip structure and the stronger the tool rigidity. For example, R1 and R2 type tools have higher load-bearing capacity and are suitable for heavy-load cutting and high-speed machining. During the cutting process, larger fillets can provide better impact absorption and heat diffusion paths, significantly reducing the risk of tool breakage.

But at the same time, the larger radius also limits the fine processing of complex contours or sharp-angle slots. For example, if the tool R angle is larger than the structure’s inner R angle in the mold cavity with sharp internal angles or corner cleaning requirements, it will not be able to be completely cut, or the secondary processing cost will increase. Therefore:

  • For precision cavity processing (such as electronic molds, plastic molds), it is recommended to use a carbide radius end mill with R0.2~R0.5;
  • For general contour cleaning and general mold rough processing, it is recommended to use an R1 carbide end mill for mold finishing;
  • For high-speed processing and high-hardness steel rough cutting, R1.5~R2 large radius tools can be given priority to improve tool stability and life.

In addition, if used with high-speed machine tools (such as HSC, five-axis linkage center), it is recommended to use a high speed carbide end mill with a micro-round transition design with a small radius tip to balance precision and durability.

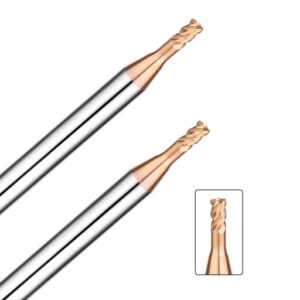

HRC65 Corner Radius Long Neck End Mill【4 Flutes Long Neck Φ1-4】

Why Corner Radius End Mills Are Recommended in CNC Machining

In modern CNC processing, radius end mills have gradually become the preferred tool type for engineers and mold manufacturers. From the analysis in the previous article, we can see that compared with traditional flat-bottom milling cutters, this tool structure shows comprehensive advantages in multiple dimensions.

First, in terms of chipping resistance, the rounded corner design achieves a smooth stress transition, significantly reducing local stress concentration and edge fragmentation in the tip area, which is especially suitable for carbide end mills for hard metal machining used in high-hardness materials or high-speed processing conditions. Whether it is processing S136 mold steel, H13 hot work steel, or wear-resistant materials such as titanium alloy and stainless steel, the corner radius carbide end mill for mold and die applications has shown excellent reliability.

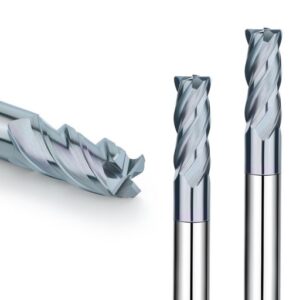

HRC55 Corner Radius End Mill【4 FlutesΦ1-20】

Secondly, the tool life is longer. Due to the structural “buffer layer effect” and the thickening and reinforcement of the tool tip, the rounded corner tool can not only withstand higher feed rates, but also maintain the integrity of the blade during long-term continuous cutting, greatly reducing the risk of scrapping due to micro-chipping. Using a long life carbide end mill with R0.5/R1 corner radius can effectively improve processing continuity and cost control capabilities.

Finally, it is more cost-effective. Although the purchase price of a single corner end mill is slightly higher than that of ordinary tools, its long-term performance in tool life, workpiece qualification rate, machining surface quality and other aspects constitutes a significant “lifetime benefit ratio”. Especially in industries such as molds and precision parts that require high machining stability, cost-effective carbide end mill with reinforced tip is a wise choice for achieving efficient manufacturing.
