Ball Nose Endmills: A Complete Guide for CNC Machinists

In modern CNC machining, ball nose endmills have become essential tools for machining complex surfaces and high-precision parts. Compared to conventional flat-bottom endmills, they deliver higher surface quality and consistent accuracy when cutting 3D surfaces, free-form curves, mold cavities, and precision parts.

Selecting the right ball nose endmill directly affects tool life, surface finish, and productivity. This applies to machining hard steel molds, high-speed aluminum cutting, or finishing graphite electrodes. Ball nose endmills are particularly indispensable in mold making and 3D profiling, helping engineers maintain precision while reducing the need for subsequent polishing or finishing.

With advancements in tool materials and coatings, such as carbide ball nose end mills, CVD diamond coatings, and PCD tools, modern ball nose endmills offer improved wear resistance, cutting efficiency, and adaptability. Paired with high-speed, high-precision CNC machines, they are widely used in mold manufacturing, aerospace, automotive parts, and precision machinery.

What Are Ball Nose Endmills?

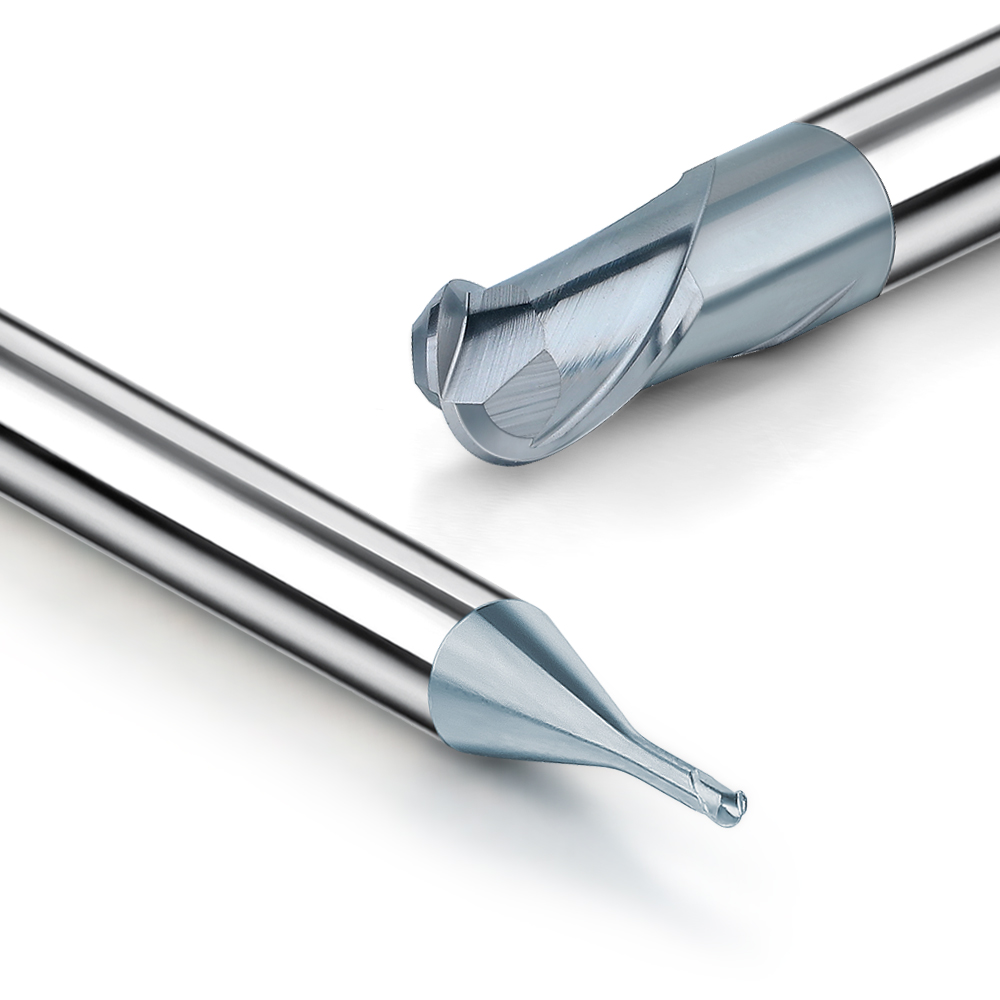

Ball nose endmills are CNC milling cutters with a rounded, spherical tip. They are widely used for complex surface machining, mold cavity finishing, and precision parts manufacturing. Compared to flat endmills, ball nose endmills provide smoother transitions and more uniform tool marks, resulting in superior surface finish and reduced secondary operations.

Most ball nose endmills use a carbide substrate, often enhanced with TiAlN, AlTiN, or CVD diamond coatings to increase tool life and wear resistance. For graphite and other high-hardness materials, PCD tools may be preferred.

Definition & Key Features

The defining feature of a ball nose endmill is its spherical cutting edge, which eliminates noticeable tool marks on free-form surfaces. This makes it ideal for semi-finishing and finishing molds, complex cavities, and high-precision parts.

Key Features:

Smooth Surface Finishing: Ensures minimal tool marks in 3D transition areas.
Wide Material Compatibility: Effective on steel, aluminum, graphite, and other materials.
Balanced Tool Life and Efficiency: Maintains long tool life when combined with proper materials and coatings.

Comparison with Flat End Mills

Flat end mills excel at flat cutting, grooving, and roughing, providing efficiency on flat surfaces but leaving noticeable marks on curves. In contrast, ball nose endmills:

Are ideal for 3D profiling and curved surfaces.
Reduce secondary polishing and finishing.
Have smaller cutting contact areas, dispersing forces to improve dimensional accuracy.

Why Use Ball Nose Endmills for 3D Surfaces?

3D surfaces involve continuous curves and complex contours. The spherical tip of a ball nose endmill:

Achieves smooth transitions, avoiding step marks.
Provides flexibility for 5-axis machining, including deep cavities and complex angles.
Reduces polishing and EDM finishing in mold and precision part manufacturing.

Main Application Areas of Ball Nose Endmills

Ball nose endmills are widely used across industries due to their spherical tip design and versatility. Proper tool selection, including carbide, PCD, or CVD diamond-coated options, significantly improves surface finish and tool life.

Ball Nose Endmill for Mold Making

Essential for molds with deep cavities and high-hardness steels, ball nose endmills:

Ensure high dimensional accuracy.
Achieve excellent surface finish, reducing secondary operations.
Maintain tool life when using carbide or coated tools.

Ball Nose Endmill for 3D Profiling

Ideal for complex free-form surfaces:

Minimizes visible tool steps.
Improves aesthetics with smooth transitions.
Enables deep cavity machining with 5-axis flexibility.

Aerospace and Automotive Parts Machining

Used for high-strength, complex components:

Aerospace: Turbine blades, engine casings, structural parts.
Automotive: Engine molds, curved components, precision cavities.

Coated carbide or diamond ball nose endmills balance high-speed machining with tool longevity.

Precision Parts and Complex Surface Machining

Supports micro and high-precision parts:

Ensures stable dimensional accuracy.
Provides excellent surface quality.
Essential for graphite electrodes, medical devices, optics, and electronics.

Ball Nose End Mill Selection for Different Materials: Steel, Aluminum, and Graphite

In CNC machining, the physical properties and cutting behavior of different materials vary greatly. Selecting the right ball nose endmill is essential for maximizing tool life, improving surface finish, and ensuring efficient machining.

Hard steel, soft aluminum, and dust-prone graphite each require targeted tool design, coating selection, and optimized cutting parameters. Using the proper carbide ball nose end mill or coated tool, combined with appropriate cutting speeds and feed rates, ensures the best machining performance.

Below are the key considerations for selecting ball nose endmills for steel, aluminum, and graphite.

Ball Nose Endmill for Steel – Key Selection Tips

Machining steel, especially mold steels like H13 and SKD11, as well as hardened steels (HRC 50–65), demands extremely high tool hardness and wear resistance. To select the best ball nose endmill for steel, consider:

Tool Material and Coating: Use a carbide substrate with TiAlN or AlTiN coatings to improve wear resistance and thermal stability.
Cutting Parameters: Maintain a low axial depth of cut and moderate cutting speed to avoid tool tip chipping.
Flute Selection: 2- or 3-flute ball nose cutters provide stable cutting forces and efficient chip evacuation in hard steel.

Tip: Combining proper tooling with optimized machining strategies ensures high-precision mold cavity machining and superior surface finish.

Ball Nose Endmill for Aluminum – High-Speed Machining

Aluminum is soft and prone to built-up edge, which can reduce tool life and surface quality. Selecting a ball nose endmill for aluminum requires:

Tool Material and Coating: High-hardness carbide or AlTiN-coated tools minimize sticking and cutting resistance.
Cutting Parameter Optimization: Increase cutting speed and moderately adjust feed rate to balance efficiency and surface finish.
Tool Design: Spiral flute designs enhance chip evacuation and reduce heat buildup.

Practical Advice: This setup is ideal for aircraft aluminum parts, automotive components, and industrial extrusions, improving both efficiency and surface quality.

Ball Nose Endmill for Graphite – Wear-Resistant Tips

Graphite machining generates dust and wears tools quickly. Selecting a ball nose endmill for graphite involves:

Tool Material and Coating: Use PCD or CVD diamond-coated tools to extend tool life and reduce wear.
Cutting Parameters: Maintain appropriate depth of cut and feed rate to avoid tool vibration or edge chipping.
Dust Control: Implement dry cutting or spot cooling to protect equipment and operators.

Tip: Graphite machining requires excellent surface finish, and properly selected ball nose endmills can maintain high precision while increasing tool durability.

Key Points in Ball Nose Endmill Structure and Design

The performance of ball nose endmills depends not only on machining parameters but also on tool material, number of flutes, coating, and diameter design. A well-designed structure can significantly improve machining accuracy, surface finish, and tool life. Choosing the right ball nose endmill for steel, aluminum, graphite, mold making, or 3D profiling is crucial based on the workpiece material and machining requirements.

Below is a detailed analysis of tool material, number of flutes, coating, and diameter design for ball nose endmills.

Ball Nose Endmill Tool Material – Carbide, PCD, CVD Diamond

Common tool materials include carbide, PCD, and CVD diamond-coated tools.

Carbide: Suitable for machining steel, aluminum, and general mold steel, offering a balance between wear resistance and cutting performance.
PCD Tools: Ideal for high-speed machining of highly abrasive materials such as graphite and non-ferrous metals, extending tool life due to high hardness and wear resistance.
CVD Diamond-Coated Tools: Provide excellent wear resistance and surface finish when machining graphite, aluminum alloys, and non-ferrous alloys. They are particularly suitable for precision cavities and high-gloss surfaces.

Tip: Choosing the correct tool material maximizes high-speed machining efficiency and ensures long-lasting tool performance.

Ball Nose Endmill Flutes – 2-Flute vs 4-Flute Applications

The number of flutes affects chip evacuation, cutting forces, and surface finish:

2-Flute Ball Nose Endmills: Excellent for chip evacuation, deep cavities, and machining hard steels such as mold steels with HRC 60+.
4-Flute Ball Nose Endmills: Provide uniform cutting forces, suitable for aluminum, high-speed machining, and finishing operations, improving surface finish but with slightly weaker chip evacuation.

Tip: Select flute count based on workpiece material, machining depth, and CNC machine capabilities to optimize performance and tool life.

Ball Nose Endmill Coatings – TiAlN, AlTiN, Diamond Coatings

Coatings enhance tool performance and wear resistance:

TiAlN Coating: High-temperature and wear-resistant, suitable for high-hardness steel.
AlTiN Coating: Offers superior thermal stability for high-speed cutting and semi-finishing, extending tool life.
Diamond Coating (CVD): Ideal for abrasive materials like graphite and aluminum, improving surface quality and wear resistance.

Tip: Combine tool material and coating according to material and application to achieve optimal high-speed machining and surface finish.

The Relationship Between Tool Diameter and Machining Accuracy

Tool diameter directly impacts machining accuracy and surface finish:

Large-Diameter Ball Nose Cutters: Stable cutting, suitable for roughing and large surfaces, but limited precision on fine curves.

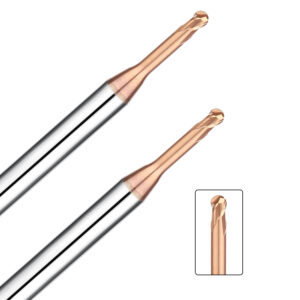

Small-Diameter Ball Nose Cutters: Ideal for fine 3D profiling and micro-part machining, achieving high precision and surface finish but higher cutting stress.

Tip: Choose diameter based on workpiece size, surface complexity, and machining stage (roughing, semi-finishing, finishing).

How to Select the Appropriate Ball Nose Endmill for a Specific Application

Selecting the right ball nose endmill is critical for efficiency, tool life, and surface finish. Tool selection should consider workpiece material, machining process, and CNC machine type, as proper selection improves precision, reduces tool costs, and shortens cycle time.

Selecting Ball Nose Endmills for Different Materials

Steel Machining: Use ball nose endmill for steel with TiAlN or AlTiN-coated carbide tools for high-hardness steel, ensuring long tool life and surface finish.
Aluminum Machining: Use ball nose endmill for aluminum with high-hardness carbide and spiral flute design to prevent sticking and ensure chip evacuation.
Graphite Machining: Use ball nose endmill for graphite, preferably PCD or CVD diamond-coated, to improve wear resistance, reduce dust impact, and maintain high-precision surfaces.

Selection Based on Machining Process (Roughing, Semi-Finishing, Finishing)

Roughing: Prioritize chip evacuation and stability with 2- or 3-flute carbide cutters.
Semi-Finishing: Balance cutting forces and surface finish using coated carbide or PCD cutters.
Finishing: Use 4-flute or micro ball nose endmills for high surface quality and dimensional accuracy.

Selection Based on Machine Type (3-Axis / 5-Axis CNC)

3-Axis CNC: Suitable for common curved and flat surfaces; larger diameters work for roughing and semi-finishing.
5-Axis CNC: Ideal for complex 3D surfaces, deep cavities, and multi-angle parts; small-diameter or multi-flute coated tools improve surface finish and machining flexibility.

Tip: Matching the right tool to machine capabilities maximizes efficiency and part quality.

Common Problems and Solutions with Ball Nose Endmills

In CNC machining, engineers using ball nose endmills may encounter issues such as tool chipping, rapid wear, rough machined surfaces, and poor chip evacuation. These problems can negatively impact machining efficiency, surface finish, and tool life. By selecting the right ball nose endmill, optimizing cutting parameters, and implementing proper machining strategies, these challenges can be effectively addressed, improving stability and overall part quality.

Tool Chipping or Rapid Wear

Tool chipping or rapid wear commonly occurs when machining high-hardness steels or mold steels. Key causes include:

Excessive cutting parameters, including cutting speed, feed rate, and depth of cut.
Tool material or coating not suited for the workpiece (e.g., not using a TiAlN or AlTiN-coated carbide ball nose endmill for hardened steel).
Too small a tool diameter, concentrating cutting forces on the tip.

Solutions:

Use the appropriate tool material and coating, such as a TiAlN-coated carbide ball nose endmill.
Adjust cutting speed, feed rate, and depth of cut to improve tool stability.
For hard materials, select 2-flute or 3-flute ball nose cutters to enhance chip evacuation and reduce chipping.

Tip: Regularly monitor tool wear during machining of hardened steels to prevent unexpected chipping.

Rough or Inadequate Surface Quality

Poor surface finish often occurs during 3D profiling or finishing operations. Possible causes include:

Tool diameter does not match the surface radius.
Tool wear or tip chipping.
Excessive feed spacing or suboptimal tool path design.

Solutions:

Use a ball nose endmill with a diameter suited to the surface radius.
Select high-precision coated tools, such as CVD diamond-coated ball endmills, to improve wear resistance and surface finish.
Optimize tool paths and feed strategies to minimize step marks and ensure smooth transitions.

Tip: For tight radii or freeform surfaces, consider a micro ball nose endmill to achieve superior finish.

Poor Chip Evacuation and Excessive Cutting Temperatures

Poor chip evacuation and excessive temperatures accelerate tool wear and can damage the workpiece. Common causes include:

Inappropriate helix angle or too many flutes, reducing chip evacuation.
Excessive cutting speed, depth, or feed.
Highly viscous or abrasive materials.

Solutions:

Choose a ball endmill with moderate helix angle and excellent chip evacuation.
Adjust cutting parameters, employ layered cutting, or reduce depth of cut.
For materials like graphite or aluminum, use dry cutting or moderate cooling to minimize heat buildup.

Tool Life Optimization Techniques

Extending ball nose endmill life reduces costs and increases productivity. Key strategies include:

Select the correct tool material and coating based on material (e.g., TiAlN for steel, PCD or diamond coating for graphite).
Match tool diameter and number of flutes to the machining stage: roughing, semi-finishing, or finishing.
Optimize cutting speed, feed rate, axial and radial depth (AP/AE), and machining paths to reduce vibration.
Regularly check tool wear, and resharpen or replace tools promptly to maintain precision machining.

Tip: Combining proper tool selection with optimized machining parameters ensures the best balance between tool life and machining efficiency for steel, aluminum, graphite, mold making, and 3D profiling applications.

Future Development Trends of Ball Nose Endmills

As modern manufacturing increasingly demands high-precision, high-efficiency, and complex surface machining, ball nose endmills continue to evolve in terms of materials, coatings, machining strategies, and digital intelligence. Future trends will focus not only on tool wear resistance and machining efficiency, but also on integration with smart manufacturing systems, meeting the growing demands of industries such as aerospace, mold making, and precision parts.

Advanced Coatings and New Material Applications

The adoption of new tool materials and advanced coatings significantly enhances ball nose endmill performance:

High-performance coatings: AlTiN and TiAlN+Diamond composite coatings improve wear resistance, thermal stability, and performance in high-speed machining of hard materials.
New tool materials: Ultra-fine carbide, PCD, and CVD diamond tools extend tool life and improve surface finish when machining graphite, aluminum, and hardened steel.
Material + Coating Combination: Optimized pairings improve performance in mold making and 3D profiling for complex surface machining.

Tool Requirements for High-Speed, High-Precision Machining

With the rise of high-speed, high-precision CNC machining, ball nose endmills must meet stricter performance standards:

Ensure cutting stability, minimize vibration and chipping, and maintain dimensional accuracy in precision mold machining.
Coatings and materials must withstand high temperatures and friction during high-speed cutting.
Small-diameter and multi-edge ball nose endmills are increasingly used for 3D profiling and micro-part finishing.

Intelligent Tools and Digital Machining

The shift to intelligent and digital manufacturing is transforming ball nose endmill applications:

Smart tooling: Sensors monitor cutting forces, temperature, and wear, providing real-time feedback and optimizing cutting parameters.
Digital machining: Integration with CAM systems and simulation software enables tool path optimization, collision prediction, and automatic parameter adjustments.
In industries like mold making, aerospace, and precision parts, intelligent ball nose endmills improve tool life, surface quality, and machining stability.

Summary

Ball nose endmills are indispensable tools in modern CNC machining, providing high performance in mold manufacturing, 3D surface milling, and multi-material machining. Proper selection of tool material, flute count, coating, and diameter, combined with cutting strategies and machine type, allows engineers to achieve high-speed machining, optimize tool life, and ensure precision surface finish.

This guide covers:

Fundamental concepts and applications of ball nose endmills.
Material selection strategies for steel, aluminum, and graphite.
Structural and design considerations: flute number, diameter, and coatings.
Practical tool selection strategies and problem-solving techniques.
Insights into future trends, including intelligent tools and digital machining.

Key Selection Points for Different Materials and Applications

Steel: Carbide ball nose endmills with TiAlN or AlTiN coatings; optimize cutting parameters and chip evacuation.
Aluminum: High-speed carbide tools; adjust helix angle, feed rate, and prevent tool sticking.
Graphite: PCD or CVD diamond-coated tools to extend tool life, control dust, and maintain precision cavity machining.
Mold Making: Optimize diameter, flute count, and coating for roughing and finishing; ensure surface accuracy and chip removal.
3D Profiling: Small-diameter or micro ball nose endmills with multi-flute designs for high-precision complex surfaces.

Engineering Practice and Tool Selection Strategy Recommendations

Tool Material & Coating Matching: Select carbide, PCD, or CVD diamond-coated tools according to workpiece material to optimize wear resistance and thermal stability.
Flute Number & Diameter Design: Use large-diameter 2–3 flute cutters for roughing, and small-diameter multi-flute cutters for finishing to improve surface accuracy and stability.
Cutting Parameter Optimization: Configure cutting speed, feed rate, and depth of cut for a balance of tool life and machining efficiency.
Machine Type Matching: 3-axis CNCs suit general surface machining; 5-axis CNCs handle complex 3D surfaces and deep cavities.
Common Problem Prevention: Optimize tool paths, improve chip evacuation, and use intelligent monitoring to reduce chipping, wear, temperature rise, and surface roughness.

This systematic approach allows engineers to select and apply ball nose endmills effectively across diverse applications, achieving the optimal balance of efficiency, precision, and tool longevity for modern CNC manufacturing.
