In the CNC milling process, choosing the right tool type is one of the key factors affecting processing efficiency, surface roughness, cutting stability and cost control. The two most common end mills, ball nose end mills and flat end mills, play completely different roles in different processing tasks.
Ball nose endmills, because of their hemispherical tip structure, are particularly suitable for three-dimensional contour processing and complex surface modeling. They are widely used in mold manufacturing, aviation parts and precision machining. Flat bottom cutters, on the other hand, have become the preferred tool for roughing and plane milling due to their efficient removal of excess and excellent edge clarity.
This article will systematically compare these two tools in terms of structural features, performance, typical applications and selection recommendations. Help CNC engineers and programmers make more cost-effective decisions in different materials (such as aluminum alloy, mold steel, titanium alloy) and processing stages (roughing/finishing).

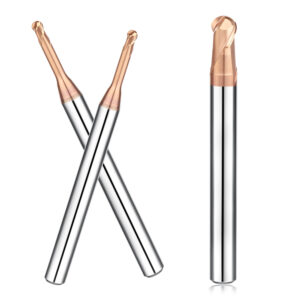

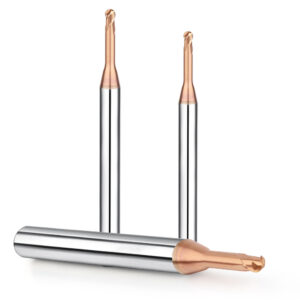

Ball Nose End Mill Overview
A ballnose end mill is an end mill with a hemispherical tip, designed for three-dimensional machining of complex curved surfaces, free curves and concave structures. Its structural characteristics enable it to achieve continuous cutting in the tool path, effectively reducing machine vibration and improving surface profile accuracy.
In practical applications, ball nose milling cutters are widely used in mold manufacturing, aerospace parts processing, and precision medical parts. It is suitable for tasks such as cavity bottom corner cleaning, free-form surface finishing, and concave structure milling.
The Main Advantages Include
- It can easily handle complex surfaces with large curvature changes, and realize contour cutting and Z-layer cutting.
- Complete path cutting in multiple directions without changing the tool, improving programming efficiency.
- Provide excellent surface finish in the finishing stage, especially stable on heat-treated steel and high-hardness alloy materials.
Need to Understand its limitations
- The cutting speed at the center of the tool is close to zero, resulting in weak cutting force in the center area, and the feed rate needs to be strictly controlled.
- The efficiency is low when machining large-area flat surfaces, which may cause redundant machining paths.
- The tool tip is easy to wear, especially under high feed and dry machining conditions.
Tool Material and Coating Recommendations
For common processing objects of ball-end cutters such as pre-hardened steel (P20, H13), stainless steel (SUS304, 316) or titanium alloy (Ti6Al4V), it is recommended to use ultra-fine-grained cemented carbide as the cutter body substrate, and match it with high-performance coatings such as:
- AlTiN: High temperature resistant, suitable for dry cutting.
- TiSiN: Improves hot hardness, suitable for high-speed and high-temperature scenarios.
- DLC coating: Suitable for non-ferrous metals and high-polished surface requirements.

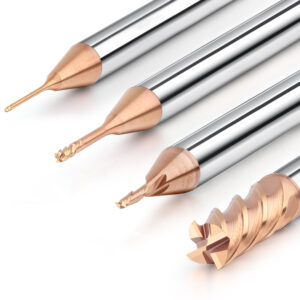

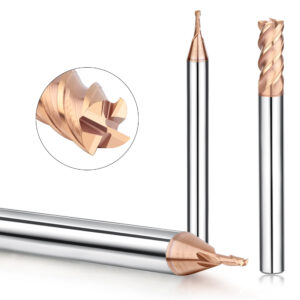

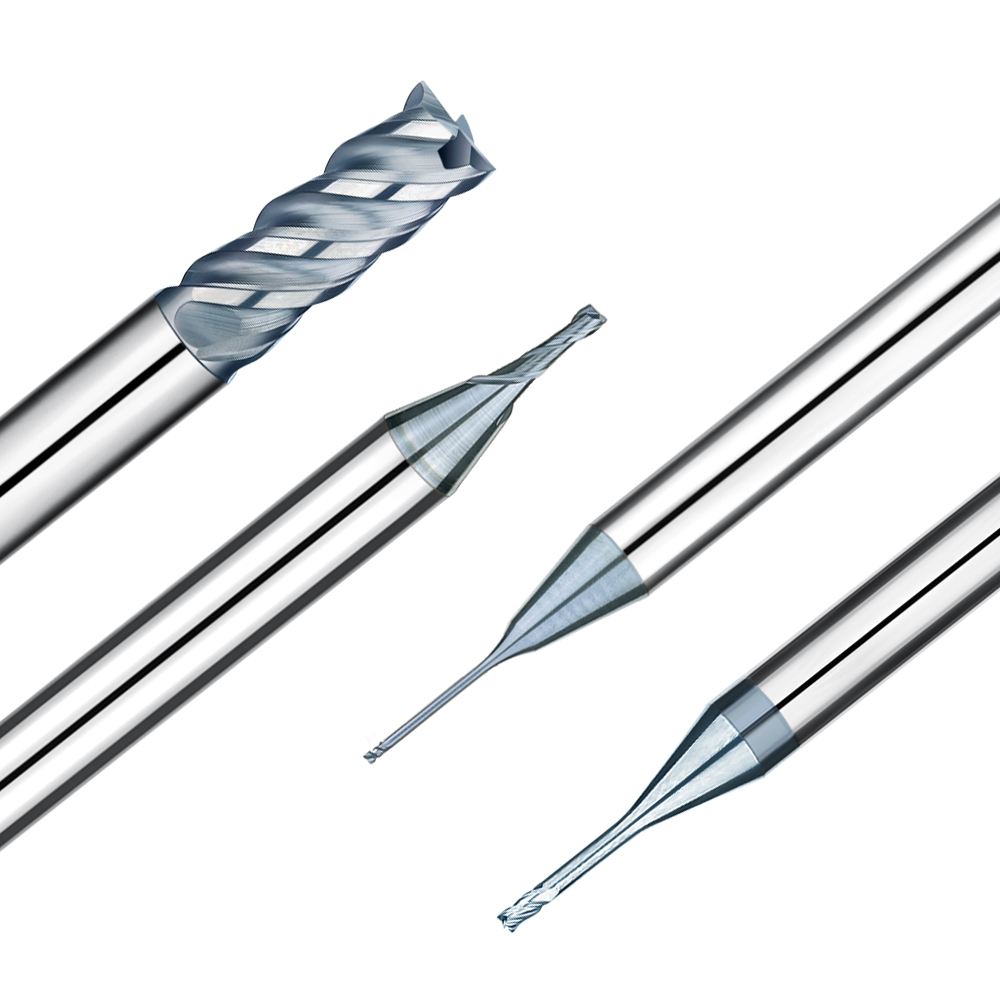

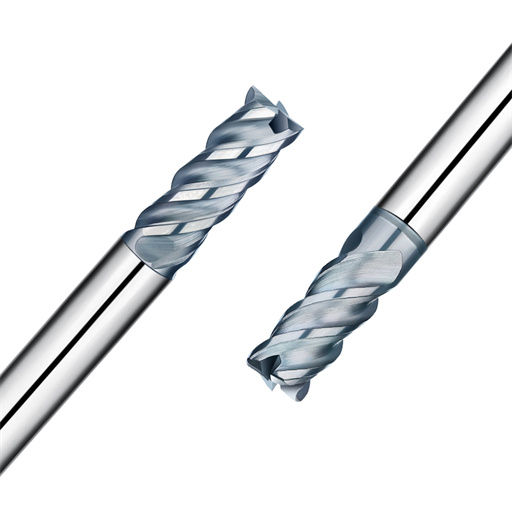

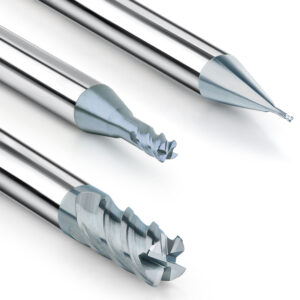

Flat End Mill Overview
Flat milling cutters, also known as square end mills, are characterized by flat tips and sharp 90-degree corners, making them ideal for a variety of 2D and 2.5D machining tasks. This structural design makes them highly versatile and efficient in roughing, grooving, surface finishing, and sidewall machining.
In practical applications, flat-end milling cutters are widely used in mechanical parts manufacturing, mold base roughing, and contour machining of various precision parts. They are particularly suitable for situations where geometric boundary clarity is required, such as rectangular slots and shoulder cutting.
The Main Advantages Include
- The cutting edge is stable, with excellent material removal rate, suitable for high-speed machining and high feed processes.
- The tool end face shape facilitates clear cutting of internal corners and straight edges, suitable for performing sharp-angle contour machining and end milling.
- It is mostly used for rough machining and medium-precision feature milling, which helps to quickly and stably form the part shape.
Limitations That Need to be Noted Include
- It does not have the ability to process curved surface contours and cannot complete spatial free-form surface modeling without tool change.
- When processing deep or concave structures, if the path strategy is not appropriate, tool interference or tool retraction difficulties may occur.
- The surface finish is limited in the finishing stage, and secondary processing or tool change is still required if a high polishing effect is required.
Recommended Application Scenarios and Processing Materials
Flat milling cutters are particularly suitable for:
- 2.5D contour feature processing (bosses, pockets, slots).
- Flat finishing and pre-chamfering processing.
- High-efficiency processing of medium-soft materials such as aluminum alloys, carbon steel, and copper parts.
- Programming strategies such as equal height paths and contour cutting are used in conjunction with other tools.
Ball Nose vs Flat End Mill: Case Analysis
In actual CNC machining, the choice of tool not only affects the accuracy and efficiency of the machining results, but also determines the design of the overall process path and the machine tool load. The following two typical cases show the best application methods of ball nose milling cutters and flat-bottom end milling cutters in different scenarios. And introduce composite processing thinking to improve processing flexibility and cost control capabilities.
How to Use Ballnose End Mills to Achieve High-precision Surfaces in Mold Processing
In the finishing process of a set of high-hardness steel mold cavities, a high-precision ball nose endmill was selected for complex free-form surfaces and small radius transition areas, combined with a single-point cutting finishing strategy.
This solution effectively achieves:
- The surface roughness Ra is controlled within 0.001.
- Equidistant feed control avoids tool mark stacking.
- The tool uses coated super-hard alloy with excellent stability, especially suitable for die steel after heat treatment.
This type of processing emphasizes high-precision surface forming and tool wear resistance, which is a typical advantage scenario of ball nose end mills.
How to Use a Flat End Mill to Quickly Complete Workpiece Roughing and Contour Milling
In the processing of mechanical structural parts, such as bracket parts, a flat-bottom milling cutter with a larger diameter is used for rapid roughing and contour cleaning. The high-speed milling strategy combined with a dynamic tool path significantly improves the processing efficiency.
The results are as follows:
- The blank removal rate is extremely high and the workpiece surface is smooth.
- The plane and slot size are controlled within ±0.01mm, and the edge is clear.
- The processing material is HRC60 mold steel, and the tool is selected from the SHG series to better reflect the wear resistance of the tool.
This case highlights the high efficiency of the flat-bottom cutter in slotting, contour milling and 2.5D feature processing.
How to Choose the Right Tool Based on Your Needs?
In the CNC machining process, the reasonable selection of tools not only affects the machining efficiency and surface quality, but also directly determines the programming path, tool life and overall production cost. Although ball-end cutters and flat-bottom cutters have their own strengths, their adaptability needs to be comprehensively judged based on factors such as workpiece type, machining stage, surface quality requirements and cost control goals.
Select According to the Workpiece Type
Mold workpieces: involving a large number of complex curved surface processing and high surface accuracy requirements, it is recommended to use ball nose end mill first, which can achieve equal height cutting and high curvature contour tracking.
Structural parts, shells, bracket parts: mostly planes and 2.5D contours, more suitable for using flat end mill for rapid roughing and sidewall cutting.
Differentiation According to the Processing Stage
Roughing stage: give priority to flat-bottomed tools with high rigidity, smooth chip removal and large feed rate to improve material removal rate.
Finishing stage: small-diameter ball-end tools can be used to perform fine contour finishing and curved surface sweeping to optimize surface texture and precision control.
Consider Surface Quality and Precision Goals
If the goal is high surface finish, especially in mold cavity and optical parts processing, the continuous contact cutting of ball end cutters is more advantageous.
If the workpiece structure is regular and the corners are clear, the square end tool with a 90° tool tip should be preferred to ensure the sharpness of the corners.
Tool Cost and Tool Change Frequency Considerations
Ball nose milling cutters are usually used in high-precision scenarios. They are relatively expensive, and the center blade wears quickly. A reasonable use cycle should be planned.
Flat end mills have a simple structure and strong versatility. They are suitable for multi-task use in mass-produced parts and have better cost performance.
FAQ
1. Can Ball Nose and Flat End Mills be Used Interchangeably?
From a technical point of view, the two are not completely interchangeable. Although they both belong to the category of end mills, the difference in the tip structure determines the fundamental difference in cutting methods, path planning and surface quality output:
- Ball nose cutters are suitable for 3D surface processing, especially in complex cavities or free-form surface areas.
- Flat end cutters are more suitable for 2.5D processing scenarios such as grooving, steps, and contour trimming.
If they are forced to be used interchangeably, it may lead to low processing efficiency, reduced surface accuracy or rapid tool wear, especially in mold or precision parts manufacturing.
2. Which Tool is More Suitable for Hard Material Processing?
In the scenario of high-hardness material processing, such as heat-treated mold steel, titanium alloy or stainless steel, the following factors should be considered when selecting tools:
Tool material and coating: It is recommended to use ultra-fine-grain carbide tools with heat-resistant coatings, such as AlTiN, TiSiN, etc.
- Generally speaking, flat-bottomed tools are suitable for the initial rough processing stage, and their strong rigidity and cutting efficiency are more suitable for large-area removal of hard materials.
- In the subsequent finishing stage, if you need to process the complex contours of hard steel molds, you can use a high-hardness ball end mill for fine finishing.
- Flat-bottomed tools are preferred for rough processing, and ball-end tools are used for finishing. The key lies in the processing stage and path design.
3. What Programming Skills Should be Paid Attention to When Using Ballnose End Mills?
When using ball-end end mills, the following CNC programming skills and tool path strategy optimization are crucial:
- Avoid cutting with the center of the tool tip: The center of the ball-end cutter has almost no linear speed, which is prone to burrs or wear. The side edge should be used as much as possible for cutting.
- Use Z-level / constant stepover paths: This can ensure consistent surface texture and avoid excessive tool mark overlap.
- Reasonably control stepover and feed: Especially in areas with drastic curvature changes, the feed and stepover should be reduced to optimize surface quality.
- Avoidance strategy setting: Set a safety boundary in the CAM software to prevent the tool from overcutting or hanging.
- Check tool interference: In deep cavity processing or chamfering areas, simulate the tool path in advance to avoid shank interference or scratching the workpiece.
