Ballnose endmills are essential tools in high-precision CNC machining. Their hemispherical tip design allows smooth transitions over complex 3D surfaces, making them indispensable for mold making, deep cavity machining, and finishing of free-form geometries. Compared to traditional flat-bottom endmills, ballnose endmills offer improved tool stability and flexibility, resulting in superior surface finishes and higher dimensional accuracy.
Different types of ballnose endmills—2-flute, 4-flute, tapered, long-reach, radius, and solid carbide ballnose endmills—provide versatile solutions for various machining scenarios. For example, long-reach ballnose endmills reduce tool deflection in deep cavities, while radius ballnose endmills minimize chipping during semi-finishing operations, extending tool life.
As demand for high-precision CNC components grows, selecting the right ballnose endmill and optimizing cutting parameters has become critical for ensuring consistent part quality and efficient production. Advanced materials, such as carbide, and coating technologies, including PVD, CVD, and diamond coatings, further enhance the performance of ballnose endmills in high-speed cutting, difficult-to-machine materials, and long-life applications.
Ballnose Endmill Basics and Applications
In modern CNC machining, ballnose endmills are widely used for free-form surface milling, 3D contour finishing, and mold applications. Their hemispherical tip evenly distributes cutting forces, reducing tool vibration and deflection, which improves surface finish and machining precision compared to flat endmills.
Selecting the appropriate ballnose endmill and combining it with the correct cutting parameters can significantly improve cutting efficiency, extend tool life, and reduce overall machining costs. Solid carbide ballnose endmills and advanced coatings further enhance performance in high-speed cutting, deep cavity operations, and machining of hard-to-machine materials.
What is a Ballnose End Mill?
A ballnose end mill features a hemispherical tip used for finishing complex surfaces and curved parts. The spherical cutting edge distributes cutting forces evenly, reducing vibration and tool deflection. This design is especially effective in 3D surface machining, mold manufacturing, and finishing high-precision surface details.
For example, when performing 3D surface finishing, a ballnose endmill allows smoother transitions along complex geometries, reducing toolpath marks and improving surface quality.
Main Applications of Ballnose Endmills
-
Ballnose Endmill for Mold Making: Widely used in injection molds, die-casting molds, and precision forming molds. Improves cavity surface finish and extends mold life.
-
Ballnose Endmill for Aerospace Machining: Ideal for 3D contour milling of titanium alloys and nickel-based alloys, ensuring high precision and tool stability.
-
Ballnose Endmill for Complex 3D Machining: Suitable for medical implants, precision instruments, and automotive engine components, delivering superior surface quality and dimensional consistency.
Introduction to Different Types of Ballnose End Mills
In CNC machining, ballnose endmills come in a variety of designs suitable for different materials and machining scenarios. Choosing the right tool—whether for high-speed cutting, deep cavity machining, or complex surface finishing—can greatly improve machining efficiency, tool life, and surface quality. The following sections introduce common types and their key advantages.

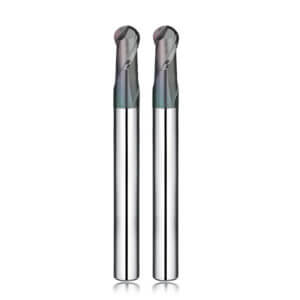

2-Flute Ballnose End Mill
Applicable Materials and Scenarios:
The 2-flute ballnose endmill offers larger chip clearance, making it ideal for high-speed cutting of soft materials such as aluminum alloys, copper, and plastics. It is commonly used in mold cavity roughing and free-form surface machining, where efficient chip evacuation is critical to prevent tool wear and heat buildup.
Advantages vs. 4-Flute Endmills:
-
Excellent chip evacuation for soft metals; smooth cutting action
-
Less rigid than 4-flute tools; not recommended for high-hardness materials
-
Surface finish may be slightly rougher than 4-flute endmills, but machining efficiency is higher
Processing Tips:
Use high spindle speeds and moderate feed rates. Consider TiAlN or diamond coatings for tougher alloys when needed.
4-Flute Ballnose Endmill
High Surface Quality:
The 4-flute ballnose endmill provides more cutting edges, resulting in smoother surfaces and reduced vibration. It is particularly suitable for semi-finishing and finishing steel and carbide molds.
Cutting Parameter Optimization:
-
Moderate feed rates and reduced depth of cut extend tool life
-
Use coated versions (TiAlN, CVD) for high-hardness materials
-
Ideal for achieving fine surface finishes on precision molds
Tapered Ballnose Endmill
Advantages for Mold and Deep Cavity Machining:
Tapered ballnose endmills increase tool rigidity, allowing stable cutting in deep cavities and complex molds while reducing tool deflection.
Cutting Strategies:
-
Layered cutting and step-down passes maintain dimensional accuracy
-
Tapered geometry reduces tool vibration compared to straight-shank cutters
Long Reach Ballnose Endmill
Applications:
Designed for deep cavities, narrow slots, and hard-to-reach areas in aerospace parts and molds. Its slender neck allows access beyond the reach of standard tools.
Deflection Control:
-
Monitor cutting depth and feed rate carefully
-
Use rigid clamping and fixtures to minimize vibration and ensure surface quality
Radius Ballnose Endmill
Chipping Resistance and Semi-Finishing Advantages:
The radius ballnose endmill features rounded corners at the tip, which dissipates cutting stress and reduces chipping, especially in high-hardness steels and mold materials.
Surface Optimization:
-
Provides stable cutting forces for superior surface finish
-
Combine with air or minimal lubrication cooling for best results
Solid Carbide Ballnose Endmill
Wear Resistance and High-Speed Performance:
Solid carbide ballnose endmills excel in high-speed finishing of aerospace parts and molds due to their high hardness and rigidity. They maintain stability during machining, improving efficiency and surface quality.
Material Performance Comparison:
-
Steel, stainless steel, and titanium: Carbide tools deliver longer life and stable cutting
-
Aluminum and non-ferrous metals: Tungsten carbide with diamond coatings improves surface finish and cutting efficiency
Ballnose Endmill Machining Optimization Techniques
In high-precision CNC machining, proper tool application and cutting optimization strategies are essential to maximize the performance of ballnose endmills. Selecting optimal cutting parameters, controlling tool wear, and optimizing 3D surface machining paths can significantly improve efficiency, extend tool life, and achieve superior surface quality. The following sections discuss key areas in detail.
Cutting Parameter Selection
Spindle Speed, Feed Rate, and Depth of Cut
The performance of a ballnose end mill largely depends on proper cutting parameters. Excessively high spindle speeds can overheat the tool, while too low speeds reduce efficiency. High feed rates may cause tool chipping, whereas low feed rates can result in poor surface finish. The depth of cut should be chosen according to the tool diameter and material to avoid deflection and roughness.
Optimal Parameters for Different Materials
-
Aluminum: Use high spindle speeds and moderate feed rates. A 2-flute ballnose end mill provides large chip clearance for efficient cutting.
-
Steel: Medium-speed cutting is ideal. A 4-flute or solid carbide ballnose end mill balances tool life and surface quality.
-
Titanium and nickel-based alloys: Reduce spindle speed and feed rates, and consider coated tools to limit heat and wear.
Tool Life and Tool Wear Control
Common Wear Issues
Ballnose end mills often experience tip chipping, edge galling, and surface roughness caused by vibration. These issues reduce workpiece quality and shorten tool life.
Coating, Cooling, and Cutting Strategies
-
Coating Selection: TiAlN or CVD diamond coatings enhance wear resistance, especially for high-hardness materials and high-speed applications.
-
Cooling Methods: Spray or MQL is suitable for non-ferrous metals like aluminum and copper. For steel and titanium alloys, sufficient liquid cooling is recommended.
-
Cutting Strategy: Use gradual or light cutting and well-planned tool paths to reduce heat buildup and extend tool life.
High-Precision Machining Strategies
3D Surface Machining Path Optimization
Proper toolpath planning improves surface finish in complex 3D machining. Techniques such as Z-level finishing, climb milling, or staggered paths can reduce tool marks and improve consistency.
Tool Layout and Fixture Selection
-
Use highly rigid toolholders and fixtures to minimize deflection.
-
Arrange multi-tool sequences efficiently, e.g., roughing with a long-neck ballnose end mill followed by finishing with a small-diameter cutter. This approach enhances surface quality and dimensional accuracy while maintaining productivity.
Coating and Material Selection for Ballnose End Mills
In modern CNC machining, the performance of ballnose endmills depends not only on tool geometry but also on the tool material and coating selection. Selecting the right coating improves wear resistance and thermal stability, while the tool base material determines rigidity, toughness, and compatibility with workpiece materials. For high-precision mold and die machining, aerospace components, and complex surface finishing, the optimal combination of coating and material is key to maximizing machining results and extending tool life.
Common Coatings and Their Advantages
PVD Coated Ballnose End Mill
PVD coatings provide high hardness and low friction, reducing tool-workpiece friction during cutting. Common TiAlN and TiCN coatings are ideal for steel, stainless steel, and titanium alloys, offering excellent wear resistance and thermal stability under medium- to high-speed cutting.
CVD Coated Ballnose End Mill
CVD coatings feature thicker layers, enhancing wear resistance for long, continuous cutting cycles. They are commonly used for roughing and semi-finishing high-hardness materials such as cast iron and hardened steel. Due to their thickness, toughness is slightly reduced, so CVD-coated tools are best used on rigid machine tools.
Diamond Coated Ballnose End Mill
Diamond coatings provide extreme hardness and superior wear resistance. They excel in high-speed cutting of aluminum alloys, copper alloys, and carbon fiber composites (CFRP). Diamond coatings reduce tool sticking, improve surface finish, and extend tool life, making them ideal for aerospace and high-end mold applications.
Material Selection and Its Impact on Machining
HSS Ballnose End Mill
HSS ballnose end mills offer excellent toughness at low cost, suitable for low-speed cutting and general mold machining. However, they are not ideal for high-hardness materials or high-speed cutting due to limited wear resistance.
Solid Carbide Ballnose End Mill
Solid carbide ballnose end mills offer high hardness, rigidity, and heat resistance. They are widely used for precision machining of steel, stainless steel, and high-temperature alloys, providing long tool life and stable machining under high-speed conditions.
Ballnose End Mills for Aluminum
For soft materials like aluminum, uncoated or diamond-coated tools are preferred to prevent chip sticking and achieve smoother surfaces. 2-flute ballnose end mills are especially suitable for high-speed roughing and semi-finishing of aluminum alloys due to their enhanced chip evacuation.
Material-Based Recommendations
-
Steel: Solid carbide with PVD coating
-
Aluminum: Uncoated or diamond-coated tools
-
Hardened steel or carbide workpieces: CVD-coated tools
Summary and Recommendations
Ballnose endmills, with their spherical tip design, are widely used in mold making, aerospace, and complex surface finishing. The choice of tool type, coating, and material, along with optimized cutting strategies, directly affects machining efficiency, tool life, and surface quality.
Summary of Application Scenarios
-
2-Flute Ballnose End Mill: Excellent chip evacuation; ideal for high-speed machining of aluminum and copper.
-
4-Flute Ballnose End Mill: Multiple cutting edges for smoother surfaces; suitable for steel and stainless steel finishing.
-
Tapered Ballnose End Mill: High rigidity for deep and complex mold cavities; minimizes deflection.
-
Long-Reach Ballnose End Mill: Accesses deep grooves and hard-to-reach areas; reduces vibration while maintaining accuracy.
-
Radius Ballnose End Mill: Rounded tip for chipping resistance; ideal for semi-finishing applications.
-
Solid Carbide Ballnose End Mill: Combines hardness and wear resistance; suitable for high-speed, precision machining of steel, hardened steel, and high-temperature alloys.
High-Precision CNC Machining Tool Selection Guide
Choose Based on Material
-
Aluminum: 2-flute or diamond-coated tools
-
Steel: Solid carbide with PVD coating
-
Hardened steel/high-hardness alloys: CVD-coated or high-performance carbide
Choose Based on Machining Scenario
-
Shallow cavities & regular curves: 4-flute ballnose end mills
-
Deep cavities & fine details: Long-neck or tapered ballnose end mills
-
Chipping resistance: Radius ballnose end mills
Combine with Cutting Strategies
-
Use optimized toolpaths, e.g., Z-level finishing and climb milling
-
Extend tool life by controlling speed, feed, depth, and coating selection
Selecting the right ballnose end mill requires considering material, geometry, surface requirements, and tool life management. A balanced combination of carbide, coated, and long-reach ballnose end mills can boost productivity while reducing costs.
