Carbide Dovetail Milling Cutter vs HSS: Which One Should You Choose?

Choosing the right dovetail milling cutter is essential for maximizing cutting efficiency and achieving precise machining results. The most common tool materials are carbide dovetail milling cutters and HSS dovetail milling cutters. These two materials differ significantly in tool life, wear resistance, machining suitability, and cost, making the selection process critical for engineers and procurement professionals.

Different types of dovetail milling cutters are widely used in various CNC machining scenarios, such as T-slots, mold cavities, and keyways and slots. In these applications, tool durability, cutting performance, and surface finish quality directly affect the final workpiece accuracy and production efficiency. This article explores the advantages and limitations of tungsten carbide and HSS dovetail milling cutters, focusing on tool material properties. Additionally, it provides a practical selection guide based on different application scenarios. Whether your project involves high-precision cutting on hard materials or small-batch production within a limited budget, this analysis helps determine which dovetail milling cutter best fits your needs.

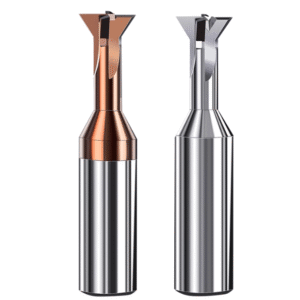

What is a Dovetail Milling Cutter?

Dovetail milling cutters are specialized forming tools used to create grooves or joints with dovetail-shaped profiles. Unlike conventional end mills, these cutters have a unique tapered or bevel design, allowing efficient machining of dovetail grooves, T-slots, mold cavities, keyways, and slits.

The versatility of dovetail milling cutters is evident across applications:

• T-slots in machine tool guideways

• Mold cavity finishing

• Keyways and slots in mechanical parts

Engineers must consider tool material (carbide or HSS), geometry, and tool life when selecting a dovetail milling cutter to ensure consistent machining accuracy and stability.

Basic Structure and Features of Dovetail Milling Cutters

The most distinguishing feature of a dovetail milling cutter is its tapered cutter head, designed at a specific angle for efficient material removal. Typical cutting angles range from 30° to 60°, accommodating grooves of varying widths and depths.

Key structural features:

• Tool Materials: Carbide provides exceptional wear resistance; HSS offers high toughness.

• Cutting Edge Design: Precision-ground edges improve surface finish and groove accuracy.

• Clamping Method: Standard toolholders enhance stability and minimize vibration at high speeds.

These design elements enable dovetail milling cutters to maintain high machining accuracy, extended tool life, and efficient material removal.

Typical Applications for Dovetail Grooving

Machine Tool T-Slot Machining

• Ensures precise and stable T-slots on machine tool tables.

• Recommended: carbide dovetail milling cutters for high precision.

Mold Cavity Machining

• Machines complex cavities and beveled connections in molds.

• Maintains excellent surface finish and dimensional accuracy.

Keyway and Slot Machining

• Ensures accurate slot width and reduces wear.

• Choice between carbide or HSS depends on material hardness and batch size.

These applications highlight the versatility and essential role of dovetail milling cutters in both precision and high-volume production.

Types of Dovetail Milling Cutters

1. Carbide Dovetail Milling Cutter

   • Ideal for machining high-hardness materials and mass production.

   • Provides excellent wear resistance and long tool life.

2. HSS Dovetail Cutter

   • Low-cost, tough, and suitable for medium- to low-hardness materials and small-batch production.

3. Replaceable Insert Dovetail Milling Cutter

   • Extends tool life with replaceable inserts, suitable for high-efficiency production.

4. Customized Dovetail Milling Cutter

   • For non-standard geometries, with adjustable angles, flute counts, and sizes.

Selecting the correct type ensures optimal machining accuracy, tool performance, and production efficiency.

Advantages of the Carbide Dovetail Milling Cutter

Due to its high hardness and wear resistance, the carbide dovetail milling cutter is a top choice for high-precision and hard-material machining in CNC operations. Compared to traditional HSS dovetail milling cutters, tungsten carbide tools deliver more stable cutting performance and significantly longer tool life when machining hard materials such as hardened steel, stainless steel, and alloy steel.

This type of cutter meets the precision demands of complex dovetail grooves, T-slots, mold cavities, keyways, and slits, while maintaining excellent surface finish and dimensional stability, even under high-speed cutting conditions. For continuous machining or high-volume production, carbide dovetail milling cutters enhance processing efficiency and minimize downtime from frequent tool changes.

High Hardness and Wear Resistance

The exceptional hardness and wear resistance of tungsten carbide are the core advantages of carbide dovetail milling cutters. Compared to HSS tools, carbide cutters are less prone to edge chipping or deformation when cutting hard workpieces, ensuring accurate groove geometry and high-quality surfaces.

Typical applications for carbide dovetail milling cutters include machining:

• Hardened steel: Maintains precise cutting geometry while reducing tool wear.

• Stainless steel: Offers anti-sticking properties and heat resistance for stable high-speed machining.

• Alloy steel: Supports continuous machining with minimal downtime.

The high hardness ensures consistent cutting quality over time, making these cutters ideal for mold making, keyways, and T-slot machining, where high dimensional accuracy and surface finish are critical.

Longer Tool Life, Ideal for Mass Production

The wear resistance of carbide dovetail milling cutters translates directly to longer tool life, making them economical for high-volume and continuous machining. Compared to HSS cutters, carbide tools require fewer replacements, reducing production interruptions and maintenance costs.

Long-life carbide cutters maintain stable cutting forces under high-load conditions, reducing vibration and machining errors. This is especially important in precision applications, such as T-slot or mold cavity machining. In addition to improving productivity, longer tool life ensures dimensional consistency and superior surface quality, giving engineers greater flexibility in tool selection and process planning.

Features of HSS Dovetail Milling Cutter

HSS dovetail milling cutters are valued for their cutting toughness and versatility. They are highly resistant to chipping, even during intermittent cutting or imperfect workpiece clamping.

HSS cutters are widely used for low- to medium-hardness materials, including T-slots, molds, and keyways and slots. Their low cost and ease of resharpening make them suitable for small-batch production or general-purpose machining.

Excellent Machining Toughness and Strong Chipping Resistance

The main advantage of HSS dovetail milling cutters is their exceptional toughness. Even when machining slightly harder workpieces or uneven material, HSS cutters maintain stability and resist chipping. This ensures precise groove geometry and high-quality surfaces for keyways, slots, or complex cavities.

Compared to carbide cutters, HSS cutters offer superior vibration and shock resistance, reducing the likelihood of tool damage and improving stability during intermittent or less-than-ideal setups.

Suitable for Low-Hardness Materials and Small-Batch Processing

HSS dovetail milling cutters are ideal for machining carbon steel, aluminum alloys, and plastics. These materials require less wear resistance, while HSS tools provide the toughness and cutting performance to ensure precision.

HSS cutters are also easily regrindable, making them perfect for small-batch production or operations that require frequent parameter adjustments. Engineers can extend tool life by regrinding while maintaining flexibility to meet diverse machining needs.

Low Cost and Versatile

Compared to carbide dovetail milling cutters, HSS cutters are more affordable, making them suitable for small- and medium-sized shops or operations with limited budgets. Their low cost means frequent replacement or accidental damage has minimal impact on production costs.

In practice, HSS dovetail milling cutters often serve as general-purpose tools, performing routine operations such as T-slot machining, mold cavity finishing, and keyway cutting. They offer a cost-effective and efficient solution for engineers handling multi-purpose machining tasks.

Carbide dovetail milling cutter vs HSS: How to Choose?

When selecting a dovetail milling cutter, both tungsten carbide and HSS cutters offer unique advantages. Engineers must evaluate factors such as workpiece material, batch size, machining efficiency, cost, and tool life. Choosing the right cutter improves accuracy, efficiency, and tool longevity, while reducing production costs. This section examines application scenarios from three key perspectives.

Selecting by Workpiece Material

The hardness of the workpiece is the primary factor in tool selection.

• Hard materials (hardened steel, stainless steel, alloy steel): Carbide dovetail milling cutters provide superior hardness and wear resistance, ensuring precise cutting geometry and excellent surface finish. Ideal for mold making and high-precision cavities.

• Low-hardness materials (carbon steel, aluminum alloys, plastics): HSS dovetail milling cutters offer superior toughness and chipping resistance, enabling stable machining of T-slots or keyways and slots, while keeping tool costs low.

Recommendation: Match tool material to the workpiece material to optimize accuracy and tool life.

Selection Based on Processing Volume and Efficiency

Processing volume and efficiency are crucial for tool choice:

• High-volume production or high-speed cutting: Carbide dovetail milling cutters offer long tool life and high wear resistance, supporting continuous machining of hundreds or thousands of parts. This reduces tool-change downtime and improves productivity.

• Low-volume or intermittent machining: HSS cutters are cost-effective and flexible, suitable for varying part sizes and machining requirements.

Combining batch size, speed, and tool life ensures maximum efficiency while maintaining machining quality.

Considering Cost and Tool Life

Tool cost and lifespan are important considerations:

• Carbide cutters are more expensive but offer long life and strong wear resistance, reducing downtime for tool changes in continuous or hard-material machining, achieving a higher cost-performance ratio in high-volume production.

• HSS cutters are inexpensive and easily resharpened but wear faster, making them suitable for low-hardness materials and small-batch production.

By evaluating tool cost, tool life, workpiece material, and production requirements, engineers can select the most appropriate cutter type for each application.

Dovetail Milling Cutter Selection Guide for Different Application Scenarios

In CNC machining, different dovetail milling cutter types suit different applications. Engineers should select the most appropriate cutter based on workpiece structure, machining accuracy, material hardness, and production volume. Proper tool selection improves machining accuracy, extends tool life, and enhances productivity. Below is an analysis of three typical scenarios.

Dovetail Milling Cutter for T-Slots

T-slots on machine tool tables are critical fixture structures requiring high dimensional accuracy and surface finish. For these, carbide dovetail milling cutters are recommended.

• Tungsten carbide cutters are highly hard and wear-resistant, maintaining stable dimensions over extended cutting cycles and minimizing precision deviations.

• High-rigidity tools reduce machining vibration, improve surface finish, and ensure fixture installation accuracy and workpiece clamping stability.

Dovetail Milling Cutter for Mold Making

Mold cavities demand extremely high precision, especially for complex cavities and beveled connections. Carbide dovetail milling cutters are ideal.

• Provide excellent cutting performance in hard materials, reducing tool chipping.

• Maintain surface finish and dimensional consistency in cavities.

• Improve productivity, reduce rework, and extend tool life in injection or die-casting molds.

Dovetail Milling Cutter for Keyways and Slots

For keyway and slot machining, cost-effectiveness and flexibility are crucial. HSS dovetail milling cutters are suitable for small-batch or non-mass production:

• Offer excellent toughness and chipping resistance, maintaining stable machining even during intermittent cutting or suboptimal clamping.

• Low-cost and easy to regrind, ideal for multi-specification workpieces.

• Reduce production costs while maintaining machining accuracy.

Sharing Practical Application Experiences

In CNC machining, selecting the right dovetail milling cutter is only the first step in ensuring machining quality. Engineers must also optimize cutting strategies, considering cutting parameters, cooling methods, tool coatings, and the machining environment to extend tool life, improve surface finish, and boost productivity. The following practical experiences are shared from three perspectives: cutting parameter optimization, cooling & tool coatings, and common problems and solutions.

How to Optimize Cutting Parameters to Extend Tool Life

Key cutting parameters include cutting speed, feed rate, depth of cut, and width of cut. Proper settings can significantly extend the life of carbide or HSS dovetail milling cutters.

• Hard materials (e.g., hardened steel, stainless steel, alloy steel): Reduce cutting speed and slightly increase feed rate to minimize tool wear and chipping.

• Low-hardness materials (e.g., carbon steel, aluminum, plastic): Increase cutting speed appropriately to improve productivity while maintaining tool stability and surface quality.

• Deep grooves or complex cavities: Use multiple light passes rather than a single deep cut to avoid uneven forces, chipping, or dimensional deviations.

Optimizing cutting parameters improves process stability, surface finish, and reduces rework.

The Impact of Cooling Method and Tool Coating

Cooling and tool coatings play a crucial role in cutter performance and durability.

• Cooling methods (liquid or gas) reduce cutting-zone temperature, minimize tool wear, and extend tool life.

• Tool coatings enhance wear resistance and anti-sticking properties, especially for carbide cutters in high-speed or hard-material machining.

• In mold making or T-slot applications, using coated tools with effective cooling improves surface finish and groove accuracy.

• Combining coatings with cooling helps reduce thermal deformation and maintains dimensional accuracy.

Common Problems and Solutions

1. Tool Chipping

   • Cause: Excessive cutting parameters, high material hardness, or insufficient tool toughness.

   • Solution: Use carbide or HSS tools, adjust speed and feed rates, and perform multiple light passes.

2. Dimensional Deviations

   • Cause: Tool wear, unstable clamping, or thermal deformation.

   • Solution: Check tool wear regularly, ensure stable clamping, and use coolant to reduce thermal effects.

3. Surface Roughness Issues

   • Cause: Worn cutting edges, cutting vibrations, or inadequate cooling.

   • Solution: Use coated tools, optimize cutting parameters, and ensure fixture stability and sufficient cooling.

By systematically analyzing practical experiences, engineers can optimize machining for T-slots, molds, and keyways/slots, improving tool efficiency and machining quality.

Conclusion: Which Dovetail Milling Cutter Is Right for You?

Choosing the right dovetail milling cutter is crucial for precision, efficiency, and cost-effectiveness. Both carbide and HSS cutters have distinct advantages and are suited to different machining scenarios.

Tungsten Carbide Tools: Best for High-Precision and Hard Materials

• Ideal for hardened steel, stainless steel, alloy steel, mold cavities, and T-slots requiring high surface finish.

• Maintain dimensional stability and cutting accuracy, reducing chipping and rework.

• Suitable for high-volume, continuous production and high-speed cutting.

• Long tool life reduces tool changes, improving productivity and process stability.

Recommendation: Use carbide cutters when machining demands high precision, hard materials, and continuous production.

HSS Tools: Best for Cost-Sensitive and Small-Batch Applications

• Excellent toughness and chipping resistance, ideal for low-hardness materials and intermittent machining.

• Low-cost, easy to sharpen, and flexible for varying workpiece sizes and specifications.

• Suitable for T-slot or keyway machining with moderate precision requirements.

Recommendation: Use HSS cutters for budget-constrained or small-batch production.

Key Factors for Tool Selection

1. Workpiece Material: Carbide for high-hardness; HSS for low-hardness materials.

2. Processing Volume & Efficiency: Carbide for large-batch, continuous machining; HSS for small-batch, intermittent work.

3. Cost & Tool Life: Carbide has higher initial cost but long life; HSS is low-cost and easily regrindable.

By combining the actual needs of T-slot, mold, and keyway/slot machining, engineers can achieve an optimal balance of precision, efficiency, and cost, ensuring reliable CNC machining results.

FAQs

What materials are best suited for carbide dovetail milling cutters?

Carbide cutters excel in high-hardness materials such as hardened steel, stainless steel, and alloy steel. They maintain stable dimensions and surface accuracy, ideal for mold making and T-slot milling. Long tool life makes them suitable for high-volume, continuous production, improving efficiency and reducing tool change frequency.

Can HSS be used as an alternative for T-slot milling?

• Advantages: Low-cost, excellent toughness, strong chipping resistance, suitable for low-volume or general-purpose machining.

• Limitations: For hard materials or high-precision T-slots, wear may affect groove accuracy and surface finish.

Conclusion: HSS is suitable for low-hardness, low-volume T-slots, but carbide is recommended for hard materials and high-volume production.

Which dovetail milling cutter is most commonly used in mold and die machining?

Carbide dovetail milling cutters with straight shanks are most common:

• Offer high hardness, wear resistance, and dimensional stability.

• Ideal for complex cavities, deep grooves, and beveled surfaces.

• For hard materials, combining coolant and tool coatings optimizes performance, extends tool life, and improves efficiency.
