In CNC precision machining, thread milling has increasingly replaced traditional tapping thanks to its versatility, low cutting stress, and suitability across a wide range of materials. Using a thread mill cutter or carbide thread mills delivers higher thread accuracy and longer tool life. However, thread milling presents its own set of challenges. When using a CNC thread milling cutter for internal or external threads, operators often face issues like inaccurate pitch, misaligned start points, tool breakage, or rough thread surfaces—typically caused by insufficient process understanding or improper programming control.
This article systematically outlines five common types of thread milling errors and draws on years of machining experience to analyze the technical root causes. We then provide a set of practical optimization recommendations to help you choose the right thread mill cutter, fine-tune milling paths and parameters, extend tool life, and enhance thread quality. Whether you’re new to threadmill or an experienced technician aiming for greater process stability, this article offers actionable insights to help you avoid costly mistakes.
What Is a Thread Mill and Why Is It Replacing Traditional Tapping?
With the advancement of CNC technology, thread milling has emerged as an efficient alternative to traditional tapping. A thread mill is a specialized tool system that creates threads on hole walls using a spiral interpolation path. It suits various materials and supports both internal and external thread machining. Features include high flexibility, excellent chip breaking, and superior processing accuracy. This process shines in high-hardness materials, brittle materials, blind holes, and deep-hole threading—where traditional taps often struggle.

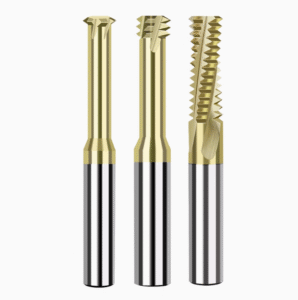

Definition and Classification of Thread End Mills
A thread mill cutter performs spiral trajectory cutting on a CNC machine using either end or side edges to mill threads into round holes. They are commonly classified into:
-
Single-Form Thread Mills, ideal for general pitch threading in low-volume, multi-specification contexts.
-
Multi‑Tooth Full‑Profile Thread Mills, designed for high-efficiency, large-batch production.
-
Indexable Thread Mills, well-suited for large-diameter or deep threads, offering cost-effective advantages.
These thread mill classifications support machining needs across diverse materials, pitches, depths, and tolerance requirements. They are extensively applied in precision industries such as aerospace, mold manufacturing, and medical devices.
Differences Between Thread Milling Cutters and Traditional Taps
Thread milling cutters and taps differ fundamentally in process mechanics and performance:
-
Machining method: Taps rely on forced extrusion cutting, while thread mills use side-cutting and spiral interpolation, distributing cutting load more evenly.
-
Reduced tool breakage risk: With lower cutting forces, thread mills are less likely to break under problematic conditions.
-
Greater flexibility: The same thread mill cutter can produce threads with various pitches or left-handed threads, which is very useful for non-standard threading and complex part configurations.
-
Longer tool life: Particularly with carbide thread mills, wear resistance is excellent and tool reusability is high.
In CNC environments that demand reliability, precision, and flexibility, thread milling cutters increasingly replace traditional taps as the preferred solution.
Why Are Threadmills Becoming More Popular in CNC Machining?
As high-performance CNC systems become mainstream and demand for machining precision intensifies, thread milling in CNC operations is gaining traction. Key reasons include:
-
Stable machining: Thread mills maintain good cutting conditions even in blind holes, deep holes, or high-hardness materials (e.g., steel above HRC 60).
-
High flexibility: A single thread mill cutter can handle different pitches or left‑hand threads, easing tool inventory pressure.
-
Improved quality control: Pitch accuracy, tooth shape integrity, and bottom-hole dimensions are more controllable, reducing scrap from poor tapping.
-
Better for modern materials: Carbide thread mills excel in difficult-to-machine materials such as titanium alloys and composites.
Hence, more precision machining shops are incorporating threadmill solutions into CNC programming to enhance production stability and efficiency.
Common Types of Errors in Thread Milling
Even with the advantages of thread milling cutters, CNC operators frequently run into defects if the process is misunderstood or misapplied. Here are five typical errors—especially relevant when using CNC thread milling cutter and carbide thread mills.
Error 1 – Inaccurate Thread Size or Wrong Pitch
This critical issue usually stems from incorrect pitch programming or poor toolpath compensation. Incorrect settings in CNC G-code (e.g., G76/G33) for pitch values, interpolation steps, or tool diameter compensation can result in threads that fail to meet fit or sealing requirements. Calculation errors in spiral interpolation or outdated wear compensation can also cause profile deformation or insufficient thread depth. Maintaining precise and consistent path calculation for high‑precision internal threading is essential.
Error 2 – Excessive Burrs or Rough Surface Finish
Thread roughness and burrs can impair functionality and interfere with assembly. Causes typically include:
-
Worn, dull tools.
-
Improper cutting parameters (e.g., high speed with too little feed).
-
Insufficient coolant leading to chip adhesion and heat buildup.
-
Processing inappropriate materials (like stainless steel or titanium) with improper cutters.
Optimizing carbide thread mills—including coating selection, coolant nozzle layout, and parameter matching—can mitigate such issues.
Error 3 – Tool Breakage, Edge Chipping, or Short Tool Life
Using suboptimal tools (e.g., non-carbide or uncoated cutters) for high-hardness materials often leads to breakage, chipping, or rapid wear. Full-profile threading in deep or hard materials—especially mold steels—can overload cutters and generate thermal stress. Inappropriate cutting speed or side-cut depth further accelerates blade wear. Opt for coating-enhanced carbide thread mills (e.g., TiAlN, TiCN, DLC), and adjust feed strategies based on material hardness to extend tool life.
Error 4 – Misalignment of Thread Start Point
In multi-pass threading, incorrect start points or poor path transitions can result in incomplete threads or overlapping marks. Common causes:
-
Inaccurate Z-axis insertion angles.
-
Inconsistent tool return starting position across passes.
-
Missing thread-start reference or sync control commands.
Issues of this nature not only degrade quality but may damage the hole. Whenever possible, use single-pass profiling or precisely control the CNC thread milling cutter’s start position and Z-depth interpolation logic.
Error 5 – Insufficient Rigidity in Deep-Hole Milling
Deep-hole internal threading demands high rigidity. Thread mills that are too long or flexible can introduce radial runout, vibrations, or tool deflection—leading to poor thread bottoms, incomplete profiles, and even tool chipping. This is especially problematic in aerospace or engine components. Use extended carbide thread mills with rigid holders, reduce feed rate, manage axial depth carefully, and apply high-pressure cooling to maintain chip evacuation and thermal stability.
Why These Errors Occur – Root Cause Analysis
Most thread milling defects stem not from the machine or material, but from overlooked details in programming, tooling, workholding, and cooling strategy. Below is a deeper analysis of four core causes to help operators build more robust CNC thread milling processes.
Improper Programming Parameters
Parameter settings dictate both cutting efficiency and thread quality. Excessive spindle speed with insufficient feed leads to heat buildup, tool wear, and thread surface burns. In contrast, too rapid feed can cause tooth cracks or size deviation. Misconfigured pitch, cut depth, feed mode, or milling direction (up vs. down milling) can degrade precision or surface finish. When threading multi-axis deep holes, toolpath design must align closely with material behavior and chip evacuation to ensure stable results. Always simulate and validate CNC thread milling cutter paths before production.
Incorrect or Mismatched Tool Selection
Different thread types and material hardness require matching thread mill cutter designs. Common mistakes include using uncoated or non-carbide cutters on high-hardness materials, leading to rapid wear or failure. For hardened steels or exotic alloys, priority should go to coated carbide thread mills—tool accuracy, symmetry, and coating quality directly impact processing success. Smart tool selection improves single-piece thread quality and overall production cost-effectiveness.
Workpiece Clamping and Cooling Issues
Even with proper parameters and tooling, poor clamping or cooling can compromise results. Thread milling involves changing cutting directions, and unstable workpiece fixturing can cause micro-movement or vibrations—resulting in inconsistent profiles, pitch errors, or hole-edge collapse. Inadequate coolant delivery can cause localized overheating. Especially in deep-hole threading, good coolant paths and effective chip evacuation are critical. Use rigid toolholders, dual-point fixturing, and multi-point high-pressure coolant based on cut direction for stable results.
Neglecting Tool Wear Inspection
In batch operations, inconsistencies in thread dimensions or profile accuracy often trace back to unmanaged tool wear. In multi-tooth cutters, uneven wear can create asymmetrical profiles, dull tooth tips, or slight pitch drift. Assuming that an unbroken cutter is still suitable for use neglects the cumulative effect of wear. Establish routine inspection using tool microscopes, 3D scanning probes, or sample-part measurements to monitor cutter condition and runout precision. Proactive tool life management stabilizes product quality and minimizes unplanned downtime or rework.
How to Effectively Avoid These Thread Milling Errors
In the CNC thread milling process, strategies such as choosing an appropriate thread mill cutter, optimizing the toolpath, and proactively managing tool wear significantly influence thread forming accuracy and processing stability. This is especially important in high-stakes applications like precision mold manufacturing, aerospace structural components, or machining hard materials. Avoiding common errors is crucial to maintaining consistent thread quality and maximizing tool life. The following recommendations help operators and programmers proactively reduce issues and boost overall machining efficiency.
Recommendation 1 – Choose the Right Thread Milling Cutter Type and Material
Selecting the proper thread mill cutter means choosing between single-tooth and multi-tooth cutters based on thread specifications, hole size, and material properties. It’s essential to use high wear‑resistant carbide thread mills with coatings such as TiAlN or TiSiN when machining abrasive or hard materials. Each threading application has distinct demands for tool strength, chip removal, and heat resistance. Using mismatched or suboptimal tools can easily result in tool breakage or poor thread formation.
Recommendation 2 – Optimize CNC Programming Parameters and Path Strategy
Thread milling programming involves more than simple arc interpolation. Considerations include spiral path smoothness, retraction point placement, and Z-axis feed control. Poorly designed toolpaths may cause burrs or misalignment at thread ends, even rendering the component unusable. Set cutting depth, step distance, spindle speed, and feed rate appropriately per tool specifications to ensure stable, repeatable processing—especially critical for small-diameter or deep-hole threads.
Recommendation 3 – Regularly Monitor Tool Condition and Manage Wear
Even top-tier carbide thread mills can degrade over time, with edges dulling and geometry changing. Implement a tool-life management system—replacing tools after a certain number of threads processed, time intervals, or based on visual inspections. Monitoring vibration, cutting sound, and spindle load can help detect wear trends early and prevent sudden failures.
Recommendation 4 – Strengthen Workpiece Clamping and Cooling System Configuration
Thread milling demands high rigidity and system stability, particularly for internal threads. Inadequate clamping or thermal control fluctuations can cause thread misalignment or dimensional inconsistencies. Use high-rigidity fixtures to stabilize the part during milling cycles. A well-designed internal/external coolant delivery setup helps control thermal deformation, improve surface finish, and prolong tool life.
Advantages and Recommended Application Scenarios for Carbide Thread End Mills
Carbide thread mills (carbide thread milling cutters) have become the go-to alternative to traditional tapping due to their wear resistance, precision, and versatility. Unlike conventional taps, they can efficiently produce internal and external threads, whether blind holes or through holes. They excel in high-hardness materials, intermittent cutting environments, and machining high-value parts.
Adopting thread milling technology increases threading reliability, improves consistency, and markedly reduces tool breakage risk—ideal for processing precision threads or complex pitches.
Wear Resistance of Carbide Thread Mills
Carbide allows thread mills to maintain excellent heat and wear resistance under high-speed, low-feed conditions—ensuring stability across continuous batch processing. With hardness exceeding HRC 90, carbide thread mills have superior edge durability and thermal resilience compared to high-speed steel tools. Coatings like TiAlN or nanostructured finishes further boost thermal stability and tool lifespan, especially under minimal lubrication or dry cutting conditions.
Suited for Hard-to-Machine Materials like Hardened Steel, Titanium Alloy, and Stainless Steel
Traditional taps often fail or break when threading materials over HRC 45 (e.g., hardened mold steel), heat-resistant stainless steel (304/316), or aerospace-grade titanium alloy. Carbide thread mills enable controlled, low-load layer-by-layer cutting using segmented feeds and optimized toolpaths. This approach reduces cutting resistance and enhances process stability—particularly important for materials with poor thermal conductivity and high work-hardening tendency.
Thread milling minimizes heat accumulation and mitigates tool wear and part deformation. It’s especially effective for deep-hole threading and fine-pitch, high-precision threads.
Recommended Use Cases: Molds, Aerospace, and Precision Components Industries
-
In mold manufacturing (e.g., heat-treated mold steels or powder metallurgy cores), carbide thread mills offer a safer alternative to tapping: they form threads without damaging the part and deliver high consistency in surface quality and dimensions.
-
Aerospace applications involve titanium shell structures, honeycomb panels, and critical components requiring high reliability and repeatability. Thread milling enables precise control over depth, start points, and retract paths, ensuring process stability.
-
In precision components—such as medical implants, instrument housings, and aerospace connectors—tight tolerance thread specifications demand micron-level path programming with carbide thread milling cutters. This minimizes secondary tapping, reduces scrap risk, and maximizes yield.
Use the Thread Milling Cutter in the right way to improve processing quality and efficiency
Thread milling is an essential CNC process in modern manufacturing. Offering adaptability, precision, and extended tool life, it gradually replaces traditional tapping in many applications. However, only by carefully selecting the right thread mill cutter, applying accurate CNC path programming, and implementing robust cooling and monitoring systems can you effectively avoid common errors like pitch deviation, tool wear, tool failure, and surface defects.
Starting with a clear understanding of thread milling fundamentals, this article reviewed five common error types and their root causes—ranging from parameter misconfiguration and tool mismatch to insufficient clamping and cooling. It then proposed a comprehensive solution framework, emphasizing the benefits of high-performance carbide thread mills for challenging materials and illustrating success stories in mold making, aerospace, and precision industries.
In short, achieving consistently high‑quality thread milling requires integrating correct tool selection, thoughtful CNC programming, and effective cooling/monitoring. Only by aligning these critical facets can CNC thread milling cutters realize their full potential—enabling efficient, high-precision, low-cost thread production and boosting competitive advantage for manufacturers.
