Conical end mills play a unique role in hard material machining, particularly in mold manufacturing, aerospace components, and medical device production, where surface finishes are critical. Compared to conventional ball end mills or flat milling cutters, conical end mills achieve more stable cutting and finer surface finishes on hard workpieces such as hardened steel, titanium alloys, and composites, thanks to their unique geometry and cutting angles.
Different types of conical end mills suit different machining needs. For example, long-neck types excel in deep cavity milling, while standard types perform well in general finishing. Carbide conical end mills, with their high hardness and excellent wear resistance, are widely used for high-precision cutting. They are preferred by engineers seeking to maximize tool life and improve surface finish quality.
Selecting the right conical end mill depends on the workpiece material, cutting parameters, and desired surface quality. In addition to tool material and coating, the manufacturer’s technical expertise directly affects tool performance and consistency. Evaluating the capabilities of conical end mills manufacturers is therefore essential. With proper tool selection and process optimization, engineers can improve machining efficiency while achieving a mirror-like finish on hard material components.

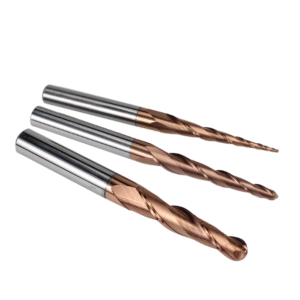

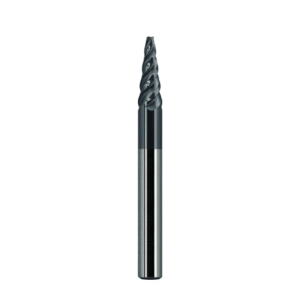

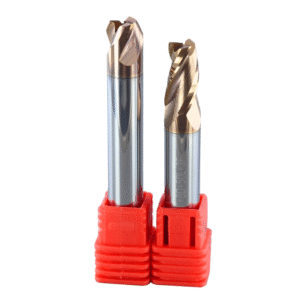

What Are Conical End Mills?
Conical end mills are milling cutters with a tapered body. Their cutting edges transition from a taper angle to the tip, enabling them to meet both roughing and finishing requirements. Compared to flat end mills or ball end mills, conical end mills provide a more targeted geometric design and are particularly suited for hard material machining and complex curved surfaces. The taper distributes cutting forces effectively, reducing vibration and improving surface finish. These tools are widely applied in mold manufacturing, aerospace parts, and precision component production.
Conical end mills vary by tool angle, flute length, and material. They are generally categorized as standard, long-neck, or various taper angle designs. Choosing the right type improves machining efficiency and ensures high-quality surface finishes.
Structure and Features of Conical End Mills
The defining feature of conical end mills is the taper angle, typically ranging from 10° to 90°, depending on the machining application. Most are made of carbide, which combines high hardness and wear resistance, making them ideal for cutting high-strength materials such as steel, titanium alloys, and nickel-based alloys.
Key features include:
-
High rigidity: reduces vibration during cutting.
-
Sharp tips: ideal for fine contours and deep cavities.
-
Smooth cutting transitions: improve surface quality.
These characteristics make conical end mills indispensable in precision machining of hard materials.
Differences from Other Milling Cutters
Compared to ball-end mills, conical end mills offer greater rigidity and wear resistance. Compared to flat-end mills, they provide more flexibility for bevels, curved surfaces, and deep grooves. The taper angle distributes cutting loads, extending tool life and reducing burr formation.
In production, engineers often combine conical and ball-end mills: ball-end cutters smooth curved surfaces, while tapered cutters finish transitions and detailed features. This combination enhances surface finish without sacrificing machining accuracy.
Why Conical End Mills Are Suitable for Hard Material Machining
Hard material machining presents challenges such as rapid tool wear, high cutting temperatures, and potential workpiece surface cracking. Conical end mills address these challenges through:
-
Cutting stability: taper increases tool contact rigidity, reducing chatter.
-
Surface quality: smooth cutting path lowers surface roughness.
-
Tool life: carbide or coated tools extend life on high-strength materials.
They are key tools for efficient finishing of mold steel, titanium alloys, and other high-hardness alloys.

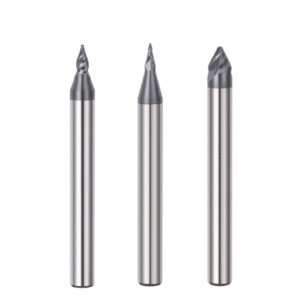

Types of Conical End Mills and Their Applications
Conical end mills vary by structure, length ratio, and taper angle. Different types influence machining performance and application. Choosing the correct type optimizes efficiency and balances surface finish and tool life. Standard, long-neck, and varying taper angles are commonly used in moldmaking, aerospace, and medical device production.
Standard and Long-Neck Conical End Mills
-
Standard: ideal for general finishing and contouring; high rigidity ensures excellent surface finishes on hard materials.
-
Long-neck: designed for deep cavities and complex curves; allows cutting in confined spaces without interference.
Selecting the right tool requires balancing reach and rigidity.
Differences in Taper Angles
-
30°: slim edge, suitable for light cutting and detailed finishing.
-
60°: balanced for efficiency and surface quality; widely used in mold cavities.
-
90°: sharp tip for chamfers and detailed features; often used in precision components.
Taper angle selection affects tool geometry, cutting stability, and surface roughness.
Typical Applications
-
Mold machining: excels in cavity finishing and high-gloss surfaces, reducing polishing costs.
-
Aerospace: extends tool life and ensures smooth finishes on titanium and nickel alloy components.
-
Medical devices: long-neck tools produce detailed cavities and curved surfaces, meeting strict precision requirements.

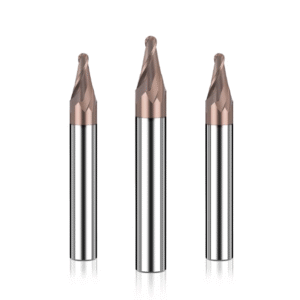

Advantages of Carbide Conical End Mills
Carbide conical end mills excel in finishing hard materials due to high hardness and wear resistance. They maintain sharp edges at high speeds, reduce cutting temperature, and extend tool life, improving productivity while achieving smooth surface finishes. They are a core choice in precision manufacturing and high-strength material processing.
Wear Resistance and Hardness
Carbide, made from tungsten carbide with a cobalt binder, offers extreme hardness and wear resistance. Advantages include:
-
High temperature resistance
-
Reduced wear
-
Extended tool life
This makes carbide conical end mills ideal for mass production and continuous machining.
Comparison with HSS and Coated Tools
-
HSS: lower cost but poor wear resistance and short tool life in hard material cutting.
-
Coated tools: TiAlN, DLC, or diamond coatings improve wear resistance, but substrate strength is crucial.
-
Carbide tools: offer superior performance for high-precision and high-volume machining, especially combined with coatings.
Mechanism of Surface Finish Improvement
Carbide conical end mills enhance surface quality via:
-
High rigidity: reduces vibration and tool marks.
-
Sharp cutting edges: minimize plastic deformation.
-
Stable cutting temperature: prevents thermal hardening or surface cracks.
This reduces the need for post-processing and lowers production costs.
Key Factors Affecting Hard Material Surface Finish
In hard material machining, the surface finish quality depends not only on tool material and type, but also on multiple aspects of the machining process. When using conical end mills, optimizing tool geometry, cutting parameters, cooling and lubrication, and machine rigidity significantly improves surface finish and extends tool life. Understanding these factors allows engineers to achieve efficient results in precision machining and hard material cutting.
Cutting Angle and Tool Geometry Design
Tool geometric parameters, including taper angle, flute length, and helix angle, directly influence cutting force distribution and tool rigidity.
-
Properly designed taper angles distribute cutting loads, reduce vibration, and minimize surface waviness.
-
Sharp cutting edges and smooth transitions stabilize the cutting path, improving surface finish.
-
For deep cavities or complex curved surfaces, long-neck or specialized taper tools maintain stability and prevent tool interference.
Optimizing tool geometry is foundational for high-precision hard material machining and achieving minimal surface roughness.
Optimizing Cutting Parameters
Cutting parameters significantly impact surface quality:
-
Speed: Excessive speed can overheat the tool and damage the workpiece surface, while too low reduces efficiency.
-
Feed: High feed rates risk tool marks and uneven surfaces; too low slows productivity.
-
Depth of Cut: Excessive depth increases vibration and tool chipping; too shallow extends machining time.
Using carbide conical end mills with optimized parameters balances surface finish, tool life, and efficiency in hard material cutting.
Selecting Cooling and Lubrication Methods
Cutting heat affects tool life and surface quality. Effective cooling and lubrication are crucial:
-
Liquid cooling: Dissipates heat quickly, reducing surface hardening and tool wear.
-
Minimum quantity lubrication or gas assist: Essential for titanium or high-temperature alloys, stabilizing cutting conditions.
-
Coated tools with cooling: TiAlN-coated carbide tools last longer when combined with proper cooling strategies.
Machine Tool Rigidity and Workpiece Fixture Stability
Machine tool and fixture stability directly affect cutting vibration and surface finish:
-
Insufficient rigidity increases surface roughness and tool wear.
-
Stable workpiece fixtures minimize micro-displacement, ensuring accurate tool paths.
-
For deep cavities or complex surfaces, proper support is key to achieving high-precision finishes.
Optimizing geometry, cutting parameters, cooling, and machine/fixture stability allows engineers to fully leverage the benefits of conical end mills.

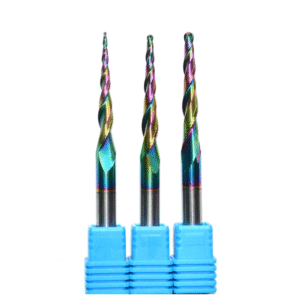

How to Choose Conical End Mills for Hard Material Processing
Knowing how to choose conical end mills is critical for machining efficiency, tool life, and surface quality. Engineers should consider workpiece material, machining type, surface finish requirements, and tool cost to balance efficiency and quality. Proper selection reduces tool wear, minimizes tool changes, and ensures consistent machining of high-precision parts.
Selecting the Right Tool Material Based on the Workpiece
-
Carbide conical end mills: Suitable for high-hardness materials; provide stable machining, high wear resistance, and can withstand high cutting speeds.
-
HSS tools: Suitable for medium/low hardness materials; limited tool life on hard materials.
-
Coated tools: Enhance wear resistance and surface finish but must match the substrate for effectiveness.
Tailoring tools to material properties reduces wear and improves surface quality.
Selecting Types of Conical End Mills Based on Processing Requirements
-
Standard type: General contouring and finishing.
-
Long-neck type: Deep cavities, complex curves, hard-to-reach areas.
-
Taper angles (30°, 60°, 90°): Chosen based on machining precision and stability.
Selecting the correct type enhances efficiency, reduces chipping, and minimizes surface defects.
Balancing Tool Life, Cost, and Surface Quality
-
Tool life: Longer life reduces tool changes and improves production continuity.
-
Tool cost: High-performance carbide tools have higher initial cost but save via longer life and less rework.
-
Surface quality: Proper tools and parameters reduce polishing steps.
Engineers must optimize performance, cost, and quality for stable, efficient production.

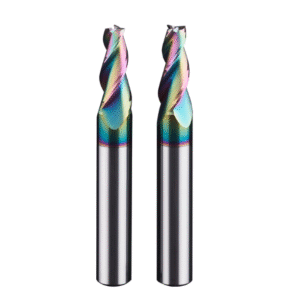

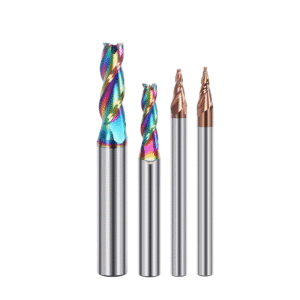

Major Global Conical End Mill Manufacturers
In hard material machining and high-precision manufacturing, selecting a reliable conical end mill manufacturer directly impacts tool performance, machining efficiency, and workpiece surface quality. Brands from different regions vary in material selection, manufacturing processes, tool accuracy, and after-sales service. Understanding the strengths of leading international brands as well as Chinese and Asian manufacturers helps engineers and purchasers make informed tool selection decisions, improving overall efficiency and quality in precision machining.
Comparison of Leading International Brands
US, German, and Japanese tool brands are leaders in the high-precision machining market:
-
US brands: Focus on innovation and tool material R&D, offering high-performance carbide conical end mills suitable for high-strength materials in aerospace and mold/die industries.
-
German brands: Known for precision manufacturing and tight tolerances, their tools provide high rigidity and wear resistance, ideal for continuous, high-precision surface machining.
-
Japanese brands: Leading in superhard materials and coatings, offering long tool life. Excelling in high-speed hard material cutting, they perform well in fine cavity and complex surface machining.
These international brands typically provide comprehensive technical support and after-sales services, enabling engineers to consistently achieve high-quality surface finishes in precision machining.
Advantages of Chinese and Asian Conical End Mill Manufacturers
In recent years, Chinese and Asian manufacturers have rapidly grown in the hard material machining sector:
-
Offer cost-effective carbide conical end mills for mass production and mid- to high-end applications.
-
Provide flexible OEM customization, enabling various tool types, taper angles, and lengths.
-
Ensure fast delivery and comprehensive after-sales service, reducing production cycles and machining costs.
Compared to international brands, these manufacturers offer advantages in cost control, supply chain responsiveness, and custom solutions.
How to Evaluate Supplier Quality and Delivery Capabilities
When selecting a supplier, evaluate:
-
Tool Material and Manufacturing Process: Check carbide or coated tool properties and precision control.
-
Tool Performance Testing: Include wear resistance, tool life, and cutting stability for hard materials.
-
Production Capacity & Delivery: Ability to meet large-volume orders on time.
-
Technical Support & After-Sales Service: Guidance on tool selection, machining processes, and fast support.
A scientific evaluation ensures reliable suppliers, enhancing efficiency and surface quality.
Real-World Example: Improving Surface Finish with Conical End Mills
Selecting the right conical end mill improves cutting efficiency and significantly enhances workpiece surface finish. Case studies demonstrate tapered end mills’ advantages in hard material cutting and precision machining, including tool stability, cutting accuracy, and reduced post-processing steps. These examples cover mold steel, aerospace titanium alloys, and medical device parts, providing practical references for tool selection and process optimization.
Mold Steel Machining
-
Reduced Ra values: Lowers tool marks and microburrs, improving mold cavity smoothness.
-
Enhanced cutting stability: Tapered design distributes forces, reducing vibration and chipping.
-
Improved efficiency: Extended tool life, fewer tool changes, and shorter cycle times.
Actual data shows that tapered tools reduce Ra values by 20% to 30% compared to ball-end or flat-end cutters, cutting post-processing costs.
Aerospace Titanium Alloy Parts
-
Maintains sharpness at high cutting speeds, reducing cutting temperature.
-
Improves surface flatness, minimizing additional finishing.
-
Long-neck tools handle complex curves and avoid tool interference.
-
Surface roughness reduced by 15% to 25%; tool life increased by 30% to 50%.
Medical Device Components
-
Microcavity machining: Access narrow spaces and complex microstructures.
-
Improved surface finish: Smooth cutting paths reduce minor defects, improving Ra values.
-
Stable performance: Ensures long-term continuous machining without quality loss.
Tapered end mills improve surface quality, productivity, and part consistency.
Conclusion and Tool Selection Recommendations
Conical end mills enhance surface finish, cutting stability, and tool life in hard material machining due to their tapered structure, superior materials, and varied profiles. By optimizing tool geometry, cutting parameters, cooling, machine rigidity, and supplier selection, engineers achieve efficient, precise, and stable results. This article provides a systematic reference covering tool structure, type, material, and application.
Core Value Summary
-
Structural advantage: Tapered design enhances rigidity, distributes cutting forces, and reduces vibration.
-
Material advantage: Carbide tools offer wear resistance and high hardness for high-strength materials.
-
Variety of models: Standard, long-neck, and multiple taper angles for diverse machining needs.
-
Processing stability: Optimized parameters reduce roughness and tool wear.
-
Application value: Improve efficiency and reduce post-processing in mold, aerospace, and medical device machining.
Practical Tool Selection Advice
-
Match tool material to workpiece hardness; consider coatings to extend tool life.
-
Select tool type and taper based on processing requirements.
-
Balance tool life, cost, and surface quality for maximum cost-effectiveness.
-
Evaluate supplier precision, reliability, and after-sales service.
-
Optimize cutting parameters and cooling for stable, high-quality machining.
Future Trends
-
New tool materials: Combining carbide with superhard coatings for improved wear resistance.
-
Intelligent tools: Sensors monitor forces, vibration, and temperature for optimized CNC machining.
-
Efficient process integration: Multi-axis, high-speed machining improves efficiency and surface quality.
Conical end mills are essential for high-precision, hard material machining, and future developments will further enhance efficiency and surface finish.
