In modern CNC machining, the corner radius milling cutter (also known as an R-angle end mill) has become one of the most commonly used tools for machining hardened steel and aluminum alloys due to its combination of strength and superior surface finish. Compared with traditional flat end mills, a corner radius milling cutter features a rounded corner design at the tool tip, effectively reducing stress concentration and extending tool life. It is especially well-suited for semi-finishing and finishing operations on high-hardness materials.
For manufacturing companies pursuing efficient machining and high-quality surface finishes, selecting the right carbide corner milling cutter impacts not only processing efficiency but also product consistency and production costs. In aluminum machining, proper matching of R-angle size, flute design, and surface treatment (such as polishing or DLC coating) is key to achieving high-speed cutting with minimal chip adhesion.
Additionally, given the wide variety of corner radius end mill suppliers and manufacturers, choosing a supplier with reliable technology and consistent quality is an important procurement decision. This article systematically analyzes how to select the most suitable R-angle end mill for hardened steel or aluminum alloy workpieces, from perspectives such as material properties, machining requirements, parameter optimization, and supply chain selection — helping you improve overall machining efficiency and maximize tool investment returns.

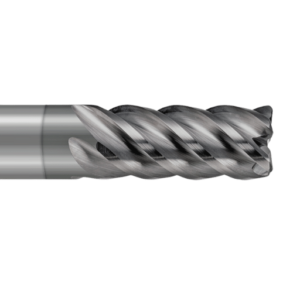

What Is an R-Angle End Mill? Why Is It Suitable for Hard Steel and Aluminum?
In CNC precision machining, a corner radius milling cutter is a type of end mill with a small radius added to the tip of the cutting edge. Unlike traditional square end mills that form a sharp 90-degree corner, the R-angle milling cutter has a rounded arc (typically R0.2 to R1.0 mm) at the tool tip, which significantly improves tool chipping resistance and overall durability.
For machining high-hardness materials (such as hardened die steel and heat-treated steel above HRC 60) and ductile aluminum alloys, this radius structure maintains cutting stability under high speeds and feeds. Thus, R-angle cutters are widely used in mold making, automotive components, and precision machining. Whether employing a carbide corner milling cutter for hardened steel or a high-speed radius cutter for aluminum integrating roughing and finishing, the R-angle design demonstrates clear practical advantages.

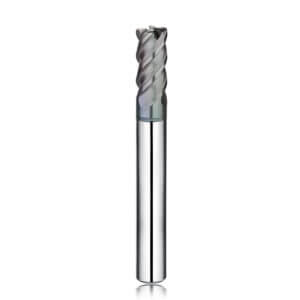

Tool Design Features of the R-Angle Structure
The Role of the Tip Transition Arc
The R-angle end mill achieves a smooth transition from the cutting edge to the axial direction by incorporating a small radius arc at the tool tip. This rounded design disperses cutting forces over a larger area, reducing stress concentration, minimizing the risk of chipping and microcracks, and enhancing tool strength. This is especially critical for tools designed for hardened steel, often combined with high-performance coatings like TiAlN or TiSiN to withstand elevated temperatures and prolonged cutting.
Comparison of Strength and Stability: Square End Mills vs. R-Angle Cutters
Compared to standard square end mills, R-angle cutters provide superior structural stability during machining. The sharp corners of flat end mills are prone to impact damage during feed and cornering, whereas the arc structure in R-angle tools buffers forces more effectively, lowering breakage risk.
For aluminum machining, polished or DLC-coated R-angle cutters significantly reduce chip adhesion, improve surface finish, and extend tool life.
Advantages in Machining Hardened Steel and Aluminum
Reduce Stress Concentration and Extend Tool Life
Hardened steel and other tough materials tend to cause localized wear and chipping at the tool tip. The R-angle design disperses heat buildup and impact loads, preventing premature cutting edge damage. In high-speed and high-feed operations, carbide corner milling cutters with radius edges greatly increase individual tooth life and overall tool longevity.
Improve Surface Quality and Cutting Stability
Whether finishing mold cavities in hardened steel or performing high-speed contouring on aluminum shells, R-angle cutters offer superior surface integrity and consistent profiles. The rounded corners reduce tool marks and step patterns, minimizing or eliminating the need for polishing. For applications demanding mirror-like finishes, high-end corner radius milling cutters with mirror-polished edges are available.
How to Choose the Appropriate R-Angle Size and Material Based on Workpiece?
Selecting a carbide corner milling cutter involves considering not just geometry and flute count, but also matching the R-angle radius, substrate material, and coating type to the workpiece. Tailoring these factors to material properties and cutting conditions optimizes machining efficiency, tool life, and surface quality.

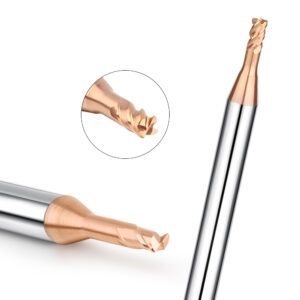

Key Considerations for Hardened Steel (e.g., HRC 60+)
Recommended R-Angle Size (R0.2 to R1.0 mm)
When machining hardened steels like heat-treated mold steels above HRC 60, too small an R-angle risks tip chipping, while too large an R-angle may reduce detail accuracy. A radius between 0.2 and 1.0 mm balances strength and precision.
For high-precision mold cavities or complex surfaces, finer radii (0.2 to 0.5 mm) reduce cutting stress while maintaining sharp details. For rough machining larger areas, a radius of 0.8 to 1.0 mm increases tip durability.
Recommended Substrate and Coating: Micro-Grain Tungsten Carbide with TiSiN or TiAlN
Cutting hardened steel requires tools with exceptional red hardness and wear resistance. Ultra-fine grain tungsten carbide substrates provide superior toughness and strength. TiSiN and TiAlN coatings deliver oxidation resistance and hardness retention at temperatures above 800°C, making them standard for carbide corner milling cutters used on hardened steel.
Oil mist or minimum quantity lubrication (MQL) cooling is recommended to enhance machining stability and extend tool life.
Key Considerations for Aluminum Alloys (e.g., 6061, 7075)
Recommend Larger R-Angle (R1.0 to R2.0) to Reduce Built-Up Edge
Aluminum’s ductility and thermal softening cause chip adhesion issues, especially in high-speed machining. A larger corner radius (1.0 to 2.0 mm) strengthens the cutting edge and reduces unit pressure, minimizing built-up edge formation and chip sticking.
Large radii also smooth corner transitions in tool paths, improving tool flow during outer contour finishing and cavity corner cleaning. Combining with 3-flute or 4-flute designs can further boost feed rates and surface finish.
Recommended Surface Treatment: Mirror Polishing with No Coating or DLC Coating
To minimize aluminum chip adhesion and maximize chip evacuation, tool flutes should be highly polished. Generally, uncoated or DLC-coated R-angle cutters are preferred for aluminum machining.
DLC coatings provide very low friction and excellent anti-adhesion properties, ideal for processing aerospace-grade aluminum alloys like 6061 and 7075 under high-speed dry or minimal lubrication conditions. Uncoated mirror-polished cutters excel in sharpness, particularly for fine finishing operations.
Appropriate matching of R-angle size, coating, and substrate material is critical for achieving efficient machining and consistent tool life. Whether machining hardened steel with carbide corner milling cutters or high-speed finishing aluminum with mirror-polished radius cutters, a materials-driven, targeted selection approach unlocks the full benefits of R-angle end mills in diverse applications.
Parameter Selection Recommendations for R-Angle Milling Cutters (Speed, Feed, Cutting Depth)
Setting proper cutting parameters is key to maximizing the performance of R-angle end mills. Whether heavy-duty cutting of hardened steel or high-speed finishing of aluminum alloys, tool life, surface quality, and efficiency depend heavily on spindle speed (RPM), feed rate, and depth of cut (DOC).
Parameter selection must consider material type, machine rigidity, cooling method, and tool diameter. Flexible adjustments are essential rather than rigid adherence to formulas.
Recommended Cutting Parameters for Common Materials
For Hardened Steel (e.g., HRC 60 Mold Steel):
-
Tool diameter: 6 mm
-
Spindle speed: 8,000 – 12,000 RPM
-
Feed per tooth: 0.01 – 0.03 mm/tooth
-
Axial depth of cut: 0.05 – 0.2 mm
-
Radial width of cut: 0.3 – 0.5 × tool diameter
-
Recommended coatings: TiSiN, AlTiN
-
Cooling: Oil mist or MQL
Typically used for semi-finishing and finishing, these parameters balance cutting load and thermal deformation. Refer to keywords like corner radius end mill speed and feed settings for hardened steel for further tuning.
For Aluminum Alloys (e.g., 6061, 7075):
-
Tool diameter: 6 mm
-
Spindle speed: 15,000 – 24,000 RPM
-
Feed per tooth: 0.05 – 0.15 mm/tooth
-
Axial depth of cut: 0.3 – 0.8 mm
-
Radial width of cut: 0.5 – 1.0 × tool diameter
-
Recommended coatings: Uncoated or DLC
-
Cooling: Air blow or MQL
High-speed aluminum machining features shallow cuts and high chip evacuation, suitable for mirror-polished carbide radius end mills or DLC-coated tools.
Balancing Tool Life and Machining Efficiency
While maximizing production efficiency is important, extending tool life reduces overall costs. Key recommendations:
-
Control Cutting Load to Avoid Overloading: Excessive feed or depth can increase removal rates but causes edge chipping and thermal fatigue. Multi-pass cutting and layered machining are preferred.
-
Adjust Parameters by Machining Stage:
-
Roughing: prioritize higher feed and depth for material removal
-
Finishing: focus on lighter cuts and higher speeds for surface quality
-
-
Monitor Tool Wear and Plan Tool Changes: Maintain stable wear rates and avoid early blunting or sudden breakage. Use sound, surface finish, and measurements to predict optimal tool replacement, reducing downtime and scrap.
How to Choose the Right R-Angle End Mill to Improve Overall Machining Competitiveness
In CNC precision machining, the corner radius end mill has become an essential tool for machining key materials such as hardened steel and aluminum alloys. Its advantages in strength, surface finish, and tool life make it an ideal choice in both high-precision and high-efficiency operations. This article provides a comprehensive guide on selecting the most suitable R-angle end mill based on different machining needs, including tool design principles, material matching, cutting parameter recommendations, and supplier evaluation.
Selecting for Hardened Steel (HRC60 and above)
- Recommended Tool: Carbide corner milling cutter with micro-grain carbide + TiSiN or TiAlN coating.
- R Radius: R0.2 to R1.0 mm, adjustable based on contour precision and processing stage.
- Cutting Strategy: Maintain controlled cutting load. Adopt light cutting and coolant-assisted strategies to prolong tool life.
Selecting for Aluminum Alloys (6061, 7075, etc.)
- Recommended Tool: DLC-coated radius end mills with large R-radius and mirror-polished surface.
- Machining Method: Ideal for high-speed and shallow cuts. Use with air blow or minimum quantity lubrication (MQL) to minimize chip adhesion and improve chip evacuation.
How to Choose a Reliable Corner Radius Milling Cutter Supplier and Manufacturer
In the CNC industry, selecting a reliable corner radius end mill supplier significantly affects processing quality, production efficiency, tool cost control, and delivery timelines. For mass production and high-precision scenarios, consistency, tool life, and delivery reliability are critical. Therefore, sourcing from a mature and quality-controlled corner radius end mill manufacturer is a key task for any procurement engineer.
Standards for Identifying High-Quality Suppliers
Independent R&D and Coating Capabilities
A professional manufacturer should possess complete tool design, groove optimization, and coating development systems. In R-angle end mills, proprietary R-transition geometry, cutting edge sharpness control, and custom coatings significantly enhance performance.
Top-tier manufacturers operate their own PVD, TiAlN, and TiSiN coating lines and can customize coatings based on materials like hardened steel or aluminum. Those with R&D capacity also support customers in machining verification and technical service.
Standardized QC and Cutting Test Protocols
Reliable suppliers follow rigorous quality systems from raw material checks to cutting performance validation. For corner radius end mills, accurate R-radius dimensions must be verified using optical inspection, laser tool setters, or 3D projectors. High-end suppliers also offer recommended cutting parameters and test reports to support process integration.
Common Procurement Channels: Brands, Distributors, or Direct Factories
Brand Stability vs. Factory Price Advantage
Premium global brands like YG, OSG, and Kennametal offer consistency and after-sales support but come at higher prices. Many small to mid-sized machine shops now favor Chinese corner radius end mill manufacturers for better cost-performance ratios and agile delivery.
High-quality Chinese factories deliver import-comparable quality, support OEM/ODM projects, and provide faster delivery tailored to custom needs.
Customization and Fast Delivery Support
For non-standard workpieces and special R-angles, custom tool-making ability is key. Leading manufacturers offer quick-turnaround prototyping (within 48 hours) and mass production within 7 days. A structured communication workflow, drawing validation, and technical support are also hallmarks of a professional manufacturer.
Choosing the right R-angle milling cutter supplier involves evaluating their technical capabilities, QC systems, service response, and manufacturing flexibility. Prioritize manufacturers with independent R&D, real-world cutting feedback, and scalable production to ensure long-term supply stability.
China Corner Radius End Mill Factory Selection Guide: How to Evaluate a Qualified Manufacturer
With growing demand for high-performance cutting tools, many CNC companies are turning to Chinese corner radius milling cutter factories. China now offers mature production systems, agile delivery, and strong cost control. However, distinguishing capable long-term partners among varied factory standards is vital.
Key Considerations: Production Capacity and Automation
Equipment: 5-Axis Grinders and Automatic Inspection
Evaluate a factory’s production line based on equipment like five-axis CNC grinders (e.g., Walter, Rollomatic) for precision R-transition and edge geometry. Automated inspection tools (e.g., Zoller, PG1000) ensure dimensional accuracy and batch consistency.
Samho Tool, for example, is equipped with German-made grinders and image inspection systems. Their tools meet strict standards for concentricity, radius accuracy, and edge integrity—widely adopted in high-precision applications involving mold steel, aluminum, and graphite.
OEM/ODM Capability
Flexibility in customization is a key sign of factory maturity. Leading factories offer OEM and ODM services, enabling them to quickly manufacture non-standard end mills based on customer drawings or special machining requirements.
Samho Tool supports standard and custom solutions for mold processing companies, offering special coatings, custom flute geometries, and rapid prototyping (5–7 working days), making it a trusted partner for international buyers.
Inquiry and Sample Testing Process
Small-Batch Prototyping and Real-World Testing
Initial cooperation should include small-batch trials and condition-based testing. Reputable suppliers provide product spec sheets, suggested parameters, and material compatibility insights during the trial stage. Manufacturers like Samho Tool often deliver production-level tool quality even in the first trial.
Key Inspection Metrics: Size, Tolerance, Concentricity, Coating Adhesion
Evaluate these criteria:
- Dimensional accuracy (length, cutting diameter, ±0.01 mm)
- Actual vs. stated R-radius
- Concentricity (runout ≤ 0.005 mm)
- Coating adhesion (verified via microscope or scraping test)
Top manufacturers provide dimensional inspection reports, concentricity verification, and even third-party certifications for traceable and consistent batch quality.
In short, when evaluating Chinese R-angle end mill factories, go beyond price and lead time. Focus on their technical equipment, QC systems, R&D strength, and responsiveness. Factories like Samho Tool—with 5-axis grinding, automated QC, fast sampling, and engineering support—are ideal long-term CNC partners.
Choose the Right R-Angle End Mill to Elevate Your Machining Capability
Corner radius end mills play a critical role in CNC machining due to their enhanced strength, surface finish quality, and durability across hard steel and aluminum materials. This guide has provided a detailed strategy for selecting the right tool structure, matching materials, optimizing cutting parameters, and evaluating reliable suppliers.
Summary Recommendations:
- For hardened steel (HRC60+): Use TiSiN/TiAlN-coated carbide end mills with R0.2–R1.0 mm radius. Opt for light cutting and ensure cooling.
- For aluminum (6061/7075): Choose DLC-coated large-radius tools with polished flutes for chip control and high-speed finishing.
Procurement teams should evaluate:
- Equipment level and automation capabilities
- Coating and R&D capabilities
- Proven QC systems and cutting test support
- OEM/ODM flexibility and delivery performance
By aligning tool performance with your actual machining needs and choosing partners who can provide consistent quality and technical support, you can improve efficiency, reduce tool costs, and gain a competitive edge in modern manufacturing.
