Understanding the Advantages of Ball Nose End Mills in Machining Hardened Steel

In industries like mold manufacturing and precision parts production, ball nose end mills are preferred for machining hardened steel due to their superior contouring capabilities and surface finish control. When working with steel hardness levels ranging from HRC55 to HRC65, selecting the appropriate tool material, geometry, and surface treatment is crucial. Utilizing a solid carbide ball nose end mill designed for hardened steel can enhance machining efficiency, extend tool life, and ensure consistent production quality.

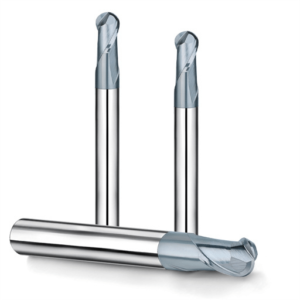

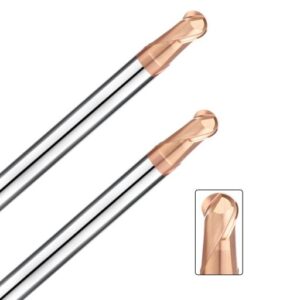

What Is a Ball Nose End Mill?

A ball nose end mill features a hemispherical tip, making it ideal for 3D contouring and complex surface machining. Unlike standard square end mills, its unique geometry allows for smooth transitions in three-dimensional spaces, reducing sharp corner interference. High-performance ball end mills are typically made from ultrafine carbide and coated with advanced PVD technologies like TiAlN or AlCrN, enhancing wear resistance and performance under high-temperature conditions.

Applications of Ball End Mills in 3D Surface Machining

Ball end mills are commonly used for machining intricate free-form surfaces, mold cavities, and product contours. Typical applications include:

Injection mold steels (e.g., H13, S136).
Heat-treated cold work mold steels (e.g., D2, SKD11).
Precision parts with R angles, bevels, and spherical structures.

Their continuous and smooth cutting paths are especially beneficial in 5-axis or 3+2-axis CNC systems, reducing the need for tool changes and improving machining efficiency.

Unique Advantages in Machining Hardened Steel

When machining hardened steel above HRC60, ball nose milling cutters offer several advantages, particularly when using carbide end mills designed for high-hardness materials:

Minimized tool tip interference due to the hemispherical design, reducing the risk of chipping in hard materials.
Enhanced surface quality, suitable for contour or spiral machining strategies to achieve mirror-like finishes.
Support for high-speed machining (HSM) with stable performance under high-speed conditions.
Extended tool life through the use of carbide materials and high-temperature-resistant coatings, maintaining wear resistance even under dry cutting or minimal lubrication.

These attributes make solid carbide ball nose end mills highly adaptable and economically valuable for both high-precision mold processing and efficient rough machining of hard materials.

Challenges in Machining Hardened Steel

In the field of high-precision manufacturing, hardened steel machining is a highly technical task. As the hardness of the material increases, the problems associated with the machining process become increasingly prominent. Whether pursuing efficiency in high-speed milling or pursuing surface integrity in finishing, tool selection, cutting parameter setting and process control face severe challenges. Especially when using a carbide end mill for hardened tool steel, how to balance efficiency and tool life becomes a core issue.

Balancing Material Hardness and Tool Life

Hardened steels typically range from HRC55 to HRC65 in hardness, making them extremely wear-resistant but also accelerating tool wear. Continuous cutting can lead to friction heat accumulation, causing rapid degradation of the cutting edge. Even high-performance solid carbide end mills may fail prematurely due to boundary wear, micro-chipping, or thermal cracking if feed rates or cooling conditions are not optimized. To mitigate these issues, it’s advisable to use ultrafine carbide milling cutters with high red hardness and high-temperature-resistant coatings like AlCrN or TiSiN, and to control cutting heat accumulation effectively.

Cutting Force and Vibration Issues

The dense internal structure of hardened steel results in higher cutting resistance compared to ordinary steel. Under low rigidity conditions, this can lead to cutting vibrations and processing chatter, causing surface defects such as “chatter marks” and “repeated processing marks.” These issues not only affect workpiece accuracy but may also cause tool edge fractures. To address this, consider:

Optimizing the number of blades and helix angle of the tool.
Matching spindle speed and feed rate appropriately.
Ensuring a rigid system design for the workpiece and fixture.

In three-axis or five-axis curved surface machining, using a ball-end cutter with a variable pitch design can suppress cutting in the resonance zone, improving overall machining stability and tool life.

Selecting the Appropriate Ball Nose End Mill

Successfully machining hardened steel above HRC55 requires selecting the right tool configuration. The best end mill for hardened steel results from a comprehensive match of tool material, coating type, and geometric parameters. In 3D surface or cavity processing, the detailed selection of a ballnose end mill bit directly affects processing stability, surface quality, and tool life.

Coating Selection: TiAlN vs. AlCrN

Coatings serve as the first line of defense between the tool and high-hardness materials, providing high-temperature oxidation protection and delaying tool wear.

TiAlN: Offers excellent wear resistance and heat resistance, suitable for hard milling under high-speed dry cutting or oil mist cooling conditions.
AlCrN: Better suited for high-hardness steel processing, especially in high cutting heat environments. Its stronger adhesion prevents peeling due to temperature fluctuations, offering outstanding thermal stability and crack resistance.

For high-hardness steel (HRC60+), it’s recommended to choose carbide ball nose end mills with AlCrN coating to significantly increase tool life in high-temperature areas, particularly for continuous finishing.

Tool Material: Ultrafine Carbide vs Coated Alloy Steel

The tool matrix determines its impact resistance and edge stability, which is the basis for the success or failure of hardened steel cutting.

Although coated alloy steel tools are low in cost, they are prone to plastic deformation and early wear in high-hardness materials and are not recommended for hard steel processing.
Ultra-fine tungsten steel has high hardness, high red hardness and strong anti-chipping ability, and is an ideal material for hard cutting and high-speed milling. Its high-density structure and uniform grain distribution can ensure that the edge is sharp for a long time and is not easy to chip.

Using ultra-fine carbide end mill for hardened steel not only improves durability, but also lays the foundation for stable mirror-level surface quality.

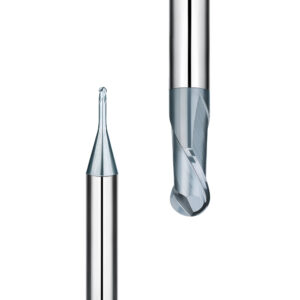

Influence of Tool Nose Radius on Surface Quality

The tool tip radius of the ball nose tool directly determines the overlap accuracy and detail reproduction ability of the surface trajectory. Its design not only affects the processing efficiency, but also is related to the surface finish quality and the force state of the tool.

Smaller radius (such as R0.5): suitable for areas with rich details, such as mold corners and slender ribs, but the ability to resist chipping is weak.
Larger radius (such as R1.0 or R2.0): suitable for smooth areas or rough and fine integrated processing, improve overall rigidity, reduce tool load changes, and reduce the risk of cutting vibration.

In practical applications, choosing the right ball nose radius for hardened steel machining should comprehensively consider the shape, precision requirements and processing strategies of the parts. For example, when the continuous surface takes the contour path, choosing a ball nose tool of R1.0 or R1.5 helps to stabilize the processing and obtain consistent finish.

Common Problems and Troubleshooting Suggestions

During the hardened steel machining process, even if a high-quality carbide ball nose end mill is used, it is inevitable to encounter various practical machining problems, such as abnormal wear, surface defects, machining vibration, etc. These phenomena are often a reflection of unreasonable cutting parameters, tool selection or process strategy. Understanding the mechanism behind these problems will help to adjust the process in time during production and improve overall stability and tool life.

What to Do if Tool Wear is Abnormal?

In hardened steel milling, tool wear in hardened steel machining is mainly manifested as:

Side edge wear.
Edge cracking.
Built-up edge.
Thermal cracks.

Feeding too high or cutting depth too large, resulting in overload of the cutting edge;

The tool material is not hard enough, or the coating has poor temperature resistance.
Not using proper cooling/lubrication methods, heat concentration.
The tool is not passivated enough, the initial cutting edge is too sharp and easy to break.

Solution suggestions:

Choose carbide end mill wear-resistant coated for HRC60 steel, such as AlCrN or TiSiN coating.
Set cutting parameters reasonably, especially reduce the impact of tool entry angle.
Try to use cold air or oil mist micro-lubrication to reduce heat load.
Implement pre-grinding passivation treatment to improve cutting edge strength and anti-breakage ability.

Causes and Countermeasures of Surface Burns or Microcracks

Surface burns, blue discoloration, and even microcracks that occur during hard milling are mostly caused by oxidation burn or thermal fatigue effects. Typical scenarios include:

The tool speed is too slow or the cutting path overlaps too much.
The tool is severely worn for a long time, and friction heat accumulates.
Lack of effective cooling leads to local heat concentration.
Repeated processing of hardened surfaces induces tissue degradation.

How to deal with it:

Use a carbide end mill with high thermal stability for high-speed hard milling.
Use the “down milling” strategy to reduce the friction time between the tool and the material.
Reduce instantaneous thermal shock by optimizing the tool trajectory (such as spiral cutting and arc compensation).
Use directional cold air or internal cooling system to quickly cool down when necessary.

In addition, surface detection (such as magnetic powder or ultrasound) can be used to determine whether fatigue cracks have occurred, and early signs of burns should be avoided in high-precision molds.

Adjustment Methods for Vibration During Machining

Vibration during carbide ball nose milling is a common quality problem, especially in the finishing of complex 3D surfaces or large molds. It manifests as “periodic ripples” or “uneven machining texture”, which is often caused by the following factors:

The tool overhang is too long and the rigidity is insufficient.
The tool geometry does not match (such as equal blades and the same pitch).
The spindle speed overlaps with the machine tool resonance zone.
The workpiece clamping rigidity is poor, resulting in resonance.

Adjustment methods include:

Select variable pitch carbide ball end mill for chatter control (variable pitch design);
Shorten the tool extension or use a reinforced tool holder.
Try to change the spindle speed to avoid the resonance zone.
Enhance the rigidity of the fixture system to ensure no micro-motion during machining.

In addition, in 5-axis machining, using an inclined angle entry + a constant tool tip linear speed path can effectively reduce the periodic ripples caused by “tool tip swing”.

Case Analysis: Practical Experience of Using Ball End Mills to Process HRC60.5 Mold Steel

In the processing of high-hardness mold steel (such as HRC60.5), ball end mills are often used for high-precision finishing of cavity bottoms, free-form surfaces or fillet transition areas. In order to help CNC programming engineers and mold manufacturers understand more clearly how to deal with actual processing challenges. The following is a real case to share our practical experience and parameter optimization process when using samhotool’s ball end mills to process HRC60.5 mold steel.

Project Background and Processing Requirements

This project is for the molding cavity of a precision injection mold. The material is SKD11 with a hardness of HRC60.5 after heat treatment. The target requirements are:

The surface roughness after fine processing is Ra ≤0.005mm (close to the mirror effect).
The curved surface is continuous without step lines, suitable for subsequent polishing.
The processing time is limited, and each workpiece must be completed within 50 minutes.

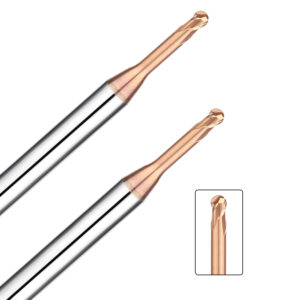

This task has extremely high requirements for tool accuracy, surface trajectory control and machining stability. Therefore, SamhoTool’s 2-flute carbide ball nose end mill for hardened steel was selected as the main tool.

Tool Selection, Life and Surface Accuracy Performance

The selected samhotool ultrafine tungsten steel + AlCrN coated ball nose cutter has excellent high temperature wear resistance and edge strength. In this application:

Each tool processes an average of 6 complete cavities, and the tool life exceeds 150 minutes of continuous cutting.
The surface roughness is measured to be Ra 0.0045~0.0.005 mm, which meets the mirror level.
The tool edge degrades evenly, and no early chipping or thermal cracks are found.
The vibration during the processing is stable, without obvious chatter marks or abnormal sounds.

This shows that this model of carbide ball nose end mill for HRC60.5 mold steel can achieve good wear resistance and stable cutting performance in actual mold processing, and is particularly suitable for scenes with high-precision curved surfaces and mirror requirements.

Summary and Suggestions

For 3D surface processing tasks of hardened steel (HRC55-HRC65) and other high-hardness materials, ball-end mills have become a common tool for mold processing and cavity finishing due to their unique geometry and smooth trajectory. This article systematically sorts out the core methods of hard material milling based on tool selection strategies, processing challenges and practical experience. The following is a summary of the technical points and practical suggestions of the full text to help you further optimize efficiency and quality in daily production

Review of Key Skills

Tool selection should give priority to models with high red hardness and high coating adhesion, such as carbide ball nose end mill for hardened steel using AlCrN or TiSiN.
Path strategy selection should be adapted to local conditions. Using a combination of equal height + routing/equal curvature paths can reduce tool vibration and improve surface finish.
During the processing, attention should be paid to cutting parameter matching, including feed per tooth (fz), cutting depth (ap) and tool entry method.
In high HRC materials, cooling strategy is particularly important. It is recommended to use minimal lubrication (MQL) or dry cutting with cold air to reduce the heat affected zone.

Recommendations to Avoid Common Mistakes

Many tool failures in hard steel processing are not caused by the quality of the tool itself, but by the following common mistakes:

Setting the feed speed too low: This will cause the tool to rub on the material for a longer time, causing local burns or built-up edge formation.
Ignoring the tool overhang rigidity: If the ball cutter overhangs too long, it is very easy to produce chatter marks or edge cracking.
Failure to replace worn tools in time: Worn tools are very likely to produce thermal cracks in high-hard materials, affecting the surface quality of the workpiece.
Using the same parameters for different materials: The thermal conductivity and cutting resistance of HRC45 and HRC62 steels are significantly different, and the parameters cannot be one-size-fits-all.

Therefore, it is recommended to establish a tool life and surface quality monitoring mechanism to gradually accumulate processing data in different batches and hardness levels.
