Spot Drill vs Center Drill: What’s the Difference and Which One Should You Use?

In modern CNC machining, the accuracy of drilling directly affects the stability of subsequent processes and product quality. In the pre-positioning operation before drilling, Spot Drill and Center Drill are often mentioned and easily confused. When choosing a drill, many engineers often ask: “What is the difference between spot drill and center drill?” and “Which one should I use in my working conditions?” This is exactly the question that this article will explore in depth.

Although both are used for positioning before drilling, their structural design, functional use, and application scenarios are fundamentally different. A spot drill, often called a spot drill bit, is mainly used to improve the drilling accuracy of the main drill and prevent deviation. The center drill tool is used more in turning operations to provide center support or hole positioning and also performs a small chamfering function.

When choosing a drill, whether to use a carbide center drill, or how to match it based on hole diameter, material hardness, and equipment type, are key factors that every processing engineer must weigh.

This article will comprehensively compare spot drill vs center drill from multiple dimensions such as structural differences, functional purposes, and application scenarios to help you clearly understand how to correctly select the right drill for different machining tasks, avoid common misunderstandings, and improve overall machining efficiency and quality.

What is a Spot Drill?

Definition and Function of Spot Drill

In CNC precision machining, a spot drill is a specialized tool used for pre-positioning before drilling. Its main purpose is to ensure that the subsequent main drill starts at the correct location to prevent the drill from “walking off” or causing hole position errors. Unlike traditional center drills, a spot drill is not used to machine complete center holes or chamfers but to quickly and accurately calibrate the drilling position, which is a critical step in improving hole quality.

Because of its focus on positioning, spot drill bits are typically designed with short cutting lengths and high rigidity to enhance stability. Especially when using carbide drills or drilling small holes, using a spot drill can significantly improve the coaxiality and surface quality of the final hole.

Structural Characteristics and Common Angles of Spot Drill Bits (e.g., 90°, 120°)

Spot drills usually have a short cutting edge and a large point angle. Common angles include 90°, 118°, 120°, and 142°, which are selected to match the tip angle of the main drill. Choosing the right angle is critical, as it affects the contact area and accuracy between the spot drill and the main drill. A slightly larger spot drill angle than the main drill is generally recommended to avoid incomplete seating or drift.

Spot drill bits are commonly made of solid carbide or high-performance HSS, providing excellent rigidity and wear resistance. Unlike center drills, spot drills lack a center guide tip, making them ideal for high-speed, high-precision CNC applications.

Typical Application Scenarios of Spot Drills in CNC Machining

Spot drills are commonly used in:

• Multi-hole batch drilling on vertical machining centers or high-speed drilling/milling machines.
• Machining hardened materials like heat-treated steel or titanium alloys to prevent drill deflection.
• Pre-positioning for precision components such as molds, aerospace parts, and medical devices.
• High-speed, high-precision carbide drilling operations.

Under these conditions, spot drills improve hole consistency and reduce scrap rates, making them essential in precision CNC hole-making.

Suitable Materials and Machining Tasks

Spot drills are suitable for pre-positioning in a wide range of materials, including:

• Carbon steel, stainless steel, aluminum alloys, copper, titanium alloys, and heat-treated steels
• Composites, hard plastics, and high-temperature alloys

Typical tasks include:

• Pre-positioning for small-diameter deep hole drilling
• Preparation for precision holes such as tapped holes, through holes, and blind holes
• Stable high-speed drilling in automated production lines

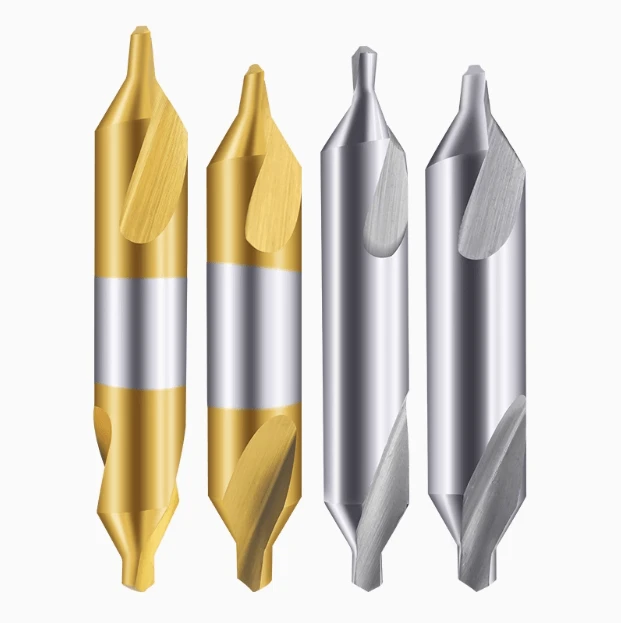

What is a Center Drill?

Structure and Classification of Center Drill Bits (Type A, Type B, Marking Type)

A center drill is designed to create center holes for turning operations and support systems. Its structure includes a small-diameter guide tip and a larger diameter chamfering section.

Types include:

• Type A: Standard center holes without taper, for general support
• Type B: With a protective chamfer to prevent cracking under heavy load
• Marking Type (R-type): For creating guide marks or shallow positioning holes, not full center holes

These drills are typically short and rigid, making them ideal for precise centering in high-speed lathes or small-diameter shafts.

Main Function: Center Positioning and Chamfering in One Tool

Unlike spot drills, the center drill’s strength lies in its dual functionality. It drills standard center holes and performs chamfering in one operation, increasing efficiency, especially in CNC and Swiss-type lathes.

The chamfer also helps prevent the main drill from “jumping” at the start, improving hole entrance quality. This dual-purpose makes the center drill indispensable in turning setups.

Common Uses in Turning

Center drills are widely used in:

• Turning slender shafts with tailstock support to avoid deflection
• Establishing axial alignment before multi-process turning
• Marking hole positions before deep drilling or boring
• Improving spindle centering for better concentricity

They are especially critical in high-speed or high-precision turning environments.

Advantages of Carbide Center Drills and Suitable Materials

Carbide center drills offer several advantages over traditional HSS:

• Higher hardness and wear resistance for tough materials (e.g., hardened steel, stainless, titanium)
• Better anti-chipping performance in high-speed or interrupted cutting
• Longer tool life and reduced changeovers in mass production
• Ideal for automation and high-speed turning centers

Typical materials include: stainless steel, alloy steels, cast iron, titanium, and high-temp alloys. For high-precision center hole work, carbide center drills offer a reliable, cost-effective solution.

Spot Drill vs Center Drill: Core Difference Analysis

Structural Comparison: Drill Shape, Length, and Tip Angle Design

Spot drills have a conical shape with short cutting edges and strong rigidity. They lack a center pilot, making them suitable for high-precision location marking.

Center drills feature a two-stage design: a fine pilot tip for center hole formation and a chamfer section. This design provides strong centering guidance in turning operations.

Materials also differ: Spot drills are usually carbide or HSS-Co for rigidity, while center drills are often carbon steel or carbide for durability in support functions.

Functional Comparison: Pre-positioning vs Center Hole Processing

Spot drills prepare precise entry points for the main drill to prevent walking and misalignment in milling or drilling.

Center drills create center holes and chamfers for tailstock support in turning. These functions serve different machining stages and cannot be interchanged.

Equipment Comparison: Milling/Drilling vs Lathe

Spot drills are used on CNC mills, drills, and machining centers. They excel in batch drilling or high-precision parts.

Center drills are tailored for CNC lathes and turning machines to provide axial support. Misusing one in the other’s domain can lead to tool failure or part defects.

Common Misunderstanding: Why They Are Not Interchangeable

Using a center drill on a mill for hole marking often leads to breakage due to the fragile pilot tip. Conversely, using a spot drill on a lathe fails to provide proper center support.

Spot and center drills are designed for different roles. The former ensures drill accuracy; the latter ensures turning support. Misuse compromises both tool life and part quality.

Clear understanding of spot drill vs center drill distinctions is essential for process success and tool safety.

How to Choose a Suitable Spot Drill or Center Drill?

Choose According to the Equipment (CNC Milling, CNC Lathe, Vertical Drilling)

When selecting between a spot drill and a center drill, the first consideration should always be the type of machine tool being used. The equipment determines whether the tool can perform its intended function correctly.

For CNC milling machines, vertical machining centers, or drill presses, a spot drill bit is the recommended choice. These machines typically perform high-speed, high-precision drilling operations. A spot drill’s short, rigid structure ensures accurate positioning of the main drill bit, preventing tool walking or deflection at the entry point.

In contrast, for CNC lathes, Swiss-type lathes, or conventional turning centers, a center drill tool is required. The center drill’s guide tip allows it to create a standard center hole, which works in tandem with the tailstock to support the workpiece. This prevents deflection, chatter, or axial misalignment during turning.

Using the wrong tool—for example, a center drill on a milling machine—can result in tool breakage or improper positioning. Understanding the compatibility between machine type and tool function is the first step to ensuring efficient and safe machining.

Choose Based on Workpiece Material and Hardness

Different materials require different levels of tool rigidity, wear resistance, and thermal stability. The hardness and machinability of the material significantly influence your drill bit selection.

For soft materials such as aluminum, copper, and plastics, HSS spot drills or center drills are typically sufficient and cost-effective. These materials don’t place extreme demands on the cutting edge, making high-speed steel a practical choice.

When working with harder materials—like stainless steel, titanium alloys, or heat-treated steels—a carbide spot drill or carbide center drill is the preferred choice. Carbide offers superior hardness and heat resistance, which helps maintain edge sharpness during high-speed operations and extends tool life.

In situations involving materials with a tendency to build up on the tool (e.g., soft aluminum or pure copper), a DLC or TiAlN-coated spot drill bit can reduce chip adhesion and improve hole quality.

Recommended Solutions for Deep Holes, Precision Holes, or High-Speed Drilling

When it comes to deep drilling, precision hole-making, or high-RPM machining, the right pre-drill setup becomes even more critical.

• For deep holes (depth ≥ 5D), a short-shank spot drill with excellent rigidity should be used. This helps eliminate axial runout and guides the main drill more precisely.

• In high-speed spindle environments (≥10,000 RPM), solid carbide spot drill bits are ideal. They resist vibration and thermal distortion, making them perfect for automated high-volume production lines.

• For precision holes such as tapped holes, guide pin holes, or critical fit bores, a spot drill ensures accurate centering for the main drill bit, minimizing entry runout and improving consistency.

On the other hand, if the operation involves long-axis turning requiring stable support, the center drill tool remains essential to generate a concentric, well-formed center hole for tailstock alignment.

Choosing Between Carbide and HSS for Center Drills

When selecting the right material for your center drill or spot drill, understanding the differences between carbide and HSS is essential. Each material has distinct advantages depending on your machining requirements.

However, for low-volume jobs or general-purpose machining on softer materials, HSS drills still offer excellent value, especially when budget is a key consideration.

Summary: Spot Drill vs Center Drill—How to Choose?

Usage Recommendations: Spot Drill vs. Center Drill

Selection Suggestions and Precautions by Scenario

The ideal tool choice depends on:

• The machining process (milling vs turning)

• The type of equipment

• The material and required precision

For Milling or Drilling Operations:

• Use a spot drill bit that matches or slightly exceeds the point angle of the main drill.

• Especially useful in multi-hole parts, deep holes, or high-speed drilling, where positioning accuracy is critical.

For Lathe Turning Operations:

• Use a center drill to create a properly sized center hole for tailstock support.

• Crucial for long, slender workpieces or parts requiring high coaxial precision.

Material-Based Considerations:

• For high-hardness or high-temperature workpieces, select carbide tools for better performance and tool life.

• In standard applications, HSS may be more cost-effective.

Avoid using spot and center drills interchangeably. Doing so can lead to tool failure, poor surface finish, and even machine damage.

In summary, understanding the correct usage of spot drills vs center drills is key to achieving safe, accurate, and efficient CNC machining. With a smart selection strategy—and by choosing tools from professional manufacturers like Samho Tool—you can expect improved productivity, longer tool life, and better part quality.

FAQ

FAQ 1: Can all pre-drilling operations be completed with only one drill bit?

This is a frequently misunderstood concept. While both spot drills and center drills are considered “pre-drilling tools,” they are not interchangeable.

• A spot drill is designed for positioning in milling or drilling operations.

• A center drill is designed for center hole creation in turning operations.

At Samho Tool, we’ve seen customers mistakenly use center drills in vertical milling machines for positioning. The result? Broken pilot tips, tool deflection, and halted production. Always match the tool to the machine and task.

FAQ 2: Is there a significant difference in tool life between spot drills and center drills?

Yes—tool life depends on tool material, usage conditions, cutting speed, and coolant availability.

• Spot drills handle shallow cuts focused on tip engagement. A high-quality carbide spot drill (e.g., Samho’s coated micro-series) may last 3–5x longer than standard HSS drills.

• Center drills undergo greater wear due to their dual functions (drilling + chamfering). In lathe operations without coolant, the pilot tip wears quickly. Carbide center drills offer longer life, especially in mass production or when turning hardened materials.

Samho Tool offers a full line of carbide and HSS center drills, optimized for various work materials, RPMs, and applications—ensuring maximum value and durability.
