Carbide drill bits offer exceptional wear resistance, high rigidity, and excellent high-temperature stability. These qualities make them essential tools for precision drilling and high-efficiency manufacturing. Whether machining electronic components using micro carbide drill bits, producing multi-diameter holes with carbide step drill bits, or drilling hard materials like hardened steel and titanium alloys with carbide drill bits for hardened steel, carbide drills deliver consistent hole diameters and superior surface quality.
In the medical device industry, precision carbide drill bits for medical device manufacturing ensure tiny hole diameters, high consistency, and tight tolerances, supporting the reliability and safety of medical products. For complex automotive, aerospace, and mold components, custom carbide drill bits for CNC machining enhance efficiency and reduce production costs through optimized tool geometry, coatings, and cutting edges.
Thanks to their adaptability to diverse materials and holemaking requirements, carbide drill bits are not only essential for high-precision CNC drilling but also play a key role in driving intelligent manufacturing, automated production, and continuous process innovation.
The Core Driver of High-Precision Drilling: The Role of Carbide Drills in CNC Machining
Carbide drills are central to CNC machining, providing reliable solutions for high-precision and high-efficiency drilling. Their wear resistance, thermal stability, and rigidity allow them to outperform traditional HSS drills in demanding operations. Applications range from micro drilling, step drilling, to machining hardened steel, ensuring accurate hole diameters and superior surface finishes across automotive, aerospace, mold, and medical industries.
Why CNC Machining Requires High-Performance Drills
High-performance carbide drills maintain stable cutting in complex CNC environments, ensuring dimensional tolerances and smooth hole finishes. Compared to HSS drills, carbide tools last longer and deliver more consistent cutting forces, particularly for precision medical device drilling and custom CNC parts. Properly selecting drill diameter, coating type, and cutting-edge geometry reduces vibration, burrs, and hole deviation, improving machining efficiency and part consistency.
The Relationship Between Tool Selection and Process Optimization
Tool geometry, coating type, and helix angle directly impact cutting performance and tool life. For high-hardness materials or micro-hole machining, selecting the right cutting edge angle and coating enhances wear resistance and thermal stability. High-speed drilling combined with internal or high-pressure cooling significantly improves chip evacuation and hole quality. Careful optimization of tool selection and machining parameters ensures high-precision drilling, efficient production, and consistent batch quality.
Automotive and Mold Industry: Application of Carbide Drills in High-Hardness Steel
In automotive and mold manufacturing, precision drilling of high-hardness steel parts such as hardened mold steel, alloy steel, and special tool steel demands top-tier tool performance. Carbide drill bits for hardened steel, with excellent wear resistance, thermal stability, and rigidity, enable deep and precision holemaking and complex mold machining. They ensure accurate hole diameters, smooth surface finish, and consistent results across batches, meeting stringent precision and reliability requirements.

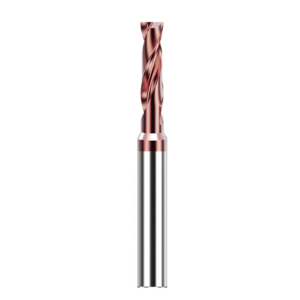

Typical Operating Conditions for Carbide Drill Bits for Hardened Steel
Tool coatings play a critical role in machining high-hardness steel. TiAlN coatings enhance wear resistance and thermal stability for high-speed and deep-hole machining. AlCrN coatings maintain hardness at high temperatures, reducing tool wear. Proper drill point angle, helix angle, and coating selection help control cutting forces and chip evacuation, enabling efficient, high-quality deep-hole and precision drilling. Practical applications include mold inserts, engine cylinder heads, and high-strength gears.
Strategies for Improving Productivity
Optimizing cutting parameters, cooling methods, and tool life management improves efficiency in hard material machining. High-speed machining with internal or high-pressure coolant reduces temperature, improves chip evacuation, and extends tool life. Standard carbide drills suit general-purpose holes, while custom carbide drill bits for CNC can be optimized for hole diameter, depth, and material, achieving high precision and efficiency for complex parts and deep-hole applications.
Electronics and Micro-Precision Manufacturing: The Critical Role of Micro Carbide Drill Bits
In electronics and semiconductor manufacturing, micro carbide drill bits are essential for high-precision micro-hole drilling. Miniaturized and high-density PCBs, IC packages, and precision electronic devices require micro drill bits below 0.1mm diameter. With excellent wear resistance, thermal stability, and tool tip rigidity, micro carbide drill bits maintain hole diameter accuracy and surface finish in high-speed micro-drilling, ensuring stable mass production.
Applications of Micro Drills in PCB and Semiconductor Processing
Micro carbide drill bits play key roles in PCB drilling, IC package micro-hole machining, and precision electronic structures. High-speed spindles with low-vibration tool clamping reduce deviation and hole shape distortion. For multi-layer PCBs and high-density microvias, their tiny diameter and sharp edges allow precise penetration through multiple layers, ensuring high consistency and productivity.
Machining Precision and Life Control Techniques
Micro-drilling demands high tool life and precision. Optimized cutting edge design, chip evacuation, and coating selection reduce chip jams and drill breakage. Ultra-fine-grain carbide with DLC coating improves wear and heat resistance, extending micro carbide drill bit life. Proper machining parameters and maintenance strategies ensure accurate holemaking while improving productivity and reducing costs.
Medical Device Manufacturing: Application Examples of Precision Carbide Drill Bits for Medical Device Manufacturing
High-precision carbide drill bits are vital in medical device manufacturing, ensuring micro-hole accuracy and device reliability. Precision instruments, implants, and microchannel devices require strict aperture accuracy, surface finish, and dimensional consistency. Precision carbide drill bits for medical device manufacturing achieve these standards in stainless steel, titanium alloys, and biocompatible materials, maintaining consistent hole diameters and wall finish.
High Cleanliness and Consistency Requirements for Medical Device Drilling
Medical materials often challenge hardness and toughness, leading to burrs, deviation, or surface damage. Optimized tool geometry and coatings help control cutting forces and chip removal, reducing wall damage. Precision carbide drills maintain tight tolerances and high cleanliness, supporting consistent mass production.
High-Precision CNC Drilling in the Medical Industry
In minimally invasive surgical needles, implants, and microchannels, precision carbide drill bits deliver stable micro-hole machining. Optimized geometry, coatings, and internal or high-pressure coolant improve stability and reduce burrs. Custom carbide drill bits for CNC optimize for complex holes and shapes, providing high efficiency, precision, and low scrap rates in medical device production.
Multifunctional Drilling: Carbide Step Drill Bits in Sheet Metal and Composite Material Processing
In aerospace, automotive, and precision instruments, carbide step drill bits with stepped cutting edges complete multiple hole diameters in a single operation, improving efficiency. Compared to traditional step-by-step enlargement, step drills reduce tool changes and cycle times while maintaining accuracy and finish. They handle varying thicknesses and materials, including high-strength aluminum, steel, and lightweight composites.
Step Drill Structure Design and Advantages
Stepped edges allow simultaneous multiple-diameter production, improving efficiency and reducing cutting force fluctuations. Common in aviation sheet metal, automotive parts, and instrument housings, step drills ensure accuracy and surface quality. Unique geometry balances cutting forces, improving stability and reducing burrs and material tearing.
Machining Difficulties and Optimization Solutions
Sheet metal and composites are prone to tearing and burrs. Optimizing geometry, edge sharpening, and helix angles improves chip evacuation. High-speed spindles, low-vibration clamping, and proper cooling reduce stress and heat effects, extending drill life. Combined with process optimization, carbide step drill bits achieve high precision, high efficiency, and stable output with low scrap rates across multiple materials and thicknesses.
Customized Solutions: The Value of Custom Carbide Drill Bits for CNC
As CNC-machined parts become increasingly complex, standard carbide drill bits often cannot meet the demands of high-precision machining, multiple hole diameters, or specialized hole shapes. Custom carbide drill bits for CNC are optimized for material properties, hole diameter, depth, and geometry. They enable high-efficiency, low-wear, and high-precision machining, significantly improving production efficiency and quality for B-end customers.
In industries such as aviation, automotive, and high-end mold manufacturing, customized drill bits ensure accurate drilling of complex parts, reduce tool change frequency, and lower production costs. This makes them indispensable in modern CNC machining.
Why B-end Customers Need Custom Drill Bits
For mass production or complex part machining, standard drill bits often fail to meet the requirements of diverse hole features, deep holes, or composite materials. Custom carbide drill bits for CNC can be tailored by adjusting cutting edge shape, helix angle, and coating type to match workpiece geometry, material hardness, and machining depth. This improves stability and efficiency for deep, special-shaped, or complex hole operations. In automotive molds, aerospace components, and precision equipment, custom tools ensure consistent, high-precision holemaking while reducing scrap rates.
Custom Design Process and Key Technical Points
The customization process for carbide drill bits typically begins with analyzing the material and hole machining requirements. Engineers then design the tool geometry, optimize helix angles, select coatings, and sharpen edges to achieve targeted performance.
In automotive molds and aerospace parts, custom drill bit designs improve deep-hole machining efficiency, reduce chip accumulation and tool wear, and ensure precise hole diameters and surface finish. Well-designed custom tools enhance CNC machining performance and provide reliable, repeatable production capabilities for high-end manufacturing.
A Comprehensive Strategy for Improving Drilling Efficiency: From Tool Selection to Process Integration
Modern CNC drilling efficiency relies on high-performance carbide drill bits combined with process integration. Selecting the right tool, optimizing cutting parameters, and integrating intelligent management maximize wear resistance, thermal stability, and rigidity, while reducing tool wear and machining errors. Automated production lines with real-time monitoring ensure consistent, high-efficiency, and low-cost production.
Tool Management Integrating Automation and Intelligent Monitoring Systems
Tool wear monitoring, predictive maintenance, and data-driven management enable real-time tracking of carbide drill bits usage. This allows proactive tool replacement or resharpening, reducing downtime and scrap. Historical machining data analysis can optimize cutting speeds, feed rates, and cooling methods, ensuring consistent holemaking. For mass production and complex parts, automated monitoring and data-driven tool management are key to improving CNC production line stability and productivity.
How to Extend the Life of Carbide Drill Bits
Extending carbide drill bits life depends on high-performance materials, coatings, and effective maintenance. Tool resharpening restores edge sharpness for micro- and deep-hole machining. Combined with controlled cutting parameters, coating renewal, and scheduled maintenance, drilling stability improves, tool replacement frequency decreases, and tool life extends across diverse conditions, including high-hardness steel, micro-drilling, and precision medical device drilling. Optimizing these strategies enhances high-precision drilling, productivity, and cost-effectiveness on CNC lines.
Carbide Drill Bits Enable High Precision and Efficiency in Modern CNC Manufacturing
Carbide drill bits provide extensive application value and versatility in modern CNC machining. They excel in drilling high-hardness steel for automotive and mold industries, micro-drilling in electronics and semiconductors, step drilling in sheet metal and composites, and precision drilling for medical devices. These tools meet diverse requirements for materials, hole diameters, and complex part geometries.
Custom carbide drill bits for CNC deliver specialized solutions for deep or special-shaped holes, ensuring high-precision machining through optimized tool geometry, coatings, and cutting edges. This significantly improves efficiency, extends tool life, and reduces production costs. Combined with automation, intelligent monitoring, and integrated process control, CNC production lines achieve high efficiency, stability, and consistency.
With intelligent manufacturing and advanced high-precision technologies, carbide drill bits continue to drive innovation and upgrades in CNC machining. Whether handling high-hardness materials, micro-hole machining, or custom complex parts, carbide drills provide reliable, high-precision, and high-efficiency solutions for modern manufacturing.
