As CNC machining continues to evolve in 2025, selecting the right type of end mill is no longer just basic knowledge—it’s a critical skill that directly impacts machining efficiency, cost control, and part accuracy. With the rise of high-performance materials, increasing precision demands for 3D surface machining, and the widespread adoption of intelligent manufacturing, the importance of proper tool selection has become more significant than ever.
In B2B sectors such as aerospace, mold manufacturing, precision medical equipment, and new energy vehicles, knowing how to choose the most suitable end mill for different machining tasks is a must-have capability for both engineers and procurement professionals.
We’re now in an era where “tool performance meets process compatibility.” Understanding the strengths of commonly used milling tools—like ball nose, flat end, and roughing end mills—can help you improve surface finish, extend tool life, and optimize production costs. For manufacturers, the right tool combination also means higher machine utilization and reduced per-part costs.
Flat End Mill
Key Features: Flat Cutting Edge, Ideal for Vertical Walls and Sharp Corners
Flat end mills are the most common and basic end mill types. Their blade tips are in a right-angle plane structure with clear cutting boundaries and right-angle edges. Thanks to the stability of their cutting edge geometry. This type of tool is particularly suitable for processing vertical walls, step surfaces and angular contour structures. In multi-axis machining, the end edge of the flat end mill can also be used for light end milling tasks, providing more flexible feed angle selection for complex paths.
Common Applications: Slotting, Face Milling, and Bulk Material Removal
Flat end mills are extremely widely used in daily machining tasks due to their simple structure and good rigidity. Their typical uses include slotting, side milling and step root cleaning, which are particularly common in roughing and semi-finishing stages. Compared with ball nose end mills, flat end mills can remove large volume stock at a higher material removal rate, making them one of the basic choices for efficient roughing tools. In the processing of some parts with strong versatility, it is also often used as a general-purpose milling cutter and widely deployed in the machine tool magazine.
Applicable Materials and Scenarios: Applicable to Most Metals and Plastics, Commonly Used for Rough Processing
In terms of material compatibility, flat head milling cutters are suitable for a variety of common materials from aluminum alloys, stainless steel to engineering plastics. For tasks that do not require high surface roughness but emphasize processing efficiency, such as part shape edge cleaning, structural part opening, non-precision mold cavity pre-processing, etc., are its main application scenarios. In the B-end customer group, such as mold manufacturers, general mechanical processing companies, and automotive parts factories, flat head milling cutters are usually purchased in large quantities for standardized operation processes. In order to improve the tool life and cost-effectiveness, corporate users also often choose versions with TiAlN coating, four-edge design, or ultra-fine carbide material.
For engineering teams that are looking for best end mills for slotting or roughing, or want to build a standard end mill set, flat head milling cutters are undoubtedly one of the most prioritized categories.
Ball Nose End Mill
Key Features: Hemispherical tip, designed for 3D surface finishing
Ball nose end mills have a rounded tip that makes them ideal for 3D contouring and freeform surface machining. Their smooth radius transition reduces stress concentrations, improving tool life and finish quality. These mills are essential for mold forming and deep cavity work, especially in multi-axis environments.
Common Applications: Mold cavities, complex contours, precision finishing
Ball nose cutters excel in industries like mold and die, aerospace, and medical device manufacturing. They’re commonly used for surface finishing of cavities, engraving streamlined shapes, or machining 3D contours on product housings where high surface quality is required.
Pro Tips: Use small stepdowns for better surface finish
When using a ball nose end mill for three-dimensional processing, in order to reduce the surface step height and obtain a better surface finish, it is usually recommended to adopt a small step feed strategy. At the same time, in order to reduce processing marks and extend tool life, the appropriate radial cutting depth should be controlled. And combined with a good tool path optimization strategy (such as parallel path, spiral path or spiral down strategy) to improve processing efficiency. In multi-axis CNC systems, ball nose cutters are also the core tool type in five-axis linkage finishing.

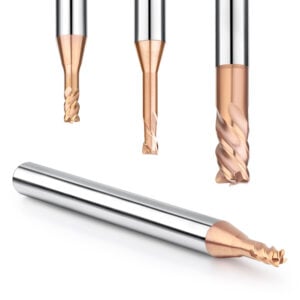

Corner Radius End Mill
Key Features: Rounded tip corner, combining strength and versatility
Corner radius end mills feature a small arc at the tip that blends the benefits of flat and ball nose cutters. The rounded edge reduces stress concentration and minimizes chipping, making them ideal for parts that require strength and smoother transitions.
Advantages: Increased tip durability, reduced edge chipping
These tools are especially beneficial when machining harder materials like heat-treated steels (HRC 40–60), titanium alloys, and stainless steels. They enhance tool stability and are well-suited for automated lines that demand fewer tool changes but diverse machining operations.
Best Used In: Aerospace, die/mold, and high-strength structural parts
Corner end mills are widely used in precision machining of aerospace parts, injection molds, die-casting mold cavities, and high-strength mechanical structural parts. In aviation structural parts, the stress concentration points can be reduced by corner radius cutters to improve the fatigue life of the structure. In the mold industry, the quality of the cavity can be improved through detailed transitions and the need for post-processing can be reduced.
Roughing End Mill
Key Features: Serrated edge design for efficient chip evacuation
Roughing milling cutters, also known as broken edge milling cutters, are characterized by their special wavy or serrated cutting edges. They can cut efficiently at high feed rates while significantly reducing tool cutting resistance and machine tool load. This edge design can break chips during cutting, promote high-speed chip removal, and improve overall processing efficiency. It is particularly suitable for heavy cutting and large excess removal scenarios.
In actual processing, roughing milling cutters are often used as roughing stage tools due to their high rigidity and cutting stability. They are used to start the processing rhythm and prepare for subsequent finishing.
Ideal Applications: Rough machining, bulk material removal
These are your workhorses for high-feed, high-volume machining tasks. From roughing mold bases and castings to structural steel components, roughing end mills shine in time-sensitive and high-material-removal operations.
Pro Tip: Not suitable for finishing—pair with a secondary tool
Although roughing milling cutters are extremely efficient in removing materials, their blade structure usually leaves irregular textures on the machined surface. Therefore, they are not suitable for direct finishing or finished surface processing. It is recommended to use flat-end end mills, corner milling cutters or ball-end milling cutters for finishing after roughing to ensure surface quality and dimensional accuracy.
In addition, roughing tools also place higher requirements on machine tool rigidity and clamping stability due to their high cutting force. In tool selection and cutting parameter setting, it is recommended to combine the actual equipment capabilities and give priority to models with special carbide materials for roughing and surface coatings (such as AlTiN, TiCN) to obtain the best cost-effectiveness and tool life.
Tapered End Mill
Key Features: Tapered body for increased rigidity in deep cuts
A taper milling cutter is a special milling cutter with a tapered blade design, which tapers from the shank to the cutting end. Compared with conventional tools of equal diameter, the taper structure significantly improves the bending rigidity of the tool under long overhang conditions. This reduces tool vibration and improves processing stability. It is particularly suitable for cutting deep cavities and inclined wall structures. Its unique tapered transition angle design is also conducive to forming the demolding slope in the mold cavity, and it is an indispensable tool type in mold processing.
Applications: Deep mold cavities, angled walls, fine engraving
These tools are widely used for machining injection molds, electrode contours, and chamfered geometry. They’re particularly effective when working on parts that demand high depth-to-diameter ratios without compromising accuracy or surface finish.
Industries: Mold and die, medical, and precision machining
Taper milling cutters occupy an important position in the mold manufacturing industry. Especially in the structural processing of injection molds, die-casting molds, hot runner systems, etc. that require demolding bevels, they are widely used. In the manufacturing of medical parts, its slender and high-rigidity characteristics are also suitable for the precision processing of parts with extremely high dimensional stability requirements such as orthopedic implants and micro surgical instruments. Especially on five-axis machining centers or high-speed engraving and milling machines, taper milling cutters have become the preferred tool for complex part surface root cleaning and “multi-angle transition” areas due to their excellent “slenderness ratio stability”.
Long Neck End Mill
Key Features: Extended neck, short cutting edge for clearance in deep features
Long neck milling cutters are a type of precision tool with an extended neck design. Unlike extended blades, long-neck tools have a shorter effective cutting length but a slender neck, which is designed to solve interference problems in deep cavities and deep grooves. Its small-diameter neck area can flexibly enter narrow spaces to avoid collisions between the tool shank and the side wall or bottom of the workpiece. It is particularly suitable for the inner cavity root cleaning and deep hole inner wall processing of complex structural parts.
Best For: 5-axis machining, small parts, and cavity cleanup
This type of tool is very common in five-axis linkage machining or high-precision mold part manufacturing. It is especially suitable for parts machining tasks with local high-depth ratio structures. Its design can effectively cope with the challenges of tool interference and vibration control in narrow areas, and is an ideal choice for micro-part machining and high-precision mold cavity root cleaning.
Pro Tips: Use high-speed spindles and stable clamping
Due to the slender structure of the long-neck milling cutter, its vibration resistance and bending rigidity are relatively weak. In order to give full play to the performance of the tool, it is recommended to use it with a high-speed spindle. At the same time, appropriately reduce the cutting depth and lateral cutting depth to reduce cutting vibration and improve surface quality.
In terms of clamping, it is recommended to use high-precision heat shrink chucks, hydraulic chucks and other high-stability clamping methods to ensure tool concentricity and processing stability. For automated or unmanned processing lines that require long-term and stable operation, choosing a long-neck milling cutter with a wear-resistant coating (such as TiSiN, DLC) can also further extend the tool life.
How to Choose the Right Milling Cutter for Your Job
In CNC processing, choosing the right milling cutter type is a key factor affecting processing efficiency, surface quality and tool life. Faced with different types of materials (such as aluminum alloy, carbon steel, titanium alloy, etc.), processing stages (roughing/finishing), machine tool rigidity, speed limit and other factors, it is crucial to properly match the tool.
Tool Selection Guide
| Processing Materials | Processing Methods | Recommended Tool Types | Selection Tips |
|---|---|---|---|
| Aluminum alloy | Roughing machining | Aluminum end mill | Choose large chip grooves, high helix angles, non-coated or DLC coated tools |
| Aluminum alloy | Finishing machining | Long neck milling cutter / Ball nose end mill | High speed, small cutter, suitable for five-axis equipment |
| Carbon steel/Alloy steel | Rough machining | Roughing end mill | High rigidity clamping, wave edge is recommended to improve metal removal rate |
| Carbon steel/Alloy steel | Finishing machining | Flat end mill/Rounded corner end mill | Select according to sharp or rounded corner features to improve tool life and surface quality |
| Stainless steel | Deep cavity processing | Taper milling cutter/ Long neck milling cutter | xtend the cutter neck to avoid interference, it is recommended to use TiAlN coating to improve wear resistance |
| Titanium alloy/High temperature alloy | Rough machining | Corner milling cutter/rough machining milling cutter | se small cutting depth and low speed, the tool needs to be high hardness and heat resistant |
| Mold steel | Surface processing | Ball nose end mill | Small step cutting, suitable for free-form surfaces and complex mold cavities |
By carefully evaluating your application needs and pairing the correct tool type with optimized feeds and speeds, you can significantly improve productivity, surface finish and tool life.
