In modern CNC machining, the choice of cutting tools has a crucial impact on machining efficiency, finished product accuracy, and tool life. Especially in high-precision, multi-variety machining environments, understanding different types of CNC endmill tools has become a basic skill for every engineer and operator.
This article will compare and analyze three common cutting tools: end mills, drill bits, and slot mills, to help you systematically understand their role differences and application scenarios in CNC milling processes.
We will introduce the geometric structures, cutting methods, and applicable materials of various CNC end mill cutters, and compare the core differences in processing methods and performance between CNC end mill bits, drill bits, and slot milling cutters. It will also discuss the application advantages of CNC carbide end mills in high-speed cutting and difficult-to-machine materials, and how to choose the appropriate carbide CNC milling cutter according to the workpiece material and processing requirements to avoid common selection errors.
Why Is It So Important to Choose the Right CNC Cutting Tool?
In CNC machining, the cutting tool is not just a medium for material removal but a core factor affecting machining efficiency, surface quality, dimensional accuracy, and tool life. Especially in production environments requiring high stability and repeatability, selecting appropriate CNC end mill tools can reduce tool change frequency, optimize machining cycles, and lower overall production costs.
The right tool must match the workpiece material and align with process requirements, such as depth of cut, feed rate, and cooling methods. This ensures reasonable cutting force distribution, efficient chip evacuation, and controllable cutting heat—leading to high-quality machining results.
Impact of Tool Selection on Machining Efficiency and Surface Quality
In CNC milling, tool geometry and material significantly influence machining performance. Using properly designed CNC end mill bits can enhance the material removal rate (MRR) while improving surface finish and dimensional accuracy.
For example, CNC carbide end mills engineered for high-speed machining can achieve faster spindle speeds and feed rates while maintaining stability. Conversely, using the wrong tool may lead to burrs, scratches, or tool breakage, compromising part consistency.
For high-speed machining and finishing, selecting specialized tools like CNC end mill tools for aluminum or coated ball-end mills for mirror-finish steel surfaces often determines project success.
Tool Adaptability in Different Material Processing
Material properties such as hardness, thermal conductivity, and stickiness affect tool wear resistance, chip evacuation, and thermal stability.
For aluminum alloys with high thermal conductivity and stickiness, high-helix CNC end mills with polished flutes are recommended. For hard-to-machine materials like stainless steel or titanium, carbide CNC milling cutters with high hardness and thermal stability should be used—often with TiAlN or AlCrN coatings for heat resistance.
Understanding the application compatibility of different CNC bits is essential for optimizing both tool life and processing efficiency. Misusing a general-purpose tool on the wrong material can result in rapid wear and even workpiece failure.
Whether you’re performing high-speed milling of aluminum or deep cavity machining in titanium, choosing the correct CNC milling cutting tool is a critical first step in process planning.

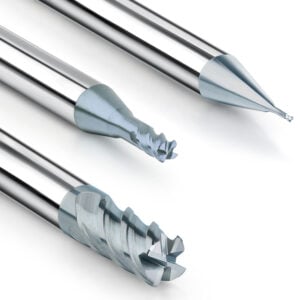

End Mills Detailed Explanation
End mills are among the most versatile tools in CNC milling, ideal for 2D contouring, 3D surface machining, and cavity roughing. Unlike drills, CNC end mills can cut both axially and radially, making them suitable for profile cutting, chamfering, grooving, and surface finishing.
This section explains the structural features, common types, and application benefits of CNC carbide end mills to help users optimize tool selection for performance and longevity.
What Is an End Mill? Basic Structure and Cutting Method
End mills consist of a shank and a cutting portion with multiple flutes. They typically have spiral flutes, with or without center-cutting capabilities. End mills can perform face, side, and slot milling.
Key parameters like helix angle, rake angle, and relief angle directly affect cutting performance, chip evacuation, and machining stability. These factors are essential when choosing the right tool.
Common Types of Milling Cutter Bits and Their Uses
- Flat End Mill: General-purpose tool for face milling, slotting, and profiling.
- Ball Nose End Mill: Ideal for 3D contouring and fillet transitions; widely used in mold making.
- Corner Radius End Mill: Offers both strength and radius control; suited for structural parts.
- Roughing End Mill: Features serrated edges to break chips and reduce cutting load; used in heavy roughing operations.
Choosing the correct type of CNC end mill bits based on material and machining goals can enhance productivity and surface finish.
Advantages of Carbide CNC Milling Cutters
Carbide end mills, made from tungsten carbide, offer high hardness, red hardness, and wear resistance—making them ideal for high-speed cutting and difficult materials like stainless steel, titanium, and hardened tool steels.
Benefits include:
- Thermal stability: Suitable for dry or MQL machining
- Wear resistance: Longer tool life, fewer tool changes
- High-speed capability: Supports faster machining
- Coating options: TiAlN, AlCrN, DLC for oxidation and adhesion resistance
Recommended Applications (Mold Finishing, Roughing, etc.)
- Mold finishing: Use ball-end carbide mills for smooth 3D surfaces
- Parts roughing: Apply roughing or high-feed end mills to remove material quickly
- Aluminum: Choose 2- or 3-flute tools with high helix for better chip flow
- Steel: Use coated carbide end mills to manage wear and heat buildup
For deep cavities or intricate features, long-reach or reinforced tools are preferred to maintain stability.
Key Differences Between Drill Bits and End Mills
While both are common CNC tools, drills and end mills differ significantly in structure, cutting paths, and applications. Understanding these differences is critical to prevent misuse and ensure machining quality.
Cutting Path and Direction
Drill bits are designed for axial (Z-axis) cutting only. With a pointed center and radial flutes, they penetrate material vertically and are optimized for drilling holes.
End mills, on the other hand, can cut axially and radially (X/Y-axis). They’re better suited for continuous path operations like contour milling, pocketing, and surface finishing.
Drill Bit Applications: Limited to Axial Operations
Drill bits excel at creating holes (through, blind, countersunk) in materials like aluminum, steel, and stainless steel. However, they lack side-cutting capability and are unsuitable for profiling or slotting.
Improper use (e.g., using a drill bit for side milling) can lead to vibration, tool breakage, and poor surface finish.
Why Drills Can’t Replace End Mills
Despite similar dimensions, drills are not interchangeable with end mills:
- No side cutting edge: not designed for lateral movement
- Poor chip evacuation during side cuts
- Risk of overloading the spindle and damaging the setup
CNC end mills, with multi-tooth side flutes, are built for stable and efficient side milling, contouring, and cavity machining.
Role of Slot Mills in CNC Machining
Slot mills are specialized tools designed for cutting slots, grooves, and complex channel shapes. Unlike general end mills, they offer better control in precision slotting and material segmentation.
Understanding their structure and application helps optimize process planning, reduce tool changes, and enhance overall efficiency.
Structural Features and Chip Evacuation
Slot mills often have a narrower core, reinforced edges, and enhanced chip evacuation design. Key characteristics include:
- Tooth geometry: For various materials and depths
- Reinforced core: Minimizes deflection in extended cuts
- Large flute volume: Promotes chip removal and reduces heat
- Sharp end edges: Improves engagement and exit
For deep or narrow grooves, optimized slot mills reduce tool wear and enhance accuracy.
Typical Applications: Slotting, Cutting, T-Slot Machining
Slot mills are used for:
- Straight slot cutting: Keyways, oil grooves, positioning tracks
- Part segmentation: Cutting profiles or separating parts
- T-slot milling: Often in fixture and mold base applications
- Closed cavity grooving: Such as semi-enclosed mounting rails
High-performance slot mills must support consistent depth control, heat management, and stable cutting under varied conditions.
Differences in Usage and Combination Strategy with Standard End Mills
Although slot mills and standard end mills may appear similar in design, they serve distinct purposes and are not interchangeable due to significant differences in performance and application.
| Item | Slot Mill | Standard End Mill |
|---|---|---|
| Cutting Method | Mainly for lateral or end-face cutting and slotting | Multi-directional contour milling, face milling, and 3D profiling |
| Tool Rigidity | Optimized for cutting operations, often with a thinner core | Higher rigidity, suitable for omnidirectional cutting forces |
| Chip Evacuation | Typically larger flute volume for better chip clearance | More compact design, suited for lighter chip loads |
| Combination Strategy | Use end mill for pre-milling → finish slotting or cutting with slot mill | Use end mill for roughing → finish or separate with slot mill |
In complex part machining, strategically combining slot mills and end mills can significantly improve overall production efficiency. For example, an end mill can be used for cavity contouring, followed by a slot mill for T-slots or assembly grooves, ensuring smooth transitions between different operations.
How to Choose the Right CNC Milling Tool
In CNC machining, choosing the right CNC end mill tool not only affects machining efficiency, but also directly determines tool life, surface quality, and equipment stability. Faced with different materials, complex shapes, and varying machining depths, scientific tool selection has become a basic yet critical decision in any machining process.
This section dives into how to choose the most suitable CNC end mill cutter by exploring material compatibility, tool coatings, customization strategies, and common misconceptions. We also provide practical suggestions based on real-world working conditions to help you overcome machining challenges and improve productivity.
Material vs. Tool Type Matching Recommendations
Different workpiece materials require specific tool geometries, substrates, and coatings. Proper matching is essential to maximize the performance of CNC carbide end mills. Below are recommended combinations for common materials:
| Workpiece Material | Recommended Tool Type | Suggested Features |
|---|---|---|
| Aluminum Alloys | High-polish, high-helix end mills | Large rake angle, sharp cutting edge, excellent chip evacuation |
| Stainless Steel | High-toughness coated end mills with slight relief angle | Heat-resistant coating, low cutting resistance |
| Carbon/Alloy Steel | Standard 4-flute or roughing end mills | High strength, large chip pocket, anti-chipping |
| Titanium Alloys | Coated carbide ball nose end mills | High thermal stability, chemical resistance |
| Graphite/Ceramics | CVD diamond-coated or PCD tools | Ultra-high hardness, exceptional wear resistance |
Coating Selection and Tool Life Extension Tips
Coating is a key factor in enhancing the performance of CNC end mills. The right coating reduces friction, prevents chip adhesion, and improves heat resistance, ultimately extending tool life. Here are some common coatings and their applications:
- TiAlN: Ideal for high-temperature cutting, especially high-speed machining of steel parts.
- AlCrN: Offers high thermal hardness, suitable for mold steel and stainless steel.
- DLC: Best for soft materials like aluminum and copper, with excellent surface finish.
- CVD Diamond Coating: Preferred for high-hardness materials such as silicon carbide, graphite, and ceramics.
Tips to extend tool life:
- Use proper cooling methods (MQL, oil mist, or oil cooling).
- Control feed per tooth and cutting depth.
- Monitor tool wear and replace or regrind as needed.
- Avoid cross-contamination by not sharing tools across different materials.
Customized Tools vs. Standard Tools: When to Customize
Standard CNC end mills cover most general machining needs. However, in specific scenarios like deep cavity milling, complex geometries, or special grooves, standard tools may fall short.
Consider custom tools when:
- The workpiece has intricate features that standard tools cannot access.
- You aim to reduce tool changes in mass production.
- You’re machining special materials like titanium alloys or composites.
- There are extremely high demands for surface finish or tight tolerances.
Customized CNC carbide end mills can be tailored in blade geometry, length-to-diameter ratio, flute count, corner radius, and more to match specific tasks—a key strategy for high-efficiency machining.
Common End Mill Selection Mistakes and Solutions
Mistakes in CNC tool selection often stem from limited experience or misjudgment of material properties. Below are some typical errors and recommended solutions:
| Common Mistake | Recommended Solution |
|---|---|
| Using low-helix end mills for aluminum machining | Use high-helix, mirror-polished flute tools to improve chip evacuation |
| Choosing uncoated end mills for stainless steel | Switch to TiAlN or AlCrN coated tools to enhance heat resistance and tool life |
| Using one end mill for multiple materials | Use dedicated tools for each material to avoid accelerated wear |
| Using short-flute tools for deep cavity machining | Use extended flute tools or reduce depth of cut per pass |
| Ignoring tool rigidity and clamping compatibility | Choose high-rigidity holders and minimize tool overhang length |
Summary and Selection Suggestions
Choosing the right CNC cutting tool is essential for efficient production and achieving high-quality results. This article has covered various CNC endmills, drill bits, and slot mills, highlighting their structural differences, applications, and selection strategies.
By aligning tool types with process demands, wisely combining standard and custom tools, and avoiding common mistakes, manufacturers can extend tool life, lower production costs, and improve accuracy and surface finish. Below is a summary of our core recommendations.
Comparison Summary of Different CNC Cutting Tools
- End Mills: Versatile tools ideal for contouring, profiling, and 3D milling. Carbide end mills offer excellent rigidity and wear resistance. Various geometries fit different applications.
- Drill Bits: Designed for axial hole making, with limited radial cutting ability. Not a substitute for end mills.
- Slot Mills: Specialized for slotting and parting tasks, with enhanced chip evacuation and cutting strength. Best for narrow and deep slots.
Each tool has its role, and proper integration leads to higher productivity and part quality.
Selection Recommendation Flowchart: Material, Process, and Precision
To choose the right tool, follow these key steps:
- Identify the material: Different materials need different tool substrates and coatings. (e.g., high-helix coated tools for aluminum; heat-resistant coatings for stainless steel.)
- Determine the process: Use roughing end mills for bulk removal; opt for fine-finish or ball end mills for precision work.
- Evaluate quality requirements: For tight tolerances or fine finishes, prioritize coated tools with uniform wear characteristics.
- Consider production volume: For high-volume jobs, custom tools can enhance efficiency; standard tools offer flexibility for small batches.
- Match cooling and lubrication: Pair tools with compatible cooling to maximize tool life and performance.
This flow can be visualized in a diagram to assist quick and informed decisions on the shop floor.
Call to Action: Contact Us for Tool Selection Support
Every machining challenge is unique. That’s why SAMHO offers 1-on-1 technical consulting to help you find the perfect CNC end mill cutter. Whether you’re working with exotic materials or tight tolerance parts, our experts provide tailored recommendations, custom solutions, and the latest product updates.
Contact us now to explore professional-grade solutions that boost productivity and lower your manufacturing costs.
FAQ
In real-world CNC operations, tool selection questions are constant. Here are some common queries answered with insights from CNC end mill applications.
Can End Mills Drill Holes?
While end mills can plunge to create shallow holes or enlarge existing ones, they are not ideal for deep hole drilling. Their primary function is side and end cutting. For accurate and efficient deep-hole machining, use dedicated drill bits.
Can Drills and Slot Mills Be Interchanged?
No. Drills are optimized for vertical, axial cutting, while slot mills are designed for lateral slotting with better chip removal. Using drills for slotting risks tool breakage and poor finish. Likewise, slot mills underperform in drilling tasks.
How Should CNC Beginners Choose Their First Tool Set?
Start with these basics:
- Flat End Mills (2-4 flutes): For general profiling and slotting.
- Ball End Mills: For 3D surfaces and mold finishing.
- Standard Drills: For hole-making tasks.
- Slot Mills: For cutting grooves or slots.
Choose carbide tools with wear-resistant coatings to improve tool life and reduce breakage. Focus on matching tool geometry and rigidity to your machining needs. As you gain experience, explore custom tool options for specialized operations.
