The use of the right tools is essential for success in precision woodworking. This post explores how high-quality machining relies on good CNC end mills and router bits. These machines improve wood fabrication efficiency by using cutting-edge technology that guarantees superior accuracy and finish quality simultaneously. We seek to give a general view of different types of these devices, their uses, and their advantages; this will enable individuals interested in woodwork to make informed choices regarding such tools when undertaking projects. Having knowledge of what they are capable of doing can greatly enhance one’s skills irrespective of whether he/she is an amateur or professional woodworker. Therefore, it is without doubt that knowing more about CNC end mills and router bits is likely to transform any person’s craftsmanship, be it a hobbyist or a skilled artisan who has been in the industry for years.
What are the Differences Between a Router Bit and an End Mill?
Understanding Basic Terminology for End Mills and Router Bits
Although they are used in CNC machining as cutting tools, router bits and end mills have different functions and properties. The main purpose of a router bit is to work with a router in shaping, trimming, or hollowing out wood materials. Such bits have flutes that can remove chips so that smooth cuts can be made or intricate patterns can be created. On the other hand, end mills are commonly utilized in milling machines where they cut metals and other harder materials; these tools differ from one another by having more than two edges, which may allow them to operate at any angle, either horizontally or vertically, thus facilitating complex contouring operations among others too. For this reason, it is important to know some basic knowledge about their usage within CNC systems if appropriate results should be achieved during woodworking activities.
Characteristics of Router Bits
Router bits are designed for woodworking and have several features that make them suitable for such tasks. To begin with there is a wide range of shapes available including straight ones as well as flush trim or dovetail varieties which can be employed depending on what kind of profile needs to be cut out or shaped – this means users can choose specific tools according to desired designs they want achieve Secondly material composition determines durability mainly because most these bits are made using high-speed steel (HSS) or carbide; however carbide tipped types usually last longer while performing better than those made entirely from HSS Additionally cutting diameter together with flute design greatly affect how deep into workpiece will bit go also how smooth resultant groove shall appear since larger number flutes tend remove chips faster thus leading cleaner channels being formed during machining Moreover it should be noted various shank sizes allow different models routers accommodate therefore enhancing versatility when undertaking different tasks related with woodwork projects Knowing all these aspects helps people choose right type router bit that will give best outcomes for their needs.
Differences between Router Bits and End Mills
When it comes to shaping or trimming materials, router bits are more versatile in terms of profiles and designs suitable for woodworking applications than end mills. They usually operate at high speeds but with low feed rates compared to carbide end mills; this is because they can be used on softer surfaces which may not require too much pressure during cutting processes. Conversely, end mills have been optimized for cutting harder materials like metals, so they are mostly used together with milling machines where precision work needs to be done – these tools feature multiple edges, therefore enabling them to remove material from different directions depending on what angle one wants to work from. While routers focus on decorative and functional profiles that can be achieved in softer items such as wood, among others, mills are designed for very complex cuts requiring high accuracy and strong blades.
How do you go about selecting the right end mill for your CNC router?
Which materials can be used with CNC end mills?
CNC end mills are versatile tools that can work with a wide variety of materials, making them indispensable in both industrial and woodworking applications. Typically, they are used to cut metals such as aluminum, steel and brass because of their strong cutting ability. In addition to metals, plastics like acrylics, polycarbonates, and Nylons can all be effectively machined using CNC end mills, which leave clean edges with precise tolerances. Wood is another material that can be milled quite well by endmills, especially when intricate or detailed designs are required. Some types of end mills even handle composites such as carbon fiber or fiberglass which makes them useful for many different manufacturing processes. It is important to choose an appropriate geometry of an endmill along with its material type if you want to get the most out of it while machining particular materials.
What should I take into account? The diameter and length of cut
When choosing an end mill, the size of the cutting diameter determines how much material will be removed and what kind of finish is on the workpiece overall. A larger diameter allows for higher rates of removal but may sacrifice fine detail in more complex designs, while smaller diameters provide better accuracy at lower depths, so they’re not good when removing large quantities fast.
The cutting length (which refers specifically only to those lengths containing flutes) also plays a role – longer cuts mean deeper ones but less stability since vibrations tend to increase over larger areas; shorter cuts have stiffer geometries, so they’re better suited towards shallower operations, where rigidity is key. Therefore, it’s necessary for you to select an appropriate combination between these two parameters in order to achieve peak performance during specific types of milling operations.
How Many Flutes Should I Choose?
More flutes means smoother finishes as each tooth has less work to do on any given point along its path; however this comes at the expense of strength because there are more teeth to share the load. Fewer flutes mean less chip evacuation space which can lead to clogging up if feeds aren’t reduced accordingly but they’re better for removing material quickly from softer materials or roughing out operations where surface finish isn’t so important.
Therefore, the choice between a 2 flute and 4 or even more flutes end mill should be based on such factors as: hardness of material being machined; desired surface finish quality; specific operational goals – whether it’s about maximizing stock removal rates while working with wood composites or getting mirror like finishes when cutting hardened steels…
What Are the Kinds of Woodworking Cutters?
Introduction to Twist Drill Bits
Spiral drill bits have grooves that coil around them to help remove chips while making cuts. This design makes cutting smoother and creates less vibration, which leads to more accurate work with a better surface finish. Spiral drills come in many different sizes (both in terms of diameter and flute count) so they can be chosen optimally depending on what material is being worked on and how it needs to be machined. They are commonly used for both softwoods like pine as well as hardwoods such as oak where clean cuts without splintering are important details in achieving intricate shapes with tight tolerances – all thanks to spiral drill bits!
Understanding Ball Nose Slotting Mills
Ball nose slotting mills have a rounded tip that allows for the creation of contoured surfaces, complex shapes, and deep cavities. This design is especially useful when machining 3D profiles or sculpted surfaces out of metal or plastic materials since these types of bits can easily cut horizontally along an axis other than their own. When doing finishing operations, ball end mills give good precision because they improve surface finishes, which make smooth transitions between different levels within a single pocket; hence this versatility makes them applicable across various fields ranging from mold making up until die sinking where detail & accuracy matter most but not least selection an appropriate diameter together with a suitable number flutes also affect final product’s quality greatly.
Benefits of Using Long Reach Cutter
Long-reach cutters are designed to reach into deeper areas without having too many tool changes, thus increasing efficiency levels overall. These tools enable operators to achieve precision results even when working on deep pockets or intricate features while still maintaining control over every step involved during the process thereby reducing chances of deflection occurring due to higher rigidity provided by longer length i.e, fewer vibrations produced at the point where cutter meets work-piece leading into less chatter being experienced throughout cutting cycle likewise contributing much towards better chip evacuation thereby reducing the risk associated with re-cutting of chips which could otherwise affect surface finish adversely, especially in case where tight corners are involved. In other words, long-reach cutters are perfect for detailed works in difficult-to-access places.

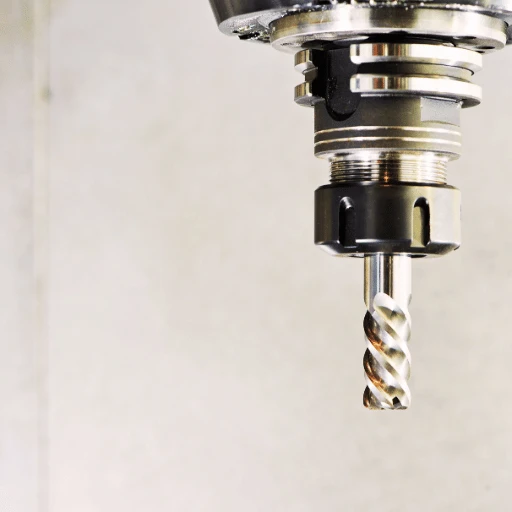

How do you use end mill router bits correctly and maintain them?
The right way to use a router with end mills
To achieve the best results and extend the life of your tools, it is important to follow the rules when using a router fitted with end mills. First, ensure that you pick the appropriate one for your material or intended application as different tasks require specific geometries. Always keep recommended feed rates and spindle speeds because this will prevent overheating which in turn reduces wear on tools. Secure the workpiece tightly enough so that there is no movement; otherwise, there may be inaccuracies caused by shifts in position and even damage to the tools themselves. Regularly check if any part of an end mill shows signs of wearing out or being damaged, and then replace it immediately without compromising accuracy. Lastly, clean both the router and work area frequently so debris does not accumulate, affecting performance or safety.
Ways of keeping them sharp for long
For prolonged sharpness of your carbide-shanked end mill router bits, proper handling should be combined with regular maintenance efforts such as sharpening. You can always take them for professional sharpening service or purchase dedicated tools designed specifically for this purpose if you want to achieve better results during sharpening exercises. Replacement should done as soon as possible whenever monitoring tool wear establishes that it’s already inappropriate because performing below expectations might compromise finish quality, too. Cutting fluids or lubricants meant to reduce friction heat generated while cutting through materials, thus contributing towards degradation, ought also to be used during operations. Storage them safely inside cases holders whenever they are not being utilized keeps off physical damages as well contaminations.Finally, arranging a routing environment neatly devoid of any foreign objects can prevent premature wearing out through contact, hence prolonging their useful lifespan besides retaining original efficiency levels.
Safety precautions when operating a plunge router
To stay safe while using plunge routers always remember putting on personal protective equipment like goggles ear muffs etc. Always hold firmly onto it with both hands while operating it. To avoid accidents, ensure that the depth settings are accurate and that the router bit is securely attached before you start working on anything. Keep your fingers or any other part of your body away from the cutting area because this can hurt you badly. Inspect power cord regularly for any signs of wear tear damage prior to usage and ensure there are no obstacles along workspace. Pass through well-ventilated areas when using routers in order to reduce inhalation exposure risks associated with dust, fumes, etc.
What Kinds of End Mills Are Suitable for Different CNC Projects?
Best End Mill for Plastic and MDF
The choice of end mills used in cutting plastic and medium-density fiberboard (MDF) depends on the design that can minimize chip welding and create smooth surfaces. For plastics, it is common to use down-cut spiral end mills because they push material down, which reduces delamination risks and improves surface quality. On the other hand, flat-bottom or up cut-end mills work best with MDF since they remove materials more efficiently without clogging them. Besides this, using high-speed steel (HSS) or carbide-made end mill cutters may enhance performance levels and extend tool life, thereby ensuring good results during machining processes.
The Function of Solid Carbide End Mills in Industrial CNC Routers
Solid carbide end mills are popular components in industrial CNC routers mainly due to their high hardness and wear resistance properties. Additionally, these types of cutters provide superior cutting abilities, making them suitable for fast cutting speeds across different materials such as metals, composites, and plastics, among others. Their stiffness contributes towards lessening vibrations during operations, thus improving accuracy and surface finish. Moreover, solid carbide end mills can keep sharp edges under high temperatures created while machining, thereby reducing the number of replacements needed and extending durability further by withstanding such conditions over time without becoming dull easily, hence making solid carbides preferred choices within demanding industrial environments.
Special Milling Cutters for Delicate Mortise Work
Special milling cutters, including mortising bits and hollow chisel cutters, have been designed specifically for creating accurate joints through precise mortises when woodworking with a CNC machine. These tools possess sharp edges that easily slice through wood, leaving clean, straight lines behind them, thus preventing tear-outs from occurring on pieces being worked upon by this type of mill cutter device, unlike any other available option today.. Usually, a mortising bit has flat bottoms so as to reach the required depths but still maintain wide enough bases, while a hollow chisel combines both drilling bits and chisels together, thereby enabling the creation of square or rectangular-shaped mortises with higher levels of accuracy. Using these specialized cutters guarantees perfect outcomes within delicate mortise applications without compromising the integrity of the materials worked on.
What Are Some of the Most Common Problems and Solutions When Using End Mills with CNC Routers?
Fixing Routing Problems
When working with end mills on CNC routers, there are a number of problems that can occur which will affect how well the job gets done in terms of accuracy as well as efficiency.
- Vibration: This can cause rough finishes and inaccurate cuts. To prevent it, make sure that tools are calibrated correctly, use correct feed rates, and choose the right tooling for your material.
- Tool Wear is minimized by using solid carbide end mills, and having good chip evacuation.: Tools that have become dull or worn out may produce uneven quality in cuts. Regularly inspect cutting edges on all ends mills then replace them when necessary – also consider coatings which could enhance lifespan of tools.
- Poor Chip Removal in CNC operations results in tool wear out, hence low productivity on cutting.: Chippings being left unattended could block paths through which materials should be cut, thereby causing overheating and leading to reduced accuracy levels being achieved during the manufacturing process. Efficient systems should be put in place to manage chips while adjusting feed rate, especially when working with cnc endmills.
- Feed Rate and Speed Issues: Wrong settings may cause too much friction or not enough cutting through materials. Always refer to the manufacturer’s guidelines regarding recommended speeds for different materials plus feeds required.
- CNC Alignment Problems – When different parts of the machine are not aligned properly, this increases tool wear, thus affecting cut precision.: If any one part is set out incorrectly, then other areas will be affected, resulting in inaccuracies during operation. It’s therefore important that routine checks for calibration are made alongside proper positioning before use.
How to deal with flute blockage during CNC routing
Flute jamming can highly affect the accuracy and efficiency of a machine’s performance. In order to solve this problem:
- Increase the Number of Flutes: The number of flutes can be increased in end mills so as to improve chip removal while enhancing the cutting ability of carbide tools.
- Optimize Cutting Parameters: Feed rates and spindle speeds should be adjusted for good material removal without compromising cut quality.
- Implement Cooling Effectively: Coolant or air blasts may be used to clear chips away from the cutting area and reduce heat build-up.
- Keep It Well Maintained: Regularly inspecting both tooling and workpieces will help detect early signs of clogging, which is important for optimal tool life.
Enhancing Performance at the Front Line for Better Results
Here are the main focal areas that need to be considered in order to improve cutting-edge performance:
- The tool geometry which includes the cutting diameter and flute design plays an important role in how well an end mill performs. – Choose tools having correct geometries such as rake angles and relief angles which are designed for specific materials being machined so that they can engage better with them while also reducing forces required for cutting.
- Material choice– Use high-performance cutting-tool materials like Carbide or High-Speed Steel (HSS) because they are harder thus more wear resistant.
- Coating Technologies: Advanced coatings such as TiN, TiAlN or diamond can be used this helps to reduce friction between tools and workpieces hence increasing their life by enhancing wear resistance.
- Optimized Cutting Conditions – It is necessary to set up appropriate speeds of cut as well as depths of cut based on what material is being worked on so that one does not sacrifice too much performance against another while still safeguarding against deterioration of tools.
- Regular Tool Maintenance – Regularly check whether a tool is still sharp enough through inspections coupled with resharpening routines, which will not only prolong its lifespan but also enhance accuracy during machining.
Reference Sources
Frequently Asked Questions (FAQs)
Q: What is woodworking with a CNC router used for bits?
A: In precise woodworking, these cutting tools are used to create detailed engravings, smooth cuts, and intricate patterns on various materials such as wood, plastic or composites.
Q: What differentiates an upcut router bit from a down-cut router bit?
A: By removing material in an upward direction, upcut bits clear chips from the cut and provide a cleaner edge on the bottom surface. Downcutting pushes material downward, which gives a clean top but can leave rougher edges on the bottom.
Q: When should I use spiral router bits instead of straight router bits?
A:Spiral router bits like upcut spirals may be employed for smoother cuts and better chip removal. This makes them more suitable for finer work with greater intricacy and precision while general straight-edged requirements are met by straightening out tasks using a CNC end mill too.
Q: What are the benefits of carbide being used in making router bits?
A:Durable carbide ensures that it remains sharper than high-speed steel over extended periods hence its advantage lies in longevity among industrial supply and woodworking applications where tougher materials need to be cut frequently over long term periods.
Q: How do I know how deep my CNC milling bit should cut into the material?
A:The right depth depends on what you’re working with and what needs to happen. Start shallow then go deeper but not beyond where it could damage anything because of this tool’s limitations also prevent excessive step-over amounts from occurring either.
Q: Why is collet important when doing CNC routing?
A:The collet is simply a chuck that holds onto your cutter tightly enough so that there’s no play between them both; this accuracy factor guarantees good quality cuts every time!
Q: Which sets of CNC router bits would you recommend to beginners?
A:Settle for sets containing different shapes/sizes like square ends alongside double flutes which provide versatility during learning stages of various cutting techniques while doing CNC woodworking projects; also include spiral bits because they serve as great foundational tools too.
Q: How does engraving differ from routing?
A: Engraving is when one creates detailed designs, text, or patterns on the surface of an object, whereas routing involves cutting and shaping the material into specific forms or profiles. In either case, you will need precision work done with cnc router bits
Q: Do I always need extra long CNC router bits for deep cuts?
A: Not necessarily, though most help in achieving deeper cuts or reaching through thick pieces by providing extra length, which ensures stability throughout the cut, thereby giving accurate results at all times.
Q: How often should I replace my CNC spoil board?
A:You should replace it when it gets heavily grooved or damaged from multiple uses so as not to compromise accuracy and quality of your cuts; also undertake routine check-ups on this part for optimum performance of the machine.
