Comprehensive Guide to Micro End Mills for Precision CNC Machining

Comprehensive Guide to Micro End Mills for Precision CNC Machining
end mill tool

In precision manufacturing, micro end mills have become indispensable cutting tools for micromachining and producing high-precision parts. With the rapid advancement of micro CNC mills and high-precision machining equipment, the use of micro milling cutters has expanded from traditional mold manufacturing to high-end industries such as medical devices, aerospace, electronics and semiconductors, and watchmaking. Compared to conventional end mills, micro end mills demand stricter requirements on size, blade geometry, material, and coating design. They enable the creation of complex contours and superior surface finishes within very small cutting areas.

Common types of micro end mills include micro flat end mills, micro ball end mills, and micro radius end mills. Each tool type offers unique advantages in micro end milling: flat cutters are ideal for precision flat surfaces and grooves; ball cutters excel at machining three-dimensional surfaces and cavities; and radius cutters help reduce stress concentration and extend tool life. Additionally, mini end mills are well suited for small machine tools or hobbyist equipment.

Achieving optimal dimensional accuracy and surface quality in micromachining requires not only selecting the right tool type but also optimizing cutting parameters, machine tool precision, tool holding methods, and cooling and lubrication strategies. Proper tool selection combined with process planning can significantly improve machining efficiency and accuracy, while demonstrating exceptional capabilities in manufacturing complex parts.

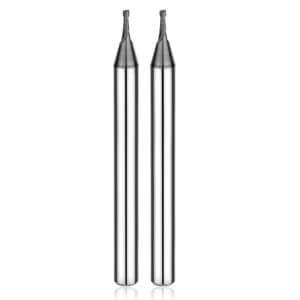

Micro Flat End Mill

What Are Micro End Mills? — Definition and Characteristics

Micro end mills are small milling cutters designed for precision and micro-cutting applications, typically ranging from 0.05 mm to 3 mm in diameter. Due to their extremely small size, these tools require much higher precision in geometry, material hardness, and cutting edge sharpness compared to conventional end mills. They are widely used in micro-part machining, high-precision mold manufacturing, medical device components, aerospace microstructures, and electronic semiconductor micro-cutting.

In practical manufacturing, micro end mills demand not only exceptional sharpness and dimensional consistency but also use in high-speed, high-precision machine environments to ensure cutting stability and surface quality. Therefore, they are often paired with advanced micro CNC mills to achieve complex geometries and precise contouring.

Dimensions and Classification of Micro End Mills

Based on tool diameter, cutting edge shape, and machining application, micro end mills are generally classified as:

  • Micro Flat End Mill
    Featuring a flat tip, suitable for precision flat machining, groove milling, and micro-step surface machining. Widely used in mold finishing and electronic component contouring.

  • Micro Ball End Mill
    With a hemispherical tip, ideal for machining three-dimensional surfaces, cavities, and complex contours. Commonly used in polishing curved surfaces of medical implants and precision molds.

  • Micro Radius End Mill
    Featuring a slightly rounded corner to reduce stress concentration and extend tool life. Frequently applied in machining high-hardness materials and complex parts.

Micro end mills are also classified by tool material, including carbide, HSS, and diamond-coated variants. Different materials provide varying performance for machining steel, aluminum, copper, titanium alloys, ceramics, and composites.

Differences from Standard End Mills

Compared to standard-sized end mills, micro end mills offer significant advantages:

  • Higher dimensional accuracy: tolerances up to ±0.002 mm enable micron-level machining.

  • Sharper cutting edges: reduce cutting resistance and minimize deformation in small workpieces.

  • Higher tool strength and rigidity requirements: despite smaller size, tools must withstand centrifugal and cutting forces during high-speed operation.

  • More stringent machine requirements: equipped with high-speed spindles (≥ 40,000 rpm), rigid tool holders, and precise feed controls.

These factors make micro end mills more suitable for high-precision applications, while standard end mills remain preferable for larger parts.

Common Applicable Equipment — Applications of Micro CNC Mills

Micro CNC mills perfectly complement micro end mills. Their high speed, precision, and low vibration characteristics make them ideal for micro-cutting:

  • Medical: manufacturing micro implants and microsurgical instruments.

  • Electronics and semiconductors: machining micro connectors, sensor housings, and chip carriers.

  • Watches and jewelry: engraving micron-level textures and precise contours.

  • Aerospace: producing microfluidic channels, precision nozzles, and small structural components.

Micro end milling enhances part precision and shortens machining cycles, especially in small-batch, high-value production.

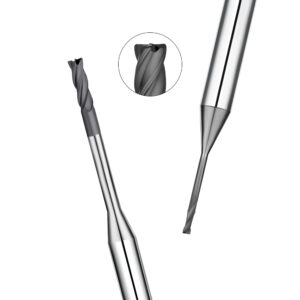

Micro Long Neck Flat End Mill

Main Types and Applications of Micro End Mills

The tool shape, cutting edge geometry, and size directly impact machining processes and part quality in micro end milling. Selecting the right tool improves surface finish, extends tool life, and reduces costs. Common types include micro flat end mills, micro ball end mills, micro radius end mills, and mini end mills for smaller machines. These are widely used in mold manufacturing, precision machinery, electronics, medical devices, and more.

Micro Flat End Mill

  • Applications: Surface machining, precision slotting, micro-step surfaces, mold finishing, PCB processing, micro-jig fabrication.

  • Materials: Aluminum alloys, copper alloys, stainless steel, hard plastics, titanium alloys.

  • Cutting Parameters: Carbide micro flat end mills typically run at 30,000–60,000 rpm spindle speed, 0.005–0.02 mm/tooth feed, with depth of cut kept ≤ 0.5× tool diameter to avoid breakage.

  • Machining Stability: Use high-precision ER chucks or air-bearing spindles on micro CNC mills.

Micro Ball End Mill

  • Applications: 3D surface and cavity machining, complex contours, precision molds, medical implants, aerospace curved surfaces.

  • Surface Quality: Small stepovers (≤ 5% tool diameter) combined with high-speed cutting improve finish.

  • Machining Conditions: Requires spindles ≥ 40,000 rpm with stable cooling/lubrication; reduces burrs and oxidation.

  • Advanced Use: Five-axis micro CNC machining optimizes tool engagement and uniformity.

Micro Radius End Mill

  • Advantages: Slight radius (0.05–0.5 mm) reduces stress concentration, chipping risk, and extends tool life.

  • Typical Applications: Aerospace microchannels and nozzles, high-hardness mold steel microcavities, microstructured parts needing fatigue resistance.

Mini End Mill and Hobby CNC Machining

  • Application: Small desktop/hobby CNC machines (0.5–6 mm diameter), machining light metals, plastics, wood, composites.

  • Machine Compatibility: Used on machines with stepper or low-power servo drives; requires low cutting forces and multi-step machining to reduce vibration.

  • DIY and Hobbyist Use: Suitable for small mechanical parts, model carving, electronic housings, with optimized tool paths and precise clamping.

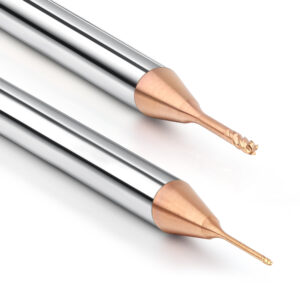

Micro Flat End Mill

Micro End Milling Process Characteristics and Key Technical Points

Micro end milling is a precision cutting process emphasizing micron-level accuracy and micro-part manufacturing. Compared to conventional milling, it involves:

  • Extremely small tool diameters (0.05–3 mm) requiring high-speed, high-precision spindle support.

  • Minimal stock removal emphasizing micro-cutting and stable feeds to prevent tool overload.

  • High surface quality demands optimized cutting paths and small stepovers to reduce roughness.

  • Challenging chip evacuation and cooling due to small flute space, requiring effective solutions to prevent clogging.

Mastering cutting parameters, chip evacuation, cooling, tool breakage prevention, and material-specific machining strategies is essential for effective micro end milling.

Cutting Parameter Selection (Speed, Feed, Depth of Cut)

  • Spindle Speed: High speeds (e.g., 40,000–60,000 rpm for 0.5 mm diameter cutters) ensure proper cutting speed.

  • Feed Rate: Usually 0.002–0.01 mm/tooth; too high risks breakage, too low accelerates wear.

  • Depth of Cut: Typically 0.3–0.5× tool diameter; lower for hard materials.

  • Strategy: High-speed cutting with small stepovers balances surface finish and efficiency.

Optimizing Chip Evacuation and Cooling Methods

  • High-pressure air: Quickly clears chips; ideal for plastics and non-ferrous metals.

  • MQL: Reduces friction and heat, good for aluminum and copper alloys.

  • Mist cooling: Combines cooling and lubrication for longer cuts.

  • Microspray coolant: Effective for steel and hardened alloys.

Proper cooling enhances chip removal, tool life, and process stability.

Techniques to Reduce Tool Breakage and Workpiece Deformation

  • Use high-precision chucks (ER or air-bearing) to minimize runout.

  • Optimize tool paths: spiral and layered cutting reduce edge engagement.

  • Decrease speed at corners or apply arc transitions to reduce impact.

  • Employ workpiece supports and rigid clamping, especially for thin-walled parts.

  • Implement tool condition monitoring for early wear detection.

Material-Specific Machining Strategies

  • Steel & Mold Steel: Reduce depth/feed, use TiAlN coatings, maintain coolant flow.

  • Aluminum Alloys: Higher cutting speeds, sharp edges, polished flutes to prevent sticking.

  • Copper Alloys: Minimal lubrication to stabilize temperature; watch for rapid heat conduction.

  • Engineering Plastics: High speed, low feed, dry or compressed air cooling to avoid softening.

Combining proper tool material, coating, and cooling achieves optimal results.

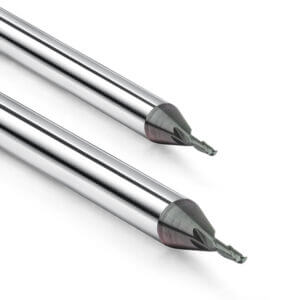

Micro Flat End Mill

Key Factors Affecting Micro End Mill Performance

In high-precision micro milling, the performance of micro end mills directly affects machining quality, efficiency, and tool life. Achieving stable and efficient micro end milling requires not only selecting the right tool type and machining process but also focusing on tool material and coating, geometric design, and overall compatibility with the machine tool system. This section highlights three core factors influencing micro end mill performance to help optimize micromachining results and extend tool life.

Tool Material and Coating Selection (TiAlN, DLC, PCD, etc.)

Micro end mills are typically made from carbide, while advanced surface coatings significantly enhance tool wear resistance, thermal stability, and cutting performance. Common coating types include:

  • TiAlN: Offers excellent high-temperature resistance, making it ideal for high-speed machining of hardened steels and alloys. It effectively reduces tool wear and extends tool life.

  • DLC: Its low friction coefficient suits machining aluminum and copper alloys, minimizing tool adhesion and chip clogging.

  • PCD: With extremely high hardness and wear resistance, it is perfect for non-ferrous metals, composites, and high-hardness plastics, though it is more costly.

Proper coating selection combined with a high-quality carbide substrate greatly improves the stability and durability of micro end mills during high-speed micro-cutting, reducing the risk of tool failure.

Tool Geometry and Edge Treatment

Micro end mill geometry critically influences cutting performance, primarily in:

  • Edge Sharpness: Sharper edges reduce cutting forces, minimizing workpiece deformation and tool vibration.

  • Helix Angle: Proper helix angles facilitate smooth chip evacuation, improve surface finish, and prevent chip jamming.

  • Rake and Clearance Angles: Tailored to specific materials to balance cutting forces and tool strength.

  • Edge Polishing: Precision polishing lowers friction and chip adhesion, enhancing surface quality.

Subtle variations in micro end mill geometry significantly affect cutting path stability and machining accuracy, making precise tool manufacturing and edge finishing essential.

The Impact of Machine Tool Spindle Accuracy and Clamping Systems

Machine tool rigidity and precision are also vital for micro end mill performance:

  • Spindle Speed and Runout: High-speed spindles (≥40,000 rpm) with micrometer-level radial runout control are critical to prevent tool breakage and dimensional inaccuracies.

  • Clamping Rigidity and Stability: High-precision chucks (e.g., ER and air-bearing) securely hold tools, reduce vibration and runout, and improve surface quality.

  • Machine Structural Rigidity: The machine’s bed and guideways must minimize vibration; a robust structure helps avoid deformation in tiny parts.

Optimizing tool design, machine tool precision, and machining processes together ensures the full potential of micro end mills in precision manufacturing.

Micro end mill

Practical Tips for Extending the Life of Micro End Mills

Micro end mills’ small size and thin cutting edges make them vulnerable to cutting loads, heat buildup, and vibrations, accelerating wear and risk of breakage. Extending tool life not only cuts production costs but also enhances machining stability and quality. Here are practical tips focusing on machining path planning, heat control, and online monitoring to improve micro end mill longevity.

Reasonable Machining Path Planning

Proper path planning avoids tool overload and boosts cutting efficiency:

  • Use layered cutting and spiral feed paths to reduce peak cutting forces and avoid excessive single-pass depth.

  • Choose smooth, continuous paths on complex surfaces to minimize feed rate fluctuations and vibration.

  • Employ multi-tool, stepwise machining: roughing first, finishing later to reduce roughing phase tool stress.

  • Leverage CAM software optimization to minimize non-cutting movements and idle tool runs.

Scientific path planning controls tool load, reduces mechanical fatigue, and prevents edge chipping caused by vibration and thermal stress.

Avoiding Overcutting and Heat Accumulation

Overcutting and heat buildup are primary causes of tool failure:

  • Precisely control depth and width of cut to stay within tool load limits, preventing blade damage.

  • Use high spindle speed combined with low feed to minimize cutting force and heat generation.

  • Apply effective cooling/lubrication like MQL or high-pressure sprays to dissipate heat quickly.

  • Schedule intermittent cutting breaks to avoid thermal buildup and tool deformation.

Optimizing parameters and cooling extends tool life and stabilizes cutting performance.

Online Tool Monitoring and Maintenance Methods

Intelligent monitoring technologies are key to tool life management:

  • Utilize Tool Condition Monitoring (TCM) to track wear, breakage risk, and vibration in real time with alerts.

  • Regularly inspect and resharpen tools to maintain sharp edges and consistent cutting forces.

  • Use tool life management software integrated with process data for optimized tool change scheduling, avoiding premature or delayed replacements.

  • Train operators on correct clamping and operation procedures to prevent damage.

An integrated monitoring and maintenance system supports continuous, efficient micro milling and maximizes tool utilization.

Micro Ball Nose End Mill

Application Examples of Micro End Mills in Various Industries

Thanks to their exceptional accuracy and fine cutting capability, micro end mills are widely used in high-precision manufacturing. They address diverse materials and complex structures, enabling quality micro-part production. This section highlights key application cases in medical devices, precision molds and watchmaking, and electronics and semiconductors.

Micromachining of Medical Device Parts

The medical sector demands ultra-precise, high-quality parts. Micro end mills are essential for tiny, complex components like minimally invasive surgical instruments, implants, and dental tools.

  • High-speed micro milling allows ultra-fine channels and intricate internal features.

  • Micro ball end mills provide smooth surfaces meeting biocompatibility and safety standards.

  • Advanced chip evacuation prevents clogging, ensuring tool stability and lifespan.

  • Typical materials include titanium alloys, stainless steel, and medical-grade polymers.

Precision Mold and Watchmaking Parts Manufacturing

Micro end mills enable complex microstructures and premium surface finish in molds and watches.

  • Micro flat end mills perform precision slotting and cavity machining in molds.

  • Micro radius end mills reduce stress concentration, enhancing small watch parts’ durability.

  • Meticulous tool path planning and high-rigidity clamping ensure tight tolerances and repeatability.

  • Common materials include hardened mold steel, brass, and stainless steel.

Electronics and Semiconductor Component Processing

In electronics and semiconductors, micro end mills machine features demanding micron-level accuracy and cleanliness.

  • Micro milling cutters enable precise engraving, through-holes, and fine packaging components.

  • DLC coatings reduce chip adhesion and static buildup, improving machining efficiency.

  • Five-axis micro CNC machining combined with micro milling handles complex 3D geometries.

  • Typical materials include silicon wafers, ceramic substrates, and engineering plastics.

micro end mill

How to Choose the Right Micro End Mill?

Selecting the right micro end mill is fundamental to efficient and precise micro milling. Factors like workpiece material, machining type, and machine tool capabilities dictate tool material, geometry, and coating needs. Appropriate tool selection boosts efficiency, surface quality, tool life, and reduces costs. This section outlines selection strategies based on material compatibility, tool type, and machine matching.

Choosing Tool Type and Coating Based on Workpiece Material

Materials differ in mechanical and cutting properties, requiring matched tools:

  • Steel and Mold Steel: Carbide with TiAlN coating offers wear and heat resistance, suitable for high-speed machining of hardened materials.

  • Aluminum and Copper Alloys: Sharp tools with DLC coatings reduce adhesion and improve smoothness.

  • Polymers and Composites: Uncoated or low-friction coatings prevent softening from heat.

  • Hard Non-Metallics (e.g., ceramics): PCD tools provide high wear resistance and precision.

Proper material-coating matching reduces wear and breakage risk.

Choose Between Flat, Ball, or Rounded Tools Based on Processing Type

Tool geometry influences machining and application:

  • Micro Flat End Mill: Best for flat surfaces and grooves, ensuring flatness and dimensional stability.

  • Micro Ball End Mill: Ideal for 3D surfaces, cavities, and inclined features, minimizing tool marks.

  • Micro Radius End Mill: Radius corners reduce stress concentration, extend life; suitable for hard materials and fatigue-resistant parts.

Selecting the right type per application enhances part quality and efficiency.

Tool Selection Recommendations for Micro CNC Mills and Mini End Mills

Machine tool type affects tooling choices:

  • Micro CNC Mills: Support high-speed, rigid clamping; suited for ultra-small, high-precision micro end mills.

  • Desktop/Hobby CNC with Mini End Mills: Due to power and rigidity limits, select slightly larger tools and use light cutting strategies to reduce load.

  • For low-power machines, prioritize tough carbide tools and simple geometry to minimize vibration and breakage.

Matching tooling to machine ensures machining stability and quality.

Micro End Mills

Summary and Future Trends

With the increasing demand for high-precision and complex micro parts in the manufacturing industry, micro end mills have become indispensable tools for achieving superior micro end milling quality. This article has systematically outlined the core value of micro milling in modern precision machining, covering the definition and classification of micro end mills, their main types and applications, key process technologies, factors affecting performance, and effective tool selection strategies.

By optimizing cutting parameters, chip evacuation and cooling techniques, and machining path planning—combined with advanced tool materials, coatings, and coordination with high-precision machine tools—micro milling achieves enhanced machining efficiency and tool longevity. These advances support a broad range of high-end manufacturing sectors, including medical devices, precision molds, and electronics and semiconductor industries.

Development Directions of Micro-Milling Technology

As the demand for micro machining continues to grow, micro milling technology is expected to evolve along several key trends:

  • Advanced Tool Materials and Multifunctional Coatings: Development of high-performance substrates and innovative coatings will further improve tool wear resistance and cutting stability, meeting the machining challenges posed by increasingly complex materials.

  • Integration of Intelligent Online Monitoring and Tool Life Management: Real-time monitoring and management systems will drive greater automation and digitalization of machining processes, reducing the risk of unexpected tool breakage and maximizing productivity.

  • Expansion of Multi-Axis Micro CNC Machine Tool Technology: Advanced multi-axis machines will enable machining of more complex three-dimensional microstructures, enhancing accuracy and flexibility.

  • Energy-Efficient Cooling and Minimal Lubrication Technologies: Driven by green manufacturing principles, eco-friendly cooling and lubrication methods will optimize cutting environments, reduce resource waste, and enhance sustainability.

Innovative Applications in Precision Manufacturing

Thanks to their exceptional accuracy and versatility, micro end mills continue to expand their footprint in precision manufacturing:

  • Medical Industry: Micro end mills enable the fabrication of less invasive and safer implants and surgical instruments, accelerating the progress of personalized medicine.

  • Watchmaking and Mold Manufacturing: These tools support efficient machining of increasingly intricate microstructures, meeting the growing demand for lightweight, high-performance components.

  • Electronics and Semiconductor Fields: Micro milling facilitates micron-scale feature machining and fine packaging technologies, promoting miniaturization and enhanced performance in smart electronic products.

Looking ahead, combined with emerging materials and processes, micro end mill technology is poised to unlock greater potential in advanced sectors such as aerospace, new energy, and nanomanufacturing.

Telegram
Facebook
Reddit
LinkedIn
product from SAMHO
Recently Posted
Popular Blogs

No posts found!

Contact SAMHO
Contact Form Demo
