In CNC machining, it is crucial to distinguish between the use cases of roughing and finishing milling bits to improve cutting efficiency and workpiece quality. Although these cutters may look similar, they have essential differences in cutting edge geometry, chip removal capacity, and machining purposes. Many beginners and even experienced engineers often ask, “When should I use a roughing milling bit, and when should I switch to a finishing milling bit?” or “Which milling bits are best for machining steel or stainless steel?” These questions require a deep understanding of tool types.
This article provides a detailed analysis of the differences between roughing and finishing milling bits, combined with the processing requirements for different materials such as carbon steel, stainless steel, and aluminum alloy. We will cover tool structure, machining stages, and common applications to help you master the selection principles for various types of milling bits. Whether you are looking for milling bits for steel, comparing the best bits for stainless steel, or aiming to improve chip removal and surface finish when machining aluminum alloys, this article will offer practical and professional guidance.

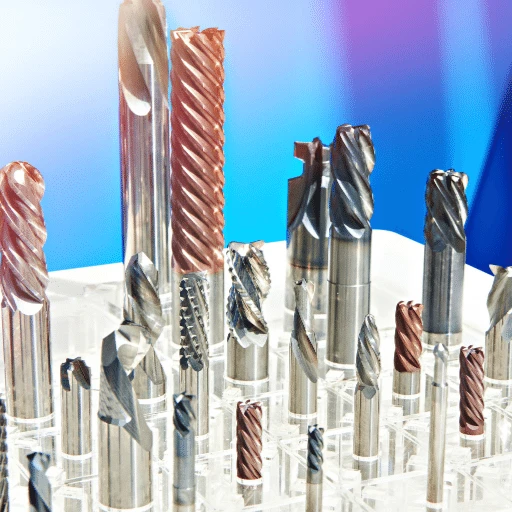

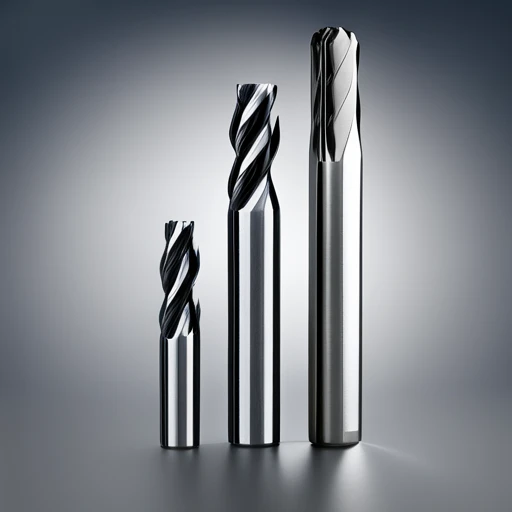

Types of Milling Bits Overview
Choosing the right type of milling bit is a key step to ensure machining efficiency and part accuracy in CNC machining. Different types of milling bits vary significantly in tool design, cutting characteristics, applicable materials, and machining stages. From planar milling to 3D surface machining, and from rough material removal to high-gloss finishing, reasonable tool selection can greatly enhance production stability and tool life. Below, we introduce several common types of milling bits and explain their application scenarios and advantages, especially when machining steel, stainless steel, and aluminum alloy.

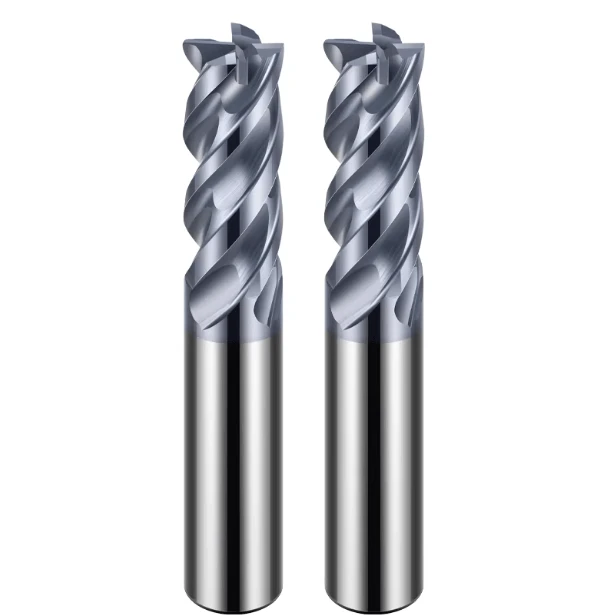

Flat End Mill
Flat end mills are widely used general-purpose cutters primarily suited for side milling, planar milling, slotting, and contouring. Their straight cutting edges make them ideal for high-precision 2D machining or achieving flat surface finishes.
For machining steel (including carbon and alloy steels), carbide flat end mills with TiAlN or TiSiN coatings are common due to their wear resistance and thermal stability. For aluminum alloys, 2-edge or 3-edge cutters with large chip grooves are preferred to improve chip evacuation and prevent material buildup.

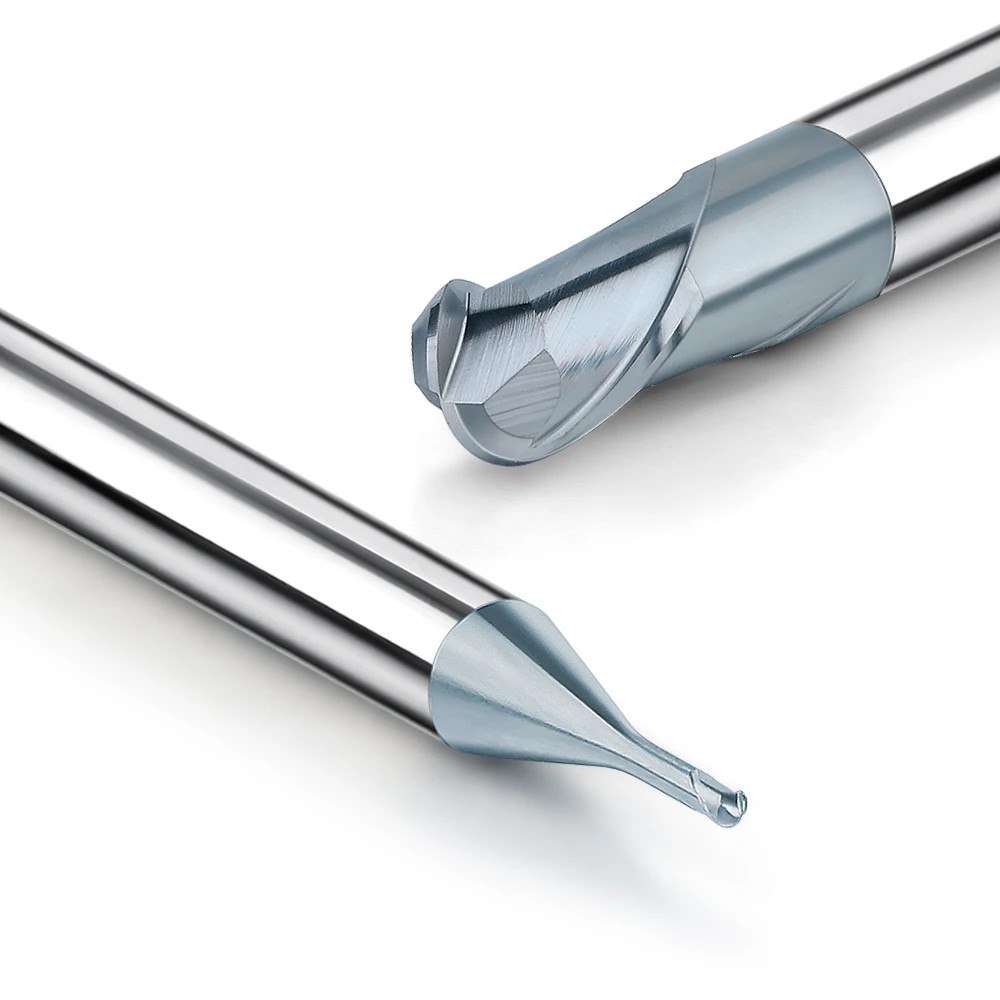

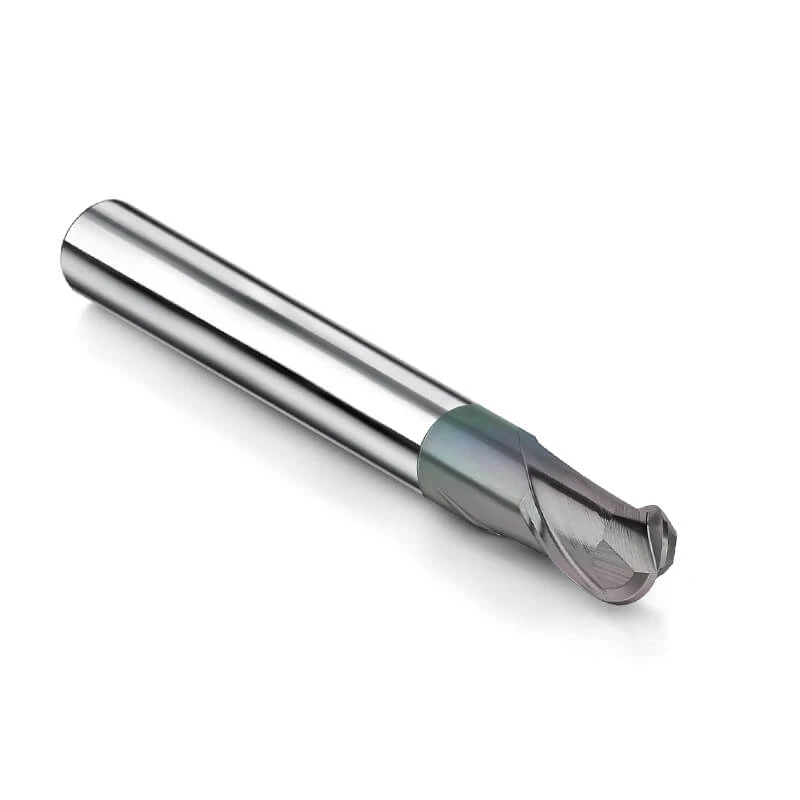

Ball End Mill
Ball end mills have a hemispherical tip, making them especially suitable for 3D surface machining, mold manufacturing, and complex freeform contours. Their geometry allows continuous surface cutting without leaving tool marks, essential in 5-axis machining.
For high-hardness materials such as heat-treated or mold steels above HRC 55, ball mills coated with CVD diamond or micro-grain carbide significantly extend tool life. For aluminum alloys, 2-edge high-speed ball mills with DLC coating improve surface finish.
Corner Radius End Mill
Corner radius end mills combine the cutting efficiency of flat mills with the rounded corner transition of ball mills. Their fixed radius reduces stress concentration and extends tool life. They are ideal for machining structural parts requiring smooth internal transitions or sensitive surface stress conditions.
When machining stainless steel and high-strength alloys, corner radius cutters help prevent chipping caused by sharp corners while maintaining part strength and machining stability. They often replace traditional flat mills in combined roughing and finishing operations to improve efficiency and tool consistency.
Roughing End Mill
Roughing end mills, also called wave edge or chip breaker mills, are designed for high material removal rates and large allowances. Their cutting edges usually feature unequally spaced waveforms that break chips effectively, resist vibration, and prevent resonance and workpiece rebound.
For steel and alloy steel, roughing tools commonly have high-temperature coatings like TiAlN to sustain performance at high speed and feed rates. For softer materials such as aluminum alloy, special roughing cutters with large chip grooves and 3 edges are available.
Finishing End Mill
Finishing mills emphasize surface quality and dimensional accuracy. Their design favors sharp cutting edges, small helix angles, and high rigidity. They are used in the final machining stage to ensure smooth, burr-free surfaces and precise dimensions.
For materials prone to sticking, like stainless steel, finishing mills with mirror-polished edges, sharp angles, and anti-stick coatings are recommended. For aluminum finishing, DLC coatings or single-crystal tools achieve mirror-like surfaces.
Roughing Milling Cutter: Characteristics and Application Scenarios
Roughing end mills play a vital role in quickly removing large volumes of material. Compared to finishing tools, they emphasize high removal rates, chip evacuation, and vibration resistance, especially for large, long-cycle, or hard material machining. Selecting the right roughing cutter improves efficiency, reduces tool chipping, and creates a solid foundation for finishing.
Understanding the geometric features and suitable materials for roughing cutters is key to improving productivity, whether you seek milling bits for steel or aluminum milling bits.
Geometric Characteristics of Roughing Milling Cutters (Chip Breaker, Wave Edge, etc.)
Roughing cutters feature wavy or chip breaker edges designed to segment chips, preventing entanglement and improving evacuation. They usually have thicker blades and larger core diameters to increase rigidity and bending resistance, critical for high-feed, deep-cut conditions. This is particularly important for hard materials like alloy steel or cast iron, preventing tool breakage or chatter.
Suitable Materials and Working Conditions (Steel, Aluminum Alloy, Cast Iron, etc.)
Roughing cutters are used primarily during preliminary machining for:
-
Carbon and alloy steels: TiAlN or TiSiN coated carbide cutters adapt to high temperatures and friction.
-
Stainless steel: Roughing cutters with small helix angles and chip breakers help prevent sticking and vibration.
-
Aluminum alloys: 2- or 3-edge large chip groove cutters with high-speed spindles and air or spray cooling.
-
Cast iron and copper: Tools with chip-breaking and wear resistance ensure process stability.
Rough machining suits large allowance removal, contour forming, and cavity excavation, common in mold and structural parts processing.
Performance of Rough Machining Tools in Steel Processing (Example: HRC 40 Steel)
For medium-hard steels like HRC 40 quenched and tempered steel, roughers require wear, heat, and vibration resistance. A 4-edge wave edge cutter with TiSiN coating operating at 6000–8000 rpm, 0.05–0.1 mm feed per tooth, and 1.0 mm cut depth can provide efficient, long-lasting cutting.
High heat and cutting forces during steel machining demand proper tool choice. Avoid general-purpose flat cutters and prefer roughing milling bits designed for steel combined with oil or high-pressure air cooling for optimal performance.
Finishing Milling Cutter: Characteristics and Application Scenarios
Finishing cutters are used at the final stage of machining to ensure dimensional accuracy, geometric integrity, and superior surface finish. Compared to roughers, they require sharper cutting edges, optimized helix angles, advanced coatings, and better balance.
For stainless steel, high-hardness steels, and aluminum alloys, finishing cutters must deliver high-quality cuts while resisting sticking and thermal damage. This section discusses finishing cutter designs, material-specific selection strategies, and typical applications, particularly for stainless steel and aluminum alloys.
Cutting Edge Design and Coating Selection for Finishing Milling Cutters
Cutting edge sharpness affects cutting forces and surface roughness. Finishing cutters often have lightly honed edges to prevent chipping while maintaining sharpness. Mirror polishing is common for ultra-fine surface finish requirements.
Coating recommendations include:
-
Stainless steel: TiSiN, AlTiN, nACo coatings for oxidation resistance and heat tolerance.
-
Aluminum alloy: DLC coatings or uncoated polished edges to reduce friction and prevent built-up edge formation.
Tool Selection and Suggestions for Stainless Steel Finishing
Due to toughness, poor thermal conductivity, and stickiness, stainless steel finishing tools should have:
-
Small helix angles (≤30°) to reduce heat buildup.
-
Sharp cutting edges with strong substrates to avoid edge chipping.
-
Heat-resistant coatings (e.g., TiSiN) to prolong tool life and improve chip evacuation.
For finishing HRC 30–40 stainless steels like 304/316, 4- or 6-flute high-rigidity end mills are recommended with feed rates of 0.02–0.05 mm/tooth, using oil mist or high-pressure water cooling to prevent sticking and overheating.
Common Milling Cutter Types for Mirror Finishing Aluminum Alloys (2-Edge/3-Edge DLC Cutters, etc.)
Aluminum alloys, being soft, tend to form built-up edges affecting quality and tool life. For finishing:
-
Use 2- or 3-edge cutters with large chip grooves for effective chip evacuation.
-
Employ sharp blades with mirror-polished edges to reduce friction.
-
Opt for DLC-coated or uncoated polished tools to minimize sticking.
High-speed spindles (>15,000 rpm) combined with spray cooling can achieve mirror finishes with Ra < 0.2 μm. This is ideal for 3C product shells, high-gloss aluminum parts, automotive trims, and other non-ferrous components requiring high surface quality.
Comparison of the Core Differences Between Roughing and Finishing Milling Cutters
Many CNC users wonder about the difference between roughing and finishing cutters. Though similar in appearance, they differ significantly in design, machining goals, and process parameters. Understanding these differences improves efficiency and reduces tool wear and scrap rates.
Geometric Structure Differences (Number of Blades, Helix Angle, Chip Removal Capacity)
-
Number of blades: Roughers have 2–4 blades for chip clearance; finishers have 4, 6, or 8 blades for stability and surface quality.
-
Helix angle: Roughers use medium or unequal helix angles (~35°) for strong cutting; finishers use smaller (~30°) or higher (~45°) helix angles to meet surface requirements.
-
Chip removal: Roughers have large chip grooves or wave edges for chip breaking; finishers prioritize cut stability with less aggressive chip evacuation.
Different Processing Goals (Removal Rate vs Surface Quality)
-
Roughers focus on maximizing material removal rate (MRR) with strong cutting and stability.
-
Finishers aim for high surface finish and dimensional accuracy, requiring low vibration, friction, and residual stress.
Example: Aluminum phone cases or stainless steel precision parts require finishing cutters achieving Ra < 0.2 μm, like 2-edge DLC mills for finishing and wave-edge roughers for initial shaping.
Differences in Processing Strategies and Parameter Settings (Speed, Feed, Cutting Depth, etc.)
-
Roughing uses low speed, high feed, large depths (0.5–2.0 mm) with feed rates >0.1 mm/tooth.
-
Finishing uses high speed, low feed, small depths (0.1–0.3 mm), feed rates 0.02–0.05 mm/tooth.
Processing strategies differ: roughing often uses side milling and spiral paths; finishing uses equal distance or residual material cleaning paths. Wrong strategy choice, especially for stainless steel or aluminum, risks tool sticking, premature failure, and surface defects.
When to Use Roughing Tools and When to Use Finishing Tools?
In actual CNC machining, properly switching between roughing and finishing tools not only improves production efficiency but also extends tool life and ensures workpiece quality. However, many operators face questions such as: Should roughing tools always be used at the start? Can roughing tools be skipped when machining aluminum alloys? Is it possible to machine steel parts in one pass?
This section explores three key aspects—material properties, machining stages, and process risks—to help you determine when to use roughing tools and when to switch to finishing tools. Special focus is given to common materials such as steel, stainless steel, and aluminum alloys, guiding you toward making informed decisions.
Judging Based on Processing Materials (Steel vs. Aluminum vs. Stainless Steel)
Different material properties fundamentally determine the tool selection strategy:
-
Steel (carbon steel, alloy steel) generally has medium to high hardness and requires significant cutting forces for material removal. It’s best to use wave-edge roughing cutters for deep cuts initially, followed by 4- or 6-flute finishing cutters to achieve high surface quality.
-
Stainless steel is prone to tool sticking due to its toughness and low thermal conductivity. It’s not advisable to machine it in a single pass. Instead, stage the process to reduce tool wear and heat buildup.
-
Aluminum alloys are softer with lower cutting resistance. If the allowance is small, a 2- or 3-flute finishing cutter with DLC coating can often complete the job in one pass. However, when dealing with rough blanks or complex contours, a roughing tool is still recommended for initial passes.
In summary, material hardness, thermal conductivity, and sticking tendency dictate whether a division of labor between roughing and finishing tools is necessary.
Selection According to Machining Stages (Blank Roughing vs. Finished Product Size)
Different machining stages require different tool strategies:
-
During initial blank machining or when large allowances exist, start with roughing cutters designed for high chip removal and rigidity to maximize removal rate and reduce roughing time.
-
When approaching final dimensions or finishing, switch to finishing cutters to ensure high surface finish and dimensional accuracy, especially for critical features like holes, curved surfaces, or closed contours.
For example, mold cavity or structural part machining often follows a three-step strategy: roughing → pre-finishing → finishing. Each stage uses specialized tools to balance efficiency and quality.
Risks and Recommendations for One-Tool Multiple-Purpose Use (Especially for Steel)
In practice, small batch jobs or fast-turnaround projects sometimes attempt “one tool for the whole process” to save tool change time. However, this approach has hidden risks:
-
Tool overload: Roughing and finishing have different demands. Using a finishing tool for roughing can easily cause chipping or excessive wear.
-
Dimensional inaccuracies: After roughing, the tool loses geometric precision. Using it for finishing can compromise part dimensions.
-
Surface quality degradation: Excessive use dulls the edge, causing chatter marks, rough surfaces, or residual stresses that impair assembly.
For steel or stainless steel, due to hardness and low thermal conductivity, multi-purpose use often leads to inefficiency. It’s recommended to use a combination such as a 4-flute wave-edge rougher plus a TiSiN-coated 6-flute finisher to ensure efficiency, surface quality, and tool longevity.
Practical Recommendation: Roughing/Finishing Tool Combinations for Different Materials
Achieving high efficiency, quality, and cost-effectiveness in CNC machining depends on matching roughing and finishing tools to the material’s cutting characteristics. Since steel is hard, aluminum is soft, and stainless steel tends to stick, a “one-tool-fits-all” approach is ineffective.
Below are cost-effective roughing + finishing tool combinations for three common metals, balancing efficiency, surface finish, and tool life.
Recommended Combination for Carbon Steel/Alloy Steel
The main challenge is the material’s high strength and cutting load, which cause vibration and wear. The focus is on chip breaking and wear resistance:
-
Roughing: Use a 4-flute wave-edge milling cutter with TiAlN coating. The wave-edge excels in chip breaking and vibration resistance, suitable for medium to high hardness steels, maintaining stability at 1–2 mm cutting depths.
-
Finishing: Use a 4-flute sharp end mill with TiSiN coating, offering superior heat and wear resistance, ideal for tight tolerances and surface finish.
-
Process parameters: Speeds of 6000–8000 rpm, feed rates of 0.04–0.08 mm/tooth, with oil mist cooling recommended.
Recommended Combination for Stainless Steel
Due to toughness and low thermal conductivity, stainless steel is a notorious “sticky tool” material. Improper tool selection can cause chipping, chatter, or overheating:
-
Roughing: Use 3–4 flute chip-breaking roughers with chip breaker grooves or corrugated edges to prevent long chip entanglement, especially for SUS 304 and 316.
-
Finishing: Use 4–6 flute tools with sharp edges and small helix angles (around 30°), coated with TiSiN or nACo to suppress sticking. Suitable for surface finishes targeting Ra < 0.6.
-
Advice: Employ low-speed, high-torque strategies, feed ≤ 0.05 mm/tooth, combined with oil or high-pressure water cooling to extend tool life.
Recommended Combination for Aluminum Alloy
Aluminum is easy to cut but prone to built-up edge (BUE) formation during high-speed machining, which harms surface quality and tool life. Key considerations are smooth chip removal and anti-sticking performance:
-
Roughing: Use a 3-flute large chip groove end mill with sharp edges, either uncoated or DLC-coated, suited for fast, high-feed removal.
-
Finishing: Prefer 2- or 3-flute DLC-coated mirror-finish cutters, with ultra-low friction to achieve mirror finishes below Ra 0.2. Widely used in 3C housings, aluminum frames, and high-gloss decorative parts.
-
Parameters: Speeds ≥ 15,000 rpm, feeds 0.03–0.08 mm/tooth; micro-lubrication or air cooling is recommended to prevent sticking.
Understand Types of Milling Cutters to Improve Efficiency and Tool Life
Tool selection determines final machining efficiency, cost, and product quality. Understanding different types of milling bits and their applications is essential.
This article detailed roughing vs finishing cutters, introduced common types like flat-end, ball-end, corner radius, wave-edge roughers, and mirror finishers. It compared differences in structure, purpose, and process parameters to build a clear decision framework.
For common materials—carbon steel, alloy steel, stainless steel, and aluminum alloy—we recommend practical roughing + finishing combinations considering chip removal, wear resistance, surface finish, and tool life. Whether you want the best milling bit combo for steel or want to optimize aluminum mirror machining with DLC tools, clear guidance is provided.
Remember: tool selection is not isolated. Consider material type, machining stage, machine speed, and cooling methods. Fully understanding tool design and application boundaries significantly improves efficiency, extends tool life, reduces cost, and achieves the win-win of high quality and productivity in today’s competitive manufacturing environment.
