In modern CNC machining, the flat end mill is one of the most commonly used and versatile cutting tools. Thanks to its straight-tip design, it is widely used for grooving, contouring, and face milling operations on both metal and non-metal materials. Compared to ball nose end mills, flat end mills offer more precise vertical cutting, making them ideal for machining flat-bottomed grooves, square holes, and complex 2D contours.
Flat end mills come in various designs, including two-flute and multi-flute options, to meet different machining requirements and material properties such as steel, stainless steel, aluminum alloys, and composites. Selecting the right flat bottom end mill geometry and surface coating is essential to extend tool life and improve machining efficiency.
On CNC machines, the toolpath planning and feed parameters of flat end mills directly impact machining quality and tool durability. Proper cutting depth, speed, and coolant/lubrication settings are critical to ensure efficient and stable milling operations. This article explores the structural features, working principles, and specific applications of flat end mills in CNC machining to help engineers and machinists make informed tool choices.
Definition and Structural Features of Flat End Mills

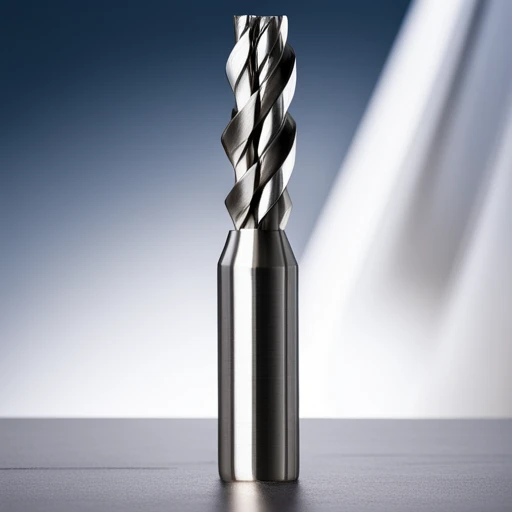

What Is a Flat End Mill?
A flat end mill is a general-purpose cutting tool with a tip that forms a 90-degree angle or nearly a right angle. It is commonly used for pocketing, slotting, and facing operations in CNC machining. Unlike ball nose or corner radius end mills, flat end mills create features with sharp corners and flat bottoms, making them ideal for applications that demand accuracy and geometric clarity.
The tip of the flat bottom cutter mill is a 90° right angle or slightly rounded corner. This structure helps to achieve precise Z-down tool control, which is particularly suitable for rectangular slots, square cavities, step structures, etc. At the same time, using flat end mill bits in the rough machining stage can effectively improve the metal removal rate per unit time, and is a key machining tool for many parts from raw blanks to semi-finished products.
Key Components of Flat End Mill Cutters
A standard flat end mill consists of several core features:
- Flute Count: Affects chip evacuation and cutting performance. Two- or three-flute tools are preferred for aluminum to maximize chip clearance, while four-flute designs offer improved rigidity for steel machining.
- Cutting Diameter and Flute Length: The flute length-to-diameter ratio impacts tool behavior in deep cavities. Longer flutes are more prone to vibration and require conservative cutting strategies.
- Shank and Clamping Compatibility: Tool stability depends on proper shank dimensions and secure clamping, which directly affects vibration control and part accuracy.
- Helix, Rake, and Relief Angles: These angles influence tool sharpness, cutting load, and surface finish. Wide-flute tools suit high-feed roughing, while tools with sharp rake angles and polished flutes are ideal for fine finishing.
These design elements enable flat end mills to handle a wide range of applications, from roughing to finishing, across various materials.
Working Principle and Machining Methods for Flat End Milling cutters
Toolpath Programming Strategies
In CNC programming, toolpaths for flat end mills should leverage their geometric traits and intended functions. Flat end mills cut using both the bottom and side edges, making them suitable for profile milling, pocketing, and slotting.
When cutting pockets or slots, it’s best to use ramp or helical entries rather than plunging straight down. This reduces tool stress and improves longevity. If a vertical Z-entry is necessary, ensure the tool has center-cutting capability and set conservative depth-of-cut (ap) and feed rates to prevent chatter or breakage.
Effective strategies include contour-parallel or layer-by-layer clearing for clean bottom finishes. For deep cavities, combine roughing and finishing passes to maintain smooth cutting and reduce wear.
Common Machining Operations for Flat Milling Cutters
Flat end mills are ideal for essential operations like slotting, facing, and roughing. Their flat-bottom design produces clean, sharp-bottomed features with no corner radius, which is crucial for applications requiring geometric accuracy—such as molds, stepped components, or thin-walled parts.
- Slotting: Offers excellent slot control for both open and closed slots.
- Facing: Large cutting areas improve surface finish and productivity.
- Roughing: Broad cutting contact provides high material removal rates while maintaining tool rigidity.
Compared to ball nose end mills, flat end mills minimize residual material at the bottom and avoid “dishing” effects. For finishing, selecting a long-flute flat end mill with a high-quality coating (e.g., DLC or TiB₂) enhances bottom surface accuracy and reduces secondary finishing needs.
Types of Flat End Mills and Their Applications
Standard vs. Extended vs. Micro-Diameter Flat End Mills
Flat end mills are categorized by geometry and size to suit diverse tasks:
- Standard Flat End Mill: Ideal for general-purpose face milling, slotting, and shallow pockets. Balances rigidity and cutting performance for everyday CNC work.
- Extended Flat End Mill: Designed for deep cavities and stepped geometries. Features longer flutes and shanks to reach difficult areas. Feed rates should be reduced to avoid tool deflection and vibration.
- Micro Flat End Mill: Used for precision features in electronics, micro-molds, or medical devices. Diameters can be as small as 1mm or less. These tools require high-speed spindles and rigid setups to avoid breakage.
Choosing the right type based on tool overhang, cavity depth, and feature size helps avoid issues like wall deformation, poor surface finish, or tool failure.
Recommended Use by Material Type
Tool geometry and coating must match the material being machined to maximize performance and durability:
- Aluminum Alloys: Use polished, high-rake 2-flute tools with ZrN coating. This improves chip flow and prevents built-up edge (BUE), ideal for aerospace and mold-grade aluminum.
- Stainless Steel & Carbon Steel: Use multi-flute tools with high-hardness substrates and heat-resistant coatings like AlTiN or TiAlN. These improve wear resistance and thermal stability for long machining cycles.
- Copper & Plastics: For copper, use sharp-edged, uncoated or DLC-coated tools to minimize burrs. For plastics, use high-helix, sharp-edge cutters with high spindle speeds and low feed rates to prevent melting or deformation.
Proper tool and coating selection ensures better chip evacuation, reduces heat buildup, and extends tool life—leading to more consistent and efficient CNC operations.
How to Correctly Select and Use Flat End Mills?
Tool Selection Principles Based on Workpieces and Equipment
Selecting the right flat end mill is critical—not only for ensuring product quality but also for maximizing tool life and overall production efficiency. When choosing a tool, multiple factors should be considered comprehensively, including the workpiece material, machine capabilities, machining method, and desired accuracy. Developing a targeted tooling strategy based on these parameters is essential.
For high-speed machining scenarios—such as high-speed cutting of aluminum alloys or large-scale light-load finishing—priority should be given to 2-flute or 3-flute flat end mills that offer excellent chip evacuation and low cutting resistance. Pairing these tools with mirror-polished flutes and ZrN coatings can reduce tool temperature and prevent chip adhesion.
In high-precision machining, such as mold cavity finishing or precision component bottom surface machining, multi-flute flat end mills with sharp cutting edges are recommended to improve dimensional control and surface finish quality.
When selecting tool diameter, it must be evaluated alongside machining paths and allowances. For example, in slotting or deep cavity contour milling, the tool diameter should be slightly smaller than the channel width to ensure sufficient chip evacuation along the sidewalls. Conversely, for large-area face milling, a larger diameter flat end mill can enhance efficiency and reduce the number of toolpath overlaps. Matching the tool size reasonably with the machining path improves productivity while reducing tool load and vibration risks.
Common Misunderstandings and Failure Analysis
Many poor machining outcomes with flat end mills arise from incorrect parameter settings, improper tool selection, or unsuitable operating methods. Below are typical misuse cases that CNC programmers and operators should avoid:
Excessive Tool Wear
Often caused by using inappropriate tool materials or coatings on high-hardness workpieces. For instance, machining steel parts above HRC 55 with ordinary coated or uncoated flat end mills accelerates edge wear and chipping. The recommendation is to use high-hardness tools coated with AlTiN or TiSiN and reduce cutting speed and feed rate to prolong tool life.
Burr Formation and Unclear Boundaries at the Bottom
This usually results from dull cutting edges or excessively low cutting speeds, causing incomplete cutting. Improper vertical feed angles or lack of buffer zones in toolpaths can also cause this issue. To improve bottom contour clarity, use flat end mills with sharp cutting edges and implement ramping and retract strategies in the toolpath programming.
Poor Chip Evacuation and Chip Accumulation
Common in machining sticky materials such as copper and aluminum. Without high chip-capacity flute designs or effective cooling, chips tend to clog the flute, leading to tool blockage or breakage. Use flat end mills with large chip evacuation grooves and auxiliary chip removal methods such as oil mist cooling, air cooling, or high-speed dry cutting.
Mismatched Parameter Settings and Cooling Methods
Traditional water or oil cooling in high-speed cutting can cause thermal shock to the tool, surface cracking, or chip splashing. For low-friction coated tools like DLC or TiB₂, dry cutting or air cooling is preferable to retain coating benefits and avoid thermal damage.
The key to avoiding these issues is a deep understanding of tool characteristics, reasonable matching of processing conditions, and parameter adjustments tailored to specific materials. Digital monitoring of tool life and cutting parameters helps improve quality and significantly reduce overall costs.
The Value of Flat End Mills in Modern CNC Machining
In today’s CNC machining environment, the flat end mill stands out as a general-purpose tool with a simple structure but powerful functionality, present in almost every machine shop. Whether working with aluminum alloys, copper, stainless steel, or medium to high-hardness steels, flat end mills are indispensable due to their precise geometric cutting boundaries, excellent bottom surface finish, and versatile toolpath adaptability.
As discussed, different types of flat end mills—standard, extended-reach, and micro tools—allow flexible handling of various tasks from deep cavity contouring and slotting to face milling and precision finishing. Effective selection and usage require consideration of the workpiece material, machine capability, toolpath planning, and cooling strategies to maximize performance.
To further enhance flat end mill performance and service life, users should focus on:
-
Selecting the appropriate tool type and number of flutes to match specific operating conditions.
-
Choosing suitable coatings based on workpiece material, such as TiAlN, AlTiN, and ZrN.
-
Optimizing CNC toolpaths to avoid excessive or forced cutting.
-
Applying appropriate cooling methods to reduce thermal shock and chip accumulation.
Although flat end mills are highly versatile, in some specialized applications—like complex 3D surface machining or fine curved contours—other tool types such as ball nose mills, corner radius end mills, and tapered end mills complement flat end mills effectively. Smart tool combinations and timely tool changes are essential for improving machining efficiency and part quality.
In summary, flat end mills are not only the “universal player” in CNC shops but also a core contributor to high-efficiency machining, precision control, and cost optimization. For companies focused on stable production and quality, establishing a scientific, well-structured flat end mill selection and usage system will provide long-term competitive advantages.
