Single flute end mills (SFEMs), due to their unique structural design, provide significant advantages when machining soft materials such as aluminum, plastics, and composites. Compared to traditional multi flute mills, single flute end mills have fewer cutting edges, allowing smoother chip evacuation and reducing the risk of tool clogging or material melting. This makes them particularly suitable for high-speed cutting.
Carbide single-flute end mills maintain high wear resistance while balancing machining efficiency and surface quality, making them ideal for aluminum and plastic parts. Additionally, spiral end mill designs optimize the cutting force direction, further improving machining stability and tool life. To meet the specific needs of different materials, single-flute end mills are also available in versions optimized for aluminum and plastics, helping engineers select the most appropriate tool based on material characteristics.
By choosing the right single-flute end mill and combining it with optimized cutting parameters, feed rates, and cooling strategies, engineers can achieve efficient, precise CNC machining while extending tool life and minimizing machining defects.

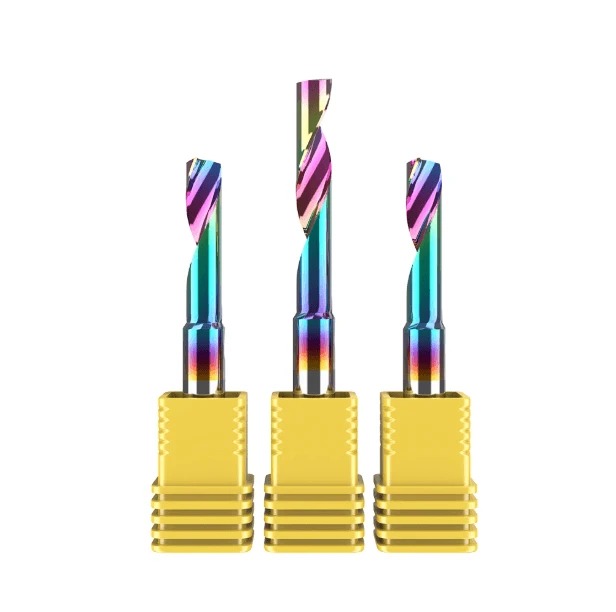

What is a Single Flute End Mill?
A single-flute end mill is a milling tool with only one cutting edge. Its design is primarily intended to enable smooth chip evacuation and efficient cutting when machining soft materials. Compared to conventional multi flute end mills, single-flute end mills reduce cutting resistance and heat buildup, minimizing the risk of material melting or sticking. Understanding the structural characteristics of single flute end mills is key for selecting the appropriate tool and optimizing CNC machining parameters.
Definition and Structural Characteristics of Single Flute End Mills
The defining feature of a single flute end mill is its single cutting edge, whose geometry is optimized for efficient cutting and chip evacuation. With fewer cutting edges, the contact area between the tool and workpiece is smaller, resulting in lower friction and heat generation. This makes single-flute end mills ideal for aluminum, plastic, and composite materials.
Single-flute mills often have an optimized helix angle, forming a spiral end mill. This design directs cutting forces more effectively, ensuring rapid chip evacuation and reducing tool blockage. As a result, single-flute end mills for aluminum or plastics provide improved machining stability and surface finish in real production scenarios.
Differences between Single Flute and Multi -Flute Milling Cutters
Multi-flute milling cutters have two or more cutting edges. While suitable for hard materials, they are prone to chip accumulation, melting, or tool sticking when machining soft materials. In contrast, single-flute end mills maintain stable cutting forces during high-speed operations, preventing overheating and improving surface quality.
The single-flute design also reduces cutting vibration, enhancing CNC machining stability. Carbide single-flute end mills and standard single-flute end mills are therefore preferred for machining soft materials. By carefully selecting tool diameter, helix angle, and cutting length, and combining these with proper feed and speed settings, engineers can maximize the advantages of single-flute end mills for efficient, precise machining.
Advantages of Single Flute End Mills in Soft Material Machining
Single-flute end mills offer distinct advantages in cutting force management, chip evacuation, and machining stability. They effectively address common soft-material issues, including tool clogging, melting, and surface roughness. Using carbide single-flute end mills or spiral end mills, engineers can achieve higher cutting efficiency and superior surface finish in high-speed CNC machining.
Smooth Chip Evacuation to Avoid Tool Blockage
Soft materials such as aluminum and plastics produce adhesive chips that can clog the tool. Single-flute end mills reduce the number of cutting edges and optimize helix angle, ensuring rapid chip evacuation. This minimizes tool load and vibration, maintaining machining stability. Single flute end mills for aluminum or plastics are particularly effective in preventing tool blockage.
Reduce Cutting Heat to Prevent Material Melting
Single-flute end mills minimize contact area between tool and workpiece, reducing frictional heat. Combined with proper speed and feed settings, this prevents soft materials from melting or adhering to the tool, ensuring smooth surfaces and dimensional accuracy. For example, a carbide single-flute end mill in aluminum machining, when used with optimized tool geometry and cutting parameters, achieves low-temperature cutting and superior surface finish.
High Machining Speed and Efficiency
Due to smooth chip evacuation and low cutting heat, single flute end mills allow higher feed rates and spindle speeds, significantly improving productivity. Helical single-flute end mills can increase cutting speeds by 20%-30% in aluminum extrusion machining, while maintaining excellent surface quality. This makes single-flute end mills for aluminum and plastics the preferred choice in modern CNC machining.
Different Types of Single Flute End Mills and Their Applications
Single-flute end mills can be categorized based on tool material and geometry, each type providing unique benefits. Engineers often choose carbide single-flute end mills, helical single-flute end mills, or material-specific single-flute end mills to achieve optimal machining performance.

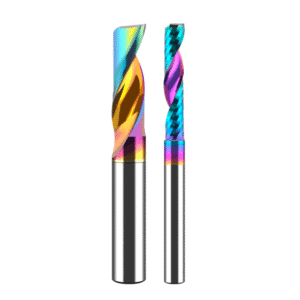

Carbide Single Flute End Mill
Made of highly wear-resistant carbide, these mills provide excellent durability and heat resistance, maintaining performance during continuous high-speed cutting. Carbide single-flute end mills reduce chip adhesion and tool chipping, offering stable machining and high-quality surfaces. Selecting the right diameter, helix angle, and cutting length ensures a balance of efficiency and surface finish.

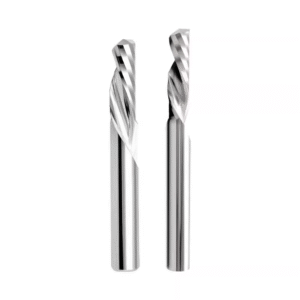

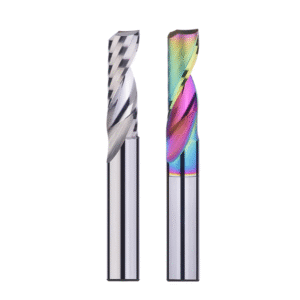

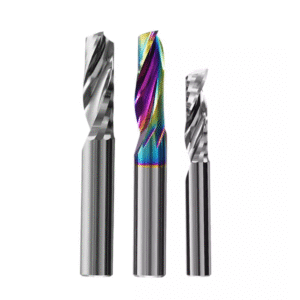

Spiral End Mill
Spiral single flute end mills feature a helical cutting edge that evenly distributes cutting forces, reduces vibration, and optimizes chip evacuation. This reduces heat generation and improves surface finish, especially in aluminum and plastic machining. Adjusting helix angle and feed rate according to material properties maximizes performance.
Single Flute Spiral End Mills for Specific Materials
-

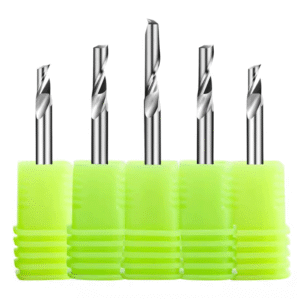

Aluminum: Single flute end mills for aluminum have optimized cutting angles and geometry, maximizing chip evacuation and surface finish.
-
Plastics: Single-flute end mills for plastics often feature low-friction coatings or special geometry to minimize heat buildup and maintain machining accuracy.
Properly matching tool type to material ensures high efficiency, low wear, and high-quality results.
Tips for Selecting and Using Carbide Single Flute Milling Cutters for Soft Materials
Optimizing tool selection and cutting strategy is key to machining soft materials effectively. Engineers should consider tool geometry, cutting speed, feed rate, and cooling/lubrication methods to maximize single-flute end mill performance.
Selecting Appropriate Tool Parameters
Tool diameter, helix angle, and flute length affect cutting force, chip evacuation, and surface finish. Single flute end mills for aluminum facilitate smooth chip removal, while single flute end mills for plastics reduce heat and improve machining accuracy.
Cutting Speed and Feed Rate Optimization
High-speed machining allows greater material removal, but plastics may require slower speeds to prevent melting. Carbide single-flute end mills can operate at higher speeds in aluminum with moderate feed rates. Adjusting parameters ensures a balance between efficiency and surface quality.
Coolant and Lubrication Application Strategies
Dry cutting is suitable for low cutting forces and smooth chip evacuation. Wet or lubricated cutting reduces tool temperature during high-speed or long-duration operations, preventing material melting or tool chipping. Combining tool grade, cutting parameters, and cooling strategy maximizes efficiency, precision, and tool life.
Common Problems and Solutions
When machining soft materials with single flute spiral end mills, engineers may encounter issues such as short tool life, chipping, rough surfaces, or material melting. Understanding the causes and implementing effective solutions can help optimize machining processes, improve surface quality, and extend tool life.
Causes of Short Tool Life or Chipping
Single-flute end mills may experience premature edge wear or chipping due to poor chip evacuation, excessively high spindle speeds, or mismatched cutting parameters. Poor chip evacuation increases tool load, especially when machining aluminum or plastics, leading to faster wear.
When using a carbide single-flute end mill, engineers should ensure the helix angle and tool geometry are appropriate for the material. Properly setting the speed and feed rate minimizes cutting vibration and uneven force, effectively extending tool life.
Rough or Melted Machined Surfaces
Soft materials are prone to melting or sticking to the tool due to heat buildup during machining. This can result in rough surfaces or dimensional inaccuracies. Solutions include:
-
Reducing spindle speed or optimizing feed rate
-
Selecting the appropriate single flute end mill for aluminum or plastics
-
Adjusting tool geometry and cutting strategy to minimize cutting heat
By applying these adjustments, engineers can maintain smooth surface finish, prevent material deformation, and improve overall machining accuracy.
Single Flute End Mill Maintenance and Care
Proper maintenance is essential for maximizing tool efficiency and life. After each use, single flute spiral end mills should be cleaned of chips and residual material, and blade wear should be regularly inspected. Tools should be sharpened or replaced as needed.
For spiral end mills, keeping the spiral edges clean and intact is critical for smooth chip evacuation and cutting stability. Consistent maintenance ensures reliable performance, better surface quality, and longer tool life when machining soft materials.
Summary
Single-flute end mills provide significant advantages when machining soft materials such as aluminum, plastics, and composites. Their single-flute design promotes smooth chip evacuation and reduces heat buildup, preventing material melting and tool chipping. These end mills also enable high machining efficiency and excellent surface finish at high cutting speeds. Carbide single-flute end mills and spiral end mills, in particular, offer outstanding stability and tool life in a wide range of applications.
Selecting the right single-flute end mill requires considering:
-
Material type
-
Tool diameter, helix angle, and flute length
-
Cutting parameters (speed and feed rate)
-
Dry or lubricated cutting strategies
For aluminum, a single-flute end mill for aluminum ensures optimal chip evacuation and surface finish. For plastics, a single-flute end mill for plastics minimizes cutting heat, enhances accuracy, and extends tool life.
Proper tool maintenance, including timely chip removal, blade wear monitoring, and necessary sharpening, further maximizes tool efficiency and stability. By combining material properties, processing requirements, and experienced cutting strategies, single flute end mills can provide efficient, stable, and precise machining solutions for soft materials.
