Top Applications of Dovetail End Mills in CNC Machining

Top Applications of Dovetail End Mills in CNC Machining

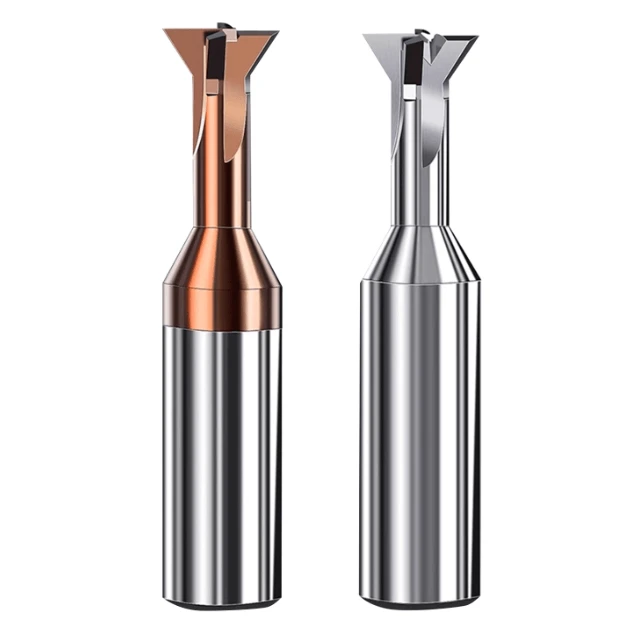

dovetail-end-mills

Dovetail end mills, with their unique geometry and cutting characteristics, are widely used in CNC machining for mold manufacturing, fixtures, and precision parts. Unlike conventional end mills, dovetail end mills excel at machining dovetail grooves, locating slots, and complex cavities, making them essential tools for high-precision assembly and stable clamping.

Selecting the right tool depends on the material being machined. For instance, a dovetail end mill for aluminum focuses on high-speed cutting and efficient chip evacuation to achieve a smooth surface finish. A dovetail end mill for steel requires excellent wear resistance and coatings to handle higher cutting forces. When machining stainless steel, a dovetail end mill for stainless steel must prevent tool sticking and manage material hardening. For titanium, a dovetail end mill for titanium demands high-temperature resistance and stable cooling to maintain cutting accuracy and tool life.

Carbide dovetail end mills are often preferred due to their superior hardness, wear resistance, and suitability for high-speed machining. For specialized requirements, custom dovetail end mill manufacturers can provide tailored tools to meet non-standard sizes, unusual angles, and highly complex part geometries.

Proper selection and application of dovetail end mills improve machining efficiency, enhance product quality, and extend tool life, giving manufacturers a competitive edge in precision machining and efficient production.

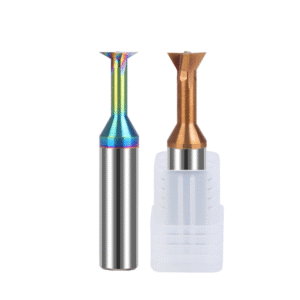

dovetail-end-mill

What is a Dovetail End Mill?

A dovetail end mill is a tool designed specifically for cutting dovetail grooves and angled cavities. Its cutter head features a beveled or tapered geometry, allowing precise dovetail connections, fixture positioning, and undercut machining of complex parts. These cutters are widely used, from moldmaking to aerospace components and precision machinery, making them essential in many manufacturing environments.

Compared to standard end mills, dovetail end mills provide superior angle control, machining stability, and the ability to form complex geometries. Engineers often select specialized tools such as carbide dovetail end mills or dovetail end mills for aluminum, steel, stainless steel, and titanium to optimize efficiency and tool life.

Structural Features and Working Principles of Dovetail Milling Cutters

Dovetail milling cutters typically have a tapered cutter head and precisely controlled tool angles. This design allows the tool to produce dovetail grooves with exact dimensions, ensuring accurate assembly. The angled cutting edge also enables self-centering during machining, improving part stability.

For example, a dovetail end mill for aluminum uses sharp edges and smooth chip flow to achieve a fine surface finish at high cutting speeds. In steel or stainless steel applications, coatings and carbide substrates enhance durability, especially for carbide dovetail end mills. For titanium, heat resistance and coolant management are critical for maintaining cutting stability.

Differences from Standard End Mills

Standard end mills are effective for flat surfaces, side milling, and slotting but struggle with angled or undercut features. Dovetail end mills overcome this limitation, making them ideal for fixture positioning and mold cavities. Carbide dovetail end mills also outperform HSS tools in wear resistance and speed, particularly for steel and stainless steel applications. Tool selection depends on the machining requirements and material properties.

Common Applications in CNC Machining

  • Fixture Machining: Dovetail grooves enhance part stability and repeatability during clamping.

  • Mold Manufacturing: Carbide dovetail end mills machine undercuts and complex cavities, improving mold assembly accuracy.

  • Aerospace Parts: Dovetail end mills for titanium and stainless steel cut high-strength, heat-resistant materials efficiently.

  • Precision Machinery and Medical Devices: Carbide dovetail end mills provide high-precision cutting for microstructures and complex geometries.

Custom dovetail end mill manufacturers are often engaged for non-standard parts or unique angles, ensuring optimal performance.

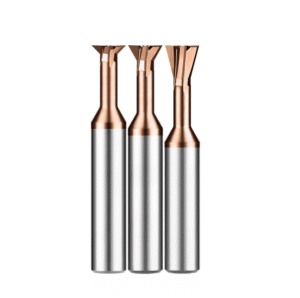

dovetail end mills

Key Applications of Dovetail End Mills

Dovetail end mills are widely used across CNC machining scenarios, from mold manufacturing to aerospace and precision machinery. Engineers often choose carbide dovetail end mills for improved tool life or select material-specific tools for aluminum, steel, stainless steel, or titanium. For non-standard parts, custom dovetail end mill manufacturers provide tailored solutions.

Mold Manufacturing

Dovetail grooves in molds ensure precise positioning and assembly. Dovetail end mills for aluminum offer high-speed cutting and smooth finishes, while steel and stainless steel require coated carbide tools to enhance wear resistance and prevent sticking. Titanium molds need specialized titanium-compatible dovetail end mills to maintain stable cutting under high temperatures.

Fixture and Locating Groove Cutting

Dovetail grooves in fixtures improve part stability and repeatability. Carbide dovetail end mills ensure long tool life when machining steel or stainless steel fixtures. For non-standard fixtures, manufacturers often rely on custom dovetail end mill manufacturers for specialized angles and dimensions.

Aerospace Part Machining

Titanium and high-strength alloys are challenging to machine. Dovetail end mills for titanium and stainless steel maintain cutting stability and tool life in high-intensity environments, enabling precise undercut and complex geometry machining critical for aerospace safety.

Micromachining for Precision Machinery and Medical Devices

Complex, miniature parts demand high tool accuracy. Carbide dovetail end mills provide precision cutting for aluminum, steel, and stainless steel microstructures. For specialized micromachining, engineers collaborate with custom dovetail end mill manufacturers to meet exacting requirements.

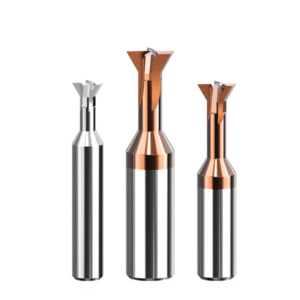

dovetail end mill

Dovetail End Mill Selection Guide for Different Materials

Material properties influence tool performance, so selecting the appropriate dovetail end mill is crucial. Engineers should consider hardness, toughness, cutting speed, chip evacuation, and coating. Carbide dovetail end mills are advantageous for improving wear resistance and tool life across materials.

Dovetail End Mill for Aluminum

Aluminum alloys are soft but prone to sticking and burring. A dovetail end mill for aluminum requires a sharp cutting edge, efficient chip evacuation, and high-speed cutting. Carbide dovetail end mills improve stability and reduce vibration, while proper coolant usage prevents thermal deformation.

Dovetail End Mill for Steel

Steel has high hardness and cutting forces. Carbide dovetail end mills with wear-resistant coatings (TiAlN, TiCN) are preferred to reduce tool wear. Optimized feed rates, cutting speeds, and coolant help maintain machining stability and precision.

Dovetail End Mill for Stainless Steel

Stainless steel work hardens easily and tends to stick. Carbide dovetail end mills with coatings are required, along with lower cutting speeds and optimized depth of cut to minimize heat and material adhesion. Effective chip evacuation and cooling are essential.

Dovetail End Mill for Titanium

Titanium’s low thermal conductivity and high strength make cutting challenging. Carbide dovetail end mills with advanced coatings (DLC, TiAlN) resist high temperatures and wear. Proper cooling and feed strategies improve stability and surface finish in aerospace and medical device machining.

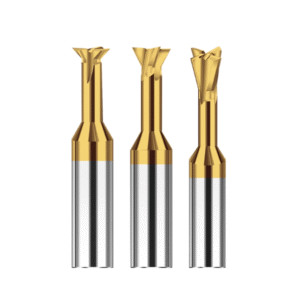

dovetail end mill for aluminum

Why Choose a Carbide Dovetail End Mill for CNC Machining?

In CNC machining, tool material directly affects cutting efficiency, machining accuracy, and tool life. A carbide dovetail end mill (tungsten carbide dovetail end mill), with its high hardness, wear resistance, and excellent thermal stability, is ideal for machining aluminum alloys, steel, stainless steel, and titanium. Compared to traditional high-speed steel (HSS) tools, carbide tools maintain better dimensional stability, surface quality, and cutting performance during high-speed and precision machining, while also extending tool life and reducing overall production costs.

Choosing the right carbide dovetail end mill allows engineers to achieve efficient chip evacuation, stable cutting, and high-precision machining in mold manufacturing, fixture machining, and complex geometry cutting. For specialized requirements, collaborating with custom dovetail end mill manufacturers enables the creation of tools tailored to unique angles, non-standard dimensions, and complex cavities.

Advantages of Tungsten Carbide Tool Life and Wear Resistance

Tungsten carbide provides exceptional hardness and excellent wear resistance, allowing dovetail end mills to retain sharp edges even during extended cutting cycles. Compared to HSS tools, carbide dovetail end mills reduce tool wear and thermal deformation, extending overall tool life. When machining steel or stainless steel, carbide tools effectively handle high cutting forces and material hardening, ensuring consistent machining accuracy and surface quality.

Carbide vs HSS Dovetail End Mills

Compared to HSS dovetail milling cutters, carbide dovetail end mills offer superior wear resistance, cutting stability, and high-speed machining capability. HSS tools work well at low speeds and with soft materials but are prone to rapid wear, sticking, and dimensional instability when machining steel, stainless steel, or titanium. Carbide tools, especially with advanced coatings like TiAlN or DLC, improve chip evacuation and maintain high precision, making them ideal for demanding CNC applications.

Ideal for High-Speed Cutting and Precision Machining

Carbide dovetail end mills excel in high-speed and precision applications. For example, aluminum dovetail end mills ensure fast chip evacuation and a smooth surface finish, while titanium tools maintain cutting stability under high temperatures. Engineers using carbide dovetail end mills in mold machining, fixture groove cutting, and aerospace component production improve productivity, part quality, and assembly accuracy.

carbide-dovetail-end-mills

The Value of Custom Dovetail End Mill Manufacturers in Precision CNC Machining

While standard dovetail end mills cover general machining needs, custom dovetail end mill manufacturers are crucial for non-standard parts, complex cavities, and specialized materials. Custom tooling ensures precise fit for materials like aluminum, steel, stainless steel, and titanium, enhancing groove accuracy, chip evacuation, and cutting efficiency. Customized tools also extend tool life and reduce production costs, making them indispensable in high-end manufacturing.

Standard vs Custom Tooling

Standard dovetail milling cutters are cost-effective for common materials and dimensions but may fail to meet the requirements of non-standard parts or complex cavities. Custom dovetail end mills are optimized for part size, groove angle, material hardness, and machining depth, ensuring precise cutting, durability, and compatibility with high-speed carbide tools.

Key Factors When Selecting a Custom Dovetail End Mill Supplier

Engineers and procurement teams should consider:

  • Tool design capability: Accurate design based on drawings or machining requirements.

  • Material and coating technology: High-hardness, wear-resistant tungsten carbide with coatings suitable for aluminum, steel, stainless steel, or titanium.

  • Machining accuracy and quality control: Dimensional stability and precise flute angles for superior part quality.

  • Delivery and after-sales service: Timely supply and technical support.

B2B Engineer and Procurement Considerations

Engineers focus on material compatibility, cutting performance, wear resistance, and tool life. Procurement evaluates delivery times, cost, and customization capabilities. Collaboration with custom dovetail end mill manufacturers ensures high-precision machining while balancing cost and production efficiency.

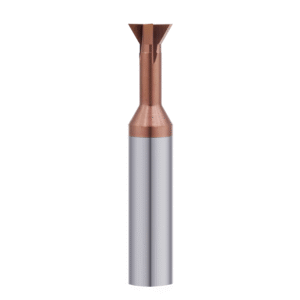

carbide-dovetail-end-mill

Best Practices for Using Dovetail End Mills

Maximizing performance requires optimal cutting parameters, lubrication and cooling, and tool life management. Scientific operation improves efficiency, part quality, and extends carbide dovetail end mill life across aluminum, steel, stainless steel, and titanium.

Recommended Cutting Parameters and Feed Strategies

  • Aluminum: High cutting speeds and feed rates for improved chip evacuation and surface finish.

  • Steel, Stainless Steel, Titanium: Lower cutting speeds and controlled depth of cut to minimize wear and heat.

  • Use multi-pass or layered cutting strategies to maintain stability and precision.

Optimizing Lubrication and Cooling

  • Aluminum: High-performance cutting fluid prevents sticking and material buildup.

  • Steel, Stainless Steel, Titanium: Appropriate coolant spraying and intermittent cutting lower temperatures and reduce tool wear.

  • Choose cooling methods considering material and coating properties for optimal chip evacuation and stability.

Extending Tool Life and Controlling Costs

  • Select the proper carbide dovetail end mill and coating for the material.

  • Optimize cutting parameters to avoid premature wear.

  • Use layered or intermittent cutting to reduce thermal load.

  • Regularly monitor and replace or resharpen tools as needed.

Scientific management ensures machining accuracy, cost control, and maximum efficiency.

carbide dovetail end mills

Conclusion

Dovetail end mills are essential in CNC machining for precise dovetail grooves, undercuts, and complex geometries. Selecting the appropriate tool for different materials, such as aluminum, steel, stainless steel, or titanium, ensures high efficiency, stable chip evacuation, and excellent surface finish.

Carbide dovetail end mills provide high hardness, wear resistance, and thermal stability, ideal for high-speed and precision machining, extending tool life and reducing costs. For non-standard or specialized parts, custom dovetail end mill manufacturers supply tailored tools to meet complex angles, dimensions, and high-precision requirements, improving flexibility and quality.

Proper cutting parameters, optimized lubrication and cooling, and scientific tool life management maximize the performance of dovetail milling cutters in molds, fixtures, aerospace parts, and precision machinery, enhancing efficiency, part quality, and cost-effectiveness.
